Uputstvo za upotrebu
TESLA televizor 40E635BFS
Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,
potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.
Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike
i konkurentne cene proizvoda.
Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:
https://tehnoteka.rs/p/tesla-televizor-40e635bfs-akcija-cena/
1 / 134

SERIES 6
Model E635
LED TV
QUICK
START
GUIDE
HUN MKD ROU S LV SRB
ENG BIH/
MNE BGR GRC HRV
2 / 134
1 / 1322 / 134

OPERATING INSTRUCTION
Please read these instructions before operating
your set and retain them for future reference.
UPUTSTVO ZA UPOTREBU
Prije upotrebe uređaja pročitati ova uputstva
i zadržati ih radi kasnijih referenci.
UPUTE ZA KORIŠTENJE
Prije korištenja uređaja pažljivo pročitati
upute i sačuvati ih za buduću upotrebu.
KEZELÉSI UTASÍTÁ
Kérjük, a készülék használata előtt olvassa el ezeket az
utasításokat, és őrizze ezeket meg későbbi betekintésre.
ΟΔΗΓΙΑ ΛΕΙΤΟΥΡΓΙΑΣ
Διαβάστε αυτές τις οδηγίες πριν από τη λειτουργία της μονάδας
σας και να τα διατηρήσετε για μελλοντική αναφορά.
ИНСТРУКЦИИ ЗА ЕКСПЛОАТАЦИЯ
Моля, прочетете тези инструкции, преди да използвате
устройството и ги запазете за бъдещи справки.
NAVODILA ZA UPORABO
Pred uporabo pozorno preberite navodila
in jih shranite za morebitno uporabo v prihodnosti.
INSTRUCȚIUNI DE UTILIZARE
Vă rugăm să citiți aceste instrucțiuni înainte de a folosi
televizorul și păstrați-le pentru referințe ulterioare.
UPUTSTVO ZA UPOTREBU
Pre upotrebe uređaja pročitati ova uputstva
i zadržati ih radi kasnijih referenci.
УПАТСТВО ЗА КОРИСТЕЊЕ
Ве молиме прочитајте го ова упатство пред да го
инсталирате и употребувате вашиот уред.
ENG
BIH/
MNE
HRV
HUN
GRC
BGR
MKD
S LV
ROU
SRB
3 / 134
2 / 1323 / 134

3
ENG

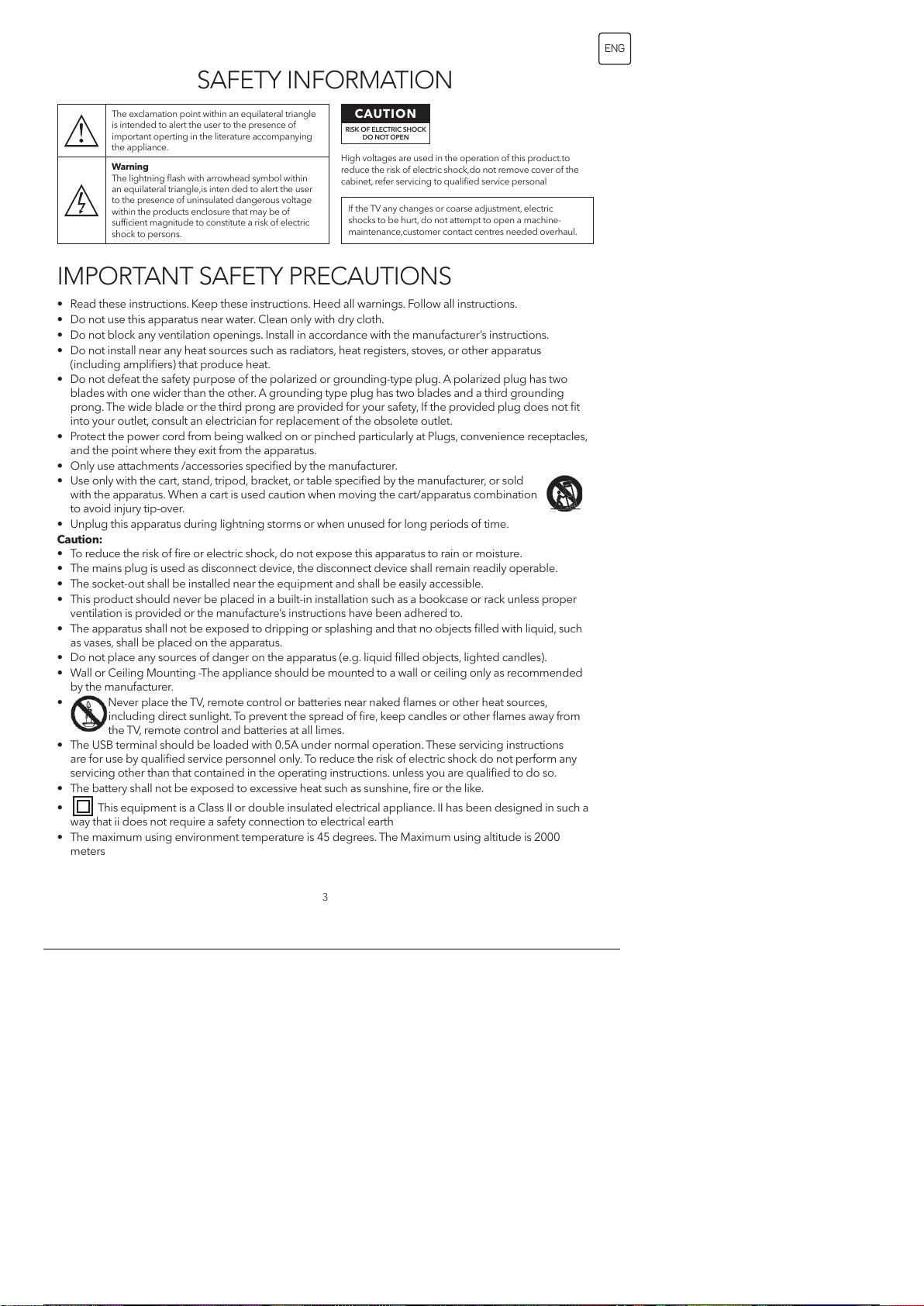

SAFETY INFORMATION
IMPORTANT SAFETY PRECAUTIONS
• Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.
• Do not use this apparatus near water. Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles,
and the point where they exit from the apparatus.
• Only use attachments /accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used caution when moving the cart/apparatus combination
to avoid injury tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
Caution:
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
• The socket-out shall be installed near the equipment and shall be easily accessible.
• This product should never be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacture’s instructions have been adhered to.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such
as vases, shall be placed on the apparatus.
• Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
• Wall or Ceiling Mounting -The appliance should be mounted to a wall or ceiling only as recommended
by the manufacturer.
• Never place the TV, remote control or batteries near naked flames or other heat sources,
including direct sunlight. To prevent the spread of fire, keep candles or other flames away from
the TV, remote control and batteries at all limes.
• The USB terminal should be loaded with 0.5A under normal operation. These servicing instructions
are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any
servicing other than that contained in the operating instructions. unless you are qualified to do so.
• The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• This equipment is a Class II or double insulated electrical appliance. II has been designed in such a
way that ii does not require a safety connection to electrical earth
• The maximum using environment temperature is 45 degrees.The Maximum using altitude is 2000
meters
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operting in the literature accompanying
the appliance.
Warning
The lightning flash with arrowhead symbol within
an equilateral triangle,is inten ded to alert the user
to the presence of uninsulated dangerous voltage
within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
High voltages are used in the operation of this product.to
reduce the risk of electric shock,do not remove cover of the
cabinet, refer servicing to qualified service personal
If the TV any changes or coarse adjustment, electric
shocks to be hurt, do not attempt to open a machine-
maintenance,customer contact centres needed overhaul.
4 / 134
3 / 1324 / 134

4
ENG

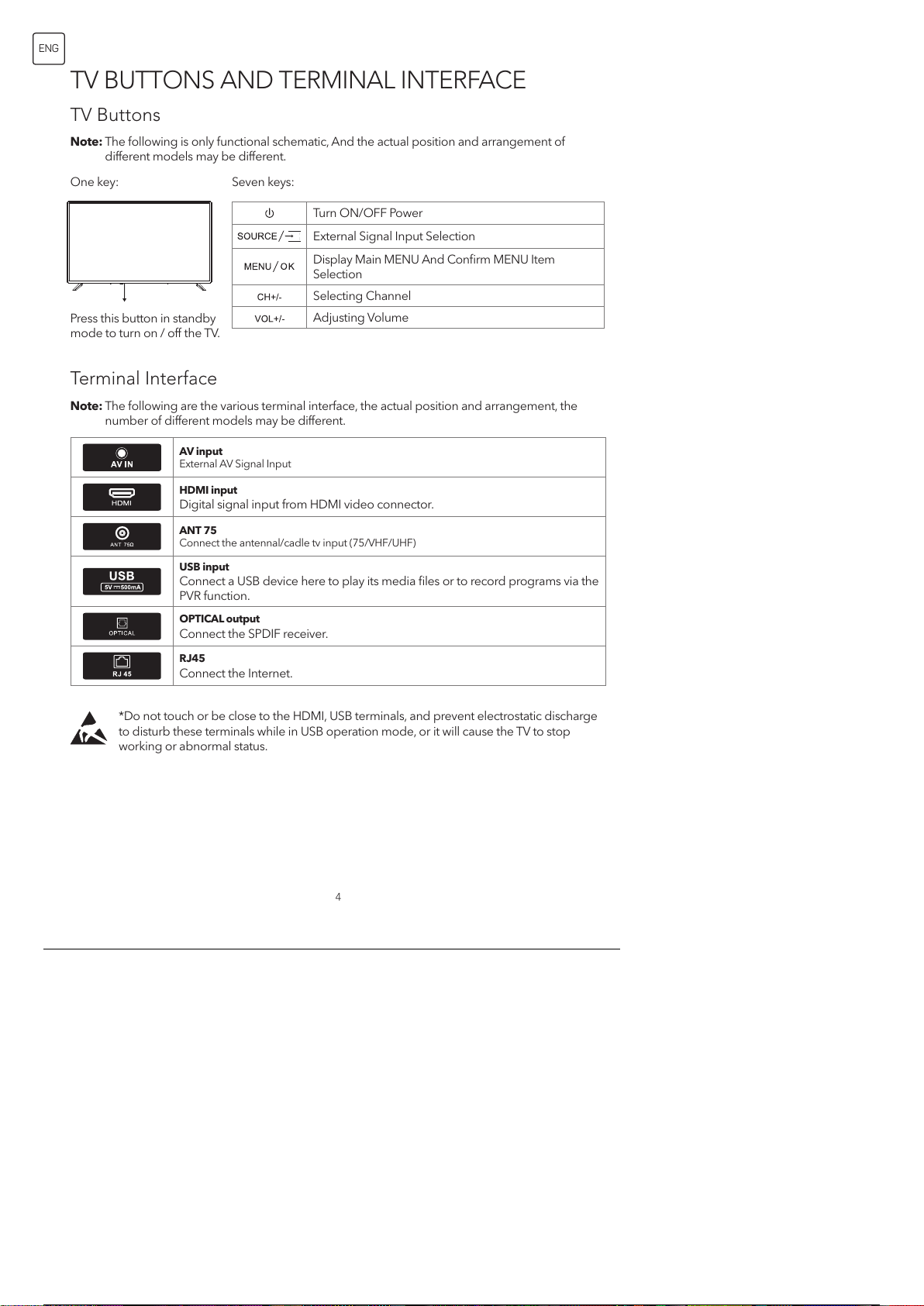

TV BUTTONS AND TERMINAL INTERFACE
TV Buttons
Terminal Interface
Note: The following is only functional schematic, And the actual position and arrangement of
different models may be different.
Note: The following are the various terminal interface, the actual position and arrangement, the
number of different models may be different.
One key: Seven keys:
Press this button in standby
mode to turn on / off the TV.
Turn ON/OFF Power
External Signal Input Selection
Display Main MENU And Confirm MENU Item
Selection
Selecting Channel
Adjusting Volume
AV input
External AV Signal Input
HDMI input
Digital signal input from HDMI video connector.
ANT 75
Connect the antennal/cadle tv input (75/VHF/UHF)
USB input
Connect a USB device here to play its media files or to record programs via the
PVR function.
OPTICAL output
Connect the SPDIF receiver.
RJ45
Connect the Internet.
*Do not touch or be close to the HDMI, USB terminals, and prevent electrostatic discharge
to disturb these terminals while in USB operation mode, or it will cause the TV to stop
working or abnormal status.
5 / 134
4 / 1325 / 134

5
ENG

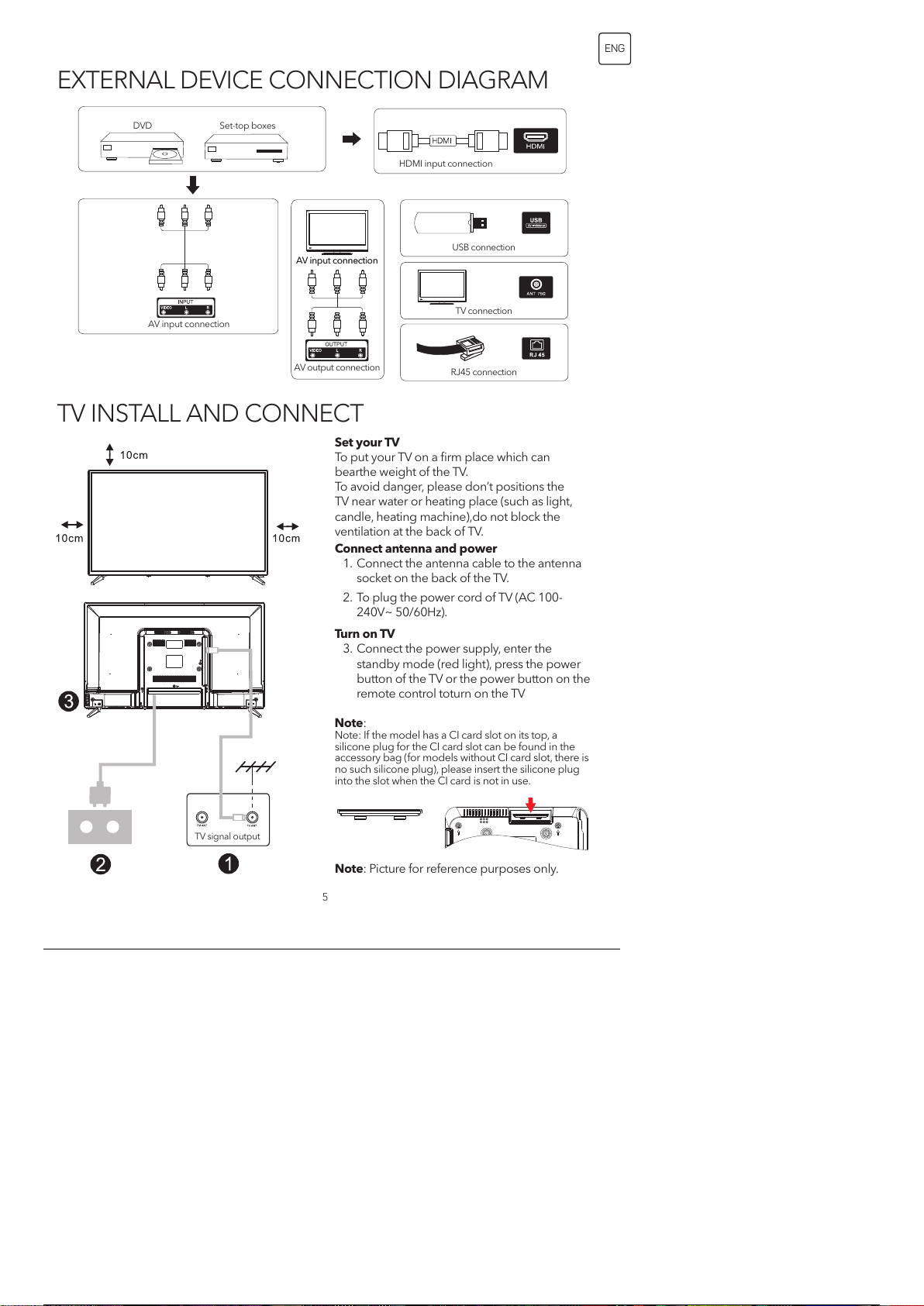

EXTERNAL DEVICE CONNECTION DIAGRAM
DVD Set-top boxes
AV input connection
AV input connectionAV input connection
AV output connection
USB connection
TV connection
RJ45 connection
HDMI input connection
TV INSTALL AND CONNECT
Set your TV
To put your TV on a firm place which can
bearthe weight of the TV.
To avoid danger, please don’t positions the
TV near water or heating place (such as light,
candle, heating machine),do not block the
ventilation at the back of TV.
Connect antenna and power
1. Connect the antenna cable to the antenna
socket on the back of the TV.
2. To plug the power cord of TV (AC 100-
240V~ 50/60Hz).
Turn on TV
3. Connect the power supply, enter the
standby mode (red light), press the power
button of the TV or the power button on the
remote control toturn on the TV
Note:
Note: If the model has a CI card slot on its top, a
silicone plug for the CI card slot can be found in the
accessory bag (for models without CI card slot, there is
no such silicone plug), please insert the silicone plug
into the slot when the CI card is not in use.
TV signal output
Note: Picture for reference purposes only.
6 / 134
5 / 1326 / 134

6
ENG
1. Open the carton and remove the TV and
scattered accessories and base (some
models without base).
2. ln order to avoid damaging the TV, please
cover it with soft mattress,put it on the table,
face down on the soft material and screw
the neck of the base to the TV.
3. Screw the base and connected to the TV.
4. The installation is complete.
Note:
Picture for reference purposes only.
TV STAND INSTALLATION INSTRUCTIONS
INITIAL SETUP
For the first initial setup, on-screen setup wizard will guide you through setting up your TV. Please
follow the guide to setup your TV correctly.
1.1 Language select
->Use / buttons to select system languages, then press to confinn.
1.2 Quickly set up your TV with your AndroidTM phone? (Continue/skip)
To connect your Android Smartphone to your TV.Select “Continue”.
1. On your Android Phone, open the Pre-installed app “Google”.
2. Type or say, “Ok Google, set up my device”.
3. Tap the model name on the list.
Note: Press “BACK” to cancel
If you just want to use your TV normally,please select “Skip”
7 / 134
6 / 1327 / 134

7
ENG

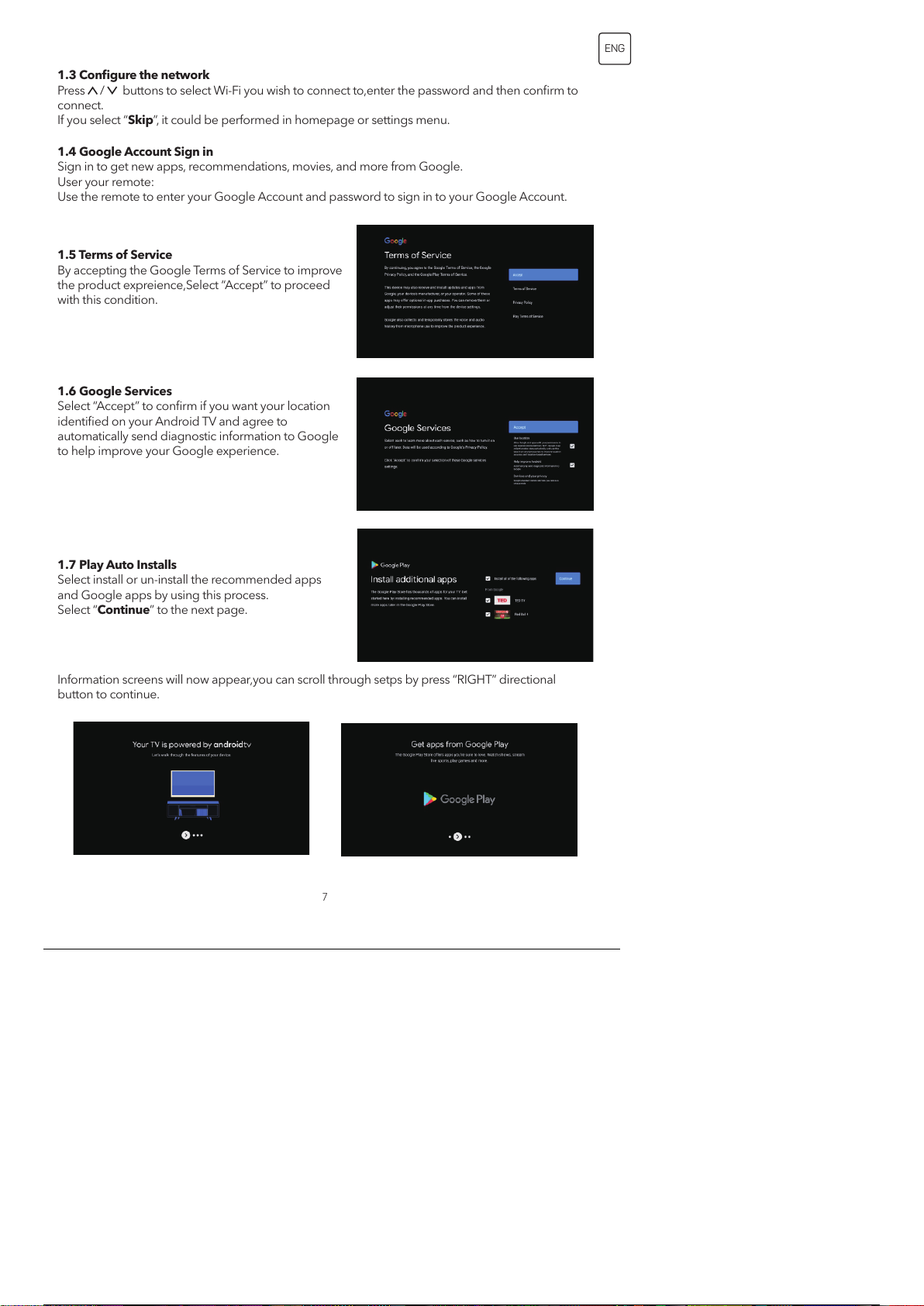

1.3 Configure the network
Press / buttons to select Wi-Fi you wish to connect to,enter the password and then confirm to
connect.
If you select “Skip”, it could be performed in homepage or settings menu.
1.4 Google Account Sign in
Sign in to get new apps, recommendations, movies, and more from Google.
User your remote:
Use the remote to enter your Google Account and password to sign in to your Google Account.
Information screens will now appear,you can scroll through setps by press “RIGHT” directional
button to continue.
1.5 Terms of Service
By accepting the Google Terms of Service to improve
the product expreience,Select “Accept” to proceed
with this condition.
1.6 Google Services
Select “Accept” to confirm if you want your location
identified on your Android TV and agree to
automatically send diagnostic information to Google
to help improve your Google experience.
1.7 Play Auto Installs
Select install or un-install the recommended apps
and Google apps by using this process.
Select “Continue” to the next page.
8 / 134
7 / 1328 / 134

8
ENG
1.8 Pairing Bluetooth Remote
1. Press ‘BACK ‘ and ‘VOL- ‘
simultaneously on remote control to enter the
Bluetooth pairing mode.
The Indicator light on remote control will flash
when starting the pairing mode.
2. Press ‘BACK ‘ to skip the pairing mode.
1.9 Select Region/Country
Select the country you are using the device in with the / directional buttons, then press to
confirm.
1.10 Select TV mode (Home/Retail)
Please be sure in this step, select “Home” if you are using this TV for use at home.
Make sure to confirm once you have selected “Home”.
1.11 Chromecast built-in™
Select On/Off to make Chromecast built-in available.
1.12 TV Channel Setting
Select Antenna/Cable to scan TV channel.
If you select “Skip”, the channel scan could be performed in menu.
Setup completed and Disclaimer Terms
9 / 134
8 / 1329 / 134

9
ENG
HOME
SETTINGS
Once you have completed initial setup, you will now enter the home by screen or press button to
display the homepage.
*Some countries home screen UI may display different as above image,please refer to the product
for details.
1. Google Assistant
Use your voice to jump to shows, control devices, and more—just ask Google.
2. Apps
Selected the “Apps” to have access to all your applications. Pre-installed applications are available
for you in this row, select “Google Play”, if you wish to search and download additional apps.
3. Play Next
Each row past this point will display recommended content from the apps you already have
installed.
4. Notifications
Here will display all notifications relating to anything on your Android TV.
5. Inputs
Select this if you want to adjust your TV input, Exanple:TV, HDMI 1, HDMI 2.
6. Network
It will display what network connectivity, Wi-Fi or Ethernet.
7. Settings
Manage apps and TV controls, change preferences, sounds, and account
Allows to set various performance of your TV .
1. Press / button to select “Settings” which is in
the upper right corner of the screen.
2. Press / button to select the option which you
want to adjust in the Settings menu.
3. Press to enter.
Networks & Internet
Adjust all network setting and check connection if
you have connection problems.
1.Press / button to select “Network & Internet”
in the settings menu.
2.Press / button to select: Wi-Fi/Add new
network/Scanning always available/Proxy settings/
IP settings.
10 / 134
9 / 13210 / 134

10
ENG

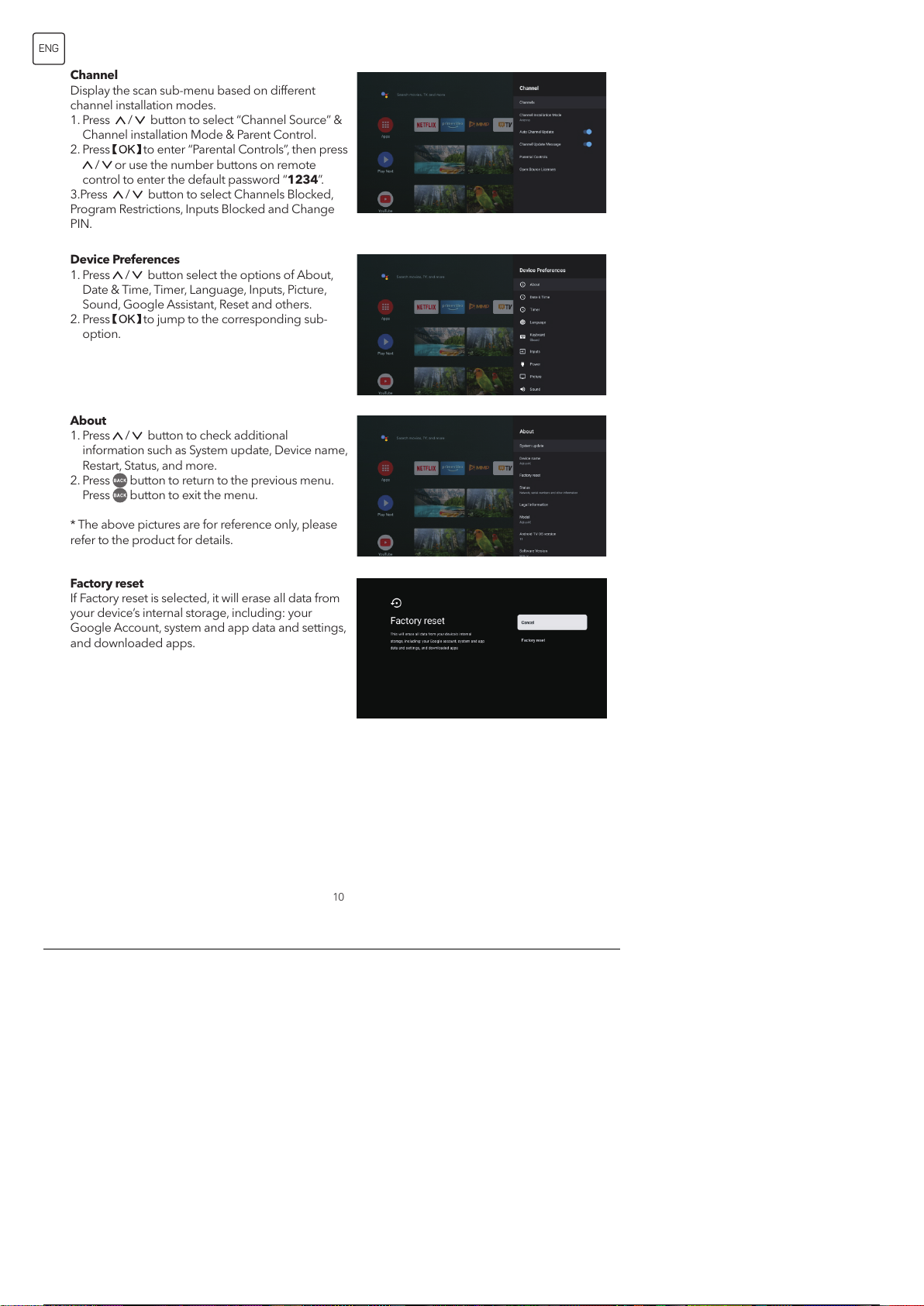

Channel
Display the scan sub-menu based on different
channel installation modes.
1. Press / button to select “Channel Source” &
Channel installation Mode & Parent Control.
2. Press to enter “Parental Controls”, then press
/ or use the number buttons on remote
control to enter the default password “1234”.
3.Press / button to select Channels Blocked,
Program Restrictions, Inputs Blocked and Change
PIN.
Device Preferences
1. Press / button select the options of About,
Date & Time, Timer, Language, Inputs, Picture,
Sound, Google Assistant, Reset and others.
2. Press to jump to the corresponding sub-
option.
About
1. Press / button to check additional
information such as System update, Device name,
Restart, Status, and more.
2. Press button to return to the previous menu.
Press button to exit the menu.
* The above pictures are for reference only, please
refer to the product for details.
Factory reset
If Factory reset is selected, it will erase all data from
your device’s internal storage, including: your
Google Account, system and app data and settings,
and downloaded apps.
11 / 134
10 / 13211 / 134

11
ENG
To enter TV source in Homepage:
1. Press button or Select “Live TV” on Homepage.
To have access and to download applications from
the Google Play, you must sign in with a Google
Account.
Once you open Google Play, you will be promted to
sign in or create a new account.
Once you have signed in, you will be brought to the
below page, scroll through the list of applications
available for download or go to the search button,
and search via entering text or speaking to Google
Assistant via your remote control.
2. Press button, then select “Channels” and select
“New Channels Available” to enter.
TV SOURCE SETTING
GOOGLE PLAY
12 / 134
11 / 13212 / 134

12
ENG

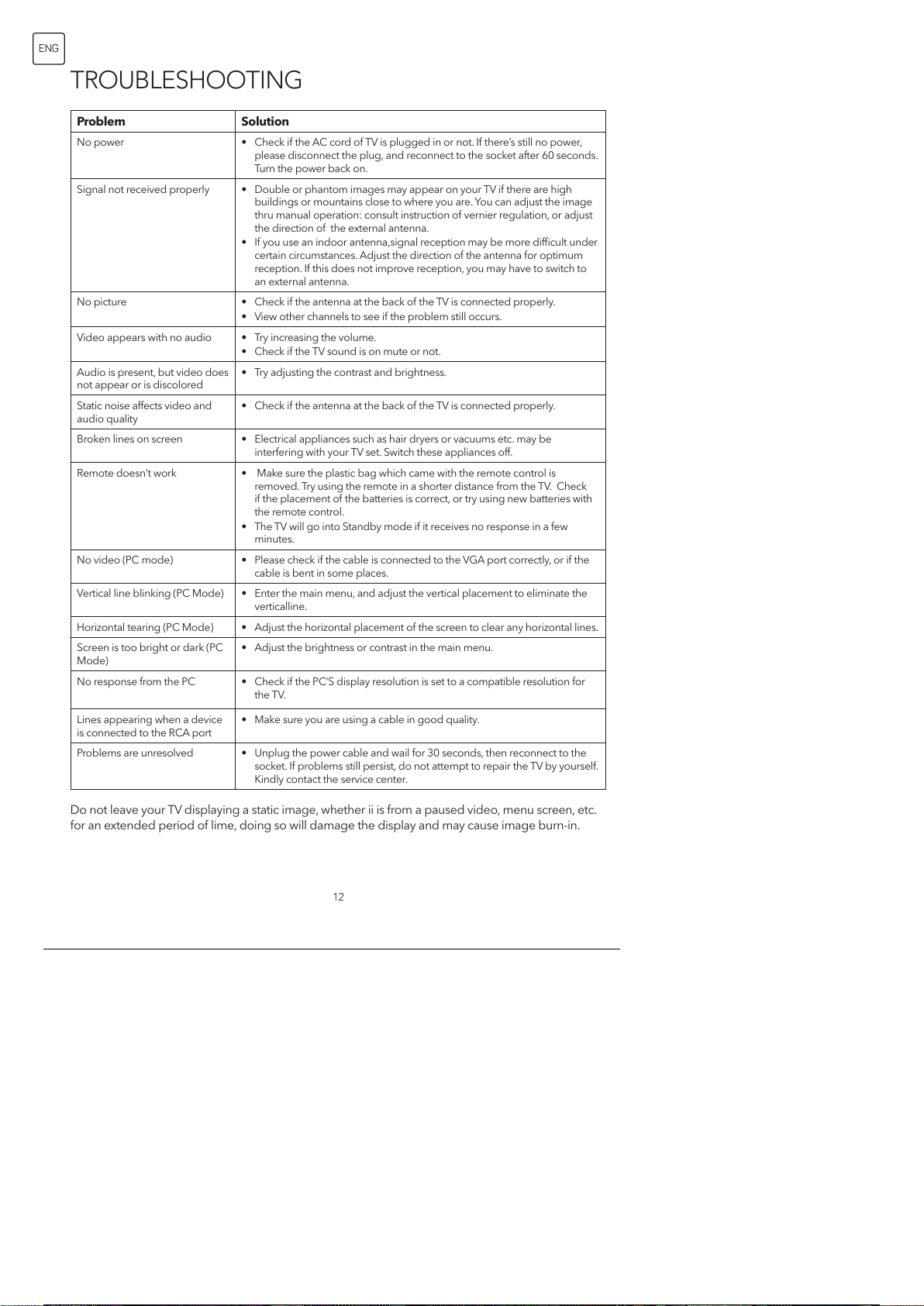

TROUBLESHOOTING
Problem Solution
No power • Check if the AC cord of TV is plugged in or not. If there’s still no power,
please disconnect the plug, and reconnect to the socket after 60 seconds.
Turn the power back on.
Signal not received properly • Double or phantom images may appear on your TV if there are high
buildings or mountains close to where you are. You can adjust the image
thru manual operation: consult instruction of vernier regulation, or adjust
the direction of the external antenna.
• If you use an indoor antenna,signal reception may be more difficult under
certain circumstances. Adjust the direction of the antenna for optimum
reception. If this does not improve reception, you may have to switch to
an external antenna.
No picture • Check if the antenna at the back of the TV is connected properly.
• View other channels to see if the problem still occurs.
Video appears with no audio • Try increasing the volume.
• Check if the TV sound is on mute or not.
Audio is present, but video does
not appear or is discolored
• Try adjusting the contrast and brightness.
Static noise affects video and
audio quality
• Check if the antenna at the back of the TV is connected properly.
Broken lines on screen • Electrical appliances such as hair dryers or vacuums etc. may be
interfering with your TV set. Switch these appliances off.
Remote doesn’t work • Make sure the plastic bag which came with the remote control is
removed. Try using the remote in a shorter distance from the TV. Check
if the placement of the batteries is correct, or try using new batteries with
the remote control.
• The TV will go into Standby mode if it receives no response in a few
minutes.
No video (PC mode) • Please check if the cable is connected to the VGA port correctly, or if the
cable is bent in some places.
Vertical line blinking (PC Mode) • Enter the main menu, and adjust the vertical placement to eliminate the
verticalline.
Horizontal tearing (PC Mode) • Adjust the horizontal placement of the screen to clear any horizontal lines.
Screen is too bright or dark (PC
Mode)
• Adjust the brightness or contrast in the main menu.
No response from the PC • Check if the PC’S display resolution is set to a compatible resolution for
the TV.
Lines appearing when a device
is connected to the RCA port
• Make sure you are using a cable in good quality.
Problems are unresolved • Unplug the power cable and wail for 30 seconds, then reconnect to the
socket. If problems still persist, do not attempt to repair the TV by yourself.
Kindly contact the service center.
Do not leave your TV displaying a static image, whether ii is from a paused video, menu screen, etc.
for an extended period of lime, doing so will damage the display and may cause image burn-in.
13 / 134
12 / 13213 / 134

13
ENG
REMOTE CONTROL
1. Switches the TV between on and standby mode
2. Indicator light
3. Mute or restore your TV sound.
4. PVR: Record Live TV programme.
5. Displays the EPG Electronic Programme Guide.
6. INFO:Displays the present channel information such as the
current time and channel name.
7. HOME: Displays the home screen.
8. Menu: Displays the OSD (On Screen Display) menu.
9. Inputs: Display/Select signal source options.
10. Navigation buttons: Cursor UP/LEFT/RIGHT/DOWN.
11. Back: Press to move back through menus.
12. Exit: Exit the OSD menu.
13. Google Assistant
Talk to Google to control your TV using your voice.
14. YouTube
Connects to YouTube (internet connection required).
15. NETFLIX
Connects to NETFLIX for viewing online TV shows and films
(internet connection required).
16. Prime video
Connects to Prime video (internet connection required).
17. Google Play: Connects to Google Play.
18. Media control:
Fast forward/back
Play the last/next program
Play/Pause/Stop program
19. TXT: Press to enter Teletext when play the program.
20. Audio: Displays the Audio Language list and select
an audio language or audio format if available (only
applicable when the TV programme has this feature).
21. SUBT: SUBT.
* Google Assistant is not available in certain languages and countries.Availability of services varies
by country and language.
14 / 134
13 / 13214 / 134

14
ENG
LICENCES
SUGGESTION
WARNING
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Audio, and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Google, YouTube, Android TV and Chromecast built-in are trademarks of Google LLC.
To make it more convenient for base installation and to avoid any risk of scratches and damage, we
advise you using the type of PH2 screwdriver.
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or
death. Many injuries, particularly to children, can be avoided by taking simpleprecautions such as:
1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases).without anchoring both
the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and
supporting furniture,
6. Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your
existing television set is being retained and relocated, the same considerations as above should be applied.
Wall-mounted screw:22-24inch M4, 28-70inch M6, 75inch M8
Note: don’t hang at an angle to avoid the risk of falling off.
The terms HDMI and HDMI High-Oefinition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
15 / 134
14 / 13215 / 134

15
BiH/
MNE

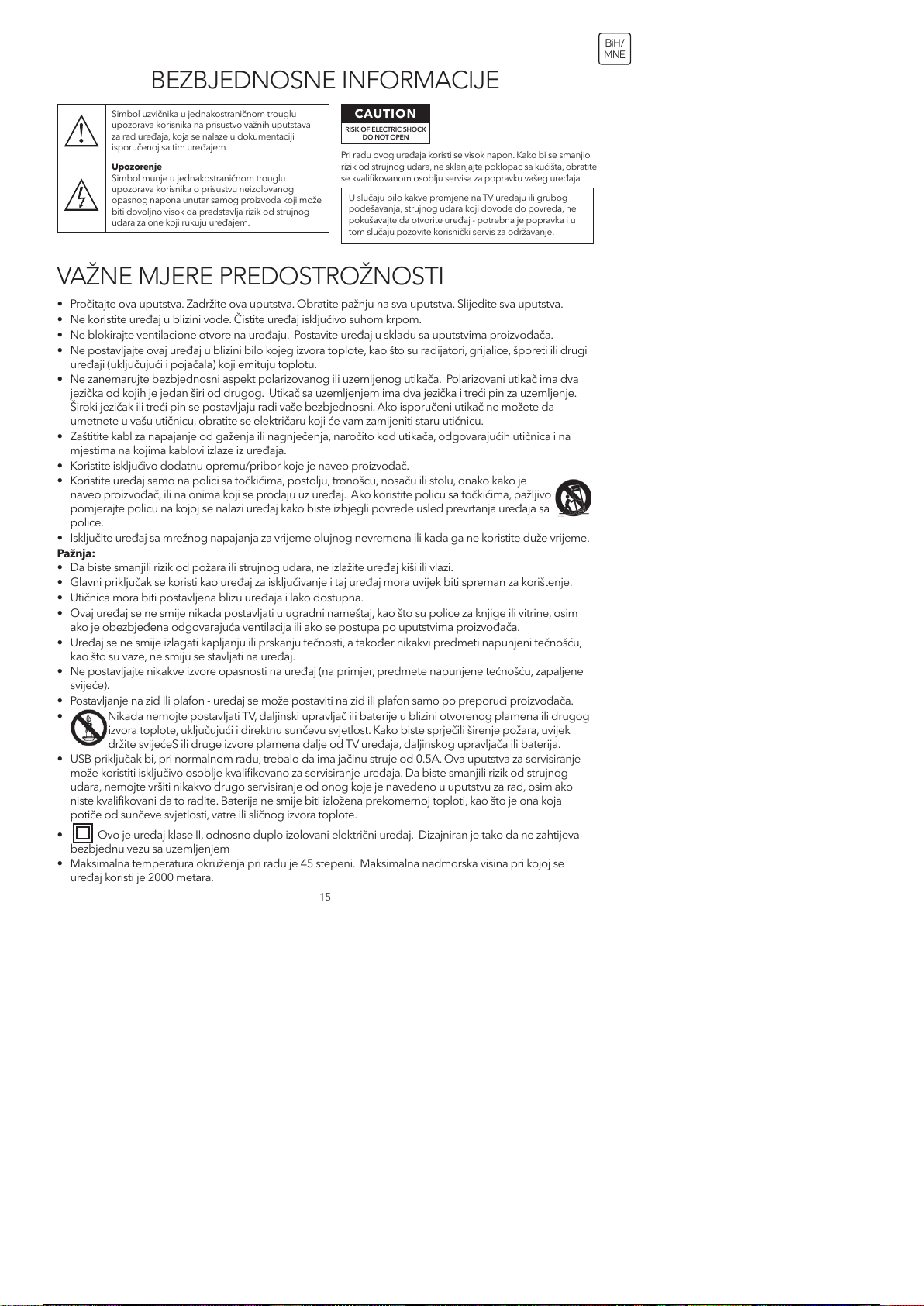

BEZBJEDNOSNE INFORMACIJE
VAŽNE MJERE PREDOSTROŽNOSTI
• Pročitajte ova uputstva. Zadržite ova uputstva. Obratite pažnju na sva uputstva. Slijedite sva uputstva.
• Ne koristite uređaj u blizini vode. Čistite uređaj isključivo suhom krpom.
• Ne blokirajte ventilacione otvore na uređaju. Postavite uređaj u skladu sa uputstvima proizvođača.
• Ne postavljajte ovaj uređaj u blizini bilo kojeg izvora toplote, kao što su radijatori, grijalice, šporeti ili drugi
uređaji (uključujući i pojačala) koji emituju toplotu.
• Ne zanemarujte bezbjednosni aspekt polarizovanog ili uzemljenog utikača. Polarizovani utikač ima dva
jezička od kojih je jedan širi od drugog. Utikač sa uzemljenjem ima dva jezička i treći pin za uzemljenje.
Široki jezičak ili treći pin se postavljaju radi vaše bezbjednosni. Ako isporučeni utikač ne možete da
umetnete u vašu utičnicu, obratite se električaru koji će vam zamijeniti staru utičnicu.
• Zaštitite kabl za napajanje od gaženja ili nagnječenja, naročito kod utikača, odgovarajućih utičnica i na
mjestima na kojima kablovi izlaze iz uređaja.
• Koristite isključivo dodatnu opremu/pribor koje je naveo proizvođač.
• Koristite uređaj samo na polici sa točkićima, postolju, tronošcu, nosaču ili stolu, onako kako je
naveo proizvođač, ili na onima koji se prodaju uz uređaj. Ako koristite policu sa točkićima, pažljivo
pomjerajte policu na kojoj se nalazi uređaj kako biste izbjegli povrede usled prevrtanja uređaja sa
police.
• Isključite uređaj sa mrežnog napajanja za vrijeme olujnog nevremena ili kada ga ne koristite duže vrijeme.
Pažnja:
• Da biste smanjili rizik od požara ili strujnog udara, ne izlažite uređaj kiši ili vlazi.
• Glavni priključak se koristi kao uređaj za isključivanje i taj uređaj mora uvijek biti spreman za korištenje.
• Utičnica mora biti postavljena blizu uređaja i lako dostupna.
• Ovaj uređaj se ne smije nikada postavljati u ugradni nameštaj, kao što su police za knjige ili vitrine, osim
ako je obezbjeđena odgovarajuća ventilacija ili ako se postupa po uputstvima proizvođača.
• Uređaj se ne smije izlagati kapljanju ili prskanju tečnosti, a također nikakvi predmeti napunjeni tečnošću,
kao što su vaze, ne smiju se stavljati na uređaj.
• Ne postavljajte nikakve izvore opasnosti na uređaj (na primjer, predmete napunjene tečnošću, zapaljene
svijeće).
• Postavljanje na zid ili plafon - uređaj se može postaviti na zid ili plafon samo po preporuci proizvođača.
• Nikada nemojte postavljati TV, daljinski upravljač ili baterije u blizini otvorenog plamena ili drugog
izvora toplote, uključujući i direktnu sunčevu svjetlost. Kako biste sprječili širenje požara, uvijek
držite svijećeS ili druge izvore plamena dalje od TV uređaja, daljinskog upravljača ili baterija.
• USB priključak bi, pri normalnom radu, trebalo da ima jačinu struje od 0.5A. Ova uputstva za servisiranje
može koristiti isključivo osoblje kvalifikovano za servisiranje uređaja. Da biste smanjili rizik od strujnog
udara, nemojte vršiti nikakvo drugo servisiranje od onog koje je navedeno u uputstvu za rad, osim ako
niste kvalifikovani da to radite. Baterija ne smije biti izložena prekomernoj toploti, kao što je ona koja
potiče od sunčeve svjetlosti, vatre ili sličnog izvora toplote.
• Ovo je uređaj klase II, odnosno duplo izolovani električni uređaj. Dizajniran je tako da ne zahtijeva
bezbjednu vezu sa uzemljenjem
• Maksimalna temperatura okruženja pri radu je 45 stepeni. Maksimalna nadmorska visina pri kojoj se
uređaj koristi je 2000 metara.
Simbol uzvičnika u jednakostraničnom trouglu
upozorava korisnika na prisustvo važnih uputstava
za rad uređaja, koja se nalaze u dokumentaciji
isporučenoj sa tim uređajem.
Upozorenje
Simbol munje u jednakostraničnom trouglu
upozorava korisnika o prisustvu neizolovanog
opasnog napona unutar samog proizvoda koji može
biti dovoljno visok da predstavlja rizik od strujnog
udara za one koji rukuju uređajem.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Pri radu ovog uređaja koristi se visok napon. Kako bi se smanjio
rizik od strujnog udara, ne sklanjajte poklopac sa kućišta, obratite
se kvalifikovanom osoblju servisa za popravku vašeg uređaja.
U slučaju bilo kakve promjene na TV uređaju ili grubog
podešavanja, strujnog udara koji dovode do povreda, ne
pokušavajte da otvorite uređaj - potrebna je popravka i u
tom slučaju pozovite korisnički servis za održavanje.
16 / 134
15 / 13216 / 134

16
BiH/
MNE
TASTERI ZA TV I PRIKLJUČAK INTERFEJSA
Tasteri za TV
Priključak interfejsa
Napomena: U nastavku je dat samo prikaz rada uređaja, dok stvarni položaj i raspored raznih
modela može biti različit.
Napomena: U nastavku je dat samo prikaz rada uređaja, dok stvarni položaj i raspored različitih
modela može biti različit.
Jedan taster: Sedam tastera:
Pritisnite ovo dugme u
aktivnom/ pasivnom režimu
pripravnosti (standby) da
biste uključili/isključili TV.
UKLJUČITE/ ISKLJUČITE napajanje (Power)
Izbor eksternog ulaznog signala
Izbor prikaza glavnog menija i potvrda izabranog
sadržaja
Izbor kanala
Podešavanje zvuka
AV ulaz
Eksterni ulaz AV signala
HDMI ulaz
Ulaz za digitalni signal sa HDMI video priključka.
ANT 75
Povežite antenu/ kabl sa ulazom za TV (75/VHF/UHF)
USB ulaz
Povežite ovde USB uređaj da biste mogli da reprodukujete medijske sadržaje ili da
snimate programe pomoću funkcije PVR.
Optički izlaz
Povežite prijemnik SPDIF.
RJ45
Povežite uređaj sa internetom.
* Ne dodirujte ili se približavajte HDMI i USB konektorima i ne dozvolite da elektrostatičko
pražnjenje ometa rad ovih konektora u režimu rada USB, inače će televizor prestati da radi
ili će televizor prestati da radi.
17 / 134
16 / 13217 / 134

17
BiH/
MNE
DIJAGRAM POVEZIVANJA SPOLJNOG UREĐAJA
DVD Dekoderi
AV ulazna veza
AV ulazna veza
AV izlazna veza
USB veza
TV veza
RJ45 veza
HDMI ulazna veza
INSTALACIJA TV UREĐAJA I POVEZIVANJE
Postavite TV uređaj
Postavite TV na čvrstu površinu koja može da
izdrži težinu TV uređaja.
Da biste izbjegli opasnost, molimo da ne
postavljate TV blizu vode ili izvora toplote
(kao što su svjetlost, svijeća, uređaj za grijanje) i
ne blokirajte ventilacione otvore na zadnjem
dijelu TV uređaja.
Povežite antenu i napajanje
1. Povežite kabl antene sa ulazom za antenu na
zadnjem dijelu TV uređaja.
2. Uključite kabl za napajanje TV uređaja
(AC 100-240V- 50/60Hz).
Uključite TV
3. Povežite izvor napajanja, izaberite režim
pripravnosti (crveno svjetlo), pritisnite
dugme za napajanje TV uređaja ili dugme
za napajanje na daljinskom upravljaču da
biste uključili TV.
Napomena:
Ako model ima otvor za CI karticu na gornjem dijelu
ekrana, silikonski zaštitni poklopac za CI karticu možete
pronaći u kesi sa dodatnom opremom (za modele
bez otvora za CI karticu, ne postoji zaštitni poklopac).
Molimo vas da zaštitni poklopac ubacite u otvor kada
se CI kartica ne koristi.
Izlaz TV signala
Napomena: Slika služi samo za pojašnjenje.
18 / 134
17 / 13218 / 134

18
BiH/
MNE
POČETNA POSTAVKA
Za prvo početno podešavanje, čarobnjak za podešavanje na ekranu će vas voditi kroz podešavanje
vašeg TV-a. Molimo slijedite vodič da biste ispravno postavili TV.
1.1 Izaberite jezik
Koristite dugmad / da izaberete sistemske jezike, a zatim pritisnite da potvrdite.
1.2 Brzo podesite TV sa svojim Android™ telefonom? (Nastavi/preskoči)
Za povezivanje vašeg Android pametnog telefona na TV. Odaberite “Nastavi”.
1. Na svom Android telefonu otvorite unaprijed instaliranu aplikaciju „Google“.
2. Upišite ili recite: “Ok Google, set up my device”.
3. Dodirnite naziv modela na listi.
Napomena: Pritisnite „NAZAD“ za otkazivanje
Ako samo želite normalno koristiti svoj TV, odaberite “Preskoči”
1. Otvorite kartonsku kutiju i izvucite TV, pribor
i postolje (neki modeli uređaja nemaju
postolje).
2. Da biste izbegli oštećenje TV uređaja,
molimo da ga prekrijete mekanom
pokrivkom, stavite ga na sto, licem okrenutim
ka mekanom materijalu i pričvrstite vrat
postolja za TV.
3. Zavrnite osnovu i povežite je sa TV uređajem.
4. Postavljanje je završeno.
Napomena:
Slika služi samo za pojašnjenje.
UPUTSTVA ZA POSTAVLJANJE POSTOLJA ZA TV
UREĐAJ
19 / 134
18 / 13219 / 134

19
BiH/
MNE
1.3 Konfigurišite mrežu
Pritisnite / da odaberete Wi-Fi na koji želite da se povežete, unesite lozinku i zatim potvrdite
povezivanje. Ako odaberete “Preskoči”, to se može izvršiti na početnoj stranici ili izborniku postavki.
1.4 Prijava pomoću Google naloga
Prijavite se da dobijete nove aplikacije, preporuke, filmove i još mnogo toga od Google-a.
Koristite svoj daljinski upravljač:
Upotrebite daljinski upravljač da otvorite Google nalog i unesete lozinku za prijavu na Google nalog.
Ekrani sa informacijama će se sada pojaviti, možete se kretati kroz postavke pritiskom na “DESNO”
dugme sa smjerom za nastavak.
1.5 Uslovi korištenja usluge
Prihvatanjem Googleovih Uslova korištenja usluge
radi poboljšanja iskustva proizvoda, odaberite
“Prihvati” da nastavite s ovim uslovom.
1.6 Google usluge
Odaberite “Prihvati” da potvrdite da li želite da se
vaša lokacija identifikuje na vašem Android TV-u
i pristajete na automatsko slanje dijagnostičkih
informacija Google-u kako biste poboljšali vaše
iskustvo na Google-u.
1.7 Pokretanje automatskih postavki
Pomoću ove funkcije možete izabrati da postavite ili
uklonite preporučene aplikacije i Google aplikacije.
Pritisnite “Continue” (Nastavite) do sljedeće stranice
za postavku.
20 / 134
19 / 13220 / 134
