Overview
The Triplett TeleTalker 330 is a rugged and durable
professional Telephone Test Set providing all of the basic
features necessary to test and maintain analog telephone
installations. Housed in a sealed high impact polycarbonate
case, the TeleTalker 330 is usable outdoors in all sorts of
weather. A DSL Safe Monitor mode allows high impedance
connection to telephone lines without interrupting DSL services
or causing DC loading of the line. Clear communications are
provided by a dynamic earpiece and an electret microphone. A
long life elastomeric keypad provides both Tone and Pulse
dialing. Advanced electronic circuitry provides line-powered 3
level voice amplification without the need for a battery. An LED
polarity indicator gives visual indication of the line polarity.
Convenience is enhanced by Last Number Redial and 10 user
memories. An electronic ringer annunciates incoming calls and
a field replaceable metal beltclip provides attachment to a
toolbelt or hangup on a cable or peg. Both modular and
alligator clip connections are provided. The high quality leadset
is field replaceable, and terminated with professional grade 5
way test clips (ABN). The Triplett TeleTalker 330 will provide
years of service and will complement any DIYer’s, Installer’s,
Technician’s, or Craftmen’s toolbelt.

2
Features
1. Advanced electronics provides industry standard features
2. Talk, Ring, and Monitor functions
3. Selectable Tone or Pulse dialing
4. DSL Safe Monitor mode
5. LED reversed polarity indicator
6. Last Number Redial
7. Surge and Overvoltage protected
8. 3 level loudness control
9. Field replaceable metal belt clip
10. Durable cloth covered cord equipped with securely
anchored strain relief, modular RJ11 plug, and five-way test
clips
11. Water-Resistant high impact housing

3

4
Operation
Connection:

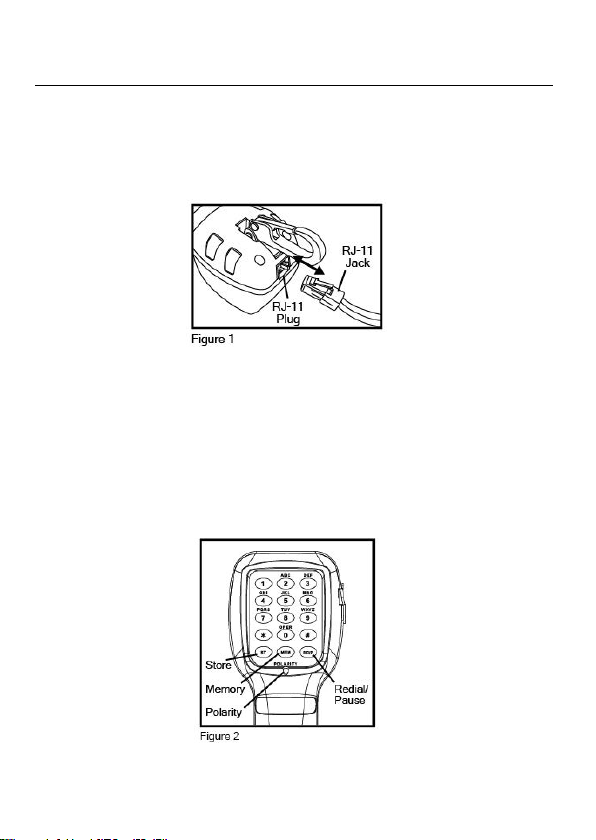

Modular and alligator clip connections are provided. For modular
connections, remove the headset plug at the base of the handset and
plug the modular cable directly into the TeleTalker. See Figure 1.
Alternately, use the 5 way test clips to connect to telephone terminal
blocks, bare wires, or insulated wires (using wire piercing
pincushions).
Keypad:
Use the keypad to dial any outgoing number. Figure 2 shows the
layout. Keys are provided for the stored memory function (MEM and
STO) and Last Number Redial (RD/P).

5
MONITOR / RING / TALK Switch (see Figure 3)
1. Data Safe MONITOR Mode:
In MONITOR mode, the talk set presents a high impedance to the
telephone line. This means it does not significantly load the telephone
line, and will not disrupt conversations, data, or signaling. However,
any audio on the telephone line can be heard through the talk set’s
earpiece.
2.RING Mode:
In RING mode, an electronic ringer is connected to the telephone
line. This is often called an ‘on-hook’ condition. The talk set will
respond to any incoming phone call by sounding its electronic ringer.
3.TALK Mode:
To answer a call, seize the line, or initiate signaling, switch to TALK
mode. If dialing select the PULSE or TONE mode, whichever is
appropriate. To terminate a call, release the line by switching to
RING or MONITOR Mode.

6
Function Select: (see Figure 3)
1. VOLUME Switch (H/M/L):
Select the desired loudness by choosing H, M, or L on the VOLUME
switch.
2. PULSE / TONE Switch:
Use the PULSE / TONE switch to select the outgoing dialing format.
PULSE selects the older legacy dialing format. TONE selects the
newer DTMF dialing format. Many phone lines will work on either
format.
Polarity Test:
Polarity is automatically indicated when in the TALK mode. The
polarity indicator LED will light if polarity is reversed. Correct
polarity is obtained when the red lead (RING) is negative (-), and the
black lead (TIP) is positive (+).
Last Number Redial:
The last number dialed (up to 31 digits) in the TALK mode is
automatically stored. To redial, press the RD/P (Redial / Pause)
button on keypad. The number may be redialed in either pulse or tone
mode as selected by the PULSE/TONE switch.
Storing Numbers to Memory:
The TeleTalker 330 allows you to store up to 10 frequently dialed
numbers for easy access.
While in TALK mode:
1. Press ST (Store)
2. Enter the number to be stored (15 digits max.)
3. Press ST (Store).
4. Press the number key for the chosen memory location

7
How to put a Pause in a Stored Number:
It may be necessary to program a pause into the dialing sequence.
Programming a pause into memory will cause the phone to wait 3
seconds before dialing any more numbers.
For example, a pause may be necessary when in an office and
accessing an outside line. You can do this by pressing the RD/P
button at the point where the pause is required. For example, to store
the number 2-9429441 with a pause between the 2 and 9, enter 2 and
press (RD/P) 9429441. Each pause will count as one digit. A longer
pause can be inserted by pressing RD/P more than once.
How to Dial a Stored Number:
After receiving a dial tone, press MEM and the number key (0~9) for
the memory location in which the number is stored. For example, to
call the number stored in memory location 1, press MEM and then
the number 1. The number will be dialed automatically.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com

8

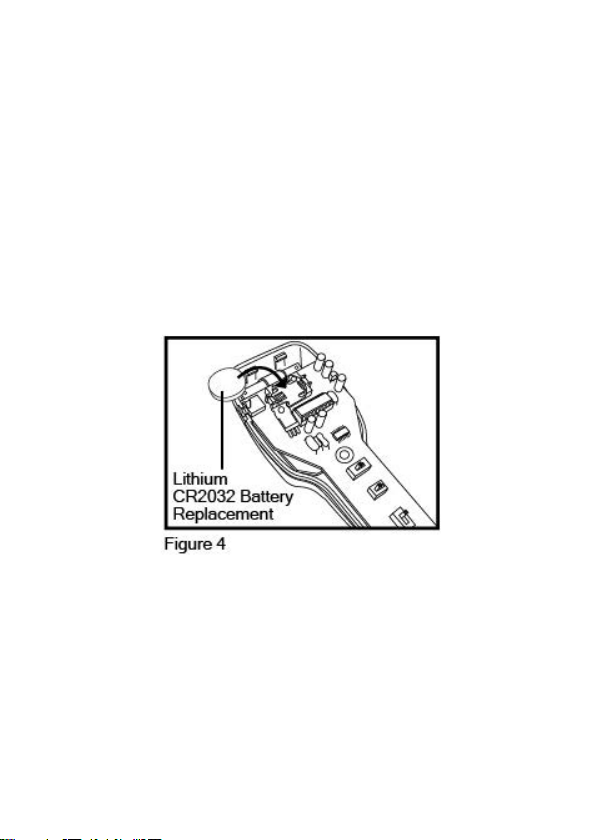

Replacing Memory Storage Battery (see Figure 4)
Remove the belt clip (2 screws) and unplug the leadset. Remove the 4
black screws from the handsets housing. Separate the front and back
shells of the housing at the end near the modular plug. Holding the
end spread apart about an inch, wiggle and pull the housing until the
opposite end releases. Carefully separate the front and back shells,
taking care not to damage the wires. Locate the battery. Observing
proper polarity, remove the expended battery and replace with a new
one. Reassemble front and back shells, making certain no wires are
pinched and the gasket is correctly aligned. The end of the shells near
the earpiece snap together. Tighten the 4 black screws. Replace the
belt clip and the test lead.

9
Specifications
Loop Limit
4K ohms max. at 48VDC
(5km, 26Ga) nominal 15mA
minimum loop current.
DC Resistance
150 ohms Typical at 80mA
current.
Monitor Impedance
MONITOR: 100K @ 1KHz
RING: 600 Ohms @ 1KHz
Rotary (PULSE) Dial
Pulsing Rate
Percent Break
Interdigital Pause
Leakage During Break
10 +/- 0.5 pulses/sec
60% +/- 2%
8.5ms Typical
> 50K ohms
DTMF Output
Tone Frequency Error
Level of Tone Pair
Skew
+/- 1.5%
+ 2 dBm max. , -8 dBm min.
4 dBm max.
Physical
Length
Width
Height
Weight
22.4 cm (8 4/5 inches)
7.12 cm (2 4/5 inches)
7.0 cm (2 3/4 inches)
380 g (13.4 ounces) max.
Battery
CR2032

10
3 Year Limited Warranty
Triplett warrants instruments and test equipment manufactured
by it to be free from defective material or workmanship and
agrees to repair or replace such products which, under normal
use and service, disclose the defect to be the fault of our
manufacturing, with no charge within three years of the date of
original purchase for parts and labor. If we are unable to repair
or replace the product, we will make a refund of the purchase
price. Consult the Instruction Manual for instructions regarding
the proper use and servicing of instruments and test equipment.
Our obligation under this warranty is limited to repairing,
replacing, or making refund on any instrument or test equipment
which proves to be defective within three years from the date of
original purchase. This warranty does not apply to any of our
products which have been repaired or altered by unauthorized
persons in any way so as, in our sole judgment, to injure their
stability or reliability, or which have been subject to misuse,
abuse, misapplication, negligence, accident or which have had
the serial numbers altered, defaced, or removed. Accessories,
including batteries and fuses, not of our manufacture used with
this product are not covered by this warranty.

11
ALL WARRANTIES IMPLIED BY LAW ARE HEREBY LIMITED
TO A PERIOD OF THREE YEARS FROM DATE OF
PURCHASE, AND THE PROVISIONS OF THE WARRANTY
ARE EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES
EXPRESSED OR IMPLIED.
The purchaser agrees to assume all liability for any damages
and bodily injury which may result from the use or misuse of the
product by the purchaser, his employees, or others, and the
remedies provided for in this warranty are expressly in lieu of
any other liability Triplett may have, including incidental or
consequential damages. Some states (USA ONLY) do not allow
the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to
you. No representative of Triplett / Jewell Instruments or any
other person is authorized to extend the liability of Triplett in
connection with the sale of its products beyond the terms
hereof.
Triplett reserves the right to discontinue models at any time, or
change specifications, price or design, without notice and
without incurring any obligation. This warranty gives you specific
legal rights, and you may have other rights which vary from
state to state.
