TESTO 480 User manual

testo 480 · Climate measuring instrument
Instruction manual
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

2

1 Contents
3
1Contents
1Contents...................................................................................................3
2Safety and the environment....................................................................5
2.1. About this document........................................................................5
2.2. Ensure safety...................................................................................6
2.3. Protecting the environment..............................................................7
3Specifications ..........................................................................................8
3.1. Use..................................................................................................8
3.2. Technical data.................................................................................8
4Product description...............................................................................12
4.1. Overview........................................................................................12
4.1.1. Hand instrument ............................................................................................12

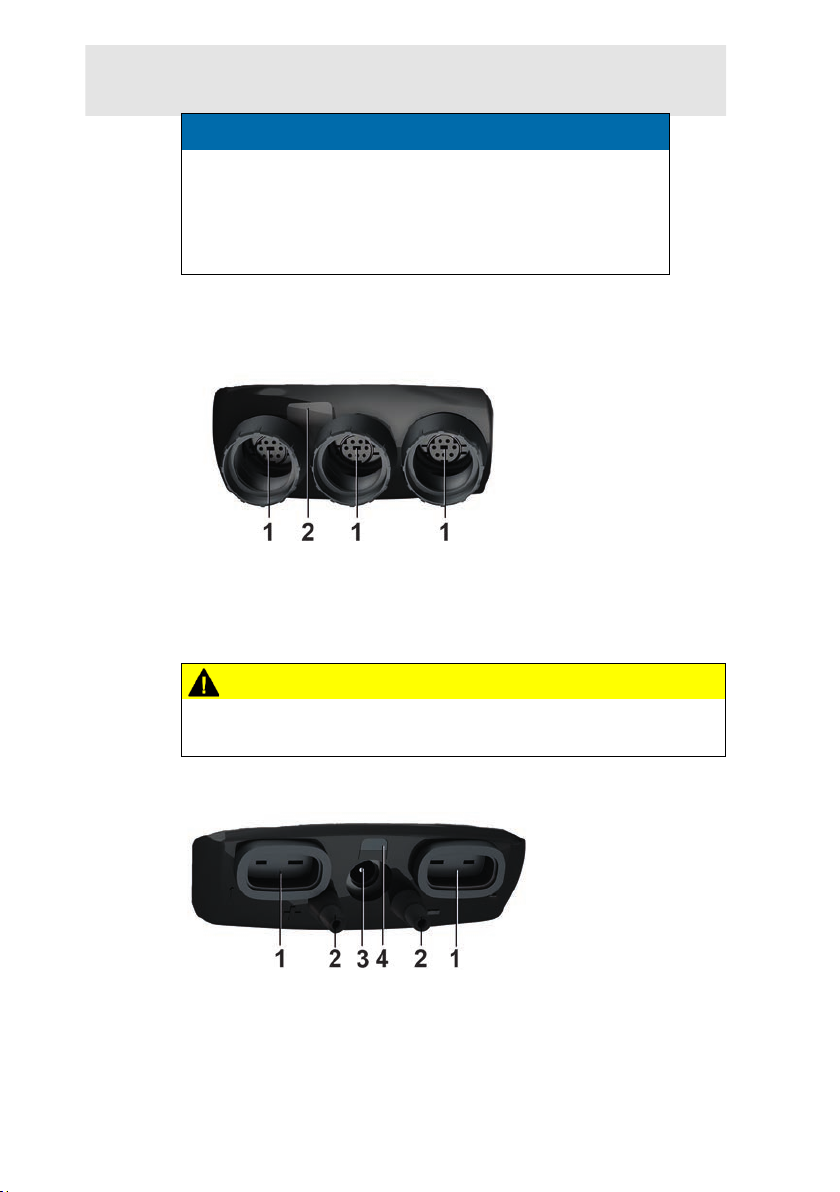

4.1.2. Instrument connections and interfaces...........................................................13
4.1.3. Controls.........................................................................................................14
4.1.4. Display...........................................................................................................15
5First steps ..............................................................................................17
5.1. Commissioning..............................................................................17
5.2. Getting to know the product...........................................................19
5.2.1. Navigating in the menu ..................................................................................19
5.2.2. Calling up a function ......................................................................................20
5.2.3. Exit the menu.................................................................................................20
5.2.4. Switching to another tab ................................................................................20
5.2.5. Entering values..............................................................................................21
5.2.6. Saving values ................................................................................................22
6Using the product..................................................................................23
6.1. Performing settings........................................................................23
6.2. Setting the measurement display ..................................................24
6.2.1. Calculated measurement parameters............................................................25
6.3. Favourites tab................................................................................26
6.4. Probe menu...................................................................................26
6.5. Explorer menu ...............................................................................28
6.6. Measurements & Measuring programs..........................................31
6.6.1. Retaining (“holding”) measurement values.....................................................31
6.6.2. Quick back-up................................................................................................31
6.6.3. Measuring program........................................................................................32
6.6.4. Grid measurement.........................................................................................34
6.6.5. Turbulence measurement..............................................................................38
6.6.6. Pitot tube measurement.................................................................................38
6.6.7. Measurement with the funnel.........................................................................39
6.6.8. Pressure measurement..................................................................................40
6.6.9. CO2measurement.........................................................................................41
6.6.10. WBGT measurement.....................................................................................41

1 Contents
4
6.6.11. PMV/PPD measurement................................................................................42
6.6.12. Saving measurement values..........................................................................46
6.6.13. Printing measurement values ........................................................................48
6.6.14. Display measuring values graphically............................................................49
6.6.15. Transferring measurement values .................................................................50
7Maintaining the product .......................................................................51
7.1.1. Battery care...................................................................................................51
7.1.2. Carrying out humidity adjustment...................................................................51
7.1.3. Carrying out a firmware update......................................................................52
8Tips and assistance.............................................................................. 54
8.1. Questions and answers ................................................................54
8.2. Accessories and spare parts.........................................................55

2 Safety and the environment
5
2Safety and the environment
2.1. About this document
Symbols and writing standards
Representation
Explanation
Warning advice, risk level according to the
signal word:
Warning! Serious physical injury may occur.
Caution! Slight physical injury or damage to
the equipment may occur.
> Implement the specified precautionary
measures.
Note: Basic or further information.
1. ...
2. ... Action: more steps, the sequence must be
followed.
> ... Action: a step or an optional step.
- ... Result of an action.
Menu Elements of the instrument, the instrument
display or the program interface.
[OK] Control keys of the instrument or buttons of
the program interface.
... | ... Functions/paths within a menu.
“...” Example entries
Warnings
Always pay attention to information that is marked by the following
warnings with warning pictograms. Implement the specified
precautionary measures.
Representation Explanation
NOTICE indicates circumstances that may lead to
damage to the products
CAUTION indicates potential minor injuries

2 Safety and the environment
6
2.2. Ensure safety
>Only operate the product properly, for its intended purpose and
within the parameters specified in the technical data. Do not
use any force.
>The objects to be measured or the measurement environment
may also pose risks: Note the safety regulations valid in your
area when performing the measurements.
>Do not perform contact measurements on non-insulated, live
parts.
>Do not store the product together with solvents. Do not use any
desiccants.
>Carry out only the maintenance and repair work on this
instrument that is described in the documentation. Follow the
prescribed steps exactly. Use only original spare parts from
Testo.
>Temperatures given on probes relate only to the measuring
range of the sensors. Do not expose handles and feed lines to
temperatures in excess of 40 °C (104 °F), unless they are
expressly permitted for higher temperatures.
>After the final measurement, allow probes and probe shafts to
cool down sufficiently in order to avoid burns from the hot
sensor tip or the probe shaft.
>Improper use of rechargeable batteries can lead to destruction
or injuries by means of current surges, fire or escaping
chemicals. The following instructions must be observed to avoid
such hazards:
•Only use in accordance with the directions in the instruction
manual.
•Do not short, take apart or modify.
•Do not expose to heavy impacts, water, fire or temperatures
above 60 °C.
•Do not store in the proximity of metal objects.
•Do not use leaky or damaged rechargeable batteries. In the
event of contact with battery acid: Thoroughly wash affected
area with water and consult a doctor, if necessary.

2 Safety and the environment
7
•Only charge in the instrument or the recommended charging
station.
•Immediately stop the charging process if this is not
completed in the given time.
•In the event of improper function or signs of overheating,
immediately remove the rechargeable battery from the
measuring instrument/charging station. Caution:
Rechargeable battery may be hot!
Use
> Please read this documentation through carefully and
familiarize yourself with the product before putting it to use. Pay
particular attention to the safety instructions and warning advice
in order to prevent injuries and damage to the products.
> Keep this document to hand so that you can refer to it when
necessary.
> Hand this documentation on to any subsequent users of the
product.
2.3. Protecting the environment
> Dispose of faulty rechargeable batteries/spent batteries in
accordance with the valid legal specifications.
> At the end of its useful life, send the product to the separate
collection for electric and electronic devices (observe local
regulations) or return the product to Testo for disposal.

3 Specifications
8
3Specifications
3.1. Use
The testo 480 is a measuring instrument for measuring climate-
related parameters. The testo 480 is ideal for comfort level
measurements for the workplace evaluation and flow
measurements in and at ventilation and air-conditioning systems.
The instrument is only to be used by qualified expert personnel.
Then product must not be used in explosive environments!
3.2. Technical data
Hand-held instrument
Feature Values
Measurement
parameters •Temperature (°C, °F, difference-°C, difference-°F)
•Humidity (%RH, td°C, td°F, wet bulb °C,
wet bulb °F, g/m3, g/ft3, g/kg, g/lb, kJ/kg,
BTU/lb, ppm, Vol%)
•Flow velocity (m/s, ft/m)
•Pressure (Pa, hPa, mbar, kPa, bar, psi,
inH2O, inHg, mmH2O, Torr)
•CO2 (ppm, Vol%)
•Lux (Lux, footcandle)
Sensor connections •2x temperature (TC type K)
•1x differential pressure
•3x digital probes (flow, humidity,
temperature, CO2, Lux, absolute
pressure)
Interfaces •Mini USB
•Infrared for testo report printer
•SD card
•Mains connection
Internal memory
capacity 1.8 GB (approx. 60,000,000 measuring values)
Rechargeable battery
life Approx. 17 h (hand instrument without probe with 50% display brightness)

3 Specifications
9
Feature Values
Measuring cycle 0.5 s
Operating
temperature 0 to +40 °C
Storage temperature -20 to +60 °C
Dimensions 81 mm x 235 mm x 39 mm
Housing material ABS, TPE, PMMA
Weight Approx. 435 g
IP protection class 30 (with connected probes)
Integrated measurement (at 22 °C, ±1 digit)
Feature Values
Temperature (TC
type K; internal
reference point
measurement:
measuring range 0 to
+40 °C, accuracy
±0.5 °C)
Measuring range: -200.0 to +1370.0 °C
Accuracy: ±(0.3 °C + 0.1 % of meas. val.)
Resolution: 0.1 °C
The accuracy information applies in
a similar, stable temperature state.
Plugging in the main unit, charging
the battery or adding digital probes
can distort this temporarily, and
additional errors may occur.

3 Specifications
10
Feature Values
Differential pressure Measuring range: -100 to +100 hPa
Accuracy1: 0...25 hPa:
±(0,3 Pa + 1% of meas. val.)
+25.001 to +100hPa:
±(0,1 Pa + 1.5% of meas. val.)
Resolution: 0.001 hPa
The accuracy specification applies
immediately after zeroing of the
sensor. For long-term
measurements, mains operation
with fully-charged battery is
recommended.
Temperature coefficient: <0.01%
FS/K typical
Absolute pressure Measuring range: +700 to +1100 hPa
Accuracy: ±3 hPa
Resolution: 0.1 hPa
Standards, tests, warranty
Feature Values
EU Directive 2004/108/EC
Vibration IEC 60068-2-6
Warranty 2 years, warranty conditions: see
www.testo.com/warranty
Mains unit (0554 8808) for continuous measurements and
battery charging
Feature Values
Output voltage 5 V / 4 A
EU Directive 2004/108/EC
Warranty period 2 years, warranty conditions: see
www.testo.com/warranty
1Only with positive pressures
