Teufel Effekt 2 User manual

Effekt 2 Wireless Speaker
Technical Description And User
Manual

2• Effect 2• Effect 2
Contents
General Notes And Information
Notice
The information in this document may
change without prior notice and in no
way constitutes any liability on the part
of Lautsprecher Teufel GmbH.
No part of this user manual may
be reproduced in any form or be
broadcasted in any way electroni-
cally, mechanically, by photocopy or
recording without the written permis-
sion of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0, June 2023
Original packaging
If you wish to exercise your right of
return, we ask that you be absolutely
sure to hold on to the packaging. We
can only accept product returns with
the ORIGINAL PACKAGING.
Empty boxes are not available!
General Notes And Information........ 2
Overview ............................................ 5
Setup.................................................. 6
Operation........................................... 7
Troubleshooting............................... 10
Technical Data.................................11
Declaration Of Conformity ..............11
Complaints
In case of a complaint we will need
the following information to process
your enquiry:
1. Invoice number
Can be found on the sales slip
(enclosed with the product) or on the
order confirmation received as a PDF
document, e.g. 4322543
2. Serial number or batch number
Located on the back side of
the device, e.g. serial no.:
KB20240129A-123.
Thank you for your support!

3Effect 2 •
Contact
Please contact our customer service
department with any questions,
suggestions, or complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Telephone:
00800 200 300 40 (toll-free)
Fax:
+49 (0)30 / 300 930 930
Online support:
www.teufelaudio.com/service
Contact form:
www.teufelaudio.com/contact
Before operating the product
for the first time, please read
the safety notes and user
manual carefully. Only in this way,
you can ensure that all functions are
used in a safe and reliable manner.
Store the user manual in a safe place
and also be sure to pass it on to any
subsequent owner.
NOTICE
Check that all items have
been delivered and that
nothing is damaged. If you
find any damage, do not
operate the device; instead
contact our customer service
department.
Proper use
The wireless speakers are designed
for the playback of audio signals
from an external player via wireless
connection.
Only use the wireless speakers as
described in this user manual. Any
other use will be deemed as not in
accordance with the instructions and
may lead to damage to property or
even persons.
The manufacturer accepts no liability
for damage caused by improper use.
The wireless speakers are intended
for domestic use.

4• Effect 2
Explanation of terms
You can find the following signal
terms in this user manual:
CAUTION
This signal term indicates a
low risk, which, if not avoided,
may result in minor or
moderate injury.
NOTICE
This signal term warns you of
potential damage.
The isolation pads can produce
discolouration on sensitive
surfaces.
• On parquet, varnished wood and
similar surfaces, you should stick
felt gliders to the rubber feet of the
device or put a blanket under it.
This will prevent discolouration of
the floor over the long term.
Explanation of symbols
Protection class II
Dual insulation
Risk of electrical shock –
do not open the housing.
Disconnect the mains cord
before changing a fuse.

5Effect 2 •

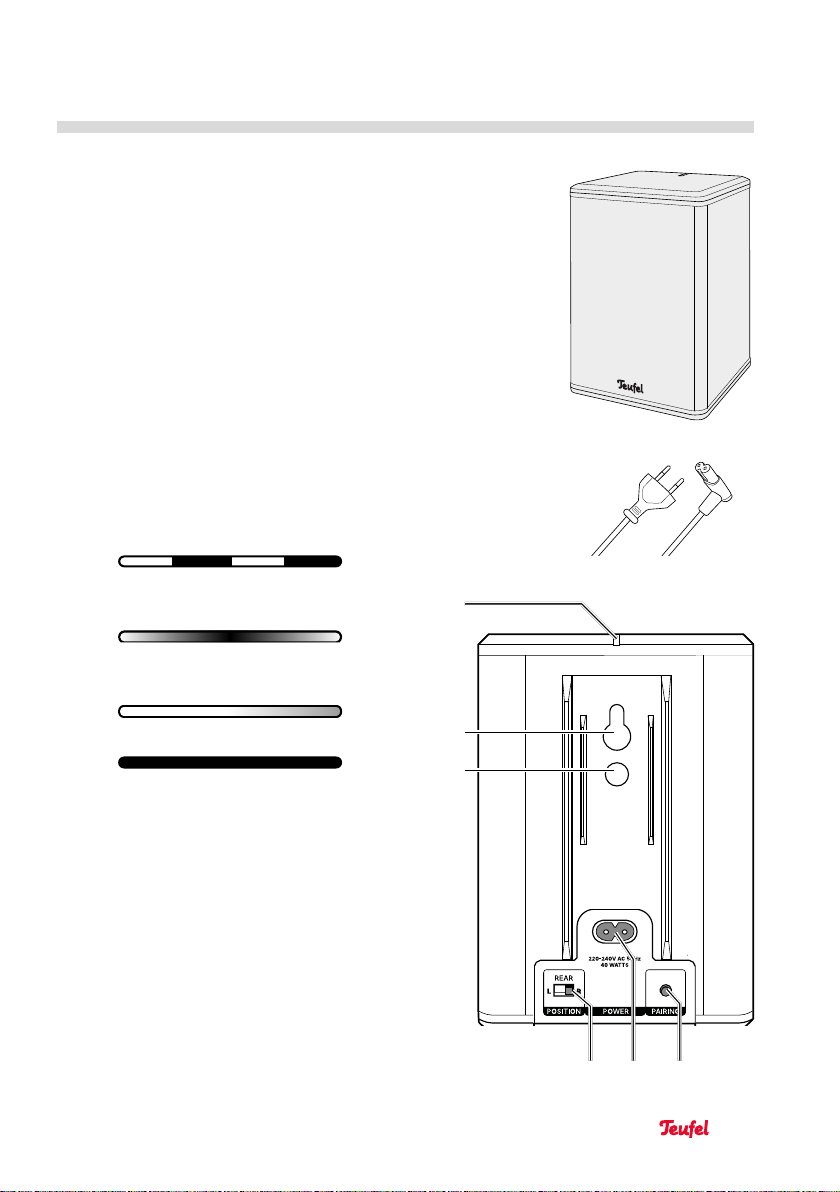

Overview
Package contents
(1) 2× “Effekt” wireless speaker
(2) 2× Angled power cord (2.5 m)
Operational controls
(3) Power indicator:
• Pairing: LED Blinking
• Searching for known devices:
LED fades in and out.
• Connected:
LED white and dims down
• Standby/Off: LED off
(4) Keyhole opening for wall
mounting.
(5) M6 threaded insert for wall
mounting
(6) POSITION: Elect if the speaker
should play left or right channel.
(7) Power cord jack socket
(8) PAIRING: Establish a wireless
connection to the external player
(see page 8)
.
(1)
(2)
(6) (7) (8)
(3)
(4)
(5)

6• Effect 2
Setup
NOTICE
If the device is subjected
to warm temperatures after
being cold (e.g. after trans-
port), condensation may occur
inside of it.
–In this case, wait approx. 2
hours before you connect
and activate it.
CAUTION
The device is disconnected
from the mains by pulling the
mains plug out of the socket.
–Therefore make sure that
the socket is always easily
accessible.
Location tips
• Make sure that the environment is
clean and free from dust.
• Select a location away from heat
sources and direct sunlight.
• Do not place any heavy objects on
the cables or the device.
• The wireless connection has a
maximum range of 15 m, but can
be obstructed by objects, walls
and other transmitters (e.g. Wi-Fi,
DECT).
Rear speakers
As rear speakers, the wireless
speakers are set up or hung to the
side of or behind the listener at a
height of 1.20 m to 2.10 m (see the
grey areas in the graphic).
The ideal position is offset by approx.
20 degrees from the parallel posi-
tion to the listener on the left and
right side (A). The distance between
the rear speakers and the listening
position should not be less than 1 m.
However, if you (need to) sit closer,
please ensure that the front side of
the speaker is not directly facing you.
Rather, the speaker must be angled
towards the wall (B). Alternatively,
you can create a greater distance
by placing the speakers higher than
1.20 m or further away (C).

7Effect 2 •
Operation
Setting the channel
• With the POSITION switch (6), you
determine the stereo channel (right
or left) to be played back by the
respective wireless speaker.
• The speakers can only connect
if one speaker is set to the right
channel and the other to the left
channel.
Mains connection
• Connect the power cord with the
power cord jack socket (7) and
insert the plug of the power cord (5)
in a mains socket (220–240
V~/50 Hz).
• The first time you turn the wireless
speaker on, it will switch to pairing
mode and the power indicator (3)
will quickly blink in white.
(6) (5)
(3)

8• Effect 2
First-time connection
1. Hold the PAIRING button (8) down
until the power indicator (3) blinks
quickly in white.
PAIRING
Speaker
Pairing
Menu
< 1 sec
(8) (3)
2. Switch the transmitter unit (e.g.
soundbar) to pairing mode. Please
refer to the user manual for the
transmitter unit for more informa-
tion. This can be an option in the
Speaker submenu ( Speaker)
or a Pairing button on the transmit-
ting device.
3. As soon as the Effect 2 has found
a compatible transmitter, it will
connect with it.
The power indicator (3) illuminates
continuously in white and dims
down.
PAIRING
Speaker
Pairing
Menu
Short Press
(3)

9Effect 2 •
Automatic connection
• If the wireless speakers were
already connected to a compatible
transmitter, they will immediately
be connected to it.
The power indicator (3) illuminates
in white and slowly dims down.
• If there is no transmitter nearby or
if it is switched off, the Effect 2 will
search for the transmitter.
The power indicator (3) will fade in
and out in white.
• The connection will be established
as soon as you switch on the trans-
mitter.
The power indicator (3) illuminates
in white and slowly dims down.
Automatic activation/
deactivation
As soon as the wireless speakers
receive a signal from a connected
transmitter, they will switch back on
from standby mode.
If the signal is deactivated, the
wireless speakers will switch back to
standby mode after a short time. In
standby mode, the power indicator (3)
will be off.

10 • Effect 2
Troubleshooting
The following advice should help you to solve problems. If this does not work, our
online support area will provide help:
https://manual.teufelaudio.com
Problem Possible cause/solution
The Effekt’s power
indicator (3) does
not illuminate.
Make sure that power is supplied. Check to make sure that
the mains plug is securely seated.
The LED turns off when the transmitter is switched off. To
check whether the device is working, pull the plug out of the
socket, wait 1 minute and then plug it back in. The power
indicator starts fading in and out.
No sound The volume has been set too low. Increase the volume on
the transmitter.
No 5.1 audio: If e.g. a pure stereo signal is played, the rear
speakers will remain mute. Then select a surround sound
simulation such as Dolby Prologic on the transmitter unit.
A “test tone” is suitable for testing the connection providing
your transmitter unit offers this function for adjusting the
level.
The rear satel-
lites do not emit
sound.
MP3s, radio as well as many TV programmes only transmit
stereo sound. Switch your receiver to a Pro-Logic mode or
a DSP mode (5.1 Stereo). Select UPMIX method or get a
5.1 signal.
No connection Transmitter is off – switch the transmitter on.
Distance is >15m or objects are blocking the connection
signal. Correct the allocation of the devices.
The connection is
not automatically
established.
Reconnect the devices (see page 8).
The transmission
is disrupted.
Other wireless signal sources (cordless telephones, Wi-Fi
stations or microwaves) affect the connection. Move the
devices causing the disturbance.

11Effect 2 •
Technical Data
Operating voltage 220–240 V~/50 Hz
Power consumption max. 40 W
Dimensions (W × H × D) 113 × 162 × 115 mm
Weight 1.2 kg
The following radio frequency bands and radio transmitting powers are used in
this product:
Frequency bands in MHz Max. transmission power in dBm
2405 MHz - 2477 MHz 1 mW / 0 dBm
You can find further technical data about the product on our website.
Declaration Of Conformity
Lautsprecher Teufel GmbH declares that this product complies with
Directive 2014/53/EU. The full text of the EU Declaration of
Conformity can be found at this web address:
www.teufel.de/konformitaetserklaerungen
www.teufelaudio.com/declaration-of-conformity

Manual No. Teufel Effekt 2 UM EN V1.2 HC
Please contact our customer service department with any questions,
suggestions, or complaints:
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
Lautsprecher Teufel GmbH
Bikini Berlin
Budapester Str. 44
10787 Berlin (Germany)
www.teufelaudio.com
www.teufel.de
www.teufel.ch
www.teufelaudio.at
www.teufelaudio.nl
www.teufelaudio.be
www.teufelaudio.fr
www.teufelaudio.pl
www.teufelaudio.it
www.teufelaudio.es
Telefon:
Deutschland:
[phone]
Österreich:
[phone]
Schweiz: [phone]
International:
0800 200 300 40 (toll- free)
Telefax:
+49 (0)30 / 300 930 930
Online-Support:
www.teufelaudio.com/service
www.teufel.de/service
Kontaktformular:
www.teufel.de/kontakt
Contact:
www.teufelaudio.com/contact
