Tews Technologies TVME201 User manual

The Embedded I/O Company
TVME201
4 Slot IndustryPack® VMEbus Carrier
Version 1.1
User Manual
Issue 1.1.1
January 2018
TEWS TECHNOLOGIES GmbH
Am Bahnhof 7
25469 Halstenbek, Germany
Phone: [phone]
Fax: [phone]
e-mail: [e-mail]
www.tews.com

TVME201 User Manual Issue1.1.1 Page 2 of 26
TVME201-10R
4 Slot IndustryPack VMEbus Carrier
This document contains information, which is
proprietary to TEWS TECHNOLOGIES GmbH. Any
reproduction without written permission is forbidden.
TEWS T
ECHNOLOGIES GmbH has made any
effort to ensure that this manual is accurate and
complete. However TEWS TECHNOLOGIES GmbH
reserves the right to change the product described
in this document at any time without notice.
TEWS TECHNOLOGIES GmbH is not liable fo
r any
damage arising out of the application or use of the
device described herein.
Style Conventions
Hexadecimal characters are specified with prefix 0x,
i.e. 0x029E (that means hexadecimal value 029E).
Access terms are described as:
W Write Only
R Read Only
R/W Read/Write
R/C Read/Clear
R/S Read/Set
2018 by TEWS TECHNOLOGIES GmbH
All trademarks mentioned are property of their respective owners.

TVME201 User Manual Issue1.1.1 Page 3 of 26
Issue
Description
Date
1.0 First Issue May 2002
1.1 Value correction chapter “VMEbus P1 connector” October 2002
1.2 I/O connector Pin 1 marking added November 2002
1.3 Function added to switch S3 September 2004
1.4 Clarification of Interrupt Mapping November 2004
1.5 New address TEWS LLC September 2006
1.1.0 new User Manual Issue Notation December 2008
1.1.1 General Revision January 2018

TVME201 User Manual Issue1.1.1 Page 4 of 26
Table of Contents
1PRODUCT DESCRIPTION.........................................................................................7
2TECHNICAL SPECIFICATION...................................................................................8
3CONFIGURATION......................................................................................................9
3.1 VME A16 Base Address................................................................................................................10
3.2 Interrupts .......................................................................................................................................12
3.3 VME A24/A32 Memory Enable and Size......................................................................................13
3.4 VME A24/A32 Base Address........................................................................................................14
4IP IRQ AND CONTROL REGISTER.........................................................................17
4.1 IP IRQ Configuration Register .....................................................................................................17
4.2 Control Register............................................................................................................................19
5IP STROBE SIGNAL ................................................................................................21
6INSTALLATION OF INDUSTRYPACKS..................................................................22
7FRONT PANEL INDICATORS .................................................................................23
7.1 ACK and Power LEDs...................................................................................................................23
7.2 Fuses and Filters...........................................................................................................................23
8PIN ASSIGNMENT ...................................................................................................24
8.1 IP Connectors................................................................................................................................24
8.2 VMEbus Connectors.....................................................................................................................25
8.2.1 VMEbus P1 Connectors ...................................................................................................25
8.2.2 VMEbus P2 Connector.....................................................................................................26

TVME201 User Manual Issue1.1.1 Page 5 of 26
List of Figures
FIGURE 1-1 : BLOCK DIAGRAM......................................................................................................................7
FIGURE 3-1 : ROTARY SWITCH S1 – S6........................................................................................................9
FIGURE 3-2 : VME A16 BASE ADDRESS .....................................................................................................10
FIGURE 3-3 : INTERRUPT MAPPING ...........................................................................................................12
FIGURE 3-4 : VME A24/A32 MEMORY ENABLE AND SIZE.........................................................................13
FIGURE 3-5 : VME A24/A32 BASE ADDRESS..............................................................................................14
FIGURE 5-1 : IP STROBE SIGNAL................................................................................................................21
FIGURE 6-1 : FRONT PANEL.........................................................................................................................22

TVME201 User Manual Issue1.1.1 Page 6 of 26
List of Tables
TABLE 2-1 : TECHNICAL SPECIFICATION.....................................................................................................8
TABLE 3-1 : CONFIGURATION STEPS...........................................................................................................9
TABLE 3-2 : VME A16 ADDRESS MAP (S3 = “0” TO “7”) .............................................................................11
TABLE 3-3 : VME A16 ADDRESS MAP (S3 = “8” TO “F”) .............................................................................11
TABLE 3-4 : VME INTERRUPT MAPPING BY S3 .........................................................................................12
TABLE 3-5 : VME MEMORY SIZE BY S4.......................................................................................................14
TABLE 3-6 : VME A24/A32 ADDRESS MAP..................................................................................................16
TABLE 4-1 : IP IRQ CONFIGURATION REGISTERS (IP A / IP B)................................................................17
TABLE 4-2 : IP IRQ CONFIGURATION REGISTERS (IP C / IP D) ...............................................................18
TABLE 4-3 : IP CONTROL REGISTERS (IP A / IP B)....................................................................................19
TABLE 4-4 : IP CONTROL REGISTERS (IP C / IP D) ...................................................................................20
TABLE 7-1 : IP ACK LED................................................................................................................................23
TABLE 7-2 : IP POWER LED..........................................................................................................................23
TABLE 8-1 : IP J1 LOGIC INTERFACE PIN ASSIGNMENT..........................................................................24
TABLE 8-2 : VMEBUS P1 CONNECTOR.......................................................................................................25
TABLE 8-3 : VMEBUS P2 CONNECTOR.......................................................................................................26

TVME201 User Manual Issue1.1.1 Page 7 of 26
1 Product Description
The TVME201 is non-intelligent 6U VMEbus Carrier for up to 4 single-size or two double-size
IndustryPack (IP) modules used to build modular, flexible and cost effective I/O solutions for
applications in process control, medical systems, telecommunication and traffic control.
The TVME201 is designed in accordance to VMEbus Specification ANSI/VITA 1-1994 and the
IndustryPack Logic Interface Specification ANSI/VITA 4-1995. It guarantees compatibility with the wide
range of IndustryPacks in a VMEbus system.
IndustryPack I/O and ID spaces are mapped into the VME A16/D16 space.
IP Memory spaces are mapped into the VME A24 or A32 space. D08 and D16 accesses are
supported. If mapped in the VME A24 space, the size of the required memory space is configurable. In
VME A32 space, there is a fixed space of 8 Mbytes for each IP module.
Strobe signals of all IP modules are accessible via a 4 pin jumper block on the TVME201. DMA, 32 bit
access and 32 MHz operations are not supported.
For improved EMI protection, four HD50 SCSI-2 type connectors are mounted in the EMI front panel
of the TVME201 and provide access to all IP I/O lines. Status indicators for IP access, +5V and +/-12V
are provided in the front panel.
A set of 16-position rotary switches allows easy configuration of VME Short I/O and Memory
addresses. Interrupt routing from the IP slots to the VME IRQs can be done in two ways:
programmable by software or selection of predefined sets by a rotary switch.
The IP power lines are fuse protected by self healing fuses and RF filtered. The operating temperature
range is -40°C and +85°C.
Figure 1-1 : Block Diagram

TVME201 User Manual Issue1.1.1 Page 8 of 26
2 Technical Specification
VMEbus Slave Interface
According to VMEbus specification, ANSI / VITA 1-1994, 6U Board
Short I/O
VME A16, D08/16,
Address Modifier: 29, 2D
Size: 1 KBytes (256 Bytes / IP)
Standard Memory
VME A24, D08/16,
Address Modifier: 39, 3A, 3D, 3E
Size: programmable from 32 Kbytes to 2 Mbytes per IP
Extended Memory VME A32, D08/16,
Address Modifier: 09, 0A, 0D, 0E
Size: fixed, 8 Mbytes per IP
Interrupts
VME IRQ1-7
IP Interface
According to IndustryPack specification ANSI / VITA 4-1995
IP Slots Four single size or two double size with front panel I/O
Mapping of IP Interrupts to
VMEbus
Programmable by software or selection of predefined sets by a
rotary switch
I/O Access HD50 SCSI-2 type connector (AMP 787395-5) per IP, mounted in
EMI front panel
DMA
32 MHz
Not supported
Not supported
Status LEDs ACK LED for each IP slot
+5V Power LED for each IP slot
+12V and –12V Power LED
Protection
Self healing fuses and RF-filtering on all IP power lines
Power Requirements
without IP Modules 300 mA typical @+ 5 VDC
1 mA typical @+ 12 VDC
1 mA typical @ -12 VDC
Additional Power is required by IP modules
Temperature Range Operating
Storage – 40°C to + 85C – 40°C to + 125°C
MTBF 358000 h
MTBF values shown are based on calculation according to MIL-HDBK-217F and
MIL-HDBK-217F Notice 2; Environment: GB20°C.
The MTBF calculation is based on component FIT rates provided by the component
suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F
Notice 2 formulas are used for FIT rate calculation.
Weight
260 g – no IndustryPack inserted
Size Singe Size 6U Euro Card
Humidity
5 – 95 % non-condensing
Table 2-1 : Technical Specification

TVME201 User Manual Issue1.1.1 Page 9 of 26
3 Configuration
Setting 6 rotary switches allows all required configuration of the TVME201. Position of the switches is
shown below:
Figure 3-1 : Rotary Switch S1 – S6
Step Rotary Switch Function Default Value
1 S1 / S2 VME A16 Base Address 0x6000
2 S3 Interrupt Mapping VIPC6xx compatible
3 S4 VME A24/A32 Memory Enable and
Memory Size Disabled

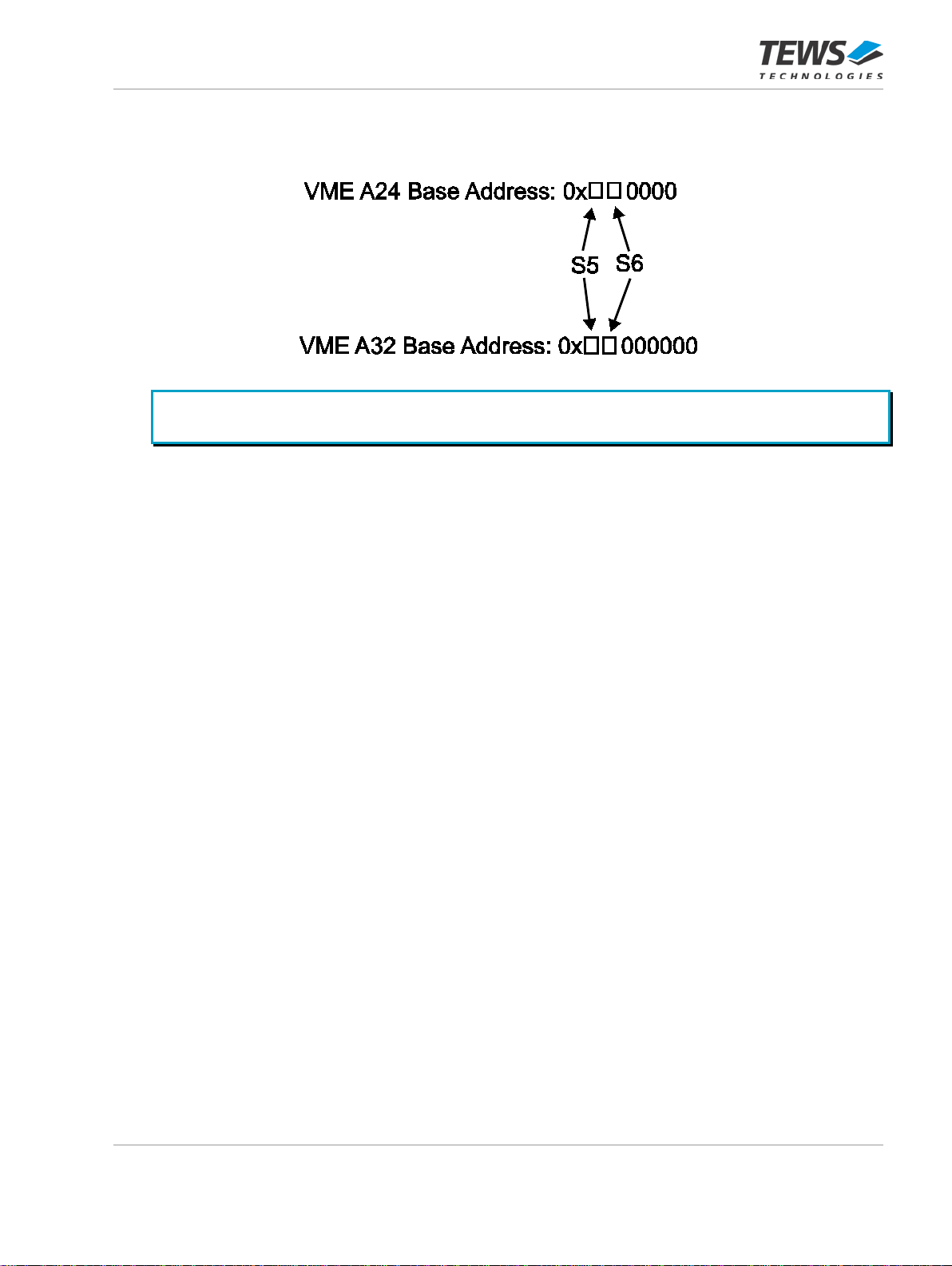

4 S5 / S6 VME A24/A32 Memory Base Address A24: 0xD00000
A32: 0xD0000000
Table 3-1 : Configuration Steps

TVME201 User Manual Issue1.1.1 Page 10 of 26
3.1VME A16 Base Address
The VME A16 Base Address of the TVME201 is set by rotary switch S1 and S2.
Rotary switch S1 sets A[15:12] of the VME A16 Base Address.
Rotary switch S2 sets A[11:10] of the VME A16 Base Address.

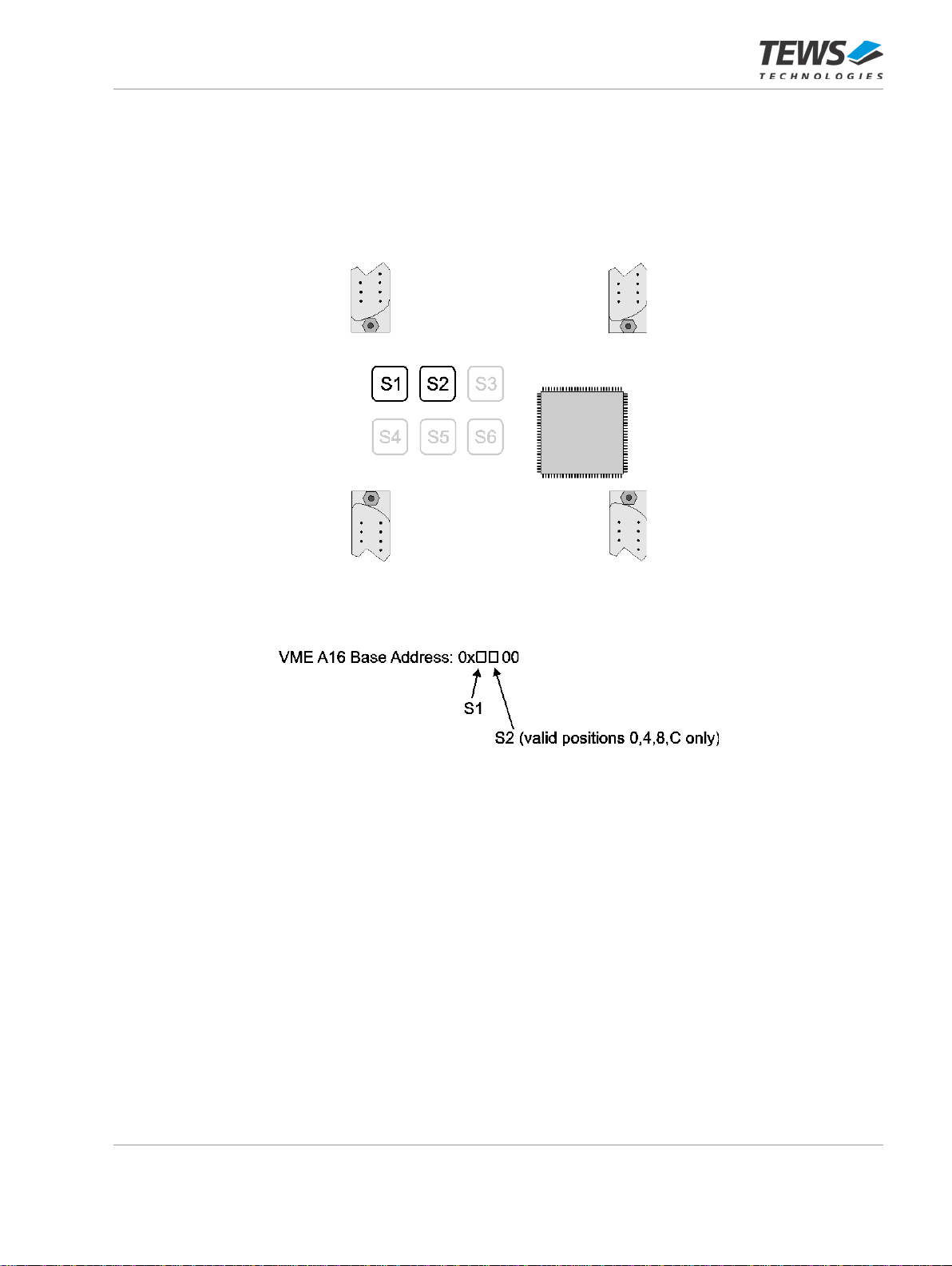

Figure 3-2 : VME A16 Base Address
The default value for the VME A16 Base Address is 0x6000 (S1=6, S2=0).
The TVME201 requires an address space of 1 Kbytes within the VME A16 address space. Each of the
four IP slots occupies 256 bytes within this 1 Kbytes VME A16 address space.
The address space for each IP is divided into the following areas: IP I/O space, IP ID space and the IP
IRQ and Control Register.
The IP I/O space has a size of 128 bytes. The size of the IP ID space and the IP IRQ and Control
Register depends on the position of switch S3:
With S3 = “0” to “7”, the IP IRQ and Control Registers of the TVME201 are accessible, and the size of
the IP ID space is 64 bytes. The remaining 64 bytes are occupied by the IP IRQ and Control
Registers. If switch S3 = “8” to “F”, the IP IRQ and Control Registers of the TVME201 are not
accessible, and the corresponding address range is added to the IP ID space, resulting in a size of
128 bytes for the IP ID space with S3 = “8” to “F”. This configuration is necessary for IP modules that
require access to the ID Space above the ID PROM.
See figures below for more details.

TVME201 User Manual Issue1.1.1 Page 11 of 26
VME A16 Base Address
Description
Default
+ 0x0000 I/O Space IP A 0x6000
+ 0x0080 ID Space IP A 0x6080
+ 0x00C0 IRQ and Control Register IP A 0x60C0
+ 0x0100 I/O Space IP B 0x6100
+ 0x0180 ID Space IP B 0x6180
+ 0x01C0 IRQ and Control Register IP B 0x61C0
+ 0x0200 I/O Space IP C 0x6200
+ 0x0280 ID Space IP C 0x6280
+ 0x02C0 IRQ and Control Register IP C 0x62C0
+ 0x0300 I/O Space IP D 0x6300
+ 0x0380 ID Space IP D 0x6380
+ 0x03C0 IRQ and Control Register IP D 0x63C0
Table 3-2 : VME A16 Address Map (S3 = “0” to “7”)
VME A16 Base Address
Description
Default
+ 0x0000
I/O Space IP A
0x6000
+ 0x0080
ID Space IP A
0x6080
+ 0x0100
I/O Space IP B
0x6100
+ 0x0180
ID Space IP B
0x6180
+ 0x0200
I/O Space IP C
0x6200
+ 0x0280
ID Space IP C
0x6280
+ 0x0300
I/O Space IP D
0x6300
+ 0x0380
ID Space IP D
0x6380
Table 3-3 : VME A16 Address Map (S3 = “8” to “F”)

TVME201 User Manual Issue1.1.1 Page 12 of 26
3.2Interrupts
Each IndustryPack can generate interrupts on two interrupt request lines (INT0 and INT1). The
VMEbus offers seven interrupt request level. IRQ7 has the highest priority, IRQ1 has the lowest
priority.
IP interrupt requests can be mapped to any of the 7 VME interrupt request levels. Interrupt routing
from the IP slots to the VME IRQs can be done by selection of predefined sets with a rotary switch or
programmable by software if S3 is in the range of “0” to “7”.
For more information about fully programmable interrupt mapping please refer to chapter “IP IRQ and
Control Register”.
Rotary switch S3 can be used to select predefined sets of mapping of the eight IP interrupt requests
(two requests per IP slot) to the seven VME interrupt request levels. The mapping selected with S3 =
“0” to “7” is mirrored at S3 = “8” to “F”. The difference is that access to the IP IRQ and Control
Registers of the TVME201 is only possible in switch position S3 = “0” to “7”. See Chapter “IP IRQ and
Control Register” and Chapter “VME A16 Base Address” for more details.
Figure 3-3 : Interrupt Mapping
S3 =
0
1
2
3
4
5…7
8*
9*
A*
B*
C*
D*…F*
IPA, Int0
- 1 4 6 1 reserved - 1 4 6 1 reserved
IPA, Int1 - 2 5 4 1 reserved - 2 5 4 1 reserved
IPB, Int0 - 3 2 3 2 reserved - 3 2 3 2 reserved
IPB, Int1 - 4 1 1 2 reserved - 4 1 1 2 reserved
IPC, Int0 - 5 4 6 3 reserved - 5 4 6 3 reserved
IPC, Int1
- 6 5 4 3 reserved - 6 5 4 3 reserved
IPD, Int0
- 7 2 3 4 reserved - 7 2 3 4 reserved
IPD, Int1
- - 1 1 4 reserved - - 1 1 4 reserved
“-” = No VME IRQ level mapped to IP INTx * no access to the IP IRQ and Control registers of the TVME201 , see Chapter 4 and Chapter 3.1 for more
details.
Table 3-4 : VME Interrupt Mapping by S3
S3 = “1”, “9” corresponds to the VME Interrupt Mapping of the VIPC6xx
S3 = “2”, “A” corresponds to the VME Interrupt Mapping of the VIPC610-01 (equal to two VIPC310)
S3 = “3”, “B” corresponds to the VME Interrupt Mapping of another version of the VIPC310
The default value for S3 is “1”.

TVME201 User Manual Issue1.1.1 Page 13 of 26
3.3VME A24/A32 Memory Enable and Size
If VME memory space is not required, switch S4 to “0” (VME A24/A32 memory disabled).
Figure 3-4 : VME A24/A32 Memory Enable and Size
IndustryPack Memory is mapped into the VME A24 or VME A32 memory space.
In VME A24 memory space, the memory size can be configured from 32 Kbytes to 2 Mbytes memory
per IP slot.
In VME A32 memory space, the memory size is fixed 8 Mbytes per IP slot.
Rotary switch S4 is used to enable/disable VME A24/A32 memory and to select the required VME
memory size. Default setting of S4 is “0”, which signifies VME A24/A32 memory is disabled.
Positions “1” to “7” of S4 represent several memory spaces in VME A24, and with S4 = “F”, each IP
has an 8 Mbytes memory space in VME A32 address space.
The Memory Spaces for all IPs have the same size. If i.e. one IP requires 128 Kbytes of
memory, one IP requires 64 Kbytes of memory and 2 IP require no memory, then S4 must be
set to “3”, which selects a VME A24 memory size of 512 Kbytes, 128 Kbytes memory for each
IP.

TVME201 User Manual Issue1.1.1 Page 14 of 26
Value of S4
VME Memory Size
0x0 VME A24/A32 memory disabled
0x1 A24 128 Kbytes 32 Kbytes / IP
0x2 A24 256 Kbytes 64 Kbytes / IP
0x3 A24 512 Kbytes 128 Kbytes / IP
0x4 A24 1 Mbytes 256 Kbytes / IP
0x5 A24 2 Mbytes 512 Kbytes / IP
0x6 A24 4 Mbytes 1 Mbytes / IP
0x7 A24 8 Mbytes 2 Mbytes / IP
0x8-0xE reserved
0xF A32 32 Mbytes 8 Mbytes/IP Slot
Table 3-5 : VME Memory Size by S4
3.4VME A24/A32 Base Address
The memory space of IndustryPacks is mapped in the VME A24 or VME A32 space.
The memory base address for VME A24 or VME A32 is both set with the switches S5 and S6.

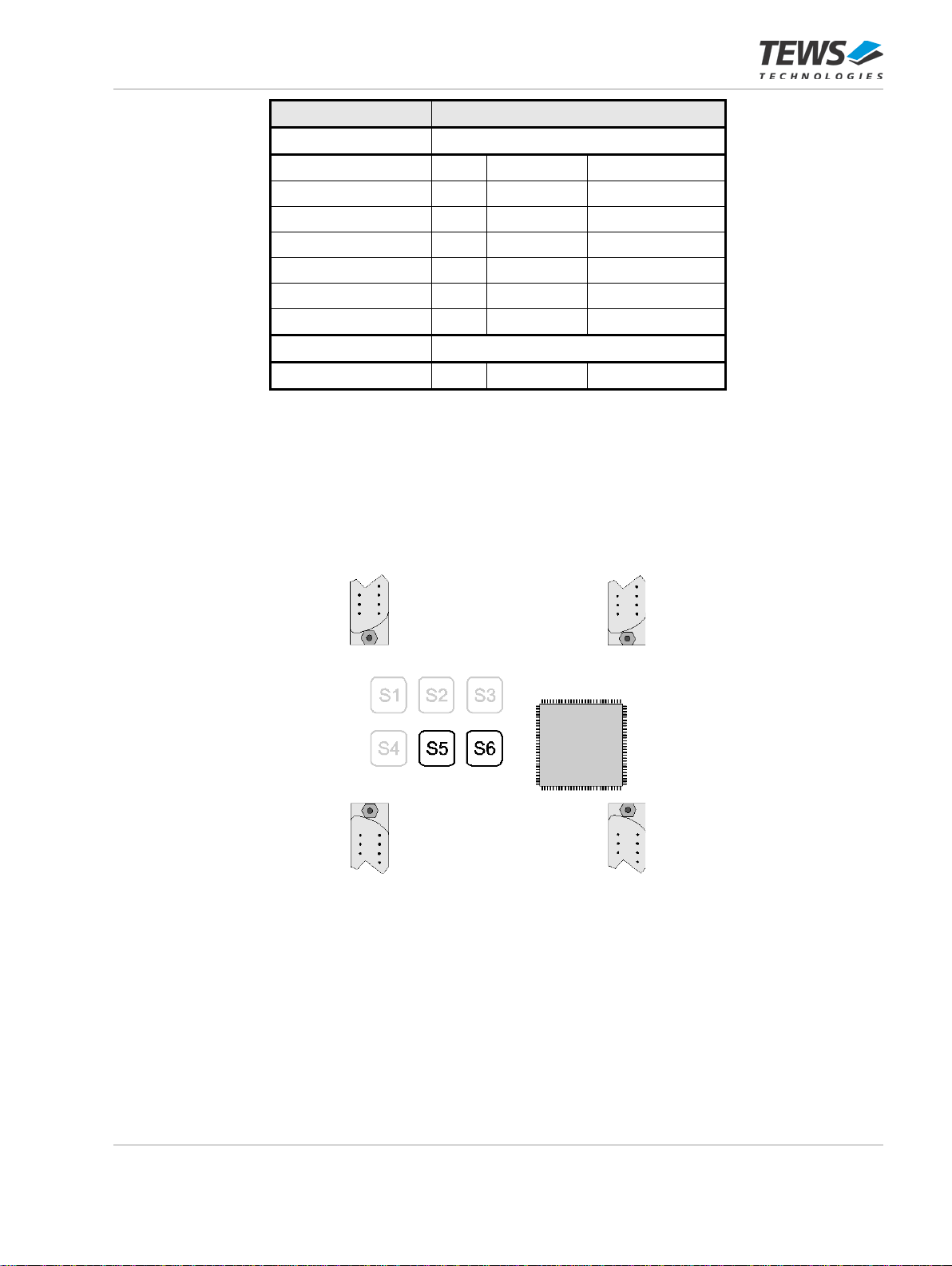

Figure 3-5 : VME A24/A32 Base Address

TVME201 User Manual Issue1.1.1 Page 15 of 26
If memory space is located in VME A24, S5 represents A[23:20], and S6 represents A[19:16].
In VME A32, S5 represents [A31:28] and S6 represents A[27:24].
The memory base address of the TVME201 must be set on a boundary equal to the memory
size, as selected by S4! See figure below for details.
The default value for VME A24 base address is 0xD00000 (S5=D, S6=0).
The default value for VME A32 base address is 0xD0000000 (S5=D, S6=0).

TVME201 User Manual Issue1.1.1 Page 16 of 26
TVME201
VME A24/A32 Size IP Memory
Size IP Slot IP Memory Location:
Mem. Base Address + VMEbus Address
Boundary
A24 128 Kbytes
32 Kbytes
32 Kbytes
32 Kbytes
32 Kbytes
A
B
C
D
0x000000
0x008000
0x010000
0x018000
multiple of 0x020000
A24 256 Kbytes
64 Kbytes
64 Kbytes
64 Kbytes
64 Kbytes
A
B
C
D
0x000000
0x010000
0x020000
0x030000
multiple of 0x040000
A24 512 Kbytes
128 Kbytes
128 Kbytes
128 Kbytes
128 Kbytes
A
B
C
D
0x000000
0x020000
0x040000
0x060000
multiple of 0x080000
A24 1 Mbytes
256 Kbytes
256 Kbytes
256 Kbytes
256 Kbytes
A
B
C
D
0x000000
0x040000
0x080000
0x0C0000
multiple of 0x100000
A24 2 Mbytes
512 Kbytes
512 Kbytes
512 Kbytes
512 Kbytes
A
B
C
D
0x000000
0x080000
0x100000
0x180000
multiple of 0x200000
A24 4 Mbytes
1 Mbytes
1 Mbytes
1 Mbytes
1 Mbytes
A
B
C
D
0x000000
0x100000
0x200000
0x300000
multiple of 0x400000
A24 8 Mbytes
2 Mbytes
2 Mbytes
2 Mbytes
2 Mbytes
A
B
C
D
0x000000
0x200000
0x400000
0x600000
multiple of 0x800000
A32 32 Mbytes
8 Mbytes
8 Mbytes
8 Mbytes
8 Mbytes
A
B
C
D
0x00000000
0x00800000
0x01000000
0x01800000
multiple of 0x02000000
Table 3-6 : VME A24/A32 Address Map

TVME201 User Manual Issue1.1.1 Page 17 of 26
4 IP IRQ and Control Register
If switch S3 is in the range of “0” to “7”, the TVME201 provides a set of two registers for each IP: The
IP IRQ Configuration Register and the IP Control Register.
Setting switch S3 to a value of “8” to “F” disables the IP IRQ Register and the IP Control Register. The
address range of the IP IRQ and Control Register from “VME A16 Base Address” + “IP Offset” + 0xC0
to 0xFF is then mapped to the ID Space of the corresponding IP module, enlarging the ID Space of
each IP module from 64 bytes to 128 bytes.
4.1IP IRQ Configuration Register
Switch S3 must be in the range of “0” to “7” to access the IP IRQ Configuration Register. The register
is divided in 2 equal parts, one for each interrupt. The bits[0, 4] are the LSBs, and the bits[2, 6] are the
MSBs of the programmed IRQ level.
IPA IRQ Configuration Register VME A16 Base Address + 0x00C1
Bit Symbol Description Access Reset Value
7
6
IPA, INT1
VME IRQ Level
000 = interrupt is disabled
[6:4] 001 to 111 =
VMEbus IRQ-levels IRQ1
to IRQ7
R/W Depends on S3
jumper setting
5 R/W
4 R/W
3 R/W
2
IPA, INT0
VME IRQ Level
000 = interrupt is disabled
[2:0] 001 to 111 =
VMEbus IRQ-levels IRQ1
to IRQ7
R/W Depends on S3
jumper setting
1 R/W
0 R/W
IPB IRQ Configuration Register VME A16 Base Address + 0x01C1
Bit Symbol Description Access Reset Value
7
6 IPB, INT1 VME IRQ Level
000 = interrupt is disabled
[6:4] 001 to 111 = VMEbus IRQ-levels IRQ1 to IRQ7
R/W Depends on
S3 jumper
setting
5 R/W
4 R/W
3 R/W
2 IPB, INT0 VME IRQ Level
000 = interrupt is disabled
[2:0] 001 to 111 = VMEbus IRQ-levels IRQ1 to IRQ7
R/W Depends on
S3 jumper
setting
1 R/W
0 R/W
Table 4-1 : IP IRQ Configuration Registers (IP A / IP B)

TVME201 User Manual Issue1.1.1 Page 18 of 26
IPC IRQ Configuration Register VME A16 Base Address + 0x02C1
Bit
Symbol
Description
Access
Reset Value
7
6 IPC, INT1 VME IRQ Level
000 = interrupt is disabled
[6:4] 001 to 111 = VMEbus IRQ-levels IRQ1 to IRQ7
R/W Depends on
S3 jumper
setting
5 R/W
4 R/W
3 R/W
2 IPC, INT0 VME IRQ Level
000 = interrupt is disabled
[2:0] 001 to 111 = VMEbus IRQ-levels IRQ1 to IRQ7
R/W Depends on
S3 jumper
setting
1 R/W
0 R/W
IPD IRQ Configuration Register VME A16 Base Address + 0x03C1
Bit Symbol Description Access Reset Value
7
6 IPD, INT1 VME IRQ Level
000 = interrupt is disabled
[6:4] 001 to 111 = VMEbus IRQ-levels IRQ1 to IRQ7
R/W Depends on
S3 jumper
setting
5 R/W
4 R/W
3 R/W
2 IPD, INT0 VME IRQ Level
000 = interrupt is disabled
[2:0] 001 to 111 = VMEbus IRQ-levels IRQ1 to IRQ7
R/W Depends on
S3 jumper
setting
1 R/W
0 R/W
Table 4-2 : IP IRQ Configuration Registers (IP C / IP D)

TVME201 User Manual Issue1.1.1 Page 19 of 26
4.2Control Register
Four IP Control Registers are located in the VMEbus A16 space. Switch S3 must be in the range of “0”
to “7” to access the IP Control Register.
IPA Control Register VME A16 Base Address + 0x00C3
Bit
Symbol
Description
Access
Reset Value
7 IP A, Reset 1 = reset is initiated
Remains ‘1’, until the IP reset has been completed
and is then set to ‘0’ by the on board logic. It can
be read to verify the status of the reset.
R/W 0
6 reserved
Carry random information
R undefined
5 reserved R undefined
4 reserved R undefined
3 reserved R undefined
2 IP A, Error 1 = error signal is active R 0
1 IP A, INT1 Interrupt status
1 = indicates a pending interrupt request R 0
0 IP A, INT0 R 0
IPB Control Register VME A16 Base Address + 0x01C3
Bit
Symbol
Description
Access
Reset Value
7 IP B, Reset 1 = reset is initiated
Remains ‘1’, until the IP reset has been completed
and is then set to ‘0’ by the on board logic. It can
be read to verify the status of the reset.
R/W 0
6 reserved
Carry random information
R undefined
5 reserved R undefined
4 reserved R undefined
3 reserved R undefined
2 IP B, Error 1 = error signal is active R 0
1 IP B, INT1 Interrupt status
1 = indicates a pending interrupt request R 0
0 IP B, INT0 R 0
Table 4-3 : IP Control Registers (IP A / IP B)

TVME201 User Manual Issue1.1.1 Page 20 of 26
IPC Control Register VME A16 Base Address + 0x02C3
Bit Symbol Description Access Reset Value
7 IP C, Reset 1 = reset is initiated
Remains ‘1’, until the IP reset has been completed
and is then set to ‘0’ by the on board logic. It can
be read to verify the status of the reset.
R/W 0
6 reserved
Carry random information
R undefined
5 reserved R undefined
4 reserved R undefined
3 reserved R undefined
2 IP C, Error 1 = error signal is active R 0
1 IP C, INT1 Interrupt status
1 = indicates a pending interrupt request R 0
0 IP C, INT0 R 0
IPD Control Register VME A16 Base Address + 0x03C3
Bit Symbol Description Access Reset Value
7 IP D, Reset 1 = reset is initiated
Remains ‘1’, until the IP reset has been completed
and is then set to ‘0’ by the on board logic. It can
be read to verify the status of the reset.
R/W 0
6 reserved
Carry random information
R undefined
5 reserved R undefined
4 reserved R undefined
3 reserved R undefined
2 IP D, Error 1 = error signal is active R 0
1 IP D, INT1 Interrupt status
1 = indicates a pending interrupt request R 0
0 IP D, INT0 R 0
Table 4-4 : IP Control Registers (IP C / IP D)
