The handy Thssalt User manual

01/02/2018

125LB (56.8kgs)

PUSH SALT SPREADER

Model No: THSSALT -- Product No: 1938134001

DO NOT USE WITH ROCK SALT.

Using rock salt in this spreader will damage the mechanism and shorten the life of the product.

Refined ice melting salt can be used, but the user should be aware that using salt may corrode

certain components of the spreader and reduce the life of the machine.

Clean the spreader thoroughly after using refined de-icing salt.

ASSEMBLY REQUIRED

SAVE THESE INSTRUCTIONS

SPARES & SUPPORT: 01793 333212

Please read & understand this manual, payingattention to the safety instructions, before use.

The manufacturer reserves the right to change the product specification and livery according to

continued product improvements.

Images used are for illustration purposes only

INSTRUCTION MANUAL

THS

CONTENTS

SPECIFICATIONS

IMPORTANT INFORMATION

GENERAL SAFETY INSTRUCTIONS

KNOW YOUR MACHINE

COMPONENTS

ASSEMBLY

ADJUSTMENTS

OPERATION

RATE SETTINGS

MAINTENANCE

PARTS DIAGRAM & LIST

WARRANTY

NOTES

ASSEMBLY IS REQUIRED

This product requires assembly before use. See the “Assembly” section for instructions.

Please check that all parts required for the assembly of this spreader are included. If for any

reason, you believe a part for the assembly is missing or damaged, please contact us.

If you require any assistance with regards to the contents or operation of

your machine, please contact us:

TEL: 01793 333212

EMAIL: [email protected]

(MON –FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)

DO NOT USE WITH ROCK SALT.

Using rock salt in this spreader will damage the mechanism and shorten the life of the product.

Refined ice melting salt can be used, but the user should be aware that using salt may corrode

certain components of the spreader and reduce the life of the machine.

Clean the spreader thoroughly after using refined de-icing salt.

SPECIFICATIONS

The manufacturer reserves the right to change the product specification and livery according to

continued product improvements.

Model

THSSALT

Product Number

1938134001

Capacity (Weight)

56.8kg (125lb)

Hopper Dimensions (cm)

74.9 x 41.9 x 34

Overall Dimensions (cm)

109.9 x 80 x 96.5

Product Weight (kgs)

18.5

Tyre Rating

2 Ply

Tyre Maximum PSI

20psi (Do not exceed)

IMPORTANT INFORMATION

INTENDED USE

The product is intended for spreading granular material for domestic gardens. This product is not

intended for commercial use. Generally acknowledged accident prevention regulations and enclosed

safety instructions must be observed.

ONLY REFINED ICE MELTING SALT CAN BE USED WITH THIS PRODUCT.

Only perform work described in these instructions for use, any other use is incorrect. The

manufacturer will not assume responsibility for damage resulting from such use.

GENERAL SAFETY INSTRUCTIONS

Read and understand the owner’s manual

and labels affixed to the product. Learn its

application and limitations as well as the

specific potential hazards. Retain these

instructions for future reference. The

operator is responsible for following the

warnings & instructions in this manual and

on the product.

STAY ALERT

Do not operate the machine while under the

influence of drugs, alcohol, or any medication

that could affect your ability to use it

properly. Do not use this machine when you

are tired or distracted from the job at hand.

Be aware of what you are doing at all times.

Use common sense.

AVOID DANGEROUS CONDITIONS

Make sure there is adequate surrounding

workspace. Cluttered areas invite injuries.

Keep your work area clean with sufficient

light. Keep the area around the machine clear

of obstructions, grease, oil, rubbish & other

debris which could cause persons to fall onto

moving parts.

INSPECT YOUR MACHINE

Check all bolts, nuts & screws for tightness

before each use, especially those securing

guards & drive mechanisms. Vibration during

use, may cause these to loosen.

Replace damaged, missing or failed parts

before using.

Warning labels carry important information.

Replace any missing or damaged warning

labels.

CRUSH AND CUT HAZARDS

Always keep your hands and feet clear from

moving parts while operating the equipment.

Always keep the work area clean and clear

when operating.

CONDITIONS

We recommend the machine is not used

during winds. This may affect the spreading

pattern.

DRESS PROPERLY

Do not wear loose clothing, gloves, scarfs,

neckties or jewellery (rings, wrist watches),

which can be caught in moving parts.

DO NOT OVERREACH

Keep proper footing and balance at all times

when using the machine. Never stand on the

machine. Serious injury could occur if the

machine is tipped or if the moving parts are

unintentionally contacted. Do not store

anything above or near the machine, where

anyone might stand on the machine to reach

them.

AVOID INJURY FROM UNEXPECTED

ACCIDENT

Keep hands & feet out of the way of all

moving parts. Do not place any part of your

body or any tool e.g. in moving parts of the

machine during operation.

DO NOT FORCE TOOL

Always work within the rated capacity. Do not

operate for a purpose for which it was not

intended.

MAINTAIN YOUR MACHINE WITH CARE

Clean the machine immediately after use.

Keep the machine clean to ensure it operates

to its full & safest performance. When

maintaining this machine, only the

manufacturer’s original replacement parts

should be used. The use of non-original

manufacturer parts may invalidate your

warranty.

PROTECT THE ENVIRONMENT

Take left over materials to an authorised

collection points or follow the stipulations in

the country where the machine is used. Do

not discharge into drains, soil or water.

STORE IDLE EQUIPMENT

When not in use, the machine should be

stored in a dry location. Keep the machine

away from children and others not qualified

to use it.

OPERATION SPEED

Do not exceed 10mph, to avoid personal

injury and/or equipment damage.

TYRE INFLATION

Before operating, make sure the tyres have

the recommended pressure of 20 PSI (Do not

exceed 20 PSI). We recommend the use of

FOOT or HAND manual inflation devices only.

This is a garden/domestic product, therefore

extended use over abrasive surfaces (e.g.

concrete, tarmac etc.) could cause premature

wear on the tyres.

SAFETY SYMBOLS

Safety alert symbol. Used to alert you to

potential personal injury hazards. Obey all

safety messages that follow this symbol to

avoid possible injury.

DANGER

Indicates an imminently hazardous situation

which, if not avoided, will result in serious

injury.

WARNING

Indicates a potentially hazardous situation

which, if not avoided, could result in serious

injury.

CAUTION

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury.

CAUTION

Used without the safety alert symbol indicates

a potentially hazardous situation which, if not

avoided, may result in property damage.

KNOW YOUR MACHINE

Read this owner’s manual before operating the equipment. Familiarise yourself with the location

and function of the controls and features. Save this manual for future reference.

1. T-Handle –Pushes and moves the spreader easily.

2. Flow Control –Controls the flow of material being spread

3. Hopper –Do not exceed rated load capacity 125lb (56.8kgs).

4. Impeller - Evenly distributes material.

5. Tyre/Wheel –Do not exceed recommended inflation rated 20 PSI.

6. Support Leg –Stabilizes load and spreader, when stationary.

COMPONENTS

NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend

you contact our Spares Team on 01793 333212 for expert advice.

ASSEMBLY

RECOMMENDED TOOLS REQUIRED

•Pliers

•Adjustable Spanner

•10mm Wrench x2

•13mm Wrench

STEP 1 - Wheels

•When assembling the wheels make sure the air valves are facing outward.

•Slide the wheel bushing (#19) onto the left side of the axle.

•Push one wheel (#15) onto the axle. Align the hole in the axle and wheel and insert the M6x60

bolt (#24) and secure with a M6 lock nut (#9).

•Slide the other wheel bushing (#19) onto the right side of the axle.

•Push the wheel (#15) onto the axle. Slip the Ø16 flat washer (#17) and insert the Ø5x35 cotter

pin (#16) into the hole and fasten it by bending.

STEP 2 –Attach Handle to Support Leg

•Insert handle assembly into the supporting leg (#39). In the center holes put two M6x35 bolts

(#40), Ø6 spring washer (#55) and secure with M6 lock nut (#9).

•On the outer holes of the handle assembly and supporting leg (#39) put four M6x20 bolts (#47),

Ø6 spring washers (#55) and secure with M6 lock nuts (#9).

Flange

Outer

Holes

Centre

Holes

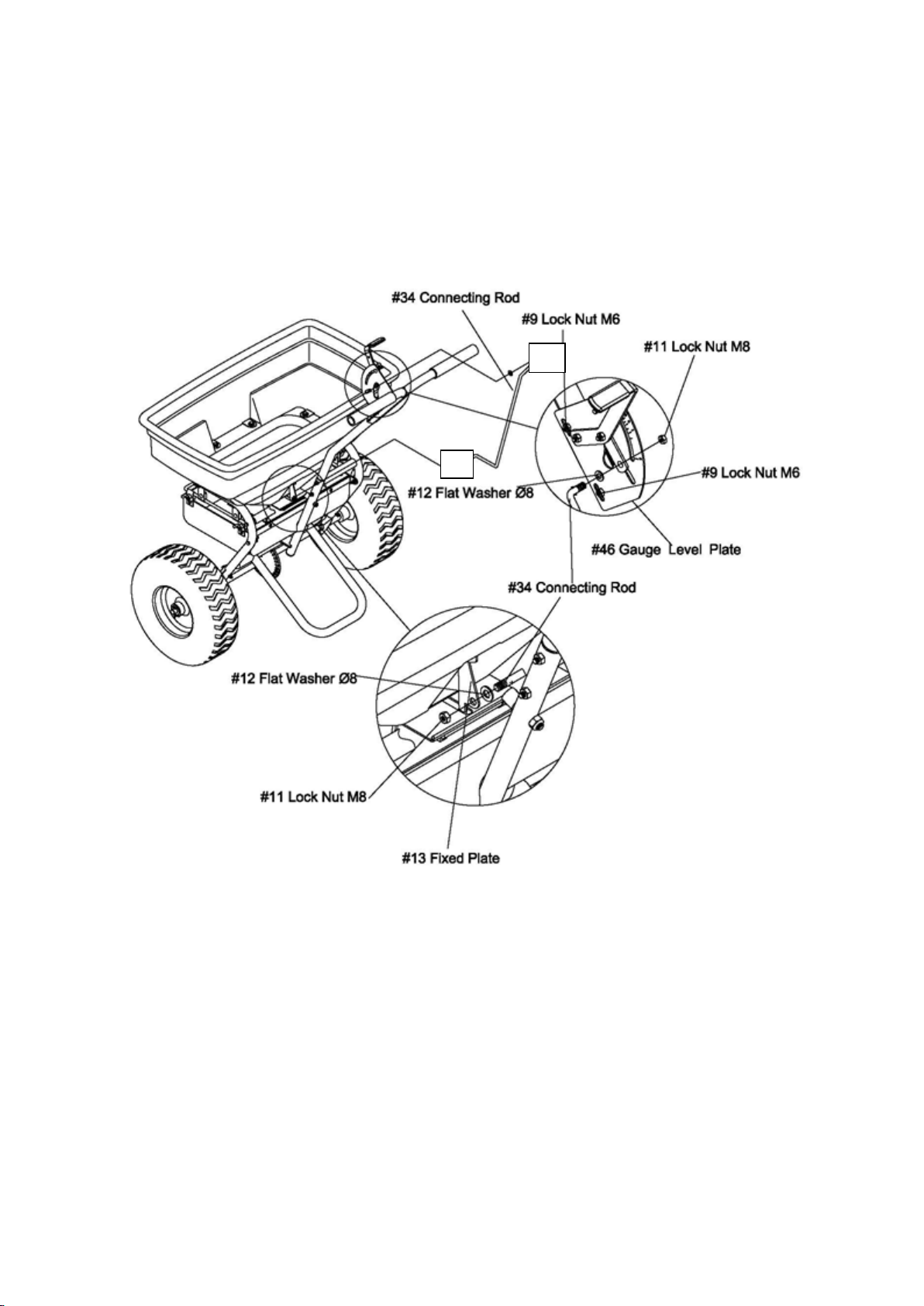

STEP 3 –Connecting Linkage

•Push the flow control handle to the “30” position. Insert the A end of the connecting rod (#34)

through the Ø8 flat washer (#12) and into the hole on the gauge level plate (#46). Secure with a

M8 lock nut (#11).

•Insert the B end of the connecting rod (#34) through the Ø8 flat washer (#12) and into the hole

on the fixed plate (#13). Secure with M8 lock nut (#11).

•Push the control handle to the “0” position. The hole in the bottom of the spreader should be

completely closed.

ADJUSTMENTS

STEP 4

When you have finished all the above steps, if the hole at the bottom of hopper cannot be closed

and opened completely by using the handle you may need to the follow these additional steps.

•If the flow control handle position and the hole in the bottom of the hopper does match exactly,

loosen the two bottom M6 lock nuts (#9) and move the gauge level plate until the handle

position and the hole in the bottom of the hopper match.

•Re-tighten the two M6 lock nuts (#9).

To operate this spreader, push the handle to the lowest position (downwards). You may move the

position of the Wing nut on the Gauge & Lever to adjust the space on the hole between the

hopper and the adjustable plate as per your need when spreading.

OPERATION

DANGER

The product must only be put into operation if no defects are found. It is crucial that any defective

parts are replaced before the product is used again. Check the safety equipment and the safe

condition of the product. Check all parts to make sure that they fit tightly. Check whether there

are any visible defects: broken parts, cracks, etc.

DANGER - DO NOT EXCEED MAXIMUM LOAD CAPACITY OF 125LBS (56.8KG)

NOTE: ALWAYS MOVE OFF BEFORE OPENING THE FEED-GATE. ALWAYS CLOSE THE FEED-GATE

BEFORE STOPPING.

•Inspect your spreader before each use. Make sure the wheels turn easily, and the gearbox

moves when the spreader is pushed. The hopper should be clean and free from cracks.

•DO NOT use the spreader on windy days.

•Before filling the hopper, ensure the feed-gate flow hole is closed, with the flow control lever at

“0”. Always follow the spreading material manufacturer spreading rates.

•The Spreader is designed to be pushed at 3 miles per hour –brisk walking pace. The rate of

walking will affect the spread pattern and flow rate.

•Move the Wing Nut attached to the stop bolt on the gauge to the relevant setting.

•Start pushing the Spreader forward & pull the control lever back to the stop bolt, opening the

feed-gate flow hole at the bottom of the hopper.

•Every time you are ready to stop or turn back, close the flow control plate to stop dispersing the

material and continue one more stride. This reduces waste and avoids damaging the lawn by

oversaturating it with the product.

•To maintain the same coverage when walking at a different speed, adjust the flow rate. Reduce

the flow setting for slower speeds and increase the flow setting for higher speeds. Keep the

impeller plate horizontal when operating the spreader. Tilting the spreader will result in uneven

coverage.

•If the Spreader does not spread evenly, ensure that the gearbox rotates the impellor clockwise.

•Material which is stuck on the impellor blades will cause uneven spreading.

•To stop spreading, push the gauge lever forward to close the feed-gate hole in the hopper.

•If spreading material is accidentally deposited too heavily in a small area, soak the area

thoroughly with a garden hose or sprinkler to prevent burning the lawn.

•When broadcasting spreading material, make sure the broadcast pattern does not hit evergreen

trees, flowers or shrubs.

•Always use the rain cover in wet weather conditions to keep the hopper contents dry.

DO NOT USE WITH ROCK SALT.

Using rock salt in this spreader will damage the mechanism and shorten the life of the product.

Refined ice melting salt can be used, but the user should be aware that using salt may corrode

certain components of the spreader and reduce the life of the machine.

Clean the spreader thoroughly after using refined de-icing salt.

RATE SETTINGS

Our spreaders are designed to spread dry, powdered or granulated materials thinly and evenly over

reasonably smooth surfaces.

•Ensure that the material is dry and free-running. If in doubt pass it through a sieve with 3mm

mesh to remove lumps.

•Set rate-setting dial to No. 12.

•Fill the hopper approximately 3/4 full.

•Push the spreader forward and pull the control lever back to the Stop bolt. If the spread is

uneven or inadequate, close the feed-gate and reset the dial to a higher number.

Always move off BEFORE opening the feed-gate and close the gate BEFORE stopping.

CAUTION

The rate settings are guidelines only. Even branded materials may vary in grain size, humidity,

density etc. If in any doubt choose a lower setting than that suggested or start at setting no. 12

and adjust as necessary, until an even spread is achieved.

WARNING

Do not over apply spreading material. Follow the recommended coverage rate for each product.

Over application will lead to damage and contamination. If spreading material accidentally

deposits too heavily, soak the area thoroughly with a garden hose or sprinkler to prevent burning.

CONSISTENT COVERAGE

To ensure consistent coverage, ensure each broadcast pattern slightly overlaps the previous, as

shown below. N.B. ALWAYS MOVE OFF BEFORE OPENING FEED-GATE.ALWAYS CLOSE FEED-GATE

BEFORE STOPPING

MAINTENANCE

LUBRICATE

Maintenance spray or multi-purpose grease can be applied to the wheel axle prior to long-term

storage. Oiling is not necessary.

GEARBOX

Apply multi-purpose grease to the gearbox cogs at the end of each use.

CHECK TYRE INFLATION

Prior to using the Spreader, ensure the tyres are sufficiently inflated. We recommend the use of

FOOT or HAND manual inflation devices only. Do not inflate above 20psi.

CLEANING

After each use thoroughly wash the spreader and clean material out of the hopper.

STORING

Never allow material to stay in the hopper for extended periods of time. Before storing, ensure that

the spreader is clean and dry. Store indoors or in a protected area during severe weather in the

winter months and direct sunlight.

CHECK ALL NUTS, BOLTS AND FASTENING

Periodically check all fastenings are tight & secure.

NEVER EXCEED LOAD CAPACITY

To avoid damaging the spreader, never exceed the rated load capacity of 125LB (56.8kg).

PARTS DIAGRAM –THSSALT (1938134001)

NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend

you contact our Spares Team on 01793 333212 for expert advice.

PARTS LIST –THSSALT (1938134001)

NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend

you contact our Spares Team on 01793 333212 for expert advice.

GJ HANDY & CO LTD USER WARRANTY POLICY

Users Statement of Warranty

Each new machine is warranted against defective material or assembly of material under normal

usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved

in replacing and repairing those parts, which are of original manufacture.

Period of Warranty

Webb (excludes Electric Handheld & Dynamic), Webb Pro, Sanli Engine

a) 2 years from the original date of sale to the first domestic user.

b) 90 days from the original date of sale to the professional/commercial user.

c) 90 days from the original date of sale when used for hire.

d) A reduced warranty period of 90 days applies to those items which are subject to normal wear

and tear (e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss,

belts, cables, nylon line & spool, collection bags, spark plugs).

e) Engines are supplied with a separate warranty to the machine. The engine manufacturers

warranty statement which will be supplied within the engine instruction manual. All enquiries

and warranty repairs should be discussed with the engine manufacturer or approved warranty

repair dealer.

f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear &

tear component, which are covered for 30 days).

g) All machines’ must be serviced within the first 12 months from the original date of purchase to

comply with the warranty, failure to do so will invalidate the 2nd year of the warranty.

All warranty repairs must be undertaken by an authorised service dealer. These dealers have been

accredited by GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair

procedures.

Webb Electric Handheld, Webb Dynamic, The Handy, Mowerland, Q-Garden

a) 1 year from the original date of sale to the first domestic user.
