THE WORLD MODELS F4U CORSAIR EP User manual

Requires : 5-channel radio w/ 5 micro servos,
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100,
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
Wing Span 39.5 in / 1000 mm
Wing Area 282 sq in / 18.2 sq dm
Flying Weight 32 oz / 905 g
Fuselage Length 31.5 in / 800 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
* Specifications are subject to change without notice.*
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
INSTRUCTION MANUAL
F4U CORSAIR EP
Specifications
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s .co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w o r ld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com

BEFORE YOU BEGIN
INDEX
BEFORE YOU BEGIN
PARTS LIST
ASSEMBLY
SAFETY PRECAUTIONS
P.1
P.2
P.3 - 9
P.9
Read through the manual before you begin, so you will have an overall idea of what to do.
Check all parts. If you find any defective or missing parts contact your local dealer. Please
DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
Any parts you find to be defective after the gluing process may be difficult to remove for
warranty replacement. The manufacturer will replace any defective parts, but will not extend
to the parts that are good before gluing to defective parts during assembly. Warranty will
not cover any parts modified by customer.

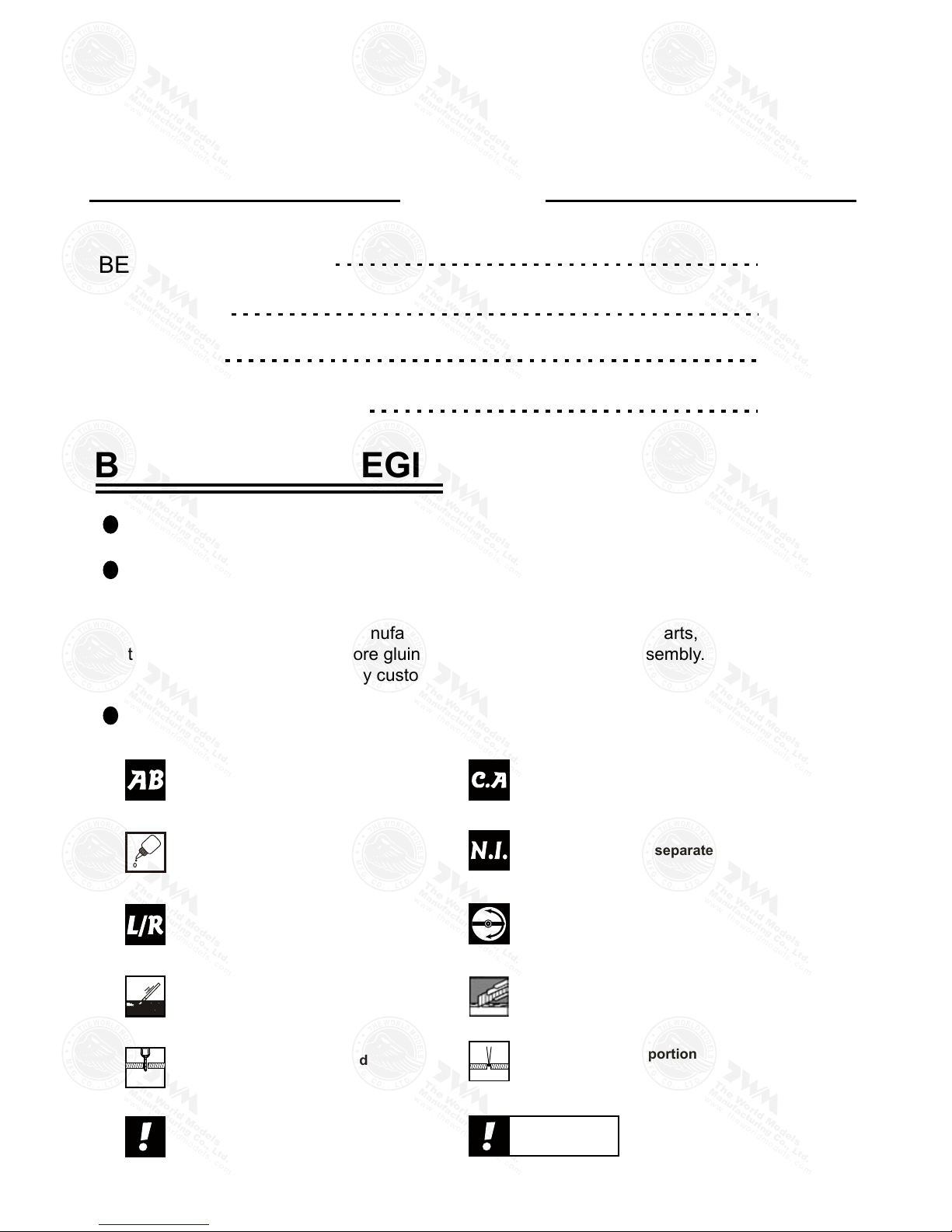

Symbols used throughout this instruction manual comprise of the following :-
1
2
3
P.1
3mm
Do not overlook this symbol!
Cut off shaded portion.
Peel off shaded portion
covering film.
Pay close attention here!
Pierce the shaded portion
covering film.
Must be purchased separately!
Drill holes with the specified
diameter (here: 3mm).
Ensure smooth non-binding
movement while assembling.
Apply instant glue
(C.A.glue, super glue.)
Assemble left and right
sides the same way.
Apply epoxy glue.
Apply thread locker
Warning!
F4U CORSAIR EP
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s .co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ld m od e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d e l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w orld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

P.2

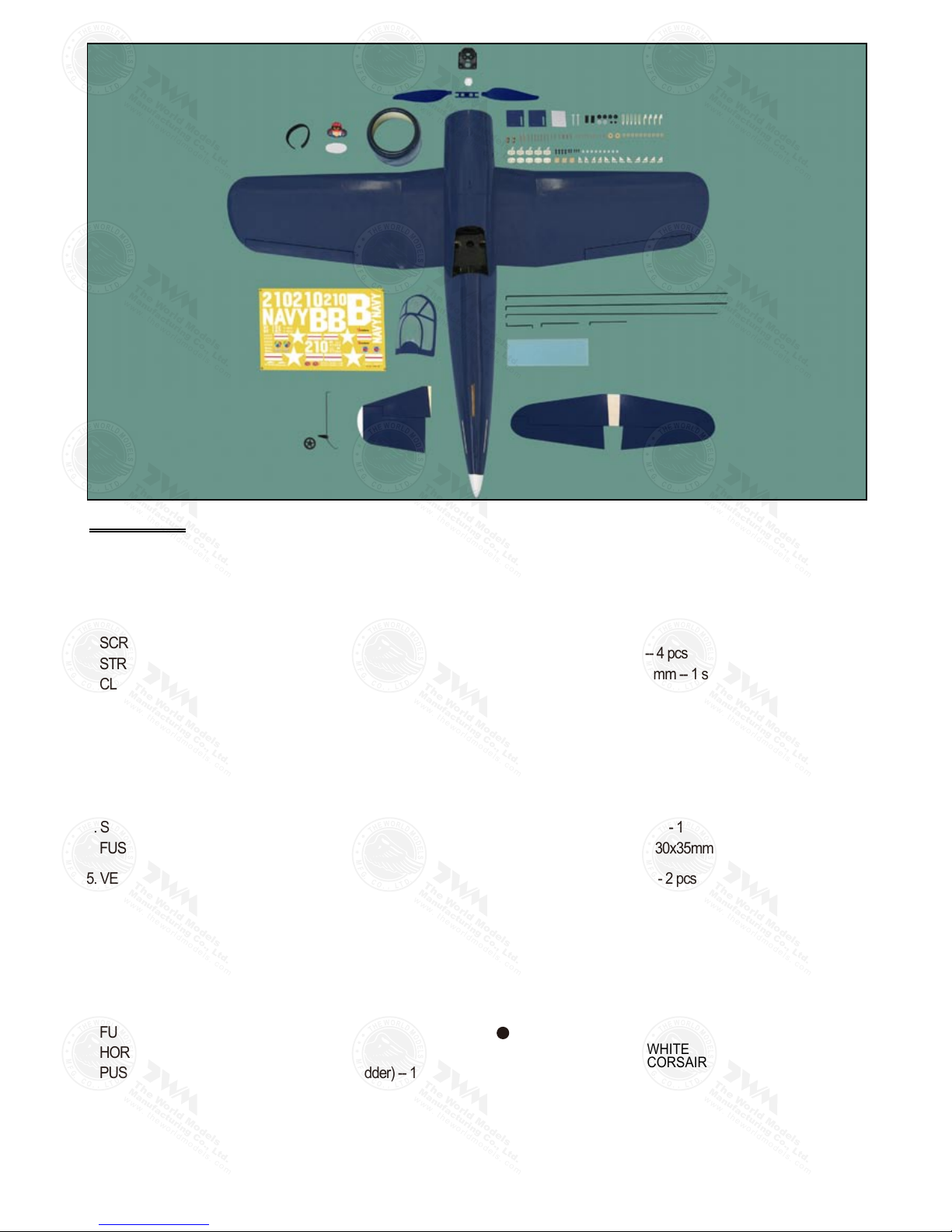

Parts List
COVERING:--
LIGHTEX SGX 100 WHITE
LIGHTEX SGX 350 CORSAIR BLUE
1. MAIN WING (Pre-installed
w/ retractable landing gears of wheels)-- 1 pair
2. SERVO MOUNTING PANEL -- 1 pair
SCREW PB2x14mm -- 4 pcs
SCREW PA1.7x8mm -- 8 pcs
STRAPER -- 2 pcs
CLEVIS -- 2 pcs
HORN -- 2 sets
FUEL TUBE d2xD4x4mm -- 4 pcs
PUSHROD Ø1.4x67mm w/ Threads (For Aileron) -- 2 pcs
3. RETRACTABLE LANDING GEAR COVER -- 2 sets
COVERING FILM 30x35mm -- 2 pcs
4. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
5. VERTICAL FIN & RUDDER -- 1 set
TAIL LANDING GEAR -- 1 set
TAIL WHEEL Ø23mm -- 1 pc.
PLASTIC COLLAR d1xD5x2mm -- 2 pcs
SCREW PA2x8mm -- 2 pcs
6. SCREW PB2x8mm -- 2 pcs
CLEVIS -- 1 pc.
FUEL TUBE d2xD4x4mm -- 1 pc.
HORN -- 1 set
PUSHROD Ø1.4x400mm w/ Threads (For Rudder) -- 1 pc.
7. SCREW PB2x8mm -- 4 pcs
CLEVIS -- 2 pcs
FUEL TUBE d2xD4x4mm -- 2 pcs
HORN -- 2 sets
PUSHROD Ø1.4x415mm w/ Threads (For Elevator) -- 2 pcs
8. SCREW PM3x6mm -- 4 pcs
SCREW M2.5x8mm -- 4 pcs
WASHER d3xD7mm -- 8 pcs
FOLDING PROPELLER SET (11x5) -- 1 set
COWLING -- 1 pc.
SCREW PWA2x8mm -- 4 pcs
EP SPINNER NUT Ø15mm -- 1 set
MOTOR MOUNT PL5440000 -- 1 pc.
9. PUSHROD Ø1.4x50mm (For Elevator) -- 1 pc.
BATTERY TIE 200mm -- 1 pc.
FUEL TUBE d2xD4x4mm -- 2 pcs
STRAPER -- 2 pcs
PUSHROD CONNECTOR 5.6x7.2x16mm -- 1 set
SPONGE 10x50x150mm -- 1 pc.
DOUBLE-SIDED TAPE 30x35mm -- 1 pc.
10. SCREW PM2.5x25mm -- 2 pcs
WASHER d2.5xD8mm -- 2 pcs
11. CANOPY -- 1 pc.
SCREW PWA2x8mm -- 4 pcs
PILOT (PC101042A) -- 1 pc.
12. DECALS -- 1 set
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s .co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworld m odels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m ode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w o r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o de l s.com
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

Main Wing
Bottom View
Aileron Servos
Apply instant type CA glue to both sides of each hinge.
Please choose either ( 02L & 02R ) or ( 03L & 03R ) or ( 04L & 04R ) that suits your servo.
Clevis
Horn
Fuel Tube
d2xD4x4mm
PB2x14mm Screw
PB2x14mm
PA1.7x8mm Screw
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Straper Fuel Tube
d2xD4x4mm
PA1.7x8mm
Pushrod
Ø1.4x67mm
P.3
4
8
2
1
02L
03L
04L
02R
03R
04R
TWM PL8210010
CLEVIS WRENCH
Bottom View
Aileron Servo Lead
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m odels.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmodels.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

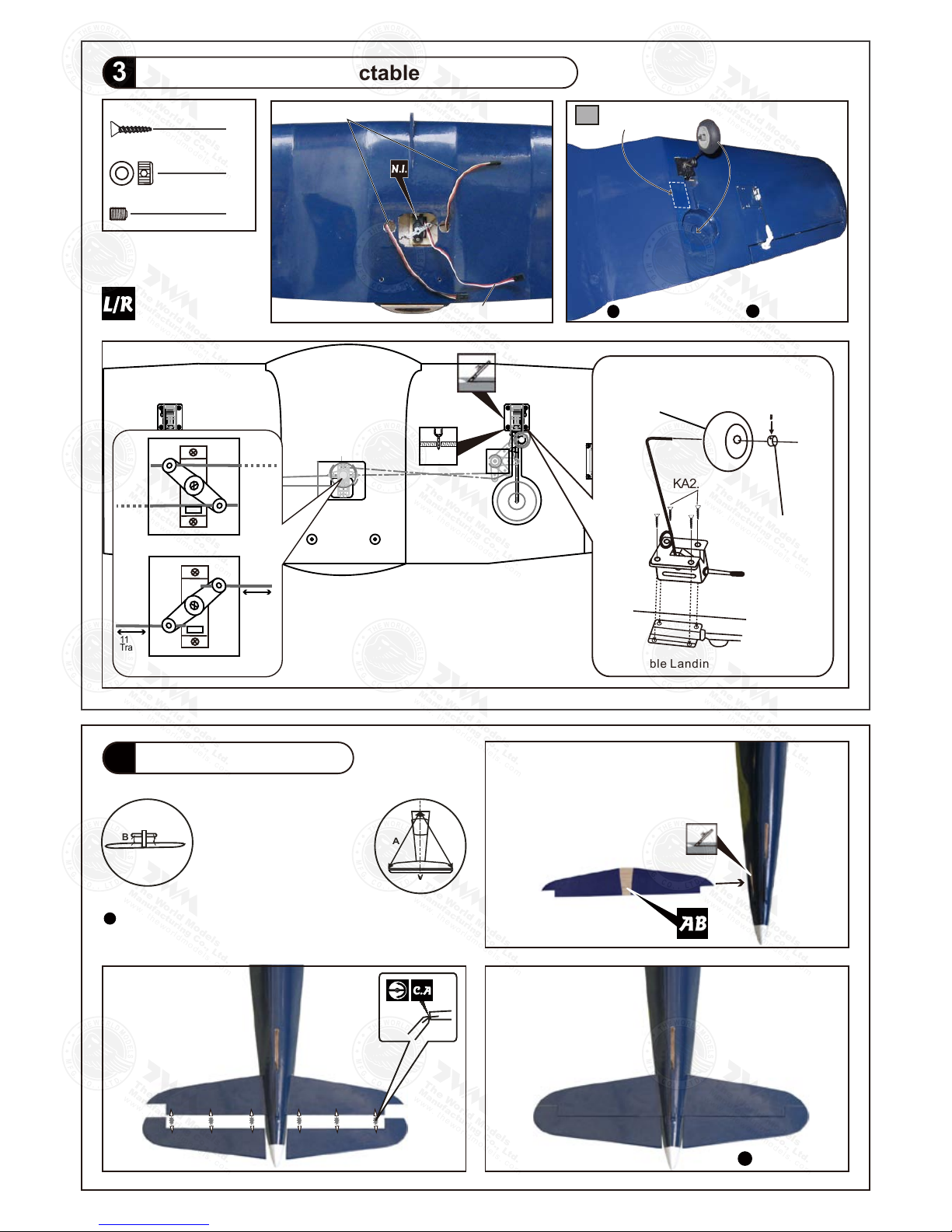

Stabilizer & Elevator
Retract Servo & Retractable Landing Gear
Completed
Apply instant type CA glue to both sides
of each hinge.
A A'
A=A'
(Main Wi ng)
(Stabilizer)
B B'
B=B'
Temporary install the main
wing, adjust leveling of the
stabilizer to make it as
parallel to the main wing
as possible
KA2.3x12mm Screw
8
2.6mm Collar
M3x3mm Set Screw
2
2
P.4
4
3
1mm
KA2.3x12mm
M3x3mm
Set Screw
Wheel Ø40mm
Retractable Landing Gear Pre-installed
Retract Servo Lead
Aileron Servo Lead
Covering Film
30x35mm
Bottom View Completed
To L-Side
Wheels Up Position
11mm
Travel
11mm
Travel
Wheels Down Position
To R-Side
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmodels.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m od e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Elevator Pushrod
PB2x8mm Screw
4
7
TWM PL8210010
CLEVIS WRENCH
Bottom View
PB2x8mm
Clevis
Horn
Fuel Tube
d2xD4x4mm
≈45mm
≈15mm
Pushrod
Ø1.4x415mm
P.5
Vertical Fin, Rudder & Tail Landing Gear
PA2x8mm Screw
2
C C'
C=C'
5
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at side of control surfaces.
Rudder Pushrod
PB2x8mm Screw
2
6
TWM PL8210010
CLEVIS WRENCH
≈60mm
≈28mm
PB2x8mm
Clevis
Horn
Fuel Tube
d2xD4x4mm
Pushrod
Ø1.4x400mm
Bottom View
Completed
Apply instant
type CA glue
to both sides
of each hinge.
1mm
1 2
3 4
1mm
Plastic
Collar
PA2x8mm Wheel Ø23mm
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m odels.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmodels.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

P.6

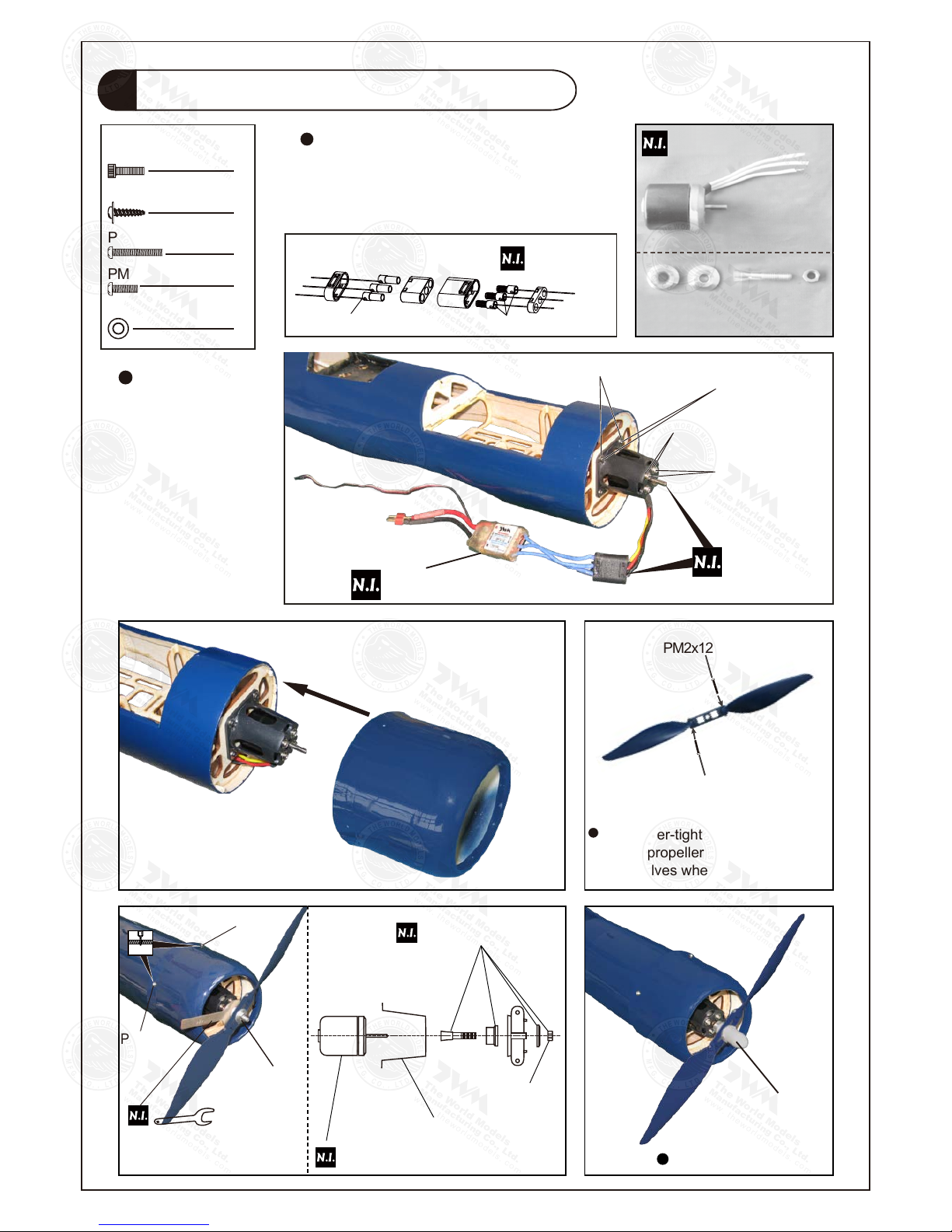

Outrunner Motor / Cowling / Spinner
8
4
PM3x6mm Screw
d3xD7mm Washer
8
2
PM2x12mm Screw
4
PWA2x8mm Screw
M2.5x8mm
Socket Head Screw
4
Make sure rotating motor
casing is not in contact
with wirings or anything.
Solder Solder
TWM
KP0011310
Spinner Nut
Ø15x25mm
Completed
M5 Nut
PWA2x8mm
PWA2x8mm
M5 Nut
TWM HW3111400
PROPELLER ADAPTOR
WRENCH Brushless Motor
Propeller Adaptor
Motor Mount
TWM
2mm
Don't over
-tighten the
PM3 screws,
too much
stress on the
screws could
split the
firewall.
M2.5x8mm
Socket Head Screw
20A Brushless ESC
TWM KC202SA02A
d3xD7mm Washer
d3xD7mm Washer
PM3x6mm
PM2x12mm
PM2x12mm
Don’t over-tighten the PM2 screws,
let the propeller blades align
themselves when spinning.
Outrunner Motor 28/ 30
KM0283010
Propeller Adaptor
(d3xD5)
HW2340100

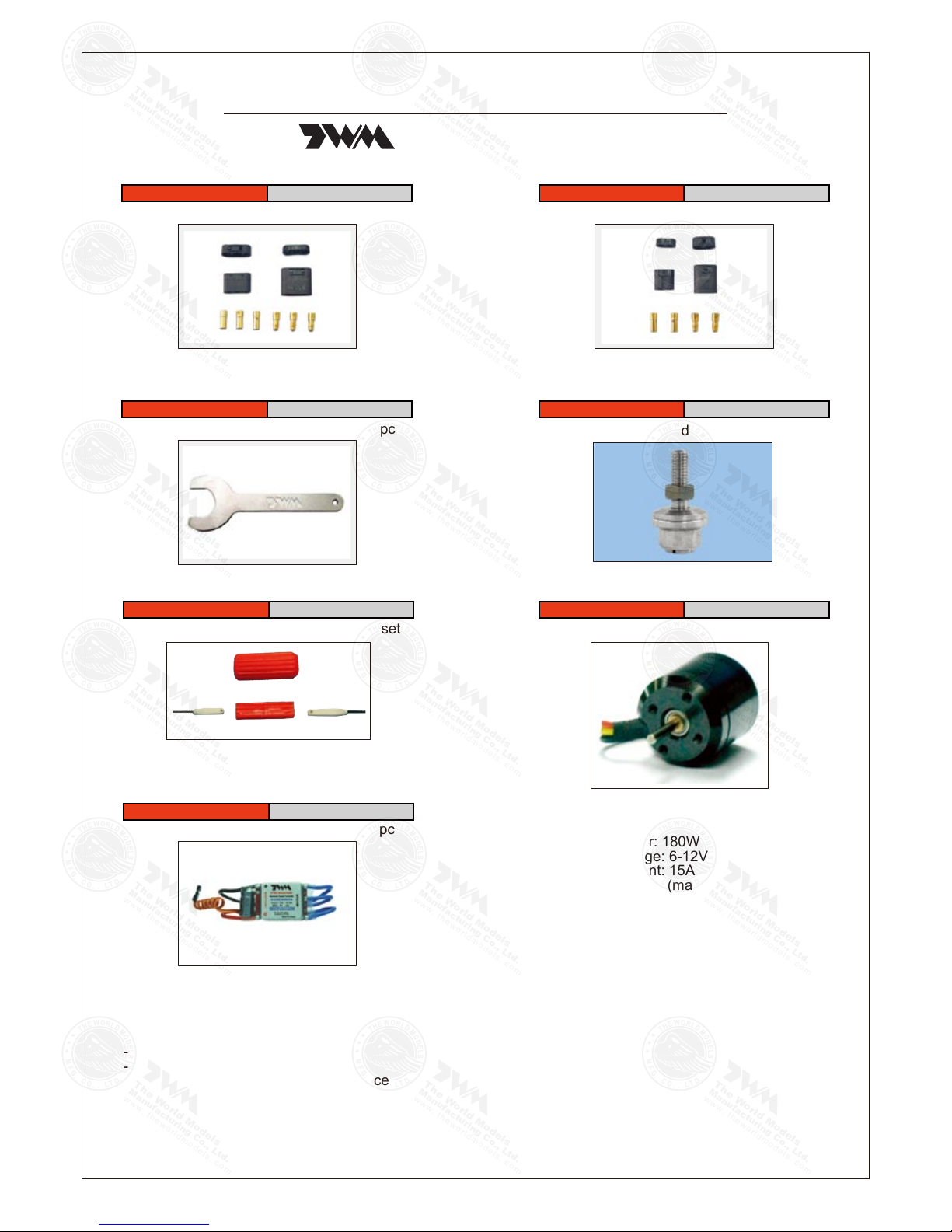

Optional Parts
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m odels.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmodels.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

KA1.7x5mm
Elevator Pushrod
Ø1.4x50mm
Elevator Servo
Pushrod Connector
J1(Pushrod
Ø1.4x50mm) J1
J2
J2(Pushrod
Ø1.4x420mm)
Radio Equipment
Bottom View
Top View
Completed
Front
Sponge
Fuel Tube
d2xD4x4mm
Front
Elevator Pushrod
Ø1.4x420mm
Rudder Pushrod
Ø1.4x400mm
Receiver
Straper
Elevator Servo
Rudder Servo
20A Brushless ESC
Double-Sided Tape

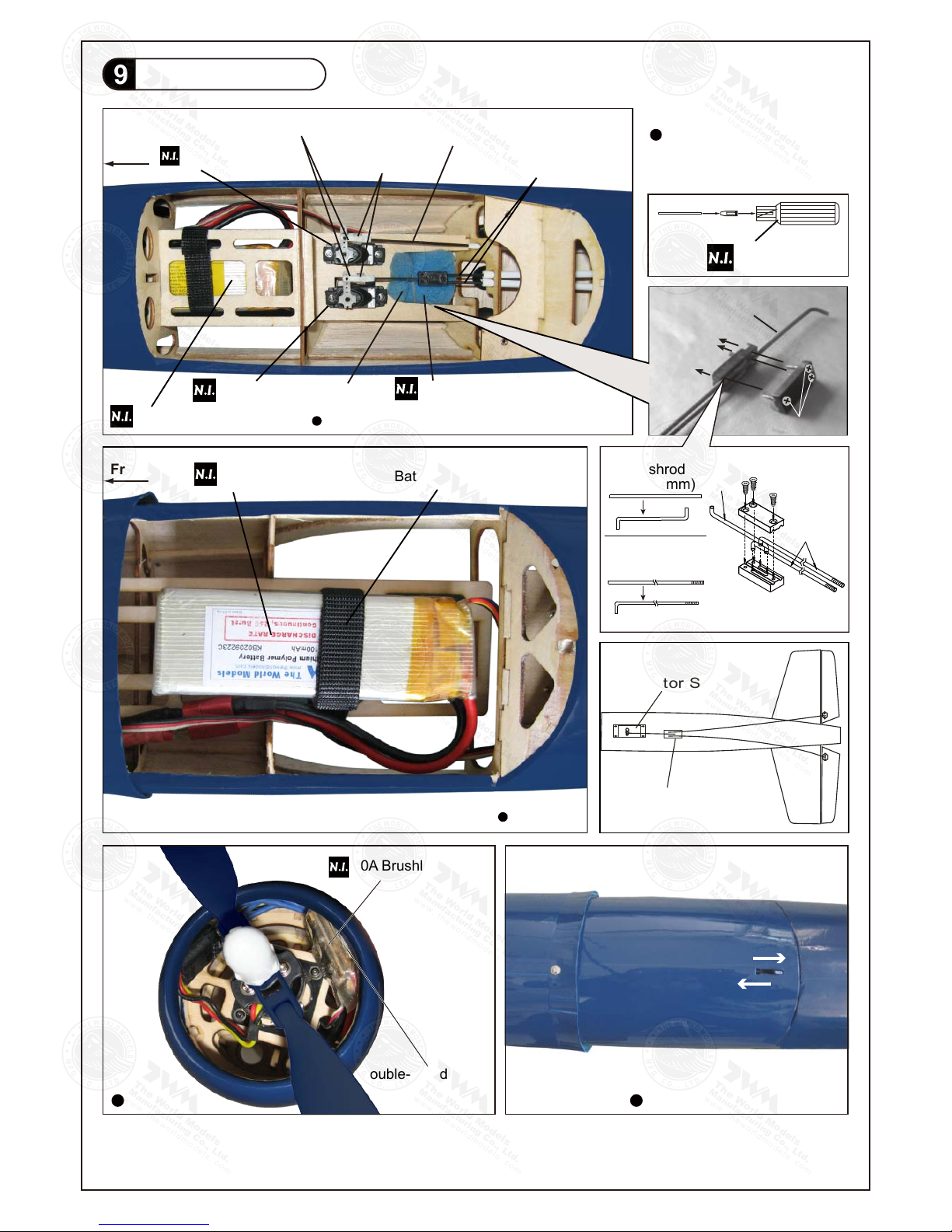

Install and arrange
the servos as shown
in the diagram.
Front View
Battery
Battery
Battery Tie
P.7
9
TWM PL8210010
CLEVIS WRENCH
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w orld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

PM2.5x25mm Screw
PM2.5x25mm
d2.5xD8mm Washer
d2.5xD8mm Washer
2
2
Main Wing
Bottom View
10
2.5mm
4
Canopy
PWA2x8mm Screw
11
PWA2x8mm
Pilot
1.2mm
Adjust the wing and fuselage configuration as shown in the diagrams.
A=A'
B=B'
C=C'
D=D'
Wing Setting
12
A A'
BB'
D'
D
CC'
P.8
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmod e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ldmodels.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m od e ls.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmo d els.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com

C.G.
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary.
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft.
# is specially designed to be powered by KM0283010 Outrunner Motor.
# Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running
propeller. Extreme caution should be exercised when working with electric powered models. Make sure the
propeller is cleared of all objects, especially your hands before connecting the battery to the model. Make sure
you understand the operation of the ESC (Electronic Speed Control) by studying the ESC manual. Once you
plug in the battery for electric powered model, always treat the propeller as a rotating one, as accidental
movement of the throttle stick will spin the propeller and could cause injuries.
# If you find wrinkles on the covering as a result of weather changes, you can use hot iron to remove the wrinkles.
Please begin with lower temperature setting and gradually raise the temperature until the wrinkles are gone.
Too hot an iron may damage the covering. Don't use hot iron near the seams or edges, hot iron will melt the
glue and shrink the covering at the same time, causing the seams to pull away.
# Check and re-tighten up all factory assembled screws, use thread locker if necessary.
C.G.
P.9
14
Warning!
Important Safety Precautions
Control Throws
Adjust the control throws as shown in the
diagram. These throws are good for general
flying. You can adjust according to your
personal preference.
Elevator
Rudder
15mm
15mm
10mm
6mm
6mm
10mm
Aileron
13
F4U CORSAIR EP
Measure C.G. with the wheels in retracted position.
The ideal C.G. position is 57 mm (2.25 in.) behind the leading edge
measured at where the wing meets the fuselage. In order to obtain
the C.G. specified, add weight to the fuselage or move the battery
position. Check the C.G. before flying.
57 mm
2.25 in
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w orld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

Optional Parts
( ACCESSORIES)
Code No. Size Package
Clevis Wrench
PL8210010 1 set
Special tool for clevis installation. Suitable for
standard and small (EP) clevis.
Small
Clevis
Large
Clevis
-ideal for electric models
2 - Pin EZ Connector
Code No. Size Package
KP0011210 40A Max. Current 1 set
HW3111400
Propeller Adaptor Wrench
Code No. Size Package
HW3111400 1 pc
- Voltage Range : 5.6 ~ 16.8V
- Current : 25A continuous
- Current (Burst, <10 seconds): 35A
- Weight : 24 g
(with wires and connector )
- BEC : 5V / 2A
- Low Voltage Cut-off : /
- Light weight with low internal resistance
for high current operation
- BEC function for Li-ion / Li-poly
2 – 4 cells; Nimh / Nicd 5 – 12 cells operation.
- Low battery voltage auto cut off to reserve power to the servos.
- Safe start up motor.
Brushless ESC
Code No. Size Package
KC2025A02A 24x45x11mm 1 pc
Code No. Size Package
Propeller Adaptor
HW2340100 d3xD5 1 set
-ideal for electric models
3 - Pin EZ Connector
Code No. Size Package
KP0011310 40A Max. Current 1 set
Code No. Package
-Max speed: 12000 rpm
-Kv (rpm/V): 1015
-Operating Power: 180W
-Operating Voltage: 6-12V
-Operating Current: 15A
-Peak Current: 20A (max. 15 sec.)
-Internal Resistance: 95 m ohms
-Diameter: 28mm
-Length: 30mm
-Weight: 60g
-Shaft Diameter: 3mm
-Shaft Length: 14.8 mm
-Mounting Screw: M3
-Distance of Mounting Holes:
Front (16mm and 19mm)
Outrunner 28/ 30
KM0283010 1 pc
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w orld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com

The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E254RXMPO21781103
The World Models
Manufacturing Co., Ltd.
www.theworld m od e ls.co m
The World Models
Manufacturing Co., Ltd.
w w w.theworldmo d e l s.co m
The World Models
Manufacturing Co., Ltd.
www.thew o rldmo d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmod e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.thewo r ld m od e ls.c o m
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.c o m
The World Models
Manufacturing Co., Ltd.
www.thewo r ld m o d els.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.the w orld m odels.com
The World Models
Manufacturing Co., Ltd.
www.theworldm o d e l s.co m
The World Models
Manufacturing Co., Ltd.
w w w.the w orldmodels.com
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
The World Models
Manufacturing Co., Ltd.
w w w.theworld m od e ls.com
The World Models
Manufacturing Co., Ltd.
w w w.theworldmode l s.com
The World Models
Manufacturing Co., Ltd.
www.theworldmode l s.com
