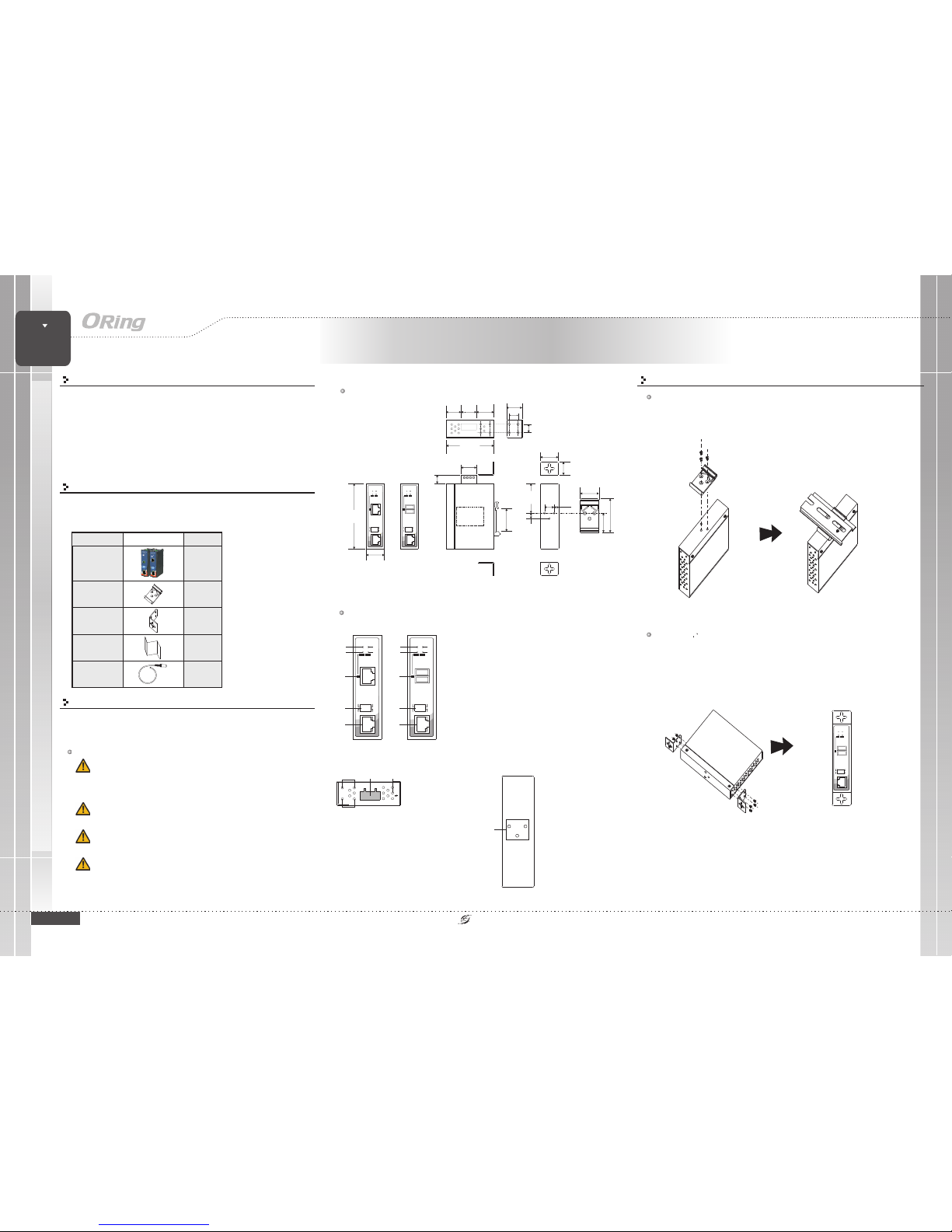

Quick Installation Guide
Version 1.0
Quick Installation Guide
Introduction
PRINTED ON RECYCLED PAPER
QIG IMC-B111ETB Series 1907-2-29-IMCB111ETB-1.0
The is a cost-effective solution for extending an
Ethernet connection beyond its inherent distance limitation. The series
includes models using -RJ45 or terminal block interfaces. The -RJ45 model
extends the distance to 300 meters using a UTP cable or 200meters using a
24AWG cable, and the terminal block model extends the distance to
200meters using a 24AWG cable. The -RJ45 model supports 2/4/8-wired
auto detecting transmission, and the TB model supports 2-wired
transmission. The series provides a wide operating temperature range
from -40~75 C, making it suitable for harsh operating environments.
IMC-B111ETB series
o
Package Contents
Installation
The series is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for
assistance.
Preparation
Before installation, make sure you have all of the package contents
available and a PC with Microsoft Internet Explorer 6.0 or later, for using
web-based system management tools.
Elevated Operating Ambient:
Reduced Air Flow:
Mechanical Loading:
Circuit Overloading:
If installed in a closed cabinet, the operating
ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Installation of the equipment should be such that the
amount of air flow required for safe operation of the equipment is not
compromised.
Mounting of the equipment in the d should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
in-rail
Safety & Warnings
Contents
Wall-mount Kit
DIN-rail Kit
IMC-B111ETB-TB or
IMC-B111ETB-RJ45
Pictures Number
X2
X1
QIG X1
Dimension (Unit: mm)
Panel Layouts
Front Panel
1. PWR1 LED
2. PWR2 LED
3. Indicator for extension port action
4. Indicator for extension port connection status
5. Extension port (terminal block for -TB
modelandRJ45portfor-RJ45model)
6. DIP switch for mode selection of extension port
7. LAN Port
2
IMC-B111ETB Series
X1
70.0
20.0
43.5
8.0
14.0 6.05
23.0
50.0
25.3
33.6
12.5
12.3
13.1
22.6
26.1
19.0
26.1
95.0
28.0
20.0
22.0
1
6
7
5
Top Panel
G
1
1
2 3
1. Wall-mount screw
holes
2. Terminal block
3. Frame ground
Real Panel
1
1. Din-rail screw holes
Step 1:
Step 2:
Slant the switch and screw the Din-rail kit onto the back of the switch, right in the
middle of the back panel.
Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks into
the rail firmly.
DIN-rail Installation
Step 1:
Step 2:
Step 3:
Screw the two pieces of wall-mount kits onto both sides of the switch. A
total of eight screws are required, as shown below.
Use the switch, with wall mount plates attached, as a guide to mark the correct
locations of the four screws.
Insert four screw heads through the large parts of the keyhole-shaped apertures, and
then slide the switch downwards. Tighten the four screws for added stability.
Wall-mounting
Industrial Extended Media Converter
Media
Converter
Media
Converter
INDUSTRIAL
43
2
1
6
7
5
4
3
LNK
ETH 10/100M
1
2
IMC-B111ET-TB
P1 P2
Ext.
ACT
Auto
Master
Manual
Slave
Ext.Mode
DC plug X1
1
8
.
.
.
.
.
.
1
2
LNK
ETH 100M
1
2
IMC-B111ETB-RJ45
P1 P2
Auto
Master
Manual
Slave
Ext.
ACT
Ext.Mode
LNK
ETH 100M
1
2
IMC-B111ET-TB
P1 P2
Ext.
ACT
Auto
Master
Manual
Slave
Ext.Mode
1
8
.
.
.
.
.
.
1
2

QIG Quick Installation Guide
PRINTED ON RECYCLED PAPER
Quick Installation Guide
ORing Industrial Networking Corp.
Copyright© 2014 ORing
All rights reserved.
TEL: [phone]
FAX: [phone]
Website: www.oring-networking.com
E-mail: [email protected]
The switch supports dual redundant power supplies which are
located on the 4-pin terminal block.
Insert the negative/positive wires into the V-/V+
terminals, respectively.
To keep the DC wires from pulling loose, use a small
flat-blade screwdriver to tighten the wire-clamp screws on the
front of the terminal block connector.
STEP 1:
STEP 2:
Version 1.0
QIG
Configurations
After installing the device and connecting cables, the green power LED should turn on.
Please refer to the following tablet for LED indication.
LED indication table
Specifications
Wiring
PWR2
V2+ V2-
PWR1
V1+ V1-
ORing Extended
Converter Model IMC-B111ETB-TB
100Base-TX Ports in RJ45
Auto MDI/MDIX 1
Physical Ports
Technology
Ethernet Standards IEEE 802.3u for 100Base-TX
Power
Input power
Power consumption(Typ.)
Dual 12~48 VDC power inputs at 4-pin terminal block
2Watts
Overload current protection Present
Physical Characteristic
Enclosure IP-30
Dimension(WxDxH) 26.1(W) x 70(D) x 95(H)mm (1.03x 2.76 x 3.74inch.)
Weight (g)
Environmental
-40to85C(-40to185F)
oo
Storage Temperature
Operating Temperature
5% to 95% Non-condensingOperating Humidity
Regulatory Approvals
FCC Part 15, CISPR (EN55022) class AEMI
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
EMS
IEC60068-2-27Shock
IEC60068-2-32
IEC60068-2-6Vibration
EN60950-1 Safety
Free Fall
Warranty
5years
Processing Store-and-Forward
240 g
-40to75C(-40to167F)
oo
Network Connection
The has a standard Ethernet port. According to the link type, the
device uses CAT 3,4, 5,5e UTP cables to connect to any other network devices
(PCs, servers, switches, routers, or hubs). Please refer to the following table for cable
specifications.
IMC-B111ETB-RJ45
Cable Types and Specifications:
Cable Type Max. Length Connector
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ-45
For pin assignments for different types of cables, please refer to the following tables.
100Base-TX RJ-45
Pin Number Assignment
1TD+
2TD-
3RD+
4Notused
5Notused
6RD-
7Notused
8Notused
100Base-TX MDI/MDI-X
Pin Number MDI port MDI-X p ort
1 TD+(t ransmi t) RD +(receive)
2 TD-(transmit) RD-(receive)
3 RD+(receive) TD+(transmit)
4NotusedNotused
5NotusedNotused
6 RD-(receive) TD-(transmit )
7NotusedNotused
8NotusedNotused
DIP Switch Function
ON Maste r Mode : Devicesoperatesinmastermode1
OFF Slave Mode: Devices operates in sl ave mode
ON Manual Mode: Configuresthemastermodeorslave
modemanuallybasedonDIP-switch1settings
2*
OFF Auto Mode: Conducts auto negotiation and
configuration for the master or slave mode
LED Color Status Description
PW1 Gree n On DC power module 1 activated
PW2 Gree n On DC power module 2 activated
10/100Base- TX RJ45 Port
LNK Green On Port is linked
ACT Amber On Transmi tt in g da ta
Ethernet Extender Port
LNK Green On Port is linked
ACT Amber On Transmi tt in g da ta
IMC-B111ETB-RJ45
100Mbps Ethernet Extender
Ports
1 (support 2-wired on
terminal block)
1 (support 2/4/8-wired auto
detecting on RJ45 connector)
242 g
IMC-B111ETB Series
Industrial Extended Media Converter
Media
Converter
Media
Converter
INDUSTRIAL
IMC-B111ETB Series
100Mbps Extension port Terminal Block
Pin Number Assign ment*
1D1+
2D1-
100Mbps Extension port Terminal Block
Pin Number Assignment*
1D1+
2D1-
3D2+
4D3+
5D3-
6D2-
7D4+
8D4-
* Please notice Manual mode can’t connect to Auto mode.
Note: “+” and “-” signs represent the polarity of the wires that
make up each wire pair.
