Theben SEL 173 DCF User manual

 Bedienungsanleitung 1
 Mode d’emploi 31
 Operating instructions 59
 Istruzioni d’uso 87
 Gebruiksaanwijzing 115
LU 110 LU 112 LU 113 LU star 126 LU star 128 LU star-time 129 LU 118 top
SEL 173 DCF
Ref. Nr. 173 0 001
310 177 01 Teil 1 von 2

59
1.0 Description (page 60)
2.0 Features (page 60)
3.0 Use / Installation (page 61)
3.1 Safety notice (page 61)
3.2 Installation notice (page 61)
3.3 Electrical connection (page 61)
3.4 Technical specifications (page 62)
3.5 Dimensional illustration (page 62)
4.0 Power reserve (page 63)
4.1 Inserting the battery (page 63)
4.2 Changing the battery (page 63)
5.0 Commissioning without a DCF antenna (page 64)
5.1 Overview menu selection (page 64)
5.2 Input correction (page 64)
5.3 Setting astronomical data (page 65)
5.4 Setting the date and time (page 66)
5.5 Selection table for automatic summer/winter time (page 66)
5.6 Changing the automatic summer/winter time (page 67)
5.7 Changing the date and time (page 67)
6.0 Commissioning with a DCF antenna (page 68)
6.1 Connecting and directing the radio antenna (page 68)
6.2 Setting astronomical data (page 69)
6.3 Setting the date and time (page 69)
6.4 Forced transmitter call (page 69)
7.0 Manual intervention into the program (page 70)
7.1 Continuous connection ON or OFF (page 70)
7.2 Terminating continous switching (page 70)
7.3 Manual ON (page 70)
7.4 Manual OFF (page 71)
7.5 Disabling/enabling the keyboard (page 71)
8.0 Programming (page 72)
8.1 Setting the 7-day program switch-off time (page 72)
8.2 Setting the 7-day program switch-on time (page 73)
8.3 Programming the date program (page 73)
8.4 Programming a one-off switching time (page 74)
8.5 Programming an offset (page 74)
8.6 Programming astronomical channel 2 (page 75)
9.0 Priority program (page 75)
9.1 Programming a 7-day program with priority P1 ... P9 (page 76)
9.2 Defining a time period for the 7-day program (page 77)
9.3 Continuous connection with time limitation (page 77)
10.0 Interrogating a program (page 78)
10.1 Interrogating a complete program (page 78)
10.2 Date-related interrogation of switching times (page 78)
10.3 Channel-related interrogation of a date program (page 79)
10.4 Interrogating the complete date (page 79)
10.5 Interrogating astronomical data (page 79)
11.0 Changing a stored program (page 80)
12.0 Deleting (page 81)
12.1 Deleting individual switching times (page 81)
12.2 Deleting a date program (page 82)
12.3 Deleting a priority program (page 82)
12.4 Deleting by the channel (page 82)
12.5 Deleting all (page 83)
13.0 Data interchange / external data backup (page 83)
13.1 Writing data from time switch to memory card (page 83)
13.2 Reading data from memory card to time switch (page 83)
13.3 Preview: programming with Obelisk software (page 84)
14.0 Tips & additional facilities (page 84)
15.0 Glossary (page 85)
16.0 Error table (page 86)

60
1.0 Description of the device 2.0 Features
1Display - date day
2Display - date month
3Display - year
4Display - continuous connection ON (F o) Continuous connection OFF (F p)
/ P 1..9 / Manual On (H o) Manual Off (H p)
5Switch status display ON = oOFF = p
6Keys 0 – 9 for program input
7Battery compartment
8Connection terminal for DCF 77 antenna
9Key for input of date changeovers
10 LED (reversed terminal indicator)
11 Key for input of priority programs / changes
12 Key for deleting programs and programming steps
13 Key for saving inputs
14 RES = Reset / The microprocessor makes a defined restart
15 Program selection key for menu selection
16 Display 1x shows one-off switching operations
17 Cursor for display of the week days 1 = Monday, 2 = Tuesday, ...
18 Display DCF 77 reception
19 Display data interchange with Obelisk
20 Interface
21 Display - Hours
22 Cursor for program selection
–2-channel astronomical year time switch
–Programming via time switch or PC programming with Obelisk software for
WIN 95 / WIN 98 / WIN NT
–Astronomical switching times for each day are calculated in accordance with the
input of longitude, latitude and time zone
–Latitudes from 16° to 64° for north and south, programmable via the time
switch
–The calculated astronomical switching-on and switching-off can be shifted
separately by a maximum of +/- 120 minutes
–Data transfer with the Obelisk memory card from time switch to time switch,
from time switch to PC and from PC to time switch
–Data backup by means of the Obelisk memory card
–120 switching times with random week day block formation
–Switching times non-losable due to EEPROM
–Day, 7-day and year programs
–1x function for all date-related switching times
–10 priority programs consisting of 10 individual 7-day programs per channel
–Continuous connection ON / OFF
–Continuous connection with time limitation ON / OFF
–Approx. 1.5 years power reserve by means of a replaceable lithium cell
–DCF synchronization possible
–Internal DCF power unit; no external power unit necessary for DCF antenna

61
3.0 Use / Installation
Time switches switch on, off or even over as a function of time in a day or 7-day
cycle and date-related any connected electrical consumer units.
–The time switch SEL 173 DCF may only be used in dry rooms.
–Time switches are suitable for deployment in environmental conditions
with normal soiling incidence.
–The time switch SEL 173 DCF is suitable for installing on
35 mm profile section rail (DIN EN 50022).
–Wall mounting with kit 907 0 053
3.1 Safety notice
Electrical devices should only be connected and installed by a
skilled electrician. Take heed of the national regulations and the
relevantly valid safety stipulations. Intervention and changes to
the device shall cause the warranty rights to lapse.
3.2 Installation notice
Regardless of the elaborate protection measures, exceptionally strong
electromagnetic fields can lead to interference of the microprocessor-
controlled time switch.
We therefore recommend that you take heed of the following points before
installing:
– Use a separate line for supply of the operating voltage.
– Suppress inductive consumer units with suitable RC filters.
– Do not fit the device in the immediate vicinity of noise sources, e.g. transformers,
contactors, PCs television sets or telecommunication devices etc..
– Following a fault we recommend that you carry out a RESET with
recommissioning before putting the device back into operation (section 5.3).
– Units that generate a lot of heat on the right-hand side of the unit shorten the
service life of the battery:
3.3 Electrical connection
Take heed of the national regulations and relevantly valid safety
stipulations

62
3.4 Technical specifications
Designation: SEL 173 DCF
Type of program: Day/7-day/year
Operating voltage: 230 V ± 10 % or 110 V ± 10%
Rated frequency: 50-60 Hz
Internal consumption: Max. 3 W
Switching capacity: 2 x 16 (10) A, 250 V~
Contact material: AgSnO2
Type of contact: Changeover contact
Time base: Quartz
Memory locations: 122 of which two are allocated for
astronomical switching times.
Shortest switching interval: 1 minute
Switching accuracy: Exact to the second
Operating accuracy: ± 1 sec/day at 20 °C
Power reserve: Lithium cell approx. 1.5 years at 20 °C
Permitt. ambient temp.: – 10 °C ... + 50 °C (– 10T50)
Class of protection: II acc. to EN 60335 when mounted
Degree of protection: IP 20 acc. to EN 60529
Type: 1 BSTU acc. to EN 60730-1, -2 - 7
Time switch with DCF antenna
Time base: Radio precision
(on quartz mode power reserve)
Max. distance from radio antenna: Approx. 200 m
Degree of protection of antenna: IP 54 acc. to EN 60529
Max. connection to one antenna: 10 devices
Technical data on device nameplate may vary - please check !
Right reserved to effect technical improvements.
Note
The time switches are in accordance with the European directives 73/23/EEC.
(Low-Voltage Directive) and 89/336/EEC (EMC Directive).
If the time switches are used together with other devices in an installation, take
care that the complete installation does not cause any radio interference.
3.5 Dimensional illustration
The dot-dash line represents the dimensions of the add-on installation kit
907 0 053.

63
4.0 Power reserve
In the event of a power failure the power reserve provides for retention of the
current time (approx. 1.5 years). Even in non-energized condition and with a flat
battery the switching times remain unlosably stored.
4.1 Inserting the battery
– Take note of the polarity of the lithium battery
– Insert the lithium battery into the holder, see Fig. 1.
– Push the battery holder into the battery compartment.
– Push the battery holder down until it audibly engages.
4.2 Changing the battery
Important notice:
Battery change with operating voltage
All stored program data are retained
Battery change without operating voltage
Caution: Date and time will be lost !
1. Lift up the battery compartment with a suitable screwdriver
2. Remove the lithium battery from the holder, see Fig. 2.
3. Take note of the polarity of the new lithium cell (ordering no. 9 883 003).
4. Insert the lithium battery into the holder, see Fig. 1.
5. Push the battery holder into the battery compartment.
6. Push the battery holder down until it audibly engages.
7. Dispose of the lithium battery in an environmentally friendly way.
Fig. 3
Fig. 2
Fig. 1

64
5.0 Commissioning (time switch without a DCF antenna)
Ensure that the lithium battery is inserted (section 4.1).
5.1 Overview menu selection
By pressing key v the cursor ▲ for program selection can be moved. With each
press of the key the cursor moves one option further.
Auto (automatic program)
–Programmed switching times determine the
switching program
–Switching preselection (manual On / Off)
–Random On / Off
n– Setting/changing the date and time
?– Interrogating/Changing/Deleting/Complete deletion
Prog – Programming of date, 7-day and
1x switching times
Offset – Input of an Offset for the astronomical
switching times
P– Defines time period for 7-day programs
s/f– Programming and changing the
summer / winter time changeover
Ending the program menu: Use key v and place the cursor ▲ in the following
position.
5.2 Input correction
The time switch includes an operator guide. Follow the flashing symbols.
They indicate the programming sequence.
Input correction:
What to do, if a wrong value is input by mistake ?
Reverse the programming step again:
– Press key CL =one program step back.
– Press key CL several times = several program steps back.
If the wrong value flashes:
– Input the correct value with keys 0 .. 9
or for channel or week day programming:
In the event of a wrong input:
– Press the same key again.
Note:
Only the last input is reversed.
Cursor under the symbol:

65
5.3 Setting astronomical data
For commissioning, a reset must first of all be performed. To do so use a pointed
object, e.g. pencil, to press the key RES.
After reset, input the astronomical data longitudinal, latitude and time zone. With
these data the time switch calculates the astronomical switching times for the
whole year and files them in the EEPROM.

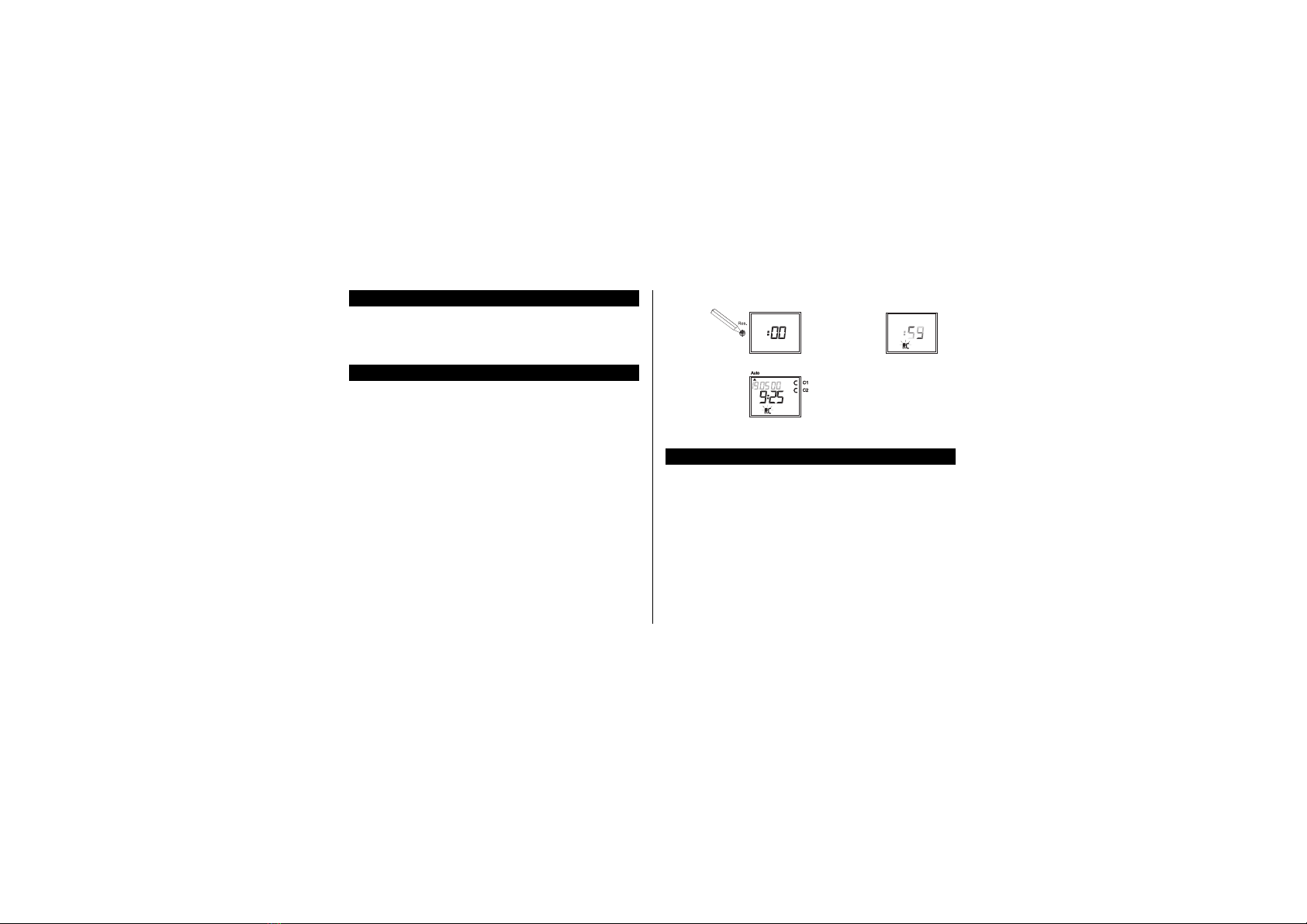

Fig. 1: Resetting with a pointed obect
Fig. 2: Setting the longitude. Input is effected within the range -180° (East)
to +180° (West).
Note: You can change the mathematical sign with the key P.
You can correct inputs with the key CL .
Fig. 3: Confirm the longitude with Enter.
Fig. 4: Set the latitude. Input is effected within the ranges -64° to -16° (South)
and +16° to +64° (North).
Fig. 5: Confirm the latitude with Enter.
Fig. 6: Setting the time zone (see time zone card supplied).
Input is effected within the range -12 hours (West) to +12 hours (East).
Fig. 7: Saving inputs. In approx. 20 s the time switch calculates the switching
times for one year.
Fig. 8: The time switch begins DCF synchronization.
If no antenna is connected, set the date and time manually (section 5.4).
Longitude
Latitude
Time zone
(after approx. 20 s)
Save input
Confirm latitude
Confirm
longitude

66
5.4 Setting the date and time
After the astronomical data, the date and time are set.
Example:
The time switch will be put into operation on 19.05.2000 at 09.25 h.
Note:
After commissioningg (section 5.3) automatic summer / winter time is ready
programmed.
Basic setting for central Europe: dat 1.
Should another or no changeover norm be desired, it can be changed at any time
as described in sections 5.5 – 5.6.
Date month
Hour
Save
Press key
Year
Minute
5.5 Selection table for automatic summer / winter time
Setting Start of Start of Area of
summer time winter time application
dat 0 no changeover no changeover
dat 1 last Sunday last Sunday EU
in March in October
(from 2 to 3 h) (from 3 to 2 h)
dat 2 last Sunday last Sunday
in March in October UK
(from 1 to 2 h) (from 2 to 1 h)
dat 3 1st Sunday last Sunday
in April in October North America
dat 4 Individual summer / winter time table, programmable only
with Obelisk software
Date day

67
5.6 Changing the automatic summer / winter time
Select the new automatic changeover (section 5.7).
Example: Basic setting dat1
Change to: New norm dat 2
2Enter
Dat.
6x
Correction
Select S/W
Save new
dat 2
With key vreturn the automatic program
5.7 Changing the date and time
If the cursor is in pos. n,using keys 0 ... 9 any flashing value, the current time or
the current date can be changed.
–Press the key Enter several times until the cursor is positioned under Auto.
–or follow the line and change the current time.
Select Dat
Date day
Save month
Save year save
Correction
Correction
Hour
Changing the date, e.g. from:
19.5.2000 to 20.5.2000
Changing just the time,
e.g.: from 9.25 h to 9.27 h

68
6.0 Commissioning (time switch with a DCF antenna)
If a DCF antenna is connected to the time switch, the SEL 173 DCF functions as
a radio time switch. After manual input of the astronomical data (section 5.3) the
radio time switch automatically sets for DCF 77 radio reception the current time,
date and summer / winter time. Otherwise operator control of the radio time
switch is identical to the time switch without a DCF antenna.
Worth knowing:
- Precision with radio reception: + / - 1 sec. in 1 000 000 years.
- Transmitter location: Mainflingen near Frankfurt on Main
- Range of the transmitter: approx. 1000 km
- Synchronization: After commissioning and thereafter daily during the night.
6.1 Connecting and directing the radio antenna
Avoid installation locations in the vicinity of:
- radio transmission installations
- radiological devices
- televisions or personal computers.
We recommend installation locations:
- outside of the control cabinet (at a distance of least 4 m)
- under the roof
- in a protected place in the open air.
Connecting the radio antenna:
–Use a 2-conductor cable for connection
–Connect the antenna to the time switch’s DCF 77 connection terminals.
–Up to ten SEL 173 DCF devices can be connected to the antenna.
–If the LED (DCF 77) lights up, the polarity of this antenna cable has to be
changed over.
Connection of a Theben TR 658 DCF to the same antenna cable
is not allowed.
NN
N
DCF 77
L
LLLL
DCF 77 DCF 77
SEL 173 DCF SEL 173 DCF
Directing the radio antenna:
Direct the radio antenna in the direction of Frankfurt on
Main until the built-in LED flashes every second.
Frankfurt a.M.

69
6.3 Setting the date and time (time switch with DCF antenna)
A. Automatic commissioning
Note: During synchronization do not press any keys !
The synchronization attempt would then be aborted immediately.
To then achieve a restart, the key RES must be pressed again.
1. The display counts from 00 to 59 (see Fig. 2)
Depending on the reception quality of the DCF 77 signals, this
procedure can be repeated several times.
2. If the time switch hsa received two complete signals, the symbol
RC remains and the channel statuses are displayed (see Fig. 3).
The clock is now operative.
B. Manual commissioning
Tip: If the clock does not synchronize itself during commissioning even
after several attempts, possibly due to a disturbed reception signal,
we recommend that you set the date and time as described in
section 5.4. The time switch will then attempt to synchronize itself
with the signal during the night hours.
Example: The time switch has synchronized itself on 19. 5. 2000 at 9.25 h.
6.4 Forced transmitter call
Synchronization of the time switch is effected after commissioning and then daily
between 1.58 h and 3.13 h.
Radio synchronization can also be triggered manually during the day
(transmitter call)
Start of the transmitter call:
1. Press the key Dat for approx. 3 secs.
2. Then release it.
The time switch synchronizes itself with the DCF 77 signal.
The following can be seen on the LCD display:
The symbol RC only flashes during DCF 77 synchronization !
Once the time switch has synchronized itself a program review is effected.
Subsequently the channels adopt the switching statuses determined by the
individual program.
The symbol RC appears on the LCD display permanently.
3)
2)
6.2 Setting astronomical data
The astronomical data must be input during commissioning as described in
section 5.3.

Each channel can be switched manually ON or OFF as a continuous connection.
Acontinuous connection has maximum priority. The channel remains in the
continuous connection position ON or OFF until it is manually reset.
For continuous connection with time limitation ON / OFF see section 9.3.

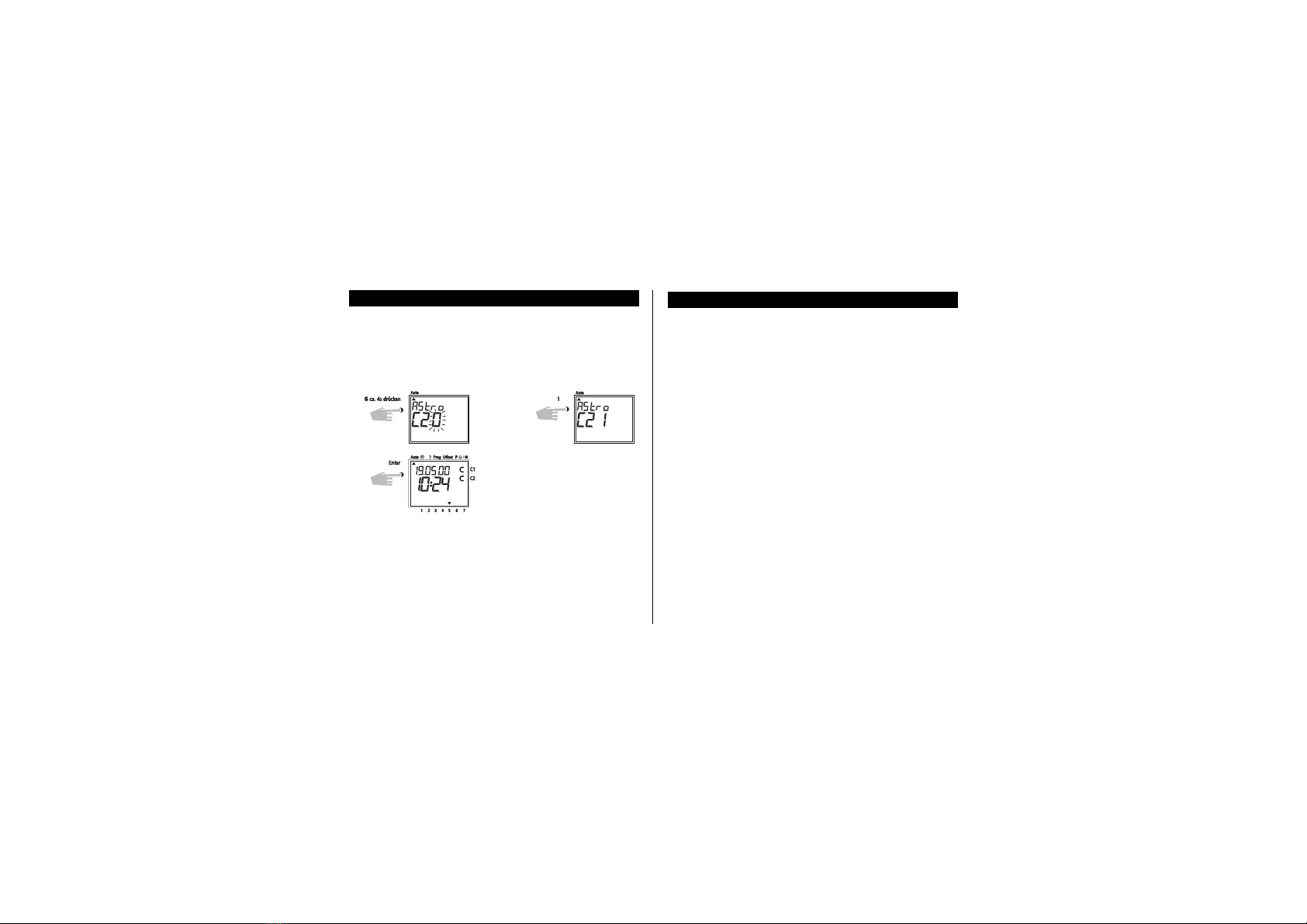

Example: Switch channel 2 on continuous connection to OFF.
Fig. 1: in auto mode select channel
Fig. 2: select continuous connection for the channel
Fig. 3: 0 = continuous OFF (continuous ON = 1)
70

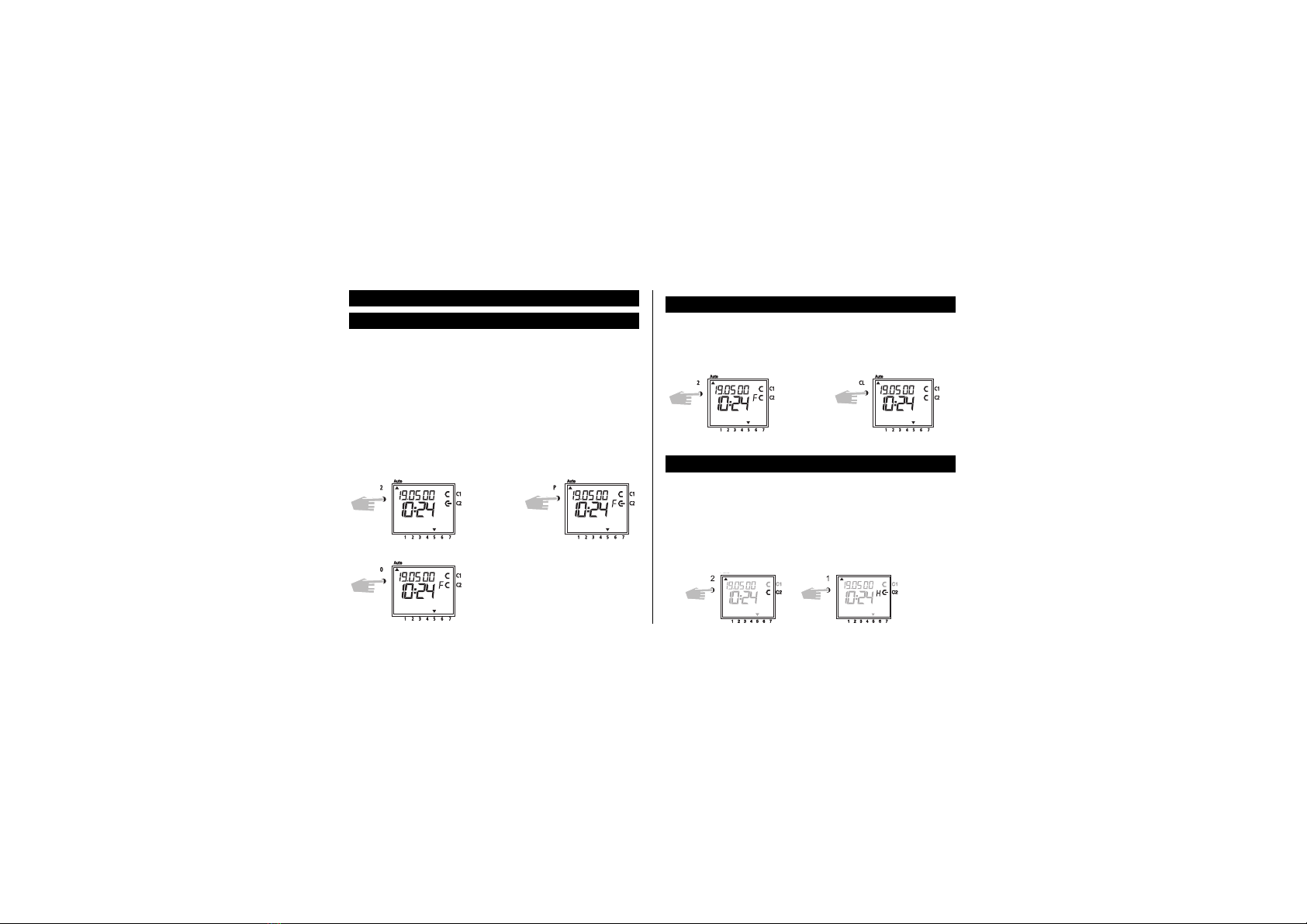

7.0 Manual intervention into the program
7.1 Continuous connection ON or OFF
7.2 Terminating continuous connection
A continuous connection must be manually terminated. After termination of the
continuous connection the automatic program determines the switching status of
the channels.
Example: Terminate continuous OFF on channel 2.
7.3 Manual ON (switching preselection)
Each channel can be switched on manually in the automatic program.
The symbol H=Hand than appears on the display.
A switch preselection is cancelled again by the next switch command.
The display H goes out.
Select channel: e. g. key 1 =channel C1, key 2 =channel C2.
Select status: key 1 =switch on, key 0=switch off.
Example: channel C2 to switch on manually, press keys 2, 1.
Channel 2 On
Auto Auto
Channel Continuous connection
Off
Channel Terminate continuous
connection

71
Channel 2 Off
7.4 Manual OFF (switching preselection) 7.5 Disabling / enabling the keyboard
Each channel can be manually switched off in the automatic program.
A switching preselection is corrected again in the automatic program by the next
switch command (the symbol H goes out).
Select channel: Key 1 =Channel C1, key 2 =Channel C2.
Select status: Key 1 =switch on, key 0=switch off.
Example: Channel C2 to switch off manually, press keys 2, 0.
With the Obelisk memory card, operator control of the time switch can be
prevented for unauthorized persons. If the keyboard has been disabled, without an
Obelisk memory card no interrogation of the programming is possible.
To disable the keyboard:
1. Insert the Obelisk memory card into the data interface.
2. Press the key 8 for approx. 4 secs. until the symbol Obelisk flashes.
3. Extract the memory card.
The keyboard is disabled.
Operator control of the time switch:
If the symbol Obelisk flashes after a key has been pressed, the keyboard is
disabled.
1. Insert the Obelisk memory card into the data interface.
The time switch is now normally operable.
2. With key v you can select a program.
3. You can then remove the memory card and continue programming.
The keyboard is disabled again, if the time switch returns to auto mode.
Cancellation of the keyboard disable:
1. Insert the Obelisk memory card into the data interface.
2. Press key 8 for approx. 4 seconds. The symbol Obelisk appears and goes out
again after 4 seconds.
3. Extract the memory card.
The keyboard is enabled.
Off

On channel 1 the astronomical switching has programmed a switch-off time for
each evening. If channel 2 has been activated as an astronomical channel, on
channel 2 a switch-off time has also been programmed for each evening.

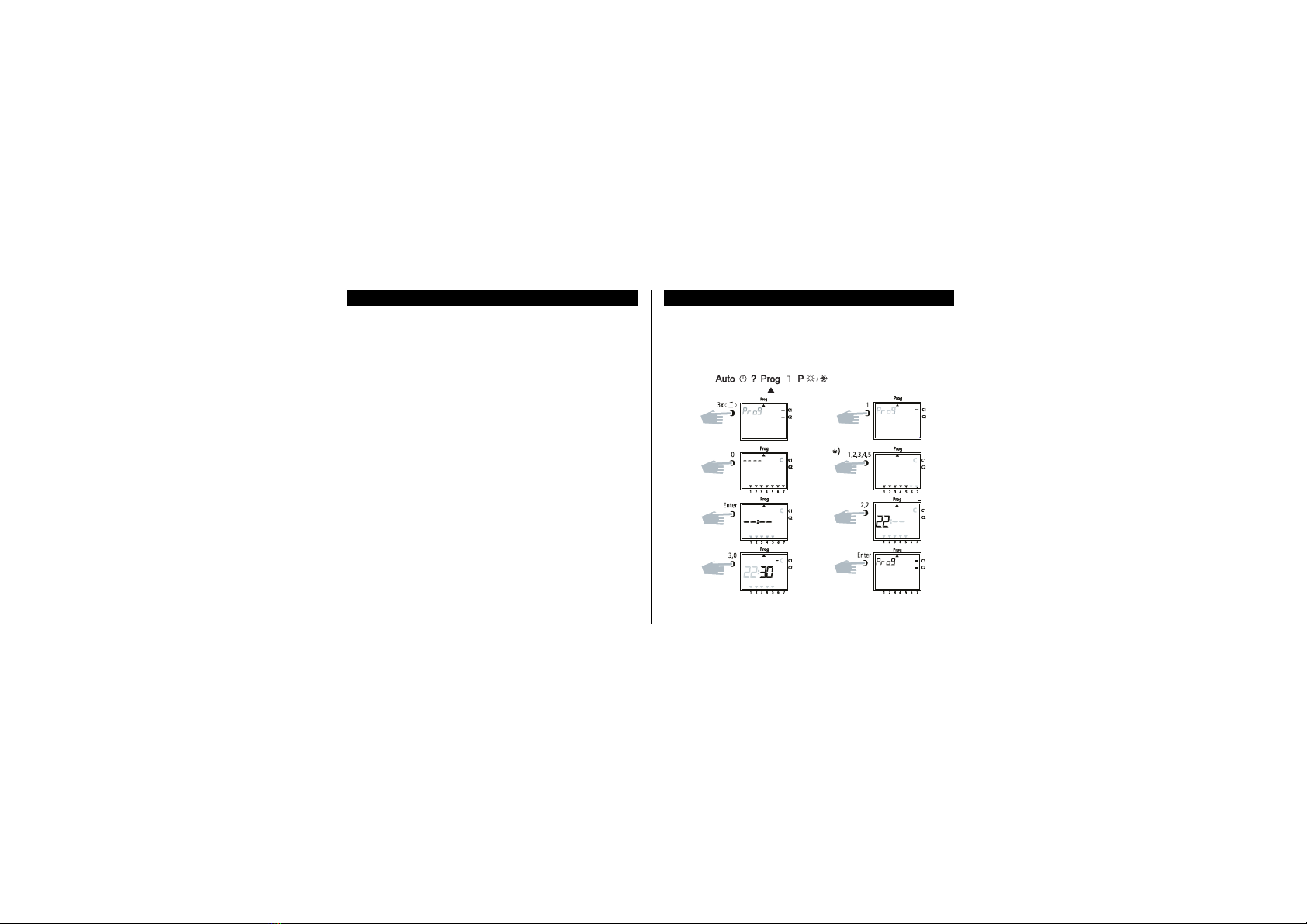

Example: programming of a switch-off time for night interruption. Channel C1 should
switch off from Mon. to Fri. at 22:30 h. p.
Cursor in pos.
72
8.0 Programming 8.1 Setting the 7-day program switch-off time
Select prog
switch off
Channel 1
Confirm days
Minutes
*) Press key 0 and
switching time is effected every day
Week days
Hours
Save program
During commissioning the time switch will have calculated from the astronomical
data the times for sunrise and sunset on each day of a year. Channel 1 of the time
switch switches on at sunset and off at sunrise.
The astronomical switching times can be interrupted or aborted at night, i.e. the
time switch can switch on every day at the beginning of twilight and switch off at
fixed programmed times in the night.
Channel 2 is a switching channel with normal 7-day switching times, date
changeover times and priority switching times. In addition channel 2 can be
activated as an astronomical channel (section 8.6).
The astronomical times cannot be changed. They can, however, be supplemented
separately with an offset for sunrise / sunset (section 8.5).
Every night at 24 h the clock loads the astronomical times for the current day from
the EEPROM.

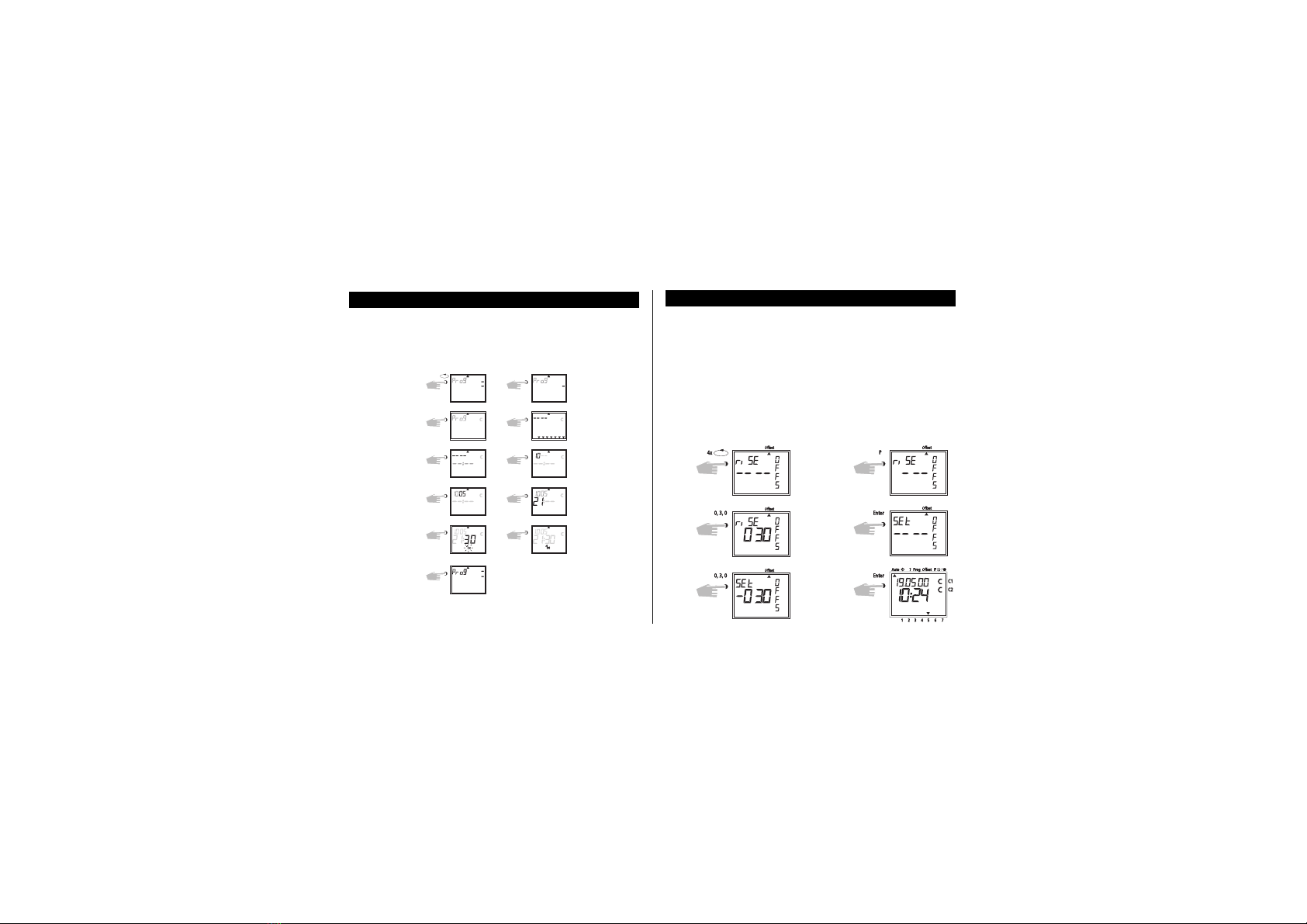

73
Example: Programming the switch-on time for night interruption.
– Channel C1 should switch on from Mon to Fri at 5.30 h o
Other programming as described or by pressing key vreturn to the automatic
program.
Channel 1
Week days
Hours
Save
Confirm days
Minutes
On channel 1 the astronomical switching has programmed a switch-on time for
each morning. If channel 2 has been activated as an astronomical channel, a
switch-on time will also have been programmed for each morning on channel 2.
8.2 Setting the 7-day program switch-on time 8.3 Programming the date program
Example: Channel C1 should switch on at 7.30 h on 1.5.
Position the cursor ▲.
Further programming as described or by pressing key vreturn to the
automatic program.
Select prog Channel 1
On
Date day
Hours
Save
Date
Date month
Minutes
Switch on

74
8.4 Programming a one-off switching time
Example: Switch on channel C2 on 10.5. at 8.30 h 1 x
Note: Only date-related switching times can be programmed with the function
1x (see Fig. 9). Once the switching time has been executed, the switching
time is deleted automtically at midnight.
1 2 3 4 5 6 7
C1C1
C2C2
C2 C2
C1
C2 C2
Prog
ProgProg
Prog
Prog Prog
Prog Prog
Prog Prog
Prog Prog
Enter
Enter
0
2
Dat 1,0
0, 5 2, 1
3, 0 1
3x
Select prog Channel 2
OFF
Date Date day
Date month Hours
Minutes 1 x
Save
Further programming as described or by pressing key vreturn
to automatic program
9)
8.5 Programming an offset
The astronomical switch-on and switch-off times for channel 1 can be separated
from one another by means of the offset by a max. of +/- 120 mins.With the offset
the switching times can be adapted to local circumstances (e.g. shadow of
mountains).
If channel 2 is programmed as an astronomical channel, the same offset for
astronomical switching times is valid as for channel 1.
Caution: The offset for sunrise is not adopted until the offset for the sunset has
been saved in memory.
Example: Switch-off time 30 mins. after sunrise, switch-on time 30 mins. before
sunset.
Select offset
Sunrise
Sunset
Change mathematical sign
Confirm offset
Save both offsets
Save

75
8.6 Programming astronomical channel 2
After commissioning, channel 2 is programmed as a normal switch channel
without any astronomical function.
Channel 2 can be activated as an astronomical channel. Channel 2 takes the
astronomical switching times and offset from channel 1. However, other night
interruption times than for channel 1 can be programmed.
Note: To shut off the astronomical switching for channel 2, in Fig. 2 press key 0.
9.0 Priority program
Besides the normal 7-day program up to 9 different 7-day programs can be filed
with the SEL 173 DCF.Adefined 7-day program P1 ... P9 can be invoked at
randomly defined time periods.
The programming consists of:
1. Defining the 7-day program, see section 9.1
2. Defining a starting and finishing date, see section 9.2
If the time periods of several weekly programs overlap, the program with the
highest index takes precedence.
For example, the 7-day program P9 is effective before 7-day program P3.
On priority levels 1 to 4 the astronomical times are effective. The priority program
suppresses only the normal switching program.
On priority levels 5 to 9 the astronomical switching times are suppressed and the
programmed day or 7-day program is executed.
Programmable are up to five 7-day programs that switch together with the
astronomical switching times (normal program and priority levels 1 to 4). Also up
to five 7-day programs are programmable that suppress the astronomical
switching times (priority levels 5 to 9).
All 7-day programs can be assigned random time periods in the year.
To maintain an overview we recommend that the different 7-day programs in the
table be noted at the end of the operating instructions.
Switching times are executed in accordance with the following order of
precedence:
–Continuous connection
–Continuous connection with time limitation, section 9.3
(Off has precedence over On)
–Date switching times, section 8.3 (Off has precedence over On)
–One-off switching times, section 8.4
–7-day program with priority, sections 9.1/9.2 (P9 has precedence over P1)
–7-day program, section 8.1/8.2
Channel
assignment for C2 Astronomical channel
Confirm setting

76
Diagram - 7-day program with priority 9.1 Programming a 7-day program with priority P1 ... P9
Example: Channel C2 switches on daily at 8.15 h.
Priority assignment P1.
Note: For 7-day programs with priority a random quantity of ON/OFF switch
commands can be defined.
Select prog Select channel
Switch on Daily
Hours Minutes
Priority P1 Save
For transition to a new 7-day program (e. g.: on 8. 4. at 24.00 h). the channels
affected are switched as if the new 7-day program had already been active for a
long time. This means that the new 7-day program performs a program review.
Highest Priority
weekly program P9
weekly program P8
weekly program P7
weekly program P6
weekly program P5
weekly program P3
weekly program P2
weekly program P1
weekly program P4
Channel C1 + C2 switch ON
Monday-Friday 18.15
Channel C1 + C2 switch ON
Monday-Friday at 21.30
Channel C1 + C2 at ON o
16.15 daily.
Channel C1 + C2 at OFF 20.00 p
Start
e.g. 8.4
Finish
e.g. 27.5
Start
e.g. 21.7
Finish
e.g. 7.9
Standard
Weekly Program
Weekly Program
P3 Standard
Weekly Program
Weekly Program
P4 Standard
Weekly Program

77
9.2 Defining a time period for the 7-day program P1 .. P9
The time period of a 7-day program P1 ... P9 is defined by inputting a starting and
finishing date. The 7-day program starts at 0.00 hours on the programmed starting
date and ends at 2400 hours on the finishing date.
Example: Compared to the normally effective program the individual priority
program with index P1 should be effective on channel C2 from
8 April to 27 May.In the defined time period with priority assignment P1 .. P9
the complete standard program (without priority assignment) is suppressed.
9.3 Continuous connection with time limitation ON or OFF
Example: During the Christmas holidays all consumer units connected to C2
should remain switched off between 23 December and 7 January.
Other programming as described
or by pressing key vreturn to
the automatic program.
Select P Channel 2
Start date Finishing date
Save
To perform continuous connection with time limitation once only, press key 1 (Fig. 6).
To perform continous connection with time limitation annually, press key 0 (Fig. 6).
Other programming as described or by pressing key vreturn to the
automatic program.
Continuous connection with time limitation for C1 must be separately
programmed.
Select P
Start date
Channel 2
Priority
annually
Finishing date
Switch off
Save
6)
Once
6)
Select priority
If the priority program is to be performed once only, press key 1 (Fig. 6).
If the priority program is to be performed annually, press key 0 (Fig. 6).
