Thermador MES301HS User manual

INSTALLATION MANUAL
For Built-in Steam and Convection Ovens
MANUEL D'INSTALLATION
Pour les fours a convection et
vapeur integr6s
MANUAL DE INSTALACION
Para homos de vapor y
conveccion empotrados
Thermador °
page 2
page14
pagina 26
Models/
Modeles/
Modelos
MES301HS
MES301HP
Trim Kit Models/
Modeles pour kits
de garniture/
Modelos de
conjuntos de
molduras
MST301 HS
us ca mx

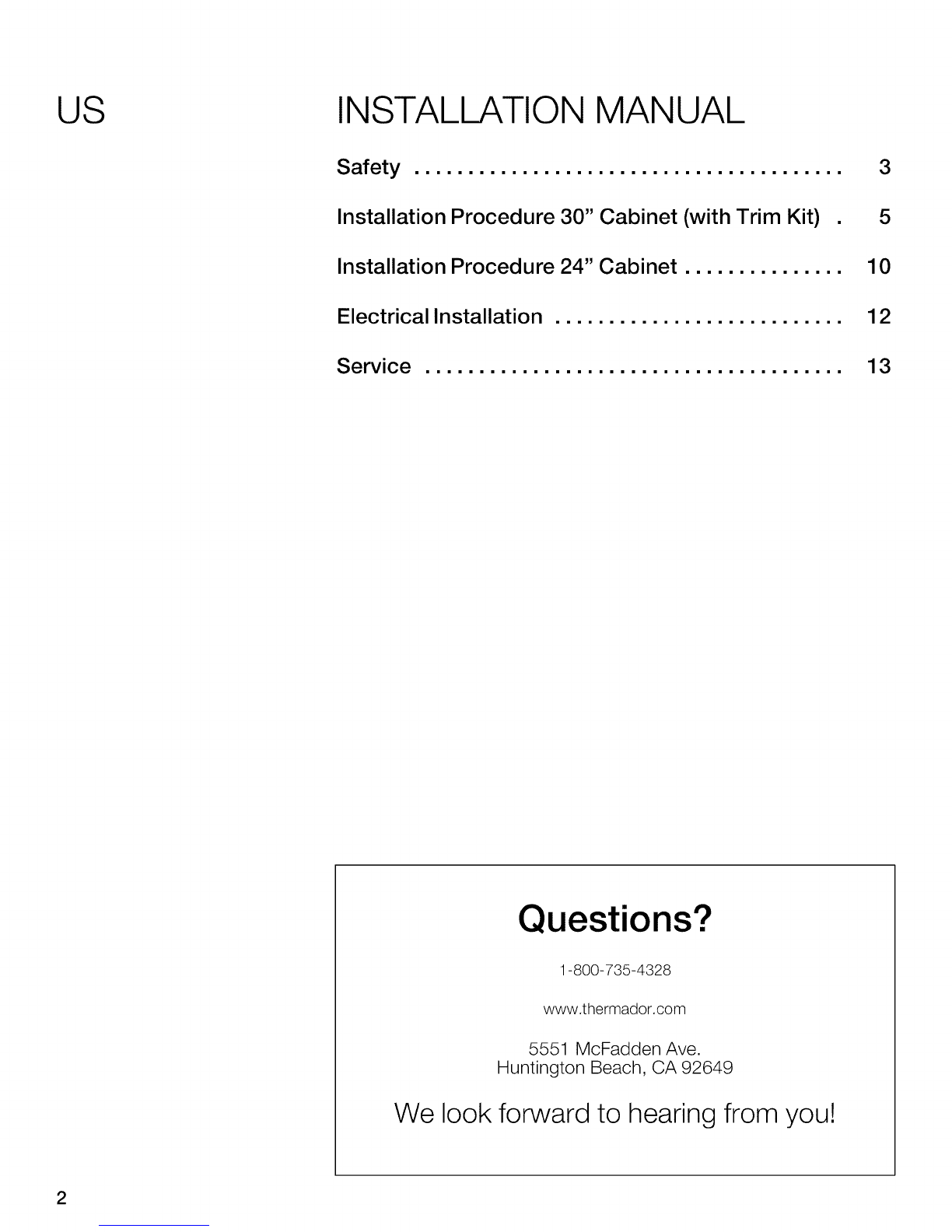

US INSTALLATION MANUAL
Safety ........................................ 3
Installation Procedure 30" Cabinet (with Trim Kit) 5
Installation Procedure 24" Cabinet ............... 10
Electrical Installation ........................... 12
Service ....................................... 13
Questions?
1-800-735-4328
www.thermador.com
5551 McFadden Ave.
Huntington Beach, CA 92649
We look forward to hearing from you!

Safety
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Appliance Handling Safety
Safety Codes and Standards
Electric Safety
READ AND SAVE THESE INSTRUCTIONS
_ ARNING: Ifthe information in this manual is not followed exactly, fire orshock may result, causing property damage or personal injury.
_ ARNING: Do not repair or replace any part of the appliance unlessspecifically recommended in the manuals. Improper installation, service or
maintenance can cause injury or property damage. Refer to this manual for
guidance. All other servicing should be done by a qualified technician.
Do not lift appliance by door handle. See instructions in Instruction Manual.
The appliance is heavy and requires at least two people or proper equipment to
move.
Hidden surfaces may have sharp edges. Use caution when reaching behind or
under the appliance.
This appliance complies with one or more of the following standards:
÷ UL 1026, Standard for Safety Electric Household Cooking and Food Serving
Appliances
÷ CAN/CSA-C22.2 No. 64-M91 Household Cooking Ranges
It is the responsibility of the owner and the installer to determine if additional
requirements and/or standards apply to specific installations.
Before you connect the electrical cord to the conduit box, be sure all controls are in
the OFF position.
If required by the National Electrical Code (or Canadian Electrical Code), this
appliance must be installed on a separate branch circuit.
Installer - Show the owner the location of the circuit breaker or fuse. Label it for
easy reference.
Important - Save these instructions for the local electrical inspector's use.
Before installing, turn power OFF at the service panel. Lock service panel to prevent
power from being turned ON accidentally.
Refer to data plate for more information. See "Data Plate" under "Service" for data
plate location.
This appliance must be properly installed and grounded by a qualified technician.
Installation, electrical connections and grounding must comply with all applicable
codes.
3

Related Equipment Safety Remove all tape and packaging before using the appliance. Destroy the packaging
after unpacking the appliance. Never allow children to play with packaging material.
Never modify or alter the construction of the appliance. For example, do not remove
leveling legs, panels, wire covers or anti-tip brackets/screws.
4

Installation Procedure 30" Cabinet
(with rim Kit)
Before you Begin
Parts Included
Before installing the oven be sure to verify the cabinet dimensions and electrical
connections.
The appliance may only be installed in a cabinet that is closed on the sides.
There must not be any openings on the sides.
If the rear of the cabinet is open (for ventilation or installation of the appliance), this
opening must be placed against a wall. Ifthis is not possible, the cabinet must be
altered or protected so that no one can reach into the openings of the appliance.
Tools and Parts Needed
÷ Trim Kit
÷ Trim mounting brackets (2x)
÷ Top bracket
÷ Appliance
÷ Right and left rail
÷ Base pan
÷ Base to Cabinet Screws (4x)
÷ Rail, Trim and Bracket Screws (21x)
÷ T-20TORX screwdriver
÷ Measuring tape
Drillwith bit (1/8")
5

Appliance and Cabinet
Cutout Dimensions Instructions are based on standard.
The conduit box A must be installed either above or below the unit.
min. 21
Prepare the Appliance
1
I
0000000
0000000
9x

Prepare the Trim Kit
2
8x
Prepare Cabinet Cutout
34
7

Install the Appliance
5
Slide in appliance, leaving 4 inches exposed. Make sure that the rails hook into the
anti-tip guard C.
Install the Trim Kit
6
3/16"
(4,5mm)
4x
5/16"
(Smm)

Slide Appliance into
Cabinet
7
Adjust Fit of Appliance in
Cabinet The base pan has leveling legs B (see step 4) to adjust the fit of the appliance in the
cabinet. If the Trim Kit is not flush with the cabinet face, adjust as follows:
1. Remove the appliance from the cabinet (see Remove Appliance).
2. Raise/lower the relevant leveling legs to eliminate any gap between Trim Kit and
cabinet face.
3. Re-install the appliance in cabinet and check fit.
4. Repeat process, if necessary.
Remove Appliance To remove appliance:
1. Disconnect the electrical cord from the conduit box.
2. Open oven door.
3. Lift appliance at front by 1/2".
4. Pull appliance out of cabinet.
9

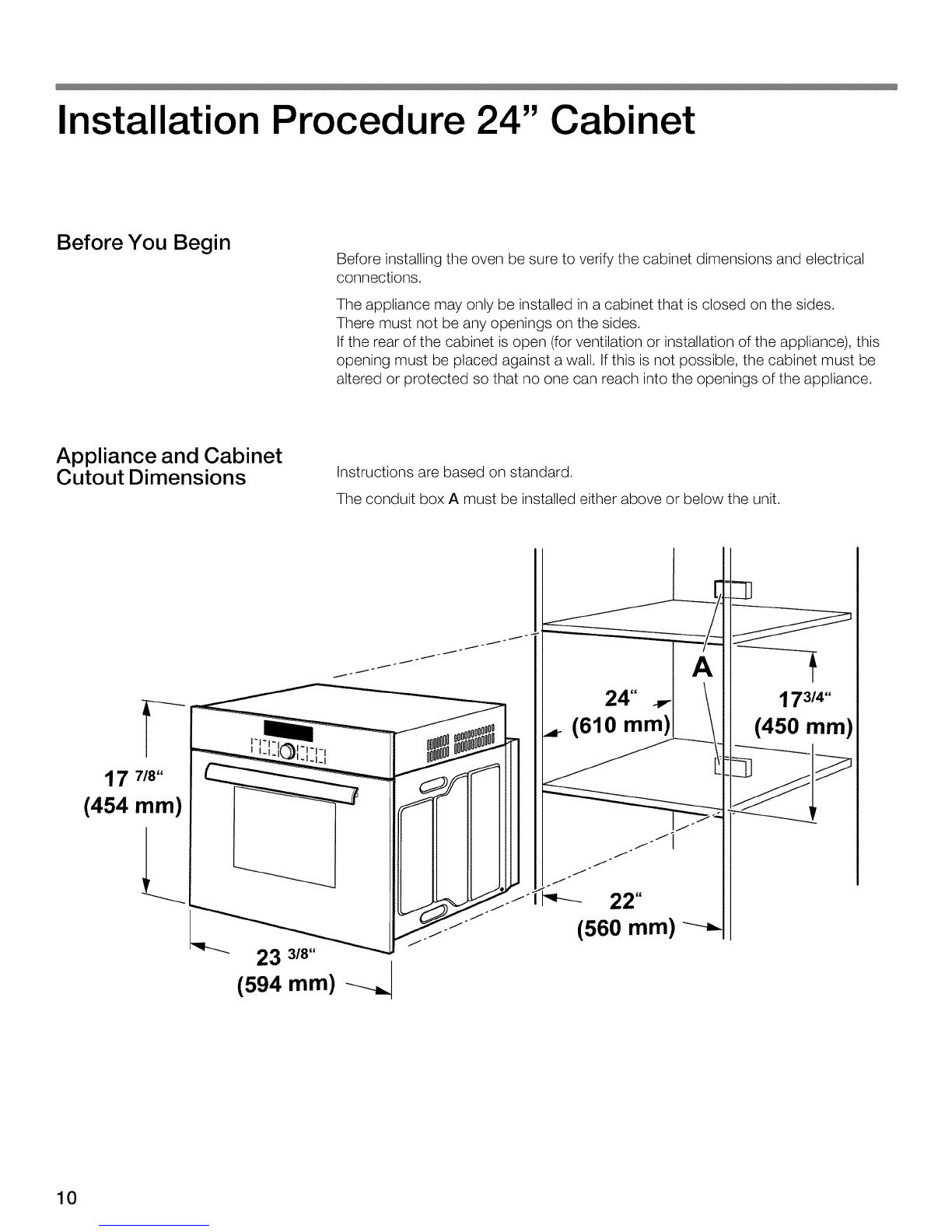

Installation Procedure 24" Cabinet
Before You Begin Before installing the oven be sure to verify the cabinet dimensions and electrical
connections.
The appliance may only be installed in a cabinet that is closed on the sides.
There must not be any openings on the sides.
If the rear of the cabinet is open (for ventilation or installation of the appliance), this
opening must be placed against a wall. Ifthis is not possible, the cabinet must be
altered or protected so that no one can reach into the openings of the appliance.
Appliance and Cabinet
Cutout Dimensions Instructions are based on standard.
The conduit box A must be installed either above or below the unit.
24"
(610 mm)
(560 mm) ------_
173/4"
(450 mm)
10

Install the Appliance
1
min. 3/16"
(5 ram)
min. 3/16"
(5 ram)
Mount to Cabinet
2
11

Electrical Installation
All oven models are designed to be connected to either a 208 V or 240 V AC, 60 Hz,
3-wire single-phase power supply.
Model Circuit Required
208 V, 60 Hz 240 V, 60 Hz
MES301HS max. 15 AMP max. 15 AMP
MES301HP max. 15 AMP max. 15 AMP
The electrical supply should be a 3-wire single-phase AC. Install a suitable conduit
box (not furnished).
Important - Local codes may vary; installation, electrical connections and
grounding must comply with all applicable local codes.
Electrical Connection
1. Connect the red oven wire to the red electrical supply wire (hot wire).
2. Connect the black oven wire to the black electrical supply wire (hot wire).
3. Connect the yellow/green ground oven wire to the bare ground electrical supply
wire.
Attach flexible conduit to the junction box.
To facilitate serviceability, the flex conduit must not be shortened and should be
routed to allow for temporary removal of the oven.
12

Service
Before Calling Service
Refer to the Instruction Manual for troubleshooting information. Refer to the
warranty in the Instruction Manual. Please be prepared with the information printed
on the data plate when calling.
Data Plate The data plate shows the model and serial number. The data plate can be found at
the bottom on the right-hand side when the appliance door is open.
Keep your invoice or escrow papers for warranty validation if service is needed.
13

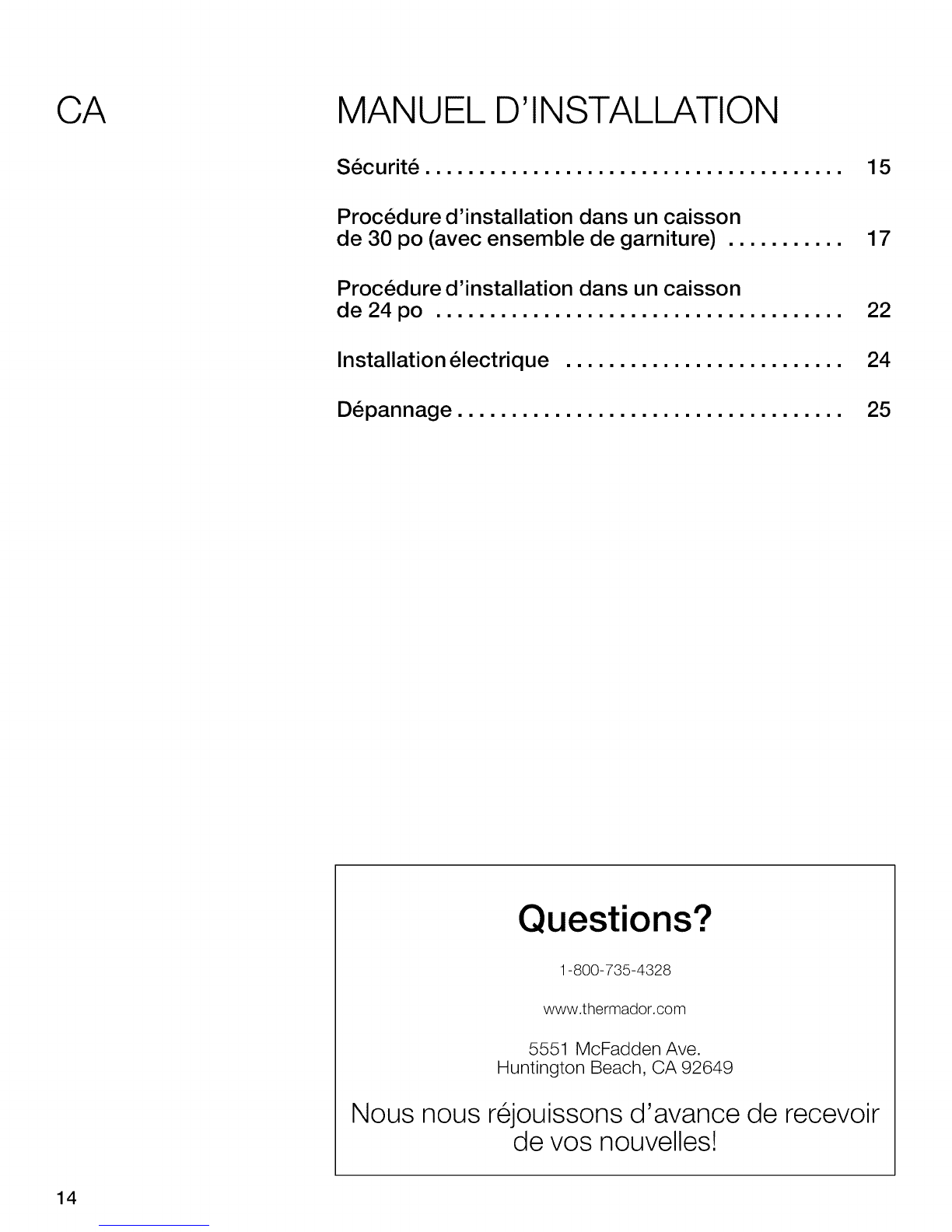

CA MANUEL D'INSTALLATION
Securit6 ....................................... 15
Procedure d'installation dans un caisson
de 30 po (avec ensemble de garniture) ........... 17
Procedure d'installation dans un caisson
de 24 po ...................................... 22
Installation electrique .......................... 24
Depannage .................................... 25
Questions?
1-800-735-4328
www.thermador.com
5551 McFadden Ave.
Huntington Beach, CA 92649
Nous nous rejouissons d'avance de recevoir
de vos nouvelles!
14

S6curit
Instructions de s6curit6
importantes
LISEZ ET GARDEZ CES INSTRUCTIONS
LIRE ET CONSERVER CES INSTRUCTIONS
_ AVERTISSEMENT: Si les consignes de ce manuel ne sont pas suiviesla lettre, un incendie ou une decharge electrique pourrait survenir,
entra_nant des dommages a la propriete ou des blessures personnelles.
_ VERTISSEMENT: Ne pas reparer ni remplacer une piece quelconquede I'appareil a moins que ce ne soit expressement recommande dans les
manuels. Toute installation, reparation ou maintenance inadequate peut
entraTnerdes blessures ou des dommages materiels. Se reporter a ce
manuel pour obtenir des conseils sur la fagon de proceder. Tousles
travaux d'entretien doivent 6tre con%s a un technicien qualifie.
Securit6 de manipulation de I'appareil Ne soulevez pas cet appareil par la poignee de la porte. Voir les instructions dans le
manuel de I'utilisateur.
L'appareil est Iourd est dolt 6tre deplace par deux personnes au moins ou avec de
I'equipement approprie.
Les surfaces cachees peuvent comporter des ar6tes vives. Prenez garde Iorsque
vous passez votre main sous ou derriere I'appareil.
Codes et normes de securit6 Cet appareil est conforme a une ou plusieurs des normes suivantes :
÷ UL 1026, Norme securitaire pour les appareils domestiques electriques pour la
cuisson et la preparation des aliments
÷ CAN/CSA-C22.2 No. 64-M91 Cuisinieres domestiques
II incombe au proprietaire eta I'installateur de determiner si des exigences
additionnelles et/ou normes s'appliquent pour des installations specifiques.
Securit6 electrique Avant de brancher le cordon d'alimentation a la bo_tede raccordement,
assurez-vous que toutes les commandes sont en position d'arr6t (OFF).
S'il y a lieu, conformement au Code national de I'electricite (ou au Code canadien
de I'electricite), cet appareil dolt _tre installe sur un circuit de derivation separe.
Installateur - Montrez au proprietaire I'emplacement du fusible ou du disjoncteur.
Etiquetez-le pour vous y referer facilement.
Important - Conservez ces instructions pour I'utilisation de I'inspecteur en
electricite local.
Avant I'installation, mettre I'appareil hors service au panneau de service. Verrouiller
le panneau d'entree d'electricite pour eviter que le courant ne soit accidentellement
retabli.
15

Referez-vous a la plaque signaletique pour plus de renseignements. Voir ,<Plaque
signaletique -dans la section ,<Entretien - pour connaTtre son emplacement.
Cet appareil doit _tre adequatement installe et mis a la terre par un technicien
agre& L'installation, les connexions electriques et la mise a la terre doivent _tre
conformes a tousles codes applicables.
Securit6 apparentee concernant
I'equipement Enlever le ruban adhesif et I'emballage avant d'utiliser I'appareil. Detruire
I'emballage apres avoir deballe I'appareil. Ne jamais laisser les enfants jouer avec
les materiaux de conditionnement.
Ne jamais modifier ni alterer la configuration de I'appareil. Par exemple, ne pas
retirer les pieds de nivellement, les panneaux, les couvercles de cAblage ou les
fixations/vis antibasculement.
16

Procedure d'installation dans un caisson
de 30 po (avec ensemble de garniture)
Avant de commencer Avant d'installer le four, assurez-vous de verifier les dimensions du caisson et les
connexions electriques.
L'appareil dolt _tre installe uniquement a interieur d'une armoire dont les c6tes
sont fermes. L'armoire ne dolt comporter aucune ouverture sur les c6tes.
Si I'arriere de I'armoire est ouvert (pour des raisons de ventilation ou I'installation
de I'appareil), I'ouverture dolt _tre placee contre un mur. Si cela n'est pas possible,
I'armoire dolt _tre modi%e ou protegee afin que personne ne puisse passer la main
I'interieur des ouvertures de I'appareil.
Pi_ces incluses
Outillage et pi_ces
necessaires
÷ Ensemble de garniture
÷ Supports de fixation de la garniture (2x)
÷ Support du haut
÷ Appareil
÷ Traverses droite et gauche
÷ Plateau de la base
÷ Vis de la base au caisson (4x)
÷ Vis pour les rails, garniture et support (21x)
÷ Toumevis T-20 TORX
÷ Ruban a mesurer
÷ Perceuse avec foret (1/8po)
17

Dimensions de la
decoupe de I'armoire
et de I'appareil Les instructions sont basees sur des placards standard.
La boTtede raccordement A doit _tre installee au-dessus ou en dessous de
I'appareil.
min. 21 t
19 w8"
(504 mm)
Preparation de I'appareil
1
I
0000000
0000000
9x
18

Preparation de la
garniture
2
8x
Preparez la decoupe du
placard
34
)4x
19

Installez I'appareil
5
Glissez I'appareil a I'interieur en laissant ressortir 4 pouces de I'appareil.
Assurez-vous que les rails s'accrochent au protecteur antibascule C.
Installation de la
garniture
6
3/16"
(4,5mm)
4x
5/16"
(Smm)
2O
