Thermo Scientific Revco Owner's manual

Thermo Scientific Revco®
Blood Bank
Refrigerators
Installation and Operation
34830H51 Rev. C March 2019
Visit us online to register your warranty
www.thermoscientific.com/labwarranty

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result
in damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are
subject to change without notice. Thermo Fisher Scientific makes no representations or warranties with
respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental,
arising from or related to the use of this manual.
© 2019 Thermo Fisher Scientific Inc. All rights reserved.
For your future reference and when contacting the factory, please have the following information readily
available. It can be found on the dataplate attached to your unit.
Model Number:
Serial Number:
The following information, if available, is helpful for contacting the factory.
Date Purchased:
Purchase order number:
Source of Purchase:
(manufacturer or specific agent/rep organization)

Table of Contents
Table of Contents
Introduction..............................................................................1
Operating Standards .............................................................2
Safety Precautions....................................................................4
Unpacking and Inspection.......................................................6
Transport and Storage ............................................................7
Preparation for storage .........................................................7
Intended Use.............................................................................8
Installation................................................................................9
Location ............................................................................... 9
Wiring .................................................................................. 9
Leveling ............................................................................. 10
Door Operation ..................................................................10
Door Seal ............................................................................11
Final Checks .......................................................................12
Drawers...................................................................................13
Removing the Drawers....................................................... 13
Reinstalling the Drawers ....................................................14
Changing Drawer Slide Position........................................ 14
Control Panel..........................................................................15
Control Panel Features .......................................................15
Display Functions ..............................................................17
Programming Functions .....................................................17
Service Parameters .............................................................18
Operation................................................................................19
Start Up ..............................................................................19
Product Loading Guidelines ...............................................19
Automatic Defrost ..............................................................20
Temperature Control ............................................................21
Setpoint Control .................................................................21
Sensor Bottles ....................................................................21
Alarm Systems........................................................................22
Operating the Alarm ...........................................................22
Local and Remote Alarms ..................................................22
Installing a Remote Alarm (Optional) ...............................23
Alarm Test ..........................................................................23
Chart Recorders.....................................................................25
Set Up and Operation .........................................................25
Power Supply .....................................................................26
Changing Chart Paper ........................................................26
Calibration Adjustment ......................................................27

Table of Contents
Maintenance ...........................................................................28
Cleaning the Drawers and Cabinet Interior ........................28
Cleaning the Condenser .....................................................28
Troubleshooting .....................................................................29
End of Life Care.....................................................................30

Introduction
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 1
1 Introduction Blood bank refrigerators are designed to meet strict AABB, ANRC and FDA
requirements for stored product safety.
This manual provides installation and operation instructions for:
Undercounter models (4.7 ft³), Space Saver models (11.5 ft³) and Upright
models (23.3, 29.2 and 51.1 ft³). Refer to Ta b l e 1 to determine the
specifications that apply to your unit.
The control system, standard on all models, includes:
• Key-operated power and alarm switch
• Preset temperature setpoint
• Digital temperature display with 0.1°C resolution
• Graphic temperature display
• Audible and visual power failure indicators
• Alarm silence, ringback, and automatic reset functions
• Pushbutton alarm test
Other standard features include:
• Keyed door locks
• Remote alarm contacts
• CFC-free refrigerant
• CFC-free foamed in-place urethane insulation
• Quiet, hermetically sealed refrigeration compressors
Upright models (23.3 ft³ and larger) also have: fully extendable stainless
steel drawers; a sensor selection button (for upper and lower cabinet
temperature readings); and an independent switch for interior cabinet lights.
Seven day chart recorders are standard on all models.

Introduction
2 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
Table 1: Blood Bank Refrigerator Specifications
Model Voltage
Codea
Amps /
Breaker
Cu.Ft./
Liters Cabinet Door
Drawers
/ 450ml
bags
Dimensions H x F - B x W in.(cm)
Net
Prod.
Wt.
lbs (kg)
Interior Exterior
REB404
A6.0/15
4.7/
133 Undercounter Single
solid 2/48 20 x 20.5 x 20
(50.8 x 52 x 50.8)
34 x 26 x 24
(86.2 x 66 x 61)
200
(91)
D6.0/15
V, W 6 . 0 / 1 5
REB1204
A9.4/15
11.5/
326 Space Saver
Single
hinged
glass 5/165 52.4 x 21.75 x 20
(133.2 x 55.2 x50.8)
71.9 x 28.75 x 24
(182.6 x 73 x 61)
320
(146)
D6.0/15
V, W 6 . 0 / 1 5
REB2304
A9.4/15
23.3/
659 Upright
Single
hinged
glass
6/360 58 x 29 x 24
(147.3 x 73.7 x61.0)
77.5 x 36.2 x 28
(196.9 x 92.0 x 71.1)
425
(193)
D6.0/15
V, W 6 . 0 / 1 5
REB3004
A9.4/15
29.2/
826 Upright
Single
hinged
glass
6/462 58 x 29 x 30
(147.3 x 73.7 x76.2)
77.5 x 36.2 x 34
(196.9 x 92.0 x 86.4)
500
(227)
D6.0/15
V, W 6 . 0 / 1 5
REB5004
A 15.0/20
51.1/
1447 Upright
Double
hinged
glass 12/720 58 x 29 x 52.5 (147.3 x 73.7 x 133.4)
77.5 x 36.2 x 56.5
(196.9 x 92.0 x 143.5)
640
(290)
D8.5/15
V, W 8 . 5 / 1 5
a V = 230 V/ 50 Hz CEE7/7 Plug Cap (Schuko)
W = 230 V / 50 Hz BS1363a Plug Cap
A = 115 V / 60 Hz, NEMA 5-15P
D = 208-230 V / 60 Hz, NEMA 6-15P

Safety Precautions
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 3
2 Safety Precautions In this manual and on labels attached to this product, the words
WARNING and CAUTION mean the following:
CAUTION: A potentially hazardous situation which, if not avoided, may
result in minor or moderate injury or damage to the equipment.
WARNING: This symbol indicates potentially hazardous situation which,
if not avoided, could result in serious injury or death.
WARNING: This symbol indicates situations where dangerous voltages
exist and potential for electric shock is present.
CAUTION: This symbol, in the context of a CAUTION, indicates a
potentially hazardous situation which if not avoided could result in minor to
moderate injury or damage to the equipment.
WARNING: This symbol indicates potentially hazardous situation which,
if not avoided, could result in fire.
This symbol indicates possible pinch points which may cause personal
injury.
Below are important safety precautions that apply to this product:
Use this product only in the way described in the product literature and in
this manual. Before using it, verify that this product is suitable for its
intended use.
Do not modify system components, especially the controller. Use OEM
exact replacement equipment or parts. Before use, confirm that the product
has not been altered in any way.
WARNING: Your unit must be properly grounded in conformity with
national and local electrical codes. Never connect the unit to overloaded
power sources.
WARNING: Disconnect the unit from all power sources before cleaning,
troubleshooting, or performing other maintenance on the product or its
controls.
This unit is not for storage of flammable materials.

Safety Precautions
4 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
Before installing, using or maintaining this product, please be sure to read
this manual and product warning labels carefully. Failure to follow these
instructions may cause this product to malfunction, which could result in
injury or damage.
WARNING: Unauthorized repair of your refrigerator will invalidate your
warranty. Contact Technical Service at 1-800-438-4851 for additional
information.
WARNING: No equipment that uses an open flame should be placed
inside the refrigerator. This will harm the unit, hamper functionality and
compromise your safety.
CAUTION: Do not use any battery powered or externally- powered
equipment in the refrigerator.
If the equipment is used in a manner not specified by the manufacturer,
protection provided by the equipment may be impaired.

Unpacking and Inspection
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 5
3 Unpacking and
Inspection
At delivery, examine the exterior for physical damage while the carrier’s
representative is present. If exterior damage is present, carefully unpack and
inspect the unit and all accessories for damage.
If there is no exterior damage, unpack and inspect the equipment within five
days of delivery. If you find any damage, keep the packing materials and
immediately report the damage to the carrier. Do not return goods without
written authorization.When submitting a claim for shipping damage,
request that the carrier inspect the shipping container and equipment.

Transport and Storage
6 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
4 Transport and
Storage
For transport, do not lift the device using the doors or components attached
to the device as lift points which may result in personal injury and damage
to the product itself.
CAUTION: Heavy loads! Lift only with a forklift! Or at minimum a pallet
jack!
To avoid injury through physical strain, such as strain trauma and slipped
discs, do not attempt to lift the refrigerator without the use of a forklift! Or
at minimum a pallet jack!
To avoid injury through dropped loads, be sure to wear personal protection
equipment, such as safety shoes, when lifting or moving the refrigerator.
4.1 Preparation for
storage
If the unit is going to be stored in an off condition, allow the unit to warm
up and dry out with the door open before moving into storage.

Operating Standards
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 7
5 Operating
Standards
The refrigerators described in this manual are classified for use as stationary
equipment in a Pollution Degree 2 and Overvoltage Category II
environment.
These units are designed to operate under the following environmental
conditions:
• Indoor use
• Altitude up to 2000 m (6512 feet)
• Maximum relative humidity 60% for temperatures from 15 to 32°C
(59 to 90°F).
• For V models: Maximum relative humidity 75% for temperatures from
10 to 35°C (50 to 95°F).
• Main supply voltage fluctuations not to exceed 10% of the nominal
voltage.
• The refrigerator must not be connected to a GFCI (Ground Fault
Circuit Interrupter) protected outlet as it may be subject to nuisance
tripping.
Operation outside of these conditions will affect the performance of the unit
and the samples stored inside.

Intended Use
8 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
6 Intended Use The refrigerators described in this manual are intended for the storage of
blood and blood products. All materials stored in these products must be in
sealed blood bags. Product must not be stored in open containers. These
products are intended for storing samples or inventory at operating
temperatures between 2°C (35.6°F) and 6°C (42.8°F).
Expected users of this equipment include but are not limited to personnel
from the following areas: Professional and clinical (blood bank) laboratories,
Pharma and Biotech facilities, Industrial and Government facilities or those
trained in laboratory protocols put in place at your facility. The units are
not for use by the general public.
These products should only be used by an authorized and adequately
trained personnel.
It is considered a medical device and has therefore been registered with the
medical device regulatory body FDA and is considered a Class 2 medical
device by the FDA. This product is classified as product code KSE,
regulation number 864.9700 and is considered 510(K) exempt.
This unit is not intended for use in classified hazardous locations, nor to be
used for the storage of flammable or corrosive inventory.
CAUTION: Storage of sealed or unsealed corrosive substances may cause
the interior of the unit to corrode. If stored for long periods of time, they
could become unsealed due to moisture content of the refrigerator
environment.

Installation
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 9
7 Installation
WARNING: Do not exceed the electrical rating printed on the dataplate
located on the upper left side of the unit.
CAUTION: Do not move the unit using the drain pan on the back. This
could cause damage to the equipment.
7.1 Location
WARNING: Do not move the unit while loaded. Unit shall always be
moved when empty and by pushing slowly at handle level or lower on the
unit. Be especially careful on any uneven surfaces.
Install the unit in a level area free from vibration with a minimum of 6
inches of space on the sides and rear and 12 inches at the top.
Do not position the equipment in direct sunlight or near heating diffusers,
radiators, or other sources of heat. The ambient temperature range at the
location must be 59 to 90°F (15 to 32°C).
7.2 Wiring
CAUTION: Do not position the unit in a way that impedes access to the
disconnecting device or circuit breaker in back of the unit.
CAUTION: Never cut the grounding prong from the service cord plug. If
the prong is removed, the warranty is invalidated.
CAUTION: In an emergency, the power cord is a disconnected device.
CAUTION: Connect the equipment to a separate, dedicated, power source
with the correct voltage. Power fluctuations or incorrect voltage can result in
severe damage to the equipment.
WARNING: For personal safety and trouble-free operation, this unit must
be properly grounded before it is used. Failure to ground the equipment
may cause personal injury or damage to the equipment. Always conform to
the National Electrical Code and local codes. Do not connect unit to already
overloaded power lines.

Installation
10 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
Always connect the equipment to a dedicated (separate) circuit. Electrical
codes require fuse or circuit breaker protection for branch circuit
conductors. Use time delay fuses for #12 AWG circuits.
For all blood bank models, the wiring diagram is attached to the back of the
cabinet.
7.3 Leveling
CAUTION: An unlevel unit may result in instability and performance
issues for the doors and drawers.
The unit must be level. Rotate the leveling screws, located under the front
corners of the unit, until the unit is level. If the floor is seriously out of level,
you may need to shim the corners with thin sheets of metal.
Note Use thin sheets of metal to level units equipped with optional casters.
7.4 Door Operation Standard glass doors for models larger than the undercounter model stay
open if opened 90 degrees. Door spring tension cannot be adjusted.
If the self-closing doors do not work properly, make sure the unit is level.
7.4.1 Adjustable Hinged Glass
Doors (Undercounter Models
Only)
On Undercounter models with hinged glass doors, you can use a regular
screwdriver to adjust spring tension and center each door on its frame. The
adjustment screws (“torque” for tension and “sag” for door placement) are
located on the bottom hinge bracket (shown below in Figure 1).
Hinged glass doors can be propped open with metal braces at the bottom
hinges. Open the door 90 degrees or until you feel some resistance. Push the
door open past the resistance and the metal braces engage. To close the door,
push it toward the unit (past the resistance).
Figure 1. Undercounter Hinge Bracket for Glass Door Adjustments

Installation
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 11
CAUTION: Do not overtighten the tension as damage to the equipment
can result.
WARNING: Disconnect equipment from main power before attempting
any maintenance to equipment or its controls.
7.5 Door Seal
CAUTION: Keep hands and body parts clear of closing doors. The moving
parts create a potential pinch point.
To check the door seal, complete the following steps:
1. Open the door.
2. Insert a strip of paper (a couple of inches wide) between the door
gasket and the cabinet flange and close the door.
3. Slowly pull the paper strip from the outside. You should feel some
resistance.
4. Repeat this test at 4-inch intervals around the door. If the door does
not seal properly, you need to either replace the gasket, or adjust the
door (see the previous page).
Note Door seal integrity is critical for blood bank refrigerators. A loose fitting
gasket allows moist air to be drawn into the cabinet, resulting in quicker frost
buildup on the evaporator coil, longer running time, poor temperature
maintenance, and increased operation cost.
The door seals on 12 ft³ models can be adjusted. To correct a faulty seal on
these units, complete the following steps:
1. Open the door completely.
2. Remove the hinge pin cover to expose the door mounting screws. This
cover pops off.
3. Loosen the screws and move the door side of the hinge to decrease the
clearance between the gasket and the cabin.
4. Tighten the screws and snap the hinge pin covers on.
5. Recheck the seal.
6. If the door does not seal properly, replace the gasket.

Installation
12 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
7.6 Final Checks Before start up, complete the following steps:
1. Make sure that the unit is free of all wood or cardboard shipping
materials, both inside and outside.
2. Check the positions of the stainless steel drawers. If you want to adjust
the drawer slides in an Upright unit, follow the instructions in
Section 8.3.
3. Verify that the unit is connected to a dedicated circuit.

Drawers
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 13
8 Drawers
8.1 Removing the
Drawers
To remove the drawers in Upright models (23 ft³ and larger) complete the
following steps (Figure 2):
1. Pull the drawer toward you until the slides are fully extended.
2. Lift the back of the drawer to disengage the mounting tabs from the
slots on the slides.
Note The drawers fit snugly between the slides. Push the back of the drawer
from underneath to remove the drawer.
3. Raise the back of the drawer almost to a vertical position and
disengage the front mounting clips from the slides.
To remove the drawers on Space Saver models, depress the hooks located on
both sides of the drawers (about 1/3 of the way back) and slide the drawers
up and out.

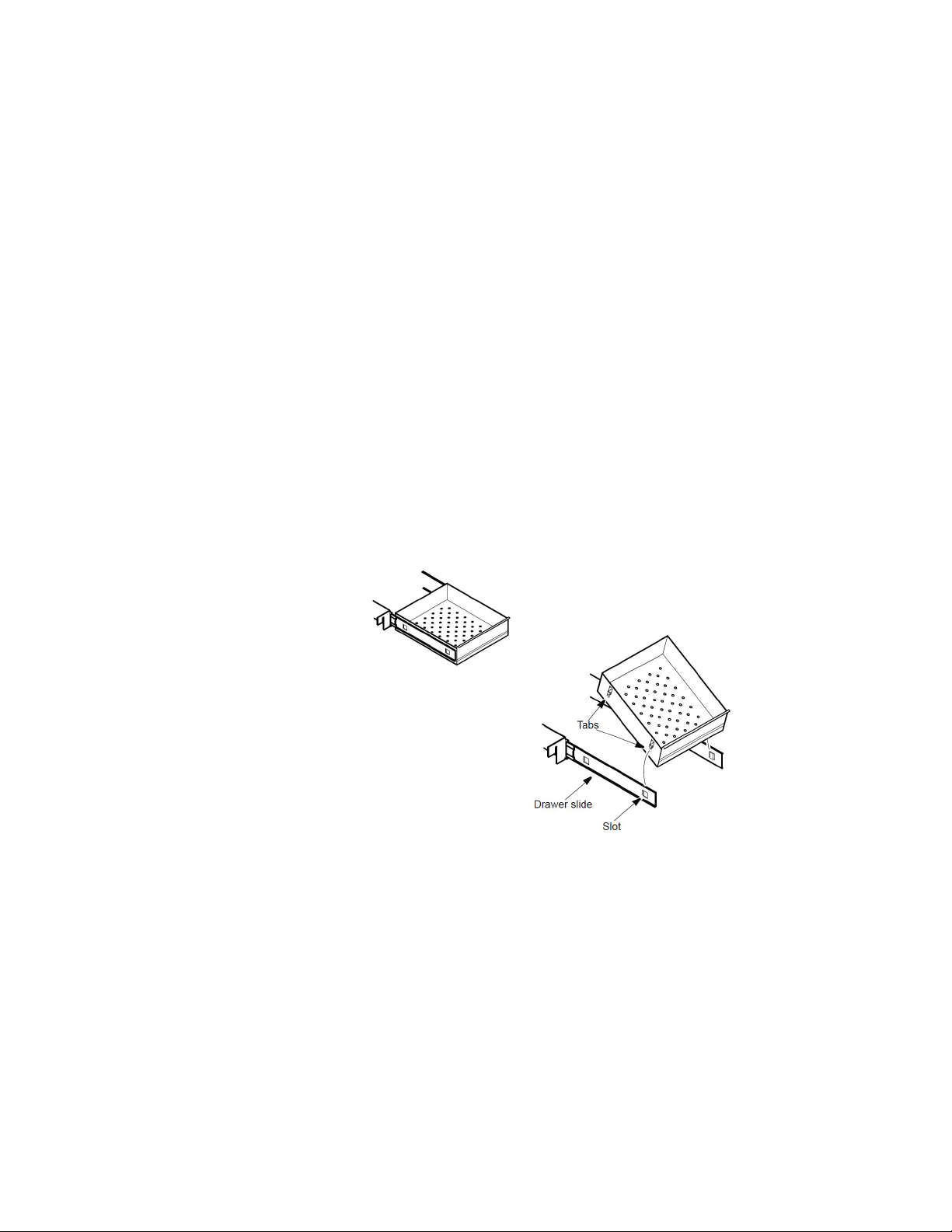

Figure 2. Drawer Removal (Upright Models)

Drawers
14 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
8.2 Reinstalling the
Drawers
To reinstall the drawers in Upright models, complete the following steps
(refer to Figure 2):
1. Pull both drawer slides toward you until the slides are fully extended.
2. Position the drawer between the slides and insert the front mounting
clips into the slots on front of the slides.
3. Push the back of the drawer down between the slides and insert the
drawer tabs into the back slots.
Note The drawers fit snugly between the slides. Push on the back of the drawer
from the inside to insert the drawer tabs completely into the slots. Make sure both
drawer tabs are aligned with the slots on the slides before pushing the drawer
down between the slides.
8.3 Changing Drawer
Slide Position
The drawer slides are adjustable. You can position these slides in the vertical
slots which are spaced at one-inch intervals.
Drawer slides have a small wire safety clip at the front pilaster which
prevents the slides from falling when the drawers are removed. To change
the position of the drawer slides, complete the following steps:
1. Locate the safety clip.
2. Slip your fingernail or a small screwdriver under the bottom of the
wire clip and pry the clip out toward the inside of the refrigerator.
3. Lift up the slide at the front. The slide is free to move from the front
pilaster.
4. The drawer slide must be removed from the rear pilaster at
approximately a 45 degree angle toward the center of the cabinet.
5. Pull the slide toward the front of the cabinet.
Note Drawer slides do not require lubrication. Additional could impede
movement of the drawers when the lubricant is cold.

Control Panel
Thermo Scientific Recvo Blood Bank Refrigerators Installation and Operation 15
9 Control Panel
Figure 3. Refrigerator Control Panel
9.1 Control Panel
Features
The control panel is located on the top right side of your blood bank
refrigerator. You can use the three pushbuttons (#5, #8, and #9 in Figure 3)
to change the temperature display (#1) or to adjust temperature and alarm
setpoints. The thermometer display (#2) provides a quick visual indicator of
current cabinet temperature and alarm conditions.
Before starting up your refrigerator, take some time to review the control
panel functions:
1. Main temperature display — during normal operation, shows cabinet
temperature in degrees Celsius, as measured by the upper sensor inside
the cabinet. You can use the buttons to display other values such as
setpoints, extreme values, and lower sensor temperature. The number
in the main display flashes when the value can be modified.
2. Thermometer — shows cabinet temperature and alarm conditions.
There are 10 horizontal bars: 9 are displayed during normal operation,
the tenth (top) bar indicates a warm alarm condition. The number of
bars illuminated indicates approximate cabinet temperature.
Depending on alarm settings, 4 or 5 bars illuminated indicate that the
cabinet is at setpoint.

Control Panel
16 Installation and Operation Thermo Scientific Recvo Blood Bank Refrigerators
For example, suppose that the cabinet temperature setpoint is +4ºC and that
the warm and cold alarm setpoints are 8ºC and 0ºC. Then the number of
bars illuminated indicates cabinet temperature as follows:
When cabinet temperature exceeds the warm alarm setpoint, the top bar of
the thermometer flashes. When temperature is lower than the cold alarm
setpoint, the bulb flashes.
When you are in programming mode (described in Table 2) the
thermometer shows the setpoint value you are changing.
3. Power failure — illuminated when the main power supply is
interrupted. In this case the audible alarm also sounds.
4. Service required — illuminated when the controller is in service
programming mode or when simulated warm or cold alarm
conditions are failing to occur during an alarm test.
5. Increase — pushbutton used to increase setpoint values in
programming mode and for various display functions.
6. Door ajar — illuminated when the refrigerator door is open and the
alarm is activated (key switch turned to the alarm position). (This
feature is not available for 45 ft³ sliding glass door models.)
7. Battery low — illuminated when the backup battery is low.
8. Decrease — pushbutton used to decrease setpoint values in
programming mode and for various display functions.
9. Scan — pushbutton used to change the main display and for various
other functions.
10. Audible alarm — illuminates during warm and cold alarm conditions.
For full descriptions of display, programming, and service functions, refer to
Ta b l e 2 , Ta b l e 3 , and Table 4.
Bars Temperature Bars Temperature
bulb only 0°C (cold alarm) 6 bars 4.8°C
1 bar 0.8°C 7 bars 5.6°C
2 bars 1.6°C 8 bars 6.4°C
3 bars 2.4°C 9 bars 7.2°C
4 bars 3.2°C 10 bars 8.0°C (warm alarm)
5 bars 4.0°C (set point)
