Thermo Scientific Orion 8030cX User manual

Orion 8030cX
Silica
Analyzer
Instruction Manual
Version C, Feb 2022
Before using the instrument, please read this Instruction Manual carefully!

Contents
Chapter 1 ........................................................................................................................ 1
Safety Measures...................................................................................................... 1
Chapter 2 ........................................................................................................................ 3
Brief Introduction of Application Fields..................................................................... 3
Specifications........................................................................................................... 3
Instrument Size........................................................................................................ 5
Fundamental Principles............................................................................................ 7
Chapter 3 ........................................................................................................................ 8
Unpacking Inspection............................................................................................... 8
Requirements for Instrument Installation.................................................................. 8
Flow Cell ................................................................................................................ 12
Optional Sample Inlet Filter.................................................................................... 14
Electronic Connection ............................................................................................ 15
Chapter 4 ...................................................................................................................... 20
Reagents Preparation ............................................................................................ 20
Tubing Connection................................................................................................. 20
Instrument Startup.................................................................................................. 23
Solution Prime........................................................................................................ 23
Chapter 5 ...................................................................................................................... 25
Menu Interface Tree............................................................................................... 25
Main Interface ........................................................................................................ 25
Return .................................................................................................................... 26
Setup...................................................................................................................... 26
Log......................................................................................................................... 32
Settings.................................................................................................................. 33
Chapter 6 ...................................................................................................................... 39
Liquid Leakage Maintenance ................................................................................. 40
Long-term Shutdown.............................................................................................. 40
Long-term Idle........................................................................................................ 41
Chapter 7 ...................................................................................................................... 42
Chapter 8 ...................................................................................................................... 50
Part List (Accessory).............................................................................................. 50
Compliance Precautions ........................................................................................ 50
Terms and Conditions............................................................................................ 50

8030cX Silica Analyzer
Basic Information Chapter 1 | 1
Chapter 1
Basic Information
This manual provides the operation, maintenance,
troubleshooting and other contents of Thermo Scientific
Orion 8030cX Silica Analyzer. Please read this manual
completely before installing and operating this equipment.
Users must strictly abide by relevant regulations to ensure
the normal operation of the instrument. Additionally,
relevant information can help users operate the product
correctly and obtain accurate analysis results.
Safety Measures
The instrument complies with the safety design rules
formulated by international regulatory agencies, and all
safety warnings marked on the instrument must be
observed when using it, otherwise personal injury or even
threat to life may be caused. In order to ensure the
protection provided by this instrument is not damaged,
please do not install or operate this instrument in any way
outside the scope listed in this manual.
•Please do not use the instrument in any environment
not specified in this manual.
•Before maintenance and internal wiring of the
instrument, the power supply must be disconnected.
•Do not operate the instrument with the door of the
electronic cabinet open.
•Please wear personal protective equipment before
changing reagents.
•Please refer to Table 1.1for all safety labels details.
Table 1.1: Safety Precautions
Electric Shock
and Fire
Warning
This symbol, when noted on
a product enclosure or
barrier, indicates that arisk of
electronic shock and/or
electrocution exists.
Warning
A series of chemicals are
used in the instrument.
Some of these substances
have potential hazards.
Proper precautions must be
taken when handling these
chemicals or solutions.
Contact and inhalation of
chemicals are dangerous.
You must pay attention to
the following points:
1. Wear protective clothing
(laboratory clothing).
2. Wear protective goggles/
face masks and
protective gloves.
3. Work in a well-ventilated
space.
4. Only glass or Teflon
material is used when
operating accordingtothe
steps in the instruction
manual;

Warning
5. After installation, ensure
that all vent holes of used
bottles are unblocked.
6. Ensure that you have
obeyed applicable
specifications for accident
prevention.
7.Substances shall be
disposed of in accordance
with applicable local laws
and regulations.
Grounding
Warning
This symbol, when noted on
the product, identifies the
locationof the connectionfor
Protective Earth (ground).
High
Temperature
When the product is marked
with this symbol, do not
touch it to prevent from
being burned.
Recycling
Sign
Electric power equipment
with this sign cannot be
abandoned in the European
public waste system after
August 12, 2005. According
to European local and
national regulations (EU
Directive 2012/19/EU),
European power equipment
users must now return used
or abandoned equipment to
the equipment producers for
disposal without paying any
fees.
2 | Chapter 1 Basic Information 8030cX Silica Analyzer

8030cX Silica Analyzer
Product Overview Chapter 2 | 3
Chapter 2
Product Overview
Brief Introduction of Application Fields
Thermo ScientificTM OrionTM 8030cX Silica Analyzer is designed to provide accurate on- line measurement of silica (i.e.
reactive silicate, soluble silica/silicate). Its applications include:
Feedwater
Boiler water
RO permeate
Steam condensate
Demineralized water
Deionized water
Power plants, Semiconductor, and ultrapure water facilities, etc.
For applications not covered above or for some unconventional applications, please contact your local dealer or Thermo
Fisher Scientific Inc.
Specifications
Table 2.1: Specifications of Orion 8030cX Silica Analyzer
Measuring
performance
Range of measurement
0-5000 µg/L
Auto-switching between two sub-ranges (0-1000 µg/L and 1000-5000
µg/L)
Accuracy
≤ 1% or ±1 µg/L for 0-500 µg/L;
≤ 5% for 500-5000 µg/L
Repeatability
± 0.6 μg/L or ± 1% of reading, whichever is greater
Method
Heteropoly-molybdenum blue colorimetric method
Measurement time
≤ 10min in Fast mode; ≤ 15min regular mode
Detection Limit
0.5 µg/L*
Environment
requirements
Operating temperature
5 - 45° C (41–113° F)
Humidity
5% - 95% RH, non-condensing
Sampling
condition
Sample flow
50-300mL/min
Sample pressure
0.2 - 5 bar (2.9 - 72.5psi)
Sample temperature
0 - 65° C (32–149° F), no ice present
Water sample ports
Flow cell inlet OD (Outer Diameter) 8mm/ OD 6mm (1/4 inch)
Water sample
requirements
Clean water
Clean water with no particles over 0.2μm; prefilter 7070FLT can be used if
large particles exist

4 | Chapter 2 Product Overview
8030cX Silica Analyzer
Instrument
installation
Housing protection class
IP65
Instrument size (W×H×D)
450 mm×791 mm×320 mm (17.7in×31.1in×12.6in)
Transportation weight
Instrument weight
41kg (90 lbs)
26.8kg (59.1 lbs）
Electronic
parameters
Requirements for power
supply
100–240VAC, 100W, 50/60Hz
Data and control
Analog output
Two (2) isolated 0/4-20 mA, Maximum load 900 Ω
Dry contact output
Three (3) relays, 8 A @ 250 VAC
Data communication
RS485, MODBUS RTU/TCP/IP, PROFIBUS (optional)
Regulator
Regulator Disclaimers
cTUVus, CE, UKCA, KC, RCM, FCC, ISED
Use life of the
reagents at
15min
measurement
frequency
Reagent
100 days
Waste Volume
Chemical Waste per month
(at 2hr measurement cycle)
1.87 L
Chemical liquid waste
Volume per analysis
< 5.5 mL
* Note: In order to ensure the best performance of the instrument, it is recommended that the instrument shall be installed
in the analysis room within the temperature range of 20 ° C±10 ° C. The LOD of 0.5 µg/L was achieved at optimal lab test
condition.

8030cX Silica Analyzer
Product Overview Chapter 2 | 5
Instrument Size

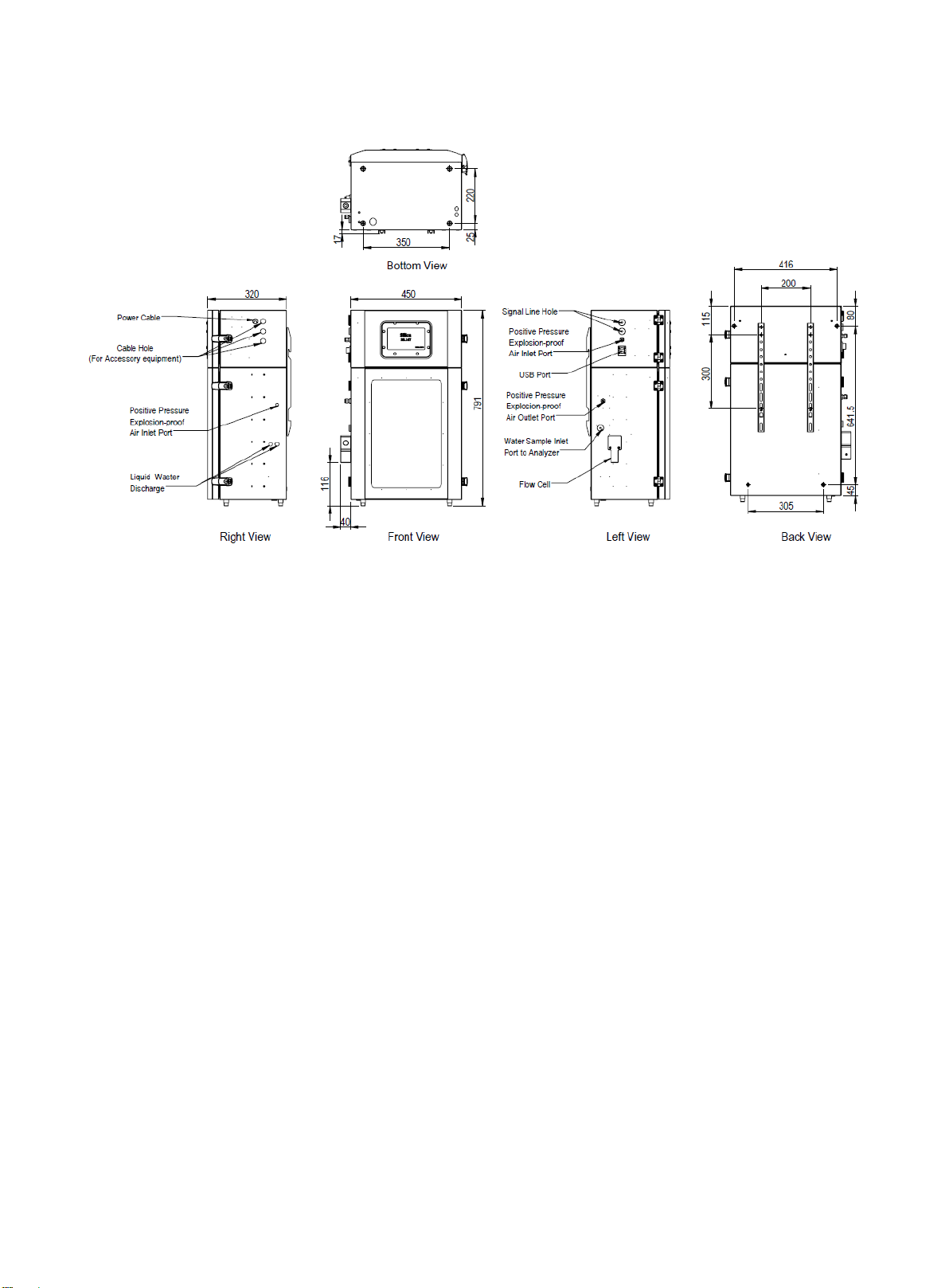

Figure 2.1: Size of 8030cX Silica Analyzer (Unit: mm)

6 | Chapter 2 Product Overview
8030cX Silica Analyzer
1
Flow cell
5
Electronic
Cabinet
2
Standards, Reagents, Clean Solution, Validation
solution bottles
6
USB port
3
Fluidic
panel
7
Touch screen
4
Signal line
hole
Figure 2.2: Main Interactive Interface of 8030cX Silica Analyzer

8030cX Silica Analyzer
Product Overview Chapter 2 | 7
Fundamental Principles
Silica refers to the reactive silica in pure water, such as
boiler feedwater, deionized water, steam condensate, and
RO permeate used in power plants, boiler or ultrapure
water applications. It is a very important indicator for
detecting and controlling the corrosion or scaling on
turbines, heat exchangers, and boilers. Online real-time
measurement of silica enables safe, efficient operation,
reduces maintenance, and replacement costs due to
scaling. The online silica analyzer allows instantaneous or
automated decisionmaking, enabling removal or recycling
of water with out-of-range silica concentration. Continuous
silica monitoring provides rapid notification of RO
breakdown or saturation of ion exchange resins, thus,
ensuring maximizing system efficiency and minimizing
downtime for repairs. Orion 8030cX Silica Analyzer can
send alerts/alarms or data to warn the users at the onset
of silica spikes, triggering corrective actions and reducing
failure and issues downstream.
Orion 8030cX Silica Analyzer is based on the detection
principle of the Heteropoly-molybdenum blue colorimetric
method. In this process, silica reacts with molybdate in
acidified condition to form siliconmolybdate yellow. This
is an intermediate then reacts with reductant to generate
siliconmolybdate blue. The absorbance of this blue
complex at a specific wavelength is proportional to the
silica content. After calibration, the silica concentration
(unit: µg/L or ppb) in the water sample can be reported.
Interferents such as phosphate (PO43-) and arsenic (As)
can cause significant false-positive errors. Therefore, the
masking reagent R2 is added to prevent formation of
intermediate reaction products which interfere with the
molybdate method, thereby enabling more accurate
results.
Below 30 mg/L, the phosphate (PO43-) and arsenate
(AsO43-) ions will not interfere with silica test results. In
standard boiler water, ultrapure water, Ion exchange resin
effluent, mixed-bed demineralizer effluent and RO
permeate applications, the phosphate (PO43-) and
arsenate (AsO43-) ions will not exceed the 30mg/L
threshold, so the results of 8030cX Silica Analyzer will be
accurate without interference.
Orion 8030cX Silica Analyzer includes the following parts:
the electronic control system and water sample analysis
system.
The electronic control system includes the power supply
module, circuit control system and user interface panel,
and it has the functions of instrument power-on, self-test
and fault alarm. Historical analysis data, alarm data,
calibration and event log are stored in the instrument for
one year or even more, which users can downloadviaUSB
drive. The real-time data can also be transmitted to
external equipment (PLC or DCS) through 0/4-20 mA
output signals or RS485. The user can set the
measurement time, measurement frequency, calibration,
cleaning and validation frequency according to the site-
specific requirements.
The water sample analysis system includes the water
sampling flow cell, reagents delivery sub-system, reaction
cell, and measurement and analysis module. The water
sample and reagents are delivered by a newly designed
fluidic sampling system to ensure a higher measurement
accuracy. The instrument has implemented an accurate
temperature control on the color reaction process to
ensure the colorimetric reaction proceeds to completion.
Optical background correction was implemented to
reduce background interference. Pre-analysis and post-
analysis rinses and cleaning procedure are built in each
measurement to ensure accurate result without carry over
effect or contamination.

8 | Chapter 3 Installation
8030cX Silica Analyzer
Chapter 3
Installation

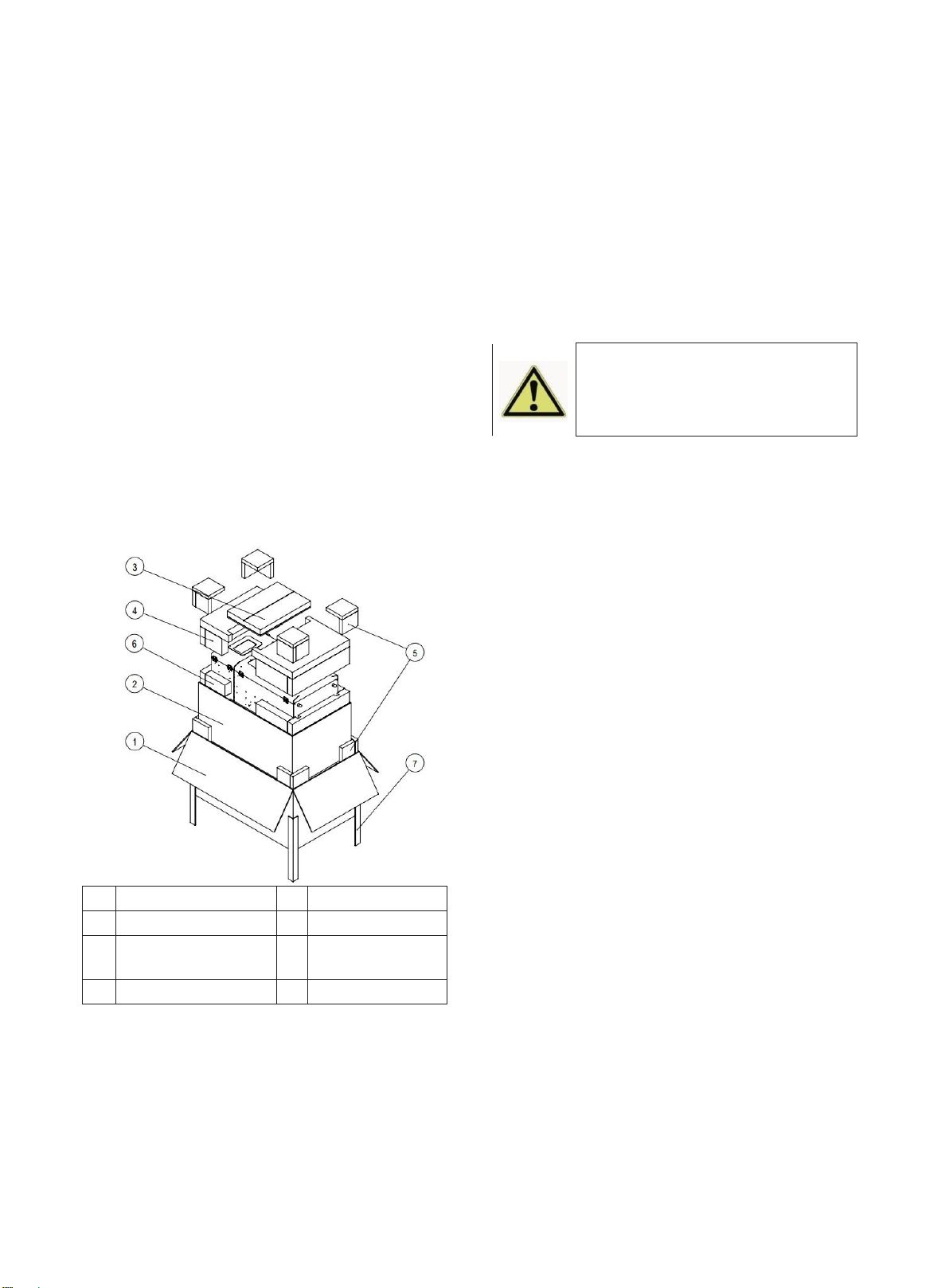

Unpacking Inspection
Orion 8030cX Silica Analyzer has been carefully tested
and packaged before leaving the factory.
Open the inner and outer packing and check the product
and accessories according to the Packing Checklist. If any
components are missing or damaged, please contact
Thermo Fisher or its representative office immediately.
Open the outer package andtake out the foam supports at
the corners of the inner package.
Open the inner packing and check the product and
accessories according to the Packing checklist.
1
Outer Box
5
Corner Foam Blocks
2
Inner Box
6
Bottom Foam Insert
3
Accessories Box
7
Box Reinforcement
Sleeves
4
Upper Foam Insert
Requirements for Instrument
Installation
Basic Requirements for Instrument Installation
Instructions for instrument handling:
•It is recommended that two people work together
to lift and handle the instrument.
•In the process of lifting the instrument, the
instrument door should not be used as the lifting
point, otherwise the door and sealing elements
could become damaged.
Selection of Installation Location
Please refer to the specifications for the temperature and
relative humidity requirements of the installation
environment.
It is recommended to install the instrument in a shed,
protective case, or analysis room to avoid extreme
weather and freezing reagents. For the best results, it is
recommended to install the silica analyzer at
temperatures of 10-30℃and maximum humidity < 95%
(no condensation) room.
Orion 8030cX Silica Analyzer has reached IP65 protection
level and can be installed outdoors. However, the
installation location of the instrument cannot be flooded,
frozen, or overheatingdue to direct sunlight. If the ambient
temperature drops below freezing point, the reagent
solutions may freeze and stop analysis.
CAUTION: When equipment exceeding 40
lbs. should be lifted with the help of two
persons or follow any heavy lifting policies
your employer in place.

8030cX Silica Analyzer
Installation Chapter 3 | 9
In the cold climate, it is recommended that the silica
analyzer be installed in a non-freezing indoor
environment.
Select the installation location as close as possible to the
water sample source, which can reduce the sample delay
as much as possible. To ensure real- time analysis of
online sample, sample water needs to be pumped into the
flow cell of the silica analyzer at above 50ml/min and at a
pressure over 0.2 Bar (3 psi).
The installation location should be free from irritating or
corrosive gases.
The installation of the instrument shall comply with the
following requirements:
The instrument can be mounted on the wall with the
hanging rack or mounting screws through the four holes
on its back panel for operation. The instrument can be
placed on a table top as well. No matter which installation
method is adopted, it is suggested to fasten the instrument
with screws. After installation, the instrument shall not
move freely in the process of operation.
Ensure that the selected wall on which the instrument is to
be installed can support at least 4 times the weight of the
instrument (about 30 Kg).
Enough space should be reserved on the right side of the
instrument to facilitate door opening and wiring.
Enough space should also be reserved on the leftside and
the bottom of the instrument to facilitate tubing connection
and wiring.
The instrument should be installed at a position with
suitable height. It is suggested that the screen shall be
level with the operator's level of eyesight.
Remaining level is required for the installation of the
instrument, and it is recommended to use a levelling tool
to ensure proper installation.
Note:
•During installation and operation, when the
instrument door and internal fluid passage
mounting panel are opened, it is necessary to
pay attention to the risk that the instrument may
topple if it is not properly fastened.

10 | Chapter 3 Installation
8030cX Silica Analyzer
•Note: During installation, especially when
installing external cables, do not discard the
rubber seal covers on the side of the instrument.
External cables need to pass through these
rubber seal coversto enable the IP65 protection.
Otherwise, IP65 protection will be compromised.

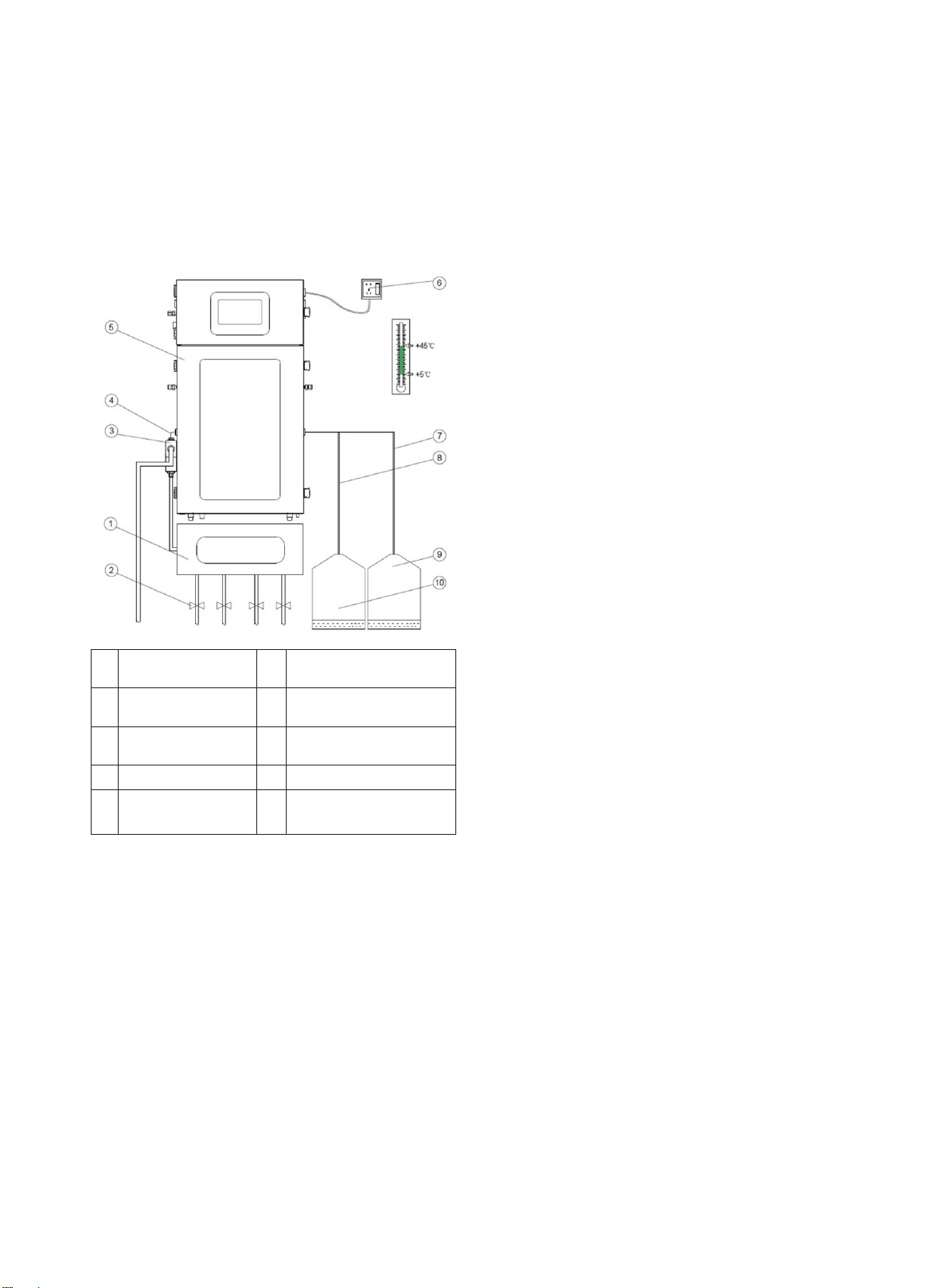

On-site instrument installation
1
Sequencer
(optional)
6
Power supply socket
2
Regulation Valves
7
Liquid clean waste
tubing
3
Flow cell
8
Liquid chemical waste
tubing
4
Sampling tube
9
Liquid clean waste tank
5
8030cX Silica
Analyzer
10
Liquid chemical waste
tank
Figure 3.1: On-site Installation of Silica Analyzer
Note:
If you need to separate chemical waste from clean rinse
wastewater, this analyzer needs to be equipped with two
liquid waste tanks, one for chemical waste and the other
for harmless cleaning waste. Besure to properly labelthe
corresponding tubing and tank.
Liquid chemical wastes should be properly disposed
according to relevant waste handling requirement.
Due to the very limited quantity of chemical waste, it is
possible that it is okay to discharge the chemical waste
to drain. Please checktoensurethelimited wasteis okay
for your wastewater facility to handle or meet your
discharge regulation.

8030cX Silica Analyzer
Installation Chapter 3 | 11
Mounting Methods of the Instrument
Before Installation, select a suitable wall for installing
expansion screws, the wall surface has enough load
capacity (at least 4 times weight of the instrument is
required). If the instrument is damaged because it is not
mounted firmly, Thermo Fisher will not assume any
responsibility.
Option 1: Method of Rack Mounting
First step: As shown in Figure 3.2 below, take out the two
aluminum alloy strip hanging racks (item 2) provided in the
package. And use M6*16 bolt to fix the racks into the
instrument. Also, to keep the instrument vertical and level,
install the 2 pegs (Item 4) to the back bottom side of the
analyzer cabinet,
Second step: mount the aluminum alloy rectangular
bracket (item 5) on the wall with 6 pcs expansion screws,
tightened by nuts/plain washer and spring washer. In
addition, use Loctite glue on the connection points of the
hanging rack if you like to secure it more.
Third step: hang the instrument onto the aluminum alloy
rectangular bracket onthe wall. The long hangingracks on
the analyzer sit tight on the rectangular bracket on the wall
to secure theinstrument. Anduse the M4*30 2 pcs support
screw to fix the racks. Also, adjust the pegs length to keep
the instrument vertical and level.
1
8030cX Silica
Analyzer
7
Expansion Nut
(6pcs)
2
Fix Bracket (2pcs)
8
Expansion Plain
Washer (6pcs)
3
M8*16 Bolt (4pcs)
9
Expansion Spring
Washer(6pcs)
4
Rubber Pegs (2pcs)
10
M4*30 Support Screw
(2pcs)
5
Fixed rectangular
bracket to Wall
11
Installation Wall
6
Expansion Screw
(4pcs)
Figure3.2:Rack Mounting of 8030cXSilicaAnalyzer

12 | Chapter 3 Installation
8030cX Silica Analyzer
Option 2: Used the Expansion Bolts to Fix the
Instrument
1
8030cX Silica Analyzer
4
Expansion Spring
Washer(4pcs)
2
M6*80 Expansion
Screw (4pcs)
5
Expansion Nut (4pcs)
3
Expansion Plain
Washer (4pcs)
6
Installation Wall
Figure 3.3: Expansion Bolts to Fix the Instrument
Before Installation, first step opens the front door to
remove the black rubber cover from the rivet nut.
Second step based on Figure 3.3, drill the hole on the
wall with diameter 8mm, and install the expansion screw.
Third step install the instrument by fastening M6*80
Expansion Screws tothewall andfixing by the expansion
nut /plain washer/ spring washer in front of the
instrument as shown in Figure 3.3 above.
Option 3: Place the silica analyzer on a fixed table top.
This is often used in a temporary setting. Ensure the
table is sturdy and not moving.
Flow Cell
The flow cell is mounted on the left lower side of the
instrument for water sample collection.

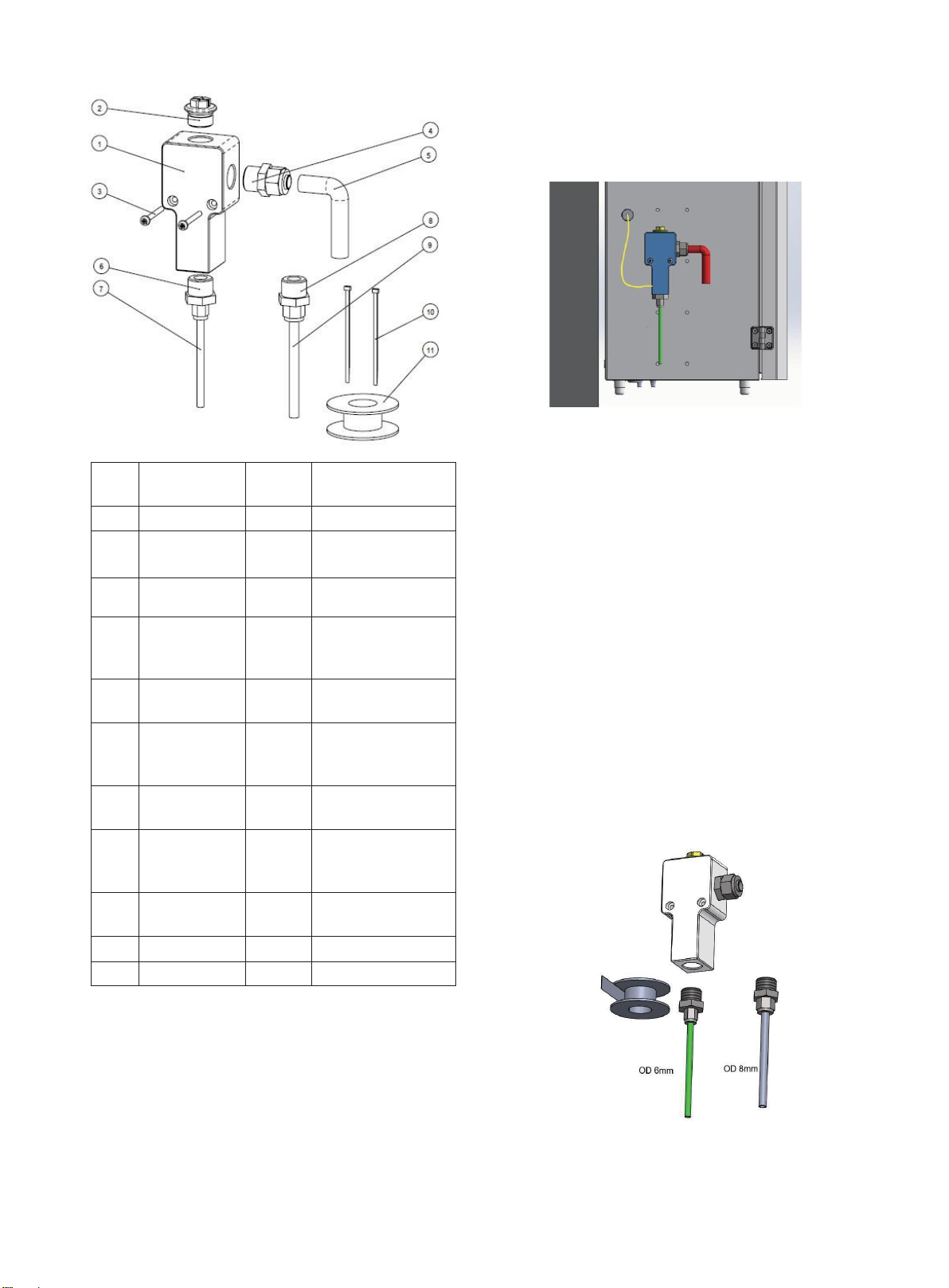

The components of the flow cell are shown in Figure 3.4
The flow cell is provided with the analyzer. There aretwo
options of sample inlet tubing: one is 8 mm OD (9), and
the other is 6 mm OD or ¼ inch OD (7). (Figure 3.4)

8030cX Silica Analyzer
Installation Chapter 3 | 13
Item
No.
Name
Quantity
Specification
1
Flow cell body
1
2
Flow cell upper
cover
1
3
Pan head
screw
2
M4x40, stainless
steel
4
Large Straight
joint
1
G1/2 external thread
to ID 12 mm OD 16
mm plastic tubing
5
Large Overflow
tubing to drain
1
Plastic ID 12 mm OD
16 mm, length 1m
6
Small Straight
joint
1
G1/2 external thread
to ID 4 mm OD 6 mm
plastic tubing
7
Small Sample
inlet tubing
1
Plastic ID 4 mm OD
6 mm, length 0.2 m
8
Middle Straight
joint
1
G1/2 external thread
to ID 6 mm OD 8 mm
plastic tubing
9
Middle Sample
inlet tubing
1
Plastic ID 6 mm OD
8 mm, length 0.2 m
10
Cable tie
2
11
PTFE tape
Several
Figure 3.4: Flow Cell Components
Note: PTFE tape shall be wrapped around the thread for
sealing and preventing water sample leaking, at least 4
rounds recommended.
The entire flow cell is mounted on the outside cabinet wall
of the 8030cX Silica Analyzer with two M4 x 40 mm
screws, as shown in Figure 3.4.
Figure 3.5: Flow Cell Installation Position
Note:
•The inlet port in Flow cell is connected to the
common port in the sequencer (if used) and the
pressure or flow speed is often adjustedby avalve
to meet the requirements (seen in the table 2.1).
Description of flow cell installation steps:
1. Check the outer diameter of sampling tube (6mm
or 8mm OD), and choose the right-size straight
joint, thenconnect it to the flowcell (if thesampling
tube’s OD (Outer Diameter) is 6mm, choose the
small straight joint, otherwise use the middle
straight joint), PTFEtape is recommended to wrap
around the thread before connecting.

14 | Chapter 3 Installation
8030cX Silica Analyzer

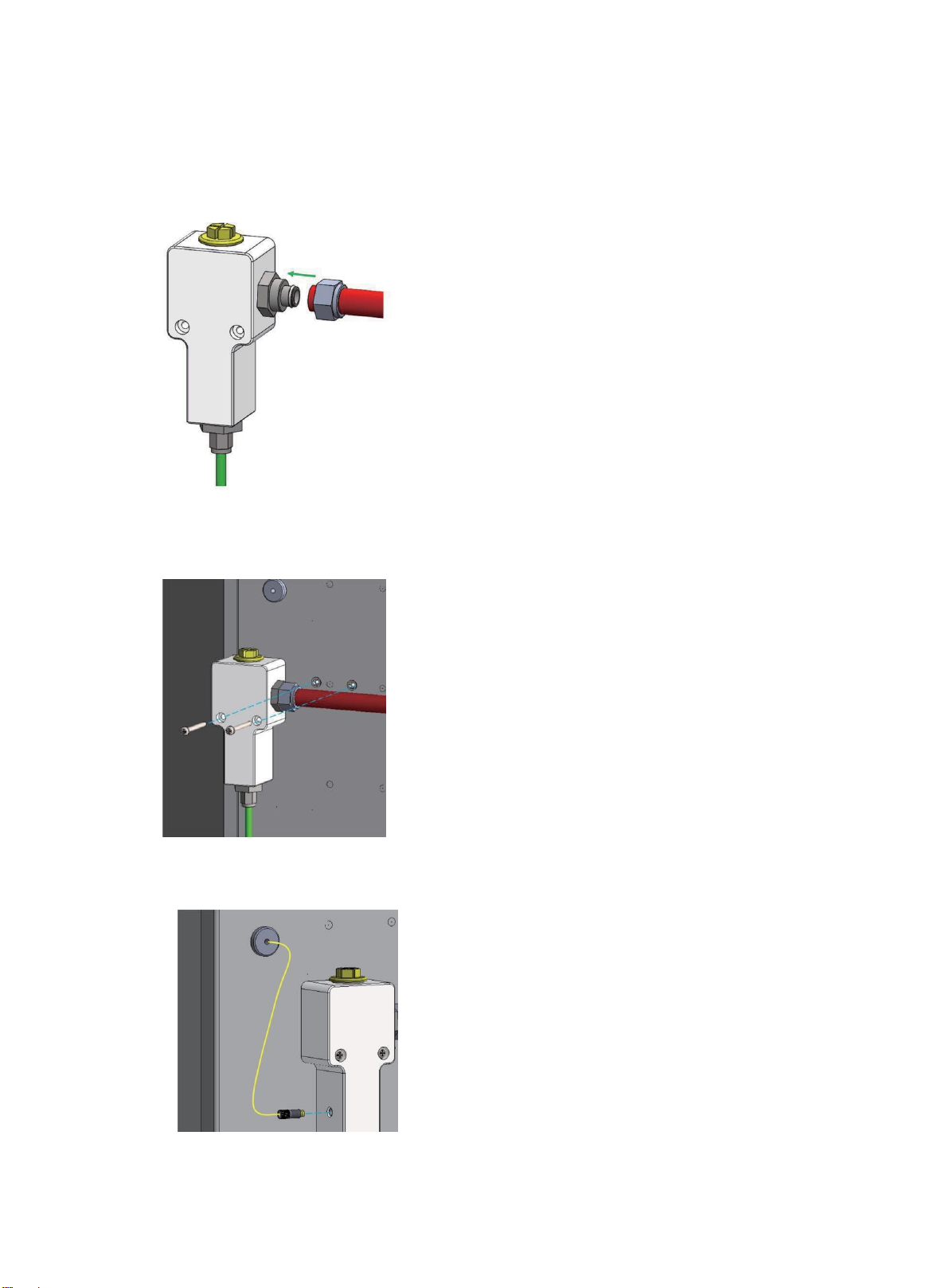

2. Loosen the nut on the large straight joint, then
insert the larger overflow tubing (16 mm OD),
which sends sample overflow todrain.Tightenthe
nut to make sure the tubing fastened.
3. Use two M4x40 screws to attach the flow cell on
the left side of 8030cX silica analyzer.
4. Screw the fittings in the sampling tube of Silica
analyzer into the left side of flow cell.
5. Insert the end of the overflow drain tube to the
correct drain location, secure the tubing if needed
to prevent slip off.
Optional Sample Inlet Filter
If the sample source is ultrapure water, no filter is needed.
If sample source is not ultrapure water or it may contain
large particles (e.g. startup of a power plant could release
rusty particles to boiler feedwater), then a pre-filter with
~200 um pore size is needed. Thermo Fisher provides a
prefilter Y-strainer with part # 7070FLT. This filter contains
two adaptors that connect the ½" NTP thread on Y-strainer
to 6mm (or ¼")OD tubing.
To install, put Teflon tape on the thread size of the
adaptors. Screw in one adaptor to one end of the Y-
strainer. Then, loose the nut (cap) on the other side of the
adaptor. Pushin 6mm (or ¼")OD soft tubingto the adaptor
hole and tighten the nut (cap). The other side of the soft
tubing goes to the inlet of the flow cell (in step 1 of flow
cell installation above). Then, connects the other side of
the Y-strainer to the source water through ½” NTP thread
or a 6mm (¼") OD tubing with the adaptor on. Mount the
Y-strainer on a wall or fixture with cable ties.

8030cX Silica Analyzer
Installation Chapter 3 | 15
After installation, the water sample filtered by the prefilter
goes to the flow cell as shown in the graph below from left
to right.
Connectingsource water to Y-strainer to adaptor, 6mm (or
¼") OD soft tubing, and flowcell. The water samplefiltered
by the prefilter goes to the flow cell.
Electronic Connection
Basic Electronic System
The basic electronic system includes the following
components:
•Main control board (MCB)
•Single board computer (SBC)
•Power module
Main Control Board
The main control board is mounted on the back wall of the
electric cabinet at the top of the 8030cX Silica Analyzer. It
is located behind the LCD screen in the electronic cabinet.
It is connected to the single board computer via RS485
andperforms the functions required by silica applications.
Additionally, the main control board also includes external
interfaces, including two 0/4-20 mA output interfaces, two
digital input interfaces, three relay control interfaces and
two analog input interfaces. Please refer to Figure 3.6 for
the main interfaces.
Figure 3.6: Main Interfaces of Main Control Board
Components of Single Board Computer
The single board computer is installed behind the LCD
screen on the electronic cabinet at the top of 8030cX Silica
Analyzer, which is convenient for user operation. It
consists of a core board, an expansion board and a display
screen. The single board computer supports the touch
control function. The single board computer is connected
to the main control board via RS485 cable. Please refer to
Figure 3.7 for detail of single board computer.
Figure 3.7: Single Board Computer
Switch-type Power Module
The switch-type power module of main AC power is
provided with 24V output voltage by a power module and
installed inside the upper electronic chamber. Please refer
to Figure 3.8 for Switch-type power module of main AC
power.

16 | Chapter 3 Installation
8030cX Silica Analyzer
Figure 3.8: Switch-type Power Module of Main AC
Power
Safety Wiring:
•Only trained or authorized operators are allowed
to carry out electronic wiring and
maintenance. Proper protection is required when
working near electronically sensitive devices to
avoid electrostatic discharge, otherwise the
electronic components inside the circuit board
may be damaged.
•It is recommended to release static electricity on
an operators’ body before touching any electronic
components (such as the PCB board and its
subcomponents).
Notes before Wiring:
•Make sure the power cord is not powered before
connecting the power supply to the instrument;
Turn off the power supply before connecting to
any relay.
•Connect the live wire, neutral wire and ground
wire tothe power supplyterminal in the instrument
electronic box and pay attention to the position of
the fuse.
•Insert the wire into the corresponding wiring
terminal and tighten the screw.
•The signal wire passes through the threading
conduit on the left, and the power cord passes
through the threading conduit on the right.
•All connections must be conformed to local safety
standards.
Notes during Wiring:
•Make sure that the instrument is not powered
when wiring.
•Strip off a 6 mm insulation layer from each cable.
•Insert the stripped metal wire into the
wiring terminal and tighten the screw. The
maximum torque for tightening the screw shall not
exceed 0.6 Nm, meanwhile the maximum pulling
force shall not exceed 20N.
•The isolation design is applied to the external
RS485 and 0/4-20 mA interfaces.
•Maximum switching capacity of relay contacts:
250V AC/8A (resistive load).
Warning！
The instrument is not equipped with a
power switch, so the power switch with the
functions similar as that of a breaker
should comply with local safety standards
and must be prepared before final
installation.
The circuit breaker should be as close to
the instrument as possible and convenient
to be controlled by the operator. When the
instrument is powered off, there must be a
clear and explicitindication.
All conductors need to have a temperature
resistance of at least 75° C.
Do not power on the instrument until all
preparation work (including reagent
installation, water sample access, etc.) is
completed!

8030cX Silica Analyzer
Installation Chapter 3 | 17
Port#1
Port #2
Port #3
Port #4
Connection of Power Cord
•The instrument is equipped with power wiring
terminals in the electronic box (see Figure 3.9 and
Table 3.1).
•It is strongly suggested that the user shall
install an external power switch or a circuit
breaker (with GFCI protection) for the instrument
to facilitate the operator to control. In addition, the
instrument must be powered off during
maintenance operations such as reagent
replacement.
•The instrument power cord is designed to be a
hard connectionand is ledin throughthe threaded
conduit on the right side of the case (see Figure
3.10).
•The power cord shall be a certified 3-core wire,
with a minimum of 0.75 mm2 /18 AWG, and the
temperature resistance shall not be less than
75° C. The instrument power supply must be
grounded.
Table 3.1: Wiring Mode of AC Power Supply
Wire Terminals
Color of Wire
Line (L)
Brown
Black
Ground (G)
Yellow
green
Green
Neutral (N)
Blue
White
Figure 3.9: Wiring of AC Power Supply
Figure 3.10: Power Cord Access Port
Communication Connection
0/4-20 mA analog signal wiring
The instrument provides two 0/4-20 mA analog signal
outputs throughthe main control board, which can drive a
load of up to 900 Ω. J4 and J5 are 0/4-20 mA analog signal
wiring terminals (see Figure 3.12), and Table 3.2 provides
the description of corresponding functions.
Signal line
wiring port
Figure 3.11: Signal Wiring
Figure 3.12: 0/4-20 mA Current Loop Link
Signal line port connections
are recommended:
Port 1: Signal line
Port 2: Signal line
Port 3: Air inlet
Port 4: USB port

18 | Chapter 3 Installation
8030cX Silica Analyzer

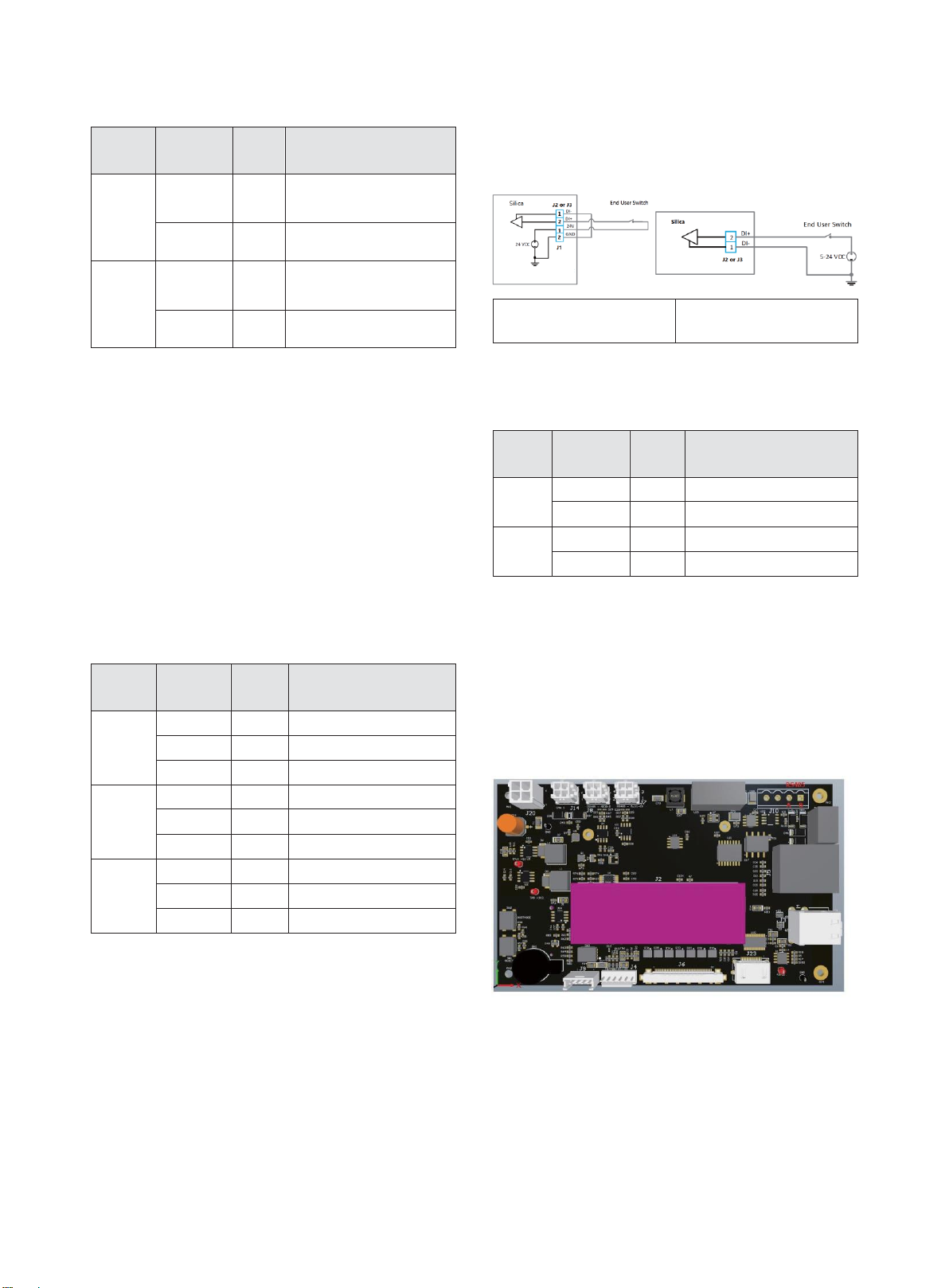

Table 3.2: J4 and J5 Wiring Terminals
Con-
nector
Termin-
al No.
Name
Description
J4
1
AO+
(O)
2# analog output+ (max.
load of 900 Ohm)
2
AO-
(I)
2# analog output-
J5
1
AO+
(O)
1# analog output+ (max.
load of 900 Ohm)
2
AO-
(I)
1# analog output-
Alarm Signal/Relay Wiring
The instrument provides three relays, J6, J7 and J8 (see
Figure 3.6), without voltage contacts through the main
control board. Three contacts: normally open (NO),
normally closed (NC) and common terminal (COM). The
maximum rated capacity of relay contacts is 250V AC, 8A.
The maximum acceptable cable size for the wiring
terminals is 14AWG. Table 3.3 describes J6, J7 and J8
wiring terminals and corresponding functions.
Table 3.3: J6, J7 and J8 Wiring Terminals
Con-
nector
Termin-
al No.
Name
Description
J6
1
NC
3# Relay NC Contact
2
COM
3# Relay COM
3
NO
3# Relay NO Contact
J7
1
NC
2# Relay NC Contact
2
COM
2# Relay COM
3
NO
2# Relay NO Contact
J8
1
NC
1# Relay NC Contact
2
COM
1# Relay COM
3
NO
1# Relay NO Contact
Digital Signal Input Wiring
Two digital input interfaces on the main control board are
used for the external trigger control. Pin 1 and pin 2 of J2
and J3 are inputs. Either external power input or internal
power of the instrument can be used. If external power
input is used, the external power supply shall be 5~24V
DC. If the internal power of the instrument is used,
pin 1 and pin 2 of J1 provide a 24V DC power supply.
Please refer to Figure 3.13 for specific digital power
access. Please refer to Table 3.4 for digital signal input
wiring.
a) Use an internal 24V DC
power supply
b) Use an external power
supply
Figure 3.13: Digital Power Access
Table 3.4: J2 and J3 Digital Signal Input Wiring
Con-
nector
Termina
l No.
Name
Description
J2
1
DI-(N)
2# input digital signal -
2
DI+(P)
2# input digital signal +
J3
1
DI-(N)
1# input digital signal -
2
DI+(P)
1# input digital signal +
RS485 Communication Output Interface
The instrument provides an RS485 communication output
interface (See Figure 3.14) at the upper left of the
electronic cabinet through the single board computer, the
default baud rate is 115200. Please refer to Figure 3.15
and Table 3.5 for signal wiring.
Figure 3.14 RS485 Communication output interface
