Thermo Scientific Orion Star User manual

Thermo Scientific Orion
Dual Star
pH/ISE Dual Channel Benchtop Meter
255100-001 • Revision C • June 2015
User Manual

Important Note
Please read this user guide thoroughly before using your meter. Any use
outside of these instructions may invalidate your warranty and cause
permanent damage to the meter.
Contact Information
For assistance with Thermo Scientific™Orion™products, contact Technical Support by email at
[e-mail] or by phone – within the United States call 1-800-225-1480
and outside the United States call [phone] or fax [phone].
For additional product information, contact your local authorized dealer, local Thermo Scientific
Orion technical sales representative or contact us using the Water and Laboratory Products
(WLP) information on the page back of this manual.
Applications and Technical Resources
Visit www.thermoscientific.com/water to view Thermo Scientific Orion products and download
product literature, user guides and manuals, software updates, and the latest application and
technical resources including the Thermo Scientific™Orion™Dual Star™meter technical notes
for Ammonia in Water and Wastewater, Fluoride in Water and Wastewater, Nitrate in Water and
Wastewater, and pH of Water and Wastewater. These technical notes provide step-by-step
illustrated instructions for performing common measurements on the Orion Dual Star meter.

Table of Contents
Section 1 ....................................................................................................................... 6
Meter Introduction ........................................................................................................ 6
Meter Overview............................................................................................................................6
Redesigned Orion Dual Star Meters ..................................................................................7
Meter Packing List .......................................................................................................................7
Intended Use ...............................................................................................................................7
Section 2 ....................................................................................................................... 8
Meter Basics ................................................................................................................. 8
Using the Universal Power Adapter.............................................................................................8
Attaching the Electrode Stand and Holder...................................................................................9
Using the Electrode Holder ..............................................................................................10
Powering the Meter On and Off.................................................................................................10
Meter Maintenance....................................................................................................................10
Meter Components ....................................................................................................................11
Meter Connections...........................................................................................................12
Channel 1 and Channel 2 Inputs......................................................................................13
Connecting Electrodes and Cables to the Meter..............................................................13
Meter Keypad...................................................................................................................14
Alphanumeric Keypad......................................................................................................15
Meter Display ...................................................................................................................16
Section 3 ..................................................................................................................... 18
Meter Setup................................................................................................................. 18
EZ Startup Menu........................................................................................................................18
Setup Menu ...............................................................................................................................22
Navigating the Setup Menu..............................................................................................22
Channel 1 and Channel 2 Setup Menus ..........................................................................23
Instrument Parameters Setup Menu ................................................................................28
Autosampler Setup Menu.................................................................................................33
Incremental Techniques Setup Menu...............................................................................33
GLP Setup Menu..............................................................................................................33
EZ Startup Setup Menu....................................................................................................33
Section 4 ..................................................................................................................... 34
Calibration and Measurement ................................................................................... 34
pH Calibration and Measurement..............................................................................................34
pH Calibration Hints .........................................................................................................34
pH Calibration Procedure (1 to 6 points)..........................................................................35
pH Measurement Procedure ............................................................................................36
ISE Calibration and Measurement.............................................................................................37
ISE Calibration Hints........................................................................................................ 37
ISE Calibration Procedure (2 to 6 points).........................................................................37
ISE Measurement Procedure...........................................................................................39
mV Measurement and RmV and ORP Calibration and Measurement.......................................40
mV Measurement Procedure ...........................................................................................40
RmV Calibration Hints......................................................................................................41

RmV Calibration Procedure..............................................................................................41
RmV Measurement Procedure.........................................................................................42
ORP Calibration Hints ......................................................................................................42
ORP Calibration Procedure..............................................................................................43
ORP Measurement Procedure.........................................................................................44
Temperature Calibration and Measurement ..............................................................................45
Temperature Calibration Procedure.................................................................................45
Section 5 ..................................................................................................................... 46
Methods....................................................................................................................... 46
Saving the Current Meter Settings as a New Method................................................................47
Loading an Existing Method ......................................................................................................47
Editing or Printing an Existing Method.......................................................................................48
Coping an Existing Method........................................................................................................48
Deleting an Existing Method......................................................................................................49
Section 6 ..................................................................................................................... 50
Incremental Techniques............................................................................................. 50
Electrode ID and Slope for Incremental Techniques .................................................................51
Single Known Addition...............................................................................................................52
Single Known Addition Procedure....................................................................................52
Double Known Addition .............................................................................................................54
Double Known Addition Procedure ..................................................................................54
Single Known Subtraction..........................................................................................................56
Single Known Subtraction Procedure...............................................................................56
Double Known Subtraction ........................................................................................................58
Double Known Subtraction Procedure .............................................................................58
Section 7 ..................................................................................................................... 60
Data Storage and Retrieval........................................................................................ 60
Data Storage Settings................................................................................................................60
Viewing the Calibration Log and Data Log.................................................................................62
Viewing the Calibration Log..............................................................................................62
Viewing the Data Log.......................................................................................................62
Interfacing a Printer ...................................................................................................................64
Interfacing a Computer ..............................................................................................................64
Meter Software Upgrade............................................................................................................65
Section 8 ..................................................................................................................... 66
Autosampler Operation.............................................................................................. 66
Interfacing the Meter and Autosampler......................................................................................66
Autosampler Setup Menu ..........................................................................................................68
Running the Autosampler ..........................................................................................................70
Autosampler Error Messages...........................................................................................71
Section 9 ..................................................................................................................... 72
Customer Services..................................................................................................... 72
Troubleshooting Guide ..............................................................................................................72
Electrode Stability Test.....................................................................................................72
Meter Self Test and Checkout..........................................................................................73

User Reset .......................................................................................................................74
Factory Configuration.......................................................................................................74
About Meter......................................................................................................................74
Electrode Condition Icon..................................................................................................75
Assistance .................................................................................................................................75
Warranty ....................................................................................................................................75
Meter Error Codes ..................................................................................................................... 76
Over Range Measurements .............................................................................................76
Notice of Compliance.................................................................................................................78
WEEE Compliance ....................................................................................................................78
Declaration of Conformity ..........................................................................................................79
Real Time Clock Battery Maintenance.......................................................................................80
Replacing and Disposing of the Battery ...........................................................................80
Ordering Information..................................................................................................................81
Meter Specifications ..................................................................................................................84
Section 10.................................................................................................................... 86
Advanced Meter Features.......................................................................................... 86
Multipoint Calibration Curve Feature .........................................................................................86
Automatic Blank Correction Feature..........................................................................................87
Error Code E306 ..............................................................................................................88
Isopotential Point Feature..........................................................................................................89
Determining an Isopotential Point ....................................................................................89
Automatic pH Buffer Recognition Feature .................................................................................90
Testing a pH Electrode for Automatic Buffer Recognition ................................................90

1
Meter Introduction
Meter Overview
This user manual contains information on the preparation, operation and maintenance of the
Thermo Scientific Orion Dual Star pH/ISE benchtop meter. The Orion Dual Star meter has two
measuring channels and is capable of measuring pH, ion concentration (ISE), raw millivolts
(mV), relative millivolts (RmV), oxidation-reduction potential (ORP) and temperature.
Display Features
The large, backlit LCD display on the Orion Dual Star meter shows both measuring channels
simultaneously or each measuring channel separately. Step-by-step instructions and prompts
are shown on the meter to assist operators with the setup, calibration and autosampler menus.
A calibration graph, which includes the electrode slope between points and the average slope,
can be viewed in the calibration mode.
Data Features
The Orion Dual Star meter can save up to 10 calibrations per channel and 1000 data points in
the meter data log. A graph of the calibration points with slope can be viewed on the meter
display and printed. Calibration and measurement data can be exported from the meter to a
printer or computer. The meter saves up to 10 methods per channel, so switching the meter to
different testing methods is fast and simple.
Troubleshooting Features
Troubleshooting procedures are available in the meter setup menu and include a meter stability
test, meter self-test and meter reset functions.
SECTION 1
6|Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Introduction |Section 1
Redesigned Orion Dual Star Meters
Redesigned Orion Dual Star pH/ISE benchtop meters will be available beginning in late June
2015. These Orion Dual Star meters offer a redesigned housing that matches the appearance
of our Thermo Scientific™Orion Star™A series benchtop meters and Thermo Scientific™Orion™
Versa Star™benchtop meters.
Additional benefits of redesigned Orion Dual Star meters include the new housing that is
compatible with the meter-attachable electrode stand (Cat. No. STARA-BEA) and this stand will
be included with all redesigned Orion Dual Star meters and new Dual Star Com communication
software.
The Orion Dual Star meter operation workflows, functions, user interface, specifications and
catalog numbers are the same between current and redesigned Orion Dual Star meters.
Meter Packing List
Thermo Scientific Orion Dual Star pH/ISE benchtop meters include:
•Orion Dual Star meter with two BNC shorting caps (Cat. No. 090045)
•Meter-attachable electrode stand and holder, Cat. No. STARA-BEA
•Universal power adapter, Cat. No. 1010003
•Literature CD
•Printed quick start guide
•Computer interface cable
•Meter test certificate
Each Orion Dual Star meter is fully tested and certified by Thermo Fisher Scientific and a
certificate of calibration is included with each meter.
For specific meter and kit contents, refer to the Ordering Information section of this user manual
and select from meter kits that include Thermo Scientific™Orion™ROSS Ultra™pH electrodes,
Thermo Scientific™Orion™ROSS Ultra™Triode™pH/ATC electrodes Thermo Scientific™Orion™
ROSS™Sure-Flow™pH electrodes and Thermo Scientific™Orion™ROSS™solutions.
To download free Orion Dual Star Com data transfer computer software and the Dual Star USB
driver, please visit our website at www.thermoscientific.com/OrionMeters.
Intended Use
Please read this reference guide thoroughly. Any use outside of these instructions may
invalidate the meter warranty and cause permanent damage to the meter.
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |7

2
Meter Basics
Using the Universal Power Adapter
A universal power adapter (Catalog Number 1010003) with US, EU, UK and China plug plates
is included with the Orion Dual Star pH/ISE benchtop meters. This universal power adapter is
specifically for use with Orion Dual Star benchtop meters. Use of other power adapters can
damage the meter and void the warranty.
1. Select the appropriate plug plate for the power outlet that will be used.
2. Remove the clear plastic cover from the groove on the back of the power adapter.
3. Slide the appropriate plug plate into the groove on the back of the power adapter.
4. Connect the assembled power adapter to a power outlet and the meter input labeled
Power. A surge protector or uninterrupted power supply (UPS) is also recommended.
SECTION 2
8|Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Basics |Section 2
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |9
Attaching the Electrode Stand and Holder
Redesigned Orion Dual Star meters are compatible with the meter-attachable electrode stand
(Cat. No. STARA-BEA) shown below. The electrode stand can be attached to either side of the
meter and up to two stands can be attached to each meter. A weighted base (Catalog Number
STARA-HB) is also available to support the stand without attachment to the meter. Older style
Orion Dual Star meters can be used with this electrode stand, but require additional purchase of
the weighted base (Catalog Number STARA-HB).
1. Open the box containing the electrode stand. The box will include a base plate, electrode
arm, pivot pin, electrode holder, ATC spacer and RDO clip.
2. Turn the meter over, with the meter display facing down, on a clean dry surface.
3. Identify the side of the meter that the stand will be installed on and remove the screw
between the circles on that side of the meter.
4. Align the base plate of the stand with the circles on the meter.
5. Replace the screw from step 3 to attach the base plate to the meter.
6. Turn the meter over, with the meter display facing up.
7. Insert the electrode arm into the metal post on
the base plate.
8. Connect the electrode holder to
the electrode arm using the pivot
pin.

Section 2|Meter Basics
Using the Electrode Holder
Place electrodes in the stand for easy movement in and out of containers during calibration,
sample measurement and storage. Recommended electrode positions are shown below.
Powering the Meter On and Off
1. If the meter is not connected to a wall outlet via the universal power adapter, select the
appropriate wall outlet plug and slide the plug plate it into the groove on the power
adapter. Connect the power adapter to the meter and wall outlet.
2. Press and hold the power key for about three seconds to turn on the meter.
3. When the meter is on, press and release the power key to turn the display backlight off or
to vary the intensity of the backlight. There are five levels of intensity that the power key
can be used to select.
4. To turn off the meter, press and hold the power key for about three seconds, until the
meter display is blank.
Meter Maintenance
For routine meter maintenance, dust and wipe the meter with a damp cloth. If necessary, warm
water or a mild water-based detergent can be used. Meter maintenance can be performed on a
daily, weekly or monthly basis, as required by the environment in which the meter is operated.
Immediately remove any spilled substance from the meter using the proper cleaning procedure
for the type of spill.

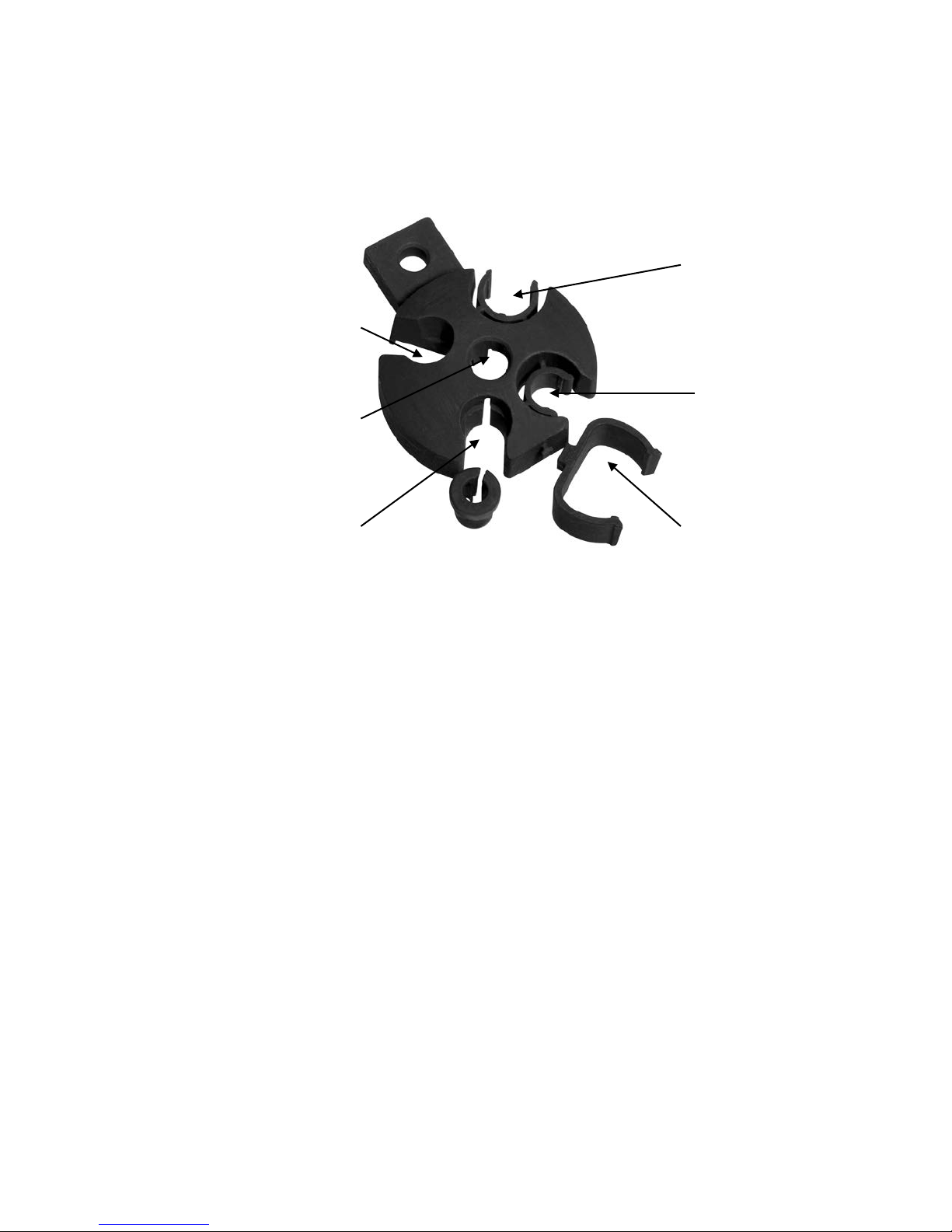

15 mm holder for conductivity and
dissolved oxygen sensors
12 mm flexible holder for pH, ORP
and ion selective electrodes
Optional RDO optical dissolved
oxygen sensor holder
Stirrer probe holder
Holder with 20°angle for gas
sensing ion selective electrodes
12 mm holder with optional ATC
probe insert
10 |Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Basics |Section 2
Meter Components
BNC Inputs
Channel Number
Designations
Dual Channel Display
Keypad
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |11

Section 2|Meter Basics

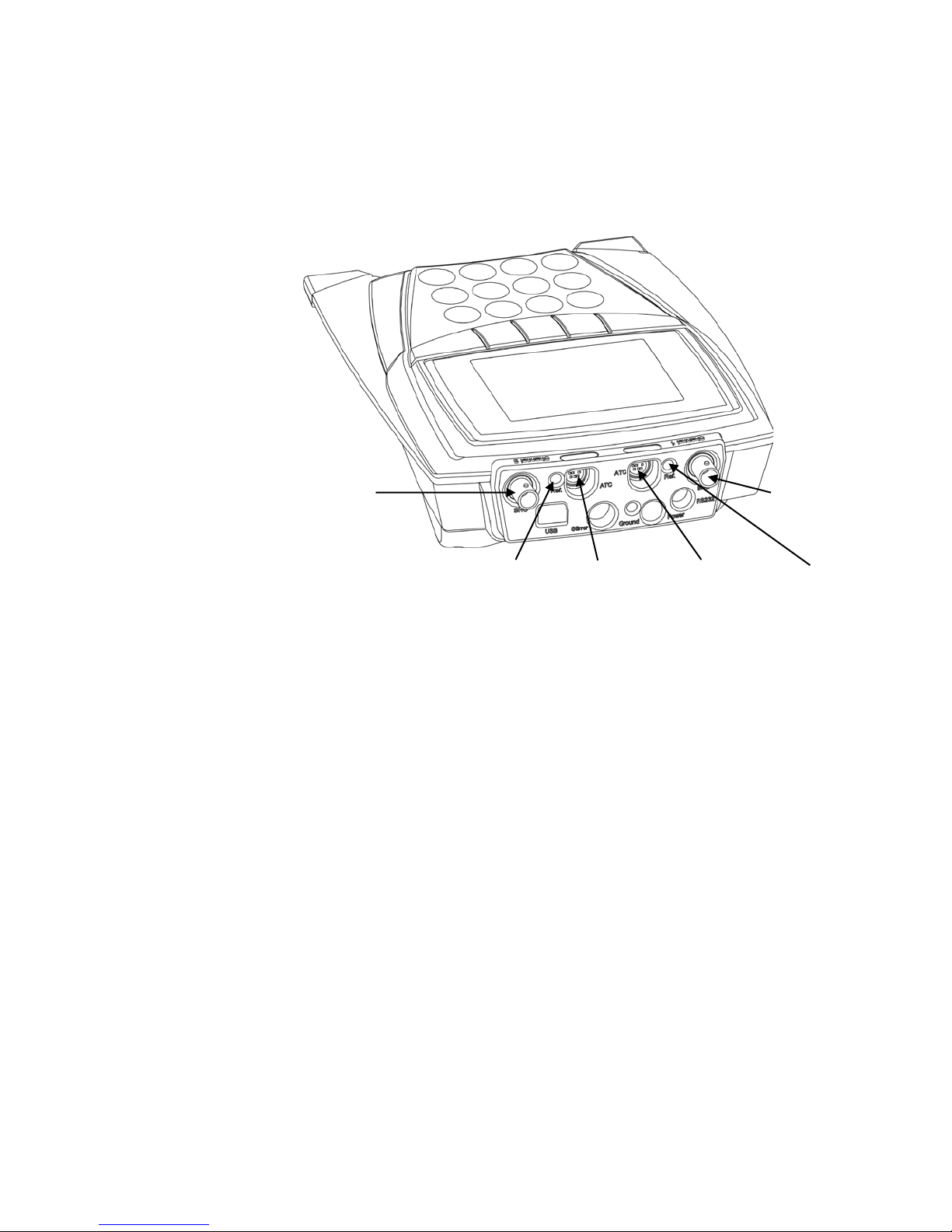

Meter Connections
BNC – Input for pH electrode, ion selective electrode (ISE) or ORP/redox electrode with BNC or
waterproof BNC connectors.
Ref. – Input for reference electrodes with standard 2.5 mm pin-tip connectors.
ATC – Input for ATC probes with 8 pin MiniDIN connectors.
Stirrer – Input for the Thermo Scientific™Orion Star™series stirrer probe, Catalog Number
096019. The stirrer probe can be purchased separately as a meter accessory.
USB – Input for the USB cable, used to connect the meter to a computer.
RS232 – Input for the RS232 cable, used to connect the meter to a printer or computer.
Ground – Input for a ground wire with a standard pin-tip connector.
Power – Input for the universal power adapter that is included with the meter.
12 |Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Basics |Section 2
Channel 1 and Channel 2 Inputs
The BNC, Ref., and ATC connections are labeled as Channel 1 or Channel 2 on the ridge
above the connections. Using the meter orientation shown below, the channel 2 connections
are on the left and the channel 1 connections are on the right.
Connecting Electrodes and Cables to the Meter
1. Connect the pH electrode, ion selective electrode (ISE) and/or ORP/redox electrodes to
the BNC inputs on the meter. Attach a BNC connector to the meter input by sliding the
connector onto the input, pushing down on the connector and turning the connector
clockwise to lock it into position.
2. Connect the reference electrodes to the reference inputs on the meter.
Note: If a combination electrode is used, a reference electrode is not needed.
3. Connect the ATC probes to the 8 pin MiniDIN inputs on the meter. The ATC connector
has a clip that locks the connection and prevents it from detaching from the meter.
4. Connect the stirrer probe, Catalog Number 096019, to the stirrer input on the meter.
5. To connect a printer to the meter, connect an RS232 printer cable to the RS232 inputs on
the meter and printer. The Orion Star series printer, Catalog Number 1010006, is
recommended for use with this meter and includes the appropriate RS232 printer cable.
6. To connect a computer to the meter, connect the USB computer cable to the USB inputs
on the meter and computer or connect the RS232 computer cable, Catalog Number
1010053, to the RS232 inputs on the meter and computer.
Channel 2
BNC Input
Channel 2
Ref. Input
Channel 2
ATC Input
Channel 1
ATC Input
Channel 1
Ref. Input
Channel 1
BNC Input
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |13

Section 2|Meter Basics
Meter Keypad
Press the shortcut keys in the measurement mode to move quickly to different meter menus.
Press the or key to scroll through a list of options on the display. The or key will
loop through a list, so the meter returns to the first item on the list after scrolling past the last
item on the list. Use the numeric keypad, decimal key and +/-key when entering a number.
Key
Description
To turn the meter on, press and hold down the power key for about
three seconds until the meter turns on.
When the meter is on, press and quickly release the power key to
turn the display backlight off or to vary the intensity of the backlight.
To turn the meter off, press and hold down the power key for about
three seconds until the meter turns off.
Press the f1, f2 and f3 function keys to perform the action shown
above each key on the display. The f1, f2 and f3 keys have menu-
dependent functions.
Press the channel key to display channel 1 only, channel 2 only or
a split screen with channel 1 (top) and channel 2 (bottom).
Press the measure (esc) key to return to the meter to the
measurement mode. The measure (esc) key can be used as an
escape key in most meter menus.
Press to enter a value of one (1) when using the numeric keypad.
Press the key to scroll up through lists of items on the display.
The key will to loop through a list, so the meter will go to the last
item on the list after scrolling past the first item on the list.
Press to enter a value of two (2) when using the numeric keypad.
Press the key to scroll down through lists of items on the
display. The key will loop through a list, so the meter will go to
the first item on the list after scrolling past the last item on the list.
Press to enter a value of three (3) when using the numeric keypad.
14 |Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Basics |Section 2
Press the log/print key to manually log, print or log and print a
measurement.
Press to enter a decimal place (.) when using the numeric keypad.
Press the cal key to enter the calibration mode.
Press to enter a value of four (4) when using the numeric keypad.
Press the mode key to change the measurement mode for channel
1 or channel 2.
Press to enter a value of five (5) when using the numeric keypad.
Press the method key to access the methods list for each channel,
existing methods can be selected and run from the list.
Press to enter a value of six (6) when using the numeric keypad.
Press the log view key to view the data log and calibration log.
Press to make a value positive or negative (+/-) when using the
numeric keypad.
Press the setup key to enter the setup menu.
Press to enter a value of seven (7) when using the numeric keypad.
Press the res key to change the displayed measurement resolution
for channel 1 or channel 2.
Press to enter a value of eight (8) when using the numeric keypad.
Press the auto key to access the autosampler setup menu.
Press to enter a value of nine (9) when using the numeric keypad.
Press the stirrer key to turn on and off the stirrer probe.
Press to enter a value of zero (0) when using the numeric keypad.
Alphanumeric Keypad
Use the alphanumeric keypad when entering the electrode serial number, sample ID number
and passwords. The alphanumeric keypad works in the same way as a cell phone keypad. For
example, press the 2key to enter 2, A, B or C. Enter the letter B by pressing the 2key three
times (2 → A → B). Uppercase or lowercase letters can be entered by pressing the same key.
For example, enter the letter a by pressing the 2key five times (2 → A → B → C → a). The
meter will automatically advance to the next digit when no keys are pressed for three seconds.
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |15

Section 2|Meter Basics
Meter Display
Dual Channel Meter Display
Single Channel Meter Display
Display Icon Description
Channel Number – Indicates that channel number that corresponds with the
displayed measurement. Press the channel key to scroll through a dual channel
display for channel 1 and 2, single display for channel 1 and a single display for
channel 2.
Electrode ID – Specifies that type of electrode that was selected by the operator. To
change the electrode ID, refer to the Setup Menu section.
Electrode Serial Number (Single Channel Display Only) – Shows the operator
assigned electrode serial number. To change the electrode serial number, refer to
the Setup Menu section.
Measurement Value – Displays the current electrode reading based on the last
saved calibration.
16 |Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Basics |Section 2
Display Icon Description
Calibration Warning – Indicates that the electrode is calibrated. If the icon is flashing,
it indicates that the electrode needs to be calibrated. Calibrate the electrode at least
every twelve hours to prevent the icon from flashing.
Electrode Condition – Represents the performance of the electrode, based on the
last saved calibration and electrode measurement stability. If the electrode icon has
two lines, the electrode condition is good. If the electrode icon has one line, the
electrode condition is fair. If the electrode icon has a slash through it, the electrode
condition is bad. Refer to the Troubleshooting Guide section for more information.
Method Number – Shows the method that is currently being used on that channel. To
change the method number, refer to the Methods section.
Auto-Read (AR) Read Type Indicator – If Auto-Read was selected as the read type,
the AR icon will appear when the reading is stable and the display has been locked.
To change the read type, refer to the Setup Menu section.
Stabilizing/Ready Read Type Indicator – Specifies the measurement stability of the
electrode. To change the read type, refer to the Setup Menu section.
Measurement Mode – Indicates the unit of measurement for the measurement value
and determines the type of calibration that will be performed. To change the
measurement mode, refer to the Setup Menu section. If the ISE measurement mode
is changed, the electrode must be re-calibrated with new standards that have the
same measurement unit as the measurement mode.
Temperature Measurement – Displays the current temperature based on the
selected ATC probe reading or entered temperature value. To change the
temperature display to Celsius or Fahrenheit, refer to the Setup Menu section.
Temperature Source – Shows the origin of the current temperature measurement. To
change the source of the temperature measurement, refer to the Setup Menu
section.
mV Measurement – Shows the raw millivolt reading of the electrode.
Printer Interface – Indicates if a printer is interfaced with the meter.
Computer Interface – Indicates if a computer is interfaced with the meter. The USB
icon will only be shown when the meter is connected to a computer via USB input.
Timed Interval Read Type Indicator – Indicates when a timed reading is being taken
by the meter. To change the read type, refer to the Setup Menu section.
Autosampler Interface – Indicates if the meter is running the autosampler.
Time and Date (Single Channel Display Only) – Displays the current time and date
settings. To change the time and date, refer to the Setup Menu section.
Sample ID (Single Channel Display Only) – Shows the operator assigned sample ID
number. To change the sample ID number, refer to the Setup Menu section.
f1 Function – Displays the action that will be done when the f1 key is pressed.
f2 Function – Displays the action that will be done when the f2 key is pressed.
f3 Function – Displays the action that will be done when the f3 key is pressed.
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |17

3
Meter Setup
EZ Startup Menu
It is highly recommended that the EZ Startup menu be completed the first time that the meter is
used. The EZ Startup menu sets important meter parameters, such as the displayed language,
date and time, measurement mode and read type for each channel and data output settings. To
access the EZ Startup menu from the measurement mode, press the setup key, press the
▲ / ▼ keys to highlight EZ Startup and press the f2 (select) key.
1. Press the ▲ / ▼ keys to highlight English, Español, Deutsch, Français or Italiano as the
language that will be displayed on the meter. Press the f2 (select) key to save the setting
and proceed to the next EZ Startup menu.
2. Set the time, date and date format.
a. To set the time, press the ▲ / ▼ keys to highlight Time and press the f2 (select) key.
Use the numeric keypad to set the time in 24 hour format and press the f2 (accept) key.
b. To set the date, press the ▲ / ▼ keys to highlight Date and press the f2 (select) key.
Use the numeric keypad to set the date (the date format is shown below the date
setting) and press the f2 (accept) key.
c. To set the date format, press the ▲ / ▼ keys to highlight Date Format and press the
f2 (select)key. Press the ▲ / ▼ keys to highlight MM/DD/YYYY to display the date as
month/day/year or DD/MM/YYYY to display the date as day/month/year and press the
f2 (accept) key.
d. Once all of the time and date settings are entered, press the f3 (next) key to save the
settings and proceed to the next EZ Startup menu.
SECTION 3
18 |Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific

Meter Setup |Section 3
3. Press the ▲ / ▼ keys to highlight pH, ISE (ion concentration), mV (raw millivolts), RmV
(relative millivolts) or ORP (oxidation-reduction potential) as the measurement mode for
channel 1 and press the f2 (accept) key. The meter will request information based on the
selected measurement mode. If channel 1 will not be used, press the f3 (no) key to skip to
the next EZ Startup menu.
a. ISE only: Press the ▲ / ▼ keys to highlight the displayed ISE units as ppm (parts per
million), mg/L (milligrams per liter, % (percent), M (moles per liter) or unitless (no units)
and press the f2 (accept) key.
b. ISE, RmV and mV only: Press the ▲ / ▼ keys to highlight the electrode ID and press
the f2 (accept) key. The electrode ID can be set as pH, ORP, fluoride (F-), ammonia
(NH3), ammonium (NH4+), nitrate (NO3-), nitrite (NO2-), sulfide (S-2), chloride (Cl-),
chlorine (Cl2), bromide (Br-), iodide (I-), cyanide (CN-), sodium (Na+), potassium (K+),
calcium (Ca+2), silver (Ag+), copper (Cu+2), lead (Pb+2), cadmium (Cd+2), perchlorate
(ClO4-), fluoroborate (BF4-), thiocyanate (SCN-), nitrogen oxide (NOX), carbon dioxide
(CO2), oxygen (O2), monovalent cation (X+), divalent cation (X+2), monovalent anion (X-
) or divalent anion (X-2). Some of the electrode ID options may not be accessible,
depending on the measurement mode that was selected for the channel.
c. Press the f2 (yes) key to enter an electrode serial number or press the f3 (no) key to
skip this step. To enter an electrode serial number, use the alphanumeric keypad to
enter letters and/or numbers. The meter will automatically advance to the next digit
when no keys are pressed for three seconds. Press the f3 (clear) key to delete any of
the digits. Once the serial number is entered, press the f2 (accept) key. Refer to the
meter pullout guide for the location of the letter keys on the numeric keypad.
d. pH and ISE only: Press the ▲ / ▼ keys to highlight the measurement resolution and
press the f2 (accept) key to save the setting.
e. To change the displayed temperature unit to degree Celsius (°C) or degree Fahrenheit
(°F), press the ▲ / ▼ keys to highlight Temperature Unit and press the f2 (accept)
key. Press the ▲ / ▼ keys to highlight the desired temperature units and press the
f2 (accept) key.
f. Press the ▲ / ▼ keys to highlight ATC1, ATC2 or Manual as the source of the
temperature compensation that will be used for measurements and press the
f2 (accept) key to save the setting. Automatic temperature compensation can be
performed by connecting an ATC probe to ATC input 1 (ATC1) or ATC input 2 (ATC2)
on the meter. If manual temperature compensation is selected, enter the temperature
using the numeric keypad and the decimal key. Once the temperature value has been
entered, press the f2 (accept) key.
g. Press the ▲ / ▼ keys to highlight Auto-Read, On Ready, At Time Intervals,
Continuous, Value Change In Measurement or Timed Reading as the read type and
press the f2 (accept) key to save the setting.
Thermo Scientific Orion Dual Star pH/ISE Benchtop Meter User Manual |19

Section 3|Meter Setup
i. Auto-Read – The meter will display the measurement as it stabilizes and lock and
hold the measurement when it is stable. Once a measurement is locked, press the
measure key to take a new measurement. Once the measurement is locked, the
meter will automatically export the measurement to the data log, if the data log is
enabled in the setup menu, and to a printer or computer, if a printer or computer is
connected to the meter and enabled in the setup menu.
ii. On Ready – The meter will show stabilizing on the display until the measurement is
stable. When the measurement is stable, the meter will show ready on the display.
The display will automatically update if the measurement changes and the
measurement will not lock. Once ready is shown on the display, the meter will
automatically export the measurement to the data log, if the data log is enabled in
the setup menu, and to a printer or computer, if a printer or computer is connected
to the meter and enabled in the setup menu.
iii. At Time Intervals – The meter will read and display a measurement at the set time
interval that is programmed by the operator. At the set time interval, the meter will
automatically export the measurement to the data log, if the data log is enabled in
the setup menu, and to a printer or computer, if a printer or computer is connected
to the meter and enabled in the setup menu. If At Time Intervals is selected, enter
the time interval value in a hours : minutes : seconds format using the numeric
keypad and press the f2 (accept) key.
iv. Continuous – The meter will continuously measure and update the display. No
indicator will be shown on the display. This read type is useful when performing an
experiment that requires continuous measurements to be taken, regardless of the
measurement stability. Press the log/print key to export the measurement to the
data log, if the data log is enabled in the setup menu, and to a printer or computer, if
a printer or computer is connected to the meter and enabled in the setup menu.
v. Value Change In Measurement – The meter will display the measurement when the
reading reaches or exceeds the set high or low value that is programmed by the
operator. When the reading reaches or exceeds the set high or low value, the meter
will automatically export the measurement to the data log, if the data log is enabled
in the setup menu, and to a printer or computer, if a printer or computer is
connected to the meter and enabled in the setup menu. If Value Change In
Measurement is selected, press the ▲ / ▼ keys to highlight Min Value, enter the
minimum measurement value using the numeric keypad and the decimal key, press
the ▲ / ▼ keys to highlight Max Value, enter the maximum measurement value
using the numeric keypad and the decimal key and press the f3 (next) key.
vi. Timed Reading – The meter will display a measurement after a set time delay and
lock and hold the measurement after the time delay is reached. To start another
time delay cycle, press the measure key. Once the measurement is locked, the
meter will automatically export the measurement to the data log, if the data log is
enabled in the setup menu, and to a printer or computer, if a printer or computer is
20 |Orion Dual Star pH/ISE Benchtop Meter User Manual Thermo Scientific
