Thermo Scientific Orion 2117HL User manual

Thermo Scientific
Orion 2117HL
High Level
Chloride Analyzer
User Guide

ROSS and the COIL trade dress are trademarks of Thermo Fisher Scientific Inc. U.S. patent 6,793,787.
AQUAfast, Cahn, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA, pHuture, Pure Water, Sage, Sensing the Future, SensorLink,
ROSS, ROSS Ultra, Sure-Flow, Titrator PLUS and TURBO2 are registered trademarks of Thermo Fisher.
1-888-pHAX-ION, A+, All in One, Aplus, AQUAsnap, AssuredAccuracy, AUTO-BAR, AUTO-CAL, AUTO DISPENSER, Auto-ID, AUTO-LOG, AUTO-READ,
AUTO-STIR, Auto-Test, BOD AutoEZ, Cable-Free, CERTI-CAL, CISA, DataCOLLECT, DataPLUS, digital LogR, DirectCal, DuraProbe, Environmental Product
Authority, Extra Easy/Extra Value, FAST QC, GAP, GLPcal, GLPcheck, GLPdoc, ISEasy, KAP, LabConnect, LogR, Low Maintenance Triode, Minimum Stir
Requirement, MSR, NISS, One-Touch, One-Touch Calibration, One-Touch Measurement, Optimum Results, Orion Star, Pentrode, pHuture MMS, pHuture
Pentrode, pHuture Quatrode, pHuture Triode, Quatrode, QuiKcheK, rf link, ROSS Resolution, SAOB, SMART AVERAGING, Smart CheK, SMART STABILITY,
Stacked, Star Navigator 21, Stat Face, The Enhanced Lab, ThermaSense, Triode, TRIUMpH, Unbreakable pH, Universal Access are trademarks of
Thermo Fisher.
Guaranteed Success and The Technical Edge are service marks of Thermo Fisher.
PerpHecT meters are protected by U.S. patent 6,168,707.
PerpHecT ROSS electrodes are protected by U.S. patent 6,168,707.
ORION Series A meters and 900A printer are protected by U.S. patents 5,198,093, D334,208 and D346,753.
ionplus electrodes and Optimum Results solutions are protected by U.S. patent 5,830,338.
ROSS Ultra electrodes are protected by U.S. patent 6,793,787.
ORP standard is protected by U.S. patent 6,350,367.
No Cal electrodes are protected by U.S. patent 7,276,142.
© 2009 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries.
The specifications, descriptions, drawings, ordering information and part numbers within this document are subject to change without notice.
This publication supersedes all previous publications on this subject.

1
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Table of Contents
Chapter I
GeneralInformation............................................ I-1
Introduction.............................................I-1
FeaturesandBenefits.......................................I-2
PrinciplesofOperation.....................................I-3
PrinciplesofCalibration....................................I-5
Double Known Addition (DKA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . I-5
OfflineCalibration.......................................I-6
FluidicsDiagram..........................................I-7
Glossary ................................................I-8
Two Channel Analyzer Configurations . . . . . . . . . . . . . . . . . . . . . . . . . I-9
Chapter II
AnalyzerPreparation...........................................II-1
UnpackingtheAnalyzer ....................................II-1
Mounting and Plumbing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . .II-2
SampleRequirements......................................II-3
ElectricalWiring..........................................II-4
SafetyRequirements .....................................II-4

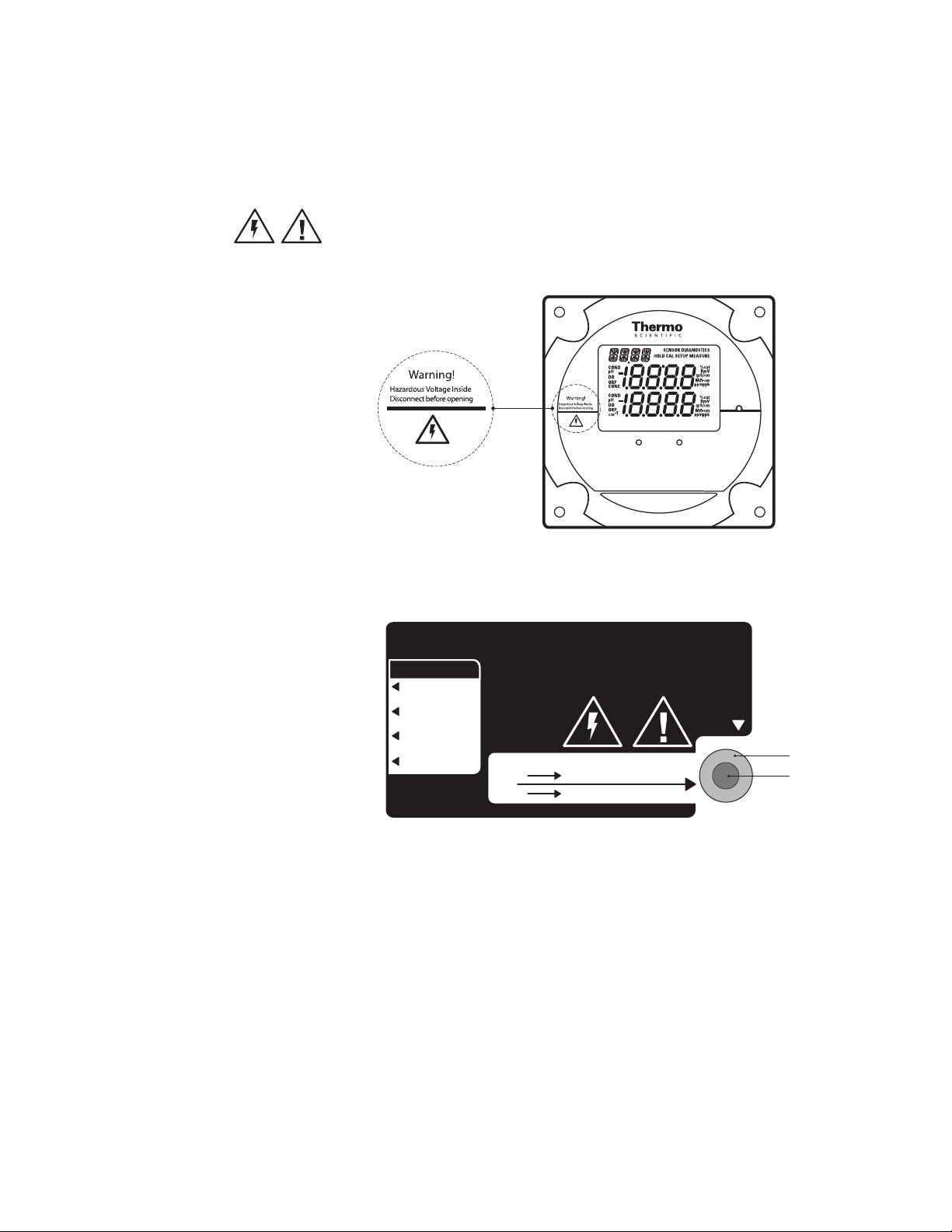

Warning Labels and Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .II-5
WiringtheAnalyzer .......................................II-6
TerminalAssignments......................................II-8
Electrode Wiring Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .II-9
Installation of New Electrode Cables. . . . . . . . . . . . . . . . . . . . . . . . . .II-10
Installation of a New Chloride Electrode. . . . . . . . . . . . . . . . . . . . . . .II-11
InstallationoftheATCProbe...............................II-11
Installation of a New Reference Electrode . . . . . . . . . . . . . . . . . . . . . .II-12
Chapter III
AnalyzerOperation............................................III-1
Description of Basic Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . III-1
DescriptionofKeypadIcons................................III-2
UseoftheSetupMode....................................III-3
SetupModeOverview.....................................III-5
Shutdown and Start-Up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . III-35

2
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Chapter IV
Calibration...................................................IV-1
CalibrationSetup ........................................IV-1
FlowCellOperation......................................IV-2
RinsingtheFlowCell.....................................IV-3
AirRegulation...........................................IV-4
Before Performing a DKA Calibration. . . . . . . . . . . . . . . . . . . . . . . . . IV-5
Performing a DKA Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IV-6
CalibrationAbortSteps...................................IV-10
CalibrationErrorCodes ..................................IV-11
Calibration At Custom Concentrations Using DKA . . . . . . . . . . . . . IV-13
SpanCheckProcedure....................................IV-14
Offline Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IV-15
Chapter V
AnalyzerMaintenance .........................................V-1
MaintenanceSchedule......................................V-1
WeeklyMaintenance.......................................V-1
MonthlyMaintenance......................................V-2
Yearly Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V-4
Chapter VI
Troubleshooting ..............................................VI-1
DiagnosticsMode........................................VI-1
SlopeProblems..........................................VI-9
TroubleshootingMatrix...................................VI-11
Error/EventCodes.......................................VI-14
ResettingtheAnalyzer....................................VI-17
Serial Number and Software Revision . . . . . . . . . . . . . . . . . . . . . . . . VI-18
ServiceandRepair.......................................VI-19
Chapter VII
CustomerService.............................................VII-1
NoticeofCompliance. ...................................VII-1
WEEECompliance......................................VII-1
DeclarationofConformity................................VII-2
TermsandConditions....................................VII-3
Appendix.....................................................A-1
MountingDimensions .....................................A-1
ISEDefaultValues ........................................A-2
Specifications ............................................A-3
OrderingInformation......................................A-7
Recommended Consumables for Annual Operation . . . . . . . . . . . . . .A-10
PipetOperation..........................................A-11
PipetTechniques.........................................A-12

I-1
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Chapter I General Information
This user guide covers the operation, maintenance and troubleshooting for
the Thermo Scientific Orion 2117HL high level chloride analyzer, which
offers unmatched reliability in analyzing chloride from industrial water and
agricultural water applications.
Monitoring the chloride ion content to prevent boiler corrosion or to
control chloride levels in RO effluent water applications requires a well
designed and maintained system. The system must optimize the fluidic
design with the sensing technology to provide accurate and precise results
with an almost instantaneous indication of chloride concentration changes.
The 2117HL chloride analyzer meets all of the criteria for accurate
and dependable chloride monitoring and more. The 2117HL analyzer
incorporates innovative technologies that include:
• Premium electrodes
• Accurate and precise flow cell design
• Marquee help screen
• DKA calibration system
Thermo Scientific Orion 2117HL High Level Chloride Analyzer
• Power
• Pulp and paper
• Agricultural
• Semiconductor
• RO feedwater monitoring
• Seawater-cooled condenser leak detection
• Boiler water monitoring
• Agricultural water monitoring
Introduction
Markets
Applications

General Information
I-2
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
The Thermo Scientific Orion 2117HL chloride analyzer is ideal for
measuring and monitoring the critical chloride levels in industrial water
or agricultural water applications. With limited maintenance requirements
and no reagent, the 2117HL analyzer can also be used in remote
monitoring applications.
• Measurement of chloride in water using premium Thermo Scientific
Orion ion selective electrode (ISE) technology.
• Accurate and precise measurements in the range of 75 ppm to
1000 ppm:
• Reliable measurements and a wide measurement range with
selectable resolution.
• Measures chloride ion activity in aqueous solutions quickly,
accurately and economically.
• Premium reference and sensing electrodes:
• Superior accuracy and stability over a wide temperature range.
• Advanced flow cell design with air stirring:
• Automatic sample handling and contamination control with no
moving parts.
• Patented scrolling marquee:
• Intuitive menu-driven digital user interface.
• Data log of previous measurements and calibration:
• View measurement, calibration and error history.
• Self diagnostics:
• Ease of maintainability.
• Password protection:
• Security and peace of mind for your operation.
• Auto-ranging electronics with an easy to read backlit LCD display:
• Analyzer determines the best range.
Features and Benefits

General Information
I-3
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
The sample enters the Thermo Scientific Orion 2117HL chloride analyzer
and passes through the inlet valve, bypass/needle valve, inlet filter, pressure
regulator, flow meter and into the restrictor tubing. The sample then passes
through the flow cell manifold into the flow cell as air is introduced from
the air pump to ensure proper mixing and fast response. The sample passes
the chloride sensing electrode, reference electrode and ATC probe and then
flows into an atmospheric drain via the diverter valve.
Principles of Operation
Safety Drain
for Overflow
Restrictor Tubing
Pressurizes Reference
Filling Solution Bottle
Flow Meter
Valve Positions
Calibration Mode - PUSH
Sample/Measure Mode - PULL
Analyzer
1 2 34 5
Power
4-20mA Output
Air Pump
F
l
ow Mete
r
Inlet Valve
Bypass / Needle
Valve and Filter
Regulator
Valve
Reference Solution
Calibration
Port
Sense
REF TEMP
Flow Cell Block
Calibration Level
Air Filter
Flow Cell Manifold
Fluid Path
Fluid Restrictor Tubing
Electric
Air Path
Reference Solution Path
Overflow Path
K E Y
Main Feed
Air Inlet
Measure Level
Drain
Check
Valve
Sample
Valve
Valve
ve
al
Val
Cal
Pressurizes Flow Cell
to Initiate Siphoning
Figure I-1
2117HL Schematic

General Information
I-4
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
The sensing electrode responds logarithmically to changes in the chloride
ion concentration. This response is described by the Nernst equation:
E = Eo+ 2.3 (RT/nF) log (C/Ciso)
Where:
E = measured electrode potential, mV
Eo= potential, when C equals Ciso, mV
R = ideal gas constant
T = temperature of sample, degrees K
n = valence of ionic species (-1 for chloride ion)
F = Faraday’s constant
C = effective chloride ion concentration (activity)
Ciso = concentration (activity) of chloride ion where potential E is
temperature independent (isopotential point)
The above equation indicates that the measured potential varies with both
temperature and the concentration of the ion of the interest. In order to
eliminate error caused by fluctuations in sample temperature, the 2117HL
microprocessor constantly updates temperature corrections from data
supplied by the ATC probe.
From the Nernst equation, the theoretical response of a chloride ion
selective electrode to a ten-fold change in concentration at 25 °C is
-59.16 mV. This is referred to as the electrode slope (S). Most electrodes,
however, do not exhibit a theoretical slope. Therefore, the analyzer is
calibrated to determine its actual value. Two standards are used to provide
information necessary for the microprocessor to compute the actual slope
and E0for use during sample analysis.

General Information
I-5
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Principles of
Calibration
Calibration procedures for analytical instruments are important and must
be performed carefully. The calibration procedure used in the Thermo
Scientific Orion 2117HL analyzer is a variation of Double Known
Addition (DKA) using advanced electrode and flow cell technology. This
method has the distinct advantages of being fast, easy and accurate.
Before calibration begins, the diverter valve is pushed in to divert flow from
the measure drain, allowing the flow cell to fill.
At the beginning of the DKA calibration the actual concentration in the
sample is unknown. The analyzer measures the potential (Es) and stores
this value in the microprocessor. A known amount of standard 1 solution
is added to the flow cell, which increases the concentration (Cs) with a
corresponding known amount (dC1). During this process, air is pumped
into the flow cell, thoroughly mixing sample and standard in a closed-
loop system. The new potential (E1) is measured and stored automatically
when stability is reached. Adding standard 2, preferably 10 times more
concentrated than standard 1, increases the concentration (dC2) in the
sample reservoir. Again, the new potential (E2) is measured and stored
when the reading is stable. Now, we have the following three unknowns:
Es=Eo+ S(Ts/298.15) log (Cs/Ciso)
E1=Eo+ S(T1/298.15) log [(Cs+ dC1)/Ciso]
E2=Eo+ S(T2/298.15) log [(Cs+ dC1+ dC2)/Ciso]
S is the Slope at 25 °C (298.15 K)
T is the temperature in Kelvin, measured when the potential E is measured.
Es, E1, E2have been determined during the calibration procedure. The
microprocessor solves these three equations, to obtain the values of S
and Eo. The calibration result is stored for use during online monitoring
to convert the measured potential and temperature in the sample into
concentration values in either ppm or ppb.
When the calibration is complete the flow cell drains as the sample flow
returns. The flow cell volume returns to the measurement level. After
allowing approximately 30 minutes for concentrated calibration solution
to be flushed from the system, the 2117HL analyzer can begin sample
measurement again.
In addition to Double Known Addition (DKA), the 2117HL analyzer also
allows the operator the ability to perform an offline calibration.
Double Known
Addition (DKA)
Figure I-2
Flow Cell Volume for DKA

General Information
I-6
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
The offline calibration feature of the 2117HL analyzer allows the operator
to adjust the analyzer to values determined by alternate methods used in
their laboratory such as elemental spectroscopy and ion chromatography.
The offline calibration is essentially a one point calibration. To perform
an offline calibration a sample is taken from the bypass of the analyzer, the
sample concentration value is stored in memory, the sample is analyzed
by an alternate method of choice, the previously stored reading is adjusted
to the lab method result and the analyzer is then returned to the analysis
mode. The term “offline calibration” refers only to the fact that a sample
from 2117HL analyzer bypass is taken “offline” for laboratory analysis; in
fact, no downtime is experienced during the procedure and the analyzer
remains online throughout.
Offline Calibration

General Information
I-7
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Fluidics Diagram
Scrolling Marquee
LCD Display
Warning Icon
Mode Indicator
Keypad
Status Indicators
Mounting
Hole
Inlet Valve
Pressure
Regulator
Reference
Filling
Solution
Restructor
Tube
Assembly
Air Pump
Bypass/Needle
Valve
Inlet Filter
Reagent
Manifold
Flow Cell
Reservoir
Siphon Tube
Flow Cell Block
Flow Meter
Calibration Port
Diverter Valve
Figure I-3
Fluidics Diagram

General Information
I-8
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Refer to Figure I-3.
Inlet Valve – Accepts the sample stream via 1/4 inch NPTF connector. The
operator must supply the sample with a pressure between 14 and 100 psig.
Inlet Filter – 60 micron stainless steel filter traps particulate matter in the
sample stream.
Bypass/Needle Valve – Used to redirect flow in the bypass system.
Pressure Regulator – Adjusts flow on the incoming sample stream.
Flow Meter – Measures the sample flow rate.
Check Valve – Prevents the backflow of sample.
Restrictor Tube Assembly – Used in conjunction with the pressure
regulator to lower downstream pressure.
Flow Cell Manifold – Directs sample flow in and out of the flow cell.
Flow Cell – Contains the chloride sensing electrode, reference electrode and
ATC probe.
Diverter Valve – Allows the flow cell reservoir to fill during calibration by
forming a closed-loop system.
Chloride Electrode – Senses chloride ions in the sample stream and
produce an electrical potential dependent on sample concentration.
Reference Electrode – Provides a constant reference potential and
completes the measurement circuit.
Pressurized Reference Electrode Filling Solution Bottle – Provides
constant flow of electrolyte solution through reference electrode for
maximum stability.
ATC Probe – Measures the sample temperature and inputs data to
microprocessor for automatic temperature compensation (ATC).
Calibration Port – Allows introduction of standards to the sample reservoir
during calibration.
Air Pump – Used to mix the sample during both measurement and
calibration as well as provide air to pressurize the reference electrode filling
solution bottle.
Glossary

General Information
I-9
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
LCD Display – Provides digital readouts of concentration, temperature,
millivolts and error codes.
Keypad – Consists of five mode keys, four prompt indicator lights, two
scroll keys and one key for entering data. Mode and error indicators are also
incorporated on keypad.
Status Indicator – Two LED lights that illuminate according to current
status of the analyzer.
Green Light: Indicates that system is in correct working condition.
Yellow Light: Indicates a warning, system in hold or that
maintenance is required.
Red Light: Indicates that something is seriously wrong.
Note: When either the yellow or red LED is lit, there may be an entry in
the diagnostics mode that indicates the error. The logging feature must be
initiated in the setup mode. Refer to Chapter III, Use of the Setup Mode
for instructions.
A pH/ORP module or conductivity module can be added by the operator
to the second channel of the Thermo Scientific Orion 2117HL chloride
analyzer for the ultimate flexibility in measurement capabilities. The
2100 series pH/ORP and conductivity analyzers provide accurate and
reliable measurements in ultra pure water as well as the harshest industrial
environments. Combined with decades of superior Thermo Scientific
Orion sensor technology, our systems provide rapid results with
complete stability.
Cat. No. Description
2100PH2 Second channel module for pH/ORP
2100CD2 Second channel module for conductivity
When a pH/ORP module or conductivity module is installed on the
second channel of the 2117HL chloride analyzer, refer to the Thermo
Scientific Orion 2100 Series pH/ORP Analyzer and Conductivity Analyzer
User Guide for detailed instructions on operating the pH/ORP or
conductivity analyzer. Visit www.thermo.com/processwater to download
any of the 2100 series analyzer user guides.
Two Channel Analyzer
Configurations

II-1
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Chapter II Analyzer Preparation
Thermo Scientific Orion analyzers are assembled, tested and packaged with
great care. Refer to Figure II-1.
Report any obvious damage of shipping container to carrier and hold for
inspection. The carrier (not Thermo Fisher Scientific) is responsible for any
damage incurred during shipment.
1. Open the outer box. Remove the top two foam corner support pieces.
2. Open the inner box. This box should contain the analyzer and ATC
temperature probe, chloride electrode box, reference electrode box,
chloride standard solutions kit (five 2 oz bottles of 29,600 ppm
chloride standard), the options kit and user guide CD.
3. Remove the cardboard retaining shell by sliding it over the entire
mounting board and the analyzer.
4. Carefully remove the entire mounting board with analyzer from the
inner box.
Note: Do not lift or pull the analyzer by the fluidics or the
electronic components.
5. Unbolt the analyzer from the mounting board by removing the four
mounting bolts with a 9/16 wrench. These bolts may be discarded.
6. Carefully place the analyzer at a convenient location until proper
installation can be completed.
Unpacking the
Analyzer
Figure II-1
Unpacking the Analyzer

Analyzer Preparation
II-2
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Refer to the Appendix, Mounting Dimensions section.
Warning: Do not connect power prior to the mounting and plumbing of
the analyzer.
• Select a site for the analyzer that allows it to be permanently bolted
with ample height for atmospheric drain operation. Be sure that there is
ready access to the electronic controls, calibration port and electrodes.
• A clearance of 15 inches (about 40 cm) must be allowed above the
flow cell calibration port. Insert the pipet vertically (not angled) during
the calibration.
• The analyzer location must permit connections to a sample line, drain
and AC power supply and any connections for output devices.
• The analyzer should be mounted as close to the sampling point as
possible. This ensures the fastest possible response to a changing sample
condition. Refer to the Appendix, Sample Conditions section.
• For proper flow cell operation, the analyzer must be installed straight
and level upon its mounting location. Failure to level the analyzer may
cause poor siphoning in the flow cell.
1. Prepare the mounting holes. Carefully lift the analyzer and bolt it into
place. Do not lift the analyzer by holding on to any of the plumbing or
fluid handling components.
2. Connect a waste line to the outlet of the analyzer, which is 3⁄4 NPT
male. The waste line should be connected to a drain of sufficient
capacity, 0.5 inch (1.27 cm) OD is recommended.
3. Connect a sample line to the inlet of the analyzer, which is 1⁄4 NPT
female. It is recommended that a shutoff valve be installed at the
sampling point.
4. The analyzer must be mounted and leveled vertically for proper
operation.
Mounting and
Plumbing Instructions
Recommendations
Instructions

Analyzer Preparation
II-3
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Sample Requirements Additional information is listed in the Appendix, Specifications section.
Sample inlet connection – 1/4” NPTF. If particulate matter is present in
the sample, pre-filtration is necessary. The 60 micron stainless steel filter
located after inlet valve will remove moderate amounts of particulates.
Flow rate – 40 mL/minute (nominal).
Pressure – 8 to 100 psig. Consult Technical Support for details on sample
handling if the pressure is outside of this range.
Temperature – Temperature must be between 5 and 35 °C.
Chloride level – Chloride levels are read directly in ppb or ppm, when
calibrated with Thermo Scientific Orion 29,600 ppm high level chloride
standard.
Sample alkalinity – Sample alkalinity should be less than 50 ppm CaCO3
equivalent. For higher sample alkalinity, contact Technical Support.
Sulfite – Sulfite cannot be present in the sample.

Analyzer Preparation
II-4
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
The warning icon highlights important information that should be strictly
followed when using the analyzer for your own safety. Failure to follow
these instructions may result in injuries.
Warning: Read and observe the following safety recommendations.
• Prior to wiring, a switch or circuit breaker for disconnecting the
analyzer from power supply should be installed.
• The switch should be in close proximity to the analyzer and with
easy reach of the user.
• The switch should be marked as the disconnecting device for
the analyzer.
• To reduce the risk of shock hazard, disconnect the power prior to
opening the analyzer.
• Before connecting the analyzer to the main, make sure that the voltage
lies within either range: 85 to 132 V, 200 mA or 170 to 264 V,
100 mA; 50 to 60 Hz AC.
• Cutting off the power by disconnecting power source will not reset the
analyzer. This analyzer incorporates a non-volatile memory and will
maintain calibration and settings after power failure. Battery power is
supplied to the display for the date and time functions.
• If a repair is required, or to arrange Return Material Authorization, call
Technical Support or contact your local authorized dealer.
• Installation and wiring of the analyzer may only be carried out in
accordance with applicable local and national codes per this user guide.
• Be sure to observe the technical specifications and input ratings.
Electrical Wiring
Safety Requirements

Analyzer Preparation
II-5
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Warning Labels
and Locations
Warning: The following section provides important information that
should be strictly followed when using the analyzer for your own safety.
Failure to follow these instructions may result in injuries.
The safety warning icons are used in two locations on the analyzer.
• Faceplate – Refer to Figure II-2.
• Power supply – Refer to Figure II-3.
Note: Replace the fuse only with a fuse of same rating.
Ch 1 status Ch 2 status
tCh 1
tCh 2
Figure II-2
Faceplate
Fuse Holder
Fuse
Fuse
Power Supply Fuse Type
115V 250V, 200mA Fast Acting
230V 250V, 100mA Fast Acting
170 - 264V 100mA
85 - 132V 200mA
NEUTRAL
Ground
Input Power
Figure II-3
Power Supply

Analyzer Preparation
II-6
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
Wiring the Analyzer Warning: Read and observe the following requirements. If you install the
wrong fuse for your system, you could damage the analyzer. Make sure that
you select the correct fuse rating and discard the additional fuses supplied
in the fuse kit.
• Options kit – includes fuses, cable glands, conduit fitting and green
screw terminal.
• Phillips head screwdriver.
• 2 mm blade flat-head screwdriver.
1. Open the faceplate – loosen the four screws using a Phillips head
screwdriver. The electronics faceplate will open via the hinge pin
connection.
2. Remove one or two of the two unused cable glands as required for
wiring power cable or auxiliary connections. Power cable optional hole
locations are shown in Figure II-4.
3. Select and install the appropriate size cable gland or conduit fitting
as required.
4. Feed the power cable through the conduit or cable glands as required.
Figure II-4
Electronics Enclosure
with Cable Glands
4 Captive
Screws
Hinge Pin
Power Cable
Hole Locations
Cable Glands
Electrode Cables
Required Tools

Analyzer Preparation
II-7
Thermo Scientific Orion 2117HL High Level Chloride Analyzer User Guide
5. Wire the power cable to the green screw terminal connector from the
options kit. Select correct terminal for hot conductor depending on line
voltage. Refer to Figure II-5 for terminal connector location.
6. Plug the terminal connector into the power supply. Refer to
Figure II-3.
7. Select the correct fuse from the fuse kit. Install by inserting the fuse in
the fuse holder and secure it using the twist and lock method. The fuses
are clearly labeled with the appropriate voltages for your system. Refer
to Figure II-3. Refer to the table below for fuse selection.
AC Voltage Fuse Rating
115V 200mA, 250V, Fast Acting
230V 100mA, 250V Fast Acting
Figure II-5
Terminal Connector Location
Terminal Connector
