Thermo Scientific Orion Star User manual

Orion Star™ and
Star Plus Meter
User Guide
• English
• Español
• Français
• Deutsch
• Italiano

ROSS and the COIL trade dress are trademarks of Thermo Fisher Scientific Inc.
AQUAfast, Cahn, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA, pHuture, Pure
Water, Sage, Sensing the Future, SensorLink, ROSS, ROSS Ultra, Sure-Flow, Titrator PLUS and TURBO2 are
registered trademarks of Thermo Fisher.
1-888-pHAX-ION, A+, All in One, Aplus, AQUAsnap, AssuredAccuracy, AUTO-BAR, AUTO-CAL, AUTO DISPENSER,
Auto-ID, AUTO-LOG, AUTO-READ, AUTO-STIR, Auto-Test, BOD AutoE Z, Cable-Free, CERTI-CAL, CISA, DataCOLLECT,
DataPLUS, digital LogR, DirectCal, DuraProbe, Environmental Product Authority, Extra Easy/Extra Value,
FAST QC, GAP, GLPcal, GLPcheck, GLPdoc, ISEasy, KAP, LabConnect, LogR, Low Maintenance Triode, Minimum
Stir Requirement, MSR, NISS, One-Touch, One-Touch Calibration, One-Touch Measurement, Optimum Results,
Orion Star, Pentrode, pHuture MMS, pHuture Pentrode, pHuture Quatrode, pHutureTriode, Quatrode, QuiKcheK,
rf link, ROSS Resolution, SAOB, SMART AVERAGING, Smart CheK, SMART STABILITY, Stacked, Star Navigator 21,
Stat Face, The Enhanced Lab, ThermaSense, Triode, TRIUMpH, Unbreakable pH, Universal Access are
trademarks of Thermo Fisher.
© 2008 Thermo Fisher Scientific Inc. All rights reserved. RDO is a registered trademark of In-Situ Inc.,
Fort Collins, CO USA. All other trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries.
The specifications, descriptions, drawings, ordering information and part numbers within this document are
subject to change without notice.
This publication supersedes all previous publications on this subject.

EN-IThermo Scientific Orion Star™and Star Plus Series Meter User Guide
Table of Contents
Chapter I Introduction
MeterFeatures....................................................EN-2
Chapter II Display
GeneralDescription................................................EN-3
Chapter III Keypad
GeneralDescription................................................EN-5
Key Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-6
Chapter IV Preparation
InstallingthePowerAdapter..........................................EN-7
InstallingtheBatteries..............................................EN-8
ConnectingtheElectrodes...........................................EN-9
TurningontheInstrument ..........................................EN-10
MeterMaintenance...............................................EN-10
Chapter V Meter Setup
SetupMenu.....................................................EN-11
SetupMenuTable...............................................EN-12
GeneralMenuSettings.............................................EN-14
TimeandDateSettings ............................................EN-15
AUTO-READ™, Continuous or Timed Measurement Settings. . . . . . . . . . . . . . . .EN-16
Selecting the Measurement Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-17
MethodSetup....................................................EN-18
Chapter VI pH Technique
pHSetupMenu ..................................................EN-19
pHCalibration....................................................EN-20
pHMeasurement.................................................EN-21
pH Temperature Display and Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-22
Chapter VII mV, Relative mV and ORP Technique
Relative mV and ORP Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-23
mV, Relative mV and ORP Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-24
Chapter VIII Dissolved Oxygen Technique
DissolvedOxygenSetupMenu ......................................EN-25
DissolvedOxygenCalibration........................................EN-26
DissolvedOxygenMeasurement.....................................EN-28
Dissolved Oxygen Temperature Display and Calibration. . . . . . . . . . . . . . . . . . . .EN-29
ENGLISH SECTION
E N

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-II
Chapter IX RDO®Optical Dissolved Oxygen Technique
RDOCapOverview ...............................................EN-31
RDO Optical Dissolved Oxygen Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-32
Setup Menu for RDO Optical Dissolved Oxygen Sensor . . . . . . . . . . . . . . . . .EN-33
RDO Optical Dissolved Oxygen Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-35
RDO Optical Dissolved Oxygen Measurement . . . . . . . . . . . . . . . . . . . . . . . . . .EN-37
RDO Optical Dissolved Oxygen Temperature Display and Calibration . . . . . . . . .EN-38
Chapter X Conductivity Technique
ConductivitySetupMenu...........................................EN-39
ConductivityCalibration............................................EN-40
ConductivityMeasurement .........................................EN-41
Conductivity Temperature Display and Calibration . . . . . . . . . . . . . . . . . . . . . . . .EN-42
Chapter XI ISE Technique
ISESetupMenu..................................................EN-43
ISECalibration ...................................................EN-44
ISEMeasurement.................................................EN-45
ISE Temperature Display and Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-46
Chapter XII Data Archiving and Retrieval
DatalogandCalibrationLog.........................................EN-47
AutomaticDatalogFeature........................................EN-47
DatalogDeletionSetting..........................................EN-48
Viewing and Printing the Datalog and Calibration Log . . . . . . . . . . . . . . . . . . .EN-49
Chapter XIII Declaration of Conformity
DeclarationofConformity...........................................EN-51
WEEECompliance................................................EN-52
Chapter XIV Troubleshooting
MeterSelfTest...................................................EN-53
MeterErrorCodes................................................EN-54
GeneralTroubleshooting............................................EN-56
Chapter XV Meter Specifications
MeterSpecifications...............................................EN-59
OrderingInformation ..............................................EN-63
Appendix A Meter Setup Menu Features
pHSetupMenuFeatures...........................................EN-65
Dissolved Oxygen Setup Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-65
ConductivitySetupMenuFeatures ...................................EN-66
ISESetupMenuFeatures...........................................EN-68
E N

EN-1Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Chapter I Introduction
Congratulations! You have selected an industry-leading Thermo Scientific Orion Star
or Star Plus series meter that is designed for electrochemistry measurements in the
field or in the laboratory.
• 2-Star meters provide the single parameter measurement of pH.
• 3-Star Plus meters provide the single parameter measurement of pH,
dissolved oxygen, RDO®optical dissolved oxygen or conductivity.
• 4-Star Plus meters provide the dual parameter measurements of
pH/dissolved oxygen, pH/conductivity, pH/ISE (ion selective electrode) or
pH/RDO optical dissolved oxygen.
• 5-Star Plus meters provide the multi-parameter measurements of
pH/ISE/dissolved oxygen/conductivity, pH/dissolved oxygen/conductivity or
pH/RDO optical dissolved oxygen/conductivity.
All meters include a temperature measurement function. All meters with pH
measurement capability include a mV/relative mV/ORP function.
Built to meet the demands of busy, multiple user laboratory or plant environments,
all Orion Star and Star Plus series meters are microprocessor controlled, which aids
in the delivery of accurate and precise measurements. The waterproof portable
meters can even withstand submersion for short periods of time.
The 3-Star Plus, 4-Star Plus and 5-Star Plus meters have been enhanced to include
an increased number of datalog points, improved temperature displays and a new
temperature calibration mode for each measurement parameter. Benchtop 3-Star
Plus, 4-Star Plus and 5-Star Plus meters include autosampler capability and are
compatible with the AutoTration™-500 autosampler. Refer to the AutoTration-500
user guide for information on operating the Star Plus meters with the autosampler.
Note: Please read this user guide thoroughly before using your benchtop or
portable meter. Any use outside of these instructions may invalidate your warranty
and cause permanent damage to the meter.

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-2
Meter Features
To better meet the needs of users in environmental protection and control, food and
beverage, pharmaceutical and consumer product laboratories, the Orion Star and
Star Plus series meters include these key features:
• Password Protected Methods – The meter will save up to ten custom
measurements and calibrations for future reference. Password protection of
each method eliminates any tampering with methods as multiple users access
only the procedure most appropriate to their work.
• AUTO-READ™ – The meter takes a measurement and automatically prints or
logs data when the reading becomes stable. The measurement is frozen on the
display until the user prompts the meter to take a new measurement.
• Stirrer Control – Benchtop meters (3-Star and higher) have a stirrer control
for the stirrer probe, Cat. No. 096019, and the AUTO-STIR™ BOD probe, which
eliminates the need for additional stir plates and stir bars.
• SMART STABILITY™ and SMART AVERAGING™ – Remove the
guesswork by automatically compensating for measurement conditions and
optimizing the meter response time.
• Display Backlight – All 3-Star, 4-Star and 5-Star meters include a display
backlight feature. When the meter is on, a quick press of will turn the
backlight on and off. When the meter is operating on battery power, the
backlight will automatically turn off after two minutes to conserve power. When
batteries are low, the backlight will no longer turn on.
• Automatic Shutoff – The meters will shut down after 20 minutes without
akeypress. This maximizes battery power on portable meters and benchtop
meters that are being run on battery power.
• Audible Signals – The meter will beep whenever a key is pressed, providing
immediate verification that the user’s input was received.
An easy-to-use reference guide, attached to each meter, supports daily meter use.
Introduction

EN-3Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Chapter II Display
General Description
Throughout a given process, the display on an Orion Star or Star Plus series meter
provides temperature and calibration data. The temperature appears in the left, top
corner of the display. The icon indicates that a calibration mode or calibration
setup menu is active. The man, 2, 4, 7, 9, 10, and 12 icons indicate which pH
buffers were saved after a pH calibration is performed. The setup icon only appears
when the meter is in setup mode. The icon indicates an error condition and
when it is displayed with the icon, a calibration alarm or sensor quality issue
exists. The icon indicates that the AUTO-READ measurement mode is active
and is discussed in greater detail in the Meter Setup section.
This is the display of the 5-Star meter capable of multi-parameter measurements.
The single and dual parameter meters will have fewer measurement lines,
depending on the meter capabilities.
Note: In the measurement mode, the three main lines of data on the meter
display correspond to what is being measured.
Temperature
Calibration
5 Star Meter
pH/ISE/ORP
Unit
Conductivity
Unit
DO Unit

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-4
Measurement Unit Icons

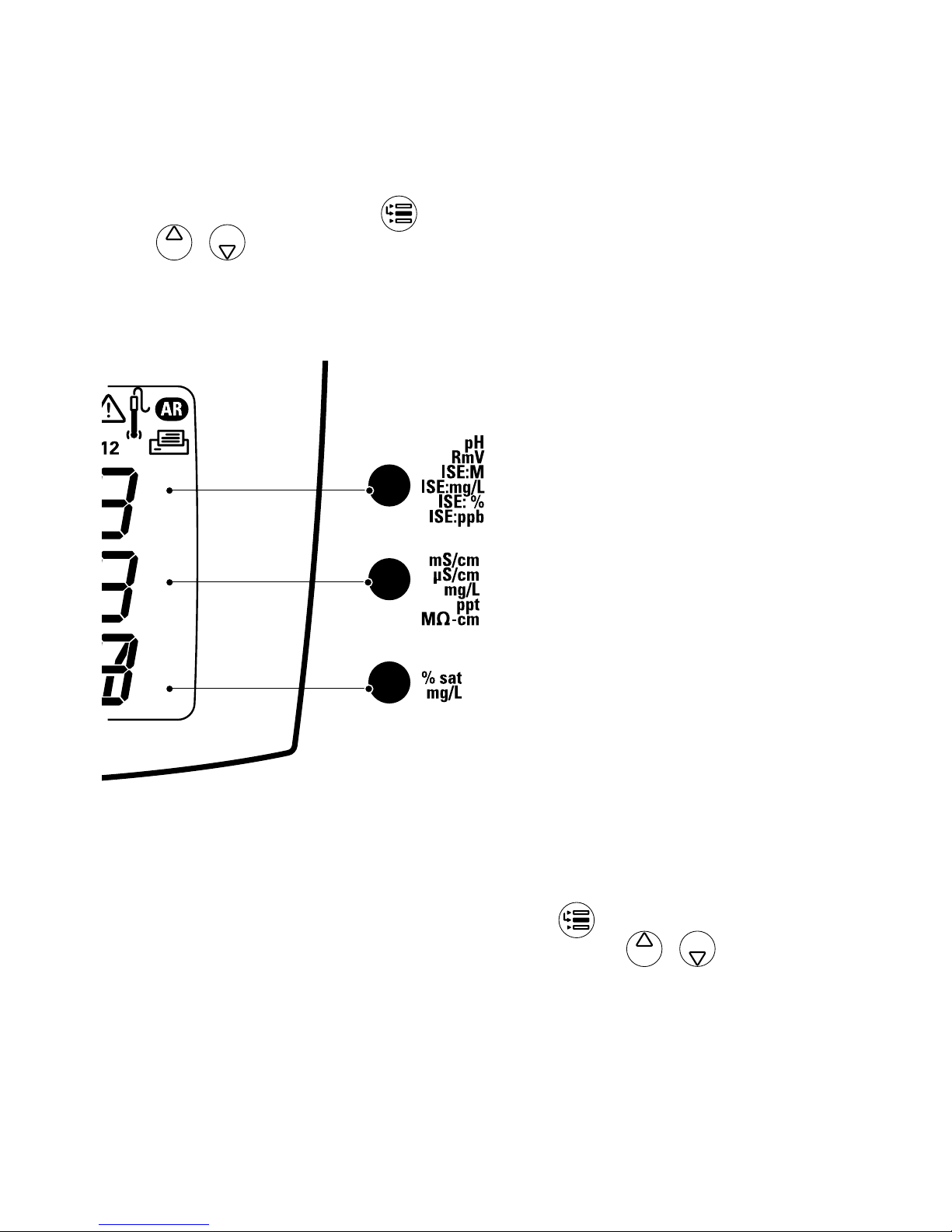

In the measurement mode, the arrow icon on the left side of the display screen
indicates the active line. Press to move the arrow icon to the desired line and
press / to scroll through the measurement unit icons associated with the
selected line. The measurement unit icons for the 5-Star multi-parameter meter are
shown below. The single and dual parameter meters will have fewer measurement
lines and icons, depending on the meter capabilities.
ApH, mV, relative mV, ISE,
or temperature
BConductivity, TDS, salinity, resistivity,
or temperature
CDissolved oxygen as % saturation,
dissolved oxygen as concentration,
barometric pressure or temperature
The units of measurement, which are displayed on the right side of the screen, will
flash until the reading is stable.
Note: If a measurement line is not needed, press to move the arrow
icon to the measurement line that is not needed and press / until the
measurement line is completely blank.
Display

EN-5Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Chapter III Keypad
General Description
The keypad layout is the same for all Orion Star and Star Plus series meters. The
portable and 2-Star benchtop meters have nine keys. The 3-Star, 4-Star and 5-Star
benchtop meters have 10 keys due to the addition of the stir key – .
Power Backlight
View Log
Measure
Save/Print
Scroll Up
Calibrate
Setup
Scroll Down
Digits
Stirrer On/Off,
(not on 2-Star)
Measure
Save/Print
View Log
Power
Line Select
Digits
Setup
Calibrate
Backlight
Portable Keypad
Benchtop Keypad
Line Select
Scroll Up
Scroll Down

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-6
Key Definitions
Key Description Key Description
Turns the meter on, if the meter
is off.
Toggles the backlight on and off,
if the meter is on (3-Star, 4-Star
and 5-Star meters only).
If the meter is on, hold down
the key for about three seconds
to turn off the meter.
Changes the measurement
units of the selected line in the
measurement mode.
Changes the value on the
selected line in the setup,
methods and log view modes.
Edits the value of the flashing
digit for setup, password entry
and calibration modes.
Scrolls the arrow icon on left of
screen among the three display
lines, so the selected line can
be edited or calibrated.
Selects the next digit to edit
and moves the decimal point
for setup, password entry and
calibration modes.
Starts the calibration for
the selected line in the
measurement mode.
If the arrow icon points to the
top line and the displayed units
are pH, pressing the key will
start a pH calibration.
Each time the key is pressed in
the calibration mode, the meter
will accept the calibration point
and move to the next point
until the maximum number of
calibration points are reached.
Prints and logs a measurement
in the continuous or timed
measurement modes.
Prints, logs and freezes the
display when the reading
becomes stable in the AUTO-
READ measurement mode.
Exits the setup menu and returns
to measurement mode.
Accepts the calibration and
returns to measurement mode.
Enters the setup menu, starting
with selected line in the
measurement mode.
If the arrow icon points to the
top line and the displayed units
are ISE, pressing the key will
enter the ISE setup screen.
Enters the log view and
download menu.
Turns the stirrer on and off.
Keypad

EN-7Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Chapter IV Preparation
Installing the Power Adapter
The universal power adapter that is included with your benchtop meter is the only
power adapter recommended for use with this unit. The use of any other power
adapter will void your meter warranty. The external electrical power adapter is rated
to be operated at 100 to 240 VAC, 0.5 A, 50/60 Hz.
Based on your wall outlet, select one of the four plug plates provided (110 V, 220 V,
240V) and slide it into the grooves on the adapter. A click will be heard when the
plug is properly in place.
Connect the output plug of the power adapter to the power input on the benchtop
meter. Refer to the diagram in the Connecting the Electrodes section.
Batteries can be installed in the benchtop Orion Star or Star Plus series meters, so
the meter setup settings are protected if the meter is disconnected from the wall
outlet or a brief power outage occurs.

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-8
Installing the Batteries
Orion Star and Star Plus series meters use four AA alkaline batteries. Do not use
lithium or rechargeable batteries. Improper installation of non-alkaline batteries
could create a hazard.
Note: For benchtop meters, the installation of batteries is not required if the unit
will always be connected to a power source via the universal power supply. For

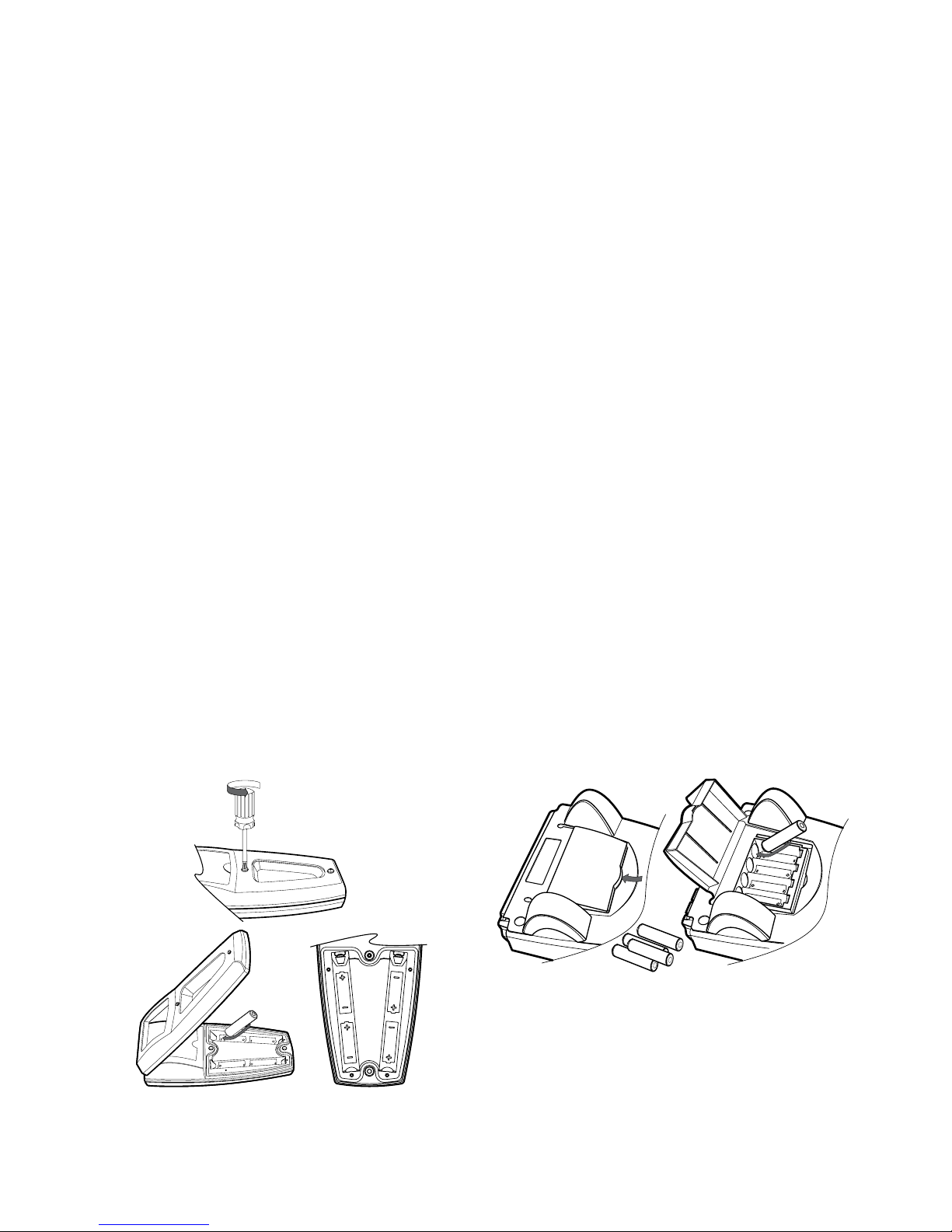

portable meters, the batteries are supplied from the factory. To access the battery
compartment in portable meters, loosen the two screws in the back of the meter.
1. Confirm that the meter is off and gently place the meter upside down on a
clean, lint-free cloth to prevent scratching the LCD.
2. Remove the battery case cover.
3. Insert new batteries with the + side orientation as depicted in the battery
compartment housing.
4. Replace the battery case cover.
5. Stored data, calibrations and methods will remain in the meter’s nonvolatile
memory when the batteries are being replaced. However, the date and time
may need to be reset when the batteries are changed.
Preparation

EN-9Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Connecting the Electrodes

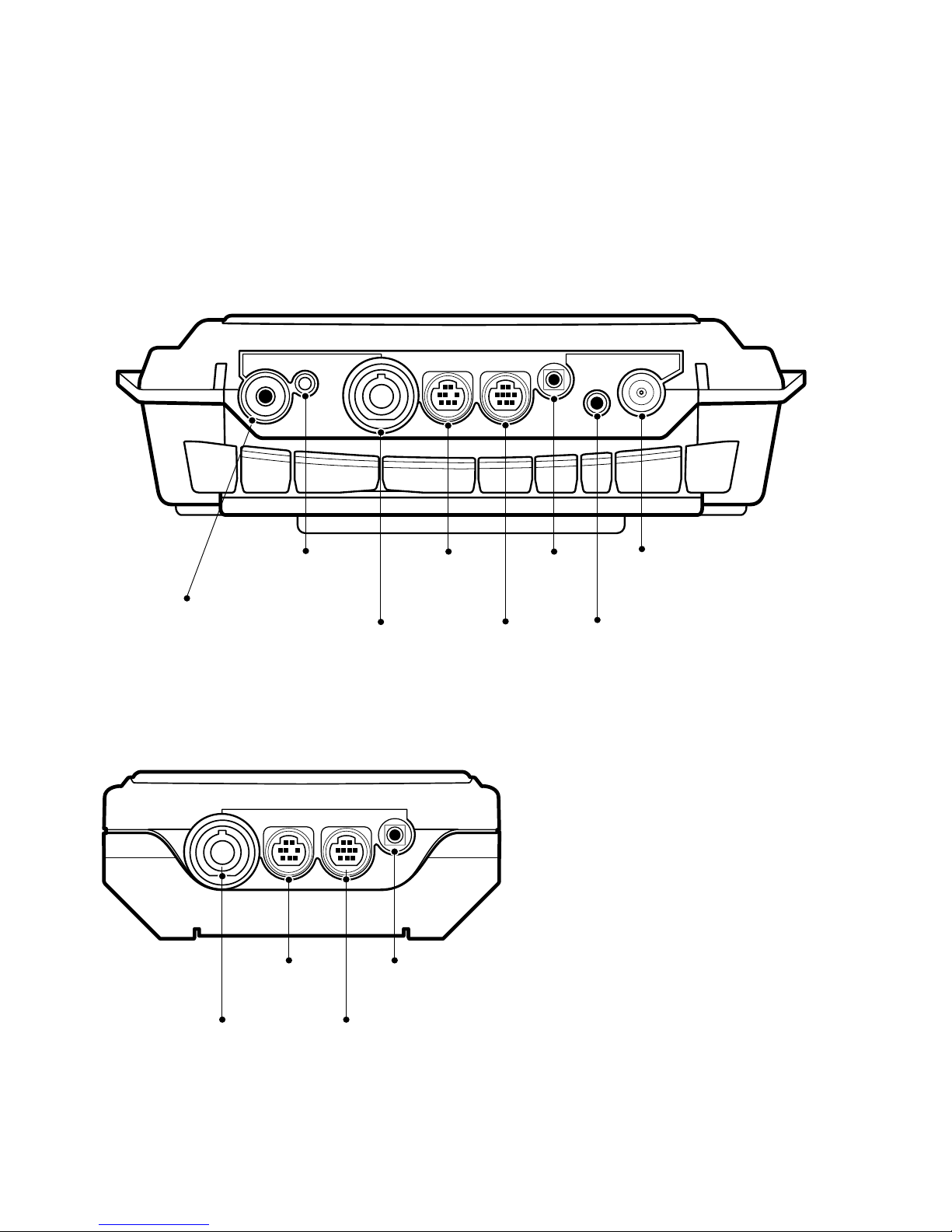

Follow the diagrams below to correctly connect electrodes and probes to the meter.
The multi-parameter meter is depicted; single parameter and dual parameter meters
will have fewer connections, depending on the meter measurement capabilities.
Benchtop Meter Electrode Connections
Portable Meter Electrode Connections
Preparation
Stirrer jack,
stirrer or BOD
AUTO-STIR probe
Reference,
pH, ORP
or ISE
8 pin miniDIN,
Cond or ATC
9 pin
miniDIN,
DO
Ground
BNC,
pH, ORP
or ISE
Power
RS232
RS232
BNC,
pH, ORP
or ISE
8 pin miniDIN,
Cond or ATC
9 pin
miniDIN,
DO

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-10
Meter Connections with Multiple Functions
• Use the BNC input to connect pH, ISE and ORP electrodes with a BNC or
waterproof BNC connector.
• Benchtop meters have a reference input that is used to connect a separate
reference electrode. Reference electrodes require an separate, appropriate
sensing electrode for measurements.
• The 970899WP dissolved oxygen probe can be used on the BNC input.
• Use the 8 pin miniDIN input for conductivity probes or for automatic temperature
compensation (ATC) probes.
• The DO AUTO-STIR probe uses the 9 pin miniDIN input and the stirrer jack.
• Connect a printer or computer to the RS232 input using the appropriate cable.
Turning on the Instrument
With the batteries installed in the portable meters and the power adapter attached
or the batteries installed in the benchtop meter, press to turn on the meter.
If using a 3-Star, 4-Star or 5-Star meter, press when the meter is powered on
to toggle the backlight on and off. When the benchtop meter is drawing line power,
the backlight will stay on until is pressed.
To turn off the meter, press and hold for about three seconds.
Meter Maintenance
For routine meter maintenance, dust and wipe the meter with a damp cloth. If
necessary, a warm water or a mild water-based detergent can be used. Perform
meter maintenance on a daily, weekly or monthly basis, as required by the
environment in which the meter is operated.
Immediately remove any spilled substance from the meter using the proper cleaning
procedure for the type of spill.
Preparation

EN-11Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Chapter V Meter Setup
Setup Menu

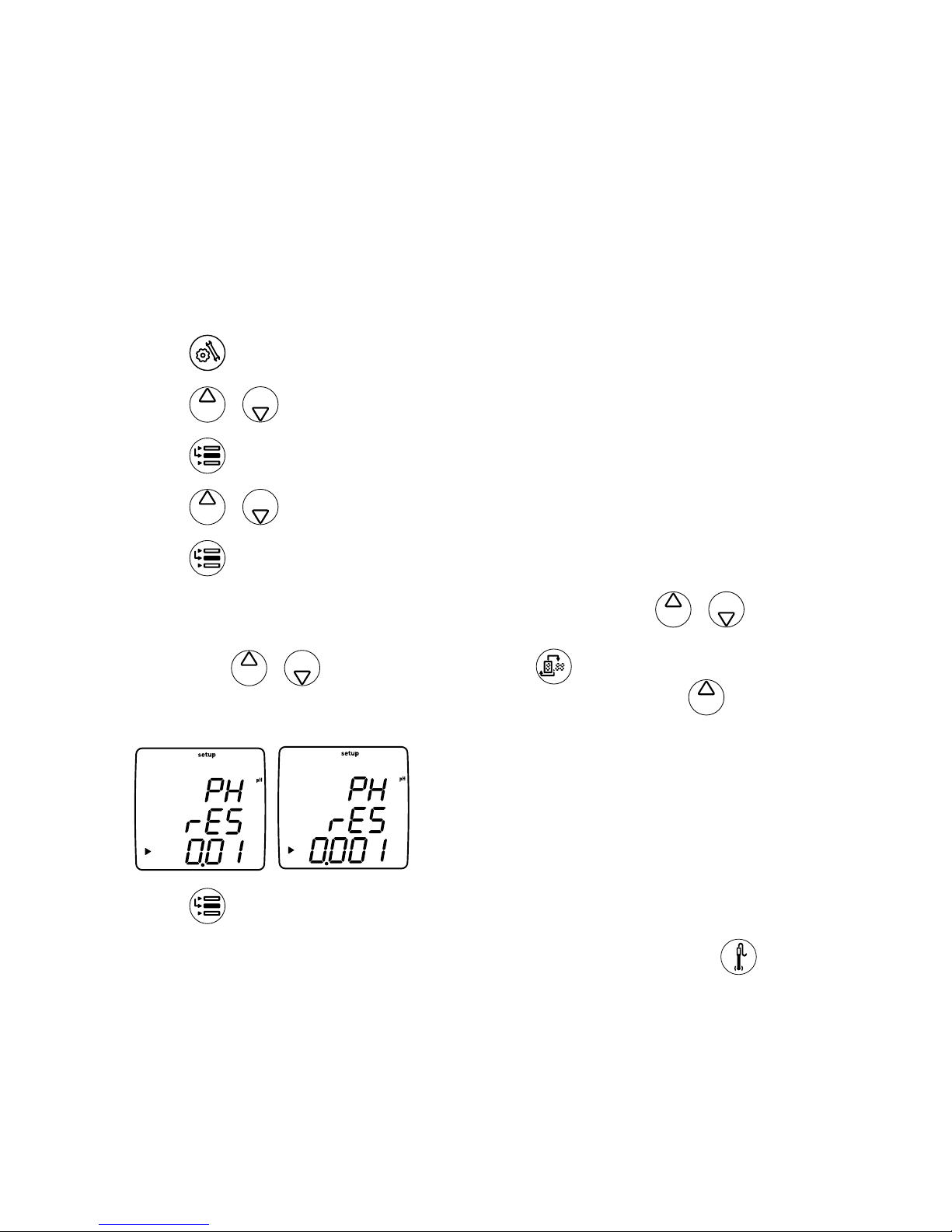

To navigate the setup menu:
1. Press to enter the setup menu.
2. Press / until the desired setup option is displayed on the top line.
3. Press to move the arrow icon to the middle line.
4. Press / until the desired setup option is displayed on the middle line.
5. Press to move the arrow icon to the bottom line.
6. To scroll through a list of options on the bottom line, press / until the
desired option is displayed. To enter a numeric value for an option on the bottom
line, press / to adjust each digit and to move to the next digit.
For example, to change the pH measurement resolution press to scroll from
0.01 to 0.001 on the bottom display line.
7. Press to move the arrow icon to the top line.
8. Repeat steps 2 through 7 to program a new setup option or press to exit
the setup menu and return to the measurement mode.
Note: Refer to Appendix A for a description of the special setup menu features.

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-12
Setup Menu Table – The following table is for the complete line of Orion Star and
Star Plus meters. Meters may not include all of the options listed in this table.
Top Line Middle Line Bottom Line Setup Menu Description (default setting, method specific)
PH rES 0.1, 0.01, 0.001 pH measurement resolution (0.01, yes)
PH bUF USA, EUr0 pH buffer set for automatic buffer recognition during calibration,
USA buffers are 1.68, 4.01, 7.00, 10.01, 12.46 and EUrO buffers are
1.68, 4.01, 6.86, 9.18 (USA, yes)
ISE rES 1, 2, 3 ISE measurement resolution in significant figures (1, yes)
ISE UnIt m, mgL, PEr, PPb, n0nE ISE measurement units (PPb, yes)
ISE rAng L0w, HIgH ISE concentration range for calibration stability criteria (HIgH, yes)
ISE nLIn AUt0, 0FF ISE automatic blank correction for low-level calibration (AUt0, yes)
C0nd tC 0FF, LIn, nLF Conductivity temperature compensation type, LIn is for linear, nLF is
for non-linear pure water samples (LIn, yes)
C0nd C0EF 0.0 to 10.0 Conductivity temperature compensation coefficient in % change in
conductivity per °C, appears if LIn was selected for tC (2.1, yes)
C0nd tdSF 0.00 to 10.0 Conductivity TDS factor value (0.49, yes)
C0nd CELL 0.001 to 199.0 Conductivity default cell constant value for automatic conductivity
calibration mode (0.475, yes)
C0nd trEF 5, 10, 15, 20, 25 Conductivity reference temperature (25, yes)
C0nd tyPE Std, 1, 2, 3, 4, 5, 6, 7, USP Conductivity cell type and selectable range (Std, yes)
See the Setup Menu for RDO Optical Dissolved Oxygen Sensor section for details on the RDO sensor information menus.
d0 rES 0.1, 1 % sat DO % saturation measurement resolution (0.1, yes)
d0 rES 0.01, 0.1 mg/L DO mg/L measurement resolution (0.01, yes)
d0 bAr AUt0, mAn DO barometric pressure compensation type (AUt0, yes)
d0 PrES 450.0 to 850.0 DO manual barometric pressure compensation value, appears if
mAn was selected for bAr (760.0, yes)
d0 SAL AUt0, mAn DO salinity correction type (AUt0, yes)
d0 SALF 0 to 45 DO manual salinity correction value, appears if mAn was selected
for SAL or a DO meter without a conductivity mode is used (0, yes)
d0 CALt AIr, H20, mAn, SEt0 DO calibration type (AIr, yes)
d0 LIFE 365 to 0 RDO cap replacement countdown in days – 3, 4 and 5 Star Plus RDO
meters only (Set by RDO sensor, no)
dUE PH 0 to 9999 pH calibration alarm value in hours, 0 is off (0, yes)
dUE 0rP 0 to 9999 ORP calibration alarm value in hours, 0 is off (0, yes)
dUE ISE 0 to 9999 ISE calibration alarm value in hours, 0 is off (0, yes)
dUE C0nd 0 to 9999 Conductivity calibration alarm value in hours, 0 is off (0, yes)
dUE d0 0 to 9999 DO calibration alarm value in hours, 0 is off (0, yes)
Meter Setup

EN-13Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Top Line Middle Line Bottom Line Setup Menu Description (default setting, method specific)

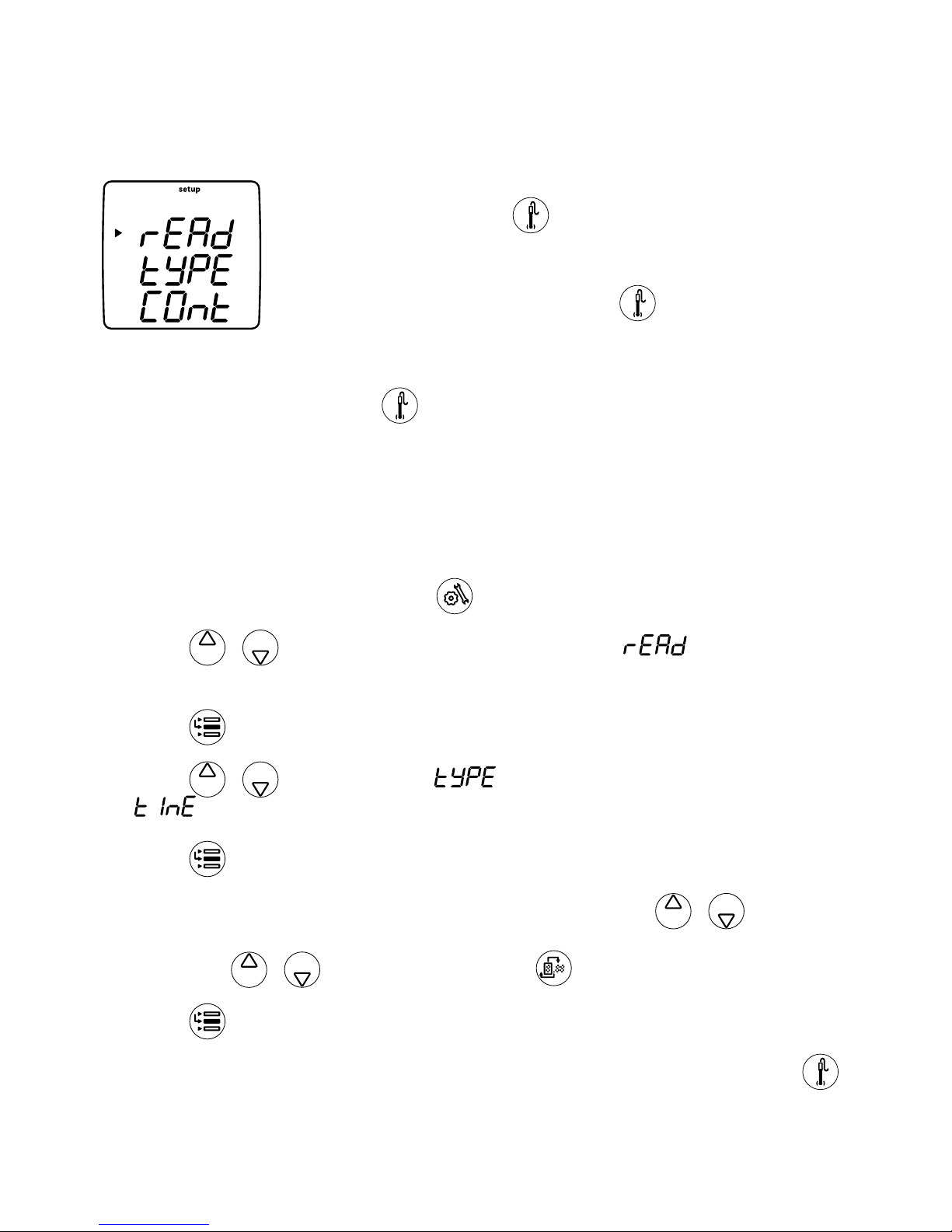

rEAd tyPE AUt0, tImE, C0nt, Measurement read type as AUTO-READ, timed or continuous
(AUt0, yes)
rEAd tInE 00:05 to 99:59 Timed measurement value in minutes and seconds (01:00, yes)
L0g dEL n0, YES Delete datalog after download option, select YES to delete the
datalog when it is downloaded or select nO to loop through the
datalog and not delete the datalog when it is downloaded (n0, yes)
L0g AUt0 0FF, 0n Automatic datalog point saving option (0FF, yes)
gEn dEgC -5.0 to 105 Manual temperature value (25.0, yes)
gEn StIr 0FF, 1, 2, 3, 4, 5, 6, 7 Stirrer speed – 3, 4 and 5 Star benchtop meters only (4, yes)
gEn PASS 0000 to 9999 Meter password entry (0000, yes)
gEn AUt0 0n, 0FF Automatic meter shutoff option (0n, no)
gLP SEt 0FF, 0n GLP option, GLP feature enables or disables methods (0FF, no)
dAtE H0Ur HH00 to HH23 Hour setting (HH12, no)
dAtE tInE mm00 to mm59 Minute setting (mm00, no)
dAtE tYPE mdY, dmY Date format as month, day, year or day, month, year (mdY, no)
dAtE YEAr 2000 to 2099 Year setting (2004, no)
dAtE dAtE mm01 to mm12 Month setting (mm01, no)
dAtE dAY dd01 to dd31 Day of the month setting (dd01, no)
r232 bAUd 1200, 2400, 4800, 9600 Baud rate setting (9600, no)
r232 0UtF Prnt, C0mP Output format for printer or computer, COmP format is comma
delimited (Prnt, no)
AUt0 SAPL 0FF, 0n Autosampler – 3, 4 and 5 Star Plus benchtop meters only (OFF, no)
AUt0 trAY 28, 48 Beaker tray setting (28, no)
AUt0 rInb 1, 2, 3, 4, 5 Number of rinse beakers (3, no)
AUt0 rSEC 5 to 60 Rinse time in each rinse beaker, seconds (10, no)
AUt0 PH 0, 1, 2, 3 pH calibration points (3, no)
AUt0 0rP n0, YES ORP calibration option, appears if 0 was selected for PH (n0, no)
AUt0 ISE 0, 2, 3 ISE calibration points, appears if 0 was selected for PH (2, no)
1 AUt0 ISE1 Concentration value of ISE standard 1, appears if 2 or 3 was
selected for the ISE calibration points (1, no)
10 AUt0 ISE2 Concentration value of ISE standard 1, appears if 2 or 3 was
selected for the ISE calibration points (10, no)
100 AUt0 ISE3 Concentration value of ISE standard 1, appears if 3 was selected for
the ISE calibration points (100, no)
AUt0 C0nd 0, 1, 2, 3 Conductivity calibration points (3, no)
AUt0 n0SA 0 to 47 Number of sample beakers (1, no)
Meter Setup

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-14
General Menu Settings
• Manual Temperature controls temperature compensation
when no temperature sensor is attached to the meter.
• Stirrer Speed sets the stirrer speed from 1 (slowest)
through 7 (fastest) and off (3-Star, 4-Star and 5-Star
benchtop meters only).
• Password Protection protects setup menu options and
methods from being accidentally erased or tampered with
(3-Star, 4-Star and 5-Star meters only).
• Automatic Shutoff controls whether the instrument will
automatically turn off after 20 minutes without a keypress.
1. In the measurement mode, press .
2. Press / to scroll through the setup menu until is displayed on the
top line.
3. Press to accept the selection and move the arrow icon to the middle line.
4. Press / to scroll through for the manual temperature setting,
for the stirrer speed setting, for password entry and for
the automatic shutoff setting.
5. Press to accept the selection and move the arrow icon to the bottom line.
6. To scroll through a list of options on the bottom line, press / until the
desired option is displayed. To enter a numeric value for an option on the bottom
line, press / to adjust each digit and to move to the next digit.
7. Press to accept the selection and move the arrow icon to the top line.
8. Repeat steps 3 through 7 to change another general setting or press to
return to the measurement mode.
Meter Setup

EN-15Thermo Scientific Orion Star™and Star Plus Series Meter User Guide
Time and Date Settings
• The date and time settings are saved with the data and
calibration log points and are included with the data that is
sent to a computer or printer.
• The date format can be set to read month, day, year or
day, month, year according to the user’s preference.
1. In the measurement mode, press .
2. Press / to scroll through the setup menu until is displayed on
the top line.
3. Press to accept the selection and move the arrow icon to the middle line.
4. Press / to scroll through for the current hour setting,
for the current minute setting, for the date format setting, for
the current month setting, for the current day setting and for the
current year setting.
5. Press to accept the selection and move the arrow icon to the bottom line.
6. To scroll through a list of options on the bottom line, press / until the
desired option is displayed. To enter a numeric value for an option on the bottom
line, press / to adjust each digit and to move to the next digit.
7. Press to accept the selection and move the arrow icon to the top line.
8. Repeat steps 3 through 7 to change another time and date setting or press
to return to the measurement mode.
Meter Setup

Thermo Scientific Orion Star™and Star Plus Series Meter User GuideEN-16
AUTO-READ™, Continuous or Timed Measurement Settings
• In the AUTO-READ mode, the meter starts taking
a measurement when is pressed. Once the
measurement is stable, the display freezes and the data is
logged and printed. The AUTO-READ mode also controls
the stirrer. The stirrer starts when is pressed and stops
when the measurement becomes stable.
• In the continuous mode, the meter is constantly taking measurements and
updating the display. Press to log and print a measurement in this mode.
• In the timed mode, the meter is constantly taking measurements and updating
the display. The meter logs and prints the measurement at the selected time
interval. Timed dissolved oxygen measurements with the RDO sensor are taken
only at the selected time interval, which conserves the meter battery power.
1. In the measurement mode, press .
2. Press / to scroll through the setup menu until is displayed on
the top line.
3. Press to accept the selection and move the arrow icon to the middle line.
4. Press / to scroll through for the measurement read type and
for the timed reading interval.
5. Press to accept the selection and move the arrow icon to the bottom line.
6. To scroll through a list of options on the bottom line, press / until the
desired option is displayed. To enter a numeric value for an option on the bottom
line, press / to adjust each digit and to move to the next digit.
7. Press to accept the selection and move the arrow icon to the top line.
8. Repeat steps 3 through 7 to change another measurement setting or press
to return to the measurement mode.
Meter Setup
