Thermo Scientific RadEye G20-ER User manual

Operating Instructions DB-067 E
RadEye G20
RadEye G20-ER
RadEye G20-10
RadEye G20-ER10
X-Ray Gamma Survey Meter

RadEye G20 DB-067 E 0-1
Iw/Tr/Ff 26.11.2012
REVISIONS SHEET:
Rev. Rev.
state
Dept.
resp.
Name Rev.
page
Cat.
*)
Explanation
10.12.07 RM&P-E Pij > V 1.32
A 03.03.08 RM&P-E Pij cpl. C
B 03.04.08 RM&P-E Tr 9-4 I Diagram 9-2
C 28.07.08 RM&P-EH Pi cpl. I > V 1.50
Low Battery warning
D 12.10.09 RM&SI-E Ff 0-7, back C Name of company
E 02.02..11 RM&SI-E Pi 4-8, 4-9,
7-13,
7-15
A > V 2.04
BT-com cover
Source test
F 18.02.11 RM&SI-E Pi
7-16
C > V2.05
Menu selection
G 28.04.11 RM&SI-E Tr 9-2 A Photon Energy range
added
H 12.09.12 RM&SI-EH Pij
4-12
6-6
8-1
9-1
10-1
11-1
13-1
A > V 3.01
Change of menu language
Calibration expiration
date
New chapterl
Rouble shooting
Maintenance
Spare parts
Optional Accessories
Annex
I 26.11.12 RM&SI-E Tr 12-5 A Energy dependency
*) Category C: editorial correction
I: clearing improvement
A: substantial amendment
Explanations must be given, at least with Category A.

0-2 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
CONTENTS:
1. Introduction......................................1-1
2. Installation and start-up..................2-1
2.1 Scope of delivery ......................................................2-1
2.2 Inserting the batteries................................................2-2
2.3 Mounting of the protection sleeve ............................2-4
2.4 Switching the unit on
(example refers to G20-10, calibrated in rem/h).......2-5
3. Configuration...................................3-1
3.1 Menu functions .........................................................3-1
3.1.1 Menu structure...................................................3-2
3.1.2 Main menu.........................................................3-4
3.1.3 Measuring unit...................................................3-4
3.1.4 Operation mode .................................................3-5
3.1.5 Scaler parameter ................................................3-5
3.1.6 Settings ..............................................................3-6
3.1.7 Alarm indication................................................3-6
3.2 Ratemeter..................................................................3-7
3.2.1 Trend indication.................................................3-8

RadEye G20 DB-067 E 0-3
Iw/Tr/Ff 26.11.2012
3.3 Scaler mode...............................................................3-9
3.4 Alarm thresholds.....................................................3-10
3.5 Setting alarm thresholds..........................................3-10
4. Operation.......................................... 4-1
4.1 Audible single pulse indication and finder mode......4-1
4.2 Alarm indication .......................................................4-2
4.3 Additional information .............................................4-3
4.4 Key Lock ..................................................................4-3
4.5 Earphone ...................................................................4-4
4.6 Alarm latching ..........................................................4-5
4.7 Show alarm ...............................................................4-6
4.8 Text Info ...................................................................4-7
4.9 Display rotation.........................................................4-7
4.10 Set Date and Time.................................................4-8
4.11 Battery type ...........................................................4-8
4.12 BTcom cover.........................................................4-9

0-4 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
4.13 Source test ...........................................................4-10
4.14 Change menu language .......................................4-12
5. Measurement units.......................... 5-1
6. Functional test.................................6-1
6.1 Functional test...........................................................6-1
6.2 Failure indication ......................................................6-2
6.3 Overload indication...................................................6-3
6.4 Response test with test adapter .................................6-4
6.5 Low Battery warning ................................................6-5
6.6 Calibration expiration date........................................6-6
7. PC configuration.............................. 7-1
7.1 Ways to connect to a PC ...........................................7-1
7.1.1 Wireless connection via Bluetooth ....................7-1
7.1.2 Cable connection ...............................................7-2
7.2 Connection to a PC ...................................................7-3
7.3 Installation of the optional RadEye.EXE software ...7-5

RadEye G20 DB-067 E 0-5
Iw/Tr/Ff 26.11.2012
7.4 Starting the program .................................................7-5
7.4.1 RadEye G20 Device Parameters........................7-5
7.4.2 Measurements....................................................7-6
7.4.3 Creating a Measurement File.............................7-8
7.4.4 Select serial interface.......................................7-10
7.5 Configuration..........................................................7-11
7.5.1 General configuration ......................................7-12
7.5.2 User defined text..............................................7-13
7.5.3 Mode setting ....................................................7-14
7.5.4 Source test .......................................................7-15
7.5.5 Alarm setting ...................................................7-16
7.5.6 Bluetooth .........................................................7-17
7.5.7 Menu configuration .........................................7-18
7.6 History ....................................................................7-19
7.7 Logbook..................................................................7-21
8. Trouble Shooting............................. 8-1
8.1 RadEye doesn’t power on .........................................8-1
8.1.1 Press “On” for at least one second.....................8-1
8.1.2 Check battery.....................................................8-1
8.2 Reading data from the start up screen.......................8-2
8.3 The RadEye doesn’t show the menu items as
described in the manual ............................................8-2

0-6 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
8.4 The RadEye shows an error message in the
display’s top line.......................................................8-3
8.5 The RadEye is not found in the software..................8-3
8.6 RadEye lost date and time settings ...........................8-5
8.7 RadEye’s battery status is lower than expected ........8-6
8.8 History data shows the wrong time and date ............8-6
9. Maintenance.....................................9-1
9.1 Recommended maintenance .....................................9-1
9.1.1 Source test .........................................................9-1
9.1.2 Cleaning the instrument.....................................9-1
9.1.3 Remove batteries for storage .............................9-2
10. Spare Parts.................................. 10-1
10.1 Available spare parts ...........................................10-1
10.2 Recommended spare parts...................................10-1
11. Optional Accessories ................. 11-1
11.1 Earphone for RadEye series (425067037)...........11-1
11.2 Extension adapter ................................................11-2

RadEye G20 DB-067 E 0-7
Iw/Tr/Ff 26.11.2012
11.3 Test adapter for RadEye G20 (4254948) ............11-2
11.4 Desktop holder (425067060)...............................11-3
11.5 IR connection cable serial (4254029)..................11-3
11.6 IR connection cable USB (4254026) ..................11-4
11.7 Bluetooth battery cover (425067087) .................11-5
11.8 RadEye car- and wall holder with
accumulator charging circuit...............................11-5
11.8.1 Accessories for dash board mounting of
car holder 42506/7065
(including charging function)
holder 42506/7060
(mechanical holder only) .................................11-9
11.8.2 Accessories for data transmission using
the car adaptor ...............................................11-11
11.8.3 Accessories for AC – operation
of the car adaptor ...........................................11-11
11.9 RadEye inductive charger .................................11-12
11.9.1 LED indicators ...........................................11-13

0-8 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
12. Technical data............................. 12-1
12.1 RadEye G20-10 and RadEye G20-ER10 ............12-1
12.2 RadEye G20 and RadEye G20-ER......................12-8
12.3 RadEye inductive charger: ................................12-11
12.4 Firmware revisions............................................12-12
V 1.32...........................................................................12-12
V 1.50...........................................................................12-12
V 1.51...........................................................................12-12
V 2.04...........................................................................12-12
V 2.05...........................................................................12-12
V 3.01...........................................................................12-12
13. Annex...........................................13-1
13.1 Factory Settings RadEye G20 / G20-ER.............13-1
13.2 Factory Settings RadEye G20-10 / G20-ER10....13-3

RadEye G20 DB-067 E 0-9
Iw/Tr/Ff 26.11.2012
TABLE OF FIGURES:
Diagram 12-1: Energy dependence for ambient dose
equivalent H*(10) ..........................................................12-5
Diagram 12-2: Relative Gamma response RadEye G20
and RadEye G20-ER......................................................12-5
Diagram 12-3: Angular response, relative to Cs-137............12-6
Diagram 12-4: Angular response, normalized.......................12-6
Diagram 12-5: Angular response relative to Cs-137.............12-7
Diagram 12-6: Angular response, normalized.......................12-7
WEEE Compliance:
This product is required to comply with the European Union’s
Waste Electrical & Electronic Equipment (WEEE) Directive
2002/96/EC. It is marked with the following symbol:
Thermo Fisher Scientific has contracted with one or more
recycling/disposal companies in each EU Member State, and
this product should be disposed of or recycled through them.
Further information on Thermo Fisher Scientific compliance
with these Directives, the recyclers in your country, and in-
formation on Thermo Fisher Scientific products which may
assist the detection of substances subject to the RoHS Direc-
tive are available at www.thermo.com/WEEERoHS

0-10 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
SAFETY INSTRUCTIONS
The RadEye G20 is suited to perform highly accurate dose
measurements. It is however not intended for use as a legal
personal dose meter.
The RadEye B20 is not well suited for pulsed radiation. There
will be a significant under estimation at dose rates during
pulse of more than 0.2 R/h.
In case the dose rate measuring range is exceeded, the value of
the upper end of the dose rate measuring range is used for the
dose integration.
The instrument must not be used in explosive atmosphere.
Do not use the unit if error messages appear on the screen.
The earphone connector at the bottom side of the instrument
must be exclusively used by equipment that is specified for
use with RadEye G20.
The RadEye G20 is not suited for pulsed photon radiation.

RadEye G20 DB-067 E 1-1
Iw/Tr/Ff 26.11.2012
1. Introduction
The instruments of the RadEye G20 series are modern com-
pact survey meters for sensitive gamma and x-ray dose rate
measurements. The instrument incorporates a sensitive GM
pancake tube detector allowing the dose rate measurement
from background levels. ER-versions extend the measuring
range up to 100 mSv/h (10 rem/h respectively 10 R/h).
RadEye G20-10 and RadEye G20-ER10 are energy compen-
sated according to the SI-standard units of ambient dose
equivalent H*(10) (= “deep dose”) and show a flat response
from 17 keV to 1.3 MeV. RadEye G20 and RadEye G20-ER
are energy compensated according to roentgen units (40 keV
to 1.3 MeV). In this context it is important to note, that users
may select “R/h, Sv/h or rem/h” as a display unit, with the
understanding that the energy response characteristic is not
altered by this selection. Within the RadEye G20 family the
relation 1 R = 1 rem =10 mSv is used.
The last 1600 mean and maximum values of the count rate or
dose rate are recorded internally and can be read out via serial
interface. Additionally the RadEye G20 logs the last 250
alarms, errors and changes of the configuration. All events can
be read out via serial interface.

1-2 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
A real time clock is provided to add a time stamp to all buffer
data. The characteristic feature of the RadEye G20 is the use
of sophisticated low power technology components and mi-
croprocessor based fully automatic self checks. No mainte-
nance is required.
All or selected menu functions described in 3.1 can be con-
figured to be invisible and inaccessible by the user.
Thus the instrument can be configured to both, an ex-
tremely simple mode allowing just LCD-illumination and
alarm acknowledgment to a very versatile mode for the
more experienced user.

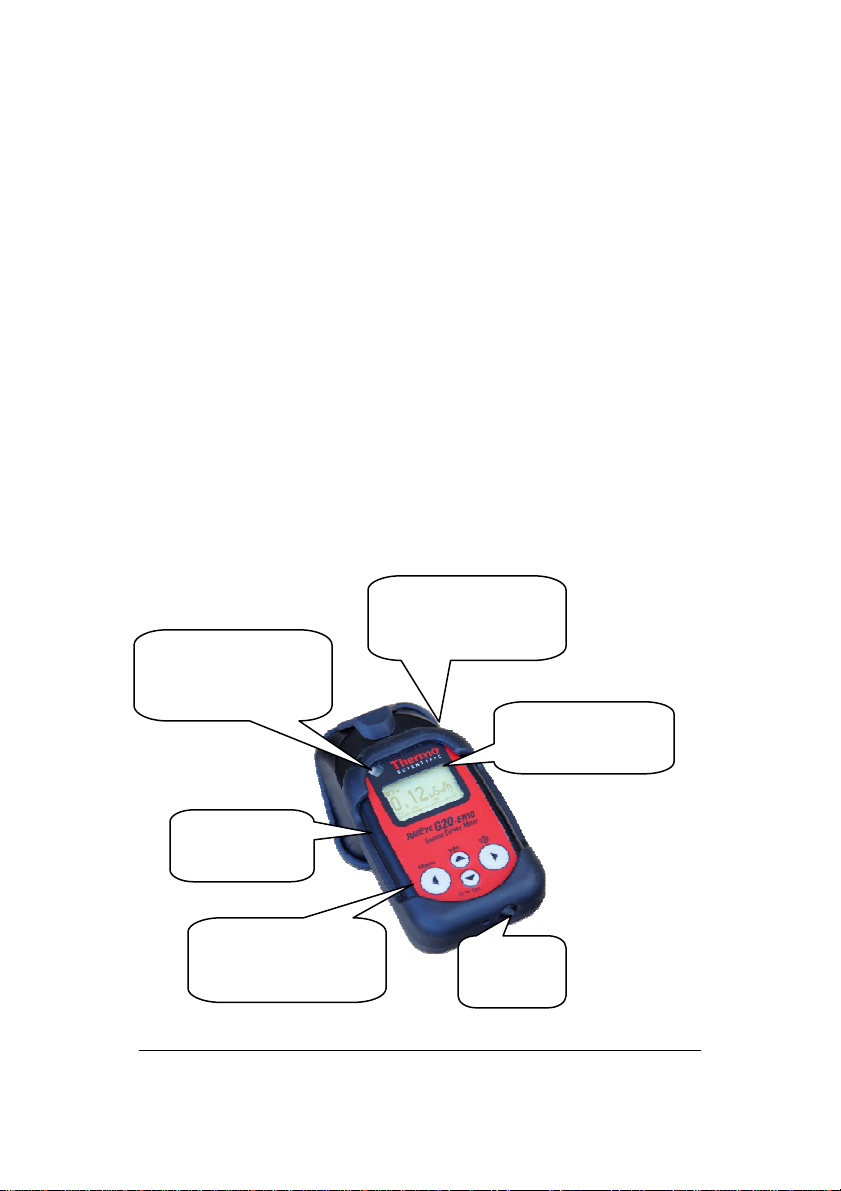

Key on top side to
acknowledge alarms if
worn in a holster
Powerful graphical
display
Alarm LED showing
radiation exceeding
thresholds.
Easy to use, four key,
menu driven user
interface
Earphone
connector
Rugged plastic
enclosure

RadEye G20 DB-067 E 2-1
Iw/Tr/Ff 26.11.2012
2. Installation and start-up
2.1 Scope of delivery

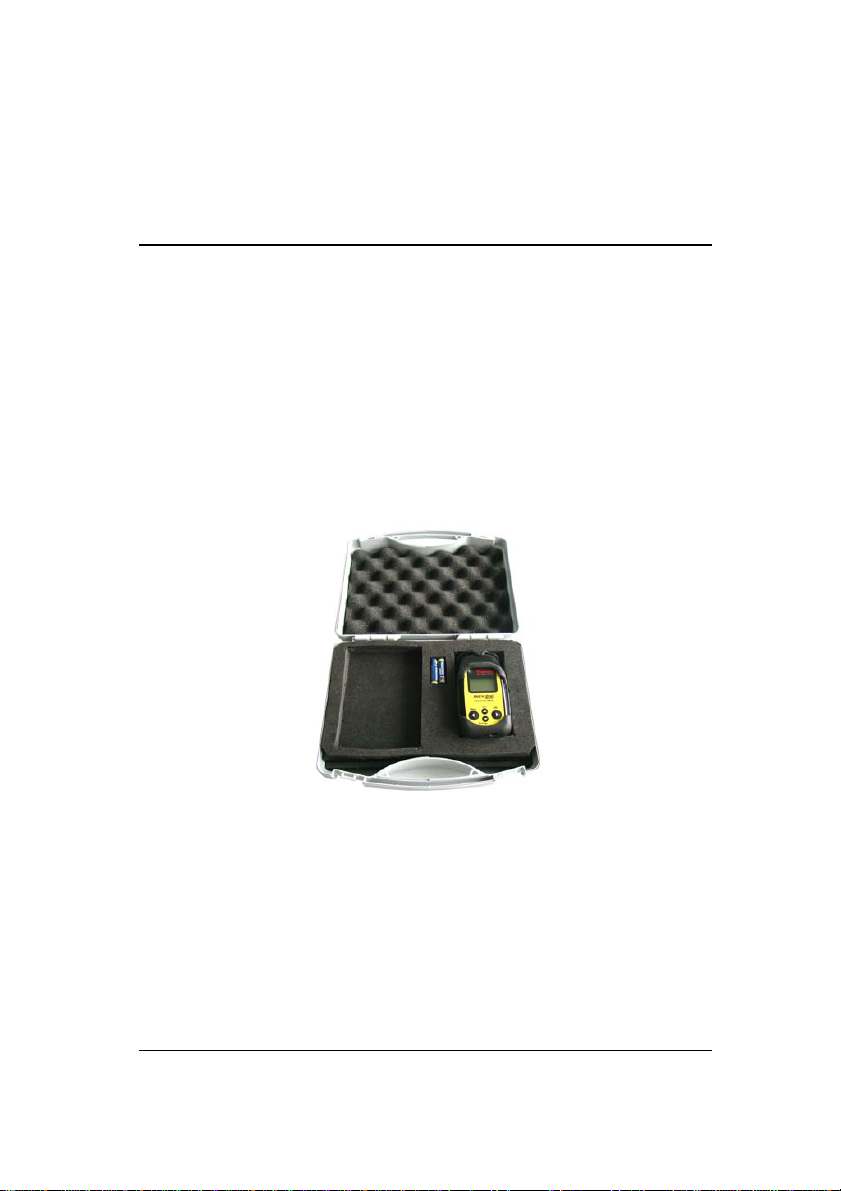

The RadEye G20 instruments are delivered in a box together
with two AAA cells and an operating manual.
Ample space is provided for a data cable or a test adapter.
.
Ordering information for accessories see chapter 11

2-2 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
2.2 Inserting the batteries
The two AAA-Alkaline cells as delivered with the instrument
allow about to 900 h with RadEye G20/G20-10 respectively
700h with RadEye G20-ER/G20-ER10 of normal operation.
AAA size rechargeable batteries can be used as well.
•Switch off the measuring instrument.
•Remove rubber sleeve.
•Open the cover of the battery compartment.
Use of a coin is recommended.
•Exchange the batteries according to the shown polarity.
•Close the compartment cover hooks first, care for the rubber
seal being in its groove.
•Switch on the unit again. (see chapter 2.4)
The instrument continues working in the operating mode set last
(see chapter 3.2).

RadEye G20 DB-067 E 2-3
Iw/Tr/Ff 26.11.2012
The measured values in the history memory remain stored.
The real time clock for time stamp of history values and log-
book continue operation, if batteries are exchanged without
delays. If Real Time Clock is set, actual time and date is dis-
played for 3 s (see chapter 2.4).
After power on the RadEye first display zero dose rate. After
the first detector pulse the measurement will be started.
If correct timing information of logbook and history is required,
the Real Time Clock should be set by means of the PC-program
or via menu function “Set Time/Date”.
To keep RTC running during battery exchange, batteries must
be exchanged without delays.
RTC will always be reset, if instrument is stored without batter-
ies for more than 10 seconds.
History data and measurement parameters are stored perma-
nently, even if batteries are removed.
Even without RTC information the relative time information of
logbook and history is corrected to the actual PC clock time
during read out unless the batteries had not been removed be-
tween the event and the data read out.

2-4 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012
2.3 Mounting of the protection sleeve
The rubber protection sleeve improves ruggedness to mechani-
cal shocks.
For mounting of the sleeve first put the instrument into the bot-
tom of the sleeve. Then pull lower edges of the sleeve, one after
the other into its right position.
First step Second step

RadEye G20 DB-067 E 2-5
Iw/Tr/Ff 26.11.2012
2.4 Switching the unit on
(example refers to G20-10, calibrated in rem/h)
To switch on the RadEye G20, keep the “On/▼” button pressed
for at least one second. The sound generator (beeper) is initi-
ated.
After switching the unit on, the RadEye G20 starts working
with the parameters previously selected (operation mode, cali-
bration factor, alarm thresholds etc.).
If the real time clock is set, actual time and date is displayed for
3s.
The RadEye G20 first displays 0 µrem/h. After the first detector
pulse the measurement will be started.

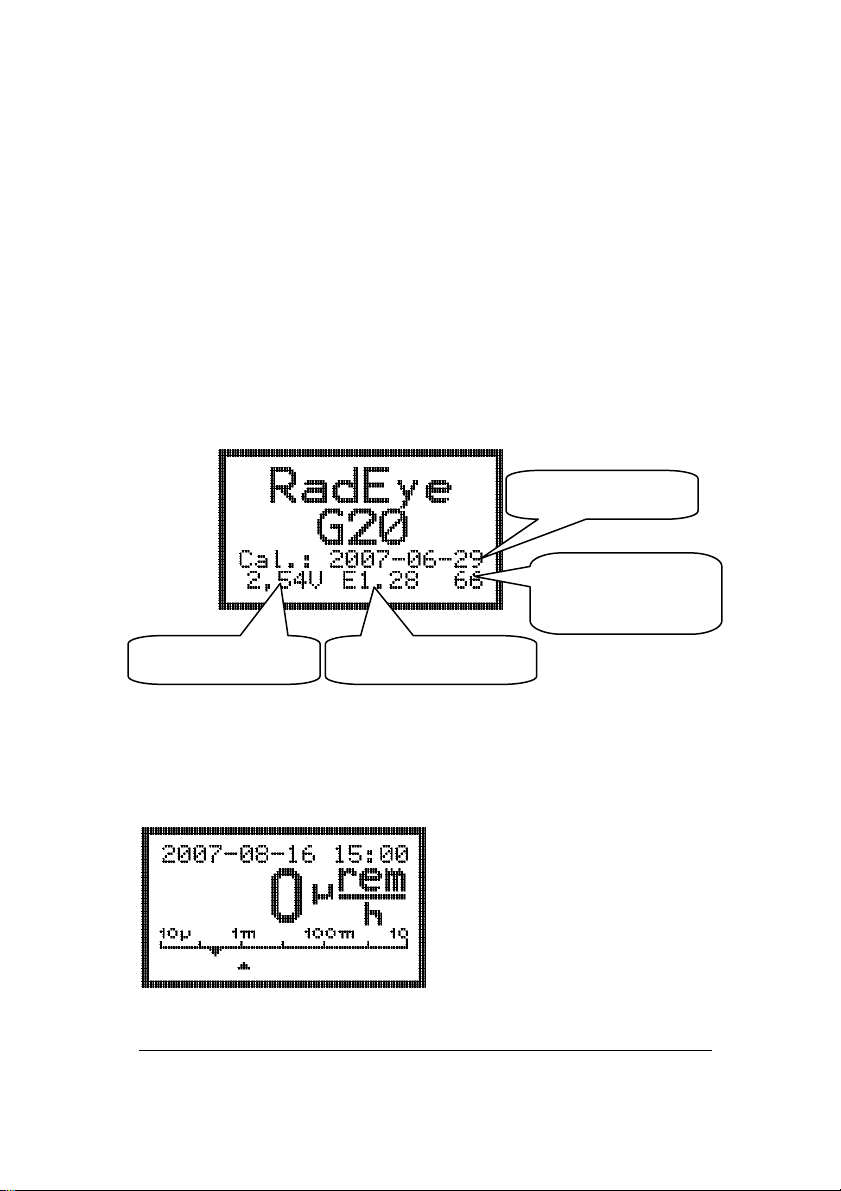

Calibration date
Battery voltage Firmware version
Checksum of the
firmware

2-6 DB-067 E RadEye G20
Iw/Tr/Ff 26.11.2012

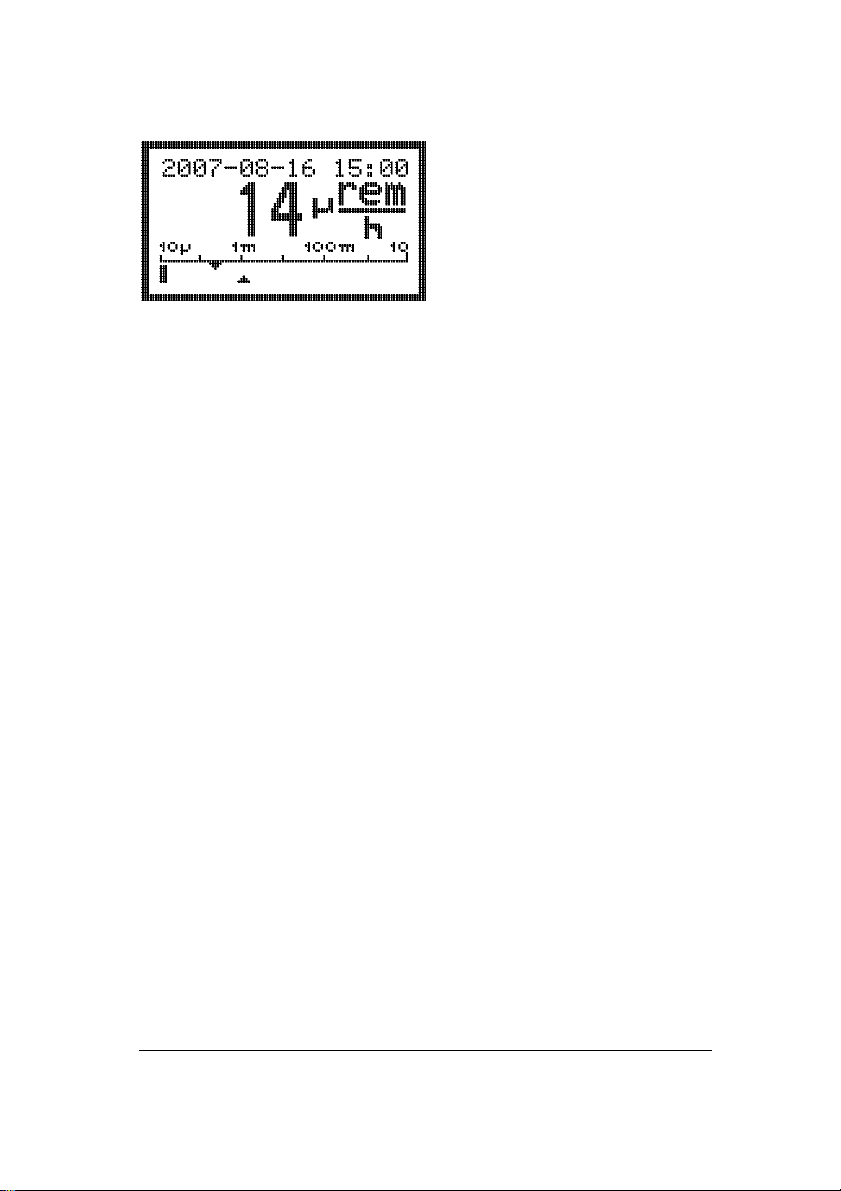

With the setting of the history recording interval of 120 s, the
last 52 hours of operation will be stored in the history memory.
The parameters (except calibration parameters) can be changed
with the help of RadEye buttons and the optional PC-program
“RadEye.exe” V1.30 and the cable 42540/29 or /26.
The calibration parameters can only be changed in the factory
using special software tools.
