Thermo Scientific Smart Siren User manual

User Guide
331676H04 • Revision A • 05/27/2020
Smart Siren

IMPORTANT Read this user guide. Failure to follow the instructions in this user guide can result in damage to
the unit, injury to operating personnel and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are
subject to change without notice. Thermo Fisher Scientific makes no representations or warranties with
respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising
from or related to the use of this manual.
© 2020 Thermo Scientific. All rights reserved. Thermo Scientific, the Thermo Scientific logo, Smart-Vue Pro
Duo and Smart-Vue Pro Quatro are the exclusive property of Thermo Scientific. All other brands mentioned
are the property of their respective owners. This is a non-contractual document. Features and specifications
mentioned here are subject to change.

Contents
Safety Instructions ....................................................... 1
Device Maintenance................................................. 1
Regulatory Information ................................................. 3
IC Statements .......................................................... 3
CE - Conformity with European Regulations ............ 3
Introduction ................................................................. 5
Package Contents.................................................... 5
Key Features............................................................ 6
Requirements and Recommendations...................... 6
What is a Smart Siren?............................................. 7
Where to Find More Information ............................... 8
Using the Smart Siren .................................................. 9
Placement for Best Wireless Performance................ 9
Mounting Kit............................................................. 9
AC Adapter .............................................................. 9
Battery ..................................................................... 10
Adjusting Siren Volume ............................................ 10
Device Maintenance..................................................... 11
Non-replaceable Battery........................................... 11
Cleaning Instructions................................................ 11
Appendix 1 - Troubleshooting...................................... 12
Smart-Vue Pro Installation Procedure........................... 13
WEEE Compliance ...................................................... 25
Contact Information .................................................... 26

Smart Siren User Guide Safety Instructions | 1
Safety Instructions
IMPORTANT NOTE: Do not use this product for
protection or as part of an automated emergency
system or as for any other application that
involves protecting people and/or property. This
product is designed for use in environments
where children are not likely to be present.
Customers and users of Thermo Scientific
products are responsible for making sure that the
product is fit for the intended usage. Do not open
the product casing and do not disassemble or
modify internal components in any manner.
Thermo Scientific products do not contain any
internal components that require user
intervention or repair. If the device shows signs of
improper operation, disconnect it immediately
from its power source or remove the battery and
contact Thermo Scientific technical services.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT OPEN OR
REMOVE THE PRODUCT CASING. NO USER-
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol is
intended to alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
BATTERY WARNING: This product contains one
nonrechargeable 3.6V battery. THE BATTERY IS
NOT REPLACEABLE. Any attempt to change the
battery or opening the product casing will void
the manufacturer warranty. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL
Use only batteries recommended by Thermo
Scientific. Do not use a different type of battery,
such as rechargeable, alkaline and magnesium,
or use batteries of different brands, or even
different types of batteries of the same brand.
Incorrect batteries may cause the device to heat
up and may result in fire or battery liquid leakage.
Never dispose of batteries in fire. Do not charge
regular batteries that are not specifically
rechargeable.
When the battery is low, or in case the battery-
operated device in question remains unused for a
lengthy period of time, remove the battery from
the device in order to avoid any risk of battery
liquid leakage. Never leave batteries within the
reach of children. In case of a battery leak, avoid
all contact with the liquid present on the batteries.
Rinse with clear water immediately in case the
battery liquid comes into contact with the eyes,
mouth or skin. Contact a doctor or emergency
service immediately. Battery liquid is corrosive
and can damage vision or cause blindness or
chemical burns.

2 | Safety Instructions Smart Siren User Guide
Device Maintenance
When maintaining your device:
CAUTION: : Do not attempt to disassemble the
device. There are no user serviceable parts
inside.
CAUTION: Do not misuse the device. Follow
instructions on proper operation and only use as
intended. Misuse could make the device
inoperable, damage the device and/or other
equipment, or harm users.
CAUTION: Do not apply excessive pressure or
place unnecessary weight on the device. This
could result in damage to the device or harm to
users.
CAUTION: Do not use this device in explosive or
hazardous environments.
CAUTION: Do not expose your device to any
extreme environment where the temperature or
humidity is high. Such exposure could result in
damage to the device or fire.
CAUTION: Do not expose the device to water,
rain, or spilled beverages. It is not waterproof.
Exposure to liquids could result in damage to the
device.
CAUTION: Do not place the device alongside
computer discs, credit or travel cards or other
magnetic media. The information contained on
discs or cards may be affected by the device.
CAUTION: Using accessories, such as
antennas, that Thermofisher has not authorized
or that are not compliant with Thermofisher
accessory specifications may invalidate the
warranty.

Smart Siren User Guide Regulatory Information | 3
Regulatory Information
FCC Certification
FCC part 15 modular qualification
FCC IDs:
- Contains Bluetooth component 2AA9B04
- Contains LoRaWAN™ component XTLCMABZ
This paragraph pertains to 915 MHz Smart-Vue Pro™
wireless devices. This device complies with part 15 of the
FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna should not be less than
20 cm (8 inches) during normal operation. End users must
follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co
located or operating in conjunction with any other antenna or
transmitter.
IC Statements
Industry Canada RSS-210 modular qualification
IC:
- Contains Bluetooth component 12208A-04
- Contains LoRaWAN™ component 9337A-CMABZ
This paragraph pertains to 915 MHz Smart-Vue Pro™
wireless devices. This device complies with Industry Canada
license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of
the device.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
CE - Conformity with
European Regulations
This paragraph pertains to 868 MHz Smart-Vue
Pro™ wireless devices. The Thermo Scientific
product (contains Bluetooth component BMD-
300, LoRaWAN component CMWX1ZZABZ) is
compliant with the essential requirements and other relevant
requirements of the following standards and/or normative
documents.
• Directives:
• 2014/53/EU Radio Equipment Directive (RED)
• 2014/30/EU EMC Directive
• 2014/35/EU Low Voltage Directive
• 2011/65/EU and the amendment of (EU) 2015/863
Restriction of Hazardous Substances Directive
• In application of the following standards
• ETSI EN 300 220-2 V3.1.1
• EN 301 489-1 V2.2.1
• EN 301 489-3: V2.1.1
• EN 301 489-17 V3.2.1
• EN 300 328 V2.2.2
• UL/CSA 61010-1: 2012 3rd edition and IEC/EN
61010-1: 2010 3rd edition
CAUTION: Any changes or modifications not
expressly approved by Thermo Scientific could
void the user's authority to operate the
equipment.
RoHS Compliance
The wireless device is in compliance with the EU
Directive 2011/65/EU (Restriction of the Use of
Certain Hazardous Substances in Electronic and
Electrical Equipment) and the amendment of (EU)
2015/863. Do not dispose of this product with
household trash. Thermo Scientific recycles this
product under certain conditions. Contact us for
more information.

4 | Introduction Smart Siren User Guide
Introduction
This guide describes how to prepare your siren up for use
with the Smart-Vue Pro wireless monitoring system.
The Thermo Fisher Scientific Smart Siren is the perfect
addition to your lab or storage facility’s monitoring solution.
As part of your Smart-Vue Pro monitoring system, this
LoRaWAN enabled device alerts you in case of alarms, such
as sensor readings that exceed programmed limits as well as
other types of technical alarms.
Just place the Smart Siren in a convenient location and use
the Smart-Vue Pro web application to create an alert strategy
that includes the device. The siren can be used in addition to
other alert mechanisms, such as e-mail, voice notification,
and text message sent to your phone.
The Smart-Vue Pro system activates the siren wirelessly if one
of your data loggers, network devices, or even the siren itself,
encounters an alarm.
The siren even has a backup battery that maintains the
LoRaWAN wireless connection in order to be able to notify the
system in case of a power outage.
With its flashing red light and (adjustable) siren sound, you’ll
never miss an alarm.
Note: Detailed configuration instructions and software
settings are provided in the Smart-Vue Pro Web Application
User Guide available in the Help section of the web
application.
Package Contents
• Smart Siren and antenna
• AC power adapter with 1.5 meter (about 5 ft.) cable and
4 international plug sizes;
100-240 V (50/60 Hz) AC12 V DC – 1.0 A
• Mounting kit with magnet and 2-sided Velcro®tape.

Smart Siren User Guide Introduction | 5
Key Features
Requirements and
Recommendations
For the purposes of this installation guide we assume that:
• Your access to the Smart-Vue Pro web platform and
application is configured and you have appropriate
access rights to configure devices in the system.
• LoRaWAN wireless coverage is available at the location
where you will be using the siren.
Applications • Audiovisual notification in case alarms are detected by your Smart-Vue Pro system
Compatibility • For use with Smart-Vue Pro LoRaWAN-based monitoring solutions
Connectivity
• LoRaWAN™ long-range wireless technology (range up to 16 km/10 miles line-of-
sight(1))
• Bluetooth®Low Energy for wireless firmware upgrade
Push-Button
• A long press (> 3 seconds) on the button tests the network connectivity with Smart Vue
Pro web server. The LED flashes GREEN if the test is passed. If the test fails, it is indicated
in RED.
• Snooze
Power Supply
• 110-240 V input auto-switching power adapter and international plugs (included)
• 1.5 m (about 5 feet) cable
• 12 V 1.0 A output
• Auto-switch to backup battery (with alert in case of power outage)
Battery
• 3.6 V backup battery
• Non-rechargeable, non-replaceable
• Maintains LoRaWAN™ connectivity to notify system in case of power outage
Sound • Adjustable siren volume from 60 dBA to 100 dBA (± 10%)
LED • Green/red status indicator
Operating Conditions • 0°C to +50°C (32°F to 122°F)
• 0 to 90% RH (non-condensing)
Storage Conditions • -10°C to +60°C (14°F to 140°F)
• 0 to 99.99% RH (non-condensing)
Mounting and Installation • Mounting kit for use with provided Velcro® or magnet
• Maximum mounting height < 2 meters
Casing • For indoor use only
• ABS and polycarbonate plastic
Dimensions • 160 x 80 x 83 mm (6.3 x 3.2 x 3.3 in.)
Weight • 400 g (14.1 oz.) including battery
Certifications • CE, FCC, IC

6 | Introduction Smart Siren User Guide
What is a Smart Siren?
Smart Sirens are used to raise visual and audio alerts if alarm
conditions are detected in your
Smart -Vue Pro wireless monitoring system. Alarms can be
configured in the Smart-Vue Pro web application for any or all
of your end-point modules and/groups.
For example, you can configure a data logger to trigger an
alarm if the temperature exceeds or drops below a specified
limit. The alarm limits and values depend on the type of data
logger you are using. The siren is triggered when an alarm is
detected by the web platform.
Figure 1. Smart Siren
Volume
Control
AC Adapter Plug
Smart Siren

Smart Siren User Guide Introduction | 7
Architecture Overview
Thermo Fisher Scientific sirens connect wirelessly to your LoRaWAN receiver, just as the other wireless modules in your
network:
Figure 2. Smart Siren as part of your Smart-Vue Pro monitoring solution
The Smart-Vue Pro web monitoring platform triggers the siren wirelessly when it detects an alarm condition on an end-module
or repeater.
General Requirements and
Recommendations
• For safety reasons, the siren should be mounted less
than 2 meters (about 6.5 feet) from the floor.
• The AC adapter used for your Smart Siren should be
plugged into an uninterruptible power supply (UPS).
• Weekly manual system testing should be performed as
defined in your Standard Operating Procedure (SOP).
• Thermo Fisher Scientific recommends Installation and
Operational Qualifications (IQ/OQ) be performed before
initial use.
Where to Find More
Information
The use and operation of your Smart Siren is described in the
Smart-Vue Pro web application user guide. You may click on
Help Online Help User guides to open directly
from the web application interface.
Smart-Vue Pro
LoRaWAN
enabled
dataloggers
Smart
Siren
Smart-Vue Pro
LoRaWAN
gateway
Smart-Vue
Pro Cloud
Smart-Vue Pro
web application
Customer
Service

8 | Using the Smart Siren Smart Siren User Guide
Using the Smart Siren
This section assumes that your access to the Smart-Vue Pro
web platform and application is configured and you have
appropriate access rights to configure devices in the system.
You will need application manager role to access certain
configuration options.
Placement for Best
Wireless Performance
For optimal operation, follow these recommendations when
physically placing your device:
• Do not place the siren within 40 cm (16 in.) of another
module or wireless device.
• Make sure the wireless module is not placed on an
electrical conduit or cable tray (such as for computer
network cables).
• For best results, place the module so that it faces the
general direction of the receiver antenna if possible.
• Keep about 20 cm (8 in.) of clear space around the
module. For example, a module that is “stuck” between
two refrigerators may not communicate effectively.
• Place your siren where people will not bump into it or
unplug it (no more than 2 meters (6.5 ft.) from the floor).
• To ensure that the AC adapter does not get unplugged
accidentally, use a power socket that is also elevated
from the floor and/or shield the cord in a protective
conduit that is fixed to the wall (or within the wall).
The siren is a critical device in your wireless monitoring
system. Therefore, we recommend that you keep it plugged it
into an Uninterruptible Power Supply or safety plug.
Mounting Kit
1. For strong adhesion, wipe and dry the back of the siren
and the mounting surface on which you intend to place
the unit.
2. Velcro: Attach one side of the Velcro tape to the back of
the siren and the other on the wall where you intend to
place the unit.
Magnet: Remove the adhesive backing and attach the
magnet to the siren.
3. Place the siren on mounting surface.
AC Adapter
1. Plug the AC adapter into the siren as shown below. The
plug should slide firmly into the socket on the siren.
2. Plug the AC adapter into an uninterruptible power supply
or wall outlet, a LED next to plug shall be turned ON in
GREEN.
3. When operating on battery, the LED turns to RED.
4. After 1 minute operation on battery, device shall turn
OFF, by emitting a notification to webapp.
CAUTION: For safety reasons, the siren should
be mounted less than 2 meters (about 6.5 feet)
from the floor.
WARNING: Do not open the Smart Siren casing.
There are no user-serviceable parts inside.
Opening the casing voids the manufacturer
warranty.

Smart Siren User Guide Using the Smart Siren | 9
Battery
The battery in the Smart Siren is used to send an “AC
unplugged” event to the Smart-Vue Pro Web Application.
Once the device sends the unplug event to the Smart-Vue
Pro Web application, the device will go into sleep mode until it
is connected to AC power.
A communication failure alarm will be triggered if data from
the Smart Siren is not received by the Smart-Vue Pro Cloud
server after a defined time interval as configured in the Smart-
Vue Pro Application, with or without the AC adapter
connected to the Smart Siren.
In case of a low battery, the “low battery” event is generated
by the Smart Siren and is sent to the Smart-Vue Pro Web
application. In normal use, when the device is plugged into
AC power, the battery will not discharge. Battery life is
extended as long as the device is plugged into AC power.
Adjusting Siren Volume
The siren volume is adjustable from 60 dBA to 100 dBA
(± 10%). Adjust the volume to meet your needs by turning the
screw-knob inside the cavity on the bottom of the unit as
shown here:
Volume: Clockwise tuning shall increase the volume and anti
clock wise tuning shall decrease the volume.
Note: Use a appropriate star screw driver for adjusting the
volume.
Snooze: A short press on the push button snoozes the buzzer
locally i.e. the sound is muted and LED is turned OFF until
Smart-Vue Pro webapp sends a new alarm or rings for an on
going alarm after 12 hours.
Buzzer shall be muted for 12 hours or till a new alarm is
detected on the datalogger or Webapp.
Cleaning Instructions
You may occasionally need to clean your siren modules,
depending on conditions at your site. Here are some
recommendations and guidelines for cleaning your siren:
1. Always unplug the device from its AC power source
when cleaning with any type of liquid.
2. Clean the module using a soft cloth lightly moistened with
water, a detergent or isopropanol alcohol.
3. Do not use any aggressive cleaning agents or scratching
cleansers that might damage your Smart Siren.
4. Do not submerse the siren in any liquid, as the casing is
not waterproof.

10 | Appendix 1 - Troubleshooting Smart Siren User Guide
Appendix 1 - Troubleshooting
What is Strobe LED?
Strobe LED is the RED alarm LED used for alarm indication.
How do we perform snooze operation?
A short press on the push button snoozes the buzzer locally
i.e. the sound is muted and LED is turned OFF until Smart-
Vue Pro webapp sends a new alarm or after 12 hours it shall
ring back for an ongoing alarm.
How much time will buzzer gets snoozed if we select
snooze button?
Buzzer shall be muted for 12 hours or till a new alarm is
detected on the datalogger.
Ho do we configure the Smart Siren?
Smart Siren shall be added in the Smart-Vue Pro webapp.
Refer Smart-Vue Pro webapp user guide for configuration
details.
From where do we get the input commands to smart
siren, so that they generates siren or buzzer?
When Smart-Vue Pro webapp detects a new alarm, then
webapp sends the information to Smart Siren via Lorawan
gateway.

Smart Siren User Guide Smart-Vue Pro Installation Procedure | 11
Smart-Vue Pro Installation Procedure
1. Ensure Smart-Vue Pro Quatro is connected with Sensors
and sensor value is shown in Show sensors screen.
Example: Smart Sensor value displayed in Show sensors
screen.

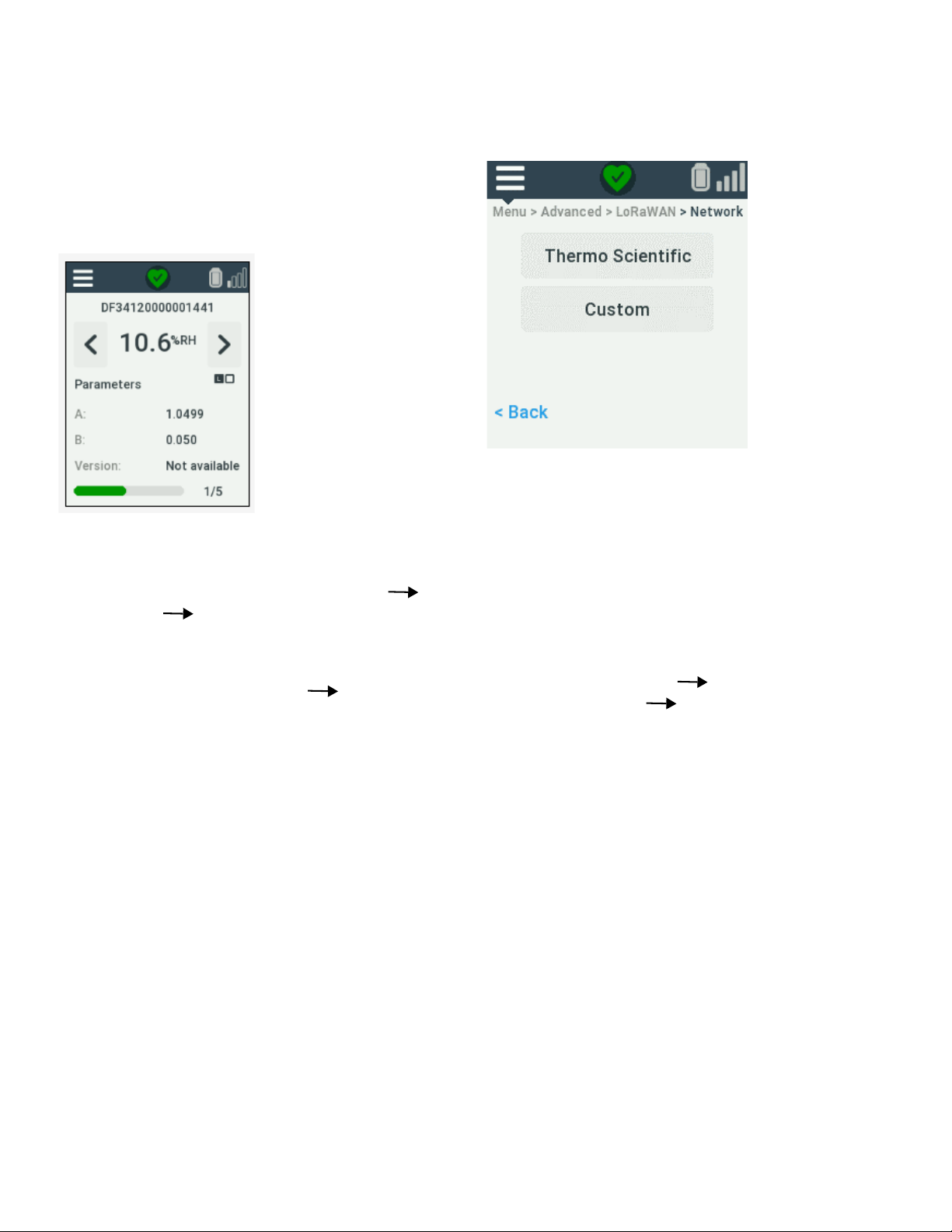

Figure 3. Sensor Screen
2. Ensure LoRaWAN is ON in Smart-Vue Pro Quatro.
In Smart Vue Pro Quatro device, Click Menu
Advanced give the code which is set in Web app
which is added by User during configuring the user
setting i.e., Pin code set in web app by the user or by
default it is 000000. Then in Advanced, once a valid code
is entered, select the LoRaWAN select ON option
from ON/OFF to enable LoRaWAN connectivity.
Note: The code is the Pin code set in webapp by the
user. Default it is 000000.
• After giving a valid code in Advanced, select
LoRaWAN and select ON option. Now, LoRaWAN
Connectivity is enabled.
3. Select Menu and select Advanced and then click on
LoRaWAN and select Network. Select the Thermo
Scientific option (or) for Onpremise installation, select
“custom” as shown below.
Figure 4. LoRaWAN Network Options
4. Select your country from the drop-down and Save.
5. To communicate with the cloud in Multitech LoRaWAN
web browser page, configure the Network in Smart-Vue
Pro LoRaWAN settings. Refer to the Settings in the
Smart Vue Pro LoRaWAN user guide to know more
about setting up of different networks like WiFi and
Ethernet.
a. Ethernet Configuration:
• Click on Setup Network
Interfaces Options (Edit) for “eth0” (1).
Click on the edit icon (1) for the network interface
you want to edit as shown.

12 | Smart-Vue Pro Installation Procedure Smart Siren User Guide
Figure 5. Ethernet Configuration page
b. WiFi Configuration:
• Click Wireless in Setup section and select WiFi as WAN and add the desired Network. Select enabled option
and click Submit to save the settings, select Save and Restart.
Figure 6. Wi-Fi Configuration page

Smart Siren User Guide Smart-Vue Pro Installation Procedure | 13
c. In Smart-Vue Pro LoRaWAN page, after infrastructure is added in webapp, click on “Test LoRaWAN Server” (This
works when you configure your network as described in the Setting section of Smart-Vue Pro LoRaWAN user Guide).
Figure 7. LoRaWAN connectivity page
6. Configuration in web app
a. In Data loggers page, add the Data logger name (Smart-Vue Pro Quatro) which is under test.
Figure 8. Create Data logger page

14 | Smart-Vue Pro Installation Procedure Smart Siren User Guide
7. Ensure data logger is added.
Figure 9. Sensor serial number display
8. In Sensor page, verify the associated sensor serial number shown.
9. In Infrastructure, add the details of LoRaWAN.
Figure 10. Create Infrastructure

Smart Siren User Guide Smart-Vue Pro Installation Procedure | 15
10. To add a gateway, in serial number field, enter the node id mentioned on the Gateway label.
Figure 11. Enter Node ID
Figure 12. Filling the details

16 | Smart-Vue Pro Installation Procedure Smart Siren User Guide
11. Link the device and its sensors to an equipment which are under test.
Figure 13. Create Equipment
12. To add sensor to an equipment, open the equipment created and click on ‘+’ in equipment details page in sensor section.
13.
14.
Figure 14. Associating Sensor
15. After successfully adding the equipment, device and testing the Lora coverage on SVP Quatro, start the data logging from
either Equipment page or Data logger page by clicking on the play icon.

Smart Siren User Guide Smart-Vue Pro Installation Procedure | 17
16. In Equipment page, click start data logging.
Figure 15. Starting Data logging from the Equipment page
17. You can also start from Data logger page
18. You can see the equipment thumbnail in Watchmode when data logging is in progress.
Note: For more details refer the user guide of the module.
