Thermofilm TT-MTR User manual

R A D I A N T O U T D O O R H E A T E R S
PRODUCT MANUAL
TT-MTR
Wall co n t rol l e r tim er w it h
re mot e c ont ro l

R A D I A N T O U T D O O R H E A T E R S
2
M A N U F A C T U R E D B Y T H E R M O F I L M A U S T R A L I A
D I S T R I B U T E D B Y G R A N D H A L L E U R O P E
TT-MTR Wall Controller with remote control Rev A MAR14
This controller is a custom designed and manufactured controller for HEATSTRIP
®
. It has been designed for ease of
use to ensure economic running costs of your heater. It provides a timer for automatic heater operation.
The timer function has four settings. It can turn the heater on for hour, 2 hours, 4 hours or constantly on.
The timer can be operated where it is installed or via remote control unit. It has pre set timing for hour, 2 hours or
hours or continuous, allowing the heater to operate continuously.
The remote control has a range of 0 metres and must be within line of sight of the wall switch.
Controlling multiple units
It is possible to use one wall controller to control multiple heaters up to 6 Amps load. The wall controller is rated at
6 Amps and 220-240 volts. For larger current draw, it is recommended that you talk to your electrician who can use
a relay to connect more units.
Mounting
The TT-MTR is designed to fit into a standard European wall gangbox. It will just as easily fit into a plaster wall.
Your electrician can install this device.
The controller needs to be installed according to your local wiring guidelines.
Operation
Press “ON/OFF” button to turn power on and off.
Press “TIMER” button to set timer to , 2, 4 hours operation. The timer indicator light will show which time setting is
selected. The timer will start the heater and automatically turn it off at the preselected time.
Safety
The TT-MTR controller must be installed in a dry location. It is not suitable for installation where rain or water could
affect the unit..
Ensure the connections are properly connected.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or intellectual
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play
with the appliance.
Maintenance
The TT-MTR Controller is made from durable materials, however regular care and maintenance of your controller
will help prolong the life of the product.
It is recommended that you dust the controller to keep the surface clean. The cleaning process at least every three
months will reduce the amount of build up and keep it looking as best it can.
Do not use any abrasive materials or products to clean the controller, this includes solvents, citrus based cleaners or
other harsh cleaning products. Do not use water or a damp cloth to clean the controller.
When handling the controller, ensure that your hands are clean or that you use clean gloves as grease or dirt can mark
the surface of the controller.
MODEL MAXIMUM
VOLTAGE Volts)
MAXIMUM
CURRENT Amps)
PACKAGED
DIMENSIONS mm)
WEIGHT kg)
TT-MTR 220—240 16 80 x 80 x 42 0.5

R A D I A N T O U T D O O R H E A T E R S
3
M A N U F A C T U R E D B Y T H E R M O F I L M A U S T R A L I A
D I S T R I B U T E D B Y G R A N D H A L L E U R O P E R e v A M A R 1 4

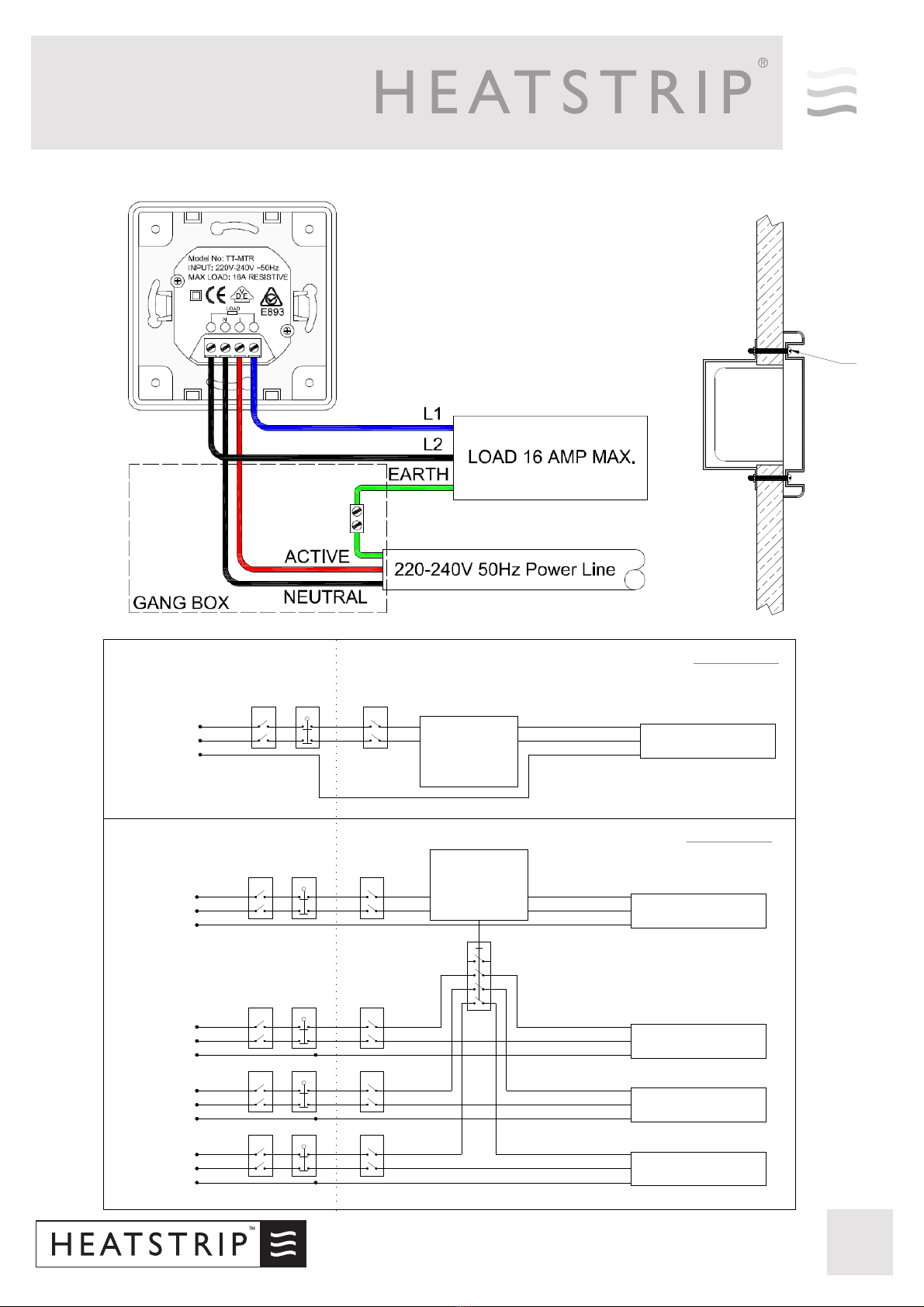

TT-MTR CONTROLLER INSTALLATION
GANG BOX
TT-MTR
WALL
SCREW
15 Amp
EART
4 x T 3200A
T 3200A
EATER
FIELD WIRINGIN SWITC BOARD
TT-MTR
WALL CONTROLLER
MAXIMUM 16A
ACTIVE
NEUTRAL
EART
13.6A
13.6A
T 3200A
EATER
13.6A
T 3200A
EATER
13.6A
T 3200A
EATER
RCD
CIRCUIT
BREAKER ISOLATOR
RELAY
ACTIVE
NEUTRAL
EART
ACTIVE
NEUTRAL
ACTIVE
NEUTRAL
EART
ISOLATOR
ISOLATOR
ISOLATOR
15 Amp
15 Amp
15 Amp
15 Amp
1 x T 2400A
T 2400A
EATER
FIELD WIRINGIN SWITC BOARD
TT-MTR
WALL CONTROLLER
MAXIMUM 16A
ACTIVE
NEUTRAL
EART
10.2A
RCD
CIRCUIT
BREAKER ISOLATOR

R A D I A N T O U T D O O R H E A T E R S
4
M A N U F A C T U R E D B Y T H E R M O F I L M A U S T R A L I A
D I S T R I B U T E D B Y G R A N D H A L L E U R O P E
The below Warranty Terms and Conditions apply for international warranty only.
Grand all B.V. warrants to the original owner that TT-MTR products will be free from defects in materials and workmanship for
a period of 12 months from the date of purchase in accordance with the following warranty terms and conditions.
Provision of this warranty is subject to:
• The TT-MTR product must be installed in accordance with the Installation Instructions and relevant electrical standards and
codes.
• The TT-MTR must be maintained and cleaned according to instructions detailed in the Installation Manual.
• There is no warranty expressed or implied with regard to capacity requirements. The selection of the unit or units depends
entirely upon the system design and capacities as determined by the purchaser.
• The customer has not repaired, opened or altered the product in any unauthorised manner.
• This warranty excludes damage to the product or components arising from circumstances outside the control of Grand all
B.V., including, but not limited to, where the product is not used for intended purpose; where the product has
been rectified in any way; incorrect installation; incorrect power supply; damaged caused during delivery; misapplication,
misuse, abuse, vandalism, lack of maintenance or accident.
• Grand all Europe’s obligations under this warranty are limited to repair or replacement at Grand all Europe B.V. of any
components of the product which Grand all Europe B.V. identifies to its satisfaction to be defective.
• Transportation charges involved in return of the product to Grand all Europe B.V. is the sole responsibility of the customer.
• All products are inspected and tested before despatch and are at the risk of the purchaser after the shipment from Grand
all Europe B.V., if not delivered by Grand all Europe B.V. to destination.
• No products or components will be supplied in advance of an examination of the faulty product or components by Grand all
Europe B.V. or an authorized representative of Grand all Europe B.V.
• Grand all Europe B.V. does not participate in any site related costs or labour expenses incidental to replacement of parts,
repairing, removing, installing, servicing, transportation or handling of parts to complete products, and assumes no liability on
parts repaired or replaced without written authorisation. Grand all Europe B.V. shall not be liable for any default or delay in
performance of its warranty obligations caused by any circumstances beyond its control, including, but not limited to, judicial
or government restrictions, strikes, fires, floods, abnormal weather conditions, delayed supply of components.
Should products be determined as damaged on arrival, immediately notify the transport company of the condition and have
them noted on the freight documents. If damage is discovered after unpacking, demand immediate inspection by the transporta-
tion company and insist that a record of the damage is made on the freight documentation.
The customer warrants using the product in accordance with:
• Any instructions provided to it by Grand all Europe B.V. from time to time.
• All government and local regulations, including but not limited to all relevant electrical, environmental laws and
regulations governing the installation, storage, use, handling and maintenance of the goods.
• All necessary and appropriate precautions and safety measures relating to the installation, storage, use, handling and main-
tenance of goods.
DISTRIBUTOR DETAILS FOR
EUROPE & UNITED KINGDOM
Distributed by: Manu actured by:
Grand Hall Europe B.V. Thermo ilm Australia Pty. Ltd.
Tolstraat 17A 7 Rosalie St
748 DC Haaksbergen, The Netherlands Springvale, Victoria, 3171 Australia
www.heatstrip.eu
Warranty Terms & Conditions
