ThermoFlow Elex Mini Basic Series Instruction Manual

Electrically Controlled Tankless Water Heater
Installa�on Guide, User Manual, and Warranty Informa�on
TM
Mini Tankless
Instant
Water Heater
TM
Elex Mini Basic Series
Elex Mini Pro Series
e-mini manual thermoflow -na.indd 1 2020/3/25 15:20

TM
2
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Contents
0. Contents
Contents��������������������������������������������������������������������������������������������2
Safety Instructions�����������������������������������������������������������������������������3
Mounting Instructions ������������������������������������������������������������������������7
Technical Specifications�������������������������������������������������������������������16
User Manual ������������������������������������������������������������������������������������19
Maintenance������������������������������������������������������������������������������������21
Troubleshooting �������������������������������������������������������������������������������22
Warranty Conditions�������������������������������������������������������������������������23
e-mini manual thermoflow -na.indd 2 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
3
EN
Safety Instructions
1. Safety Instructions
Congratulations and thank you for choosing our instant water heater� The instruction contains
important information about commissioning, switching the device on and maintenance� To en-
sure your safety and that of others we recommend you read through this safety manual carefully�
Please refer to the back of the manual for details about the warranty� Keep this manual for future
reference�
If you lose the manual, contact your local distributor or manufacturer� When you call, please tell
us the model number and the serial number of your unit written on the rating plate of the water
heater�
Symbols used in this manual
The following symbols are used in these instructions/appear on the appliance:
Certified by CSA�
Failure to observe this instruction may expose you or others to danger�
Failure to observe this instruction may lead to damage to the device�
Indicates live parts�
Failure to observe this instruction may lead to damage to the device or danger to
you or others�
Please read the manual�
Hazardous materials and waste electrical and electronic equipment should be tak-
en to a designated recycling point�
IMPORTANT SAFETY INSTRUCTIONS
When using this electrical equipment, basic safety precautions should always be
followed, including the following.
READ AND FOLLOW ALL INSTRUCTIONS
All supply circuits must be disconnected before removing cover. Supply this ap-
pliance only from a grounded system. A wire connector marked “ ” is provided
for wiring the appliance. Connect the connector to the grounding terminal of the
electric service or supply panel with a continuous copper wire in accordance Ca-
nadian Electrical Code, Part I.
e-mini manual thermoflow -na.indd 3 2020/3/25 15:20

TM
4
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Safety Instructions
This product shall be protected by a Class A ground fault circuit interrupter.
This appliance is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The maximum inlet water pressure: 1.0 MPa (150 PSI).
The minimum inlet water pressure: 0.1 MPa (15 PSI).
WARNING
Before obtaining access to terminals, all supply circuits must be disconnected.
After service work is complete, proceed as during the first-time appliance start-
up.
The connection diagram or wiring diagram is marked. (Located on inside of Front
Enclosure)
CAUTION
1. DO NOT INSTALL IN A BATH ENCLOSURE OR SHOWER STALL OR CONNECT TO A
SALT- REGENERATED WATER SOFTENER OR A WATER SUPPLY OF SALT WATER
2. CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A GROUND FAULT CIR-
CUIT INTERRUPTER
For use on an individual branch circuit only.
USE COPPER CONDUCTORS ONLY
USE BONDING CONDUCTOR IN ACCORDANCE WITH THE CANADIAN ELECTRICAL
CODE, PART I
Each individual heating element is marked with the manufacturer’s part number
or its electrical rating in voltage and amperes/watts.
The specific spacing between the appliance and adjacent surface.
SAVE THESE INSTRUCTIONS
e-mini manual thermoflow -na.indd 4 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
5
EN
Safety Instructions
CONSIGNES DE SÉCURITÉ IMPORTANTES
Lors de l'utilisation de cet équipement électrique, des précautions de sécurité
élémentaires doivent toujours être suivies, notamment les suivantes.
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS
Tous les circuits d’alimentation doivent être débranchés avant de retirer le cou-
vercle. Alimentez cet appareil uniquement à partir d’un système mis à la terre. Un
connecteur de fil portant la mention « » est fourni pour le câblage de l’appareil.
Raccordez le connecteur à la borne de mise à la terre du panneau de service ou
d’alimentation avec un fil de cuivre continu conformément au code d’installation
électrique.
Ce produit doit être protégé par un disjoncteur de fuite à la terre de classe A.
Cet appareil n’est pas destiné à être utilisé par des personnes (y compris des
enfants) ayant des capacités physiques, sensorielles ou mentales réduites, ou
manquant d’expérience et de connaissances, à moins d’avoir été supervisées ou
instruites concernant l’utilisation de l’appareil par une personne responsable de
leur sécurité.
Les enfants doivent être surveillés pour s’assurer qu’ils ne jouent pas avec l’ap-
pareil.
La pression maximale d’entrée d’eau: 1.0 MPa (150PSI).
La pression minimale d’entrée d’eau: 0.1 MPa (15PSI).
AVERTISSEMENT
Avant d’accéder aux bornes de raccordement, tous les circuits d’alimentation
doivent être déconnectés.
Le schéma de connexion ou le schéma de câblage est marqué. (Situé à l’intérieur
de l’enceinte avant)
ATTENTION
1. NE PAS INSTALLER DANS L’ENCEINTE D’UNE BAIGNOIRE OU UNE CABINE DE
DOUCHE ET NE PAS RACCORDER À UN ADOUCISSEUR À RÉGÉNÉRATION AU SEL
NI À UNE ALIMENTATION EN EAU SALÉE.
2. BRANCHER UNIQUEMENT À UNE DÉRIVATION PROTÉGÉE PAR UN DISJONCTEUR
DIFFÉRENTIEL DE CLASSE A.
Pour utilisation sur un circuit de branche individuel uniquement.
e-mini manual thermoflow -na.indd 5 2020/3/25 15:20

TM
6
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Safety Instructions
EMPLOYER UNIQUEMENT DES CONDUCTEURS DE CUIVRE.
POSER UN CONDUCTEUR DE CONTINUITÉ DES MASSES CONFORME AU CODE CAN-
ADIEN DE L’ÉLECTRICITÉ, PREMIÈRE PARTIE.
Chaque élément chauffant porte le numéro de pièce du fabricant ou son calibre
électrique en tension et en ampères / watts.
L’espacement spécifique entre l’appareil et la surface adjacente.
CONSERVEZ CES INSTRUCTIONS
The appliance is not to be installed in locations where freezing can occur.
The resistivity of the water supply must not be less than 3300 Ω•in.
The appliance must be grounded properly!
The appliance is close-outlet type, the water connection of this appliance must
be connected to unvented water heating system.
No changes may be made to the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or similarly qualified persons in order to avoid a hazard.
Declaration of conformity
We hereby declares that the Thermoflow devices comply with the following standards:
• CAN/CSA E60335-2-35
• CAN/CSA-C22�2 No� 60335-1
• UL 499
Standards and regulations
The installation (plumbing and electrical work), commissioning and maintenance of this
appliance should only be undertaken by personnel with electrical engineering qualifica-
tions and in accordance with the relevant standards and regulations (BSI, etc�) and this
manual�
The following should also be observed:
• The appliance name plate;
• The technical specifications�
Connection to the water supply
Compatible cold water pipe materials: steel, copper and plastic�
e-mini manual thermoflow -na.indd 6 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
7
EN
Mounting Instructions
2. Mounting Instructions
Electrical installation
The appliance must be permanently connected to fixed wiring.
The device has been prepared for connection to the electrical supply�
Elex 3�5MHBL and Elex 3�5MEBL require a 110-120V, single-phase supply, other mod-
els require a 208-240V, single-phase supply� Please take reference of the rating plate
on device�
Please take reference of the following diagram to connect power supply with Elex
3�5/4�5/5�5 MHB/MEB which rated 240V�
NOTE: The wire has been attached to the appliance.
GR GR
L2
L1 Circuit
Breaker
WIRE
ThermoflowTM
Tankless
Water Heater
Electric
Panel
240V~
60Hz
Please take reference of the following diagram to connect power supply with Elex 3�5
MHBL/MEBL which rated 120V�
NOTE: The wire has been attached to the appliance.
GR GR
N
LCircuit
Breaker
WIRE
ThermoflowTM
Tankless
Water Heater
Electric
Panel
120V~
60Hz
Circuit diagram for Mini Basic Series Elex 3.5MHBL
L
N
GR GR
GR
e-mini manual thermoflow -na.indd 7 2020/3/25 15:20

TM
8
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Mounting Instructions
Circuit diagram for Mini Basic Series Elex 3.5MHB
L1 L1
L2 L2
GR GR
GR
Circuit diagram for Mini Basic Series Elex 4.5/5.5 MHB
L1 L1
L2 L2
GR GR
GR
Circuit diagram for Mini Pro Series Elex 3.5MEBL
To LED display
GR
N
L
GR
N
L
Water flow
sensor
e-mini manual thermoflow -na.indd 8 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
9
EN
Mounting Instructions
Circuit diagram for Mini Pro Series Elex 3.5/4.5/5.5 MEB
To LED display
GR
GR
Water flow
sensor
Unpacking
Check if the device has been damaged in any way�
Contents
• 1 device
• 1 bracket
• 1 bag of installation materials, contents:
① 2 screws
② 2 anchors
③ 1 seal
④ 1 filter mat
Tools
You will require the following tools for the installation:
• Phillips-head screwdriver
• Open-ended spanner 15mm(5/8”) and 24mm(1”)
• Teflon tape
• Drill
• 8mm(9/16”) stone or concrete drilling bits
• Pencil
• Adhesive tape
• Wire stripper
Environment
To prevent damage during transport this unit is supplied in robust packaging� Please
recycle the packaging where possible�
①②
③④
e-mini manual thermoflow -na.indd 9 2020/3/25 15:20

TM
10
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Mounting Instructions
Disposal of the appliance
Old appliances must not be disposed of in your household waste!
Every consumer is legally obliged to dispose of old appliances separately from their
household waste and to take them, for example, to a collection point in their local com-
munity or local district� Old electrical appliances will be accepted there free of charge�
This ensures that the old appliances are properly recycled and any negative impacts
on the environment are avoided� This is why electrical appliances are marked with the
symbol shown on the left�
Preparing for installation
The water and electricity supply need to be available at the place where the device is
to be supplied�
The installation location for the appliance should keep away from the shower�

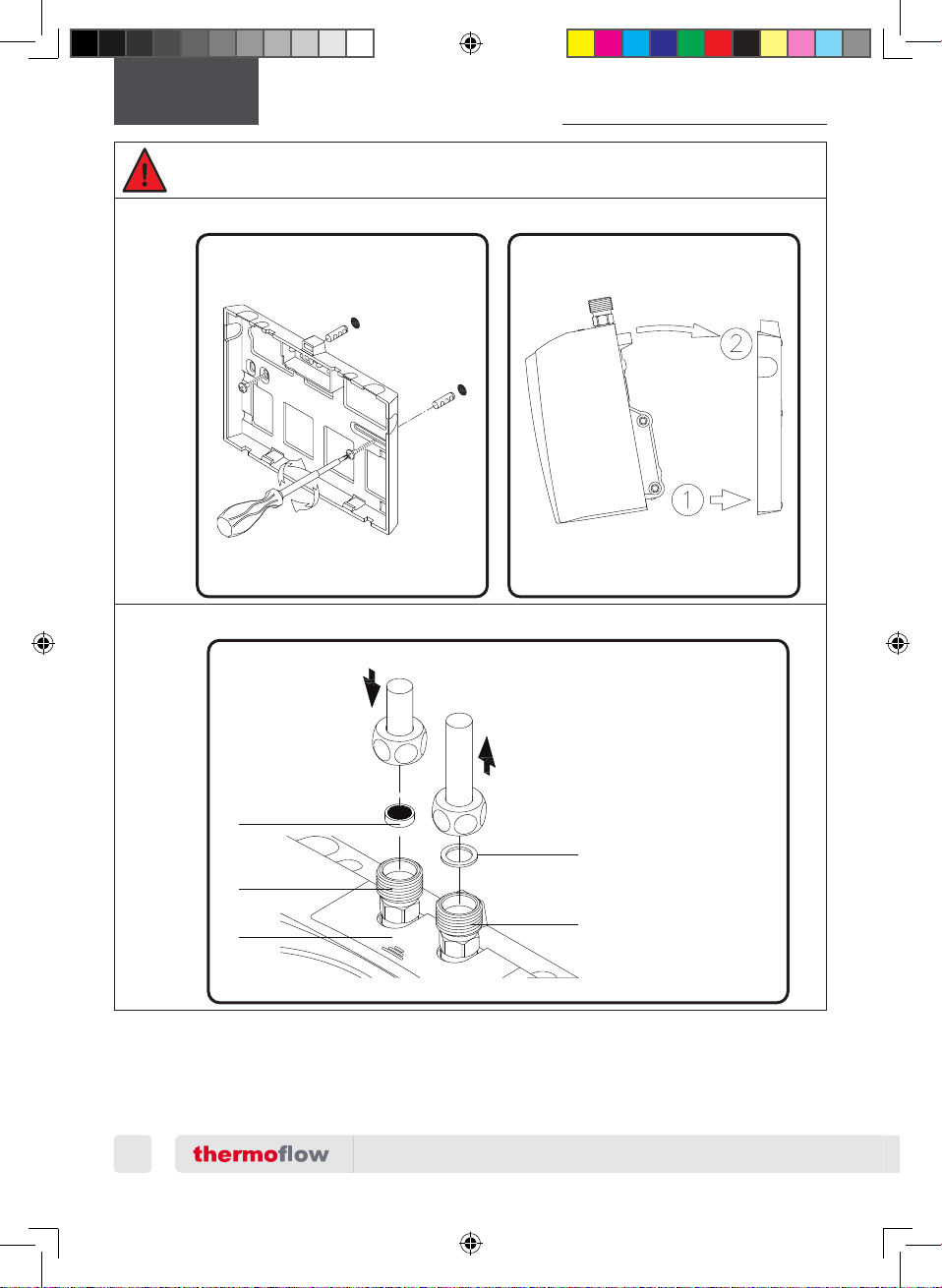

Remove the appliance from the wall bracket
Put the wide screwdriver tip into the interlock between the water connections until it
stops, then press slightly upwards ①, tilt the appliance forward by max� 15° ②and
remove it upwards ③�
Locate the installation location of the appliance
Make sure the clearance meet the requirement of following diagram�
Top clearance 4”
Bottom clearance 4”
Right clearance 4”Left clearance 4”
Front clearance 4”
e-mini manual thermoflow -na.indd 10 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
11
EN
Mounting Instructions
Please scan the following QR code to watch installation videos
on YouTube for reference.
Elex Mini Series
Frost
The appliance is not to be installed in locations where freezing can occur.
The device should be installed in a vertical position in a room protected from frost and
in the proximity of the water connections�
In case the room cannot be protected against frost, the device should not be installed in
this room� Should the device be installed in such a room, the device should be emptied
before the frost danger will occur�
Do not switch on if there is a possibility that the water in the device is frozen�
Connection to the water supply
Blue = cold water entry side (for filling)
Red = hot water exit side (hot water demand)
The Elex mini series are designed for use normal pressure systems� This system allows
water to be drawn from multi point use�
The water supply pipe and water discharge pipe are marked on the rating plate cover
(red for hot water, blue for cold water)�
Connection to the electricity supply
Connection of the appliance to the power supply network must take place in accor-
dance with the NEC, IEC and as specified by local laws and regulations�
The appliance must be earthed properly!
The appliance must be connected to a ground fault circuit interrupter.
Make sure the power is switched off before removing the cov-
er of the appliance!
Internal modifications to the product may cause problems if this work is not
carried out by authorized and qualified technical persons. The warranty only
applies if the product has not been modified in any way, i.e. subject to it being in
unchanged condition.
e-mini manual thermoflow -na.indd 11 2020/3/25 15:20

TM
12
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Mounting Instructions
Drawing A. - Installation as undersink model
1.
2.
3.
a. Seal
b. Filter mat
c. Cold water-connection (inlet)
d. Hot water-connection (outlet)
e. Rating plate cover
a
d
b
c
e
e-mini manual thermoflow -na.indd 12 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
13
EN

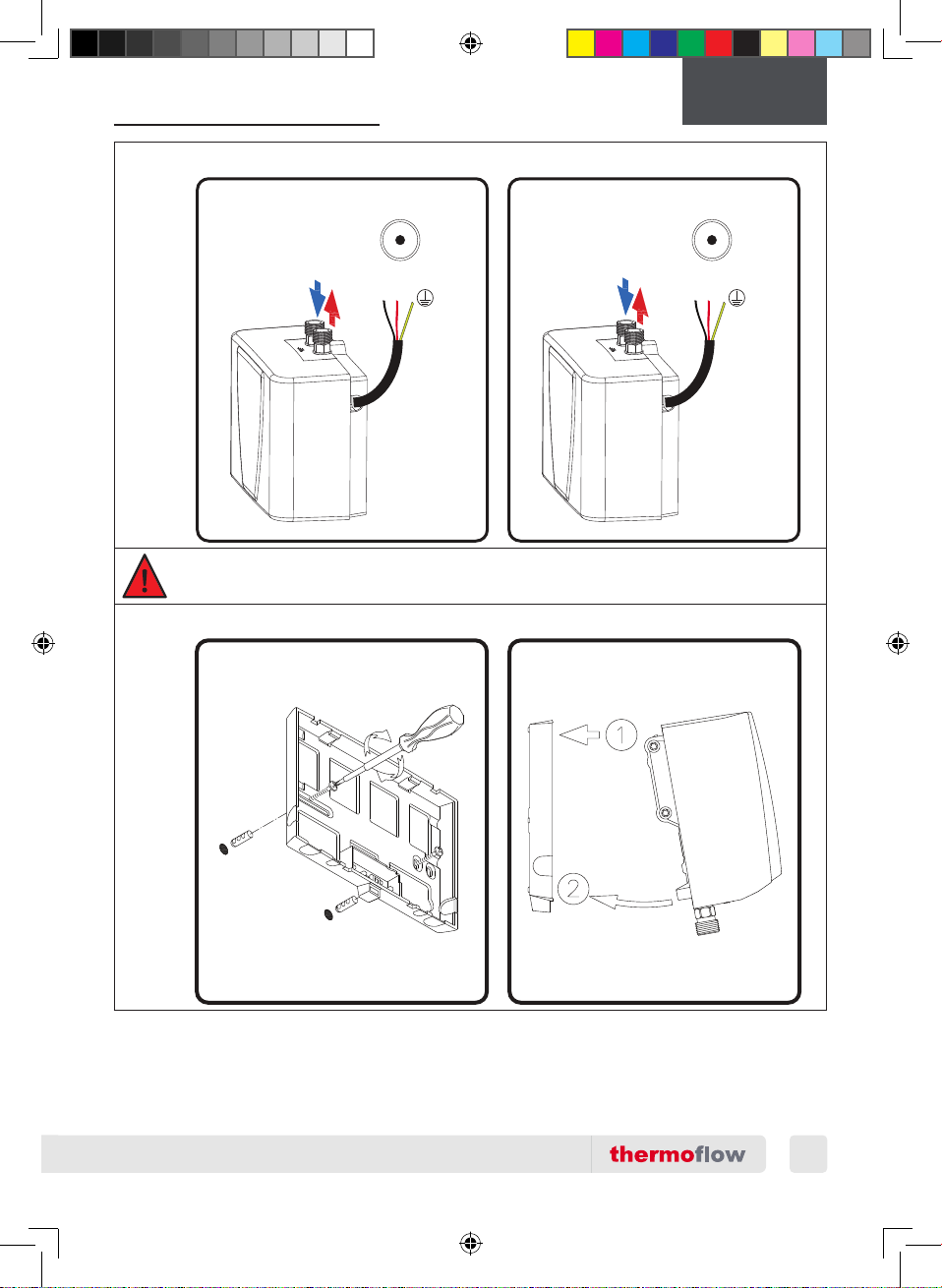

Mounting Instructions
Power Supply
LN
4a. Rated voltage 120V
Inlet Outlet
Power Supply
L1 L2
4b. Rated voltage 240V
Inlet Outlet
Drawing B. - Installation as oversink model
1.
2.
e-mini manual thermoflow -na.indd 13 2020/3/25 15:20

TM
14
Electric Tankless Water Heater - Installation Manual and User Guide
EN

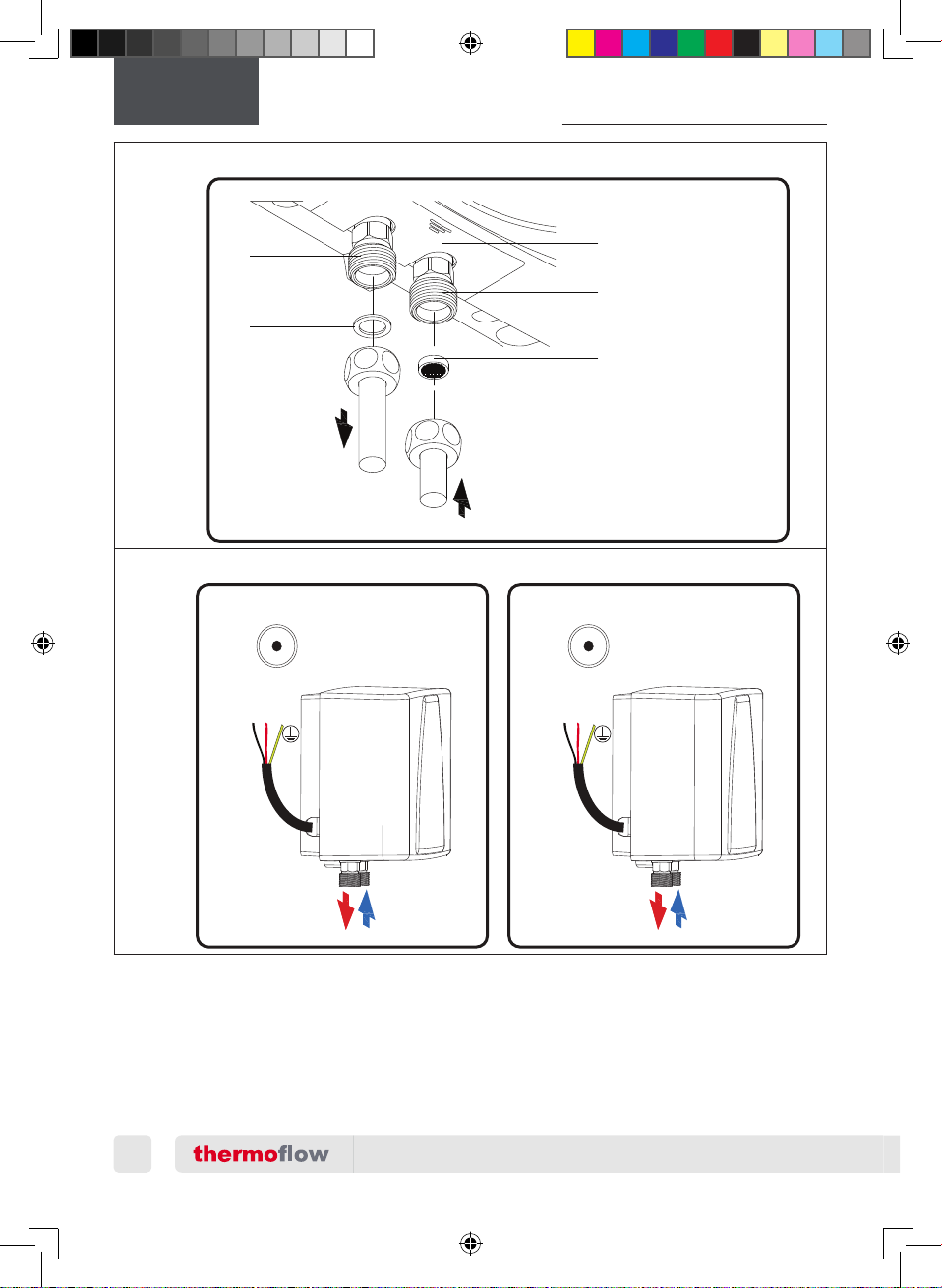

Mounting Instructions
3.
a. Seal
b. Filter mat
c. Cold water-connection (inlet)
d. Hot water-connection (outlet)
e. Rating plate cover
b
c
e
a
d
4a. Rated voltage 120V
Power Supply
LN
InletOutlet
4b. Rated voltage 240V
Power Supply
L1 L2
InletOutlet
e-mini manual thermoflow -na.indd 14 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
15
EN
Mounting Instructions
The appliance must be earthed properly!
The filter mat contained in accessory bag must be installed when connecting
with inlet(cold) water pipe or hose!
Ground fault circuit interrupter must be installed with the appliance, please take
page.16 to 18 for the selection of interrupter.
Please verify the voltage of power supply before installation!
Drawing A / B - Installation as under/over -sink model
The device must be installed as shown in the installation drawing on the page�12 to
14 of this manual�
1� Mount the bracket on the wall and fix using two screws in the accessory bag, the
bracket should be upward(undersink) / downward(oversink)�
2� Place the appliance on the wall bracket and snap it into position� The outlets of ap-
pliance should be upward(undersink) / downward(oversink)�
3� Tap connection: Cold water inlet (blue) and hot water outlet (red) are marked on the
rating plate (under the rating plate cover)� Connect the appropriate pipe or hose of
the sanitary tap with the red-marked hot water outlet�
4� Connect power cable L, N and GROUNDING (120V models) to the power supply (4a),
or connect power cable L1, L2 and GROUNDING (240V models) to the power supply
(4b), then switch on the circuit breaker�
e-mini manual thermoflow -na.indd 15 2020/3/25 15:20

TM
16
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Technical Specifications
3. Technical Specifications
Technical specifications
Mini Basic Series Elex 3.5MHBL Elex 3.5MHB Elex 4.5MHB
Electric supply 120V 60Hz 240V 60Hz 240V 60Hz
Nominal power rating 2�9 kW @ 110V 2�4 kW @ 208V 3�4 kW @ 208V
3�5 kW @120V 3�5 kW @ 240V 4�5 kW @ 240V
Nominal current 27 A @ 110V 13 A @ 208V 16 A @ 208V
29 A @ 120V 15 A @ 240V 19 A @ 240V
Ground fault circuit interrupter 2-POLE 30A 2-POLE 20A 2-POLE 20A
Cable size 12 AWG 14 AWG 12 AWG
Resistivity of the water supply ≥ 3300 Ω•in ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) 0�5 GPM 0�5 GPM 0�7 GPM
Flow rate (Δt=65°F) 0�4 GPM 0�4 GPM 0�5 GPM
Heating system Bare element Bare element Bare element
Control unit Hydraulic Hydraulic Hydraulic
Switch on flow rate 0�34 GPM 0�34 GPM 0�47 GPM
Non-usage consumption < 1Wh/h < 1Wh/h < 1Wh/h
Protection class IP25 IP25 IP25
Unit dimensions 5⅜x 7⅜x 3⅜” 5⅜x 7⅜x 3⅜” 5⅜x 7⅜x 3⅜”
Unit weight 3�0 lb 3�0 lb 3�0 lb
Water connections 1/2" NPT 1/2" NPT 1/2" NPT
Max� inlet water pressure 150 psi 150 psi 150 psi
Min� inlet water pressure 15 psi 15 psi 15 psi
Switch on flow pressure 15 psi 15 psi 15 psi
e-mini manual thermoflow -na.indd 16 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
17
EN
Technical Specifications
Technical specifications
Mini Pro Series Elex 3.5MEBL Elex 3.5MEB Elex 4.5MEB
Electric supply 120V 60Hz 240V 60Hz 240V 60Hz
Nominal power rating 2�9 kW @ 110V 2�4 kW @ 208V 3�4 kW @ 208V
3�5 kW @120V 3�5 kW @ 240V 4�5 kW @ 240V
Nominal current 27 A @ 110V 13 A @ 208V 16 A @ 208V
29 A @ 120V 15 A @ 240V 19 A @ 240V
Ground fault circuit interrupter 2-POLE 30A 2-POLE 20A 2-POLE 20A
Cable size 12 AWG 14 AWG 12 AWG
Resistivity of the water supply ≥ 3300 Ω•in ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) 0�5 GPM 0�5 GPM 0�7 GPM
Flow rate (Δt=65°F) 0�4 GPM 0�4 GPM 0�5 GPM
Heating system Bare element Bare element Bare element
Control unit Electronic Electronic Electronic
Temperature range 95 - 122 °F 95 - 122 °F 95 - 122 °F
Switch on flow rate 0�32 GPM 0�32 GPM 0�4 GPM
Non-usage consumption < 1Wh/h < 1Wh/h < 1Wh/h
Protection class IP25 IP25 IP25
Unit dimensions 5⅜x 7⅜x 3⅜” 5⅜x 7⅜x 3⅜” 5⅜x 7⅜x 3⅜”
Unit weight 3�0 lb 3�0 lb 3�0 lb
Water connections 1/2" NPT 1/2" NPT 1/2" NPT
Max� inlet water pressure 150 psi 150 psi 150 psi
Min� inlet water pressure 15 psi 15 psi 15 psi
Switch on flow pressure 15 psi 15 psi 15 psi
e-mini manual thermoflow -na.indd 17 2020/3/25 15:20

TM
18
Electric Tankless Water Heater - Installation Manual and User Guide
EN
Technical Specifications
Technical specifications
Instant water heater model Mini Basic Series
Elex 5.5MHB
Mini Pro Series
Elex 5.5MEB
Electric supply 240V 60Hz 240V 60Hz
Nominal power rating 4�1 kW @ 208V 4�1 kW @ 208V
5�5 kW @ 240V 5�5 kW @ 240V
Nominal current 20 A @ 208V 20 A @ 208V
23 A @ 240V 23 A @ 240V
Ground fault circuit interrupter 2-POLE 30A 2-POLE 30A
Cable size 12 AWG 12 AWG
Resistivity of the water supply ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) 0�8 GPM 0�8 GPM
Flow rate (Δt=65°F) 0�6 GPM 0�6 GPM
Heating system Bare element Bare element
Control unit Hydraulic Electronic
Temperature range - 95 - 122 °F
Switch on flow rate 0�58 GPM 0�55 GPM
Non-usage consumption < 1Wh/h < 1Wh/h
Protection class IP25 IP25
Unit dimensions 5⅜x 7⅜x 3⅜” 5⅜x 7⅜x 3⅜”
Unit weight 3�0 lb 3�0 lb
Water connections 1/2" NPT 1/2" NPT
Max� inlet water pressure 150 psi 150 psi
Min� inlet water pressure 15 psi 15 psi
Switch on flow pressure 15 psi 15 psi
e-mini manual thermoflow -na.indd 18 2020/3/25 15:20

TM
Electric Tankless Water Heater - Installation Manual and User Guide
19
EN
User Manual
4. User Manual
To prevent damage to the appliance, the instantaneous water heater must be
purged of air before using it for the first time.
How to use (Mini Pro Series)
The appliance can detect the undersink/oversink installation automatically, and
make sure the display properly.
LEDs
Touch Keys
Step 0 Switch on the electric power, open the hot-water tap, and wait for a short
power-up delay (approx� 13 secs)�
Step 1 Keep the hot-water tap opening, touch “ █” to light on the touch keys,
then touch “ █” again to turn on the appliance� The LED will display cur-
rent outlet temperature setting for 2 secs then switch to display the real
time outlet temperature�
Step 2 Keep the hot-water tap opening, set desired outlet temperature, touch “”
to decrease the outlet temperature or touch “” to increase the outlet
temperature� The LED will keep displaying the setting temperature for 2
secs, then switch to display the real time outlet temperature� If needed,
adjust the water flow rate ( see next page)�
Step 3 Close the hot-water tap, the LED will light off immediately, the touch key
“█”, “” and “” will light off after 3 secs delay�
Note:
1� Step 0 is only valid after every-time switch off the electric power�
2� After completing Step 3, opening the hot-water tap again will wake up the appli-
ance automatically and the LED will display the real time outlet temperature�
How to use (Mini Basic Series)
Simply connect the power supply and inlet/outlet, open the tap for about 15 secs
before switching on power supply, then switching on power supply, the water
heater will start working.
e-mini manual thermoflow -na.indd 19 2020/3/25 15:20

TM
20
Electric Tankless Water Heater - Installation Manual and User Guide
EN
User Manual
How to adjust the maximum water flow rate
May only be carried out by a specialist.
1
2
3
4
Direction Flow
Step 1 Push the cover at the corrugation towards the wall bracket�
Step 2 Press the cover down at the rear corners until the front edge lifts�
Step 3 Remove the cover by pulling forward�
Step 4 Turn the adjusting screw clockwise to decrease the maximum flow rate,
turn the adjusting screw counter-clockwise to increase the maximum
flow rate�
If the selected outflow temperature is not reached when the tap is fully opened, then
the water flow through the device exceeds the capacity of the device� In this case, the
flow should be reduced with the hot water valve� There is a danger of scalding at out-
flow temperatures exceeding 43°C (109°F)�
e-mini manual thermoflow -na.indd 20 2020/3/25 15:20
