German pool GPN-4SSL User manual

Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
Online Warranty Registration
Rapid Fast Flow Electric Water Heater GPN-4SSL
USER MANUAL
GPN-4SSL

請即進行保用登記﹗
有關保用條款細則，請看本說明書最後一頁。
Please register your warranty information now!
For Warranty Terms & Conditions,
please refer to the last page of this user manual.

P.3
目錄 Table of Contents
警告事項 Warnings 04
產品特點 Features 05
產品結構 Product Structure 06
安裝說明 Installation Instructions 07
使用說明 Operating Instructions 09
安裝圖 Installation Diagram 11
電路圖 Wiring Diagram 12
專用節水花灑 Water Saving Shower Head 13
產品規格 Specications 14
保用條款 Warranty Terms & Conditions 15

P.4
警告事項 Warnings
警告

若用戶需要安裝任何非隨機配件，必須先與
本公司認可之技術人員聯絡，否則本公司將
有權拒絕提供任何保養服務。
Warning
Each unit is equipped with a standard open-outlet
mixer and a shower set. Please install water
heater in accordance to the instructions stated
on this booklet. German Pool will NOT provide
warranty service on any product installed with
unauthorized components or devices.
警告
1.必須嚴密看管兒童，防止他們接觸及把玩
熱水器，以免燙傷、觸電或受傷。
2.本產品不適用於缺少了身體、感覺或精神
能力，或缺乏經驗和知識的人（包括兒
童）使用，除非他們在一個了解本產品使
用的人監督指導下使用，並對他們的安全
負責任。
3.若設置溫度超過50°C，會有燙傷危險，所
以必須混合冷水後才使用。
4.電源進線段應加裝漏電保護裝置，漏電保
護裝置的額定動作電流應不大於30mA。
Warning
1. Do not allow children to touch or play with the
water heater. Supervision is required during
use, in order to prevent the danger of a scald,
electrical shock or any other injuries.
2. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
3.Ifthetemperatureissetabove50˚C,coldwater
must be mixed in to prevent the danger of a scald.
4. An electric-leakage protection device must be
installed to the power inlet. The electric current
of this protection device should be below 30mA.
! !

P.5
德國寶速熱式電熱水器(花灑型)配備原廠低壓
式混合水龍頭及花灑配件，適合於單點使用。
產品特點 Features
German Pool Rapid Fast Flow Electric Water Heater
(Shower Type) is a non-pressure water heaters
designed for single-point application.
不銹鋼內膽
Stainless Steel
Inner Tank
採用長期耐高溫及受高壓容器專用之日本特殊不銹鋼製造，內膽結構堅
固，保證防銹、耐壓及不受水質侵蝕。
Constructed of Japanese heavy gauge stainless steel, specially made for
high temperature and pressure applications. It is durable and free of rust,
corrosion, deformity and hassle.
保溫設計
Thermal Insulation
採用一體成型美耐棉，保持溫度，失溫程度達至最低，保持熱水溫度。
Maximum thermal insulation is achieved by high-density melafoam injection
moulded between the inner tank and outside casing.
額定壓力
Rated Pressure 0 MPa
最大來水壓力
Max. Inlet Water Pressure 0.6 MPa
發熱管
Heating Element
原廠優質不銹鋼發熱管，備有獨立不同功率，符合各種不同之熱水要求。
Prime quality stainless steel heating element ensures maximum thermal
efciencyeveninplaceswheredifferentpowerrating/wattageapplices.
溫度調節/超溫斷路器
CombinedThermostat/
Cutout
溫度調節/超溫斷路器自動恆溫，保持水溫在預調溫度，節省能源，超
溫自動斷路確保安全，並配合個人使用熱水的習慣。
CombinedThermostat/Cut-Outprovidesautomatictemperaturecontrolat
preset temperature to accommodate individual bathing habits and save
energy; built-in thermal cut-out ensures safety.
外殼
Exterior Casing
採用堅固防侵蝕金屬片。
Constructed of corrosion-proof metal.
防水等級
Water Resistance IPX4
符合規格
Conformity
機電工程署電氣產品（安全）條例。
Electrical Product (Safety) Regulation, Hong Kong.
認證標準
Certications
IEC 60335-2-21
IEC 60335-1
* 正常情況下，如供水系統之來水水壓超過0.6 MPa，用戶必須額外加裝減壓器將水壓調低。
如來水壓力超過0.6 MPa 而用戶未有安裝減壓器，本公司有權拒絕為熱水器進行任何維修。
* Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary.
When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure control device is installed.

P.6
01
01
02
03
02
03
02 04 05
06
07

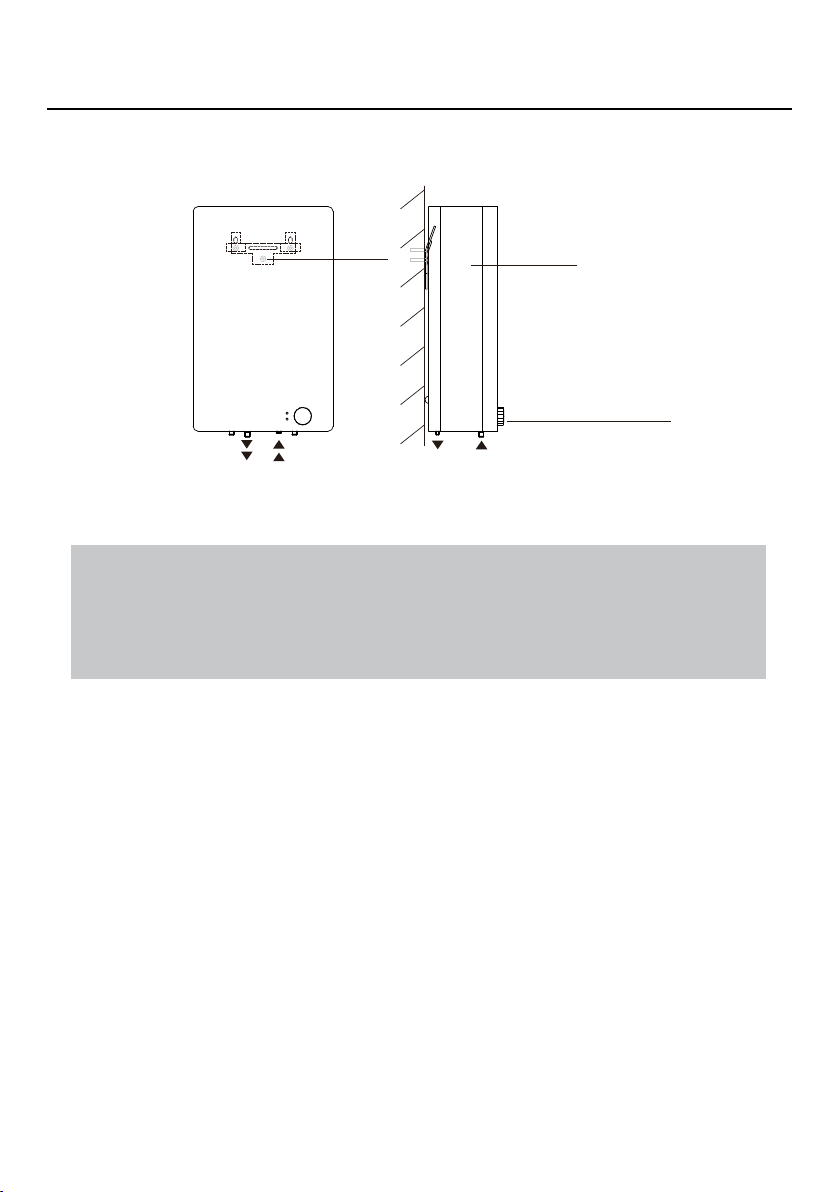

產品結構 Product Structure
發熱線(內部)
混合水制
溫度調節/超溫斷路器
1
2
3
GPN-4SSL
Heating Element (Inside)
Mixing Valve
CombinedThermostat/Cutout
1
2
3

P.7

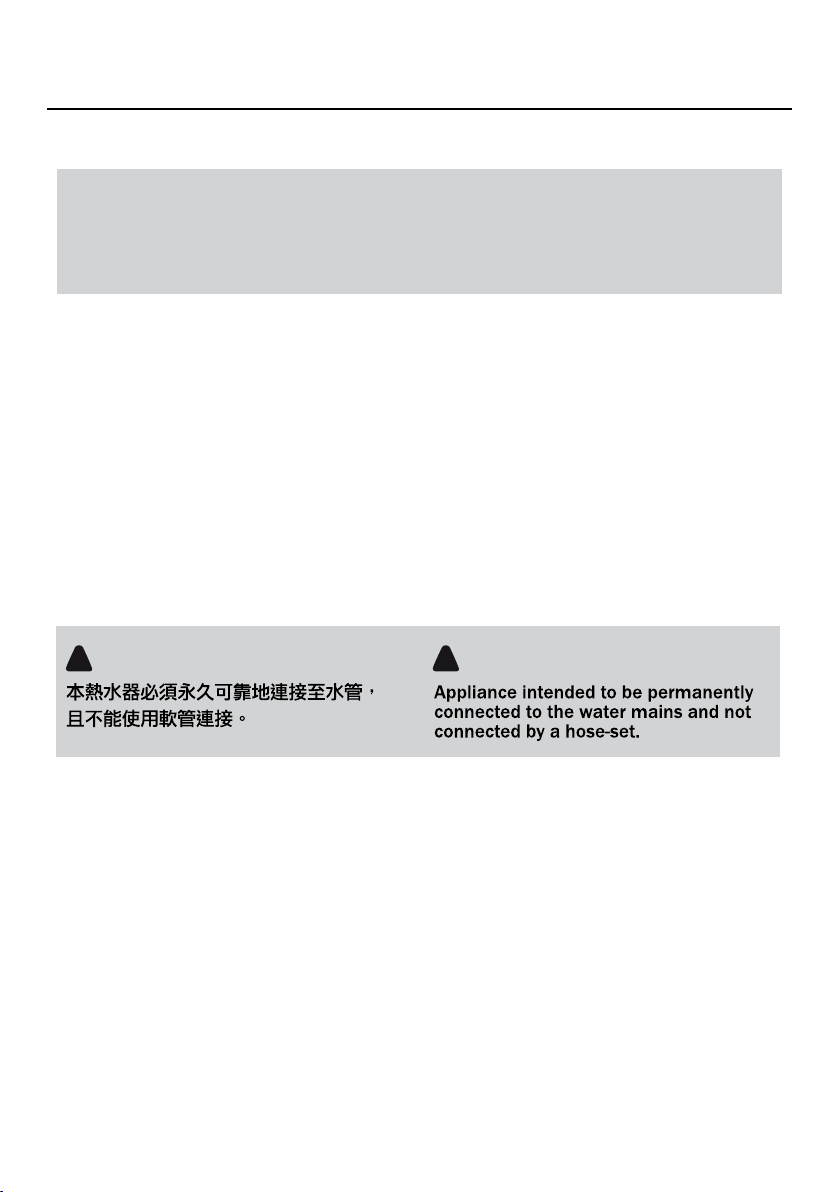

安裝說明 Installation Instructions
安裝前注意

安裝必須使用原廠配件。若不按指示方法安
裝及使用而引致任何損壞，本公司概不負責。
安裝工作應由專業持牌水電技術人員負責。
Pre-Installation Notice
Installation should be done by a licensed
technician using the supplied parts. German Pool
is not responsible for any defect or damage
caused by incorrect or unauthorized installation.
Positioning
Positionwaterheaternearwatertap/pointofuse
in order to minimize heat loss. For wall-mount style,
appropriate anchor screws must be used and wall
should be strong enough to withstand the weight
of water heater. Keep a minimal distance between
wall and water heater.
Connecting Inlet and Outlet Pipes
Thediameterofpipingis½″BSP.Makesurethere
is no leaking at the joints. Turn on hot water tap
tolluptheinnertankuntilwaterflowsfromthe
shower head. Turn off hot water.
掛牆定位
先將熱水器背板以膨脹螺絲安裝於承重的牆壁
上，然後將熱水器背部凹孔扣在背板上，並調
整至緊貼牆壁及保持垂直為佳。花灑頭插座以
膨脹螺絲安裝於適當位置上。
水喉接駁
水喉管件直徑為1/2"英吋，接駁妥當後應試看
接駁位置有否漏水，妥當後即可將有紅點之熱
水掣打開注水，直至花灑頭噴水即表示內膽經
已注滿，並可將熱水掣關好。
! 特別注意 ! ATTENTION

P.8
安裝說明 Installation Instructions
發熱線功率 (千瓦)
Heating Element Rating (kW)
所需電源(安培)
Electric Current (A)
電源線最低要求(平方毫米)
Wiring (mm²)
3kW 15 A (單相1PE) 2.5 mm²
電源開關
設於熱水器外用以切斷電源供應之開關掣，應全
極切斷電源，兩極之間應保持最少3mm距離。
於浴室內安裝本電熱水器時必須遵照IEE之有關
電線安裝條例規格接駁。電源開關應採用有顯示
燈類型，當用戶需要作任何內膽清洗或維修，必
先切斷電源。
測試使用
水喉與電源接駁妥當及內膽注滿水後，便可進行
通電。此時指示燈會亮著，用戶便可將自動恆溫
旋鈕調校至最高度數。當溫度達到75℃時，恆溫
器即會自動停止加熱。選擇適當溫度後不應以恆
溫旋鈕當作開關掣使用，因此舉會縮減該配件之
使用壽命。
Power Switch
The external switch is used to completely disconnect
water heater from power supply. It should disconnect
all poles, and a contact separation of at least 3 mm
must be present.
IEE wiring regulations should be observed when the
water heater is installed in the bathroom.
Testing
Once the piping and wiring are connected and
inner tank has been filled up with water, switch
on the power. The indicator light will be lit. Turn
control knob to the desired temperature (Max.
temperature is 75°C). Do not use the control
knobasanon/offswitch.
接電方法
由電箱獨立伸延一條適合之電線(見下表)至浴室
門外接駁獨立開關掣，再將電線伸延至熱水器
穿進灰色線夾接到電線排上分別接上零線(N)，
火線(L)，及地線( )等。
Electric Wiring
Use an independent wire (refer to table below)
leading from the meter box and connect it to an
independenton/offswitchoutsidebathroom.
Extend the wire through the grey wire grip on the
water heater. Dismount the bottom plate and wire
up Neutral (N), Life (L) and Earth ( ) terminals.
! 特別注意 ! ATTENTION
本熱水器必須永久可靠地連接地線。 This water heater must be earthed at
all time.

P.9
使用說明 Operating Instructions
!!
重要注意事項 WARNING!
儲水式電熱水器安裝並進行通水通
電測試後，如果不是繼續使用，而
是先擱置一段時間後再使用，測試
完畢必需進行以下程序：
1. 將電熱水器斷電斷水；
2. 將電熱水器內測試的水排清；
3. 當存放後需要正常使用前，必需將電熱水
器注滿水並確定滿水後，才可以通電加
熱，進入正常使用。
After initial installation and water
and electricity testings, if the storage
water heater will not be put to use
immediately, after testing is completed,
make sure to follow these instructions:
1. Disconnect water and power source to
the water heater;
2. Completely drain the residual water in
the water heater;
3. Whenthewaterheaterisnallyputto
normaluse,userMUSTrstcompletely
llupthewaterheaterwithwater
BEFOREreconnectingthepowersource
and commencing heating.
注意：
對於水源是地下水以及（有可能海水倒灌的）河水地區的使用者，必需嚴格遵照上列程序，
以確保熱水器正常運作。
NOTE:
If water source is from underground water or near river area where seawater intrusion is
possible, user MUST COMPLY with all of the above steps to ensure proper function of water
heater.
!!
安裝注意事項 INSTALLATION REQUIREMENT
ATTENTION: When installing the water
heater, must leave ample space for
future maintenance and repair.
The minimum requirements are:
1. at least 100 mm space from the
ceiling
2. at least 200 mm on either side of
the wall
3. at least 300 mm underneath the
heater
注意：安裝熱水器時必須預留足夠空間作
日後保養和維修之用。
最少預留空間：
1. 距離天花最少100毫米
2. 距離兩邊牆壁最少200毫米
3. 爐底預留最少300毫米

P.10
使用說明 Operating Instructions
停水期間
停水時不應將熱水器內之存水用盡，否則會導
致發熱線損壞。恢復供水後，應先扭開熱水掣
直至有水從花灑流出。待內膽注滿水後，用戶
便可重新開啟電源。
水質問題
若來水水源為河水、井水、地下水或礦物質含
量較高，用戶必需經常定期清洗發熱線以確保
發熱線正常運作及發揮最佳製熱效能。
花灑頭滴水
因冷縮熱脹原理，熱水器內膽當達到高溫時便
會有少量水在花灑頭流出。
出水位
出水位乃本熱水器之排氣管，除德國寶指定之
花灑配件外，不得接駁任何其他水喉配件或
裝置。
Water Shortage
During water shortage, do not drain water from in-
ner tank. The heating element would be damaged if
it is not submerged under water. When water supply
resumes,turnonhotwatertapandletwaterflows
through the shower head before switching on the
power.
Source of Water Supply
If the water source is a river, a well, underground
water or has relatively high mineral content, user
must clean the heating element regularly to ensure
itwilloperateatoptimumthermalefciency.
Dripping
Due to thermal expansion, small amount of water
may drip off from the shower head when the inner
tank temperature is very high.
Outlet
The outlet of the water heater is supposed to act as
a vent and should not be connected to any unau-
thorized piping attachment or device.

P.11
安裝圖 Installation Diagram
使用外碼時注意：確定爐的安裝位置後，請先用螺絲將外碼固定在牆上，再將爐後蓋上
的方孔對準固定在牆上的外碼，向下將爐穩靠地固定掛在牆上。
Caution: Afterconrmationofinstallationlocation,properlysecurethemountingbracket
with screws on the wall, align the holes of the back plate of the water heater with the
mounting bracket, and downwardly hang the water heater.
GPN-4SSL
排水
Drain
進水
Inlet
出水
Outlet
熱水器
Water Heater
溫度調節/超溫斷路器
Combined Thermostat /Cutout
外碼
熱水器
Water Heater
混合水制
Mixing Valve
進水
Inlet
出水
Outlet
Mounting
Bracket
外碼
Mounting
Bracket
排水
Drain 進水
Inlet
出水
Outlet
進水
Inlet
出水
Outlet
排水
Drain
排水
Drain

P.12
電路圖 Wiring Diagram
GPN-4SSL (單相 1-Phase 220 V~)
GPN-4SSL (單相 1-Phase 220 V~)
恆溫器及斷路裝置1
Thermostat & Cutout 1
恆溫器及斷路裝置2
Thermostat & Cutout 2
繼電器
Relay
繼電器
Relay
發熱線1
Heating Element 1
指示燈2
Indicator 2
指示燈1
Indicator 1
發熱線2
Heating Element 2
恆溫器及斷路裝置1
Thermostat & Cutout 1
恆溫器及斷路裝置2
Thermostat & Cutout 2
發熱線2
Heating
Element 2
發熱線1
Heating
Element 1
接
下
蓋
板
接
外
殼
接
內
膽

P.13
64mm
28mm
16.5mm
233mm
本電熱水器GPN-4SSL必須使用德國寶專用慳水
節能花灑頭。
The GPN-4SSL model must use our Water
& Energy Saving Aerated Showerhead as a
necessary accessory.
專用節水花灑 Water Saving Shower Head
小心燙手 CAUTION
每次關水後熱水有機會從氣孔及
花灑頭流出，請注意！
Hot water may flow out from this valve and showerhead
when turning off the tap. Please be careful.

P.14
產品規格 Specications
型號 Model GPN-4SSL
電壓Voltage (單相/1Phase) 220 V
頻率Frequency 50 Hz
功率Power (單相/1Phase) 3kW
機身尺寸Dimensions (H) 570 mm (W) 355 mm (D) 175 mm
淨重Net Weight 14.8 kg
滿水Filled Weight 31.4 kg
產品規格及設計如有變更，恕不另行通知。
Specicationsaresubjecttochangewithoutpriornotice.
中英文版本如有出入，一概以中文版為準。
If there is any inconsistency or ambiguity between the English version and the Chinese version,
the Chinese version shall prevail.
本產品使用說明書以 www.germanpool.com 網上版為最新版本。
Refer to www.germanpool.com for the most up-to-date version of the Operating Instructions.

保用條款
此保用提供德國寶產品之機件在正常使用下壹年保用
(自購買日起計算)。
Warranty Terms & Conditions
Under normal operations, the product will gurantee a 1-year full
warranty provided by German Pool (effective from the date of
purchase).
1. Customer who fails to present original purchase invoice will
not be eligible for free warranty service.
2. Customer should always follow the operating
instructions. This warranty does not apply to:
- labour costs for on-site installation, check-up, repair,
replacement of parts and other transportation costs;
- damages caused by accidents of any kind (including
material transfer and others);
- operating failures resulting from applying incorrect voltage,
improper usage, and unauthorized installations
or repairs.
3. This warranty is invalid if:
- the purchase invoice is modified by an unauthorized party;
- the product is used for any commercial or industrial purposes;
- the product is repaired or modified by unauthorized
personnel, or unauthorized parts are installed;
- the serial number is modified, damaged or removed from
the product.
4. German Pool will, at its discretion, repair or replace any
defective part.
5. This warranty will be void if there is any transfer of
ownership from the original purchaser.
1. 未能出示購買發票正本者，將不獲免費維修服務。
2. 用戶應依照說明書的指示操作。本保用並不包括﹕
- 上門安裝、檢驗、維修或更換零件之人工以及
一切運輸費用﹔
- 因天然與人為意外造成的損壞 (包括運輸及其他)﹔
- 電源接合不當、不依說明書而錯誤或疏忽使用本
機所引致之損壞。
3. 於下列情況下，用戶之保用資格將被取消﹕
- 購買發票有任何非認可之刪改；
- 產品被用作商業或工業用途；
- 產品經非認可之技術人員改裝或加裝任何配件；
- 機身編號被擅自塗改、破壞或刪除。
4. 總代理有權選擇維修或更換配件或其損壞部份。
5. 產品一經被轉讓，其保用即被視作無效。
機身號碼 Serial No. :
購買商號 Purchased From :
發票號碼 Invoice No. :
購買日期 Purchase Date :
型號 Model No. :
另請填妥以下表格並與正本發票一併保存，以便維修時核對資料。用戶提供之所有資料必須正確無誤，否則免費保用將會無效。
Please fill out the form below. This information and the original purchase invoice will be required for any repairs. Warranty will be
invalidated if information provided is found to be inaccurate.
此保用只適用於香港及澳門 This warranty is valid only in Hong Kong and Macau
□GPN-4SSL
客戶服務及維修中心 Customer Service & Repair Centre
Hong Kong
10/F, Kowloon Godown
1-3 Kai Hing Road, Kowloon Bay,
Kowloon, Hong Kong
Tel : [phone]
Fax : [phone]
Email : [email protected]
Macau
3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira,
Macau
Tel : [phone]
Fax : [phone]
香港
九龍灣啟興道1-3號
九龍貨倉10樓
電話：[phone]
傳真：[phone]
電郵：[email protected]
澳門
澳門俾利喇街145號
寶豐工業大廈3樓
電話：[phone]
傳真：[phone]
*
貴戶須在購機十天內，以下列其中一種方式向本公司
登記資料，保用手續方正式生效﹕
1)
填妥本公司網頁內之
保用登記表格
www.germanpool.com/
warranty
2)
填妥保用登記卡，
郵寄至本公司。
* This warranty is not valid until customer registration information
is received by our Service Centre within 10 days of purchase
via one of the following means:
1) Visit our website and register
online:
www.germanpool.com/
warranty
2)
Complete all the fields on the
attached Warranty Card and
mail it back to our Customer
Service Centre.

G e rman Pool (Hong Kong) Limi t e d
www.germanpool.com
Hong Kong
Room 113. Newport Centre Phase II. 116 Ma Tau
Kok Road. Tokwawan. Kowloon. Hong Kong.
Tel: [phone]
Fax:[phone]
China
Tel:[phone]
Fax:[phone]
8th, Xinxiang Road, Wusha Industrial Park,
Daliang, Shunde, Foshan, Guangdong
3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira, Macau
Tel:[phone]
Fax:[phone]
Macau
© All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted.
HONG KONG TOP BRAND TEN YEAR
ACHIEVEMENT AWARD
20152005 2008 2007 2008 2007 2015 2014 2015 2015
GPU-GPNB-6SSL-M-18(1)
GPN-4SSL-M-21(2)
