Thomasville Marana L SPLS-MA60LD-TV User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2022-12-06 Rev. 0001-A
Thomasville™ is a trademark of HHG IPCo, LLC. ©HHG IPCo, LLC. thomasville.com
Marana L Desk
Model # SPLS-MA60LD-TV
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS, SHARP EDGES AS RECEIVED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Marana L Desk
MODEL # SPLS-MA60LD-TV
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
MAXIMUM LOAD 90.7 kg / 200 lb.
MAXIMUM LOAD 4.5 kg / 10 lb.

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 6, 7 and 8 of this instruction manuals.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
You are now ready to assemble the KD unit.
123
GLUE
FINAL
1 2 43
13

4
FURNITURE POWER DISTRIBUTION CENTER
IMPORTANT SAFETY INSTRUCTIONS
Carefully read all instructions installing and operating fixture
IF YOU HAVE ANY QUESTIONS REGARDING THE PROPER INSTALLATION
CONSULT A QUALIFIED ELECTRICIAN.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR
INJURY TO PERSONS, PLEASE FOLLOW THE NEXT:
 Use only insulated staples or plastic ties (not included) to secure the cords.
 Route and secure cords so that they will not be pinched or damaged when the desk is pushed up against
the wall.
 Make sure cord is not pinched between desk and floor.
 Use the unit indoors only.
 Do not use an extension cord to connect this unit to a wall outlet.
 Use power strip with integral over-current protection to supply other electrical devices or accessories in
desk.
 This unit must be plugged into a properly grounded outlet.
 The socket outlet should be installed near the equipment and should be easily accessible.
 Maximum load of connected equipment cannot exceed a total of 12 amps and 120 volts.
 Do not open or disassemble this unit for any reason.
SAVE THESE INSTRUCTIONS

5
Furniture Power Distribution Unit User Guide
Please read this user guide before installing and using your power distribution Center.
INTRODUCTION
The integrated power and USB center can connect up to
two devices, such as a digital camera, MP3 player, tablet
or cell phone.
SPECIFICATIONS
cULus listed, rated for: 120 V ac, 12 A, 60 Hz
NOTES
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
CAN ICES-3(B) / NMB-3(B)
This Class B digital apparatus complies with Canadian
ICES-003.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
1-866-942-5362
WARNINGS
! Your hub automatically shuts off any port with a low
or excessive current.
! If USB Hub Current Limit Exceeded appears on your
screen, disconnect the affected USB device, click
Reset on the screen, and reconnect the device.
! If one of your hub ports is disabled, but USB Hub
Current Limit Exceeded does not appear:
 Disconnect and reconnect the affected device.
 If the port still does not work, disconnect the hub
and the device, and then reconnect.
! Keep your desktop hub dry; if it gets wet, wipe it dry
immediately.
! Do not modify or tamper with your desktop hub’s
internal components. It may cause a malfunction and
invalidate its warranty.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance could
void user’s authority to operate the equipment.
Product: Furniture Power Distribution Unit
Model No: HG2000-DBU
Company: Whalen Furniture Manufacturing

6
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Desk Top Panel (Qty. 1) B- Desk Bottom Panel (Qty. 1) C- Desk Back Panel (Qty. 1)
D- Desk Left Side Panel (Qty. 1) E- Desk Left Partition Panel (Qty. 1) F- Desk Right Partition Panel (Qty. 1)
G- Desk Right Side Panel (Qty. 1) H- Desk Right Front Panel (Qty. 1) I- Return Top Panel (Qty. 1)
J- Return Bottom Panel (Qty. 1) K- Return Back Panel (Qty. 1) L- Return Left Side Panel (Qty. 1)
M- Return Middle Partition Panel (Qty. 1) N- Return Right Side Panel (Qty. 1) O- Drawer Front Panel (Qty. 2)

7
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
P- Drawer Back Panel (Qty. 2) Q- Drawer Left Side Panel (Qty. 2) R- Drawer Right Side Panel (Qty. 2)
S- Drawer Bottom Support (Qty. 2) T- Drawer Bottom Panel (Qty. 2) U- Pencil Box (Qty. 1)
V- Desk Support Frame (Qty. 1) W- Left Side Frame (Qty. 1) X- Corner Side Frame (Qty. 1)
Y- Long Stretcher (Qty. 1) Z- Return Support Frame (Qty. 1) A1- Right Side Frame (Qty. 1)
B1- Short Stretcher (Qty. 1) C1- Cable Wheel (Qty. 2) D1- Power Center (Qty. 1)

8
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
(1) Large Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(Qty. 42+2 extra) (Qty. 54+2 extra) (Qty. 49+2 extra)
(4) M8 x 20 mm Wood Dowel (5) Small Cam Lock (6) 1/4” x 15 mm Bolt
(Qty. 2+1 extra) (Qty. 12+1 extra) (Qty. 8+1 extra)
(7) 1/4” x 32 mm Bolt (8) Lock Washer (9) Flat Washer
(Qty. 10+1 extra) (Qty. 18+1 extra) (Qty. 18+1 extra)
(10) M3.5 x 12 mm Pan Head Screw (11) M4 x 50 mm Screw (12) M4 x 32 mm Screw
(Qty. 4+1 extra) (Qty. 24+1 extra) (Qty. 34+1 extra)
(13) M3.5 x 12 mm Flat Head Screw Hex Wrench (Qty. 1) Glue (Qty. 2)
(Qty. 2+1 extra)
Tools required: Hex wrench (provided), Phillips screwdriver and rubber mallet (not provided).

9
Drawer Assembling
NOTE: Please do not fully tighten all screws and bolts until you finish assembling all parts. Once
assembled, go back and fully tighten all screws and bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

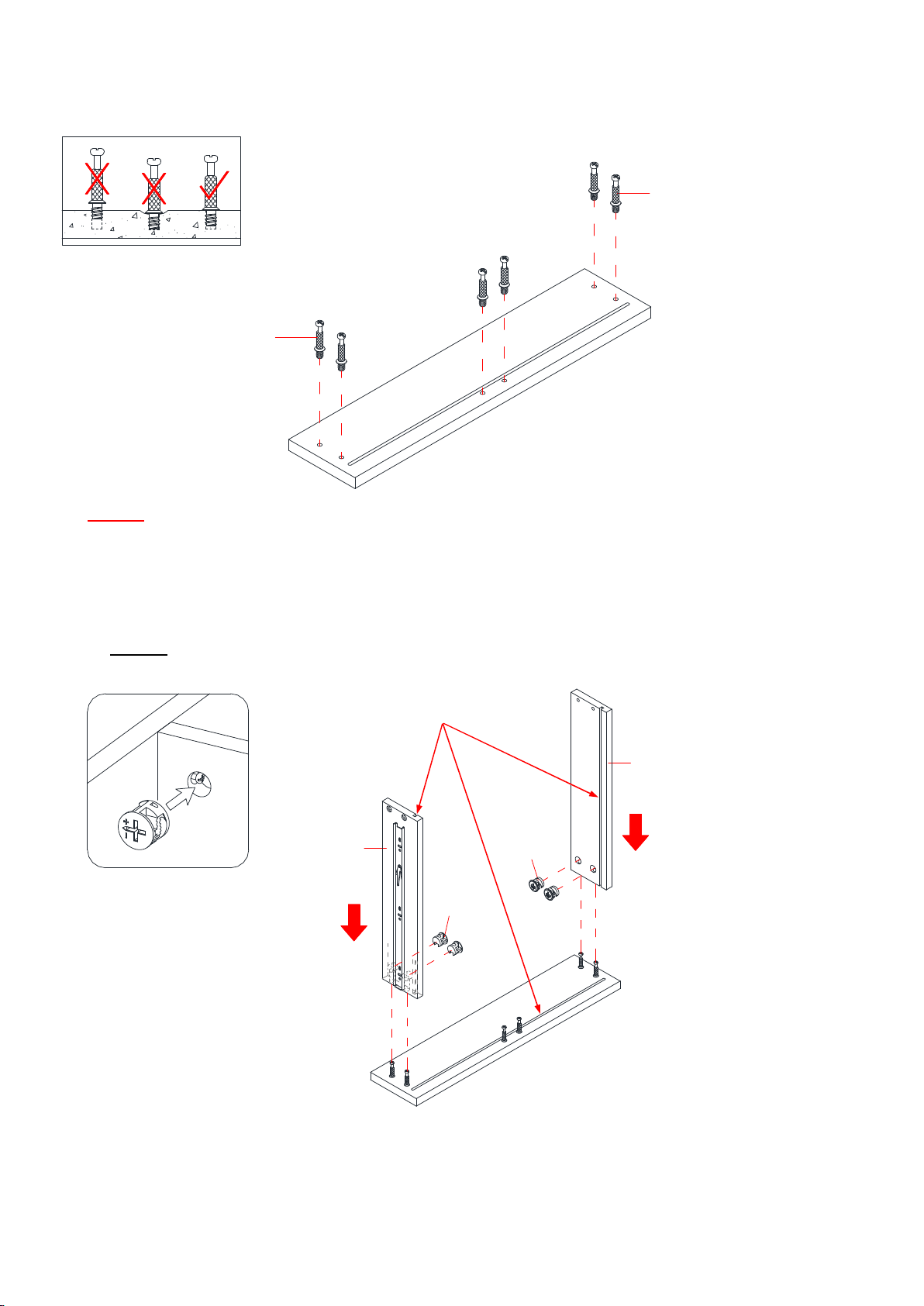

2. Securely screw six Cam Bolts (2) into the designated small holes on one Drawer Front Panel (O) with a
Phillips screwdriver. DO NOT overtighten the Cam Bolts.
NOTE: Screw-in cam bolts must be screwed down flush.
3. Attach one Drawer Left Side Panel (Q) and one Drawer Right Side Panel (R) to the Drawer Front Panel
(O) by engaging four Small Cam Locks (5). (Refer to page 3 on Cam Lock system operation
supplement).
O
Q
R5
5
x 2
2
x 2
O
2
Grooves line up with each
other and face inward

10
Drawer Assembling
4. Orient and attach one Drawer Bottom Support (S) to the Drawer Front Panel (O) by engaging two Small
Cam Locks (5).
5. Slide one Drawer Bottom Panel (T) into the grooves on the Drawer Side Panels (Q and R) until fully
inserted into the Drawer Front Panel (O).
O
x 2
S
5
The cam locks face outside
x 2
R
Q
T

11
Drawer Assembling
6. Fasten one Drawer Back Panel (P) between the Drawer Side Panels (Q and R) with four 32 mm Screws
(12). Make sure that the Drawer Bottom Panel (T) fits securely into the groove of the Drawer Back
Panel (P). Tighten the screws with a Phillips screwdriver.
7. Insert two 32 mm Screws (12) through the Drawer Back Panel (P) and screw into the Drawer Bottom
Support (S).
8. Repeat the previous steps to assemble an additional drawer assembly.
9. Securely screw the Cam Bolts (2) into the designated small holes on the Panels (I, K, L and N) using a
Phillips screwdriver.
QQ
P
S
S
R
P
12
12
12
x 2
R
The groove faces down
I
KLN
2

12
Assembly Instructions
10. Glue the 30 mm Wood Dowels (3) into the inner holes on the Panels (K, L, M and N). Make sure that
you use a small amount of glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
11. Orient and attach the Return Middle Partition Panel (M) to the Return Back Panel (K) by engaging two
Large Cam Locks (1).
K
NL
M
3
3
3
3
3
3
K
M
1
The cam lock holes for top panel
line up with each other.

13
Assembly Instructions
12. Orient and attach the Return Side Panels (L and N) to the Return Back Panel (K) by engaging four
Large Cam Locks (1).
13. Align and attach the previous assembly to the Return Top Panel (I) by engaging ten Large Cam Locks
(1).
K
L
N
1
1
K
L
N
M
I
1
The cam lock holes for top panel
line up with each other.

14
Assembly Instructions
14. Using the wood dowels as a guide, align and attach the Return Bottom Panel (J) to the previous
assembly with ten 50 mm Screws (11).
15. Glue two 20 mm Wood Dowels (4) into the inner holes on the Return Left Side Panel (L).
K
L
N
M
J
11
J
L
4
4

15
Assembly Instructions
16. Securely screw the Cam Bolts (2) into the designated small holes on the Panels (A, C, D, F and G)
using a Phillips screwdriver.
17. Glue the 30 mm Wood Dowels (3) into the inner holes on the Panels (C, D, E, F, G and H).
A
C
G
F
D
2
C
G
D
F
H
E
3
3
3
33
3
33

16
Assembly Instructions
18. Orient and attach the Desk Left Side Panel (D) to the Desk Back Panel (C) by engaging two Large Cam
Locks (1).
19. Orient and attach the Desk Partition Panels (E and F) to the Desk Back Panel (C) by engaging four
Large Cam Locks (1).
C
D
1
C
E
F
1
1
The cam lock holes for top panel
line up with each other.
The cam lock holes for top panel
line up with each other.

17
Assembly Instructions
20. Orient and attach the Desk Right Front Panel (H) to the Desk Right Partition Panel (F) by engaging two
Large Cam Locks (1).
21. Orient and attach the Desk Right Side Panel (G) to the Desk Back Panel (C) and Desk Right Front
Panel (H) by engaging four Large Cam Locks (1).
H
F
1
H
C
G
1
1
The cam lock holes
for top panel line up
with each other.

18
Assembly Instructions
22. Align and attach the previous assembly to the Desk Top Panel (A) by engaging fourteen Large Cam
Locks (1).
23. Using the wood dowels as a guide, align and attach the Desk Bottom Panel (B) to the previous assembly
with fourteen 50 mm Screws (11).
GH
CF
E
D
A
1
G
CF
E
D
B
11

19
Assembly Instructions

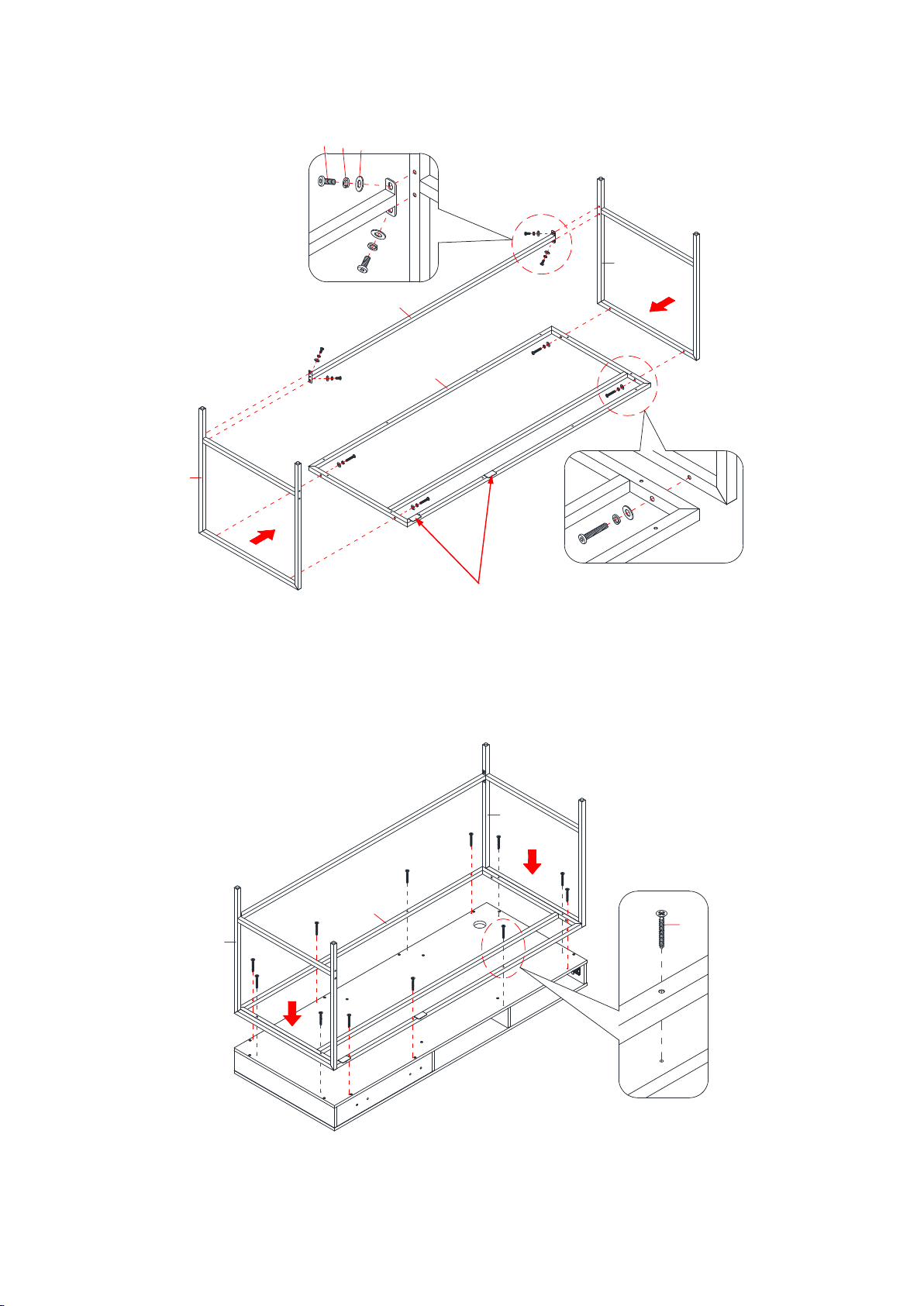

24. Orient and attach the Desk Support Frame (V) to the top rail of the Left Side Frame (W) with two 32
mm Bolts (7) and two Washers (8 and 9).
25. Attach the Long Stretcher (Y) to the Left Side Frame (W) with two 15 mm Bolts (6) and two Washers
(8 and 9).
26. Repeat the same process to assemble the Corner Side Frame (X) at the opposite end.
27. Using the pilot holes as a guide, align and attach the assembled Desk Support Frame (V) to the Desk
Bottom Panel (B) with twelve 32 mm Screws (12).
V
Y
W
X
689
789
T
h
e
meta
l bracket
s
face
f
orward
W
V
X
B
12

20
Assembly Instructions
28. Ask for assistance to lift the assembled unit upright. DO NOT lean the desk by the legs.
29. Orient and attach the Return Support Frame (Z) to the Desk Support Frame (V) with two 32 mm Bolts
(7) and two Washers (8 and 9).
30. Attach the Short Stretcher (B1) to the Corner Side Frame (X) with two 15 mm Bolts (6) and two
Washers (8 and 9).
31. Repeat the same process to attach the Right Side Frame (A1) at the opposite end.
32. Position the assembled return top onto the Return Support Frame (Z) making sure that the pilot holes
underneath the Return Bottom Panel (J) overlap the through holes on the Return Support Frame
properly.
33. Insert two 32 mm Bolts (7) with the Washers (8 and 9) through the Return Left Side Panel (L) and
securely screw into the Desk Right Front Panel (H).
H
V
Z
B1
A1
A
789
689
X
I
H
A
789
Z
The middle rail is
located at inner side
