THOR THPS-300-24 User manual

THPS-150, THPS-300 Series
Pure Sine Wave Inverter
User’s Manual

List of contents
1. IMPORTANT safety Information…………………………………………... 1
1-1 General Safety Precautions………………………………………….. 1
1-2 Battery Precautions…………………………………………………… 1
2. Features………………………………………………………………………. 2
2-1 Electrical Performance 150W……………………………………….. 2
2-2 Electrical Performance 300W……………………………………….. 3
2-3 Mechanical Drawing 150W………………………………………….. 4
2-4 Mechanical Drawing 300W………………………………………….. 5
3. Instructions………………………………………………………………….. 6
3-1 Front Panel Operation……………………………………………….. 6
3-2 Rear Panel Operation………………………………………………... 6
3-3 AC Safety Grounding………………………………………………… 7
3-4 Installation…………………………………………………………….. 8
3-5 DC Input (Outlet sockets available)………………………………… 9
3-6 AC Output (Outlet sockets available)………………………………. 9
3-7 ON / OFF / REMOTE Main Switch.………………………………… 10
4. Troubleshooting……………………………………………………………. 11
5. Maintenance………………………………………………………………… 12
6. Warranty…………………………………………………………………….. 12
1

1. Important Safety Information
WARNING!
Before installing and using the Inverter, you need to read
following safety information carefully.
1-1. General Safety Precautions
1-1-1. Do not expose the Inverter to water, mist, snow, or dust. To reduce the
risk of hazard, do not cover or obstruct the ventilation shaft.
Do not install the Inverter in a zero-clearance compartment.
Overheating may occur.
1-1-2. To avoid the risk of fire and electronic shock, make sure that existing
wiring is in good electrical condition and not undersize.
Do not operate the Inverter with damaged or substandard Wiring.
1-1-3. There are some components in the inverter can cause arcs and sparks.
To prevent from fire or explosion, do not put batteries, flammable
materials, or anything should be ignition–protected around the inverter.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts your skin or clothing, you need to wash it out
immediately with soap and water. If acid enters into your eyes,
immediately flush your eyes with running cold water for at least 20
minutes and get medical attention immediately.
1-2-2. Never smoke or make a spark or flame in the vicinity of batteries or
Engines.
1-2-3. Do not drop a metal tools on the battery. The resulting spark or short-
circuit on the battery or other electrical parts may cause an explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with a lead-acid battery,
A lead-acid battery may produce a short-circuit current who’s
temperature is high enough to weld these metal items and cause a
severe burn.
1

2. Features
2-1. Electrical Performance 150W
Specification Model No.
Item THPS-150-12 THPS-150-24
Continuous Output Power 150W
Surge Rating 200W
Input voltage 12V 24V
Input voltage Range 10.5 – 15.0 21.0 – 30.0
Output Voltage 110VAC ±5%
Frequency 50 / 60Hz ±0.3%
Max. Efficiency 87% 88%
No Load Current Draw <0.3A
Output Waveform Pure Sine Wave ( THD 6.0% Typical )
Power Factor Allowed cosθ-90° ~ cosθ+90°
Protection Overload, Short Circuit, Reverse Polarity (Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Yes, On/Off controlled by external switch
Safety Certification UL458 EN60950-1
EMC FCC Class B
EN55022:1997
EN61000-3-2:1998
EN61000-3-3:1995
EN55024:2001
Operating Temperature 0– 40℃
Storage Temperature -30℃to 70℃
Fan Cooling Thermostatically controlled
Dimensions 200(L) x 132(w) x 72(H) mm / 7.87(L) x 5.20(W) x 2.83(H) Inch
Weight 2.7 kg / 5.4 Lbs.
Note: The specifications are subject to change without notice.
2

2-2. Electrical Performance 300W
Specification Model No.
Item THPS-300-12 THPS-300-24
Continuous Output Power 300W
Surge Rating 400W
Input voltage 12V 24V
Input voltage Range 10.5 – 15.0 21.0 – 30.0
Output Voltage 110VAC ±5%
Frequency 50 / 60Hz ±0.3%
Max. Efficiency 89% 89%
No Load Current Draw <0.35A
Output Waveform Pure Sine Wave ( THD 6.0% Typical )
Power Factor Allowed cosθ-90° ~ cosθ+90°
Protection Overload, Short Circuit, Reverse Polarity (Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Yes, On/Off controlled by external switch
Safety Certification UL458 EN60950-1
EMC FCC Class B
EN55022:1997
EN61000-3-2:1998
EN61000-3-3:1995
EN55024:2001
Operating Temperature 0– 40℃
Storage Temperature -30℃to 70℃
Fan Cooling Thermostatically controlled
Dimensions 237(L) x 155(w) x 72(H) mm / 9.33(L) x 6.10(W) x 2.83(H) Inch
Weight 3.5 kg / 7.7 Lbs.
Note: The specifications are subject to change without notice.
3

4
2-3. Mechanical Drawing
4
REMO.
PORT
150W
AC OUTPUT
POWER
STATUS
REVERSE
POLARITY
WILL DAMAGE
UNIT.
DC INPUT
USE FEMALE ANDERSON
PP75 CONNECTOR ONLY.
CHASSIS
GROUND
POS(+) NEG
(-)
REMO.
ON
OFF
WARNING:
POWER
105 [4.13]
188 [7.40]
41.5 [1.63]
PURE SINE WAVE INVERTER
PURE SINE WAVE INVERTER

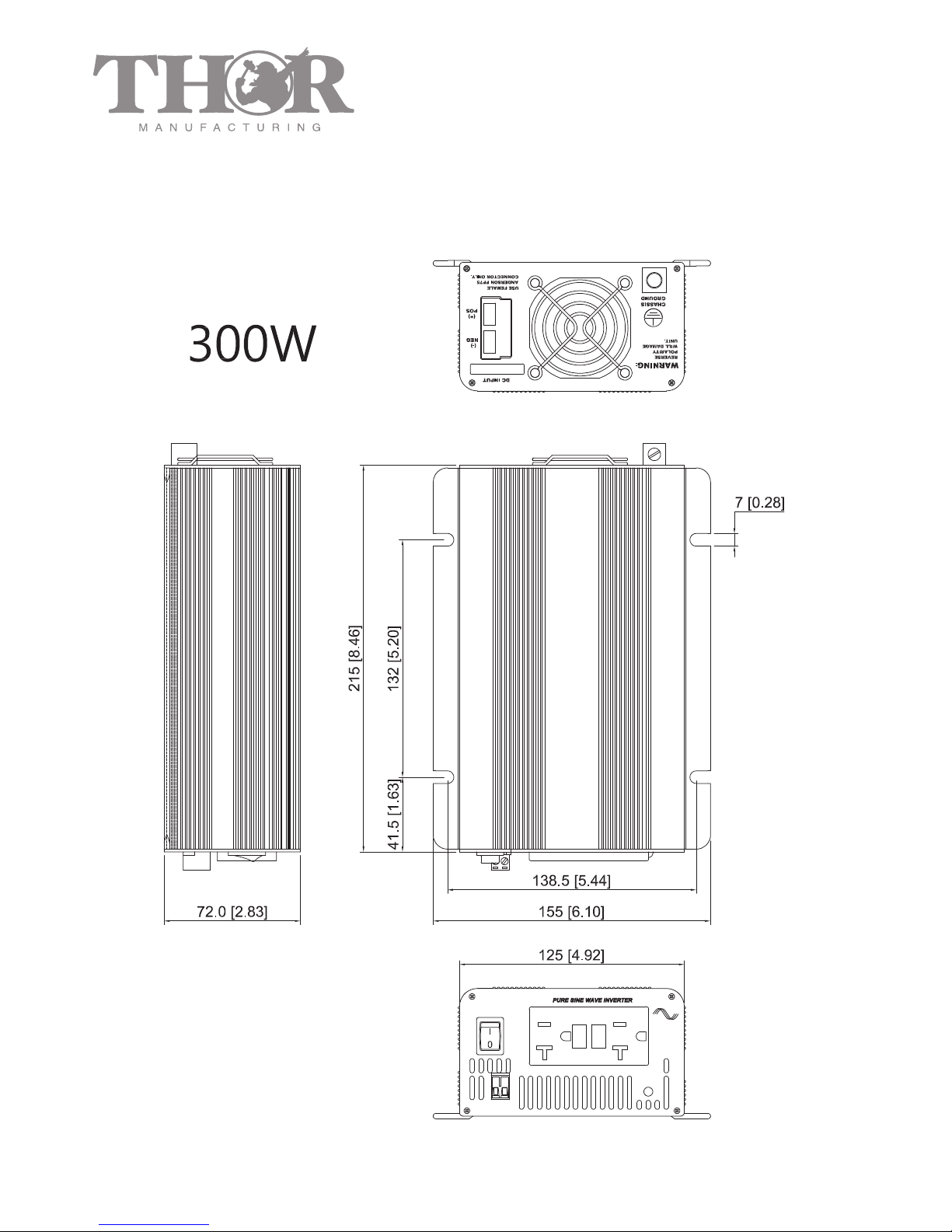

2-4. Mechanical Drawing
5
Pure Sine Wave Inverter
REMO.
ON
OFF
AC OUTPUT
REMOTE
PORT
POWER
STATUS
300W
PURE SINE WAVE INVERTER

3. Instructions
THPS-150 and THPS-300 series are very reliable, portable, and fully protected.
These pure sine inverters are used in a wide range of applications such as mobiles,
office equipment, home entertainment, electronic appliances, etc.
To get the most effective power inverter, it must be installed and used properly.
Please read the instructions of this manual before you install and operate this
model.
3-1. Front Panel Operations
3-1-1. ON / OFF REMOTE switch：
Leave the switch in the down position (OFF) during installation.
3-1-2. LED display indicates Power Status
LED Conditions Status
Solid Green AC Power OK
Fast Red Blink OVP
Slow Red Blink UVP
Intermittently Red Blink OTP
Solid Red OLP
3-1-3. Remote Port：Place 0.75mm2and Screw type cable between the
remote port and the panel.
3-2. Rear Panel Operations
3-2-1. Ventilation shaft：Keep the ventilation shaft a distance (at least 3 inch)
from anything surrounding it
3-2.2. Input terminals：Connect the input terminal to 12V / 24V battery or
other 12V / 24V power source. 【＋】represents
positive, and【－】represents negative. Reverse
polarity connection will blow the internal fuse and may
damage inverter permanently.
3-2-3. Use wire # 8 AWG to connects Chassis ground with Vehicle Chassis.
6

WARNING！
Do not combine the 12V model with 24V battery or the unit will
be destroyed immediately.
Operate with the inverter without a proper ground connection
may cause an electrical safety hazard.
Damage caused by reversed polarity is not covered by the
warranty. Ensure the power switch is in the OFF position
before putting the battery in.
3-3. AC Safety Grounding：
During AC wiring installation, AC input and output ground wires are
connected to the inverter. The AC input ground wire must be connected to
the incoming ground from AC utility source.
The AC output ground wire should go to the grounding point for your loads
( for example, a distribution panel ground bus ).
3-3-1. Neutral Grounding (GFCI’S):
110V models：The neutral conductor of the AC output circuit of the
Inverter is automatically connected to the safety ground during inverter
operation. This conforms to National Electrical Code requirements that
separately derived from AC sources (such as inverters and generators)
which have their neutral conductors tied to ground in the same way as
the neutral conductors from the utility tied to ground at the AC breaker
panel. For models configured with a transfer relay, while AC utility
power is present and the Inverter is in bypass mode, this connection
(the neutral of the Inverter’s AC output to input safety ground) is not
present so that the utility neutral is only connected to ground at your
breaker panel, as required. Thor Mftg. has tested the following GFCI-
properly when connected to the output of the Inverter.
WARNING！
Never connect the inverter’s output to the AC distribution grid,
such as the household AC wall outlet.
It will damage the Inverter.
7

3-4. Installation
Before connecting your applications to the inverter, always check the power
draw of your appliances. The inverter can supply surge power for a short time
so as to start up the electrical equipment such as motors, pumps… that need
more power while starting up.
When all the above requirements are checked OK and satisfied and all
connections are made, it’s time to turn on the inverter by switching the power
to ‘ I ’ position. The sine wave filters provide sine wave output voltage when
driven from AC outlet.
To save the battery power, you are highly recommended to turn off the
inverter when it is not used.
DC input voltage status as follows:
Model
DC Input Over
Voltage
DC Input Under
Voltage
Shut-down Restart Shut-down Restart
12V models 15.3 14.3 10.5 12.7
24V models 30.6 28.6 21.0 25.2
8

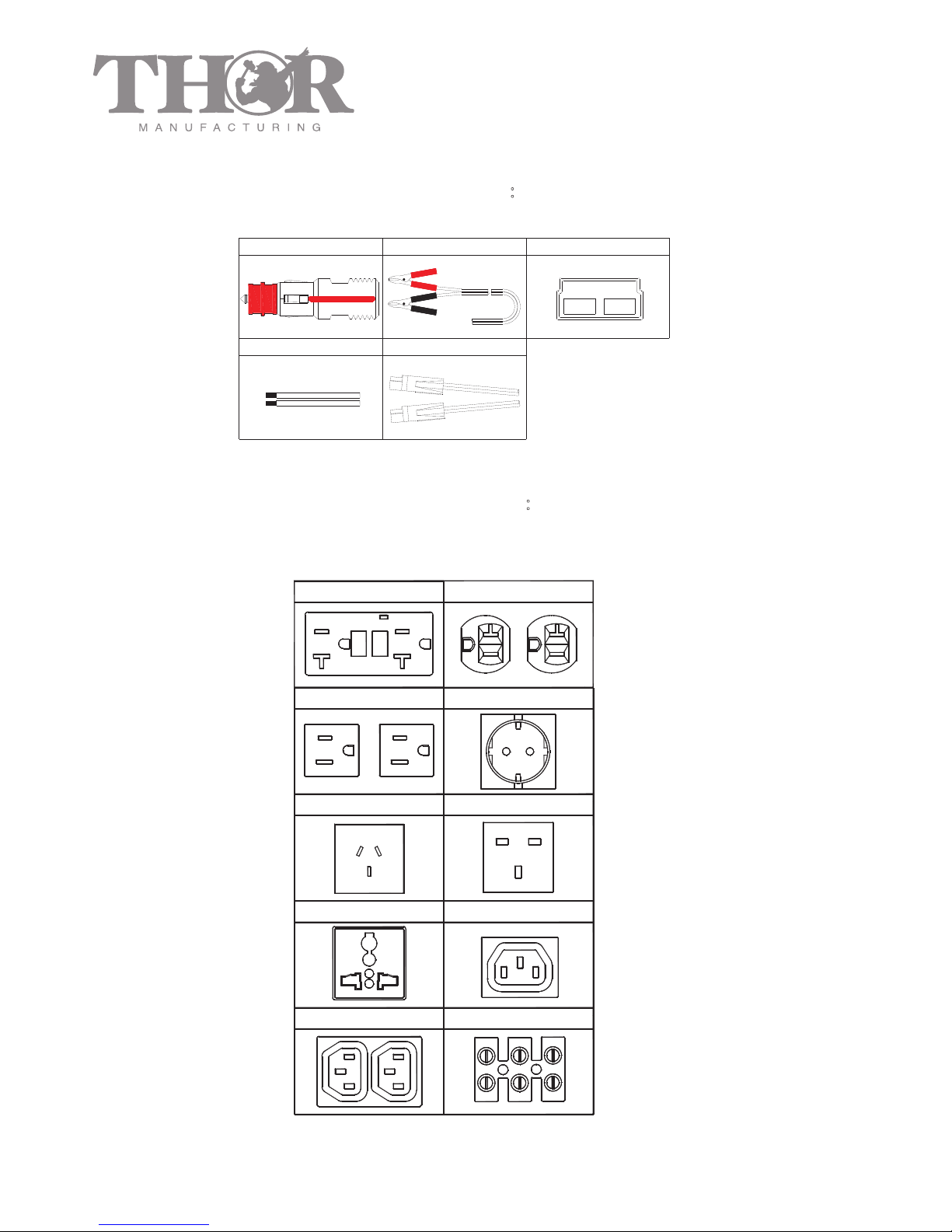

3-5. DC Input (Outlet sockets available)：
CIGARETTE CLAMP
STRIPPED WIRE
POWER CLAW
PP45
3-6. AC output (Outlet Sockets available)：
Australia / New Zealand
IEC-2
Universal
HARD WIRE
United Kingdom
North America (GFCI)
IEC-1
NEMA 5-15R
NEMA 5-20R
Continental European
9

3-7. ON / OFF / REMOTE Main Switch.
3-7-1. Before installing the inverter, make sure the main switch must
be “OFF”.
3-7-2. Before using the remote unit, make sure the main switch must
be “ REMOTE”.
3-7-3. Ensure the remote control contact is off.
3-7-4. Remote Port：Place 0.75mm2and Screw type cable between
the remote port and the panel.

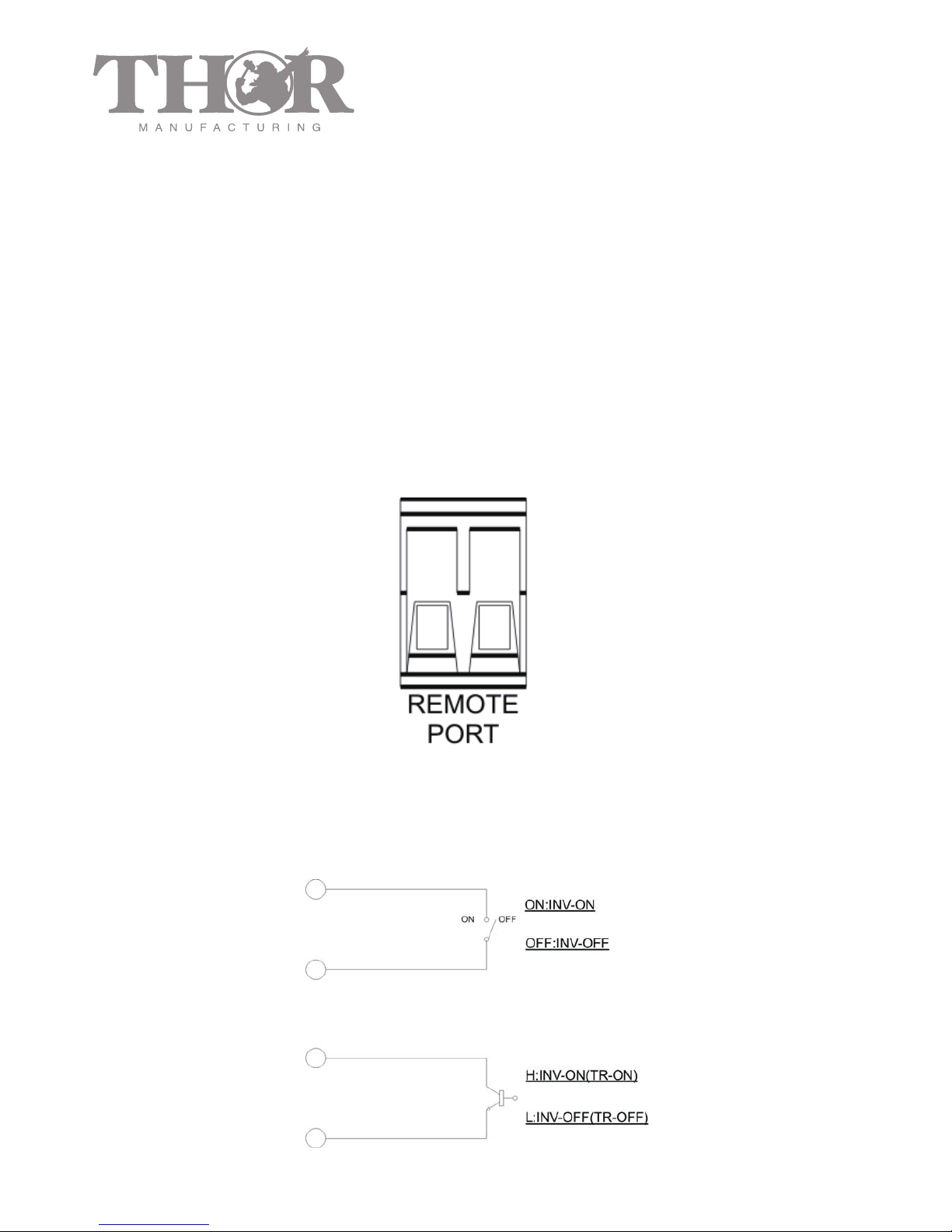

3-7-5. Remote port ON/OFF inverter setup status
REMOTE PORT
MODE Ⅰ
MODE Ⅱ
10

4. Troubleshooting
WARNING！
Do not open or disassemble the Inverter. Attempting to
service the unit yourself may cause the risk of electrical
shock or fire.
Problems and Symptoms Possible Cause Solutions
No output voltage, the LED glows Red light.
a. Power status light is
blinking red fast.
Over input voltage. Check input voltage.
Reduce input voltage.
b. Power status light is
blinking red slowly.
Low input voltage. Recharge battery.
Check connections and
cable.
c. Power status light is
blinking red intermittently.
Thermal shutdown Improve ventilation.
Make sure ventilation
shafts in the inverter are
not obstructed.
Lower ambient
temperature.
d. Power status light is
glowing red steadily.
Short circuit, Wiring
error, Overload
Check AC wiring for
short circuit.
Remove load.
11

5. Maintenance
Very little maintenance is required to keep your inverter operating properly.
You should clean the exterior of the unit periodically with a damp cloth to prevent
accumulation of dust and dirt. At the same time, tighten the screws on the DC
input terminals.
6. Warranty
We guarantee this product against defects in materials and workmanship for a
period of 24 months from the date of purchase and will repair or replace any
defective power inverters if you directly returned them to us with postage paid.
Please note that Thor Manufacturing Inc is only responsible for ensuring our
products are operational before delivering. This warranty will be considered void
if the unit has been misused, altered, or accidentally damaged. Thor Manufacturing
Inc. is not liable for anything that occurs as a result of the user’s fault.
12

Thor Manufacturing Inc.
7050 W Palmetto Park Rd Suite 15
Boca Raton, FL 33433
Toll free phone: [phone]-THOR (8467)
Web: http://www.thorpowerproducts.com
