MPH16-UC
Motorized Pinhole Wheel, Uncoated
User Guide

Copyright © February 21, 2020 Thorlabs, Inc. All rights reserved.
Information in this document is subject to change without notice. The software described in
this document is furnished under a license agreement or nondisclosure agreement. The
software may be used or copied only in accordance with the terms of those agreements. No
part of this publication may be reproduced, stored in a retrieval system, or transmitted in any
form or any means electronic or mechanical, including photocopying and recording for any
purpose other than the purchaser's personal use without the written permission of Thorlabs,
Inc.
Thorlabs, Inc.
108 Powers Court
Sterling, Va 20166
703-651-1700

Table of Contents
Chapter 1 Warning Symbols and Definitions 1
Chapter 2 Safety 2
Chapter 3 Description 3
3.1. Features at a Glance 3
3.2. Front Panel Overview 4
3.3. Back Panel Overview 4
3.4. Working Principle of Motorized Pinhole Wheel 5
Chapter 4 Getting Started 6
4.1. Unpacking and Inspection 6
4.2. Setting up MPH16-UC 6
4.2.1. Minimum Computer Requirements 6
4.2.2. Preparation 6
Chapter 5 Software 9
5.1. MPH16 4.0 Software Installation 9
5.2. MPH16 GUI (Graphical User Interface) 18
5.2.1. Display Area 18
5.2.2. Menu 19
Chapter 6 Hardware Setup and Installation 20
6.1. GeneralSetup 20
6.2. Choosing the Pinhole Size 20
6.3. Installation 23
Chapter 7 Alignment 25
7.1. Laser Source Alignment 25
7.2. MPH16-UC Fine Manual Alignment 26
7.2.1. Lens Alignment 28
Motorized Pinhole Wheel, Uncoated

Chapter 8 Maintaining the MPH16-UC 29
8.1. Cleaning 29
8.2. Troubleshooting 29
Chapter 9 Specifications 30
9.1. General Specifications 30
9.2. Pinhole Wheel Specifications 30
9.3. Pinhole Wheel Specifications 31
9.4. Achromatic Doublet Specifications 32
Chapter 10 Mechanical Drawing 33
Chapter 11 Certifications and Compliance 35
Chapter 12 Regulatory 36
Chapter 13 Thorlabs Worldwide Contacts 37
Motorized Pinhole Wheel, Uncoated

Rev B, February 21, 2021 Page 1
Motorized Pinhole Wheel, Uncoated Chapter 1: Warning Symbols and Definitions
Chapter 1 Warning Symbols and Definitions
Below is a list of warning symbols you may encounter in this manual or on your
device.
Symbol Description
Direct Current
Alternating Current
Both Direct and Alternating Current
Earth Ground Terminal
Protective Conductor Terminal
Frame or Chassis Terminal
Equipotentiality
On (Supply)
Off (Supply)
In Position of a Bi-Stable Push Control
Out Position of a Bi-Stable Push Control
Caution: Risk of Electric Shock
Caution: Hot Surface
Caution: Risk of Danger
Caution: Laser Radiation
Caution: Spinning Blades May Cause Harm

Chapter 2 Safety
All statements regarding safety of operation and technical data in this user
guide will only apply when the unit is operated correctly. Please read the fol-
lowing warnings and cautions carefully before operating the device.
WARNING
DONOTuse the device for anything other than its intended use.
WARNING
DONOTtake the unit apart. The pinhole wheel blade is fragile and may
break during handling.
WARNING
DONOT expose the pinhole to excessive laser power. This may damage
the product. See Specifications Chapter for maximum input power.
WARNING
DONOTswitch on the laser when mounting the motorized pinhole wheel
onto the laser source. This may cause injury due to laser radiation. Make
sure the laser source is off.
WARNING
The motorized pinhole wheel is not assessed according to IEC61508:
Functional Safety, and should not be used as a safety component.
WARNING
In case of software failure, turn off the laser source.
WARNING
DONOToperate in wet or damp conditions.
Page 2 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 2: Safety

Rev B, February 21, 2021 Page 3
Motorized Pinhole Wheel, Uncoated Chapter 3: Description
Chapter 3 Description
The MPH16-UC is an optically encoded, high-precision motorized pinhole
wheel. It enables automated and repeatable positioning of pinholes for applic-
ations such as confocal laser scanning microscopy or scanning oph-
thalmoscopy. Additionally, the MPH16-UC has a chrome-plated glass disk that
is manufactured using standard photolithography techniques. This disk consists
of 16 pinholes ranging from Ø25 µm to Ø2 mm.
The MPH16-UC connects to a computer through a USB port. A DLL or GUI soft-
ware controls the pinhole wheel. An optically encoded motor provides repeat-
able selection between pinholes with a resolution of 10 µm, without the need for
realignment. Radial positioning of the pinhole is accomplished by adjusting the
focusing lens with a fine adjustment screw. The detection end has an SMAfiber
connector for efficient collection of the spatially filtered light. While our standard
MPH16-UC ships with an SMAfiber connector, other connectors are available
upon request; please contact [e-mail] for details.
Note: The position of each pinhole (0-15), reported by the DLL of GUI, directly
corresponds to the pinhole diameters (Ø25 µm - Ø2 mm), from smallest to
largest (refer to the SDK manual for details).
3.1. Features at a Glance
● Ease of Use
♦Quick and Repeatable Pinhole Positioning
♦Plug and Play Software User Interface
● Stability
♦Stable Construction Results in Minimal or No Realignment
after the Initial Setup
♦16 Pinholes (Ø25 µm – Ø2 mm) on a Single Wheel
♦Compatible with Thorlabs' Cage Systems
● Precision
♦High Precision Optically Encoded Motor
♦Dovetail Construction for Precise Fit with Thorlabs Confocal
Laser Scanning Imaging Systems
♦Detachable SMAFiber Connector
♦Circular Pinhole with Precise Diameter

3.2. Front Panel Overview
Figure 3–1 MPH16-UC Module Front View
3.3. Back Panel Overview
Figure 3–2 MPH16-UC Module Rear View
Page 4 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 3: Description

Rev B, February 21, 2021 Page 5
Motorized Pinhole Wheel, Uncoated Chapter 3: Description
3.4. Working Principle of Motorized Pinhole Wheel
Figure 3–3 Cutaway Showing Beam Path

Chapter 4 Getting Started
4.1. Unpacking and Inspection
Open the package, and carefully remove the MPH16-UC and its accessories.
The table lists the standard accessories shipped with the device.
Name Quantity
Motorized Pinhole Wheel 1
USB Cable 1
Power Supply 1
Hex L-Key 1.5 mm 1
Socket Head Cap Screw (to Mount Cage Rods) 4
Dovetail Adapter for 30 mm Cage System Compatibility 1
User Guide 1
Inspect the device and its accessories for any missing parts or damage.
If there is any problem, please contact Thorlabs at Phone: [phone] or
Email: [e-mail] immediately. Please have the serial num-
ber (printed on the side of the unit) available while calling the technical support
team.
4.2. Setting up MPH16-UC
4.2.1. Minimum Computer Requirements
Operating System 64-bit, Windows 7 or 10 (Not Compatible with 32 bit)
Driver Silicon Labs CP210x USB to UART Bridge
Other Software Visual C++ Redistributable Package (2012),
Microsoft .NET 4.5.2 or Later
4.2.2. Preparation
1. Install the MPH16 software on your computer as described in the
Software Chapter on page 9.
2. Mount the MPH16-UC unit on a breadboard or optical table.
3. Remove the protective film from the unit.
4. Connect the MPH16-UC to the computer via USB.
Page 6 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 4: Getting Started

Rev B, February 21, 2021 Page 7
Motorized Pinhole Wheel, Uncoated Chapter 4: Getting Started
5. Connect one end of the power supply to the MPH16-UC and the other
end to a standard power outlet.
6. Double click the MPH16_Control.exe file from the Application folder
saved on your local drive.
The MPH16 Com Port Selection window appears.
7. Select COM7 from the drop down menu and click OK.
Check Device Manager >Port (COM & LPT) on your computer to verify
the that the COM Port of Silicon Laboratories CP210x USB to UART
Bridgeis set to COM7.
Note: If COM7 is in use by another device, a different COM Port can
be used as long as it matches the COM Port Selection made within
the MPH16 software.
8. The MPH16 Pinhole Control window appears.

9. In the MPH16 Pinhole Control window, make sure the alignment
number on the front of the MPH16-UC device matches the Alignment
number in the MPH16 Pinhole Control window for the 25 μm pinhole
diameter size.
If the alignment does not match, enter the alignment number in the
text box and click the Set button in MPH16 Pinhole Control window.

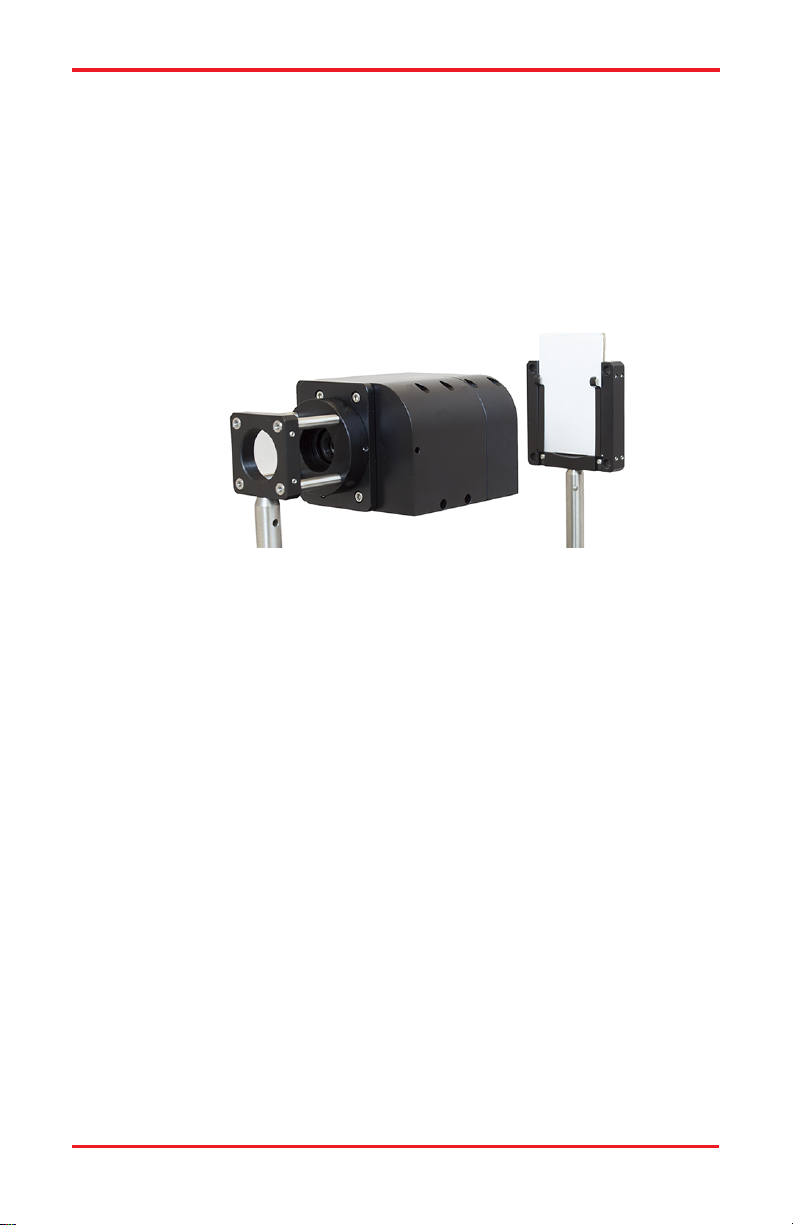

10. Position a piece of white cardboard or white paper near the emission
port to test for alignment.
11. Reset the Select Pinhole Size in MPH16 Pinhole Control window to
the largest pinhole size (2 mm).
12. For laser source alignment and MPH16-UC fine manual alignment,
see the Alignment Chapter on page 25.
Page 8 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 4: Getting Started

Rev B, February 21, 2021 Page 9
Motorized Pinhole Wheel, Uncoated Chapter 5: Software
Chapter 5 Software
5.1. MPH16 4.0 Software Installation
1. Download the software from www.thorlabs.com and open the 70-
0034-4.0 MPH16 SDK v4.0 folder.
2. Double click the installer (.exe) application to open the
MPH16 4.0 Setup window. Click Next to continue.
Figure 5–1 Thorlabs MPH16 4.0 Setup Window

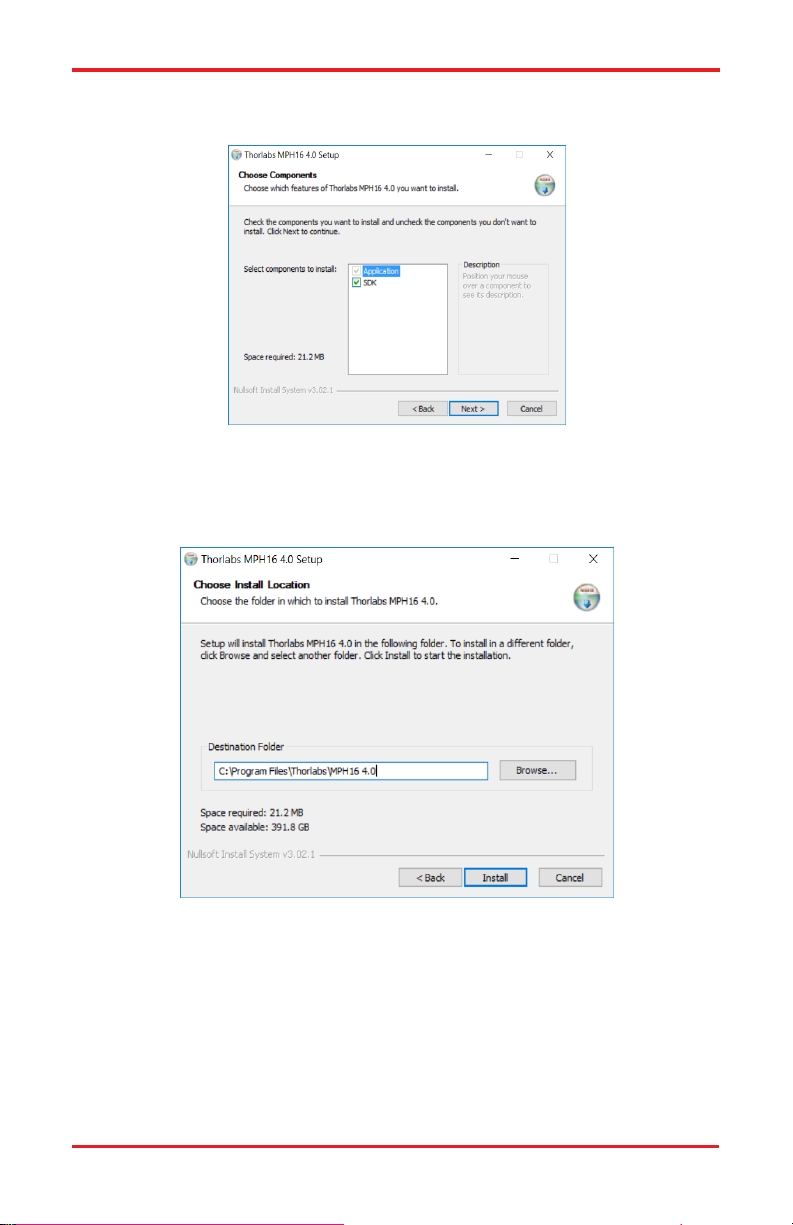

3. In the Choose Components window, select SDK if you want the soft-
ware development kit files installed, then click Next.
Figure 5–2 Choose Components Window
4. In the Choose Install Location window, select the destination folder
and then click Install.
Figure 5–3 Thorlabs MPH16 4.0 Setup Window
Page 10 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 5: Software

Rev B, February 21, 2021 Page 11
Motorized Pinhole Wheel, Uncoated Chapter 5: Software
5. During installation, the Device Driver Installation Wizard will appear.
Click Next to begin installing the software drivers that some computer
devices need in order to work.
Figure 5–4 Device Driver Installation Wizard Window
6. If prompted by Windows Security, select Install.
Figure 5–5 Windows Security Prompt

7. The installer will prompt you to install Silicon Laboratories C210x
VCP Drivers. Click Next.
Figure 5–6 Silicon Laboratories CP210x VCP Driver Window
8. Accept the terms of the license agreement and then click Next.
Figure 5–7 License Agreement Window
Page 12 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 5: Software

Rev B, February 21, 2021 Page 13
Motorized Pinhole Wheel, Uncoated Chapter 5: Software
9. Select the destination folder and click Next to continue.
Figure 5–8 Choose Destination Location Window
10. Click Install to begin installation of the VCP drivers.
Figure 5–9 Ready to Install Window

11. Once drivers are installed, click Finish to continue.
Figure 5–10 Device Driver Installation Wizard
12. Click Install to continue.
Figure 5–11 UARTBridge Driver Installer
Page 14 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 5: Software

Rev B, February 21, 2021 Page 15
Motorized Pinhole Wheel, Uncoated Chapter 5: Software
13. Once the Bridge Driver Installer is finished, click OK to continue.
Figure 5–12 Device Driver Installation Wizard
14. Click Finish to complete the installation.
Figure 5–13 Completing the Thorlabs MPH16 4.0 Setup Window
15. MPH16 software installation is now complete and a new Windows
shortcut is added to the desktop.
Figure 5–14 MPH16 4.0 Shortcut Icon

16. Check Device Manager>Port (COM&LPT) on your computer to verify
the COM port of the MPH16 driver. Make sure the COMPort Number
is set to COM7.
To change the COM Port Number to COM7:
a. Right click on MPH16 driver, and click on Properties to open the MPH16
Properties window.
Figure 5–15 Device Manager
b. On the Port Settings tab, click Advanced to open the Advanced Settings
window.
Figure 5–16 MPH16 (COMx) Properties Window
Page 16 TTN202954-D02
Motorized Pinhole Wheel, Uncoated Chapter 5: Software
