Tippmann TANGO ONE User manual

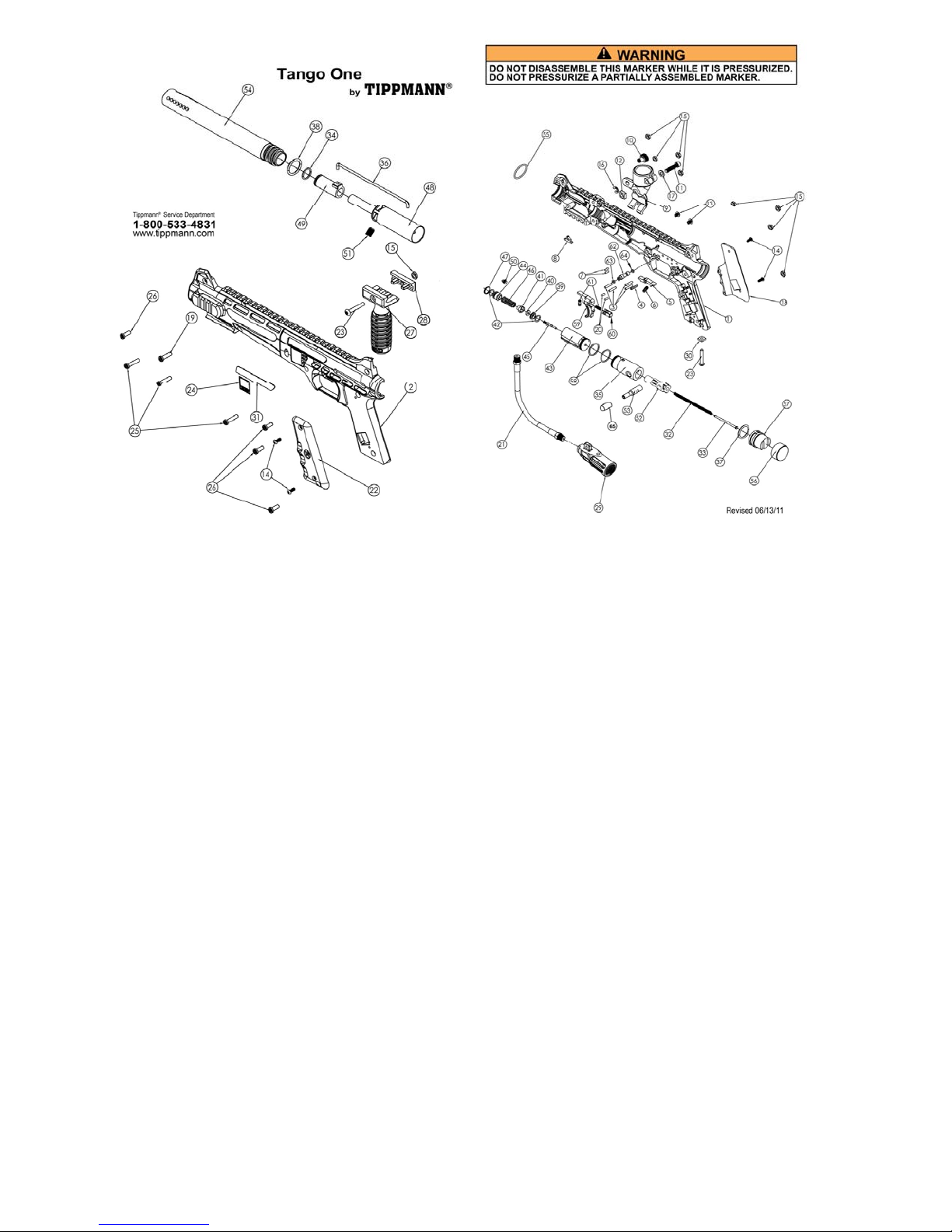

ITEMNO. QTY. PT.NO. DESCRIPTION ITEMNO. QTY. PT.NO. DESCRIPTION
1 1 TA06053 RightReceiverHal
f
33 1 CA‐15 GuidePin
2 1 TA06052 LeftReceiverHal
f
34 1 SL2‐4O‐ring,FrontBolt
3498‐33 ReceiverDowelPin 35 1 TA02011 RearBolt
41CA‐36 SearDowelPin(Black) 36 1 TA01016 LinkageArm
5102‐35 Sear 37 1 98‐57 O‐ring,EndCap
6 1 TA02036 SearSpring 38 1 98‐40 O‐ring,Barrel
7 2 TA02021 ACTLinkageArmGuidePin 39 1 CA‐27 FrontValveSeat
81FA‐18 BallLatch 40 1 PA‐28 ValveStemCupSeal
9 1 TA06051 FeedElbow 41 1 CA‐29 ValveStemCup
10 1 TA06059 FeedElbowThumbNut 42 2 SL2‐25 O‐ring,ValveSeat
11 1 PL‐42C Screw,¼‐20x1”SHCS 43 1 98‐25N ValveBody
12 1 PL‐42D Nut,¼‐20Square(Black) 44 1 98‐56 ValvePlug
13 2 98‐26 Screw,10‐32x¼”BHCS 45 1 CA‐30N ValveStem
14 4 CA‐02A Screw,6‐32x⅜”BHCS 46 1 98‐32 CompressionSpring
15 8 9‐PA Nut,Hex10‐32(Black) 47 1 PA‐31A SnapRing
16 1 TA06047 LockScrewC‐Clip 48 1 98‐21NR PowerTube
17 1 98‐45 FlatWasherM6(Black) 49 1 02‐17 FrontBolt
18 1 TA05004 SplitGrip,Right 50 1 TA05021 PowerTubePlug
19 1 98‐01A Bolt,10‐32x0.675” 51 1 02‐22 VelocitySetScrew
20 2 98‐19 ReturnSlideDowelPin 52 1 TA05005 RearBoltPlug
21 1 98‐09C GasLine,#4x7⅞”53 1 98‐13 RearBoltHandle
22 1 TA06003 SplitGrip,Left 54 1 TA06046 Barrel
23 2 TA06048 Screw,10‐32x1.1875”BHCS 55 1 TA06060 O‐ring,BarrelSleeve
24 1 TA06064 TPNJewel 56 1 TA06017 EndCapCover
25 3 TA06015 Screw,10‐32x0.840”LHSHCS 57 1 TA06006 EndCap
26 4 TA09919 Screw,10‐32x0.500”LHSHCS 58 2 98‐12A O‐ring,Valve/RearBolt
27 1 TA06054 Foregrip 59 1 98‐36A Trigger
28 1 TA06055 ForegripClampPlate 60 1 98‐18 TriggerReturnSlide
29 1 TA06049 AirSupplyAdapter(ASA) 61 2 98‐20 Spring
30 1 CA‐08B Nut,10‐32 62 1 98‐37N SafetyPin
31 1 TA06063 TangoOneNameplate 63 1 98‐55 O‐ring,Safety(Red)
32 1 CA‐14 DriveSpring 64 1 FA‐07 O‐ring,Safety(Black)
