Titan Attachments SSTRUSSBOOMv2 User manual

SKID STEER TRUSS BOOM
SSTRUSSBOOMv2
194137
Operator’s Manual
Read the Operator’s Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

2
INTRODUCTION
•This manual is made at the time of manufacturing of the SSTRUSSBOOM that does not
include any subsequent modifications made afterward.
•This manual is intended to provide information to operators and owners to operate the
SSTRUSSBOOM safely and effectively, as well as to perform suitable maintenance for the
equipment.
•Before operating or performing maintenance of the equipment, it is critical to read,
understand and be acquainted with the operating, safety, and maintenance
recommendations of this manual and the manual of your skid steer, or prime mover.
•Failure in operating and maintaining the TRUSSBOOM according to the instructions and
recommendations could lead to fatal accidence causing serious personal injury or death,
as well as damages to your equipment.
SAFETY PRECAUTIONS
THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
DANGER
THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT IF THE
INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
WARNING
THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT IF THE
INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
CAUTION
THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT IF
THEINSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
NOTION
NOTICE INDICATES A PROPERTY DAMAGE MESSAGE.

3
GENERAL PRECAUTIONS
READ MANUAL PRIOR TO INSTALLATION
Improper installation, operation, or maintenance of this equipment could result in serious
injury or death. Operators and maintenance personnel should read this manual, as well as
manuals related to this equipment and the prime mover thoroughly before beginning the
installation, operation, or maintenance.
FOLLOW ALL SAFETY INSTRUCTIONS IN THIS MANUAL.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions, and operations before operating. Visually
inspect your equipment before your start, and never operate equipment that is not in proper
working order with all safety devices intact. Check all hardware to ensure it is tight. Make
certain that all locking pins, latches, and connection devices are properly installed and secured.
Remove and replace any damaged, fatigued, or excessively worn parts. Know and follow good
work practices when assembling, maintaining, repairing, mounting, removing, or operating this
equipment.
USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic fluid under pressure can penetrate the skin and cause serious injury or death.
Hydraulic leaks under pressure may not be visible.
•Keep unprotected body parts, such as face, eyes, and arms as far away as possible from a
suspected leak. Flesh injected with hydraulic fluid may develop gangrene or other
permanent disabilities.
•If injured by injected fluid, see a doctor immediately. If your doctor is not familiar with this
type of injury, ask him to research it immediately to determine proper treatment.
•Wear safety glasses, protective clothing, and use a piece of cardboard or wood when
searching for hydraulic leaks. DO NOT USE YOUR HANDS!
DO NOT MODIFY MACHINE OR ATTACHMENTS
Modifications may weaken the integrity of the attachment and may impair the function, safety,
life, and performance of the attachment. When making repairs, use only the manufacturers’
genuine parts, following authorized instructions. Other parts may be substandard in fit and
quality.
SAFELY MAINTAIN AND REPAIR EQUIPMENT
•Do not wear loose clothing or any accessories that can catch in moving parts. If you have
long hair, cover, or secure it so that it does not become entangled in the equipment.
•Work on a level surface in a well-lit area
•Use properly grounded electrical outlets and tools
•Use the correct tools for the job at hand. Make sure they are in good condition for the
task required.
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualified operator in how to
use the controls, know its capabilities, dimensions, and all safety requirements. See your
machine’s manual for these instructions.

4
•Keep all step plates, grab bars, pedals, and controls free of dirt, grease, and debris, and
oil.
•Never all anyone to be around the equipment when it is operating.
•Do not allow riders on the attachment or the prime mower.
•Do not operate the equipment from anywhere other than the correct operator’s position.
•Never leave equipment unattended with the engine running or with this attachment in a
raised position.
•Do not alter or remove any safety feature from the prime mover or this attachment.
•Know your work site safety rules as well as traffic rules and flow. When in doubt on any
safety issue, contact your supervisor or safety coordinator for an explanation.
QUALIFIED OPERATOR
•Operators must acquire an appropriate qualification or license to operate skid steer and
attachments.
•Operators must be mentally sound and not being affected by drugs or alcoholic drinks
while operating the equipment. Alcohol and drugs could reduce alertness and
coordination, causing catastrophic accidence with serious personal injury or death. An
operator taking prescription or
•over the counter drugs should seek medical advice as to whether he or she can safely
operate the equipment.
•According to OSHA and applicable local regulations, operators must comply with
industrial work safety requirements with all necessary protective apparel and equipment
such as seat belts, helmets, safety glass, dust masks, heavy-duty gloves, etc.
ENVIROMENTAL FACTORS
•Avoid working in bad weather, including but not limited to heavy rain, snowing, stormy
and windy weather.
•Avoid working on the downhill side of a slope, hill, uneven and slippery ground.
•Beware of above-ground utilities, including power and communication lines, gas, sewer,
and water pipelines.
•Check the work field thoroughly to avoid or remove obstacles or objects that may cause
an imbalance or damages of equipment that could lead to catastrophic accidence causing
serious personal
•injury or death.
•Do not operate in an environment that is not well-lite.
ATTACHING TELEBOOM TO YOUR LOADER
•Rest the attachment in flat ground, and drive loader towards the attachment mount plate.
•Engage the loader coupler wedges to the top hanger bracket of the mounting plate and
tilt it back slowly until the mounting plate is slightly off the ground.
•Tilt the attachment further backward slowly until the mounting plate rests flush with the
loader coupler.
•Stop loader engine, apply the parking brake, remove key and exit the loader.
•Lock the levers latch pins in full length through the lower slots of the mounting plate and
double-check to make sure that the mounting plate tightly presses against the loader
coupler without any gap.

5
•WARNING: Failure to lock the attachment tightly on the loader coupler will cause the
attachment to come off, resulting in serious personal injury or death.
•Check dust and dirt on the male and female flat face couplers and wipe off dust and dirt
before connecting to the loader or prime mover.
•Turn down the loader engine to deactivate the hydraulic pressure of the auxiliary oil
circuit and plug the oil hose couplers into the respective oil ports of the loader.
BEFORE OPERATING THE ATTACHMENT
Read this manual and the manual of the loader or prime mover to get acquainted with safely
operating the unit, mainly to stop the unit quickly in the event of an emergency.
•Check and replace parts that show signs of wearing.
•Check for loosening bolts, nuts, and pins and tighten.
•Check hydraulic connection for leakage and reconnect or replace if necessary.
•Check if all moving parts are sufficiently greased and apply grease if necessary.
•Check if the TRUSSBOOM is secure onto the loader coupler arms with the levers and
wedges fully engaged.
•Assess if counterweight to improve stability is necessary.
OPERATING THE TELEBOOM
•Check the environment carefully as stated in ENVIRONMENTAL FACTORS AND WORK
AREA.
•CONDITIONS section to avoid the uneven ground, slope, obstacles, bad weather, lighting
conditions. to avoid accidence.
•Do not operate the TRUSSBOOM with bystanders, pets, and livestock under the boom and
within proximity of 40 feet radius along the traveling path. Stop when outsiders enter the
radius.
•Avoid operating on a slope that could cause the loader to roll over, resulting in severe
injury or death.
•Avoid operating under overhead power or communication line in a low attitude.
Misjudgment will cause the boom to hit overhead utility lines resulting in electrical shock
or rollover of loader and causing personal injury or death.

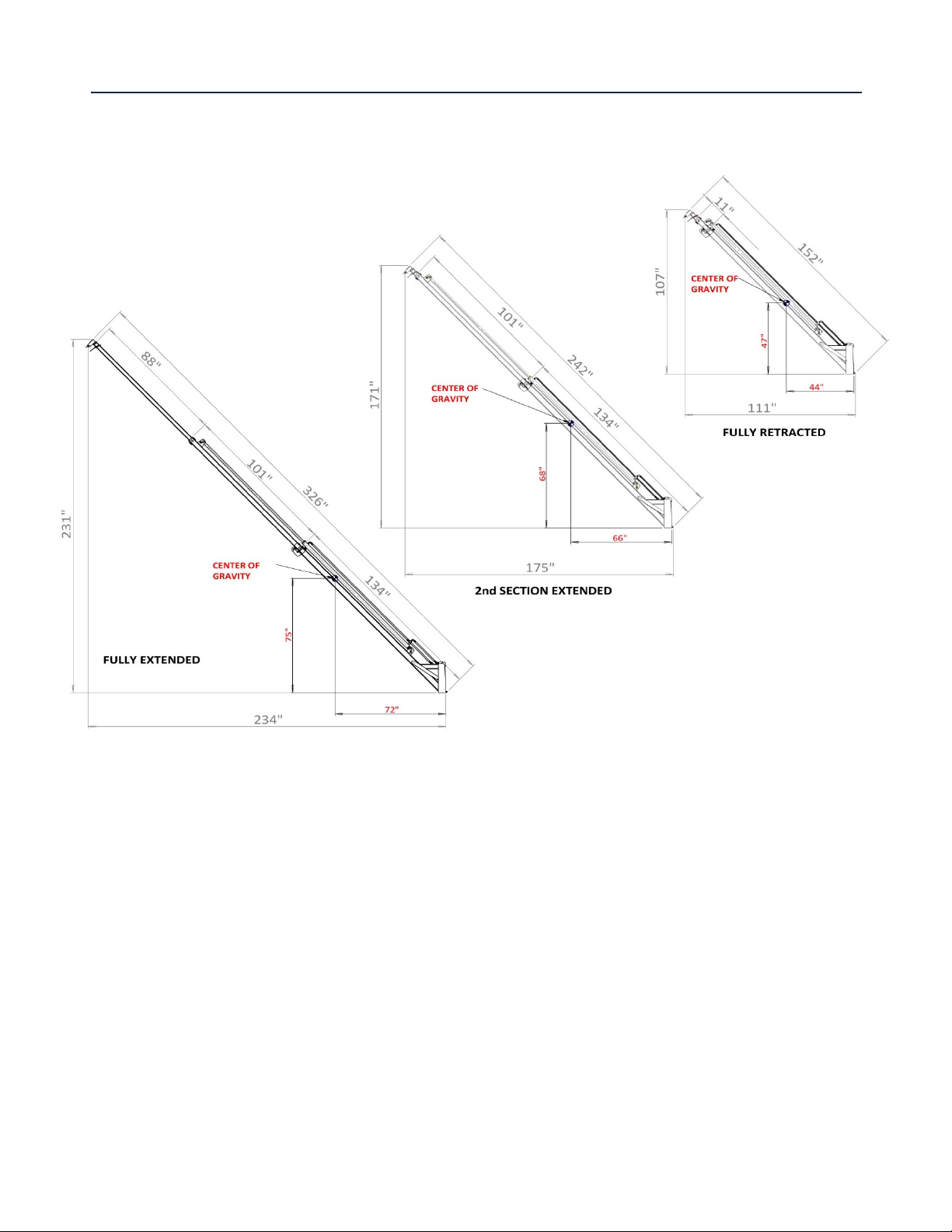

•Do not load the boom more than the rated load capacities of each section specified in
the SPECIFICATIONS section below. Note that the load capacity specified pertains to
STATIC load.
•When transferring the boom under load or moving the loader to a designated position,
keep the Boom as low as possible to prevent rollover. WARNING: Always transfer load at a
slow pace to avoid rollover resulting in a fatal accident.
•Always use the loader arms to lift load first, then hoist load with the boom to the desired
height.
•Refer to the “Rated Operating Capacity (ROC)” in the LOADER OR PRIME MOVER
REQUIREMENTS
•The section below prevents insufficient stability during operation. Use counterweight
recommended by the loader or prime mover dealers whenever necessary.
BEFORE OPERATING THE ATTACHMENT
•Turn the engine to idle speed before engaging auxiliary hydraulic to the TRUSSBOOM.

6
•Warm up the engine for at least 2 minutes before engaging auxiliary hydraulic to the
TRUSS BOOM with gradual, incremental speed.
•Extend and retract the boom a few times to make sure that it functions appropriately
before operating.
AFTER USE:
•Retract the boom cylinder fully.
•Turn off auxiliary hydraulic completely after use.
•Before exiting the loader or prime mover, lower the unit to the ground and rest flat, turn
off the engine, apply parking brake and key.
•Perform after use inspection and maintenance as described in the AFTER USE AND
MAINTENANCE in the next section below.
AFTER USE AND MAINTENANCE
•Inspection and maintenance can only one be conducted with engine turned off and
auxiliary pressure completely disengaged.
•Lower the attachment to flat ground, apply brakes, turn off engine and remove the key
•Put on personal protective equipment apparel as described in previous sections.
•Each time after use, clean the attachment thoroughly and remove the debris and dirt
•Visually inspect if there are any parts damaged or deformed, repair and replace if
necessary.
Check if there is any loosen or damaged
hardware, tighten or replace hardware id
necessary.
•The minimum torque for tightening
hardware is shown below:
oM10: 37 lb. Ft (50 N.m)
oM12: 67 lb. Ft (90 N.m)
oM16: 163 lb. Ft (220 N.m)
Lubricate all moving parts. The 2 grease
points (A/B) are shown below:
•When the TRUSSBOOM is dry, check
places where paint is scratched or worn and apply antirust oil to the surface where
necessary.
•Store the TRUSSBOOM in a shed and dry place.
•Only authorized and qualified personnel should make repairs to the attachment. Always
read the operator service manuals before any repair. After completing maintenance or
repair, check for the correct functioning of the tree shear.
•If not functioning properly, always tag “DO NOT OPERATE” until all problems are
corrected.
•Never make hydraulic repairs while the system is under pressure. Serious personal injury
or death could result.

7
Regular and proper lubrication of all moving parts with a quality lubricant is needed for the
efficient operation of the machine. Neglect leads to reduced efficiency, heavy draft, wear,
breakdown, and unnecessary replacement parts.
All parts provided with grease fittings should be lubricated as indicated. If any grease fittings
are missing, replace them immediately. Clean all fittings thoroughly before using the grease
gun.
IMPORTANT:Avoid excessive greasing. Dirt collects on exposed grease and dramatically
increases wear after greasing wipes off excessive grease from fittings.
EVERY 8 HOURS OF OPERATION
•Grease all swivel points thoroughly. Excessive wear and even mechanical damage to pins
and cylinders can result from inadequate lubrication. Lubricate all grease fittings with SAE
Multi-Purpose grease.
•Check all nuts and bolts, tighten if loose.
•Visually inspect the machine for worn parts or cracked welds. Repair or replace as
necessary.
EVERY 40 HOURS OF OPERATION
•Check hydraulic reservoir fluid level. If oil is low, check all lines, fittings, and control valve
for signs of leakage.
CAUTION
Shut off vehicle engine before lubricating equipment.
WARNING
Escaping hydraulic fluid under pressure can penetrate the skin causing serious injury or death.
DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to search for
leaks. Stop engine and relieve pressure before connecting or disconnecting lines. Tighten all
connections before starting engine or pressuring lines.
If any hydraulic fluid is injected into the skin, obtain medical attention immediately or gangrene
or other serious injury will result.
IMPORTANT: When replacing parts, use only factory approved replacement parts.
Manufacturer will not claim responsibility for use of unapproved parts or accessories, and/or
other damages because of their use.

8
TELEBOOM SPECIFICATIONS
•Overall Dimensions – fully retracted (L x W x H): 152” x 46” x 19”
oDimensions of extensions are shown below:
•Product Weight: 550 lbs.
•Static Load Capacity:
•Fully retarded (first section): 850 lbs. (390 Kg)
•Half extension (second section): 525 lbs. (240 Kg)
•Full extension (third section): 330 lbs. (150 Kg)
•(Under DYNAMIC situation like boom vibrations during hoisting or moving, the boom is
subject to more dynamic force than the static load.)
LOADER OR PRIME MOVER REQUIREMENTS
- Horsepower ≥ 20 HP
- Hydraulic Pressure: 2320 – 3625 PSI
- Flow Rate: 3 – 5 GPM
- Minimum Lifting Capacity: 1750 lbs.
- Rated Operating Capacity (ROC): 26

9

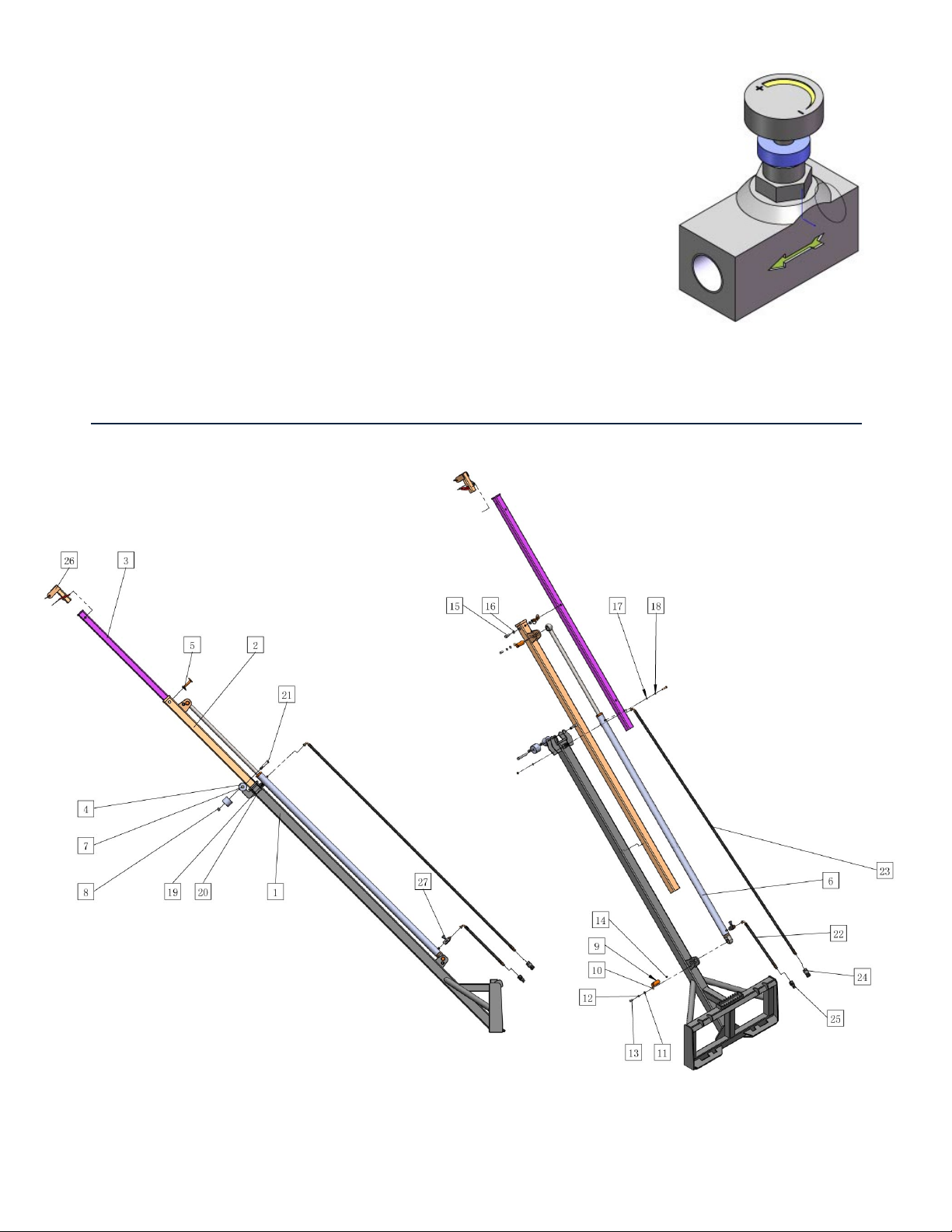

SAFETY VALVE
•Titan TRUSSBOOM is equipped with safety valve that serves to
regulate hydraulic oil flows so that in the event of hydraulic
failure, the boom will not collapse instantly causing hazard.
•Speed of cylinder retraction is adjustable. Turning control knob
clockwise will reduce flow and slow down retraction speed.
Turning control knob anticlockwise will increase flow and speed
up retraction speed.
•Slow retraction speed is recommended.
•Hydraulic pressure range of the safety valve is 2320 to 3625 PSI.
PARTS DIAGRAM/EXPLODED VIEW

10
KEY BOX DESCRIPTION QTY
(1) MAIN FRAME (SECTION 1) 1
(2) TELESCOPIC BOOM-1 (SECTION 2) 1
(3) TELESCOPIC BOOM-2 (SECTION 3) 1
(4) SLIDE ROLLER 3
(5) LOCK PIN ASSY 1
(6) HYDRAULIC CYLINDER 1
(7) HEXA BOLT M16x110 1
(8) HEXA LOCK NUT M16 3
(9) CYLINDER PIN 2
(10) EYE PIN 2
(11) FLAT WASHER M12 2
(12) SPRING WASHER M12 2
(13) HEXA BOLT M12x30 2
(14) GREASE ZERK 2
(15) HEXA BOLT M16x40 2
(16) HEXA NUT M16 2
(17) FLAT WASHER M10 2
(18) SPRING WASHER M10 1
(19) HEXA BOLT M10x50 1
(20) HEXA NUT M10 1
(21) HEXA BOLT M16x100 2
(22) OIL HOSE - FEED 1
(23) OIL HOSE - RETURN 1
(24) FLAT FACE COUPLER - FEMALE 1
(25) FLAT FACE COUPLER - MALE 1
(26) HOOK ASSY 1
(27) SAFETY VALVE 1

11
HYDRAULIC SYSTEM PARTS DIAGRAM/EXPLODED VIEW
KEY DESCRIPTION QTY
(1) HYDRAULIC CYLINDER 1
(2) SAFETY VALVE 1
(3) GASKET Ø3/8” 1
(4) HOSE CONNECTOR G3/8” 1
(5) OIL HOSE - FEED 1
(6) FLAT FACE COUPLER - MALE 1
(7) FLAT FACE COUPLER -FEMALE 1
(8) OIL HOSE - RETURN 1

12
ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY
The use of any equipment, including this one, involves the potential risk of injury. Apart from any
warranty claim that might be presented for a claimed defect in material or workmanship of the product,
you accept and assume full responsibility for any and all injuries, damages (both economic and non-
economic), and losses of any type, which may occur, and you fully and forever release and discharge
Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,
demands, damages, rights of action, or causes of action, present or future, whether the same be known
or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
This equipment must be used with care by capable and competent individuals under supervision, if
necessary.
WARNING
Do not overfill! Mower should be level
when checking oil in gear box.
some activities might be able to cause
electric shock
Sharp objects may be involved.
Use protective cover during maintenance.
TITAN LIMITED WARRANTY: TERMS, EXCLUSIONS AND LIMITATIONS OF REMEDIES
This product comes with a one (1) year limited warranty that can be found at
www.palletforks.com/warranty.html. Please review the same for all details regarding the Titan Limited
Warranty.
THE TITAN LIMITED WARRANTY FOUND AT WWW.PALLETFORKS.COM/WARRANTY.HTML IS
EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE, EACH
OF WHICH IS HEREBY DISCLAIMED.

13
NEED HELP? CONTACT US FIRST.
1-800-605-7595
[e-mail]
www.palletforks.com
© 2021 Titan Brands
