Titan Attachments ROTIL48 User manual

3 POINT ROTARY TILLER
ROTIL48, ROTIL60, ROTIL72
191630,191631,191632
Operator’s Manual
Read the Operator’s Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

2
1. INTRODUCTION

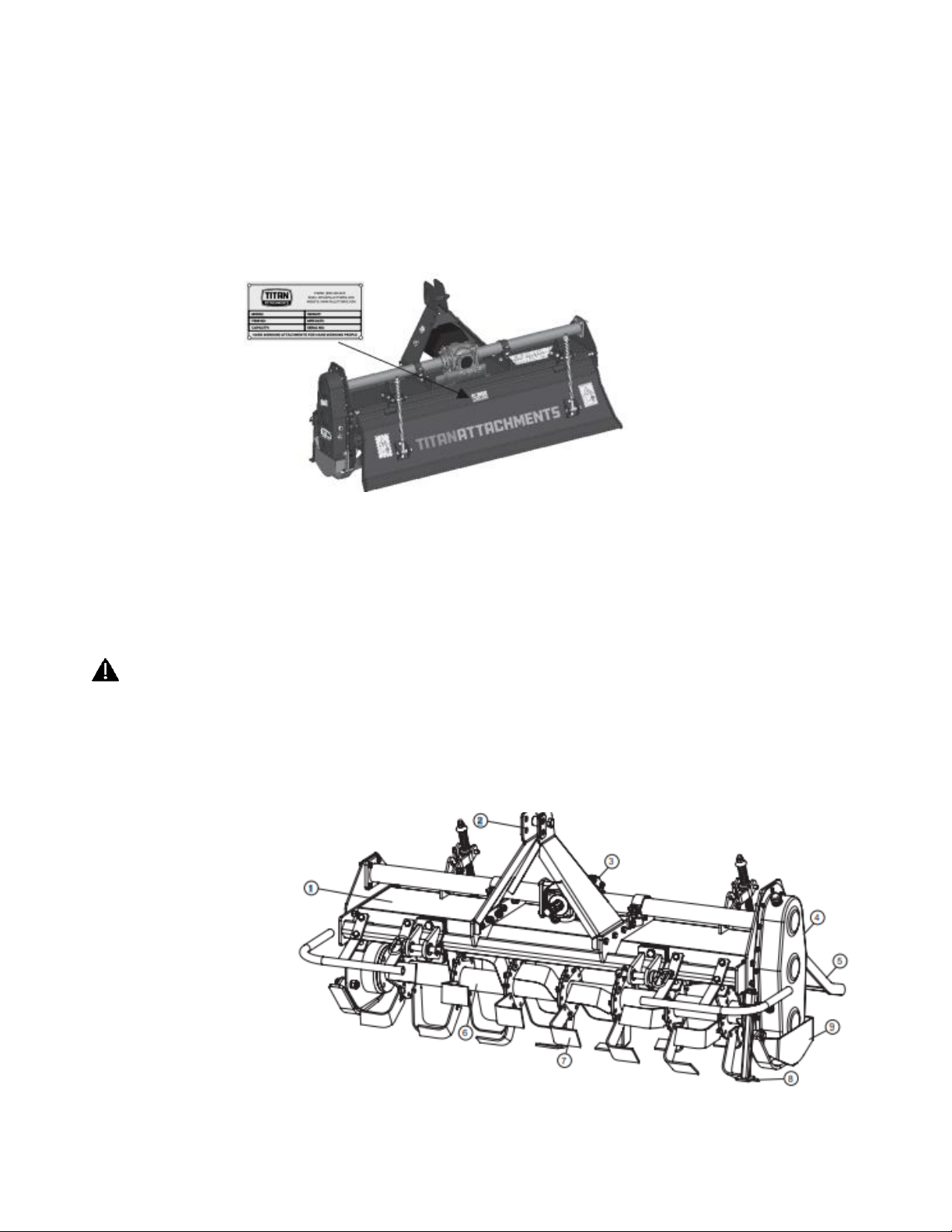

1.1 TILLER IDENTIFICATION
Each tiller has a plate for unique identification. Any request for assistance or information
regarding the machine must be directed to the Manufacturer or Dealer always referring to the
model and serial number as shown on the Serial Number Plate affixed to the machine.
1.2. INTENDED USE
The Rotary Tiller are designed to be used uniquely for horticultural, agricultural applications, to
till soil for seedbed and planting preparation. They are designed to be mounted on tractors
equipped with hydraulic lift and universal three-point hitch that can support the implement
weight and driven by the power of the tractor through the PTO drive shaft.
DANGER
Any use of the machine other than the intended use is to be considered as unauthorized and
dangerous. The manufacturer assumes no liability for damage resulting from non-intended use.
1.3 MAIN PARTS DESCRIPTION
1. Frame Assembly
2. 3-Point Linkage
3. Gear Box
4. Side Gear Drive
5. Plank Board
6. Rotor Assembly
7. Blade
8. RT Parking Stand
9. Depth Skid

3
2. SAFETY
Careful operation is your best insurance against an accident. All operators, no matter how
much experience they may have, should carefully read this manual and other related manual
before operating the power machine and this implement. It is the owner’s obligation to instruct
all operators in safe operation.
2.1. GENERAL SAFETY INSTRUCTION
•Do not operate the equipment while under the influence of drugs or alcohol as they impair
the ability to safely and properly operate the equipment.
•The operator should be familiar with all functions of the tractor and attached implement and
be able to handle emergencies quickly.
•Make sure all guards and shields are in place and secured before operating implement.
•Keep all bystanders away from equipment and work area.
•Start tractor from the driver’s seat with hydraulic controls in neutral.
•Operate tractor and controls from the driver’s seat only.
•Never dismount from a moving tractor or leave tractor unattended with engine running.
•Do not allow anyone to stand between tractor and implement while backing up to
implement.
•Keep hands, feet, and clothing away from power-driven parts.
•While transporting and operating equipment, watch out for objects overhead and alongside
such as fences, trees, buildings, wires, etc.
•Do not turn tractor so tight as to cause hitched implement to ride up on the tractor’s rear
wheel.
•Store implement in an area where children normally do not play.
2.2. EQUIPMENT SAFETY GUIDELINES
Failure to follow all safety instructions could result in serious injury or death.
Safety of the operator and bystanders is one of the main concerns in designing and developing
a tiller. However, every year accidents occur which could have been avoided by a few seconds
of thought and a more careful approach to handling equipment. You, the operator, can avoid
many accidents by observing the following precautions and insist those working with you, or
for you, follow them.
•Read safety instructions for both the tractor and this tiller before use.
•Never exceed the advised limits of the tractor or the tiller.
•This equipment is dangerous to children and those unfamiliar with its operation
•Use the tiller for its intended purpose only. Improper use can damage the tiller and cause
serious injury to persons, animals, or death.
•Any unauthorized modification of the machine may cause problems in safety and relieves the
manufacturer from any liability for damages or injuries that may result to operators, third
parties and objects.

4
•Before using the machine, familiarize yourself with its controls and its working capacity.
•Do not leave the tiller unattended with tractor engine running. Shut off the power whenever
going near the machine for repairing or lubrication purpose.
•Do not use the machine if the category of the connecting pins of the tiller does not match
that of the tractor hitch system.
2.3. OPERATING SAFETY INSTRUCTIONS
Failure to follow all safety instructions could result in serious injury or death
•Never engage the tractor PTO in the presence of people close to the PTO Shaft. The body,
hair or clothing of a person can get caught in rotating parts, causing serious injury or death.
•Before engaging the PTO and during all operations, make sure that no person or animal is in
immediate area of action of the machine. Never use the tiller if people are in his working
area.
•Before using the machine, be sure to have cleared the operating area from obstacles
•Before making changes in direction, turns or going in reverse, slightly lift the tiller from the
ground after disengaging the power take-off, to avoid damage to the machine.
•The operator must operate tiller lifting/lowering only from the driving seat of the tractor. Do
not perform lifting maneuvers on side or behind the tractor.
•Never leave the driver's seat when the tractor is turned on. Before leaving the tractor, lower
the tiller to the ground, disengage the PTO, insert the parking brake, stop engine, and remove
the key from the control panel. • Keep all Shields / Guards in place and in good condition to
avoid risk of entanglement with serious injury or death. Replace all damaged/broken shields
immediately.
•Prolonged use of the tiller can cause overheating of the gearbox. Do not touch the gearbox
during use and immediately after, it could be extremely hot and cause severe burn.
2.4 TRANSPORTING SAFETY INSTRUCTIONS
Failure to follow all safety instructions could result in serious injury or death
•Comply with state and local laws.
•Use towing vehicle and trailer of adequate size and capacity. Secure equipment towed on a
trailer with tie downs and chains.
•Sudden braking can cause a towed trailer to swerve and upset. Reduce speed if towed trailer
is not equipped with brakes.
•Avoid contact with any overhead utility lines or electrically charged conductors.
•Always drive with load on end of loader arms low to the ground.
•Always drive straight up and down steep inclines with heavy end of a tractor with loader
attachment on the “uphill” side.
•Engage park brake when stopped on an incline.
•When driving on roads, the implement must be in transport position adequately raised from
the road surface, with tractor lifting hydraulics locked so that the tiller cannot be lowered

5
accidentally.
•The implement may be wider than the tractor. Pay attention during transporting to persons,
animals or obstacles exposed.
•Always use tractor lighting system and auxiliary lighting system for an adequate warning to
operators of other vehicles, especially when transporting at night or in conditions of reduced
visibility.
2.5. MAINTENANCE SAFETY INSTRUCTIONS
•All maintenance and repairing operations must be performed by qualified and trained
operators, with the tractor engine off, the PTO disengaged, the tiller lowered to the ground
or on security stands, the ignition keys off and the parking brake set.
•Perform repairs and replacements necessary to the machine using only Genuine BIG BEE
Spare parts provided by the manufacturer or your dealer.
•Perform maintenance operations always using appropriate Personal Protective Equipment
(protective eyeglasses, hard hat, hearing protection, safety shoes, overall and work gloves,
filter mask).
•Wear protective clothing and equipment appropriate for the job such as safety shoes, safety
glasses, hard hat, and ear plugs
2.6. STORAGE SAFETY INSTRUCTIONS
•Never leave the tractor unattended with the tiller in lifted position. Accidental operation of
lifting lever or a hydraulic failure may cause sudden drop of unit with injury or death by
crushing.
•Following operation, or before unhooking the tiller, stop the tractor, set the brakes,
disengage the PTO, lower the attached tiller to the ground, shut off the engine, remove the
ignition key and wait for all moving parts to stop.
•Make sure all parked machines are on a hard, level surface and engage all safety devices.
•Place support blocks under tiller as needed to prevent unit from tipping over onto a child
and/or an adult. A tiller that tips over can result in injury or death. • Store the unit in an area
away from human activity.

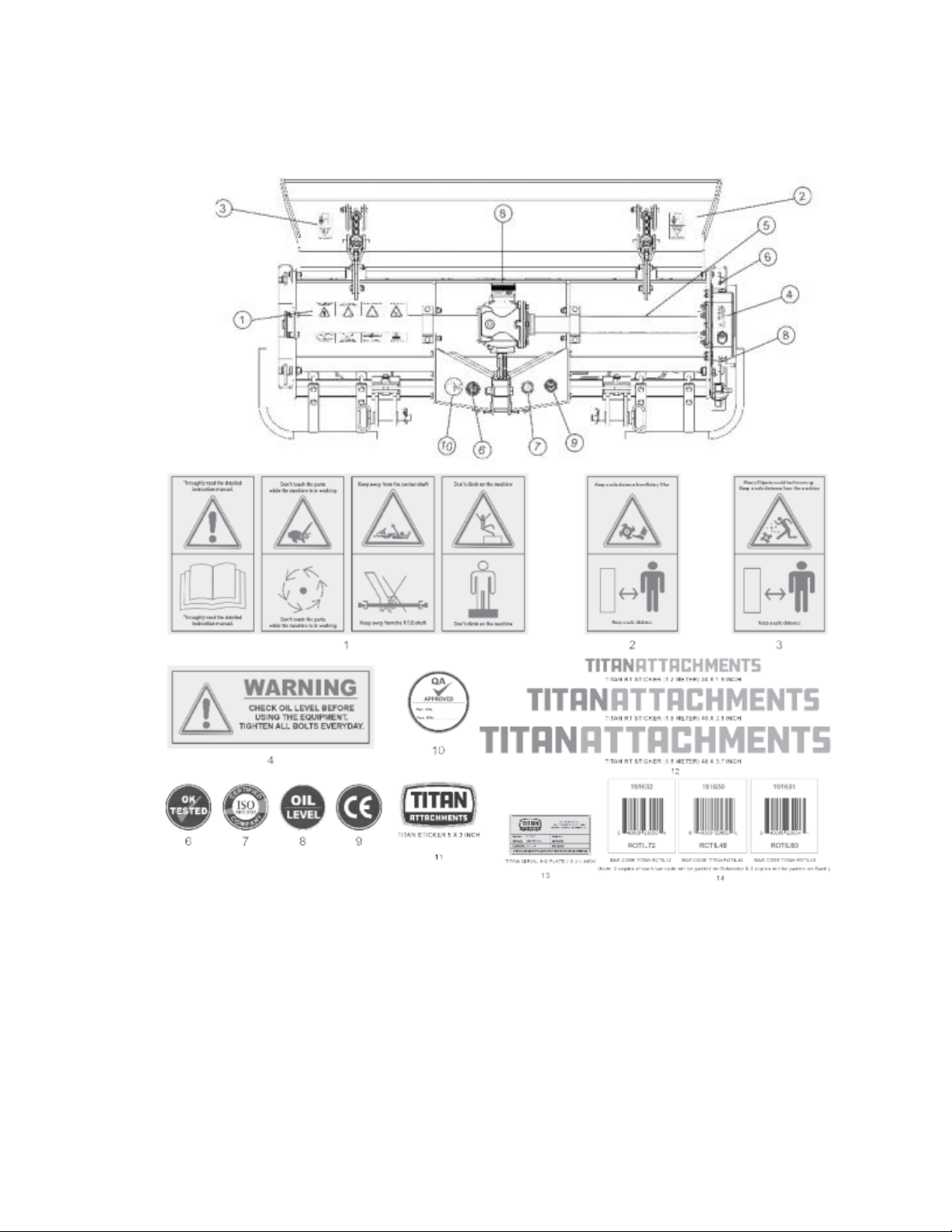

2.7. SAFETY LABELS
Your Rotary Tiller comes equipped with all safety labels in place. They are designed to help you
safely operate your equipment. Read and follow their directions.
•Keep all safety labels clean and legible.
•Refer to this section for proper label placement. Replace all damaged or missing labels. Order
new labels from your nearest BIG BEE dealer.
•Some new equipment installed during repair requires safety labels to be affixed to the
replaced component as specified by BIG BEE. When ordering new components make sure the
correct safety labels are included in the request.
•Refer to this section for proper label placement. To install new labels:
oClean surface area where label is to be placed.

6
oSpray soapy water onto the cleaned area.
oPeel backing from label and press label firmly onto the surface.
oSqueeze out air bubbles with edge of a credit card or with a similar type of straight
edge.
3. ASSEMBLYAND SET UP
The Rotary Tiller is delivered fully assembled and equipped with a driveshaft with torque limiter
(clutch discs) and related operating manual. When the machine is delivered, check that there is no
damage to the tiller or driveshaft.
3.1. LOWER HITCHES POSITIONING
The Rotary Tillers are designed to be mounted on tractors equipped with:
•3-point Hitch Category Cat-I (IS:4468)
•Quick Hitch Category Cat-I (ASABE Standard). The position of the lower hitches must be equal
spaced from main drive shaft of Gearbox.

7
3.2. 3-POINT LINKAGE ASSEMBLY
1. Attach TPL plate RHS (1) to the Main frame assembly with Hex head bolt M12x1.75x35 (11),
Spring Washers (12) & Hex Nut (13). Do not tighten hardware at this time.
2. Repeat step-1 above to attach TPL Plate LHS (2) to Main Frame Assembly.
3. Attach Middle Spacer (3) between TPL Plate LHS (2) and RHS (1) with Hex Head Bolt
M16x2x95 (5), Spring Washer (6) and Hex Nuts (7).
4. 4. Attach TPL middle Plate (4) with Hex Head Bolt M10x1.5x25 (8), Spring Washers (9) and Hex
Nuts (10) between TPL Plate LHS (2) and RHS (1).

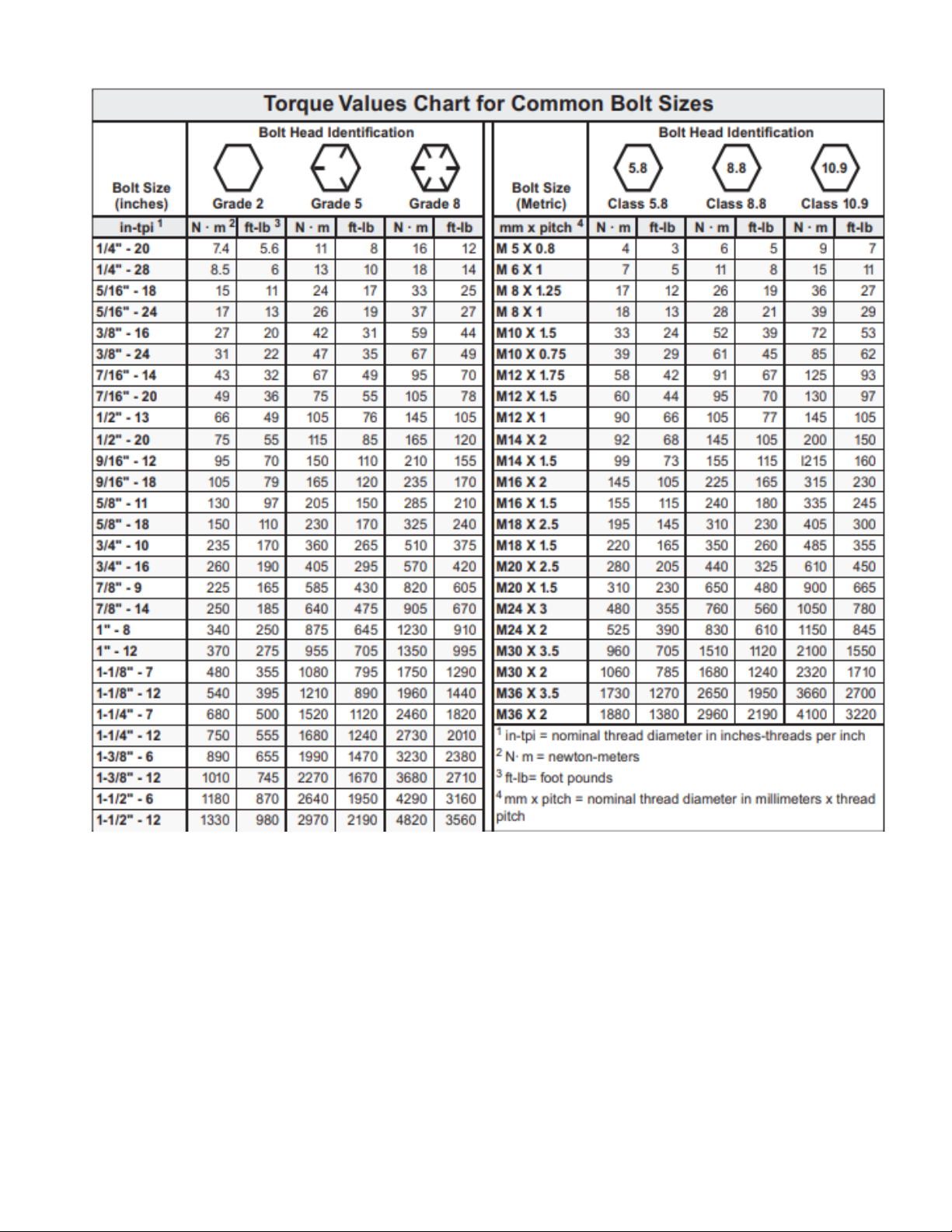

5. 5. Tighten all Hex Nuts to the correct torque.

8
3.3 CONNECTING TO THE TRACTOR
Never stand between tractor and rotary tiller while backing up tractor to the hitch.
•Place tiller and tractor on level ground.
•Back tractor into position by lining up lift arms and Hitch bracket of the tiller linkage pins.
Attach lift arms to linkage pins and secure with lynch pins.
•Attach top link using upper linkage pin and lynch pin.
•Attach PTO shaft/drive shaft and secure anti-rotation chains.
•Once everything is securely attached, raise tiller off the ground and adjust the top link so the
tiller sets level from front to back.
•Determine if the PTO shaft length suits tractor and tiller linkage.
•Make sure PTO shaft is properly installed and level before checking shaft collapsible length.
IMPORTANT: A PTO shaft that is too long to fit between tractor and tiller will bottom out causing
structural damage to the tractor and tiller. Always check PTO shaft collapsible length during initial
setup, when connecting to a different tractor and when alternating between using a quick hitch
and a standard 3-point hitch. More than one PTO shaft may be required to fit all applications.

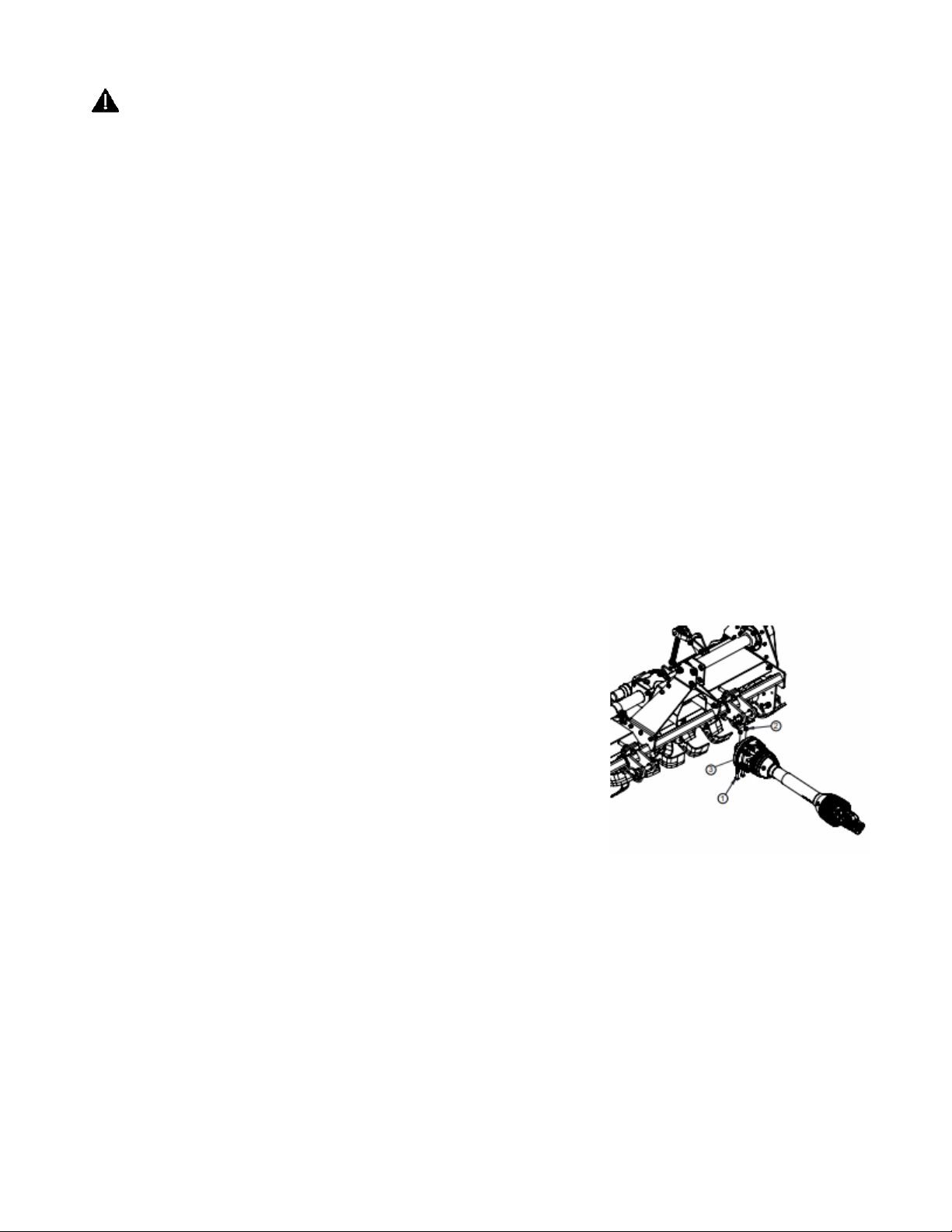

3.4 CONNECTING PTO SHAFT
The PTO shaft is coupled to the gearbox input shaft with slip clutch assembly to protect the machine
from overload condition.
1. To connect PTO shaft with Rotary Tiller remove existing hex
bolts and nuts from slip clutch assembly.
2. Slide splined end of slip clutch (3) onto gearbox input shaft.
Make certain that the slip-clutch yoke is fully onto the shaft
splines.
3. Attach slip-clutch yoke to input shaft and secure hex bolt (1)
and nut (2) and tighten.
4. Push/pull on slip clutch yoke to ensure it is securely fastened to
the gearbox input shaft. Check PTO shaft length and follow the
next step if length is larger than required.

9
3.5 SIZING THE PTO SHAFT
•Un-hook shaft from tractor PTO shaft and pull outer and inner shaft apart.
•Reattach outer shaft to tractor PTO shaft. Pull on inner and outer shaft to be sure universal
joints are properly secured.
•Hold inner and outer shaft parallel to each other: a. Measure 1” (“B” dimension) back from
outer shaft universal joint shield to make a mark at this location on the inner shaft shield. b.
Measure 1” (“B” dimension) back from the inner shaft universal joint shield and make a mark
at this location on the outer shaft shield.
•Remove shaft from tractor and gearbox shaft.
•Measure from end of inner shield to scribed mark (“X” dimension). Cut off inner shield at the
mark. Cut same amount off the inner shaft (“X1” dimension).
•Measure from end of outer shield to scribed mark (“Y” dimension). Cut off outer shield at the
mark. Cut same amount off the outer shaft (“Y1” dimension).
The PTO shaft maximum allowable length must, when fully extended, have a minimum overlap of
the profile tubes by not less than 1/3 the free length with both inner and outer profile tubes being of
equal length.
For minimum PTO shaft length, measure 1” (“B” dimension) back from universal joint shield to end
of outer PTO shaft shield.
4. OPERATING
Before operating the tiller, make sure you have read and understood the operating manuals of
the tiller, tractor, and PTO shaft.
DANGER
During operation, adjustment, maintenance, repairing or transportation of the machine, the
operator must always use appropriate Personal Protective Equipment (PPE).
Before starting work, ensure that all machine guards are in good conditions and fully
functional.
NOTE: Never attempt to adjust the rotary tiller while the tractor is running. Do not allow the tractor
engine or rotary tiller to bog down or stall. This causes undue wear and tear on the tiller and tractor.
If this continues to happen reduce ground speed and raise tilling depth of rotary tiller. Never attempt

10
to remove objects from the rotor bar until the tractor has been shut down and the tiller tines have
completely stopped.

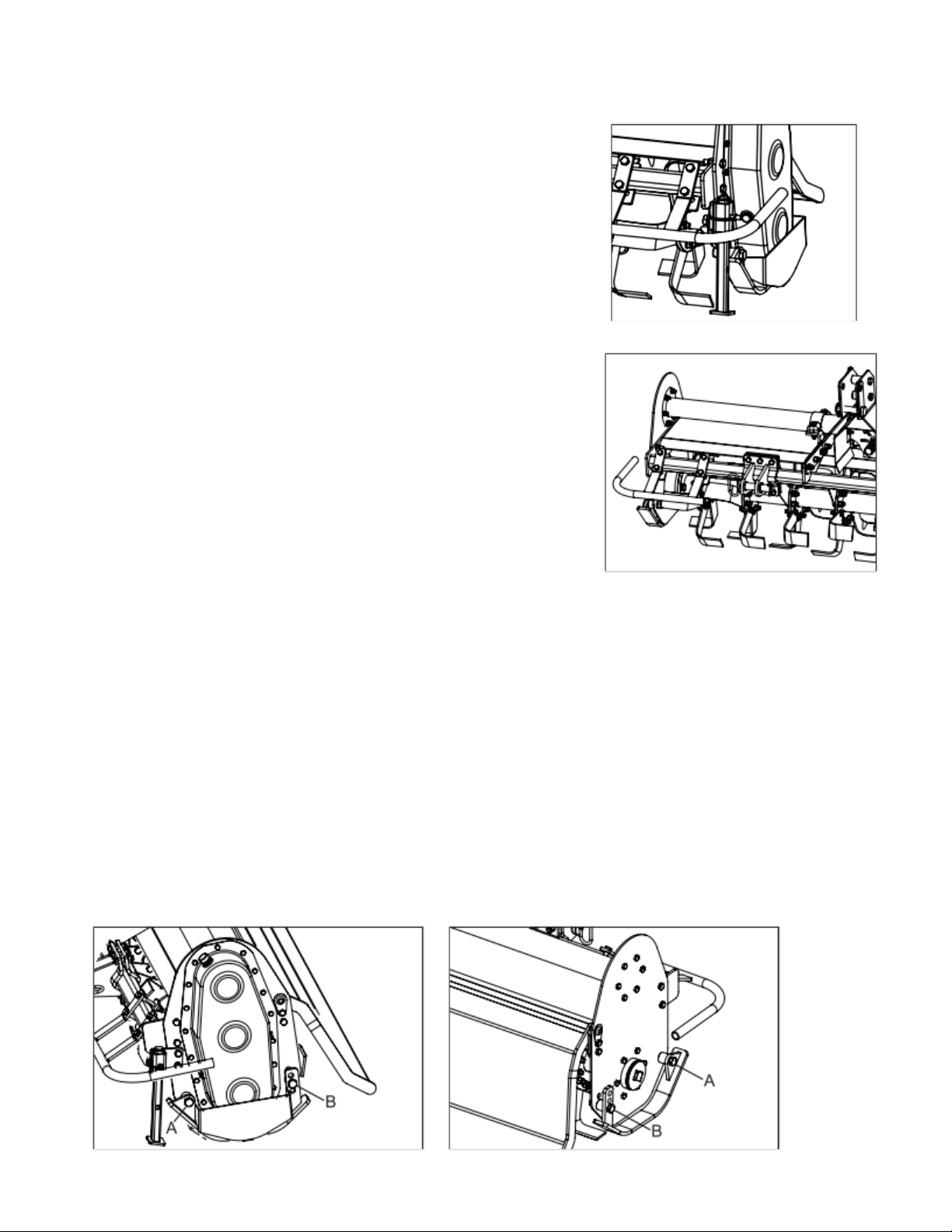

4.1 RAISING PARKING STAND
1. Remove spring locking pin.
2. Slide parking stand and way up on tiller bracket.
3. Fasten with spring locking pin.
4.2. LOWER CLEVISES ADJUSTMENT
It is possible to adjust the lower hitch position loosening the bolts
and sliding the clevis. Tighten the bolts after making any
adjustment required.
4.3 SKIDS ADJUSTMENT
The working depth of the tiller is determined by the position of the side skids. It may be increased by
raising the skids and decreased by lowered them. It's important that both skids are adjusted at the
same height.
To adjust the working depth, perform the following steps:
•Lift the machine, put it safely on security stands, then switch the tractor engine off,
disengage PTO, set parking brake and off the ignition key.
•Loosen the bolt Ain the front of the skid.
•Loosen the bolt B and remove the bolt on the rear of the skid.
•Adjust the height of the skid through the holes, as desired.
•Tighten the bolts.

11
When finished, verify that both skids are at same level, and check if the
front of the tiller is leveled to the back, when lowered to the ground.
Adjust with the 3-point top link if necessary.
4.3. REAR BOARD ADJUSTMENT
The position of plank board is adjustable by varying the hole position
on shocker mounting plate (A). lowering the hole will increase
pressure of tension shocker assembly (B) on plank board which result
soil level compaction while upper hole position will reduce the
pressure.
To adjust the plank board position, perform the following steps:
Loosen and remove the bolt and nut of shocker holding clamp (C) adjust the clamp upper and
lower against shocker mounting plate (A) as required.
5. TRANSPORTING
To set the tiller for transportation, perform the following steps:
•Idle tractor engine, disengage tractor PTO, and wait for stopping of all rotating parts.
•Lift the tiller until the transport position, making sure the PTO shaft does not contact tractor
or tiller. A minimum gap of 2 cm should be leaved between the tubes and tractor and tiller.
•Lock the tractor lifting hydraulics, turn off the engine, set the parking brake, remove ignition
key, and get off the tractor.
•Adjust the parking stand to the highest position, through the use of relative retaining pin, to
prevent possible damage during transport. When driving on public roads, follow strictly all
local laws and traffic regulations
6. MAINTENANCE
6.1 SERVICE LUBRICATION
CAUTION
•The given frequencies are indicative and refer to normal conditions of use. They may
therefore be subjected to variations in relation to the type of service, in more or less dusty
environment, seasonal factors, etc.
•In the case of heavy-duty condition, the maintenance operation should obviously be more
frequent.
•Before injecting grease into the lubricators, the greasing points must be thoroughly cleaned
to prevent mud, dust or foreign bodies from mixing with the lubricants, thus reducing or even
annulling its lubricating effect.
•When topping up or changing the lubricant, always ensure that the oil is of the same type as
that used previously.

12
•Always keep oil and greases well away from children’s reach. Always thoroughly read the
warnings and precautions indicated on the containers.
•Avoid contact with the skin.
•Always thoroughly and fully wash after use. The utilized oils should be treated in compliance
with the current anti-pollution laws.
It is advisable to use SAE 140 EP Grade OIL or equivalent for the gear box unit and side
transmission. It is advisable to use high quality grease for all greasing points.
EVERY 8 WORK HOURS
•Grease the PTO Shaft cross journals.
•Check that the bolts fixing the hoe blades are well tightened.
EVERY 50 WORK HOURS
•Check the level of the oil in the gearbox or in the reduction unit and top up to the level mark
on the rod as necessary.
•Side Drive Transmission: Check the level of the oil in the side casing of the transmission unit.
•Add oil through the fill plug if necessary. It should flow from the level plug.
EVERY 200 WORK HOURS
•Change the oil in the gearbox or in the reduction unit and transmission casing by completely
draining of the old oil through the drain plug, under the reduction unit and through the
transmission drain plug.

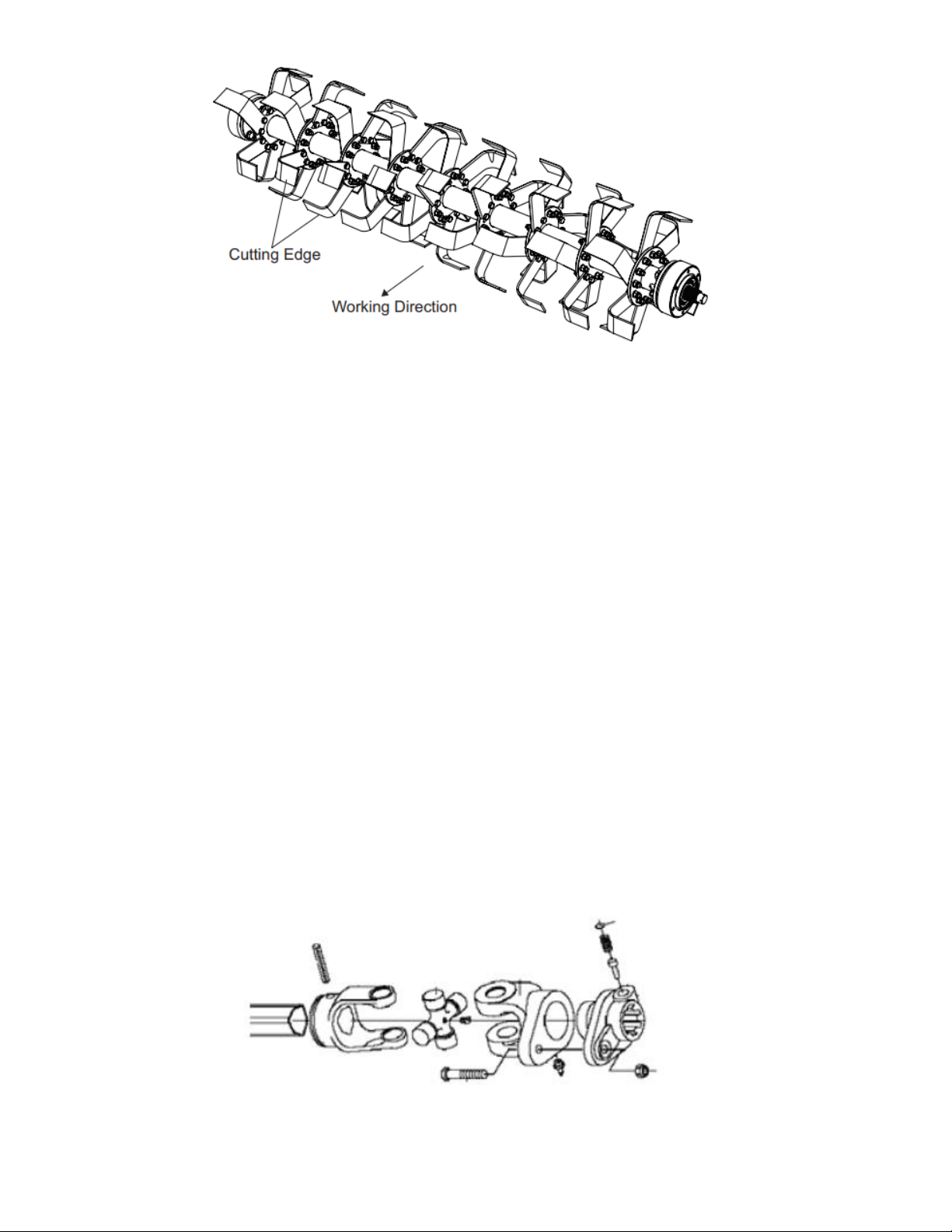

6.2 BLADES REPLACEMENT
The Blades with which the rotary tiller is equipped can work soils of normal conformation. Check the
degree of wear and condition of the Blades each day. If the blades should accidentally bend (or
break) during work, they must be immediately replaced.
FIRST - IDENTIFY BLADES:
Remember to mount the new Blade in the same position as the old one. If several Blades must be
replaced, it is advisable to remove and assemble one Blade at a time to prevent positioning errors.
The tillers are normally equipped with 6 blades per flange.
SECOND - INSTALL NEW BLADES:
1. Raise tiller with a safe lifting device.
2. Put safety stands or blocks under tiller.
3. Stand facing rear of tiller and study placement of Blades.
4. Remove bolts, lock washers, and nuts.

13
7. STORAGE
1. It is advisable to proceed in the following way at the end of the season or if the machine is to
remain inactive for a long period of time:
a. Wash the implement, particularly removing any fertilizer and/or chemical products,
and then thoroughly dry it.
b. Carefully check for any damaged or worn parts and replace these if necessary.
2. Fully check screws or bolts, particularly those fixing the hoe blades.
3. Thoroughly lubricate the implement and lastly protect it with a plastic sheet. Store it in a dry
place. Careful compliance with these instructions will be all to the advantage of the user who
will be sure to use an implement in perfect conditions when work begins again. Remember
that the manufacturer is always at your disposal for any assistance or spare parts as may be
required.
8. SLIP CLUTCH PROBLEM TIPS
1. PROBLEM —P.T.O SHAFT IS ROTATING WITH CONSTANT SPEED BUT NOT THE GEAR
BOX.
2. Cause of problem —Safety bolt might be broken
3. Solution —Replace the safety bolt.
a. Remove the P.T.O shaft from the R.T side.
b. Dislodge the safety bolt and replace it.
1. PROBLEM —P.T.O SHAFT IS MAKING NOISE/ VIBRATION.
2. Cause of problem —P.T.O cross is broken.

14
3. Solution —Change the P.T.O cross.
a. Take the P.T.O shaft and check the cross of both side by rotating it.
b. Remove the lock of the cross which is broken.
c. Take out the cross by using hammer gently.
d. Insert the new one properly then lock it.
e. Rotate the yoke, it should rotate properly.
f. Make the greasing properly.
1. PROBLEM —YOKE IS NOT FITTING ON THE PINION SHAFT.
2. Cause of problem —Yoke pin is broken.
3. Solution —Replace the yoke pin.
a. Clear the head of the pin push it with hammer and remove it
b. Replace it with new one.
c. Take care of proper cleaning and greasing.
1. PROBLEM —ROTARY TILLER IS NOT TAKING
PROPER DEPTH.
2. Cause of problem —Side depth skids need to
be adjusted.
3. Solution —
a. Lose the side skid bolt.
b. Shift the hole to the upper side.
1. PROBLEM —R.T. IS TAKING ON ONE SIDE
MORE DEPTH.
2. Cause of problem —linkage is not proper
3. Solution —Linkage adjustment should be proper.
a. Tractor linkage should be tight.
b. There should not be any play more then1.5” (38MM).
c. At the time of attaching the rotary tiller the R.T should be in proper leveled
position.
d. Both side skids should be in same bolt position.
1. PROBLEM —GEAR BOX IS NOISY.
2. Cause of problem —Play in bearing or teeth broken.
3. Solution —Replace the bearing or bevel gear.

15
a. Open the top cover to see the wear of the teeth
b. If the teeth of the gear is broken the bevel set needs to be replaced.
c. Pull out the gear box and open the big flange.
d. Then remove the back plate
e. Pull out the pinion shaft using hammer or press machine.
f. Replace the bearing, gear, and seals.
g. Make the fitment in the same way using new gasket.
h. The gear should rotate freely.
i. Assemble it back the breather valve should be clean, and oiling should be
checked.
1. PROBLEM —GEAR SHAFTS ARE ROTATING BUT NOT THE ROTOR
2. Cause of problem —Transmission shaft / RD shaft is broken
3. Solution —Open the side gear cover and replace the part which is broken.
a. First remove the lock & loose the check nut.
b. Pull out the gears and check the broken parts.
c. If the transmission shaft is broken, replace the shaft then assemble the gear box
with rotary tiller.
d. If gear is broken, then replace the gear and tighten the cover nuts. For RD shaft
the process will be different
e. First open the flange bolt of the rotor on both side (RD shaft and Dead shaft) and
remove the rotor.
f. Loosen the check nut of RD shaft and hammer it till it gets out from the RD shaft
hub & then replace the RD shaft and tight the check nut. Take care of the seal as
it should not be harmed with this replacement.

16
THE SAME PROCESS BE FOLLOWED FOR DEAD SHAFT REPLACEMENT.
1. PROBLEM —OIL LEAKAGE FROM THE RD SHAFT HUB OR DEAD HUB.
2. Cause of problem —Seal is wearing out needs to replace it.
3. Solution —Open the hub assembly as before
a. Take out the hub from the plate by loosening the bolts
b. Remove the lock and pull out the shaft.
c. Pull out the seal from both shaft and hub then replace it with new one
d. Inspect the position of bearing and hub if it is ok. Clean it and assemble as
before.
e. Proper greasing is very necessary in assembly processes.

17
9. TORQUE VALUES TABLE

18
ROTARY CUTTER PARTS DIAGRAM / EXPLODED VIEW

19

20
ROTARY CUTTER PARTS DIAGRAM / EXPLODED VIEW
