Titan Attachments JDTS005V2 User manual

TREE SHEAR FITS JOHN DEER
LOADERS V2
JDTS005V2
198107
Operator’s Manual
Read the Operator’s Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

2
INTRODUCTION
•This manual is made at the time of manufacturing of the Tree Shear that does not include
any
•subsequent modifications made afterward.
•This manual is intended to provide information to operators and owners to operate the
•Tree Shear safely and effectively, as well as to perform suitable maintenance for the
•equipment.
•Before operating the equipment, it is critical to read, understand and be acquainted with
the
•operating, safety and maintenance recommendations of the Tree Shear using your skid
steer.
•Failure in operating and maintaining the Tree Shear according to the instructions and
•recommendations could lead to fatal accidence causing serious personal injury or death,
•as well as damages to your equipment.
SAFETY PRECAUTIONS
THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS
MANUAL IS USED TOCALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
DANGER
WARNING
CAUTION
NOTION

3
GENERAL SAFETY PRECAUTIONS
READ MANUAL PRIOR TO INSTALLATION
Improper installation, operation, or maintenance of this equipment could result in serious
injury or death. Operators and maintenance personnel should read this manual, as well as
manuals related to this equipment and the prime mover thoroughly before beginning the
installation, operation, or maintenance.
FOLLOW ALL SAFETY INSTRUCTIONS IN THIS MANUAL.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions, and operations before operating. Visually
inspect your equipment before your start, and never operate equipment that is not in proper
working order with all safety devices intact. Check all hardware to ensure it is tight. Make
certain that all locking pins, latches, and connection devices are properly installed and secured.
Remove and replace any damaged, fatigued, or excessively worn parts. Know and follow good
work practices when assembling, maintaining, repairing, mounting, removing, or operating this
equipment.
PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, googles, or a face shield when driving pins in our out, or
when any operation causes dust, flying debris, or any other hazardous material.
LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raise booms without them. Do not use support material made of concrete
blocks, logs, buckets, barrels, or any other material that could suddenly collapse or shift
positions. Make sure support material is solid, not decayed, warped, twisted, or tapered. Lower
booms to ground level or on blocks. Lower booms and attachments to the ground before
leaving the cab or operator’s station.
USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic fluid under pressure can penetrate the skin and cause serious injury or death.
Hydraulic leaks under pressure may not be visible.
•Keep unprotected body parts, such as face, eyes, and arms as far away as possible from
a suspected leak. Flesh injected with hydraulic fluid may develop gangrene or other
permanent disabilities.
•If injured by injected fluid, see a doctor immediately. If your doctor is not familiar with
this type of injury, ask him to research it immediately to determine proper treatment.
•Wear safety glasses, protective clothing, and use a piece of cardboard or wood when
searching for hydraulic leaks. DO NOT USE YOUR HANDS!
DO NOT MODIFY MACHINE OR ATTACHMENTS
Modifications may weaken the integrity of the attachment and may impair the function, safety,
life, and performance of the attachment. When making repairs, use only the manufacturers’
genuine parts, following authorized instructions. Other parts may be substandard in fit and
quality.

4
SAFELY MAINTAIN AND REPAIR EQUIPMENT
•Do not wear loose clothing or any accessories that can catch in moving parts. If you have
long hair, cover, or secure it so that it does not become entangled in the equipment.
•Work on a level surface in a well-lit area
•Use properly grounded electrical outlets and tools
•Use the correct tools for the job at hand. Make sure they are in good condition for the
task required.
•Wear the protective equipment specified by the tool manufacturer.
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualified operator in how to
use the controls, know its capabilities, dimensions, and all safety requirements. See your
machine’s manual for these instructions.
•Keep all step plates, grab bars, pedals, and controls free of dirt, grease, and debris, and
oil.
•Never all anyone to be around the equipment when it is operating.
•Do not allow riders on the attachment or the prime mower.
•Do not operate the equipment from anywhere other than the correct operator’s
position.
•Never leave equipment unattended with the engine running or with this attachment in a
raised position.
•Do not alter or remove any safety feature from the prime mover or this attachment.
•Know your work site safety rules as well as traffic rules and flow. When in doubt on any
safety issue, contact your supervisor or safety coordinator for an explanation.
QUALIFIED OPERATOR
•Operators must acquire an appropriate qualification or license to operate skid steer and
attachments.
•Operators must be mentally sound and not being affected by drugs or alcoholic drinks
while operating the equipment. Alcohol and drugs could reduce alertness and
coordination, causing catastrophic accidence with serious personal injury or death. An
operator taking prescription or over the counter drugs should seek medical advice as to
whether he or she can safely operate the equipment.
•According to OSHA and applicable local regulations, operators must comply with
industrial work safety requirements with all necessary protective apparel and equipment
such as seat belts, helmets, safety glass, dust masks, heavy-duty gloves, etc.
ENVIROMENTAL FACTORS
•Avoid working in bad weather, including but not limited to heavy rain, snowing, stormy
and windy weather.
•Avoid working on the downhill side of a slope, hill, uneven and slippery ground.
•Beware of above-ground utilities, including power and communication lines, gas, sewer
and water pipelines.
•Check the work field thoroughly to avoid or remove obstacles or objects that may cause
an imbalance or damages of equipment that could lead to catastrophic accidence

5
causing serious personal injury or death.
•Do not operate in an environment that is not well-lite.
REMOVING THE TREE SHEAR FROM STEEL CRATE
•Engage the skid steer Quick Tach wedges to the Tree Shear or prime mover and tilt it
backward until the Tree Shear mount plate is flush against the Quick Attach loader.
•Lock the levers latch pins in full length through the lower slots of the Tree Shear mount
plate.
•Cut off all wires that tie the Tree Shear on the steel crate, unbolt the top frame of the
steel crate, and then remove the top frame.
•Lift the Tree Shear out of the steel crate.
•Cut off the nylon straps that tie oil hoses on the Tree Shear and free the hoses.
•Check dust and dirt on the male and female flat face couplers, and wipe off dust and dirt
before connecting to the skid steer or prime mover.
•Turn down the skid steer or prime mover engine to deactivate the hydraulic pressure of
the auxiliary oil circuit.
•Connect the Tree Shear oil hoses to the skid steer.
BEFORE CUTTING
Read this manual and the manual of the skid steer or prime mover for safely operating the unit,
mainly to stop the unit quickly in the event of an emergency.
•Check and replace parts that show signs of wearing.
•Check for loosening bolts, nuts, and pins and tighten.
•Check hydraulic connection for leakage and reconnect or replace if necessary.
•Check if all moving parts are sufficiently greased and apply grease if necessary.
•Check if the Tree Shear is engaged securely onto the skid steer Quick Tach with pins
fully engaged.
•Assess if counterweight to improve stability is necessary.
For first time use, make sure that the hydraulic oil is sufficient. Open and close the Tree
Shear slowly several times and recheck oil level. Add oil to machine if necessary.
PRECAUTIONS BEFORE CUTTING TREES
Operators should only cut trees inside skid steer cabin or operator’s station with seat belts
securely fastened. Put on personal protective equipment such as helmet, safety glass, dust
mask, etc., As stated in the QUALIFIED OPERATOR section.
•Do not cut trees with bystanders and livestock within proximity of 120 feet. Stop cutting
when bystanders or livestock enter the work area. Flying debris and branches could
cause severe injury or death.
•Avoid cutting in the proximity of above-ground utilities. Flying debris and branch could
break power, gas, water, sewer lines, etc., leading to electrical shock or fire hazards.
•Do not cut trees where overhead power or communication line is less than 12 feet
above. Flying debris and branches could damage these lines causing hazards, severe
injury, or death.
•Check the environment carefully, as stated in the ENVIRONMENTAL FACTORS section,

6
to avoid uneven ground, slope, obstacles, bad weather, lighting conditions, etc. to avoid
accidence.
•Use counterweight recommended by your skid steer or prime mover dealers to improve
•stability and balance during operations.
CUTTING TREES
•Begin to cut trees only after taking all the precautions stated in the previous sections.
•Turn the engine to idle speed before engaging auxiliary hydraulic to the Tree Shear.
•Warm up engine for at least 2 minutes before engaging auxiliary hydraulic to the Tree
Shear with gradual incremental speed.
•Open and close the Tree Shear a few times to make sure that it functions properly
before cutting.
•For maximum shearing power, use full RPM. Using low RPM could lead to blade
jamming.
•If the blade jams, do not attempt to remove the jammed debris or branches by hand.
•Use a reasonably long rod to remove the debris. Before unjamming the blade, make
sure that the engine is off, and all moving parts come to a complete halt.

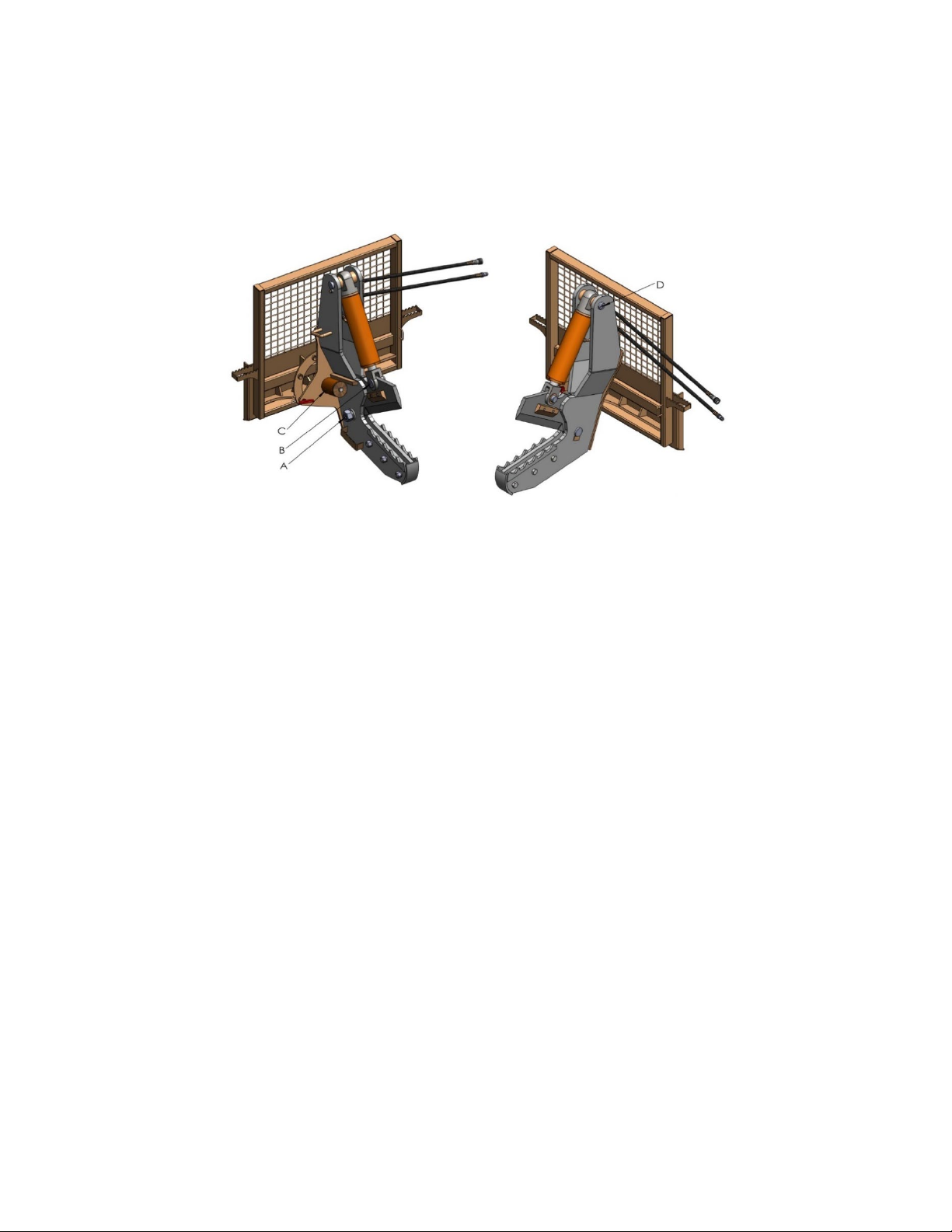

•Titan TS005 is adjustable in 3 angles – horizontal, 45°, and vertical. Never attempt to
adjust the shear angles when the engine is still running.
Never adjust the shear angle without closing the blade thoroughly.
•To adjust the shear angle, raise the Tree Shear slightly above ground to a comfortable
maneuvering height of about 18”. Remove the lock pin and Shear Bracket Lock Pin from
the pin sleeve. Turn the blade to the desired angle, insert the Shear Bracket Lock Pin to
the pin sleeve, and secure the safety pin with the cotter pin.
•Do not attempt to shear trees with a diameter of more than the 12” stated capacity of
Titan TS005.
•Titan TS005 is capable of cutting trees up to 12” in diameter. However, a second shear
action may require some hardwoods like oak or wood that is wet.
•The Tree Shear is not intended to be used as a puller or bulldozer. Never attempt to pull
trees to break away or to push objects on the way. This activity could not only cause
damage to the equipment but could cause the skid steer or prime mover to roll over,
resulting in severe injury or death.
•Do not fell a tree that is leaning across the line of skid steer or prime mover travel.

7
DIRECTING THE PROPER FELLING PATH
To determine the desired direction that a tree is to fall is a vital step. There are many factors to
consider. Think about the path of the fall and pinpoint potential hazards. When a tree is leaning,
it is typically easier to fall the tree in the direction it is already leaning. When working on a slope,
there is always a chance that the tree will slide or roll. Always fell the tree so that the base faces
the direction of removal.
EVALUATE WORK AREA:
The work area shall be at least two tree lengths of the tree fall. A distance greater than two tree
lengths shall maintain on any slope where tree rolling or sliding, or logs is reasonably foreseen.
No one should enter the work area until the machine operator has acknowledged that it is safe
to do so.
•WARNING! Block off the work area from bystanders and livestock, etc. Do not operate
the tree shear if people are in the felling area. Stop operation immediately if people or
livestock enter the work area.
•WARNING! Before exiting the prime mover, lower the attachment to the ground, apply
the parking brakes, turn off the engine and remove the key.
•WARNING When shearing a tree on a slope, always approach the tree from an uphill
direction. Never attempt to fell a tree from the side or a downhill direction.
•The Titan TSOO5 attaches to the quick attach appliance of the skid steer. Thus, thorough
knowledge of the skid steer is required for machine operation. Read and understand the
skid steer's operator's manual before attempting ·to use the tree shear.
POTENTIAL HAZARDS: Determine the hazards that exist for the area and types of trees you are
working with and eliminate or minimize your exposure to these hazards.
•Turn off auxiliary hydraulic entirely after use.
•Before exiting the skid steer or prime mover, lower the unit to the ground, turn off the
engine, remove the key and apply the brakes.
•After cutting, close the blade altogether to avoid potential personal injury when access
to the Tree Shear.
•Perform after use inspection and maintenance as described in the AFTER USE AND
MAINTENANCE in the next section below.
AFTER USE AND MAINTENANCE
•Inspection and maintenance can only be conducted with the engine turned off and
auxiliary Pressure completely disengaged.
•Lower the Tree Shear to flat ground, apply brakes, turn off the engine and remove the
key.
•Put on personal protective equipment apparel as described in previous sections.
•Each time after use, clean the Tree Shear thoroughly and remove all debris, jams, and
clogs in the shear bracket.
•Visually inspect if there are any parts damaged, repair, and replace if necessary.
•Check if there is any loosen or damaged hardware, tighten or replace hardware if
necessary.

8
The minimum torque for tightening hardware is shown below:
•M12: 67 lb. Ft (90 N.m)
•M16: 163 lb. Ft (220 N.m)
•M24: 518 lb. Ft (518 N.m)
•M42: 2960 lb. Ft (4000 N.m)
Lubricate all moving parts. The 4 grease points (A/B/C/D) are shown below:
When the Tree Shear is dry, check places where paint is scratched or worn and repaint.
•Apply antirust oil to surface where necessary.
•Store the Tree Shear in shed and dry place.
•If not functioning properly, always tag “DO NOT OPERATE” until all problems are
corrected.
•Never make hydraulic repairs while the system is under pressure. Serious personal
injury or death could result.
•Regular and proper lubrication all of moving parts with a quality lubricant is needed for
efficient operation of your machine. Neglect leads to reduced efficiency, heavy draft,
wear, breakdown, and needless replacement parts.
•All parts provided with grease fittings should be lubricated as indicated. If any grease
fittings are missing, replace them immediately. Clean all fittings thoroughly before using
the grease gun.
IMPORTANT: Avoid excessive greasing. Dirt collects on exposed grease and greatly increases
wear. After greasing wipe off excessive grease from fittings. When the Tree Shear is dry, check
places where paint is scratched or worn and repaint.
EVERY 8 HOURS OF OPERATION
•Grease all swivel points thoroughly. Excessive wear and even mechanical damage to pins
and cylinders can result from inadequate lubrication. Lubricate all grease fittings with
SAE Multi-Purpose grease.
•Check all nuts and bolts; tighten if loose.
•Visually inspect the machine for worn parts or cracked welds. Repair or replace as
necessary.

9
TS005 SPECIFICATIONS
- Overall Dimensions (W x D x H): 55” x 44” x 49”
- Product Weight: 868 lbs.
- Maximum Cutting Diameter: 12”
- Shear Force (at 2320 PSI): 26,400 lbs.
- NM400 hardened Steel Blade
- 3 Shear Angle: Horizontal, 45°, Vertical
SKID STEER OR PRIME MOVER REQUIREMENTS
- Horsepower ≥ 25 HP
- Hydraulic Pressure: 2320 – 3625 PSI
- Flow Rate: 12.5 – 31.5 GPM
- Minimum Lifting Capacity: 2000 lbs.
- Minimum Weight: 6500 lbs. (add counterweight when necessary)
- Should be equipped with high impact resistance protective windshield and side shields.

10
POTENTIAL HAZARD
POTENTIAL HAZARDS: Determine the hazards that exist for the area and types of trees that
you are working with and eliminate or minimize your exposure to these hazards.

11
TROUBLESHOOTING

12

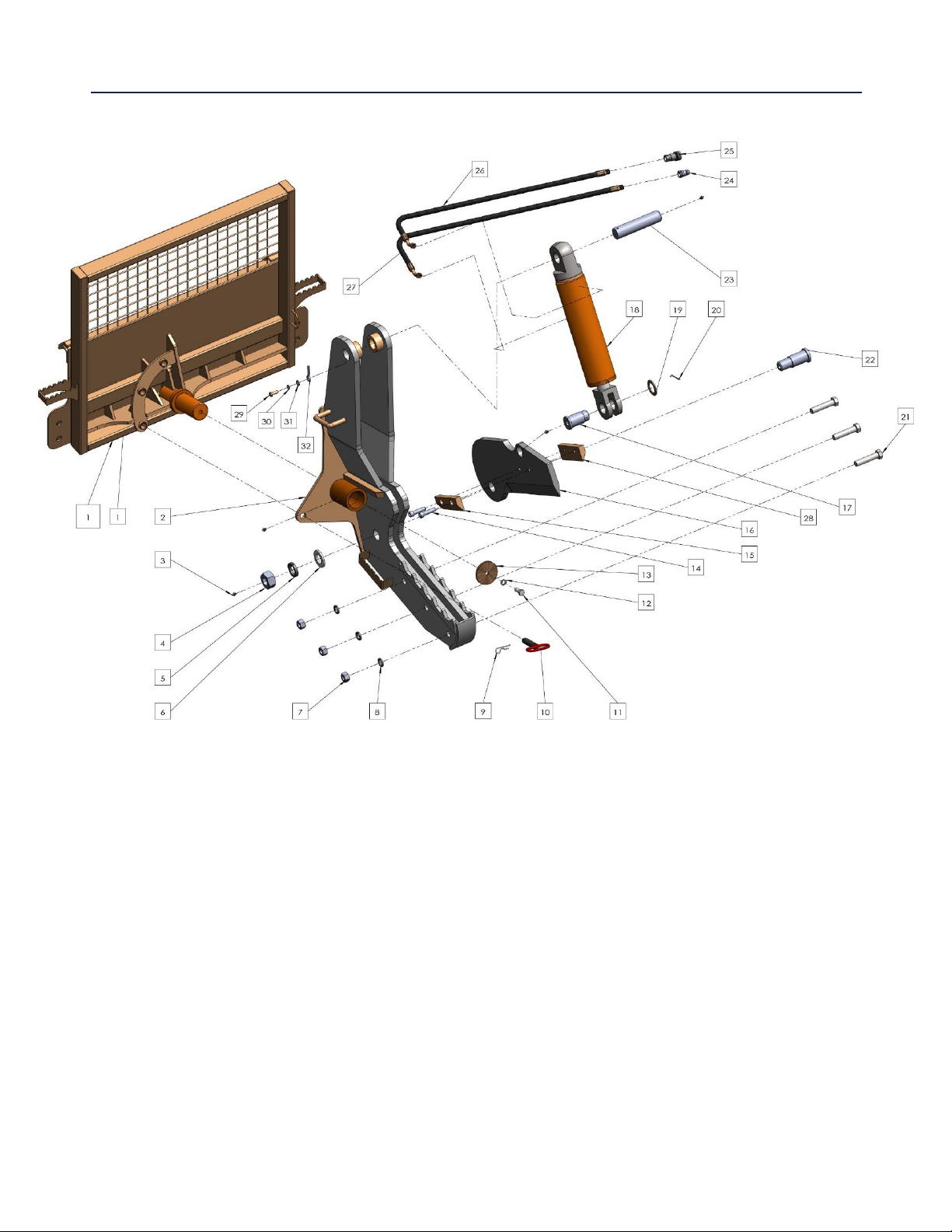

PARTS DIAGRAM/EXPLODED VIEW

13
KEY DESCRIPTION QTY
(1) MAIN FRAME 1
(2) SHEAR BLADE BRACKET 1
(3) GREASE ZERK 4
(4) HEXA NUT M42x3 1
(5) SPRING WASHER 42 1
(6) FLAT WASHER M42 1
(7) HEXA NUT M24 3
(8) SPRING WASHER M24 3
(9) COTTER PIN 3x60 1
(10) SHEAR BRACKET LOCK PIN 1
(11) HEXA BOLT M16x40 1
(12) SPRING WASHER M16 1
(13) BIG WASHER 1
(14) COUNTERSUNK COLUMN HEAD HEX BOLT M16x60 2
(15) BLADE GUSSET - LEFT 1
(16) SHEAR BLADE 1
(17) PIN SHAFT-2 (TS313) 1
(18) CYLINDER 1
(19) FLAT WASHER M45 1
(20) COTTER PIN 4x63 1
(21) HEXA BOLT M24x110 3
(22) PIN SHAFT-1 (TS01-04) 1
(23) PIN SHAFT-3 (TS314) 1
(24) PIONEER COUPLER - MALE 1
(25) PIONEER COUPLER - FEMALE 1
(26) MAIN HOSE - 2 1
(27) MAIN HOSE - 1 1
(28) BLADE GUSSET - RIGHT 1
(29) HEX BOLT M12x30 1
(30) SPRING WASHER M12 1
(31) FLAT WASHER M12 1
(32) EYE PIN 1

14
ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY
The use of any equipment, including this one, involves the potential risk of injury. Apart from any
warranty claim that might be presented for a claimed defect in material or workmanship of the product,
you accept and assume full responsibility for any and all injuries, damages (both economic and non-
economic), and losses of any type, which may occur, and you fully and forever release and discharge
Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,
demands, damages, rights of action, or causes of action, present or future, whether the same be known
or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
This equipment must be used with care by capable and competent individuals under supervision, if
necessary.
WARNING
Do not overfill! Mower should be level
when checking oil in gear box.
some activities might be able to cause
electric shock
Sharp objects may be involved.
Use protective cover during maintenance.
TITAN LIMITED WARRANTY: TERMS, EXCLUSIONS AND LIMITATIONS OF REMEDIES
This product comes with a one (1) year limited warranty that can be found at
www.palletforks.com/warranty.html. Please review the same for all details regarding the Titan Limited
Warranty.
THE TITAN LIMITED WARRANTY FOUND AT WWW.PALLETFORKS.COM/WARRANTY.HTML IS
EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE, EACH
OF WHICH IS HEREBY DISCLAIMED.

15
NEED HELP? CONTACT US FIRST.
1-800-605-7595
[e-mail]
www.palletforks.com
© 2021 Titan Brands
