TTB597TCB
650W Tile Cutter
Barcode: 5052931305766
WARNING! Read the instructions before using the product!

650W TILE CUTTER TTB597TCB
Congratulations on your purchase of a TITAN power tool from
TITAN Power Tools (UK) Ltd. We want you to continue getting the
best performance from it so this handbook includes information
on safety, handling and care. Please retain this handbook in case
you need to refer to any of the information in the future.
Your TITAN power tool comes with a 2 year guarantee, so should
it develop a fault within this period contact your retailer.
This TITAN product carries a 2 year guarantee. If your product develops a fault within this
period, you should, in the first instance contact the retailer where the item was purchased.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
GUARANTEE

TTB597TCB by TITAN
GB
IE
03
23
27
33
34
35
In more detail...
Product functions
Care and maintenance
Trouble shooting
Recycling and disposal
EC declaration of conformity
22
03
04
06
12
Getting started...
Your product
Technical and legal information
Before you start
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
Let’s
get started…

TTB597TCB by TITAN
Getting started...
GB
04
Your product
Your product
1. Upper protective guard
2. Cutting disc
3. 45° Vertical fence
4. Scale
5. Working table
6. On/Off switch
7. Locking knob
(for parallel cutting guide)
8. Locking knob
(for locking extension table)
9. Extension table
10. Mitre cutting guide
11. Parallel cutting guide
12. Locking knob
(for mitre cutting guide)
13. Metal bracket
14. Locking knob
(for upper protective guard)
15. Absorption pad
16. Water reservoir plug
17. Lower protective guard
18. Transportation handle
IE
2
3
5
4
11
17
6
1
9
10
13
14
12
15
18
16
78

05
Safety devices
Metal bracket
The metal bracket (13) prevents a workpiece being caught by the cutting disc (2)
and being hurled at the operator.
The metal bracket must always be mounted during operation.
Upper protective guard
The upper protective guard (1) prevents accidental contact with the cutting disc (2)
and stops workpiece parts and cooling water from being flung out.
The upper protective guard must always be mounted during the operation and can
be lowered to the workpiece.
Lower protective guard
The lower protective guard (17) prevents accidental contact with the cutting disc
(2) and stops workpiece parts and cooling water from being flung out.
The lower cutting disc cover must always be mounted during operation.
TTB597TCB by TITAN
Getting started...
Your product
GB
IE

TTB597TCB by TITAN
Getting started...
GB
06
IE
Technical specifications
Symbols
General
> Input Voltage
> Power Input
> No Load Speed
> Insulation Class
> Diamond Disc Size
> Table Size
> Table Size (with Extension Table)
> Extension Table Width
> Maximum Extension Range
> Table Tilt Range
> Maximum Cutting Depth
> Net Weight
On the product, the rating label and within these instructions you will find among
others the following symbols and abbreviations.
Familiarise yourself with them to reduce hazards like personal injuries and damage
to property.
:
:
:
:
:
:
:
:
:
:
:
:
230-240V~50Hz
650W
5500min-1
Class I
ø180mmx2.4mmxø22.2mm
345x345mm
400x510mm
120mm
150mm
0°/15°/30°/45°
30mm (90°) / 27mm (15°)
25mm (30°) /17mm (45°)
7.6kg
NOISE
A weighted sound pressure LpA.............................................................96.9dB(A)
A weighted sound pressure LWA.............................................................107dB(A)
Uncertainty................................................................................................3dB(A)
The sound intensity level for the operator may exceed 85dB(A) and sound
protection measures are necessary.
Important note
Remove the mains plug from socket before carrying out any adjustment or
servicing.
Ensure your mains supply voltage is the same as your tool rating plate voltage.
Technical and legal
information

TTB597TCB by TITAN Technical and legal
information
07
Getting started...
GB
IE
SAVE THESE INSTRUCTIONS
1. Keep the work area clean.
> Cluttered and dark areas invite accidents.
2. Consider work area environment.
> Do not expose power tools to rain. Do not use power tools in damp or wet
V~
W
min-1
yyWxx
Volt
Input power
Per minute
Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx);
Hz
kg
dB(A)
Hertz
Kilogram
Decibel (A-rated)
Safety warnings
GENERAL SAFETY INSTRUCTIONS
Caution / Warning.
Caution, risk of cutting.
Wear hearing protection.
Read the instruction
manual. Wear eye protection.
Wear respiratory protection.
Use only non fragmented discs.
Wear gloves.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
Switch the product off and disconnect it from the power supply before
assembly, cleaning, adjustments, maintenance, storage and transportation.
WEEE symbol. Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
WARNING! To ensure safe operation when using your Tile Cutter,
make sure you follow basic safety principles to reduce risk of
personal injury, electric shock and fire. Please read the following
instructions prior to operating this product and keep for future use.

TTB597TCB by TITAN
Getting started...
GB
08
IE
Technical and legal
information
locations. Keep the work area well lit. Do not use tools in the presence
of flammable liquids or gases.
3. Guard against electric shock.
> Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators,
ranges, refrigerators).
4. Keep children away.
> Do not let persons, especially children, not involved in the work touch the tool
or the extension cord and keep them away from the work area.
5. Store idle tools.
> When not in use, tools should be stored in a dry, high or locked up place, out
of reach of children.
6. Do not force the tool.
> It will do the job better and safer at the rate for which it was intended.
7. Use the right tool.
> Do not force small tools to do the job of a heavy-duty tool. Do not use tools
for purposes not intended, for example, do not use circular saws to cut tree
limbs or logs.
8. Dress properly.
> Do not wear loose clothing or jewellery, they can be caught in moving parts.
Non-skid footwear are recommended when working outdoors. Wear protective
hair covering to contain long hair.
9. Use protective equipment.
> Use safety glasses. Use face or dust mask if working operations create dust.
10. Connect dust extraction equipment.
> If the tool is provided for the connection of dust extraction and collecting
equipment, ensure these are connected and properly used.
11. Do not abuse the cord.
> Never yank the tool to disconnect it from the socket. Keep the cord away from
heat, oil and sharp edges.
12. Secure work.
> Where possible use clamps or a vice to hold the work. It is safer than using
your hand.
13. Do not overreach.
> Keep proper footing and balance at all times.
14. Maintain tool with care.
> Keep cutting tools sharp and clean for better and safer performance. Follow
instructions for lubrication and changing accessories. Inspect tool cord
periodically and if damaged have them replaced by an authorised service
facility. Inspect extension cords periodically and replace if damaged. Keep
handles dry, clean and free of oil or grease.

09
TTB597TCB by TITAN Technical and legal
information
Getting started...
GB
IE
15. Disconnect tools.
> When not in use, before servicing and when changing accessories such
as blades, bits and cutters, disconnect tools from the power supply.
16. Remove adjusting keys and wrenches.
>
From the habit of checking to see that keys and adjusting wrenches are removed
from the tool before turning it on.
17. Avoid unintentional starting.
> Ensure switch is in the “off” when plugging in.
18. Use outdoor extension leads.
> When tool is used outdoors, use only extension cords intended for outdoor use
and so marked.
19. Stay alert.
> Watch what you are doing. Use common sense. Do not operate tool when you
are tired.
20. Check damaged parts.
> Before further use of the tool, it should be carefully checked to determine that
it will operate properly and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of parts, mounting and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorised service
centre unless otherwise indicated in this instruction manual. Have defective
switches replaced by an authorised service facility. Do not use the tool if the
switch dose not turn it on and off.
21. Warning.
> The using of any accessory or attachment other than those recommended in
this instruction manual may present a risk of personal injury.
22. Have your tools repaired by qualified person.
> This electrical tool complies with the relevant safety requirements. Repairs
should only be carried out by qualified persons using original spare parts,
otherwise this may result in considerable danger to the user.
HEALTH ADVICE
Warning! When drilling, sanding, sawing or grinding, dust particles will be
produced. In some instances, depending on the materials you are working
with, this dust can be particularly harmful to you (e.g. lead from old gloss paint).
You are advised to consider the risks associated with the materials you are working
with and to reduce the risk of exposure. You should:
- Work in a well-ventilated area.
- Work with approved safety equipment, such as those dust masks that are
specially designed to filter microscopic particles.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR TOOLS
> Do not use diamond discs which are damaged or deformed.
> Replace table insert when worn.
> Use only diamond discs recommended by the manufacturer.
> Take care that the selection of the diamond discs is suitable for the material
to be cut.
> Wear suitable personal protective equipment when necessary, this could
include hearing protection to reduce the risk of induced hearing loss, respiratory
protection to reduce the risk of inhalation of harmful dust, wear gloves when
handling diamond discs and rough material.
> Never use blades on this machine.
> Use only diamond discs for which the maximum possible speed is not less
than the maximum spindle speed of the tool and the material to be cut.
> Faults in the machine, including guards or diamond discs, should be reported
as soon as they are discovered. Never use the machine without the guard in
position.
> Maximum size of working piece should be 1m².
> This tile cutter should be used with limitations on ambient conditions (between
15°C and 30°C).
> The machine must be supplied through a residual current device (RCD) having
a rated residual operating current not exceeding 30 mA.
Wear goggles
Wear ear defenders
Wear a breathing mask
Technical and legal
information
Getting started...
GB
10
IE
TTB597TCB by TITAN

11
Getting started...
GB
IE
TTB597TCB by TITAN Before you start
Getting started...
GB
IE
Unpack
> Unpack all parts and lay them on a flat, stable surface.
> Remove all packing materials and shipping devices if applicable.
> Make sure the delivery contents are complete and free of any damage. If you
find that parts are missing or show damage do not use the product but contact
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
You will need
(items not supplied)
> Suitable personal
protective equipment
> Phillips screwdriver
(items supplied)
> Disc spanner 13mm x 5.9mm (2 pc)
Fitting the cutting disc
WARNING: Risk of injury!
Always pull out the mains plug (disconnect the product from its
power supply) before commencing work on the product.
WARNING: Product damage!
Be sure to observe the rotational direction of the cutting disc when
fitting! Be sure to observe the free-wheeling of the cutting disc when
fitting!
NOTE: When fitting make sure that the cutting disc is placed correctly
on the inner flange. The inner flange can be moved freely on the
motor shaft and has a section for holding the internal hole of the
cutting disc. The hole of the outer flange is not round and is used
for the interlocking connection with the motor shaft.

Fig. 1
Fig. 2

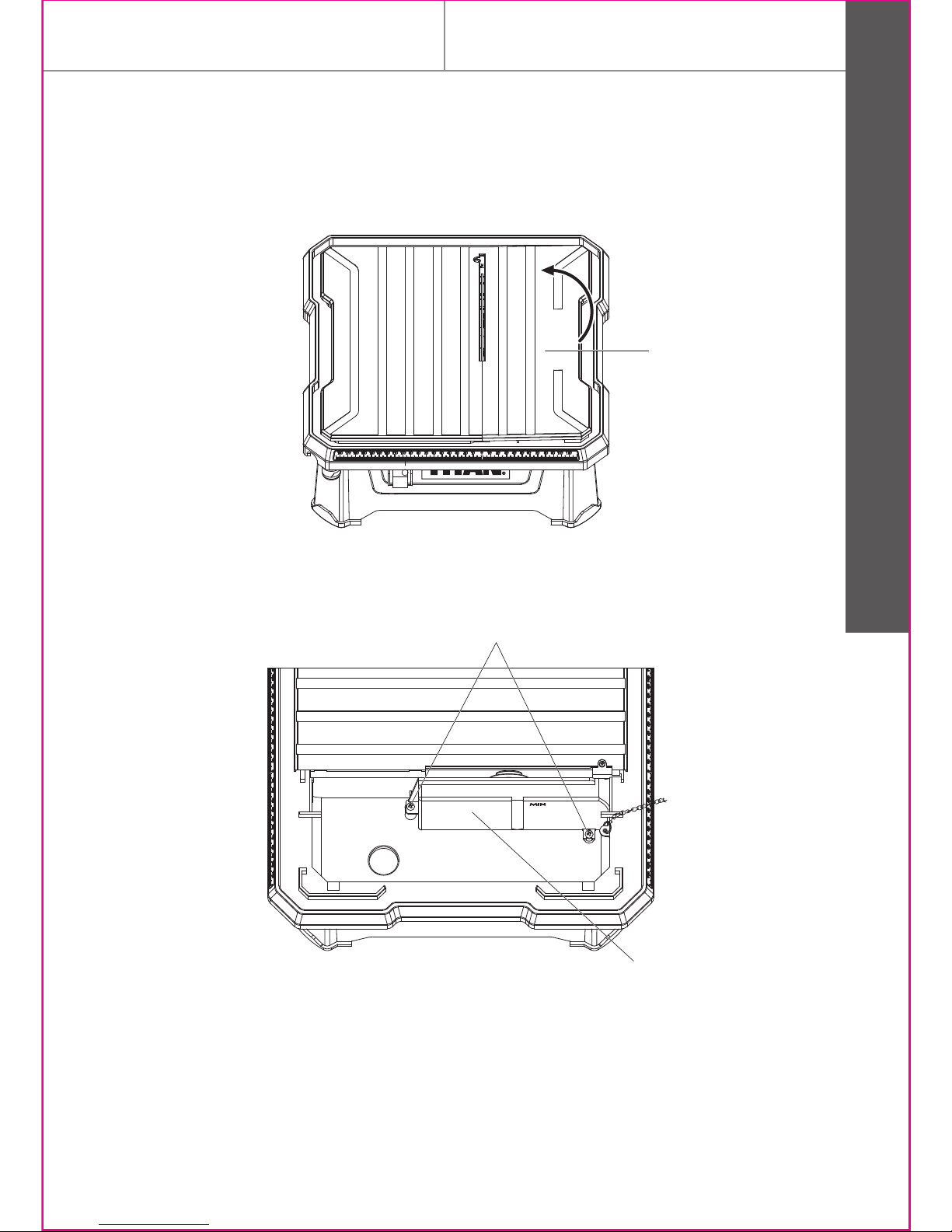

Before you start
> Unplug the tile cutter from the mains supply.
> Raise the 45° Vertical fence (3) approx. 45° and remove.
> Loosen cross-screws (19) with the Phillips screwdriver (not supplied) and pull
off lower protective guard (17).
> Attach the straight spanner (20) (supplied) to the hexagon nut (21).
> Lock motor shaft (25) to prevent turning using angled spanner (23) (supplied).
> Turn the hexagon nut (21) anti-clockwise.
> Remove the hexagon nut (21) and outer flange (22).
TTB597TCB by TITAN
Getting started...
GB
12
IE
3
17
19

Fig. 3
Fig. 4 Fig. 4-1

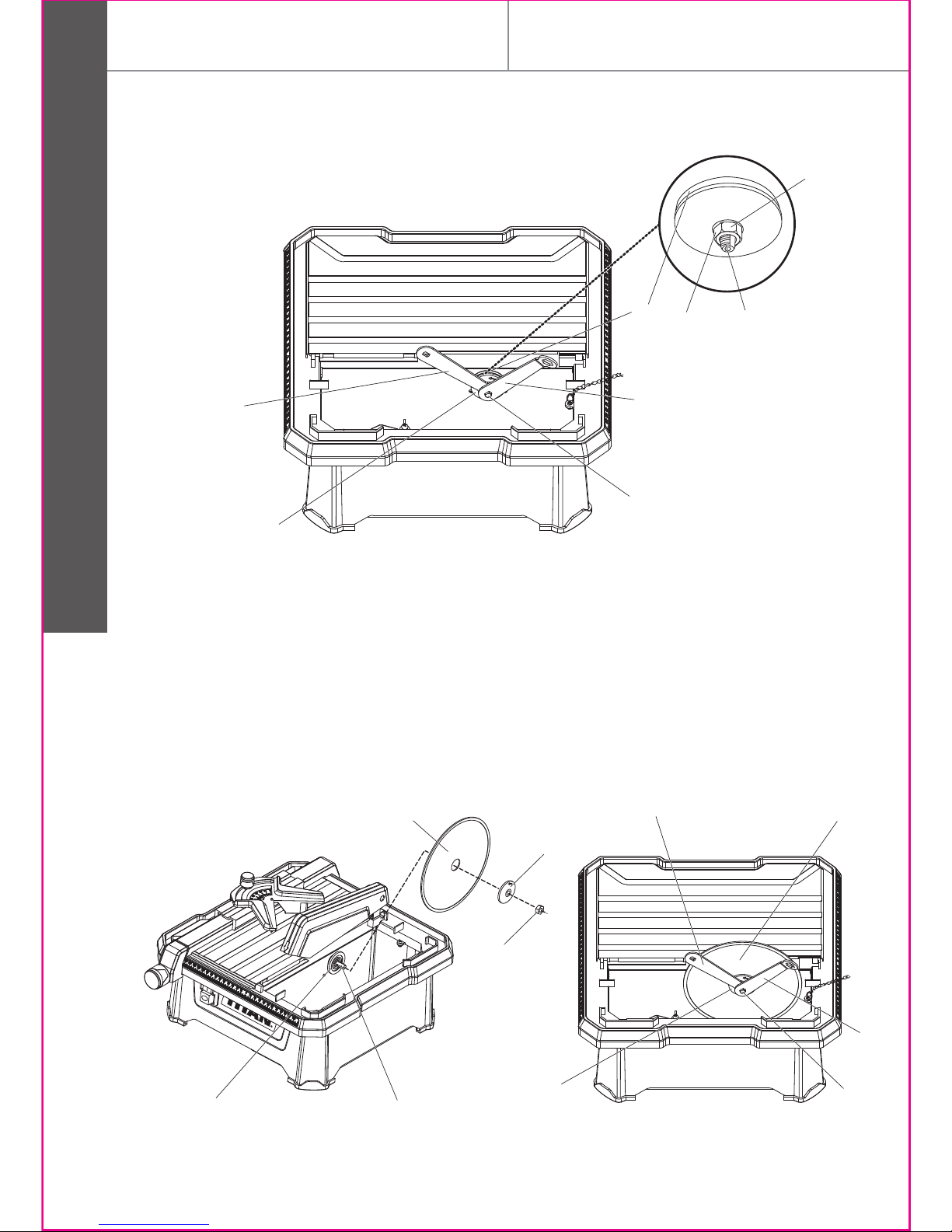

> Place cutting disc (2) on inner flange (24).
> Attach the outer flange (22).
> Screw hexagon nut (21) onto motor shaft (25) clockwise.
> Attach the straight spanner (20) to the hexagon nut (21).
> Lock motor shaft (25) to prevent turning using angle spanner (23).
> Tighten hexagon nut (21) clockwise using straight spanner (20).
> Re-attach the lower protective guard (17) and tighten cross-screws (19).
> Replace the 45° vertical fence (3).
13
TTB597TCB by TITAN Before you start
Getting started...
GB
IE
25
25
22
21
25
2
2
22
21
23
20
22
23
24
22
24 25
20

Fig. 6-1Fig. 6
Fig. 5
Assemble/adjust metal bracket
> Unplug the tile cutter from the mains supply.
> Raise the 45° Vertical fence (3) approx. 45° and remove.
> Loosen the cross-screw (26) with the Phillips screwdriver (not supplied).
> Push slotted hole in the metal bracket (13) below the cross-screw (26).
> Gently tighten the cross-screw (26).
> Align metal bracket (13) with the cutting disc (2).
> Tighten cross-screw (26) with a Phillips screwdriver (not supplied).
> Replace the 45° vertical fence (3).
WARNING: Product damage!
The metal bracket must always be aligned parallel to the cutting
disc.
Before you start
TTB597TCB by TITAN
Getting started...
GB
14
IE
3
13
2
2
26

Fig. 7
15
TTB597TCB by TITAN Before you start
Getting started...
GB
IE
Mounting the upper protective guard
to the metal bracket
WARNING: Product damage!
Do not over-tighten socket head bolt (27) and locking knob (14).
The upper protective guard (1) must be free to rise and fall as the
workpiece is pushed towards the cutting disc.
> Unplug the tile cutter from the mains supply.
> Push the upper protective guard (1) onto the metal bracket (13).
> Push socket head bolt (27) through upper protective guard (1) and metal
bracket (13).
> Push the flat washer (28) onto socket head bolt (27).
> Screw and tighten locking knob (14) onto socket head bolt (27).
> Cover the cutting disc with the upper protective guard (1).
> Ensure that upper protective guard (1) can move freely and that it cannot touch
the cutting disc.
1
13
14
28
27

Fig. 8
Before you start
TTB597TCB by TITAN
Getting started...
GB
16
IE
Setting the extension table
> Unplug the tile cutter from the mains supply.
> Loosen the locking knob (8).
> Set the extension table (9) to the desired distance from the cutting disc.
> Tighten the locking knob (8).
Mounting the extension table
> Unplug the tile cutter from the mains supply.
> Undo the cross-screws(29).
> Push the guide rails for the extension table (9) on both sides into the locator (30)
of the machine body.
> Refit the cross-screws (29).
> Mounting the locking knob (8).
98
30
29

Fig. 9
17
TTB597TCB by TITAN Before you start
Getting started...
GB
IE
Mounting the parallel cutting guide
> Unplug the tile cutter from the mains supply.
> Attach the rear end of the parallel cutting guide (11) to the rear of the working
table (5).
> Push the spring (31), clamp (32) and washer (33) onto thread (34).
> Screw locking knob (7) onto thread (34) and tighten.
Adjusting the parallel cutting guide
> Gently release the locking knob (7).
> Push the parallel cutting guide (11) to the desired distance.
> Tighten the locking knob (7).
11
5
34 32 7
31 33

Fig. 10
18
NOTE: The mitre cutting guide can be set to a desired angle (0°~
45°). The mitre cutting guide can only be used when the parallel
cutting guide is mounted.
Mounting/setting the mitre cutting
guide
Before you start
TTB597TCB by TITAN
Getting started...
GB
IE
> Place mitre cutting guide (10) on parallel cutting guide (11).
> Loosen locking knob (12).
> Set mitre cutting guide (10) at desired angle.
> Tighten locking knob (12).
NOTE: The 45° vertical fence can be set to a desired angle (0°,15°,
30° or 45°).

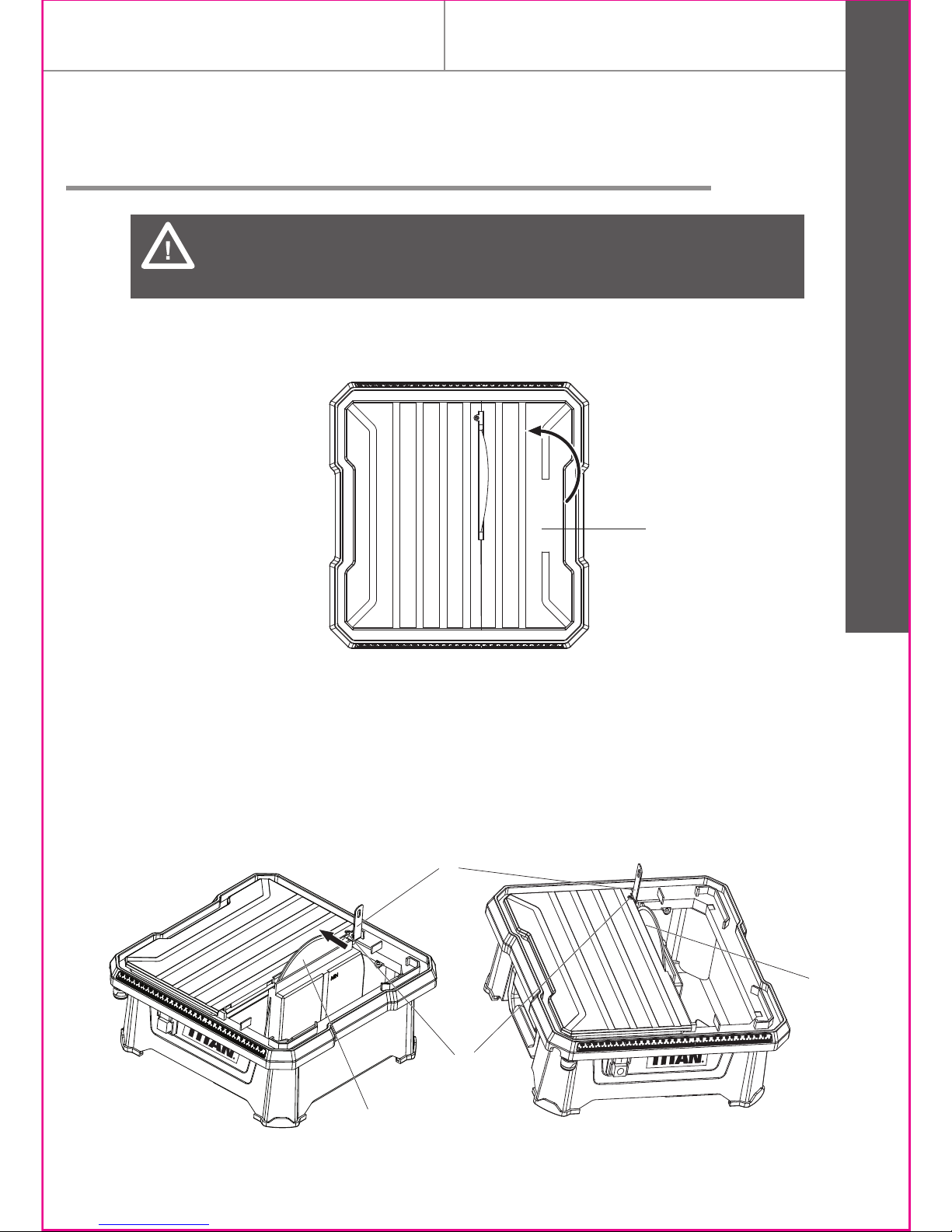

Setting product for jolly cuts
> Raise the 45° vertical fence (3) approx. 45°.
> Fold out the holder (35) and set to the desired angle in the locators (36).
> Ensure that the 45° vertical fence (3) is correctly secured before working.
11
10 12

Fig. 11
NOTE: Product damage!
Fill the product with water only until water can drain from the
opening in the plug.
During use the water level must never drop below the MIN
marking.
NOTE: Product damage!
Fill the product only with clear water. Never use chemicals
or cleaning agents. This can cause irreparable damage to the
product.
Drain cooling water out of the product on completion of the work
(Refer to “Replacing the cooling water” section).
TTB597TCB by TITAN Before you start
Getting started...
GB
IE
19
Filling the product with water
> Unplug the tile cutter from the mains supply.
> Raise the 45° vertical fence (3) approx. 45° and remove.
> Insert the water reservoir plug (16) into the drain opening.
> Fill the tank with water only until water can drain from the opening in the plug.
> Ensure that water just cover the disc edge (no more than ¼ of the disc
is submerged in water).
> When you have finished cutting, remove the water reservoir plug (16) inside the
tank to drain the water.
3
35
36

Fig. 12
20
Warning: Risk of injury!
The product must be mounted in a stable position, i.e. on
a workbench, a universal subframe or similar.
Warning: Risk of injury!
As soon as a malfunction occurs, push the red 0-Button on the
On/Off Switch and pull out the mains plug.
Warning: Risk of injury!
The defect may be put into operation only if no defects or errors
are found. Ensure that any defective parts are replaced before
the product is used again.
Before you start
TTB597TCB by TITAN
Getting started...
GB
IE
Check before starting!
Check the safe condition of the product before plugging the power cable:
> Check whether there are any visible defects or faults.
> Check whether all parts of the product are firmly attached.
> Check that the safety devices are in faultless condition.
> Check that the cutting disc can run freely.
> Check there is sufficient cooling water in the product.
