Titan TTL530GBC Installation manual
1
G
U
A
R
A
N
T
E
E
G
U
A
R
A
N
T
E
E
V110920 / BX220IM

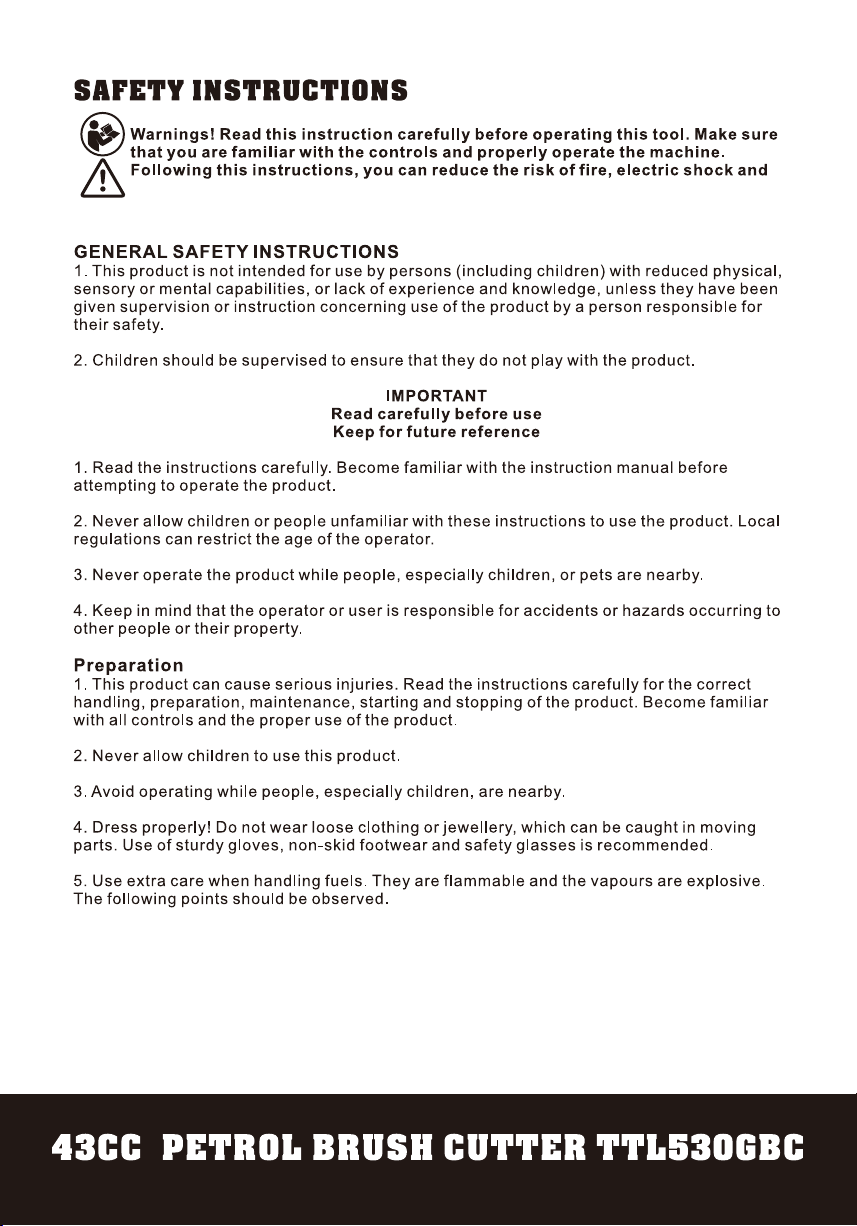

personal injury.
7. Do not use the product if the cutting blade still run when the product is in idling condition.
11. Stop using the product while people, especially children, or pets are nearby.
12. Only use the product in daylight or good artificial light.
13. Stop the engine before
- Cleaning or when clearing a blockage,
- Checking, carrying out maintenance or working on the product,
- Adjusting the working position of the cutting device,
- Leaving the product unattended.
14. Ensure that the product is correctly located in a designated working position before
starting the engine.
15. While operating the product, always ensure that the operating position is safe and secure.
16. Do not operate the product with a damaged or excessively worn cutting blades, chain or
edges.
17. Keep the engine and silencer free of debris, leaves and excessive lubricant to reduce fire
hazards.
18. Always ensure that all handles and guards are fitted when using the product. Never
attempt to use an incomplete product or one fitted with an unauthorised modification.
19. Always use two hands to operate a product fitted with two handles.
20. Always be aware of your surroundings and stay alert for possible hazards of which you
may not be aware due to the noise of the product.
21. Always ensure that ventilation openings are kept clear of debris.
Maintenance and storage
1. Improper maintenance and removal of safety devices leads to hazards causing injuries and
damage to property.
2. When the product is stopped for servicing, inspection or storage, shut off the power source,
disconnect the spark plug connector from the spark plug and make sure all moving parts have
come to a stop. Allow the product to cool before making any inspections, adjustments, etc.
3. Always store the product and fuel so that there is no risk of leakages or fumes coming into
contact with sparks or naked flames from electrical equipment, electric motors,
relays/switches, boilers etc. Always allow the product to cool down before storing.
4. When not in use store the product out of the reach of children.
5. Use only manufacturers recommended replacement parts and accessories.
6. When transporting or storing the product, always fit the transportation guards.
43CC PETROL BRUSH CUTTER TTL530GBC
7. Correctly secure your product when transporting in a vehicle to prevent turnover, fuel
spillage and damage to the product.
8. For longer periods of storage or transportation the fuel and oil tanks must be emptied.
Dispose of waste fuel and oil at a local petrol station, local authority centre or where facilities
exist.
FUEL HANDLING
1. Always disconnect the spark plug connector and let the product cool down, before refuelling
it. Petrol is easily flammable. Never smoke when you are refuelling the product. Do not refuel
the product, if there is an open fire in the vicinity!
2. Always use suitable aids such as funnels and filler necks. Do not spill any fuel on the
product or its exhaust system. There is a risk of ignition. Remove spilled fuel carefully from all
parts of the product. Any residue which may be present must have completely volatilised,
before the product is put into operation!
3. Never use the product in environments where there is a risk of explosion. Exhaust gases
and fuel fumes are noxious. Fuel fumes can ignite.
4. Never breathe in any fuel fumes, when you are refuelling the product. Never fill the tank in
enclosed spaces, such as basements or sheds. There is a risk of poisoning and explosion!
5. Avoid skin contact with petrol.
6. Do not eat or drink, while you are refuelling the product. If you have swallowed petrol or oil,
or if petrol or oil has got into your eyes, then seek the advice of a doctor immediately.
7. Close the tank lid immediately after filling the tank. Make sure that it is properly closed.
8. Never use the product without an air filter.
NOISE REDUCTION
1. To reduce the impact of noise and vibration emission, limit the time of operation, use low-
vibration and low-noise operating modes as well as wear personal protective equipment.
2. Take the following points into account to minimize the vibration and noise exposure risks:
- Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct application tools for the product and ensure they in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated
(where appropriate).
- Plan your work schedule to spread any high vibration tool use across a number of days.
EMERGENCY
Familiarise yourself with the use of this product by means of this instruction manual.
Memorise the safety directions and follow them to the letter. This will help to prevent
risks and hazards.
1. Always be alert when using this product, so that you can recognise and handle risks early.
Fast intervention can prevent serious injury and damage to property.
2. Stop the engine and unplug the spark plug connector if there are malfunctions. Have the
product checked by a qualified professional and repaired, if necessary, before you operate it
again.
3. In case of fire stop the engine and unplug the spark plug connector. Take fire-extinguishing
measures immediately if the product switch is no longer accessible.
WARNING! Never use water to extinguish a product on fire. Burning fuel must be
extinguished with special extinguishing agents. We recommend that you keep a
suitable fire extinguisher within reach in your work area!
RESIUAL RISKS
WARNING! Even if you are operating this product in accordance with all the safety
requirements, potential risks of injury and damage remain. The following dangers can
arise in connection with the structure and design of this product:
1. Health defects resulting from vibration emission if the product is being used over long
periods of time or not adequately managed and properly maintained.
2. Injuries and damage to property due to broken accessories or the sudden impact of hidden
objects during use.
3. Danger of injury and property damage caused by flying objects.
4. Burns, if touching hot surfaces.
WARNING! This product produces an electromagnetic field during operation! This
field may under some circumstances interfere with active or passive medical implants!
To reduce the risk of serious or fatal injury, we recommend persons with medical
implants to consult their doctor and the medical implant manufacturer before operating
this product!
43CC PETROL BRUSH CUTTER TTL530GBC
VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm
vibration syndrome injuries to power tool users. The directive requires power tool manufacturers
and suppliers to provide indicative vibration test results to enable users to make informed decisions
as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
Further Advice can be found at www.hse.gov.uk
Vibration total values (triax vector sum) determined according to EN ISO 11806.
Max. vibration level for operation
Vibration emission value ah = 6.960m/s²
Uncertainty K = 1.5 m/s²
The declared vibration emission value should be used as a minimum level and should be used
with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difficult and the HSE website
has further information.
The declared vibration emission been measured in accordance with a standard listed test
stated above and may be used to compare one tool with another. The declared vibration
emission value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on
the following examples and other variations on how the tool is used:
How the tool is used and the materials being ground or cut.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING! Identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is switched off and when it is running
idle in addition to the trigger time). Note The use of other tools will reduce the users'
total working period on this tool.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
Avoid using tools in temperatures of 10°C or less.
Plan your work schedule to spread any high vibration tool use across a number of days. Health
Surveillance.
Health Surveillance.
All employees should be part of an employer's health surveillance scheme to help identity any
vibration related diseases at an early stage, prevent disease progression and help employees
stay in work.
Double insulation:
The tool is double insulated. This means that all the external metal parts are electrically
insulated from the mains power supply. This is done by placing insulation barriers between the
electrical and mechanical components making it unnecessary for the tool to be earthed.
Important note:
Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a
two-core cable and plug. Remove the mains plug from socket before carrying out any
adjustment or servicing.
43CC PETROL BRUSH CUTTER TTL530GBC

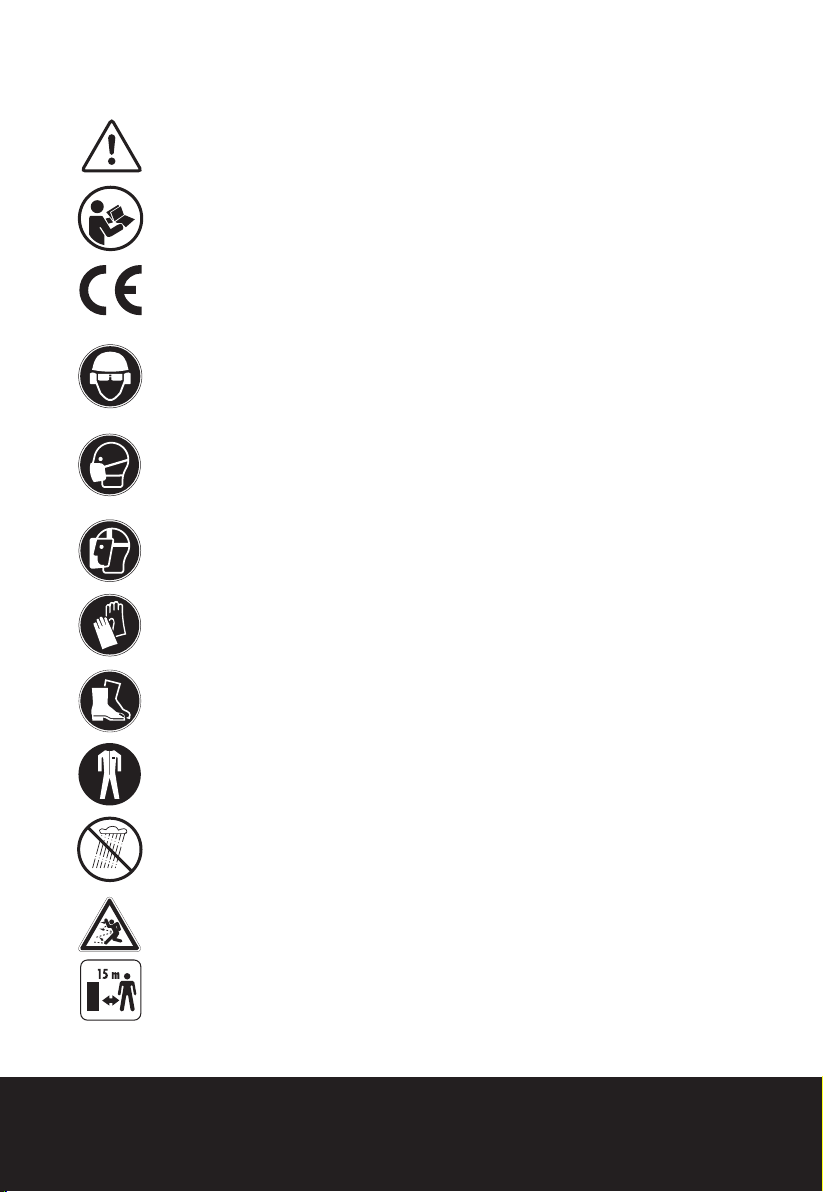

SYMBOLS
Warning
Read the instruction manual
Wear ear protection
Wear eye protection
Wear respiratory protection
Wear safety helmet!
Wear face protection!
Gloves with saw protection
Wear safety footwear
Wear protective clothing
To avoid potential electric shock, do not use the unit in humid or wet conditions
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
Objects thrown by the product could hit the user or other bystanders.
Always ensure that other people and pets remain at a safe distance from the
product when it is in operation. In general, children must not come near the
area where the product is. Minimum distance 15 m.

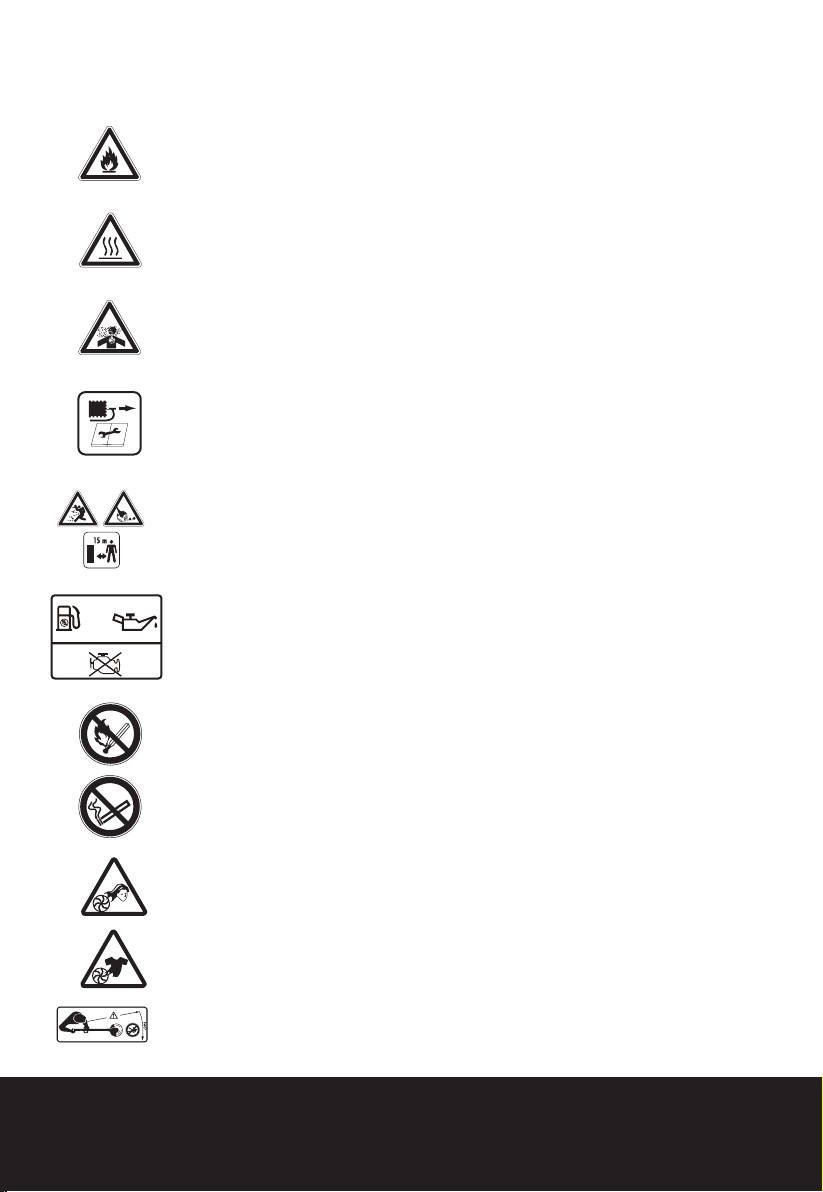

Risk of fire / flammable materials
Hot surface, do not touch. The high temperatures on the product's surfaces and
structural parts could cause burns if touched. The product can also remain hot for
a long period of time after operation!
This product produces noxious exhaust fumes. If the product is not used properly,
these fumes can lead to poisoning, a loss of consciousness or death!
Warning! Switch the product off and disconnect the spark plug connector before
assembly, cleaning, adjustments, maintenance, storage and transportation.
Objects thrown by the product could hit the user or other bystanders.
Always en that other people and pets remain at a safe distance from the product
when it sure is in operation. In general, children must not come near the area
where the product is. Minimum distance 15m.
Only use petrol/oil mixture with a ratio of 40:1. Do not use any other mixture ratio.
Always switch the product off and let it cool down, before refuelling it.
Naked flames in the work area, around the product and in the vicinity of flammable
materials are prohibited!
Do not smoke in the work area, around the product and in the vicinity of flammable
materials!
43CC PETROL BRUSH CUTTER TTL530GBC

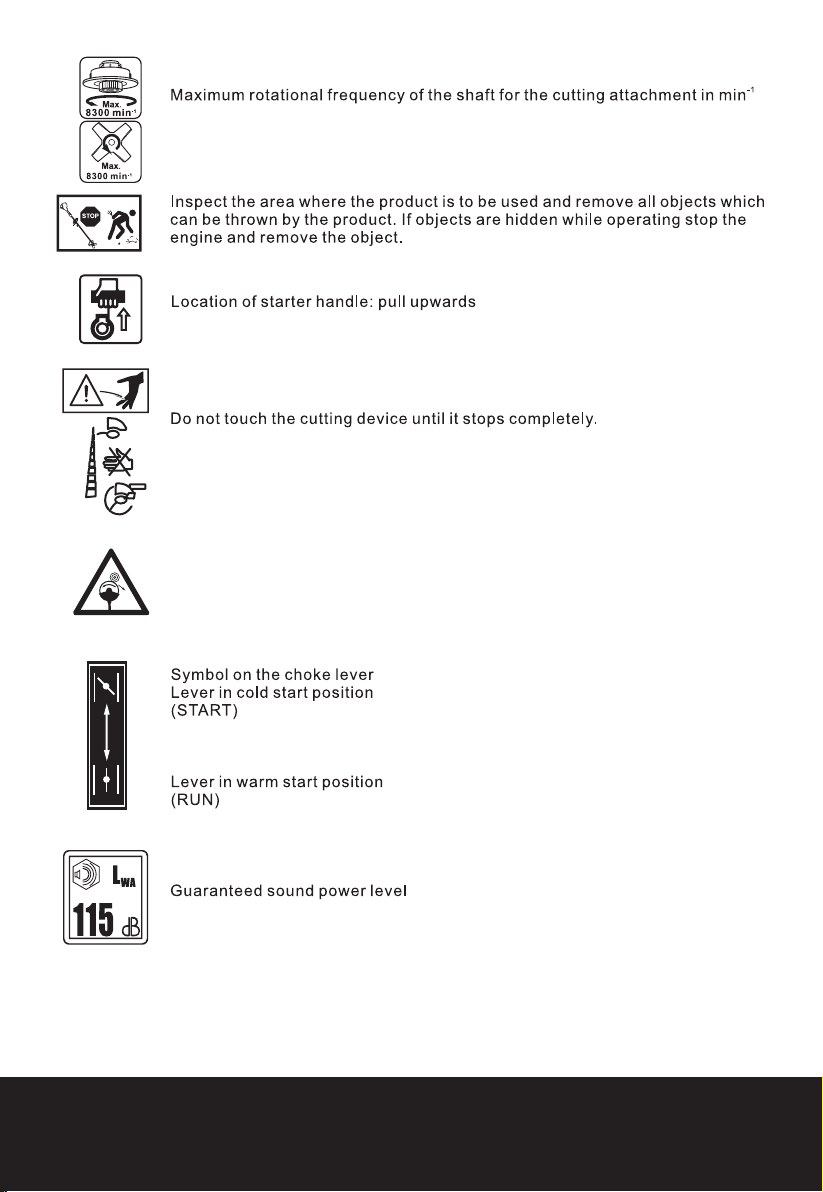

Keep other people out of working area during operation. A distance of at least
15 m must be observed.
Risk of long hair being drawn into air inlet.
Risk of loose clothing being drawn into air intake.
max. 700ml
petrol/oil mixture with a ratio of 40:1
Beware of blade thrust: Continued movement of saw blade
after cutting through log.
A
113
15 14 20 18 17
16
19
22
3
23
21
24
9
10
11
7
6
2
4
5
28
8
43CC PETROL BRUSH CUTTER TTL530GBC
12
13a
38
35 36 37 39
40
25a
25b
27
26
28
41
30
29
27
34
33
31
32

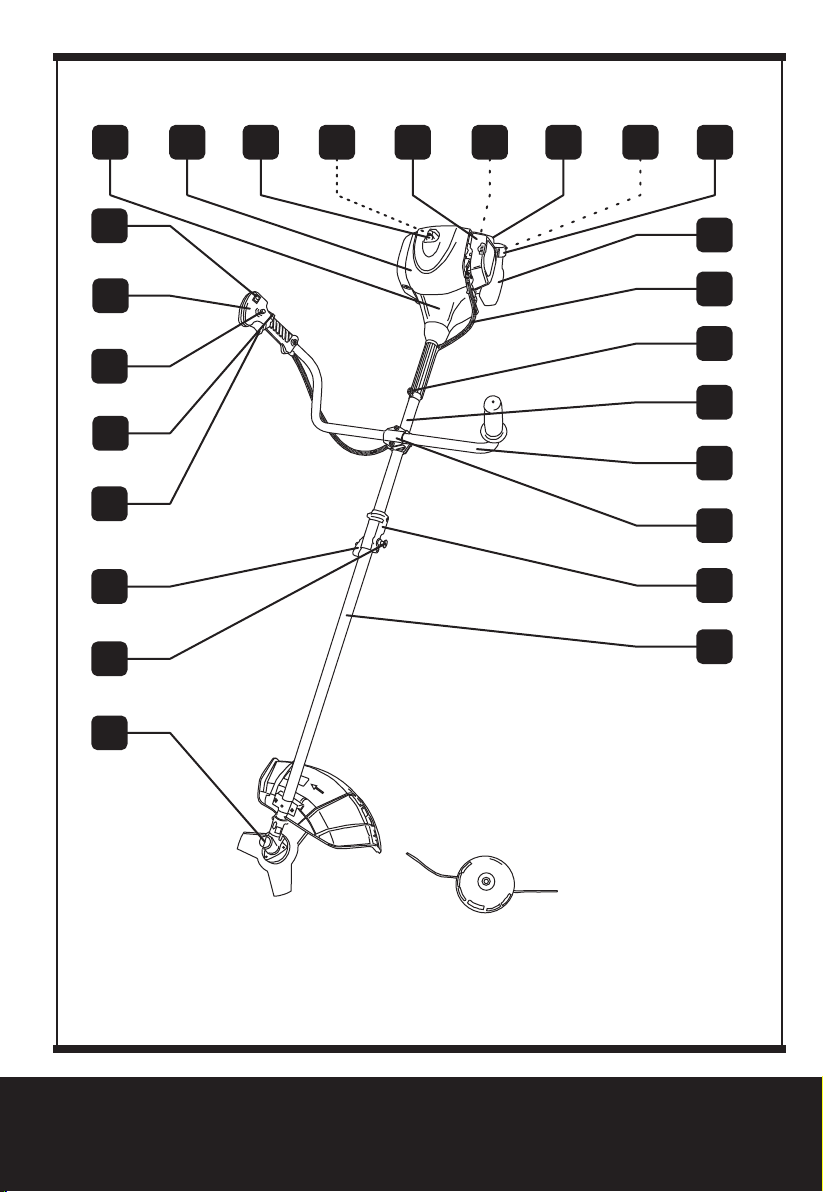

A. Main unit
1.
Engine
2.
Upper shaft
3.
Main handle
4.
Throttle cable
5.
“U” shape tube
6.
Connecting of handle
7.
Lower shaft
8.
Gear box
9.
Locking knob
10.
Lock pin
11.
Clamp
12.
Ring
13.
Spark plug connector
14.
Recoil starter
15.
Clutch cover
16.
Fuel tank
17.
Fuel tank cap
18.
Primer bulb
19.
Air filter box
20.
Choke lever
21.
Throttle interlock
22.
Ignition switch
23.
Throttle safety button
24.
Throttle trigger
25a.
25b.
Trimming guard
26.
Spindle
27.
Backing flange
28.
Cutting blade
29.
M10 nut
30.
Blade protect cover
31.
Fixed plate
32.
Line cutter
33.
Cutting spool
34.
Cutting line
35.
Hip protection
36.
Securing clip
37.
Harness
38.
5mm hex key
39.
40.
Multi tool II(cross screwdriver/spark plug wrench)
43CC PETROL BRUSH CUTTER TTL530GBC
Torx Screwdriver(T25)
41.
Locking flange
13a.Spark plug

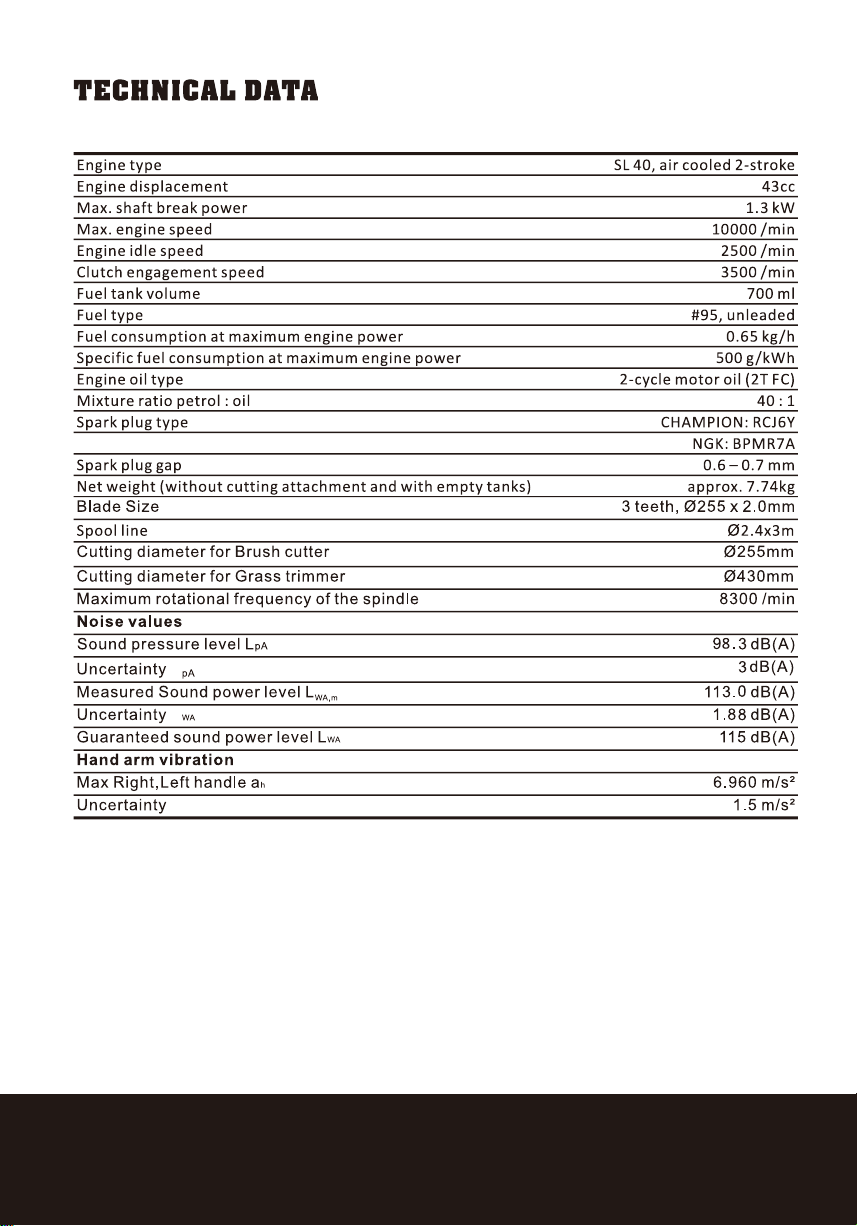

K
K
The conformity assessment followed was according to Annex III of the directive for equipment listed in
schedule 1 / article 13 the chosen conformity assessment route Internal cintrol of production (schedule
10 / Annex V) - Guaranteed Sound Power Leel 115 dB (A).
ACCESSORIES
43CC PETROL BRUSH CUTTER TTL530GBC
Torx s crew driver (T25) pc
Multi tool II(cross screwdriver/spark plug wrench) pc
Harness pc
Hex key (5mm) 1
1
1
1
pc
1.

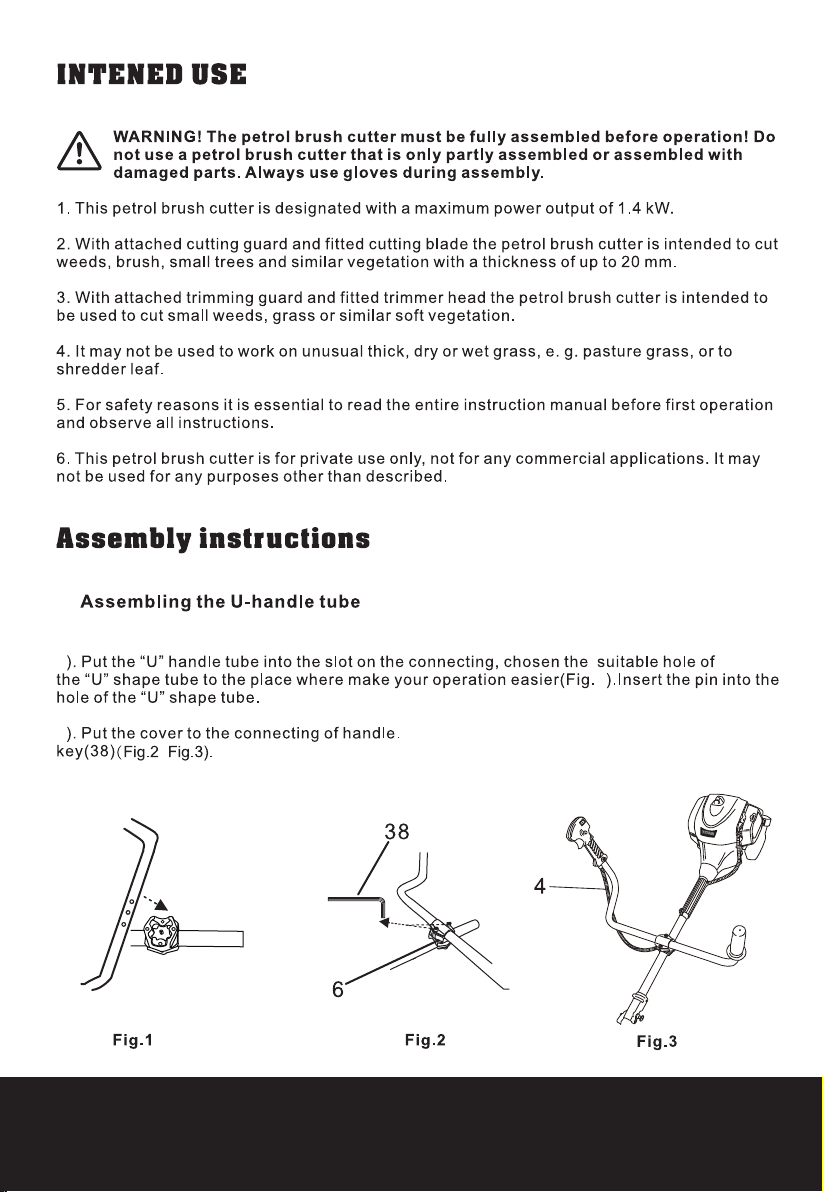

1). Loosen the two bolts and remove the cover from the connecting handle (6).
2
3
1
Tighten the two bolts with the 5mm hex
25a
25b

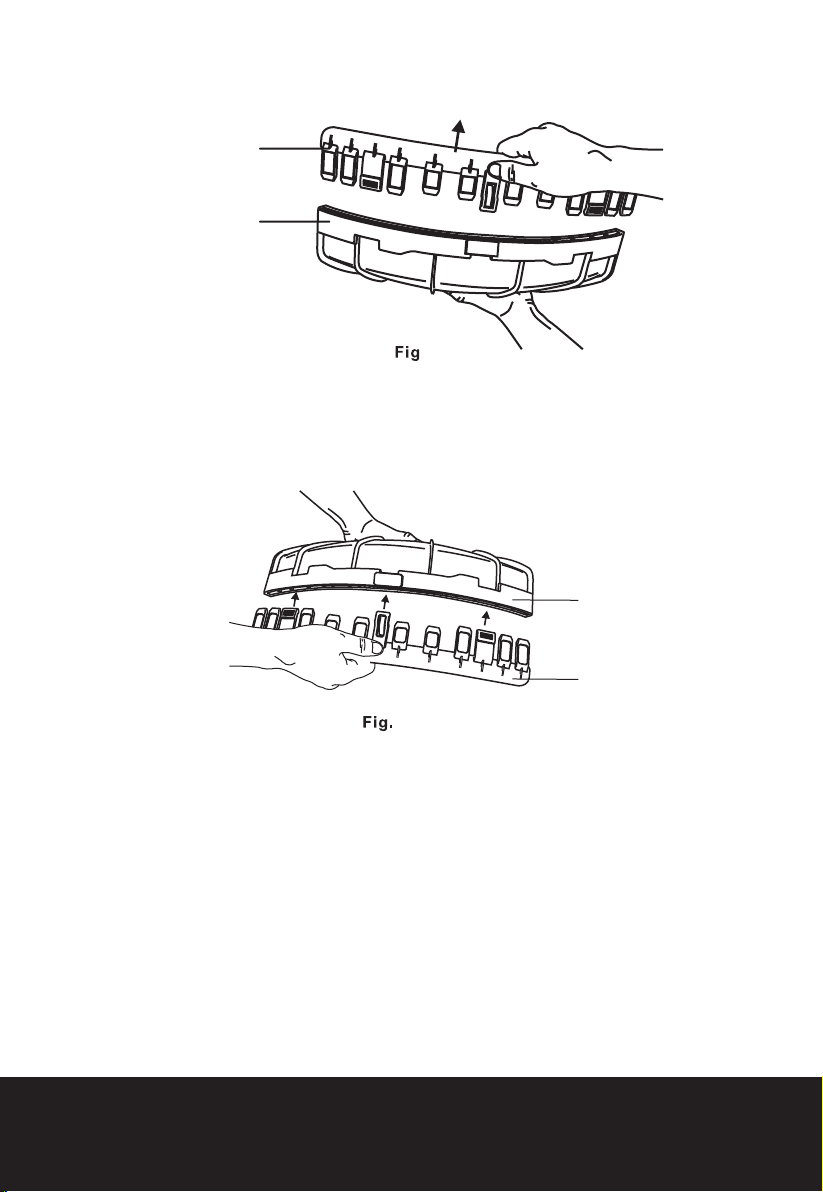

Remove the trimming guard (25b) from cutting guard (25a)
1)Press the button and pull out the trimming guard(25b) a bit. Do it on both side of the guard
(Fig.5a)(Fig.5b).
Note: For using the trimmer head, make sure the trimming guard (25b) has been
attached to the cutting guard (25a). For using the blade, remove the trimming
guard (25b) from the cutting guard (25a) if necessary.
25b
25a
2
4
5a 5b

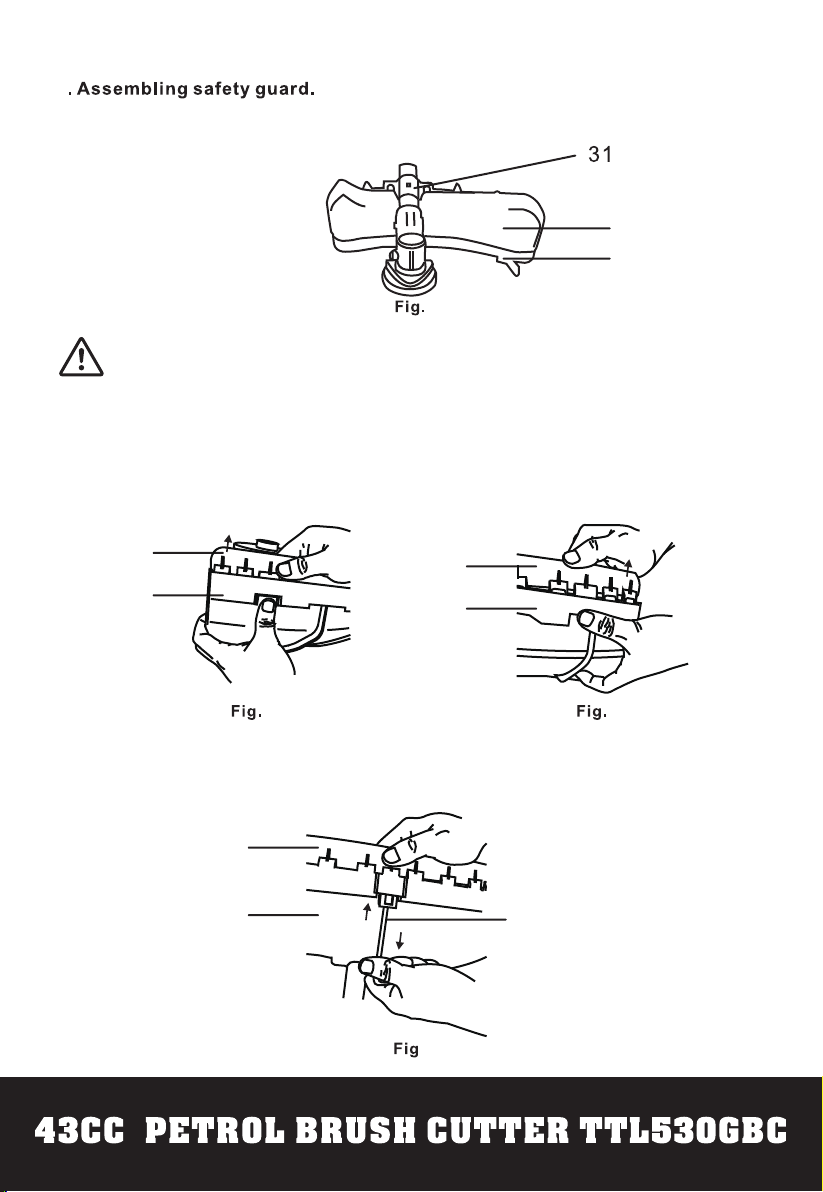

Place the safety guard onto the plate(31)and tigthen the two bolts with the 5mm hex key (38).
Pay attention to the alignment of the guard(Fig.4).
25b
25a
25b
25a 40
5c
2)Insert the torx screwdriver(40) under the center buckle to disengage it, and then remove the
torx screwdriver(Fig.5c) .
.
25b
25a
5d
3) Remove the trimming guard (25b) completely(Fig.5d).
.
2). Fit the cutting blade (28) on the spindle (26).Ensure the cutting blade sits firmly on
the extruded ring on the backing flange (27).
3). Put the locking flange (41) and the blade protect cover (30) on the cutting blade (28).
4). Insert the torx screw driver (40) into the hole to lock the spindle(26) and the backing flange (27).
Tighten the M10 nut (29) with the multi tool (39) anticlockwise completely.
1). Put the backing flange (27) on the spindle (26). Rotate the backing flange (27) until its hole is
aligned with the notch in the gear head.
3. Installing cutting blade
Attach the trimming guard (25b) to cutting guard (25a)
5e
Insert the the trimming guard (25b) to the cutting guard (25a), making sure the two buttons and
the center buckle engage completely(Fig.5e).
25a
25b
Table of contents
Other Titan Cutter manuals
