Titan TTB903TCH User manual

Original Instructions_MNL_TTB903TCH_GB_V01_20220121
TTB903TCH
500W Tile Cutter
EAN: 5059340252629
WARNING! Read the instructions before using the product!
EN
BX220IM

TTB903TCH by TITAN
02
23
27
33
34
35
36
In more detail...
Product functions
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
EC declaration of conformity
22
02
03
05
12
Getting started...
Your product
Technical and legal information
Before you start
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
Let’s
get started…
EN

TTB903TCH by TITAN
Getting started...
03

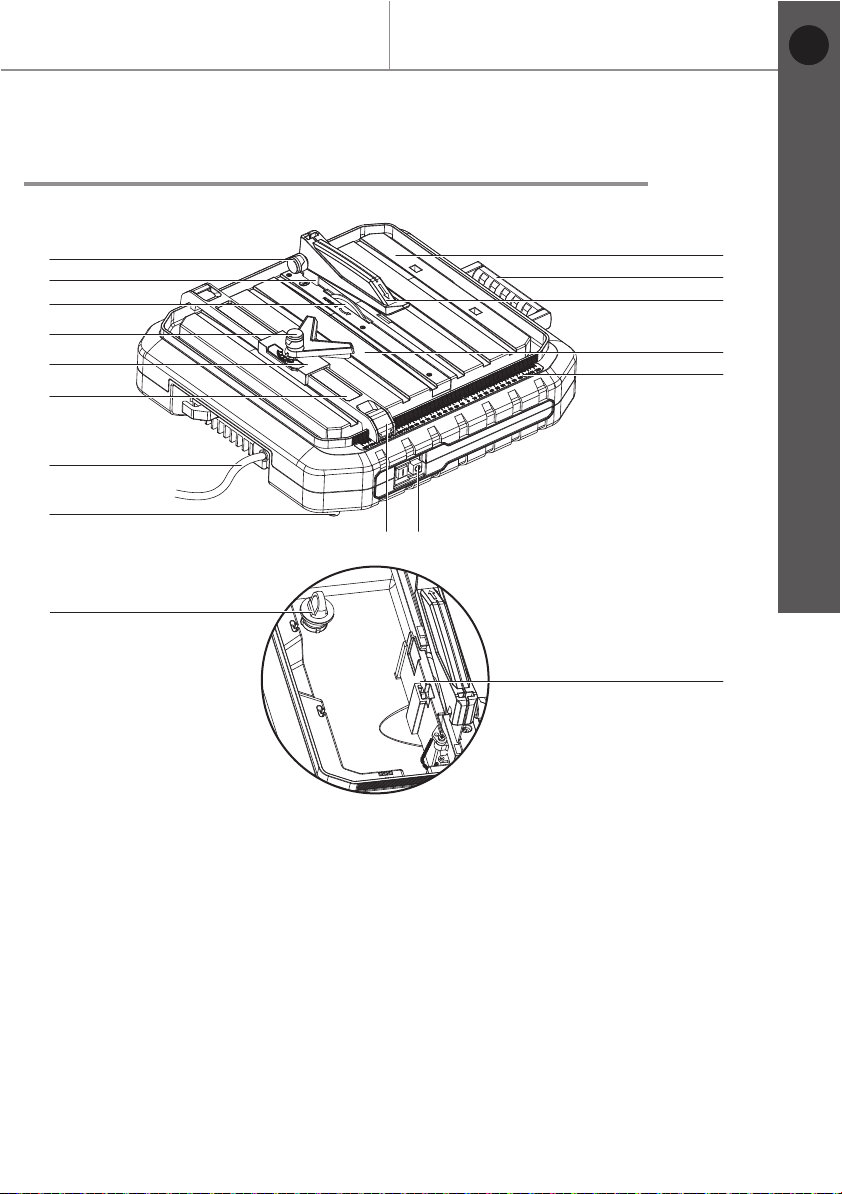

Your product
Your product
1. 45° Vertical fence
2. Transportation handle
3. Upper protective guard
4. Working table
5. Scale
6. Lower protective guard
7. On/Off switch
8. Locking knob
(for parallel cutting guide)
9. Water reservoir plug
10. Base foot
11. Plug cable
12. Parallel cutting guide
13. Mitre cutting guide
14. Locking knob
(for mitre cutting guide)
15. Cutting disc
16. Metal bracket
17. Locking knob
(for upper protective guard)
3
2
5
6
1
13
12
15
16
17
14
10
11
9
78
4
EN

04
Safety devices
Metal bracket
The metal bracket (16) prevents a workpiece being caught by the cutting disc (15)
and being hurled at the operator.
The metal bracket must always be mounted during operation.
Upper protective guard
The upper protective guard (3) prevents accidental contact with the cutting disc (15)
and stops workpiece parts and cooling water from being flung out.
The upper protective guard must always be mounted during the operation and can
be lowered to the workpiece.
Lower protective guard
The lower protective guard (6) prevents accidental contact with the cutting disc
(15) and stops workpiece parts and cooling water from being flung out.
The lower cutting disc cover must always be mounted during operation.
TTB903TCH by TITAN
Getting started...
Your product
EN

TTB903TCH by TITAN
Getting started...
05
Technical specifications
General
> Input Voltage
> Power Input
> No Load Speed
> Insulation Class
> Diamond Disc Size
> Table Size
> Table Tilt Range
> Maximum Cutting Depth
> Net Weight
:
:
:
:
:
:
:
:
:
220-240V~50Hz
500W
5200min-1
Class I
ø115mmx2.1mmxø22.2mm
330x360mm
0°/45°
20mm
5.9kg
NOISE
A weighted sound pressure LpA................................................................94dB(A)
A weighted sound pressure LWA.............................................................107dB(A)
Uncertainty................................................................................................3dB(A)
The sound intensity level for the operator may exceed 85dB(A) and sound
protection measures are necessary.
Information:
− declared noise emission value(s) have been measured in accordance with a
standard test method and may be used for comparing one tool with another;
− the declared noise emission value(s) may also be used in a preliminary
assessment of exposure.
Warning:
− the noise emissions during actual use of the power tool can differ from the
declared values depending on the ways in which the tool is used especially
what kind of workpiece is processed; and
− it is necessary to identify safety measures to protect the operator that are based
on an estimation of exposure in the actual conditions of use (taking account of
all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time).
Important note
Remove the mains plug from socket before carrying out any adjustment or
servicing.
Ensure your mains supply voltage is the same as your tool rating plate voltage.
The following information applies to professional users only but is
good practice for all users:
ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST
The updated Control of Substances Hazardous to Health Regulations 1st October
2012 now also targets to reduce the risks associated with silica, wood and gypsum
dusts.
Construction workers are one of the at-risk groups within this because of the dust
that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs!
Silica is a natural mineral present in large amounts in things like sand, sandstone
and granite. It is also commonly found in many construction materials such as
concrete and mortar. The silica is broken into very fine dust (also known
Technical and legal
information EN

TTB903TCH by TITAN Technical and legal
information
06
Getting started...
as Respirable Crystalline Silica or RCS) during many common tasks such as cutting,
drilling and grinding Breathing in very fine particles of crystalline silica can lead to
the development of:
Lung cancer Silicosis Chronic Obstructive Pulmonary Disorder (Chronic obstructive
pulmonary disease (COPD) And breathing in fine particles of wood dust can lead
to the development of Asthma The risk of lung disease is linked to people who
regularly breathe construction dust over a period of time, not on the odd occasion.
To protect the lung, the COSHH Regulations sets a limit on the amount of these
dusts that you can breathe (called a Workplace Exposure Limit or WEL)
when averaged over a normal working day. These limits are not a large amount of
dust: when compared to a penny it is tiny – like a small pinch of salt:
This limit is the legal maximum; the most you can breathe after the right controls
have been used.
How to reduce the amount of dust?
1. Reduce the amount of cutting by using the best sizes of building products.
2. Use a less powerful tool e.g. a block cutter instead of angle grinder.
3. Using a different method of work altogether – e.g. using a nail gun to direct fasten
cable trays instead of drilling holes first.
Please always work with approved safety equipment, such as those dust masks
that specially designed to filter out microscopic particles and use the dust extraction
facility at all time.
For more information please see the HSE website:
http://www.hse.gov.uk/construction or http://www.hse.gov.uk/pubns/cis69.pdf
Warning: Some dust particles created by power sanding, sawing,
grinding, drill and other construction jobs contain chemicals known to
cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks and cement and other masonry products.
• Arsenic and chromium from chemically treated timber.
Your risk from these exposures varies, depending upon how often you do this type
of work. To reduce your exposure to these chemicals:
• Work in a well-ventilated area.
• Work with approved safety equipment, such as those dust masks that are specially
designed to filter microscopic particles.
VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to help
reduce hand arm vibration syndrome injuries to power tool users. The directive
requires power tool manufacturers and suppliers to provide indicative vibration
test results to enable users to make informed decisions as to the period of time
EN

TTB903TCH by TITAN
Getting started...
07
Technical and legal
information
a power tool can be used safely on a daily basis and the choice of tool.
SEE TECHNICAL SPECIFICATIONS IN THE INSTRUCTION MANUAL FOR
THE VIBRATION LEVELS OF YOUR TOOL.
The declared vibration emission value should be used as a minimum level and
should be used with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difficult and the
HSE website has further information.
The declared vibration emission been measured in accordance with a standardised
test stated above and may be used to compare one tool with another tool.
The declared vibration emission value may also be used in a preliminary
assessment of exposure.
Warning: The vibration emission value during actual use of the power tool
can differ from the declared value depending on the ways in which the tool
is used dependant on the following examples and other variations on how the
tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good
condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
While working with this power tool, hand/arm vibrations occur. Adopt the
correct working practices in order to reduce the exposure to vibration. This
tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
Warning: Identify safety measures to protect the operator that are based
on an estimation of exposure in the actual conditions of use (taking account
of all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time). Note The use of other
tools will reduce the users’ total working period on this tool.
Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels,
drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated
(where appropriate).
Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to
spread any high vibration tool use across a number of days.
Health surveillance
All employees should be part of an employer’s health surveillance scheme to
help identity any vibration related diseases at an early stage, prevent disease
progression and help employees stay in work.
EN

TTB903TCH by TITAN Technical and legal
information
Symbols
On the product, the rating label and within these instructions you will find among
others the following symbols and abbreviations.
Familiarise yourself with them to reduce hazards like personal injuries and damage
to property.
08
Getting started...
V~
W
min-1
yyWxx
TTB903TCH Designation of the tool (TTB - TITAN, TCH - Tile cutter,
903 - Version number)
Volt
Input power
Per minute
Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx);
Hz
kg
dB(A)
Hertz
Kilogram
Decibel (A-rated)
Safety warnings
GENERAL POWER TOOL SAFETY WARNINGS
Warning! Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Use only non fragmented discs.
Caution / Warning.
Caution, risk of cutting.
Read the instruction
manual.
Wear gloves.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
Switch the product off and disconnect it from the power supply before
assembly, cleaning, adjustments, maintenance, storage and transportation.
WEEE symbol. Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
EN
UK Conformity Assessed.
Degree of protection against water ingress.
Protective earth.
IPX4

TTB903TCH by TITAN
Getting started...
09
Technical and legal
information
Keep all safety instructions and information for future reference! The term
"power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the device may result in
personal injury.
EN

10
TTB903TCH by TITAN Technical and legal
information
Getting started...
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair
and clothing away from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
extraction can reduce dustrelated hazards.
h) Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless action
can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or remove the battery
pack, if detachable, from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories with care. Check for misalignment
or binding of moving parts, breakage of parts and any other condition
that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories, tool bits etc. in accordance with these
instructions. Take into account the working conditions and the work to
be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
EN

HEALTH ADVICE
Warning! When drilling, sanding, sawing or grinding, dust particles will be
produced. In some instances, depending on the materials you are working
with, this dust can be particularly harmful to you (e.g. lead from old gloss paint).
You are advised to consider the risks associated with the materials you are working
with and to reduce the risk of exposure. You should:
- Work in a well-ventilated area.
- Work with approved safety equipment, such as those dust masks that are
specially designed to filter microscopic particles.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR TOOLS
> Do not use diamond discs which are damaged or deformed.
> Replace table insert when worn.
> Use only diamond discs recommended by the manufacturer.
> Take care that the selection of the diamond discs is suitable for the material
to be cut.
> Wear suitable personal protective equipment when necessary, this could
include hearing protection to reduce the risk of induced hearing loss, respiratory
protection to reduce the risk of inhalation of harmful dust, wear gloves when
handling diamond discs and rough material.
> Never use blades on this machine.
> Use only diamond discs for which the maximum possible speed is not less
than the maximum spindle speed of the tool and the material to be cut.
> Faults in the machine, including guards or diamond discs, should be reported
as soon as they are discovered. Never use the machine without the guard in
position.
> Maximum size of working piece should be 1m².
> This tile cutter should be used with limitations on ambient conditions (between
15°C and 30°C).
> The machine must be supplied through a residual current device (RCD).
Wear goggles
Wear ear defenders
Wear a breathing mask
Technical and legal
information
Getting started...
11
TTB903TCH by TITAN
EN

Fig. 1
> Insert the four base feet (10) into the openings (18) on the underside of the product.
12
Getting started...
TTB903TCH by TITAN Before you start
Getting started...
Unpack
> Unpack all parts and lay them on a flat, stable surface.
> Remove all packing materials and shipping devices if applicable.
> Make sure the delivery contents are complete and free of any damage. If you
find that parts are missing or show damage do not use the product but contact
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
You will need
(items not supplied)
> Phillips screwdriver
(items supplied)
> Straight disc spanner (1 pc)
> Angle disc spanner (1 pc)

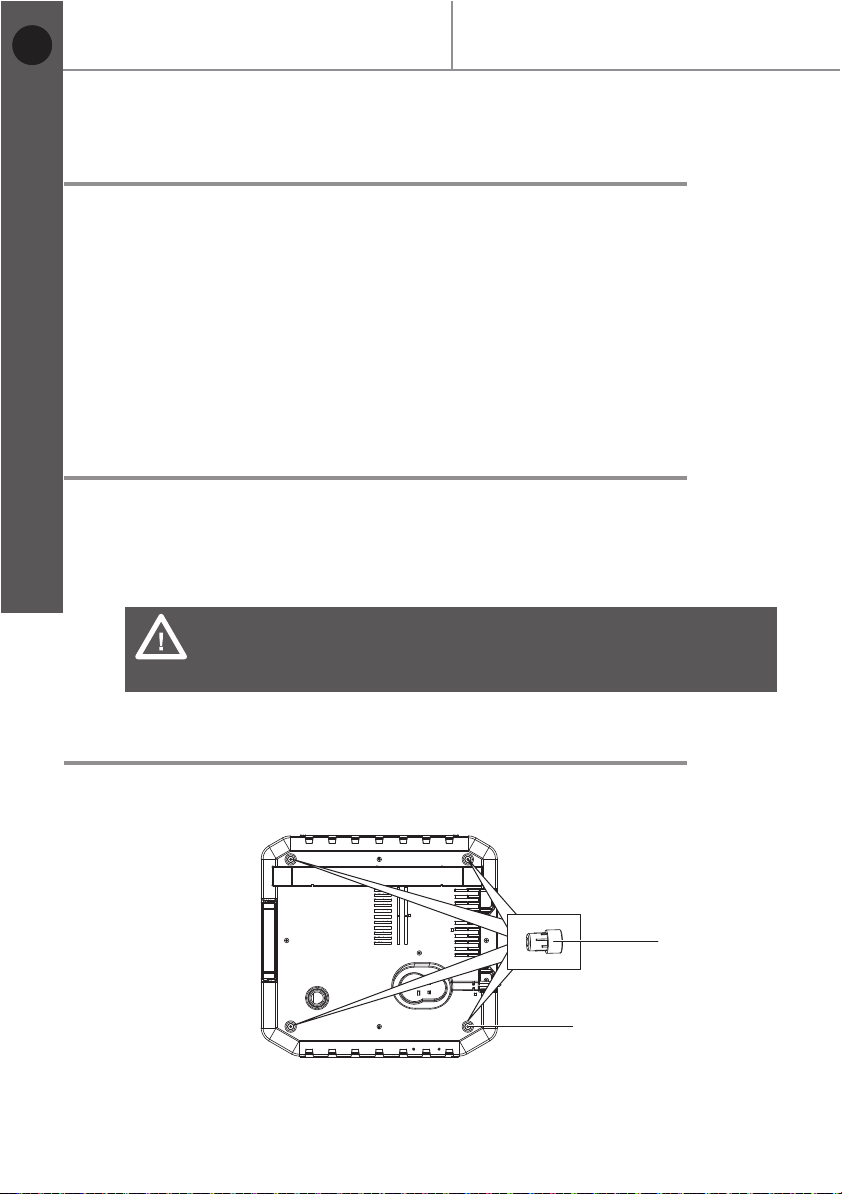

Fitting the base foot
WARNING: Risk of injury!
Always pull out the mains plug (disconnect the product from its
power supply) before commencing work on the product.
18
10
EN

Fig. 2
Fig. 3

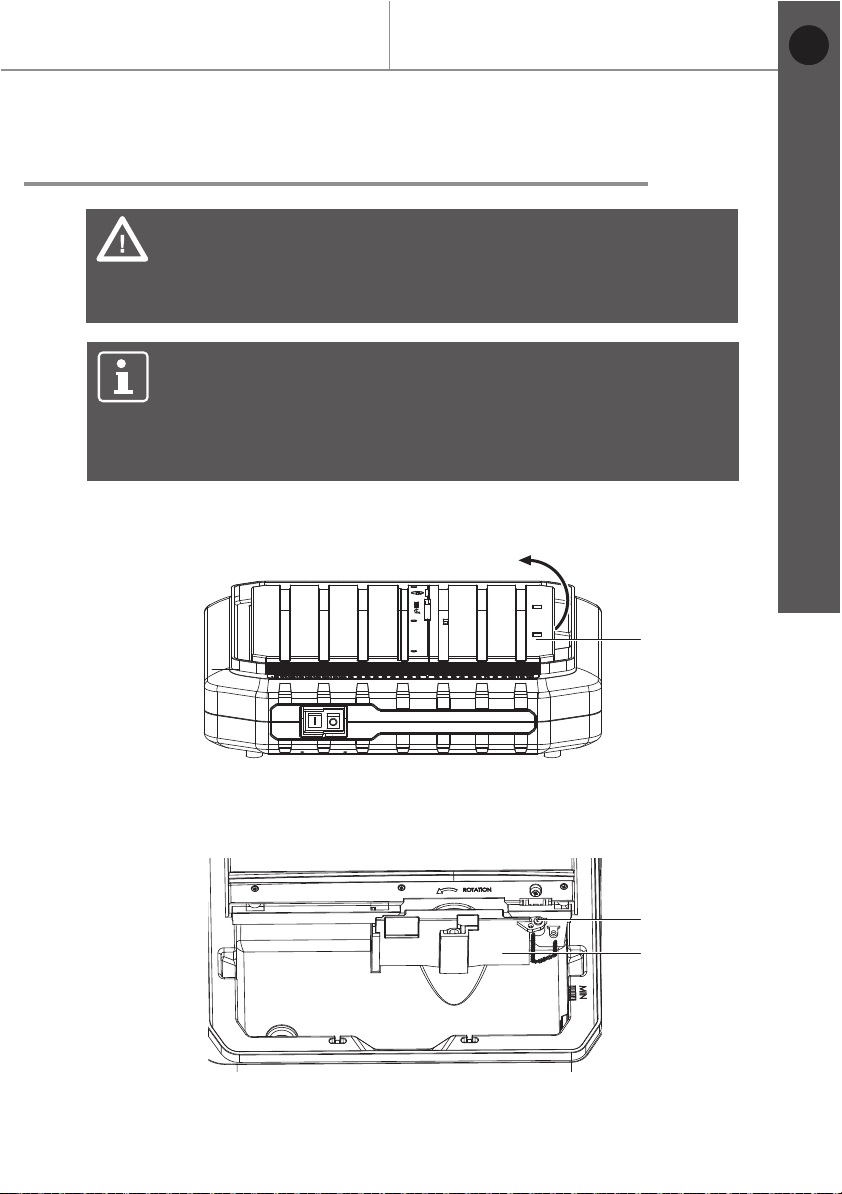

Before you start
> Unplug the tile cutter from the mains supply.
> Raise the 45° Vertical fence (1) approx. 45° and remove.
> Loosen screw (19) and pull off lower protective guard (6).
TTB903TCH by TITAN
Getting started...
13
Fitting the cutting disc
1
19
6
WARNING: Product damage!
Be sure to observe the rotational direction of the cutting disc when
fitting! Be sure to observe the free-wheeling of the cutting disc when
fitting!
NOTE: When fitting make sure that the cutting disc is placed correctly
on the inner flange. The inner flange can be moved freely on the
motor shaft and has a section for holding the internal hole of the
cutting disc. The hole of the outer flange is not round and is used
for the interlocking connection with the motor shaft.
EN

Fig. 4 Fig. 5
Fig. 7Fig. 6
> Place cutting disc (15) on inner flange (25).
> Attach the outer flange (24).
> Screw arbor nut (21) onto motor shaft (22) clockwise.
> Attach the angle disc spanner (20) to the arbor nut (21).
> Lock motor shaft (22) to prevent turning using straight disc spanner (23).
> Tighten arbor nut (21) clockwise using angle disc spanner (20).
> Re-attach the lower protective guard (6) and tighten screw (19).
> Replace the 45° vertical fence (1).
> Attach the anlge disc spanner (20) (supplied) to the arbor nut (21).
> Lock motor shaft (22) to prevent turning using straigth disc spanner (23) (supplied).
> Turn the arbor nut (21) anti-clockwise.
> Remove the arbor nut (21) and outer flange (24).
14
TTB903TCH by TITAN Before you start
Getting started...
20
22
20
20
24
21
24
15
15
25
22
22
24
21
23
23
22
EN

Fig. 8
Fig. 9

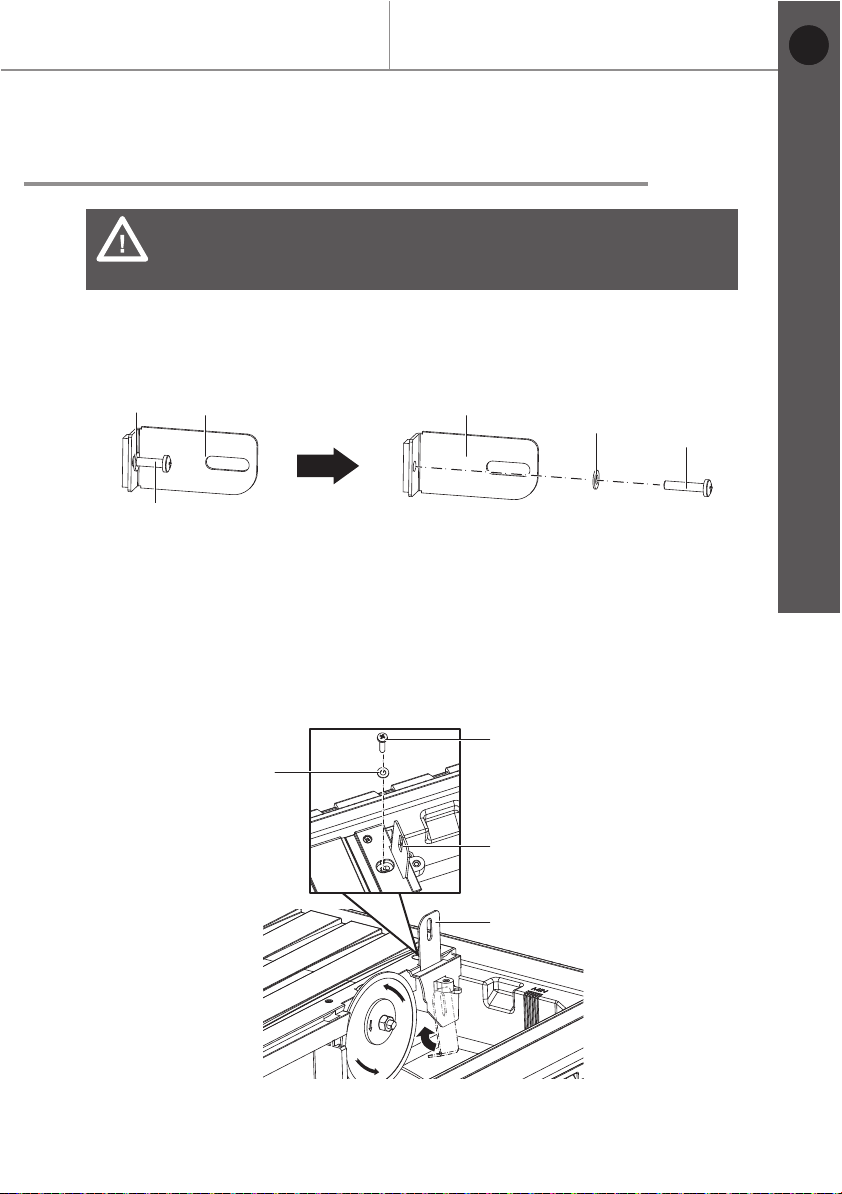

Assemble/adjust metal bracket
> Unplug the tile cutter from the mains supply.
> Raise the 45° Vertical fence (1) approx. 45° and remove. (Refet to Fig. 2)
> Loosen screw (19) and pull off lower protective guard (6). (Refet to Fig. 3)
> Remove the screw (26) and washer (27) from the metal bracket (16).
> Push the metal bracket (16) through gap in the housing from below. Ensuring
the L section is facing forwards.
> Attach the metal bracket (16) to the screw (26) and washer (27).
> Gently tighten the screw (26) with a Phillips screwdriver (not supplied).
> Align metal bracket (16) with the cutting disc (15).
> Tighten the screw (26) with a Phillips screwdriver (not supplied).
> Replace the 45° vertical fence (1).
WARNING: Product damage!
The metal bracket must always be aligned parallel to the cutting
disc.
Before you start
TTB903TCH by TITAN
Getting started...
15
26
16
16
27
26
26
27
27 1616
EN

Fig. 10
16
TTB903TCH by TITAN Before you start
Getting started...

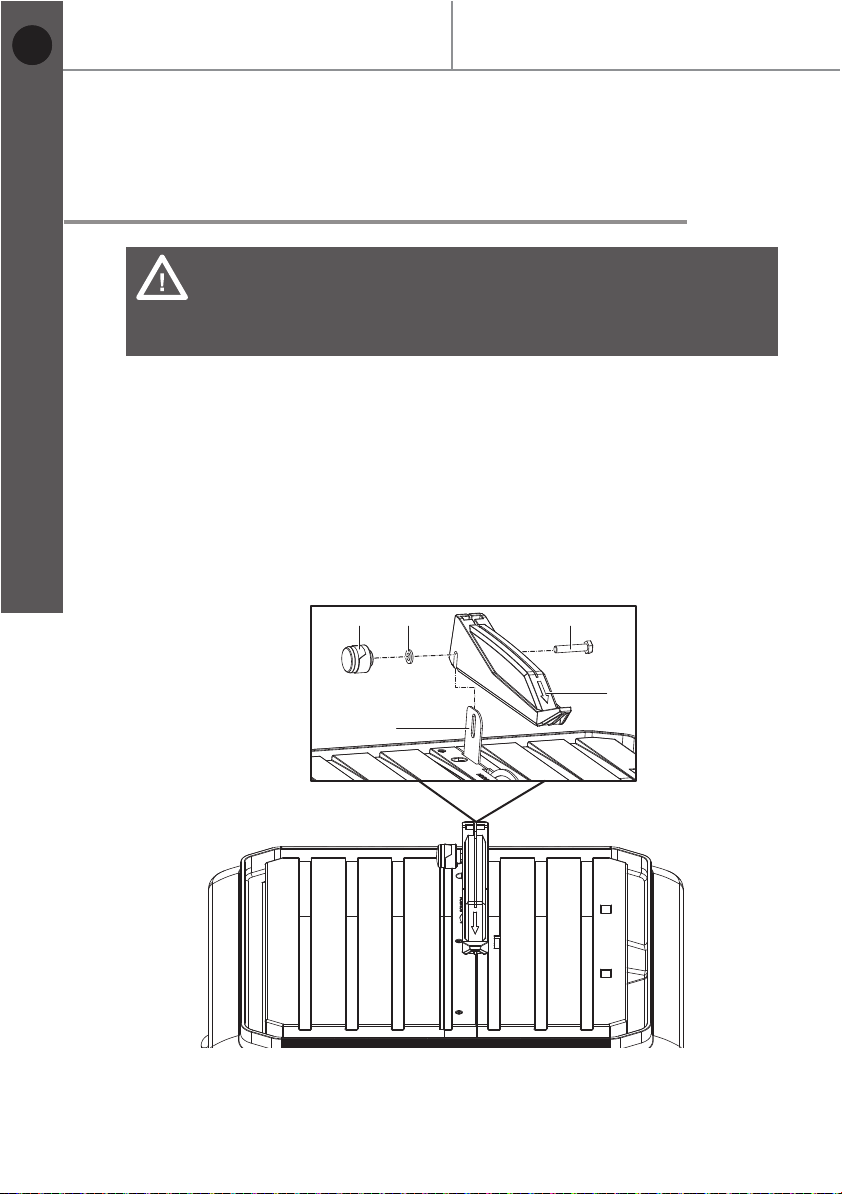

Mounting the upper protective guard
to the metal bracket
WARNING: Product damage!
Do not over-tighten socket head bolt (28) and locking knob (17).
The upper protective guard (3) must be free to rise and fall as the
workpiece is pushed towards the cutting disc.
> Unplug the tile cutter from the mains supply.
> Push the upper protective guard (3) onto the metal bracket (16).
> Push socket head bolt (28) through upper protective guard (3) and metal
bracket (16).
> Push the flat washer (29) onto socket head bolt (28).
> Screw and tighten locking knob (17) onto socket head bolt (28).
> Cover the cutting disc with the upper protective guard (3).
> Ensure that upper protective guard (3) can move freely and that it cannot touch
the cutting disc.
3
16
282917
EN

Fig. 11 Fig. 12
Before you start
TTB903TCH by TITAN
Getting started...
17

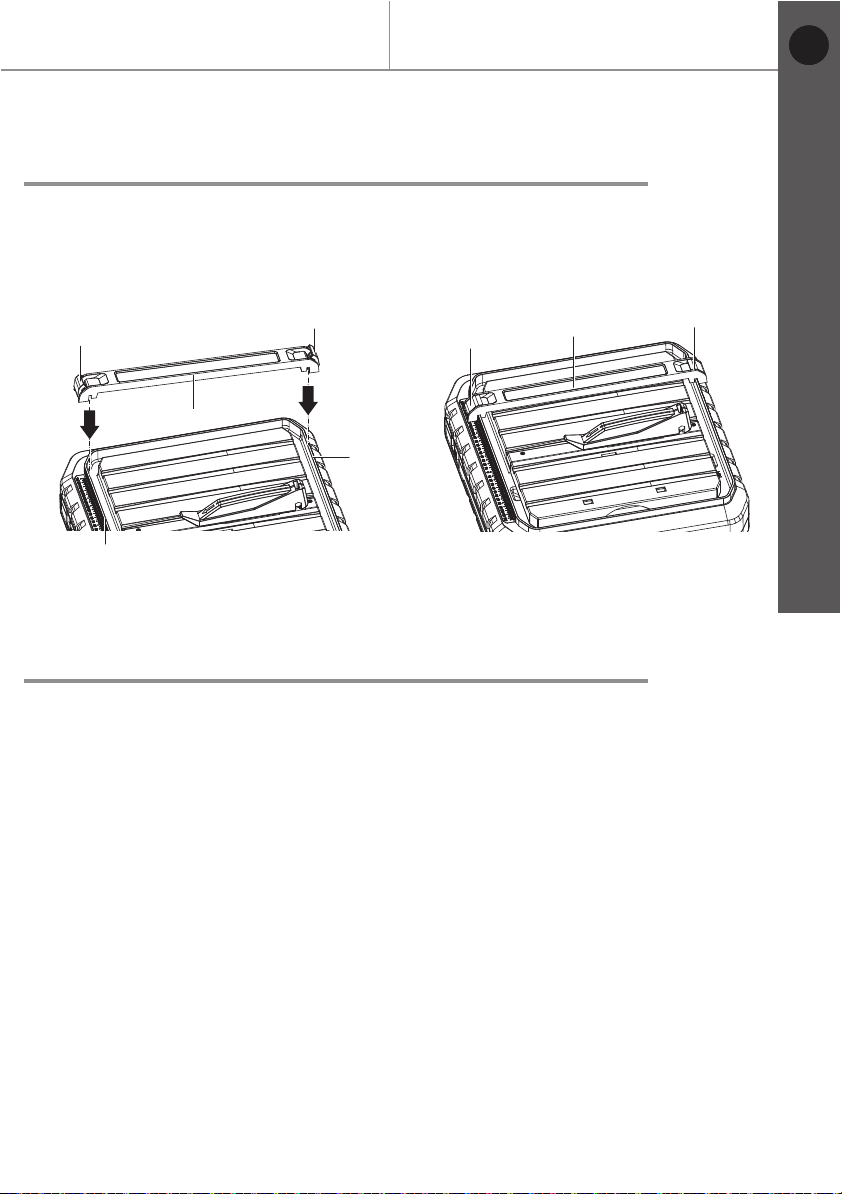

Mounting the parallel cutting guide
> Unplug the tile cutter from the mains supply.
> Open the locking knobs (8) for parallel cutting guide.
> Position the parallel cutting guide (12) on the rail (30).
> Push down the locking knobs (8).
Adjusting the parallel cutting guide
> Open the locking knobs (8) for parallel cutting guide.
> Push the parallel cutting guide (12) to the desired distance.
> Push down the locking knobs (8).
30
8
8
8
8
12
12
30
EN

Fig. 13 Fig. 14
18
TTB903TCH by TITAN Before you start
Getting started...
Mounting/setting the mitre cutting
guide
NOTE: The mitre cutting guide can be set to a desired angle (0°~
45°). The mitre cutting guide can only be used when the parallel
cutting guide is mounted.
> Place mitre cutting guide (13) on parallel cutting guide (12).
> Loosen locking knob (14).
> Set mitre cutting guide (13) at desired angle.
> Tighten locking knob (14).
NOTE: The 45° vertical fence can be set to a desired angle
(0°, 45°).
Setting product for bevel cuts
> Raise the 45° vertical fence (1) approx. 45°.
> Fold out the holder (31) and position in the locator (32).
> Ensure that the 45° vertical fence (1) is correctly secured before working.
13
12
12
13
14
EN

Fig. 15
NOTE: Product damage!
Fill the product with water only until water can drain from the
opening in the plug.
During use the water level must never drop below the MIN
marking (33).
NOTE: Product damage!
Fill the product only with clear water. Never use chemicals
or cleaning agents. This can cause irreparable damage to the
product.
Drain cooling water out of the product on completion of the work
(Refer to “Replacing the cooling water” section).
19
Before you start
TTB903TCH by TITAN
Getting started...

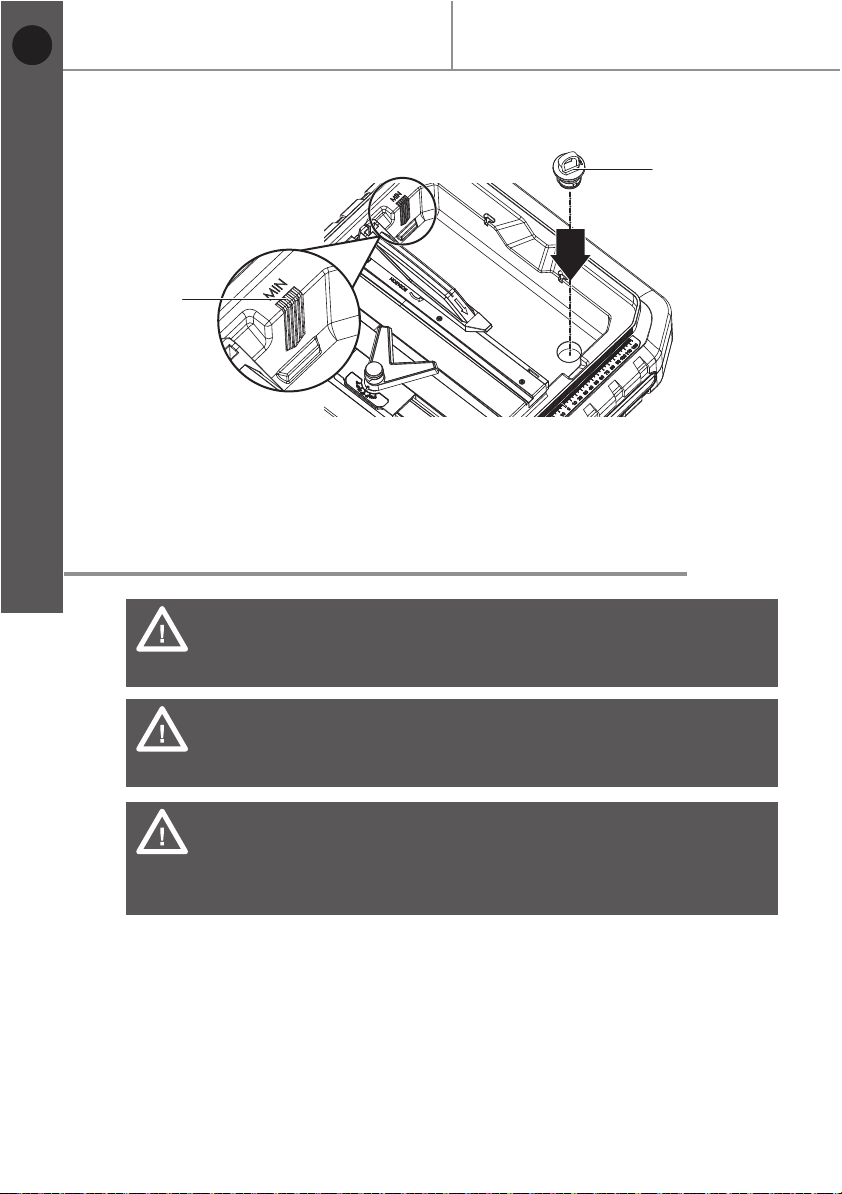

Filling the product with water
> Unplug the tile cutter from the mains supply.
> Raise the 45° vertical fence approx. 45° and remove.
> Insert the water reservoir plug (9) into the drain opening.
> Fill the tank with water only until water can drain from the opening in the plug.
> When you have finished cutting, remove the water reservoir plug (9) inside
the tank to drain the water.
1
31
32
EN

Fig. 16
Warning: Risk of injury!
The product must be mounted in a stable position, i.e. on
a workbench, a universal subframe or similar.
Warning: Risk of injury!
As soon as a malfunction occurs, push the red 0-Button on the
On/Off Switch and pull out the mains plug.
Warning: Risk of injury!
The defect may be put into operation only if no defects or errors
are found. Ensure that any defective parts are replaced before
the product is used again.
TTB903TCH by TITAN Before you start
Getting started...
20
Check before starting!
Check the safe condition of the product before plugging the power cable:
> Check whether there are any visible defects or faults.
> Check whether all parts of the product are firmly attached.
> Check that the safety devices are in faultless condition.
> Check that the cutting disc can run freely.
> Check there is sufficient cooling water in the product.
9
33
EN
