Titan ED655 User manual

0711 • © Titan Tool Inc. All Rights Reserved. Form No. 0528937B
NOTE: This manual contains important
warnings and instructions. Please
read and retain for reference.
Owner’s Manual
Do not use this equipment before
reading this manual!
Model Number:
ED655 0508090
ED655
Airless Diaphragm Pump

2 © Titan Tool Inc. All rights reserved.
Important Safety Information · Read all safety information before
operating the equipment. SAVE THESE INSTRUCTIONS.
This symbol indicates a hazardous situation,
which, if not not avoided could result in death or
serious injury.
 a) Toreducetherisksofreorexplosion,electrical
shock and the injury to persons, read and understand
all instructions included in this manual. Be familiar
with the controls and proper usage of the equipment.
Grounding Instructions
This product must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with an appropriate
grounding plug. The plug must be plugged into an outlet that
is properly installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper installation of the grounding
plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary,
do not connect the green grounding wire to either at blade
terminal. The wire with insulation having a green outer surface
with or without yellow stripes is the grounding wire and must be
connected to the grounding pin.
Check with a qualied electrician or serviceman if the grounding
instructions are not completely understood, or if you are in doubt
as to whether the product is properly grounded. Do not modify
the plug provided. If the plug will not t the outlet, have the
proper outlet installed by a qualied electrician.
This product is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated below. Make
sure that the product is connected to an outlet having the same
conguration as the plug. No adapter should be used with this
product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
 b) WARNING-Toreducetheriskofreor
explosion:
1. Do not spray ammable or combustible
materials near an open ame, pilot lights or sources of
ignition such as hot objects, cigarettes, motors, electrical
equipment and electrical appliances. Avoid creating
sparks from connecting and disconnecting power cords.
2. For units intended for use with only water-based materials
— Do not spray or clean with ammable liquids. For use
with water-based liquids only.
3. For units intended for use with only water-based or mineral
spirit-type materials with a minimum ash point of 21ºC
(69.8ºF) — Do not spray or clean with liquids having a
ash point of less than 21ºC (69.8ºF). Flash point is the
temperature at which a uid can produce enough vapor to
ignite.
4. Paint or solvent owing through the equipment is able to
result in static electricity. Static electricity creates a risk of
re or explosion in the presence of paint or solvent fumes.
All parts of the spray system, including the pump, hose
assembly, spray gun and objects in and around the spray
area shall be properly grounded to protect against static
discharge and sparks. Use only conductive or grounded
high-pressure airless paint sprayer hoses specied by the
manufacturer.
5. Verify that all containers and collection systems are
grounded to prevent static discharge.
6. Connect to a grounded outlet and use grounded extension
cords (electric models only). Do not use a 3 to 2 adapter.
7. Do not use a paint or solvent containing halogenated
hydrocarbons. Such as chlorine, bleach mildewcide,
methylene chloride and trichloroethane. They are not
compatible with aluminum. Contact the coating supplier
about compatibility of material with aluminum.
8. Keep spray area well ventilated. Keep a good supply of
fresh air moving through the area to keep the air within the
spray area free from accumulation of ammable vapors.
Keep pump assembly in well ventilated area. Do not spray
pump assembly.
9. Do not smoke in the spray area.
10. Do not operate light switches, engines, or similar spark
producing products in the spray area.
11. Keep area clean and free of paint or solvent containers,
rags, and other ammable materials.
12. Know the contents of the paint and solvents being
sprayed. Read all Material Safety Data Sheets (MSDS)
and container labels provided with the paints and solvents.
Follow the paint and solvent manufacture’s safety
instructions.
13. Place pump at least 25 feet (7.62 meters) from the
spray object in a well ventilated area (add more hose if
necessary). Flammable vapors are often heavier than
air. Floor area must be extremely well ventilated. The
pump contains arcing parts that emit sparks and can ignite
vapors.
14. Plastic can cause static sparks. Never hang plastic to
enclose spray area. Do not use plastic drop cloths when
spraying ammable material.
15. Fire extinguisher equipment shall be present and working.
c) WARNING - To reduce the risk of skin
injection:
1. Do not aim the gun at, or spray any person or
animal.
2. Keep hands and other body parts away from the
discharge. For example, do not try to stop leaks with any
part of the body.
3. Always use the nozzle tip guard. Do not spray without the
nozzle tip guard in place.
4. Only use a nozzle tip specied by the manufacturer.
5. Use caution when cleaning and changing nozzle tips.
In the case where the nozzle tip clogs while spraying,
ALWAYS lock gun trigger, shut pump off, and release
all pressure before servicing, cleaning tip or guard, or
changing tip. Pressure will not be released by turning off
the motor. The PRIME/SPRAY valve or pressure bleed
valve must be turned to their appropriate positions to
relieve system pressure. Refer to PRESSURE RELIEF
PROCEDURE described in the pump manual.
6. Do not leave the unit energized or under pressure while
unattended. When the unit is not in use, turn off the
unit and relieve the pressure in accordance with the
manufacturer’s instructions.
7. High-pressure spray is able to inject toxins into the body
and cause serious bodily injury. In the event that injection
occurs, seek medical attention immediately.

© Titan Tool Inc. All rights reserved. 3
Important Safety Information · Read all safety information before
operating the equipment. SAVE THESE INSTRUCTIONS.
8. Check hoses and parts for signs of damage, a leak can
inject material into the skin. Inspect hose before each use.
Replace any damaged hoses or parts.
9. This system is capable of producing 2750 PSI / 190
Bar. Only use replacement parts or accessories that
are specied by the manufacturer and that are rated a
minimum of 2750 PSI. This includes spray tips, nozzle
guards, guns, extensions, ttings, and hose.
10. Always engage the trigger lock when not spraying. Verify
the trigger lock is functioning properly.
11. Verify that all connections are secure before operating the
unit.
12. Know how to stop the unit and bleed pressure quickly. Be
thoroughly familiar with the controls. Pressure will not be
released by turning off the motor. The PRIME/SPRAY
valve or pressure bleed valve must be turned to their
appropriate positions to relieve system pressure. Refer
to PRESSURE RELIEF PROCEDURE described in the
pump manual.
13. Always remove the spray tip before ushing or cleaning
the system.
NOTE TO PHYSICIAN:
Injection into the skin is a traumatic injury. It is important
to treat the injury as soon as possible. DO NOT delay
treatmenttoresearchtoxicity.Toxicityisaconcernwith
some coatings injected directly into the blood stream.
Consultation with a plastic surgeon or reconstructive
hand surgeon may be advisable.
d) WARNING - To reduce the risk of injury:
1. Always wear appropriate gloves, eye protection, clothing
and a respirator or mask when painting. Hazardous
vapors – Paints, solvents, insecticides, and other materials
can be harmful if inhaled or come in contact with body.
Vapors can cause severe nausea, fainting or poisoning.
2. Do not operate or spray near children. Keep children
away from equipment at all times.
3. Do not overreach or stand on an unstable support. Keep
effective footing and balance at all times.
4. Stay alert and watch what you are doing.
5. Do not operate the unit when fatigued or under the
inuence of drugs or alcohol.
6. Do not kink or over-bend the hose. Airless hose can
develop leaks from wear, kinking and abuse. A leak can
inject material into the skin.
7. Do not expose the hose to temperatures or pressures in
excess of those specied by manufacturer.
8. Do not use the hose as a strength member to pull or lift the
equipment.
9. Use lowest possible pressure to ush equipment.
10. Follow all appropriate local, state and national codes
governing ventilation, re prevention and operation.
11. The United States Government Safety Standards have
been adopted under the Occupational Safety and Health
Act (OSHA). These standards, particularly part 1910 of
the General Standards and part 1926 of the Construction
Standards should be consulted.
12. Before each use, check all hoses for cuts, leaks, abrasion
or bulging of cover. Check for damage or movement
of couplings. Immediately replace hose if any of those
conditions exist. Never repair a paint hose. Replace with
a conductive high-pressure hose.
13. Do not spray outdoors on windy days.
14. Always unplug cord from outlet before working on
equipment (electric models only).
Important Electrical Information
IMPORTANT: Useonlya3-wireextensioncordthathas
a 3-blade grounding plug and a 3-slot receptacle that will
accepttheplugontheproduct.Makesureyourextension
cordisingoodcondition.Whenusinganextensioncord,
be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating.
A 14 or 12 gauge cord is recommended (see chart). If an
extensioncordistobeusedoutdoors,itmustbemarked
withthesuffixW-Aafterthecordtypedesignation.For
example,adesignationofSJTW-Awouldindicatethatthe
cord would be appropriate for outdoor use.
Cord gauge Maximum cord length
12 150 feet
14 100 feet
IMPORTANT: This unit is provided with a thermally
protected automatic reset. If an overload occurs the
thermally protected automatic reset disconnects the motor
from the power supply.
• The motor will restart without warning when the protector
automatically resets.
• Always disconnect the motor from the power supply before
working on the equipment.
• When the thermally protected automatic reset disconnects
the motor from the power supply, relieve pressure by
turning the priming valve to PRIME.
• Turn the ON/OFF switch to OFF.
NOTE: The cause of the overload should be corrected
before restarting. See Troubleshooting.
Specications
Weight ...................................... 27 lbs
Capacity.................................... Up to .35 gallon (1.25 liters) per
minute
Power source............................ Electric motor, totally enclosed,
fan cooled
Power requirement ................... 15 amp minimum circuit on 115
VAC, 60 Hz current.
Generator ................................. 15 amp A/C.
Spraying pressure .................... Up to 2750 PSI
Capabilities............................... Sprays a variety of oil-based and
latex paints, primers, and stains

4 © Titan Tool Inc. All rights reserved.
Table of Contents
Safety Precautions ................................................................... 2
Grounding Instructions ........................................................ 3
General Description ................................................................. 4
Specications ...................................................................... 4
Preparing to Paint..................................................................... 4
Attaching the Tip to the Gun................................................ 4
Checking the Outlet Valve (optional)................................... 4
Attaching the Paint Hose..................................................... 5
Pressure Relief Procedure....................................................... 5
Priming ...................................................................................... 5
Preparing to Prime .............................................................. 5
Mounting the Paint Hopper.................................................. 6
Attaching the Return Tube .................................................. 6
Priming the Pump................................................................ 6
Spraying .................................................................................... 7
Spraying Technique ............................................................ 7
Practice ............................................................................... 7
Cleanup ..................................................................................... 8
Overnight Storage ............................................................... 8
Long-Term Storage ............................................................. 8
Maintenance............................................................................ 10
Removing and Cleaning the Inlet Valves .......................... 10
Removing and Cleaning the Outlet Valve ......................... 10
Cleaning the Hopper Screen............................................. 10
Troubleshooting ..................................................................... 11
Parts Listings.......................................................................... 16
Main Assembly.................................................................. 16
Diaphragm Pump .............................................................. 17
Pump Head Assembly....................................................... 18
Hopper Assembly.............................................................. 18
Limited Warranty .................................................................... 20
General Description
This high performance airless sprayer is a precision power tool
used for spraying many types of materials. Read and follow this
instruction manual carefully for proper operating instructions,
maintenance and safety information.
Pressure Control
Knob
PRIME/SPRAY
Knob
Paint Hopper Return Tube
Outlet Valve
Power Cord
Preparing to Paint
Attaching the Tip to the Gun
1. Lock the trigger by rotating the trigger lock forward until it
stops.

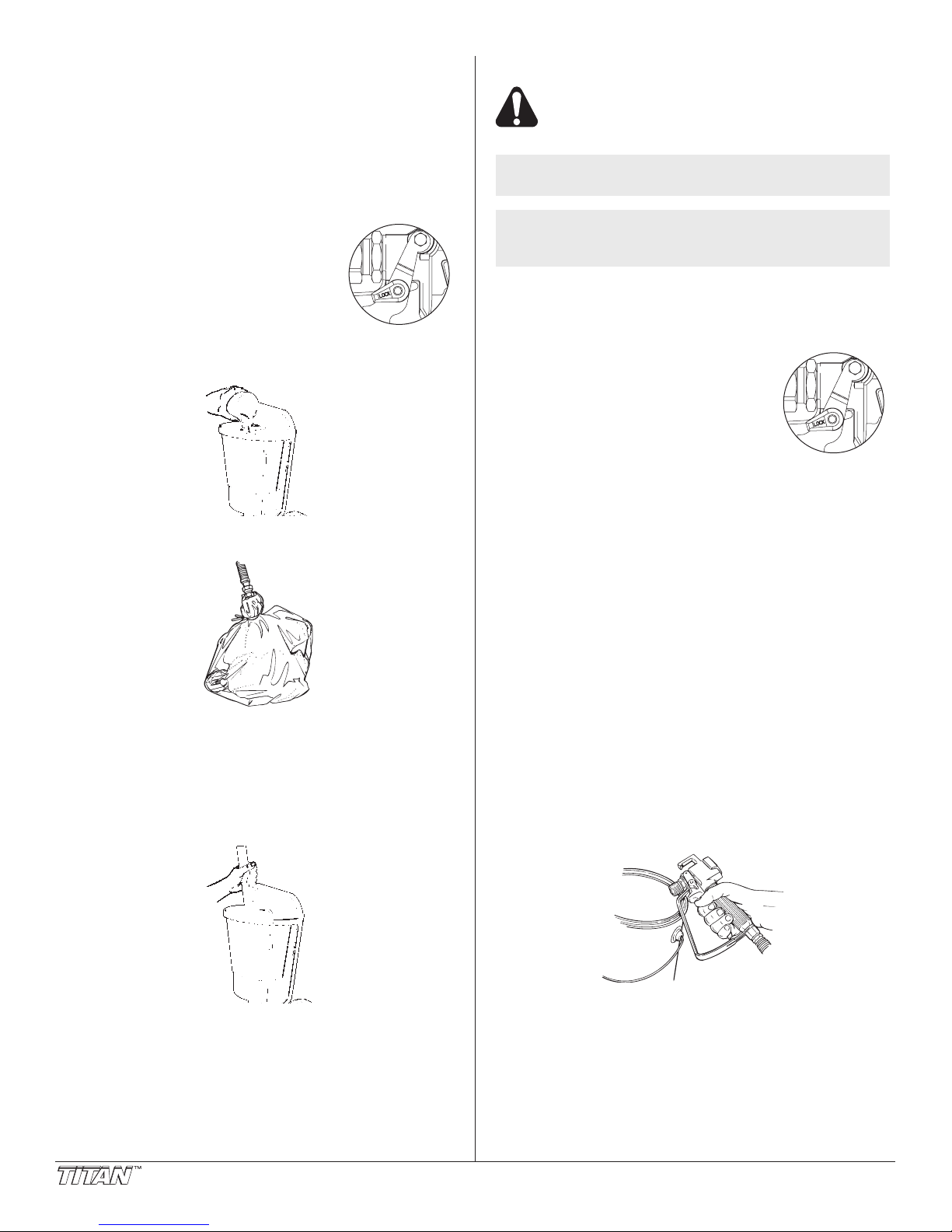

Trigger locked
(gun will not spray)
Trigger unlocked
(gun will spray)
POSSIBLEINJECTIONHAZARD.Donotspray
without the tip guard in place. Never trigger the gun
unless the tip is in either the spray or the unclog
position. Always engage the gun trigger lock before
removing, replacing or cleaning tip.
2. Thread the tip guard onto the gun. Tighten the nut rst by
hand, then tighten more rmly with a wrench.
NOTE: When attaching the tip guard to the gun, align
thetipguardasshowninthegurebelow,then
tighten with a wrench.
Begin
tightening
the tip guard
at this angle
to achieve
the desired
spray angle
when tight.
Checking the Outlet Valve (optional)
1. Firmly press the optional pusher valve button on the side
of the pump housing to make sure the outlet ball valve
moves freely.
Pusher Valve Button
(optional)

© Titan Tool Inc. All rights reserved. 5
Attaching the Paint Hose
1. Attach the high pressure hose to the paint sprayer. Use a
wrench to tighten the paint hose securely.
2. Attach the spray gun to the other end of the high pressure
hose. Tighten the hose securely to the gun using two
wrenches.
3. Plug the sprayer into a properly grounded outlet or heavy
duty grounded extension cord. Do not use more than
100 feet of cord. If you must spray a long distance from a
power source, use more paint hose, not more extension
cords. Use a minimum size of 16 gauge extension cord
for up to 50 feet in length, or 12 to 14 gauge for extension
cords between 50 and 100 feet in length.
Pressure Relief Procedure
Follow this procedure after the unit is assembled and before any
operation which involves the spray gun such as cleaning and
maintenance or changing tips or accessories.
1. Turn the pressure control knob counterclockwise to its
lowest setting.
Pressure Control Knob
PRIME/SPRAY Knob
2. Turn the PRIME/SPRAY knob to PRIME.
3. Trigger the gun to remove any pressure which may still be
in the hose.
Trigger locked
(gun will not spray)
4. Lock the trigger by rotating the trigger
lock forward until it stops.
INJECTIONHAZARD. Do not
spray without the tip guard in
place. NEVER trigger the gun
unless the tip is completely
turned to either the spray or the
unclog position. ALWAYS
engage the gun trigger lock
before removing, replacing or
cleaning tip.
Priming
Preparing to Prime
1. Fill the inlet valve with water or with a light household oil.
2. Make sure the PRIME/SPRAY knob is set to PRIME and
that the pressure control knob is turned counterclockwise
to the lowest pressure setting.
3. Turn the motor switch to ON.
4. Increase the pressure by turning the pressure control knob
clockwise 1/2 turn.
5. Force the inlet valve to open and close by pushing on it
with a screwdriver or the eraser end of a pencil. It should
move up and down about 1/16 of an inch. Continue until
water or oil is sucked into the sprayer. This will wet the
moving parts and break loose any old paint residue.
6. Put the palm of your hand over the inlet. Turn the
pressure control knob clockwise to its maximum setting.
You should feel suction coming from the inlet valve. If
you do not, see the section on cleaning and servicing the
outlet valve.
7. Turn the pressure control knob counterclockwise to the
minimum pressure setting.
8. Turn the motor switch to OFF.

6 © Titan Tool Inc. All rights reserved.
Mounting the Paint Hopper
1. Align the bottom of the paint hopper with the threaded inlet
valve on the paint pump block.
2. Turn the paint hopper clockwise to thread it onto the inlet
valve. Continue to turn the paint hopper until it is secure
on the inlet valve.
NOTE: Make sure the threads are straight and the
hopper turns freely on the inlet valve. Do not
cross-thread.
3. Place the lter screen into the bottom of the paint hopper
and snap it in position.
Attaching the Return Tube
1. Make sure that the motor switch is turned to OFF.
2. Screw the return tube tting found in the literature set into
the return tube port on the side of the pump.
NOTE: Do not over-tighten. Hand-tighten only. Some
threads will be visible even when fully tightened.
3. Place the straight end of the return tube into the return
tube tting.
Return Tube Fitting
Return Tube
4. Thread the nut on the return tube onto the return tube
tting and tighten until the return tube is secure.
5. Place the hook end of the return tube into the hole in the
paint hopper cover.
Return Tube
Paint Hopper Cover
Priming the Pump
1. Turn the pressure control knob counterclockwise to its
lowest pressure setting.
Pressure Control Knob
PRIME/SPRAY Knob
2. Remove the paint hopper cover and ll the paint hopper
with material.
3. Turn the PRIME/SPRAY knob to PRIME.
4. Turn the motor switch to ON.
5. Turn the pressure control knob clockwise to between half
and full pressure. Let the unit prime 1 to 2 minutes after
material begins to ow through the return tube.
IMPORTANT: Always reduce the pressure to zero before
changingthepositionofthePRIME/SPRAYknob.Failureto
do so may cause damage to the paint pump diaphragm.
IMPORTANT: If the pressure control knob is reduced to
zero and the PRIME/SPRAY knob is still on SPRAY while
the sprayer is operating, there will be high pressure in the
hose and spray gun until the PRIME/SPRAY knob is turned
to PRIME or until the spray gun is triggered to relieve the
pressure.

© Titan Tool Inc. All rights reserved. 7
Spraying
Spraying Technique
The key to a good paint job is an even coating over the entire
surface. This is done by using even strokes. Keep your arm
moving at a constant speed and keep the spray gun at a constant
distance from the surface. The best spraying distance is 10 to 12
inches between the spray tip and the surface.
Keep stroke smooth and at an even speed.
Even coat throughout
Approximately
10 to 12 inches
Keep the spray gun at right angles to the surface. This means
moving your entire arm back and forth rather than just exing
your wrist.
Heavy Coat
Do not flex wrist while spraying.
Light Coat Light Coat
Keep the spray gun perpendicular to the surface, otherwise one
end of the pattern will be thicker than the other.
Approximately
10 to 12 inches
Right way
Wrong way
The spray gun should be triggered by turning it on and off with
each stroke. This will save paint and avoid paint buildup at
the end of the stroke. Do not trigger the gun during the middle
of a stroke. This will result in an uneven spray and splotchy
coverage.
Proper way to trigger the spray gun
Aproximately
10 to 12 inches
Keep stroke
even
Start stroke End strokePull trigger Release triggerKeep steady
Overlap each stroke by about 50%. This will ensure an even
coating.
When you stop painting, lock the gun trigger lock, turn the
pressure control knob counterclockwise to its lowest setting and
set the PRIME/SPRAY knob to PRIME. Turn the motor switch to
OFF and unplug the sprayer.
If you expect to be gone more than 1 hour, follow the short term
clean up procedure described in the CLEANUP section of this
manual.
Practice
1. Be sure that the paint hose is free of kinks and clear of
objects with sharp cutting edges.
2. Turn the pressure control knob counterclockwise to its to
its lowest setting.
Pressure Control Knob
PRIME/SPRAY Knob
3. Turn the PRIME/SPRAY knob to SPRAY.
4. Turn the pressure control knob clockwise to its highest
setting. The paint
Good spray pattern
Paint tailing pattern
5. Unlock the gun trigger
lock by turning the
switch so that it is
parallel to the handle.
6. Trigger the spray gun
to bleed air out of the
hose.
7. When paint reaches
the spray tip, spray a
test area to check the
spray pattern.
8. Use the lowest
pressure setting necessary to get a good spray pattern. If
the pressure is set too high, the spray pattern will be too
light. If the pressure is set too low, tailing will appear or
the paint will spatter out in gobs rather than in a ne spray.

8 © Titan Tool Inc. All rights reserved.
Cleanup
Overnight Storage
Shutdown
1. Turn the pressure control knob counterclockwise to the
minimum setting.
2. Turn the PRIME/SPRAY knob to PRIME to release system
pressure.
3. Trigger the gun to remove any pressure that may still be in
the hose.
Trigger locked
(gun will not spray)
4. Lock the trigger by rotating the trigger
lock forward until it stops.
5. Turn the motor switch to OFF and
unplug the sprayer.
6. For latex materials only, pour 1/2 cup
water slowly on the top of the paint
to prevent the paint from drying. For
other materials, seal the paint hopper
with the hopper cover keeping the
return tube in the paint.
7. Wrap the spray gun assembly in a damp cloth and place it
in a plastic bag. Seal the bag shut.
8. Place the sprayer in a safe place out of the sun for short-
term storage.
Startup
1. Remove the gun from the plastic bag.
2. Stir the water into the paint for latex materials. Remove
the hopper cover from the paint hopper and stir the paint
for all other materials.
3. Check to be sure that the PRIME/SPRAY knob is set to
PRIME and that the pressure is completely reduced.
4. Plug sprayer in and turn the motor switch to ON.
5. After the sprayer is primed, turn the PRIME/SPRAY knob
to SPRAY and gradually turn the pressure control knob
clockwise to increase the pressure.
6. Test the sprayer on a practice piece and begin spraying.
Long-Term Storage
Do not allow paint to build up on the motor or the
motor will overheat. Do not allow flammable
solvents to come in contact with the motor or they
could ignite.
NOTE: You will need a bucket, cleaning solution, a
toothbrush, a wrench and cleaning rags.
NOTE: Ifsprayingwithlatexpaint,usewarmsoapy
water for cleaning. If using oil or alkyd-based
paints, use mineral spirits or paint thinner.
IMPORTANT: Do not use mineral spirits or paint thinner on
latexpaint,orthemixturewillturnintoajelly-likesubstance
which is difficult to remove.
Clearing the Paint Hopper
Trigger locked
(gun will not spray)
1. Lock the gun trigger by rotating the
trigger lock forward until it stops.
2. Turn the pressure control knob
counterclockwise to the minimum
setting.
3. Turn the PRIME/SPRAY knob to
PRIME.
4. Turn the motor switch to OFF.
5. Direct the return tube into the original
paint bucket.
6. Turn the motor switch to ON.
7. Turn the pressure control knob to 1/2 maximum pressure.
This will draw the remaining paint in the paint hopper
through the pump, up the return tube, and into the paint
bucket.
8. Turn the pressure control knob counterclockwise to the
minimum pressure setting.
9. Trigger the gun to relieve pressure and lock the gun.
10. Remove the spray tip and guard and place them into a
container of water or appropriate solvent for the type of
material with which you are painting.
11. Fill the paint hopper with water or an appropriate solvent
for the type of material with which you are painting.
12. Direct the return tube into a waste bucket.
13. Increase the pressure to 1/2 the maximum pressure. Let
the water or solvent circulate for 2-3 minutes to ush paint
out of the pump, the paint hopper, and the return tube.
Clearing the Paint Hose
1. To save paint left in the hose, release the gun trigger lock
and carefully trigger the gun with the spray tip removed
against the inside of the paint container.
2. Turn the pressure control knob counterclockwise to the
minimum pressure setting.
3. Turn the PRIME/SPRAY knob to SPRAY.
4. Turn the pressure control knob slowly until paint starts
to ow into the bucket. As soon as the water or solvent
starts to come into the bucket, release the trigger.
5. Change to clean water or solvent, point the gun to the side
of the waste bucket, and continue circulating for another
5 minutes to thoroughly clean the hose, pump and spray
gun.

© Titan Tool Inc. All rights reserved. 9
6. Turn the pressure control knob counterclockwise to its
lowest setting.
7. Turn the PRIME/SPRAY knob to PRIME.
8. Trigger the gun to remove any pressure which may still be
in the hose.
9. Lock the gun trigger by rotating the trigger lock forward
until it stops.
10. Turn the motor switch to OFF.
Clearing the Gun
1. Remove the spray gun from the paint hose using two
adjustable wrenches.
2. Remove the lter housing from the gun. Place the gun
and the lter assembly into a container of water or solvent
to soak.
3. Cover the paint container and set it aside.
4. Clean the spray tip and gun lter with a soft brush.
5. Reassemble the gun and lter. Assemble the spray tip in
the cleaning position with the arrow pointing to the back of
the gun.
6. Attach the paint hose to the gun and tighten using two
wrenches.
7. Turn the motor switch to ON.
8. Unlock gun trigger by turning the gun trigger lock so that it
is parallel to the gun handle.
9. Turn the PRIME/SPRAY knob to SPRAY and point the
gun to the side of the waste bucket.
10 Trigger the gun and gradually turn the pressure control
knob clockwise to 1/2 pressure. Continue to trigger the
gun for approximately 30 seconds.
11. Turn the pressure control knob counterclockwise to its
lowest setting.
12. Turn the PRIME/SPRAY knob to PRIME.
13. Trigger the gun to remove any pressure which may still be
in the hose.
14. Lock the gun trigger by rotating the trigger lock forward
until it stops.
15. Turn the motor switch to OFF.
FinalCleanup
1. Remove the tip assembly.
2. Turn the motor to ON.
3. Turn the PRIME/SPRAY knob to SPRAY.
4. Turn the pressure control knob clockwise to 1/2 power.
5. Trigger the gun into the cleaning bucket until the hopper is
empty.
6. Rell the hopper and continue ushing the system until the
solution coming out of the gun appears clean.
7. Lock the gun and turn the pressure control knob
counterclockwise to its lowest setting.
8. Turn the PRIME/SPRAY knob to PRIME.
9. Remove the hopper from the inlet valve.
10. Clean the threads of the inlet valve with a damp cloth.
11. Fill the inlet valve with a light household oil.
12. Turn the PRIME/SPRAY knob to SPRAY to distribute the
oil.
NOTE: Proper cleaning and oiling of the pump after use
are the most important steps you can take to
insure proper operation after storage.
13. Turn the pressure control knob counterclockwise to its
lowest setting.
14. Turn the PRIME/SPRAY knob to PRIME.
15. Trigger the gun to remove any pressure that may still be in
the hose.
16. Lock the gun trigger by rotating the trigger lock forward
until it stops..
17. Turn the motor switch to OFF.
18. Remove the hopper lter and clean in clean water or the
appropriate solvent. Use a soft brush.
19. Return the hopper lter to its position in the hopper and
replace the hopper on the inlet valve.
20. Wipe the entire unit, hose and gun with a damp cloth to
remove accumulated paint.

10 © Titan Tool Inc. All rights reserved.
Maintenance
Follow these procedures when encountering problems indicated
in the troubleshooting section.

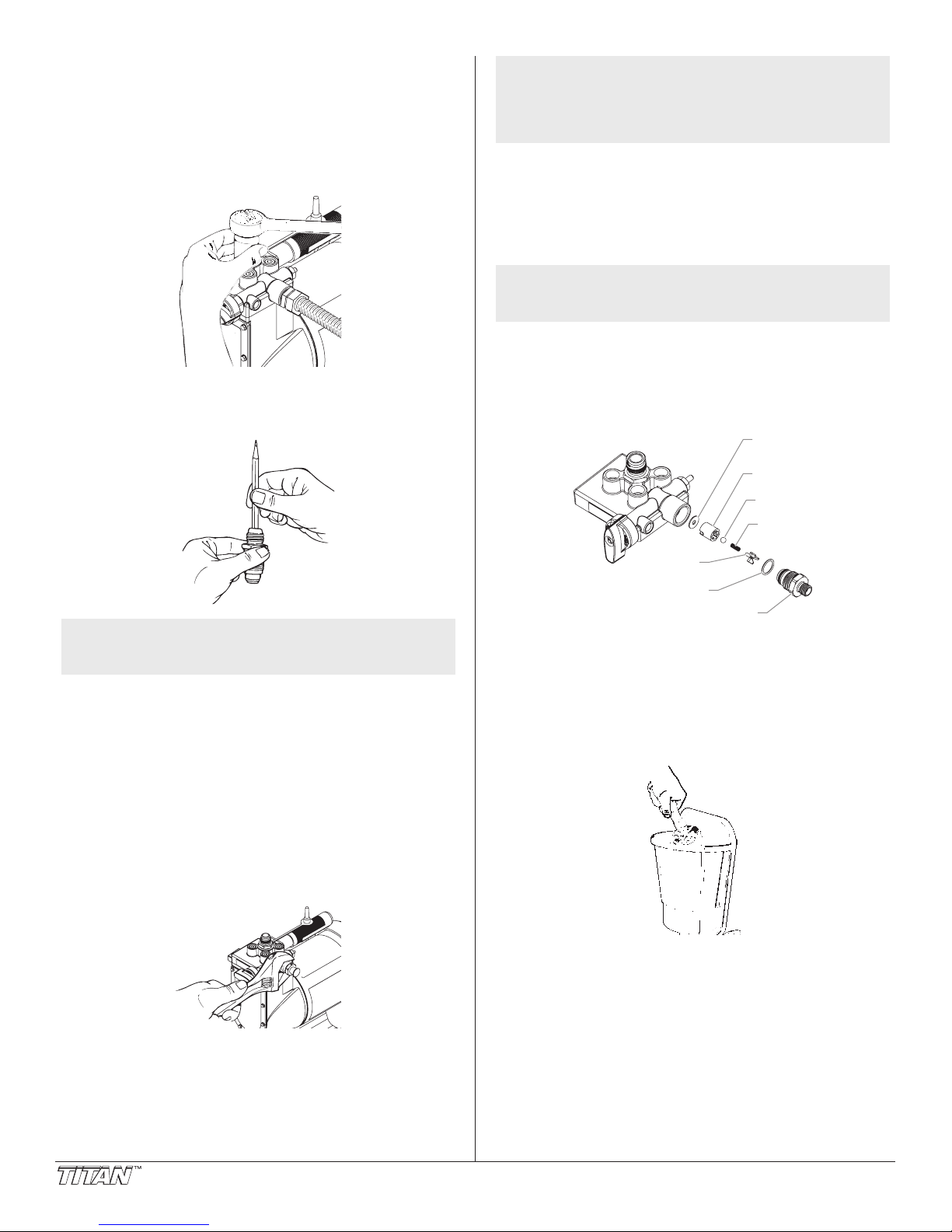

Removing and Cleaning the Inlet Valves
1. Be certain that the sprayer is off.
2. Remove the inlet valve assembly using a 27 millimeter
socket or box end wrench.
3. Test movement of the valve by pushing on it from the
open end of the valve housing with a screwdriver or the
eraser end of a pencil. It should move about 1/16 of an
inch. If it does not move, it should be cleaned or replaced.
NOTE: The inlet valve must be oiled after every job.
This will reduce or eliminate priming problems
thenexttimethesprayerisused.
4. Thoroughly clean the valve assembly with water or the
appropriate solvent. Use a small brush.
5. If you have properly cleaned the valve and water drips out
of the bottom, the valve is worn and needs to be replaced.
A properly seated valve lled with water and held vertically
will not drip.
6. Install a new or cleaned valve in the pump block and then
ll the valve with light oil or solvent.
Removing and Cleaning the Outlet Valve
It may be necessary to remove and clean the outlet valve or to
replace parts inside the valve worn out through normal use.
1. Remove the outlet valve body with a wrench.
2. Remove and clean the ball stop and small spring inside
the valve using a wire hook or tweezers. Replace the
spring if it is broken or worn.
NOTE: Thisspringismanufacturedtoaveryspecic
tension. Do not put in an unauthorized
substitute. See the paint pump assembly
parts diagram for the proper replacement part
number.
3. Remove the seat and ball assembly.
4. Clean all parts thoroughly. If the ball or seat show any
sign of wear or damage, replace them with new parts.
This carbide ball must seal tightly against its seat for the
valve to function properly.
5. Cover all parts with a thin coat of light oil before
reassembling.
NOTE: You will need to align the ridge on the seat
with the groove in the pump housing when
reassembling.
6. Drop in the valve ball.
7. Insert the ball stop and spring and replace the valve body.
Be sure that the o-ring is positioned properly and that the
tongue on the cap ts inside the spring.
8. Tighten the valve body securely with an adjustable
wrench. Do not over-tighten.
Valve Body
O-ring
Seal
Seat
Ball
Spring
Ball Stop
Cleaning the Hopper Screen
The screen at the bottom of the paint hopper may need cleaning
periodically. Check it every time you add paint. Remove
the screen by pulling it out of the hopper with a pliers. Clean
the screen with water or solvent and a soft-bristle brush, if
necessary.

© Titan Tool Inc. All rights reserved. 11
Problem
A. The sprayer does not start up.
B. The sprayer starts up but
does not draw in paint when
the PRIME/SPRAY knob is
set to PRIME.
C. The sprayer draws up paint
but the pressure drops when
the gun is triggered.
D. The sprayer will not shut off.
E. The spray gun leaks.
F. The tip assembly leaks.
G. The spray gun will not spray.
H. The paint pattern is tailing.
I. The thermal overload tripped
and shut off the sprayer.
Cause
1. The sprayer is not plugged in.
2. The ON/OFF switch is set to OFF.
3. Low or no voltage is coming from the wall
plug.
4. The sprayer was turned off while still under
pressure.
5. The extension cord is damaged or has too
low a capacity.
6. The thermal overload on the sprayer is
tripped.
7. There is a problem with the motor.
1. The unit will not prime properly or has lost
prime.
2. The paint hopper is empty
3. The hopper lter is clogged.
4. The inlet valve is stuck.
5. The outlet valve is stuck.
6. The PRIME/SPRAY valve is plugged.
7. The inlet valve is worn or damage.
8. There is a problem with the diaphragm.
9. The hydraulic oil level is low or empty.
1. The spray tip is worn.
2. The hopper lter is clogged.
3. The gun or spray tip lter is plugged.
4. The paint is too heavy or coarse.
5. The outlet valve assembly is dirty or worn.
6. The inlet valve assembly is damaged or
worn.
1. The inlet or outlet valve ball or ball seat is
worn.
2. Foreign matter or paint has built up
between the ball and the seat.
1. Internal parts of the gun are worn or dirty.
1. The tip was assembled incorrectly.
2. A seal is worn.
1. The spray tip, the gun lter or the tip lter
is plugged.
2. The spray tip is in the CLEAN position.
1. The pressure is set too low.
2. The gun, the tip, or the hopper lter is
plugged.
3. The tip is worn.
4. The paint is too thick.
1. The motor overheated.
2. The extension cord is too long or is too
small a gauge.
3. Paint has built up on the motor.
4. The motor was started while the sprayer
was under pressure.
5. The sprayer was sitting in the hot sun.
Solution
1. Plug the sprayer in.
2. Turn the ON/OFF switch to ON.
3. Properly test the power supply voltage.
4. Turn the PRIME/SPRAY knob to PRIME.
5. Replace the extension cord.
6. Allow the motor to cool and move the sprayer to a
cooler spot.
7. Take the sprayer to a Titan Authorized Service
Center.
1. Try to prime the unit again.
2. Fill the paint hopper with paint.
3. Clean the hopper lter.
4. Clean the inlet valve.
5. Clean the outlet valve and replace any worn parts.
6. Take the sprayer to a Titan Authorized Service
Center.
7. Replace the inlet valve.
8. Take the sprayer to a Titan Authorized Service
Center.
9. Take the sprayer to a Titan Authorized Service
Center.
1. Replace the spray tip with a new tip.
2. Clean the hopper lter.
3. Clean or replace the proper lter. Always keep extra
lters on hand.
4. Thin or strain the paint.
5. Clean or replace the outlet valve assembly.
6. Replace the inlet valve.
1. Take the sprayer to a Titan Authorized Service
Center.
2. Take the sprayer to a Titan Authorized Service
Center.
1. Take the sprayer to a Titan Authorized Service
Center.
1. Check the tip assembly and assemble properly.
2. Replace the seal.
1. Clean the spray tip, gun lter or tip lter.
2. Put the tip in the SPRAY position.
1. Increase the pressure.
2. Clean the lters.
3. Replace the spray tip.
4. Thin the paint.
1. Allow to cool for 30 minutes.
2. Allow to cool for 30 minutes and replace the
extension cord with a shorter extension or a thicker
gauge cord.
3. Clean the paint from the motor.
4. Restart the sprayer in the PRIME mode.
5. Move the sprayer out of the sun.
Troubleshooting
NOTE: WhenthePRIME/SPRAYvalveisonSPRAYandthereisowthroughthereturntube,removethePRIME/SPRAY
valve and clean or replace it.
NOTE: The electric motor should always be kept clean and dry. Paint acts as an insulator. Too much paint on the motor
will cause the motor to overheat.

Français
12 © Titan Tool Inc. Tous droits réservés.
Consignes de sécurite important · Lire toutes ces consignes avant
d’utiliser l’appareil. GARDER CES CONSIGNES.
Indique une situation à risque, laquelle, si elle n’est
pas évitée, peut entraîner des blessures graves,
voire la mort.
 a) Pourréduirelesrisquesd’incendieoud’explosion,
de choc électrique et de blessure, vous devez lire et
comprendrelesdirectivesgurantdanscemanuel.
Familiarisez-vousaveclescommandesetl’utilisation
adéquate de l’équipement.
Directives de mise à la terre
Cet appareil doit être mis à la terre. En cas de court-circuit, cette
précaution réduit les risques de choc en procurant un parcours
au courant électrique. Le cordon de l’appareil est doté d’un l de
terre relié à la troisième broche de sa che. Cette dernière doit
être branchée dans une prise correctement câblée et mise à la
terre conformément aux codes et règlements locaux.
MISE EN GARDE - Le fait de ne pas brancher
correctementlachetrilairedel’appareilpeut
entraîner des risques de choc électrique.
Si on doit réparer ou remplacer le cordon ou la che, ne pas
raccorder le l de terre à la borne des broches plates (lames) de
cette dernière. Ce l, normalement vert (avec ou sans rayures
jaunes), doit être relié à la broche de terre.
Consulter un technicien ou un électricien qualié à défaut de
comprendre l’ensemble des présentes directives ou en cas
d’incertitude quant à la mise à terre de l’appareil. Ne pas
modier la che de l’appareil; si elle ne s’adapte pas dans la
prise voulue, la faire remplacer par un électricien qualié.
Conçu pour les circuits de 120 V, cet appareil est doté d’une
che ressemblant à celle illustrée ci-dessous. S’assurer que
le produit est connecté à une prise électrique ayant la même
conguration que la che mâle. Ne pas utiliser d’adaptateur avec
ce produit.
Prise trifilaire
Broche de mise à la terre
Plaque murale de la prise
b) AVERTISSEMENT – Pour réduire le
risqued’incendieoud’explosion:
1. Ne pulvérisez pas de matières
inammables ou combustibles près d’une amme nue,
de voyants lumineux ou de sources d’ignition telles
que des objets chauds, cigarettes, moteurs, matériel et
appareils électriques. Évitez de produire des étincelles en
connectant et en déconnectant les cordons électriques.
2. Pour les appareils destinés à n’utiliser que des produits à
l’eau – Ne pulvérisez pas et ne les nettoyez pas avec des
liquides inammables. Exclusivement pour usage avec
liquides à base d’eau.
3. Pour les appareils destinés à un usage exclusif avec des
produits à l’eau ou des produits minéraux de type alcool
avec un point d’éclair minimum de 21 ºC (70 ºF) – Ne
pulvérisez pas et ne les nettoyez pas avec des liquides
ayant un point d’éclair inférieur à 21 ºC (70 ºF). Le point
d’éclair est la température à laquelle un uide peut
produire sufsamment de vapeur pour s’enammer.
4. L’écoulement de peinture ou de solvant dans l’équipement
peut produire de l’électricité statique. L’électricité statique
crée un risque d’incendie ou d’explosion en présence
de fumées de peinture ou de solvant. Toutes les pièces
du système du pulvérisateur, y compris la pompe,
l’ensemble du tuyau, le pistolet de pulvérisation et les
objets dans et autour de la zone de pulvérisation doivent
être correctement reliés à la terre pour protéger contre les
décharges d’électricité statique et les étincelles. N’utilisez
que des tuyaux conducteurs ou reliés à la terre pour
pulvérisateurs de peinture sous vide à haute pression,
spéciés par le fabricant.
5. Vériez que tous les conteneurs ou systèmes de stockage
sont reliés à la terre pour éviter les décharges d’électricité
statique.
6. Connectez à une prise électrique avec prise de terre
et utilisez des rallonges électriques reliées à la terre.
N’utilisez pas d’adaptateur 3 à 2.
7. N’utilisez pas de peinture ou de solvant contenant du
halon, par exemple, le chlore, les agents antimoisissure
à l’eau de Javel, le chlorure de méthylène et le
trichloroéthane. Ils ne sont pas compatibles avec
l’aluminium. Contactez le fournisseur de revêtements pour
connaître la compatibilité du matériau avec l’aluminium.
8. La zone de pulvérisation doit toujours être bien aérée.
Une bonne quantité d’air frais doit constamment traverser
la zone de pulvérisation pour éviter les accumulations de
vapeurs inammables. Le système de pompage doit être
placé dans une zone bien aérée. Ne pulvérisez pas le
système de pompage.
9. Ne fumez pas dans la zone de pulvérisation.
10. N’actionnez pas d’interrupteurs électriques, de moteurs ou
autres dispositifs produisant des étincelles dans la zone
de pulvérisation.
11. Maintenez la propreté de la zone et veillez à ce qu’elle ne
contienne pas de conteneurs de peinture ou de solvant, de
chiffons et autres matières inammables.
12. Sachez ce que contiennent la peinture et les solvants
pulvérisés. Lisez les ches de sécurité du matériel (MSDS)
et les étiquettes apposées sur les conteneurs de peintures
et de solvants. Respectez les consignes de sécurité du
fabricant de peinture et de solvant.
13. Placez la pompe à une distance minimum de 7,62 mètres
(25 pieds) de l’objet à pulvériser, dans une zone bien
aérée (ajoutez de la longueur de tuyau si besoin est). Les
vapeurs inammables sont souvent plus lourdes que l’air.
La zone près du sol doit être très bien aérée. La pompe
contient des pièces qui produisent des arcs et émettent
des étincelles pouvant enammer les vapeurs.
14. Le plastique peut causer des étincelles d’électricité
statique. N’accrochez aucun plastique dans une zone
de pulvérisation fermée. N’utilisez pas de toiles de
protection en plastique quand vous pulvérisez une matière
inammable.
15. Ayez un extincteur en bon état de fonctionnement à portée
de main.
c) AVERTISSEMENT – Pour réduire le risque de
pénétration dans la peau :
1. Ne dirigez pas le pistolet sur et ne pulvérisez pas
les personnes ou les animaux.
2. N’approchez pas les mains ni d’autres parties du corps de
la sortie du produit. Par exemple, ne tentez pas d’arrêter
une fuite avec une partie du corps.
3. Utilisez toujours le protège-embout de la buse. Ne
pulvérisez pas sans que le protège-embout de la buse ne
soit installé.
4. Utilisez exclusivement un embout de buse spécié par le
fabricant.
5. Prenez garde quand vous nettoyez ou que vous changez
les embouts de buse. Si l’embout se bouche pendant
que vous pulvérisez, verrouillez TOUJOURS la détente
du pistolet, arrêtez la pompe et libérez toute la pression
avant de réparer ou de nettoyer l’embout ou le protecteur
ou avant de changer d’embout. La pression n’est pas

Français
© Titan Tool Inc. Tous droits réservés. 13
Consignes de sécurite important · Lire toutes ces consignes avant
d’utiliser l’appareil. GARDER CES CONSIGNES.
libérée par l’arrêt du moteur. La poignée du robinet-valve
PRIME/SPRAY (AMORÇAGE/ PULVÉRISATION) doit
être placée sur PRIME pour libérer la pression. Consultez
la PROCÉDURE DE DÉCOMPRESSION décrite dans le
manuel de la pompe.
6. Ne laissez pas l’appareil sous tension ou sous pression
quand vous vous en éloignez. Quand vous n’utilisez pas
l’appareil, éteignez-le et libérez la pression conformément
aux instructions du fabricant.
7. La pulvérisation à haute pression peut injecter des
toxines dans le corps et causer de graves blessures
corporelles. Si une telle injection se produisait, consultez
immédiatement un médecin.
8. Vériez les tuyaux et les pièces pour détecter des signes
d’endommagement : une fuite peut injecter le produit dans
la peau. Inspectez le tuyau avant chaque emploi. Changez
tous les tuyaux ou pièces endommagés.
9. Ce système peut produire une pression de 2750 PSI
/ 190 Bar. N’utilisez que les pièces de rechange ou
les accessoires spéciés par le fabricant et ayant une
pression nominale minimum de 2750 PSI. Ceci est valable
pour les embouts de pulvérisation, les protecteurs de
buse, les pistolets, les rallonges, les raccords et le tuyau.
10. Verrouillez toujours la détente quand vous ne pulvérisez
pas. Vériez que le verrou de la détente fonctionne
correctement.
11. Vériez que toutes les connexions sont bien serrées avant
d’utiliser l’appareil.
12. Sachez comment arrêter l’appareil et le dépressuriser
rapidement. Soyez bien familiarisé avec les commandes.
La pression n’est pas libérée lorsque le moteur est
arrêté. La poignée du robinet-valve PRIME/SPRAY
(AMORÇAGE/PULVÉRISATION) doit être placée
sur PRIME pour libérer la pression. Consultez la
PROCÉDURE DE DÉCOMPRESSION décrite dans le
manuel de la pompe.
13. Retirez toujours l’embout de pulvérisation avant de rincer
ou de nettoyer le système.
REMARQUE À L’INTENTION DES MÉDECINS :
Les injections cutanées sont des lésions traumatiques; il
importe donc de les traiter sans délai. On NE DOIT PAS
retardercetraitementsousprétextedevérierlatoxicité
du produit en cause, celle-ci n’étant conséquente que
dans le cas d’injection directe de certains produits dans
le système sanguin. Il pourrait s’avérer nécessaire de
consulter un plasticien ou un spécialiste en chirurgie
reconstructive de la main.
d) AVERTISSEMENT – Pour réduire le risque de blessure :
1. Portez toujours les gants, la protection oculaire, les
vêtements et un respirateur ou masque appropriés
quand vous peignez. Vapeurs dangereuses – Les
peintures, solvants, insecticides et autres matières
peuvent être dangereux s’ils sont inhalés ou entrent en
contact avec le corps. Les vapeurs peuvent provoquer
d’importantes nausées, une perte de connaissance ou un
empoisonnement.
2. Ne travaillez pas et ne pulvérisez pas près d’enfants.
Éloignez toujours les enfants de l’équipement.
3. Ne travaillez pas avec les bras au-dessus de la tête ni sur
un support instable. Appuyez-vous bien sur les deux pieds
pour toujours conserver l’équilibre.
4. Soyez attentif et regardez ce que vous faites.
5. N’utilisez pas l’appareil quand vous êtes fatigué ou sous
l’inuence de drogues ou d’alcool.
6. Ne faites pas de n?uds avec le tuyau et ne le tordez pas
trop. Le tuyau à vide peut présenter des fuites suite à
l’usure, les n?uds ou les mauvais traitements. Une fuite
risque d’injecter du produit dans la peau.
7. N’exposez pas le tuyau à des températures ou des
pressions supérieures à celles spéciées par le fabricant.
8. N’utilisez pas le tuyau pour tirer ou soulever l’équipement.
9. Utilisez la plus basse pression possible pour rincer
l’équipement.
10. Respectez tous les codes locaux, étatiques et nationaux
qui régulent la ventilation, la prévention d’incendies et le
fonctionnement.
11. Les normes de sécurité du gouvernement des États-Unis
ont été adoptées dans la loi Occupational safety and
Health Act (OSHA). Ces normes, en particulier la partie
1910 des Normes générales et la partie 1926 des Normes
de construction, doivent être consultées.
12. Avant chaque emploi, vériez tous les tuyaux pour
détecter d’éventuelles coupures, fuites, abrasion ou
couvercle bombé. Vériez l’état ou le mouvement des
accouplements. Changez immédiatement le tuyau si l’une
de ces conditions est vériée. Ne réparez jamais un tuyau
de peinture. Remplacez-le par un tuyau conducteur à
haute pression.
13. Ne pulvérisez pas à l’extérieur par temps venteux.
14. Débranchez toujours le cordon électrique de la prise avant
de travailler sur l’équipement.
Renseignements importants sur
l’électricité
IMPORTANT : Si l’application requiert l’utilisation d’une
rallonge, celle-ci doit être trifilaire et dotée d’une fiche à trois
broches et d’un connecteur à trois fentes pouvant accepter
la fiche de l’appareil. Cette rallonge doit être en bon état. On
doit en outre s’assurer qu’elle est d’un calibre suffisant pour
éviter les baisses de tension susceptibles de provoquer
des pertes de puissance ou une surchauffe de l’appareil.
On recommande l’utilisation d’un cordon de calibre 14 ou
12(voirletableau).Silarallongedoitserviràl’extérieur,on
doit opter pour un type de cordon dont la désignation arbore
lesuffixe«W-A»(ex.SJTW-A).
Cordon de calibre Longueur maximum de
cordon
12 46 m (150 ft)
14 31 m (100 ft)

Español
14 © Titan Tool Inc. Todos los derechos reservados.
Información de seguridad importante · Lea toda la información de
seguridad antes de operar el equipo. GUARDE ESTAS INSTRUCCIONES.
Indica una situación peligrosa que, de no evitarse,
puede causar la muerte o lesiones graves.
 a) Parareducirlosriesgosdeincendios,explosiones,
descargas eléctricas o lesiones a las personas, lea
y entienda todas las instrucciones incluidas en este
manual.Familiaríceseconloscontrolesyeluso
adecuado del equipo.
Instruccionesparalaconexiónatierra
Este producto debe conectarse a tierra. En caso de un
cortocircuito eléctrico, la conexión a tierra reduce el riesgo
de choque eléctrico al aportar un alambre de escape para la
corriente eléctrica. Este producto está equipado con un cable
que tiene alambre a tierra con un enchufe a tierra adecuado.
Debe usarse el enchufe para conectar a un receptáculo que esté
debidamente instalado y conectado a tierra en conformidad con
los códigos y las ordenanzas locales.
ADVERTENCIA - La instalación incorrecta del
enchufe a tierra puede ocasionar un riesgo de
choque eléctrico.
Si es necesario reparar o cambiar el cable o el enchufe, no
conecte el cable verde a tierra a ninguno de las terminales
de espiga plana. El cable con aislamiento de color verde por
fuera con o sin rayas amarillas es el alambre a tierra y debe
conectarse a la espiga a tierra.
Consulte a un electricista o técnico de servicio capacitado si
las instrucciones para la conexión a tierra no se entienden
claramente o si tiene dudas en cuanto a que el producto esté
debidamente conectado a tierra. No modique el enchufe que
se incluye. Si el enchufe no encaja en el receptáculo, pida a un
electricistas capacitado que instale un receptáculo adecuado.
Este producto es para utilizarse en un circuito de 120 voltios
nominales y tiene un enchufe a tierra que tiene un aspecto
similar al ilustrado más abajo. Asegúrese que el producto esté
conectado a un tomacorriente que tenga la misma conguración
que el enchufe. No deben utilizarse adaptadores para este
producto.
Receptáculo conectado a tierra
Pata a tierra
Tapa de la caja de receptáculo conectada a tierra
b) ADVERTENCIA – Para reducir el riesgo
deincendiooexplosión:
1. No pulverice materiales inamables
ni combustibles cerca de llamas desnudas, pilotos o
fuentes de ignición como objetos calientes, cigarrillos,
motores, equipos eléctricos o electrodomésticos. Evite
producir chispas al conectar y desconectar los cables de
alimentación.
2. Para unidades que se vayan a utilizar con materiales
acuosos — No pulverice ni limpie con líquidos
inamables. Para su uso con líquidos acuosos solamente.
3. Para unidades que se vayan a utilizar solamente con
materiales acuosos o de tipo de alcohol mineral con un
punto de inamación mínimo de 21 ºC (69,8 ºF) — No
pulverice ni limpie con líquidos que tengan un punto de
inamación por debajo de 21 ºC (69,8 ºF). El punto de
inamación es la temperatura a la que un uido puede
producir vapor suciente como para incendiarse.
4. La pintura o disolvente que pase por el equipo puede
producir electricidad estática. La electricidad estática
supone un riesgo de incendio o explosión en presencia de
emanaciones de pintura o disolvente. Todas las piezas del
sistema pulverizador, incluyendo la bomba, el conjunto de
mangueras, la pistola pulverizadora y los objetos dentro
y alrededor de la zona de pulverización se conectarán
a tierra para protegerlos frente a descargas estáticas y
chispas. Utilice solamente mangueras para pulverizadores
de pintura airless (sin aire) de alta presión conductoras o
con toma a tierra especicadas por el fabricante.
5. Compruebe que todos los recipientes y sistemas de
recogida están conectados a tierra para evitar descargas
eléctricas.
6. Conecte a una salida con toma a tierra y utilice cables
alargadores puestos a tierra. No utilice un adaptador de 3
a 2.
7. No utilice pintura o disolvente que contenga hidrocarburos
halogenados, como cloro, fungicida blanqueador, cloruro
de metileno y tricloroetano. No son compatibles con el
aluminio. Póngase en contacto con el proveedor del
material para conocer su compatibilidad con el aluminio.
8. Mantenga la zona de pulverización bien ventilada.
Asegúrese de que circula aire fresco por la zona para
evitar que se acumulen vapores inamables en el aire de
la zona de pulverización. Ponga el conjunto de la bomba
en una zona bien ventilada. No pulverice el conjunto de la
bomba.
9. No fume en la zona de pulverización.
10. No encienda interruptores de luces, motores ni productos
similares que puedan producir chispas en la zona de
pulverización.
11. Mantenga la zona limpia y despejada de botes de pintura
y disolventes, trapos y otros materiales inamables.
12. Infórmese del contenido de la pintura y de los disolventes
que pulverice. Lea las hojas de datos sobre seguridad
de los materiales (MSDS) y las etiquetas en los botes de
pintura y disolvente. Siga las instrucciones de seguridad
del fabricante de la pintura y del disolvente.
13. Coloque la bomba al menos a 7,62 metros (25 pies) del
objeto que se va a pulverizar en una zona bien ventilada
(añada más manguera si fuera necesario). Los vapores
inamables suelen ser más pesados que el aire. La
zona del suelo debe estar muy bien ventilada. La bomba
contiene piezas que forman arcos que producen chispas y
pueden inamar los vapores.
14. El plástico puede producir chispas estáticas. Nunca utilice
plástico para cercar la zona de pulverización. No utilice
cortinas de plástico mientras pulveriza material inamable.
15. Deberá contar con equipos extintores de incendios que
funcionen correctamente.
c) ADVERTENCIA – Para reducir el riesgo de
daños en la piel:
1. No apunte con la pistola ni pulverice sobre
ninguna persona ni animal.
2. Mantenga las manos y el resto del cuerpo lejos de la
descarga. Por ejemplo, no trate de detener fugas con
ninguna parte de su cuerpo.
3. Utilice siempre el protector de la boquilla. No pulverice sin
el protector en su sitio.
4. Utilice solamente la boquilla especicada por el fabricante.
5. Tenga cuidado al limpiar y cambiar las boquillas. Si
la boquilla se atasca durante la pulverización, ponga
SIEMPRE el seguro del gatillo de la pistola, apague la
bomba y libere toda la presión antes de reparar, limpiar el
protector o la boquilla o cambiar la boquilla. La presión no
se libera apagando el motor. Para liberar la presión hay

Español
© Titan Tool Inc. Todos los derechos reservados. 15
Información de seguridad importante · Lea toda la información de
seguridad antes de operar el equipo. GUARDE ESTAS INSTRUCCIONES.
que poner la manija de la válvula PRIME/SPRAY (cebar/
pulverizar) en PRIME. Consulte el Procedimiento de Alivio
de Presión que se describe en el manual de la bomba.
6. No deje el aparato con corriente ni con presión cuando
nadie esté pendiente de ella. Cuando no utilice el aparato,
apáguelo y libere la presión siguiendo las instrucciones
del fabricante.
7. La pulverización a alta presión puede inyectar toxinas en
el cuerpo y producir daños graves en el mismo. En caso
de que esto ocurra, visite a un médico inmediatamente.
8. Compruebe las mangueras y las piezas en busca de
daños; una fuga puede inyectar material en la piel.
Inspeccione la manguera antes de cada uso. Sustituya las
mangueras o las piezas dañadas.
9. Este sistema es capaz de producir 2750 PSI / 190 Bar.
Utilice solamente piezas de repuesto o accesorios
especicados por el fabricante y con una capacidad
nominal de 2750 PSI como mínimo. Entre ellos se
incluyen boquillas pulverizadoras, protectores para las
boquillas, pistolas, alargadores, racores y mangueras.
10. Ponga siempre el seguro del gatillo cuando no esté
pulverizando. Verique que el seguro del gatillo funciona
correctamente.
11. Antes de utilizar el aparato, verique que todas las
conexiones son seguras.
12. Aprenda a detener el aparato y a liberar la presión
rápidamente. Familiarícese a conciencia con los controles.
La presión no se libera apagando el motor. Para liberar
la presión hay que poner la manija de la válvula PRIME/
SPRAY (cebar/pulverizar) en PRIME. Consulte el
Procedimiento de Alivio de Presión que se describe en el
manual de la bomba.
13. Quite siempre la boquilla pulverizadora antes de enjuagar
o limpiar el sistema.
NOTA PARA EL MÉDICO:
La inyección a través de la piel es una lesión traumática.
Es importante tratar la lesión tan pronto sea posible.
NOretraseeltratamientoparainvestigarlatoxicidad.
Latoxicidadesunfactoraconsiderarconciertos
revestimientos inyectados directamente en la corriente
sanguínea.Puedeseraconsejableconsultarcon
un cirujano plástico o un cirujano especialista en
reconstrucción de las manos.
d) ADVERTENCIA – Para reducir el riesgo de lesiones:
1. Cuando pinte, lleve siempre guantes, protección para los
ojos, ropa y un respirador o máscara adecuados. Vapores
peligrosos: Las pinturas, disolventes, insecticidas y otros
materiales pueden ser perjudiciales si se inhalan o entran
en contacto con el cuerpo. Los vapores pueden producir
nauseas intensas, desmayos o envenenamiento.
2. Nunca utilice el aparato ni pulverice cerca de niños.
Mantenga el equipo alejado de los niños en todo
momento.
3. No se estire demasiado ni se apoye sobre un soporte
inestable. Mantenga los pies bien apoyados y el equilibrio
en todo momento.
4. No se distraiga y tenga cuidado con lo que hace.
5. No utilice el aparato si está fatigado o se encuentra bajo
la inuencia del alcohol o de las drogas.
6. No retuerza ni doble la manguera en exceso. En la
manguera airless pueden aparecer fugas a causa del
desgaste, de retorcimientos o de un mal uso. Una fuga
puede inyectar material en la piel.
7. No exponga la manguera a temperaturas o presiones que
superen las especicadas por el fabricante.
8. No utilice la manguera como elemento de fuerza para tirar
del equipo o levantarlo.
9. Utilice la presión más baja posible para enjuagar el
equipo.
10. Cumpla todos los reglamentos locales, estatales y
nacionales pertinentes relativos a ventilación, prevención
de incendios y funcionamiento.
11. Las normas sobre seguridad del gobierno de los Estados
Unidos se han adoptado al amparo de la Ley de salud
y seguridad ocupacional (OSHA). Deben consultarse
tres normas, particularmente la sección 1910 de las
Normas generales y la sección 1926 de las Normas sobre
construcción.
12. Cada vez que vaya a utilizar el equipo, compruebe antes
todas las mangueras en busca de cortes, fugas, abrasión
o bultos en la cubierta. Compruebe el movimiento
de los acoplamientos y si están dañados. Sustituya
inmediatamente una manguera si descubre alguna de
estas anomalías. No repare nunca una manguera de
pintura. Sustitúyala por una manguera conductora a alta
presión.
13. No pulverice al aire libre si hace viento.
14. Desenchufe siempre el cable antes de trabajar en el
equipo.
Información eléctrica importante
IMPORTANTE:Usesolamenteuncabledeextensiónde
3 conductores que tenga un enchufe a tierra de 3 patas
y un receptáculo de 3 ranuras que acepte el enchufe del
producto.Revisequeelcabledeextensiónestéenbuen
estado.Alutilizaruncabledeextensión,fíjesequesea
del calibre apto para transmitir la corriente que consume
elproducto.Uncabledecalibreinsucienteharáquebaje
elvoltajedelalíneaperdiendopotenciayproduciendo
sobrecalentamiento en la unidad. Se recomienda un cable de
calibre14ó12(voirlatabla).Siseusauncabledeextensión
enexteriores,debeestarmarcadoconelsujoW-Adespués
de la designación del tipo de cable. Por ejemplo, una
designaciónSJTW-Aindicaríaqueelcableseríaaptopara
usoenexteriores.
Cable de calibre Máximo de la longitud
de la cable
12 150 pies
14 100 pies

16 © Titan Tool Inc. All rights reserved.
Parts Listing
Main Assembly
1
2
3
4
10
11
12
13
14
15
16
8
9
5
6
7
Item Part No. Description Qty.
10288144 Hopper assembly 1
29801533 Carriage bolt 4
3---------- Pump head assembly 1
40555124 Diaphragm pump 1
50508271 Left leg 1
60551525 Plug 2
70555513 Tube cap 2
80508259 Handle assembly 1
Item Part No. Description Qty.
90288478 Handle grip 1
10 0508276 Screw 2
11 9820206 Washer 2
12 0508660 Screw 2
13 0508270 Right leg 1
14 0508377 Cord wrap 1
15 0508267 Mounting plate 1
16 9811122 Lock nut 4

© Titan Tool Inc. All rights reserved. 17
Diaphragm Pump (P/N 0555124)
17
18
19
18
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
20
21
22
23
25
24
26
Item Part No. Description Qty.
10555123 Pump head 1
20270494 Diaphragm ring 1
30278240 Diaphragm 1
40288775 Pressure control knob 1
59801109 Set screw 2
60270529 Valve stem 1
70047373 Pressure regulating spring 1
80089518 O-ring 1
90089475 Pressure valve needle 1
10 0278339 Hydraulic piston 1
11 0005311 Piston spring 1
12 0270548 Piston washer 1
13 0089456 Retainer 1
14 0278359 Gasket 1
15 0278341 Hydraulic cover 1
Item Part No. Description Qty.
16 9800049 Screw 9
17 0047393 Retaining ring 1
18 0090031 Eccentric sleeve and bearing
assembly 1
19 0089829 Shaft key 1
20 9900355 Socket screw 4
21 9921601 Lock washer 4
22 0270546 Motor (includes items 27 and 28) 1
23 0089930 Seal 1
24 0270477 Seal 1
25 0089929 Ball bearing 1
26 0278237 Hydraulic housing assembly
(includes items 23 – 25) 1
27 0270462 Fan (not shown) 1
28 0270612 Fan cover (not shown) 1

18 © Titan Tool Inc. All rights reserved.
Pump Head Assembly
2
1
3
5
6
7
8
9
10
11
4
12
13
14
15
16
Item Part No. Description Qty.
10278242 Inlet valve assembly (includes
item 2)
1
20089482 Sealing washer, nylon 1
30278334 Paint pump 1
40555850 PRIME/SPRAY valve assembly 1
50278362 Outlet seal 1
60278241 Ball seat 1
70093635 Ball 1
80047485 Outlet spring 1
90278361 Ball guide 1
10 9871114 O-ring 1
11 0278335 Outlet tting 1
12 0278337 Pusher body 1
13 0278250 Pusher stem assembly 1
14 0278368 Pusher spring 1
15 0156646 Seal 1
16 0278340 Pusher washer 1
Hopper Assembly
1
2
3
4
6
5
7
Item Part No. Description Qty.
10279591 Cover, hopper 1
20089917 Filter screen, ne (shown) 1
0088871 Filter screen, coarse
30090283 Hopper 1
40093865 Return tube 1
50090617 Fitting 1
60090560 Return tube assembly (includes
items 4 and 5)
1
70279971 Hopper complete (includes items
1 – 6)
1

© Titan Tool Inc. All rights reserved. 19
Notes

20 © Titan Tool Inc. All rights reserved.
Warranty
Titan Tool, Inc., (“Titan”) warrants that at the time of delivery to the original purchaser for use (“End User”), the equipment covered
by this warranty is free from defects in material and workmanship. With the exception of any special, limited, or extended warranty
published by Titan, Titan’s obligation under this warranty is limited to replacing or repairing without charge those parts which, to Titan’s
reasonable satisfaction, are shown to be defective within twelve (12) months after sale to the End User. This warranty applies only
when the unit is installed and operated in accordance with the recommendations and instructions of Titan.
This warranty does not apply in the case of damage or wear caused by abrasion, corrosion or misuse, negligence, accident, faulty
installation, substitution of non-Titan component parts, or tampering with the unit in a manner to impair normal operation.
Defective parts are to be returned to an authorized Titan sales/service outlet. All transportation charges, including return to the
factory, if necessary, are to be borne and prepaid by the End User. Repaired or replaced equipment will be returned to the End User
transportation prepaid.
THERE IS NO OTHER EXPRESS WARRANTY. TITAN HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES INCLUDING,
BUT NOT LIMITED TO, THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT
PERMITTED BY LAW. THE DURATION OF ANY IMPLIED WARRANTIES WHICH CANNOT BE DISCLAIMED IS LIMITED TO
THE TIME PERIOD SPECIFIED IN THE EXPRESS WARRANTY. IN NO CASE SHALL TITAN LIABILITY EXCEED THE AMOUNT
OF THE PURCHASE PRICE. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES UNDER ANY AND ALL
WARRANTIES IS EXCLUDED TO THE EXTENT PERMITTED BY LAW.
TITAN MAKES NO WARRANTY AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE WITH RESPECT TO ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT
NOT MANUFACTURED BY TITAN. THOSE ITEMS SOLD, BUT NOT MANUFACTURED BY TITAN (SUCH AS GAS ENGINES,
SWITCHES, HOSES, ETC.) ARE SUBJECT TO THE WARRANTY, IF ANY, OF THEIR MANUFACTURER. TITAN WILL PROVIDE
THE PURCHASER WITH REASONABLE ASSISTANCE IN MAKING ANY CLAIM FOR BREACH OF THESE WARRANTIES.
Patents
These products are covered by one or more of the following U.S. patents:
D412,965 5,765,753 5,887,793 5,893,522
Material Safety Data Sheets (MSDS) are available on Titan’s website or by calling Customer Service.
United States Sales & Service
1770 Fernbrook Lane
Minneapolis, MN 55447
www.titantool.com
200 Trowers Road, Unit 7B
Woodbridge, Ontario L4L 5Z8
Phone:
Fax:
1-800-526-5362
1-800-528-4826
Phone:
Fax:
1-800-565-8665
1-800-856-8496
Canadian Branch
