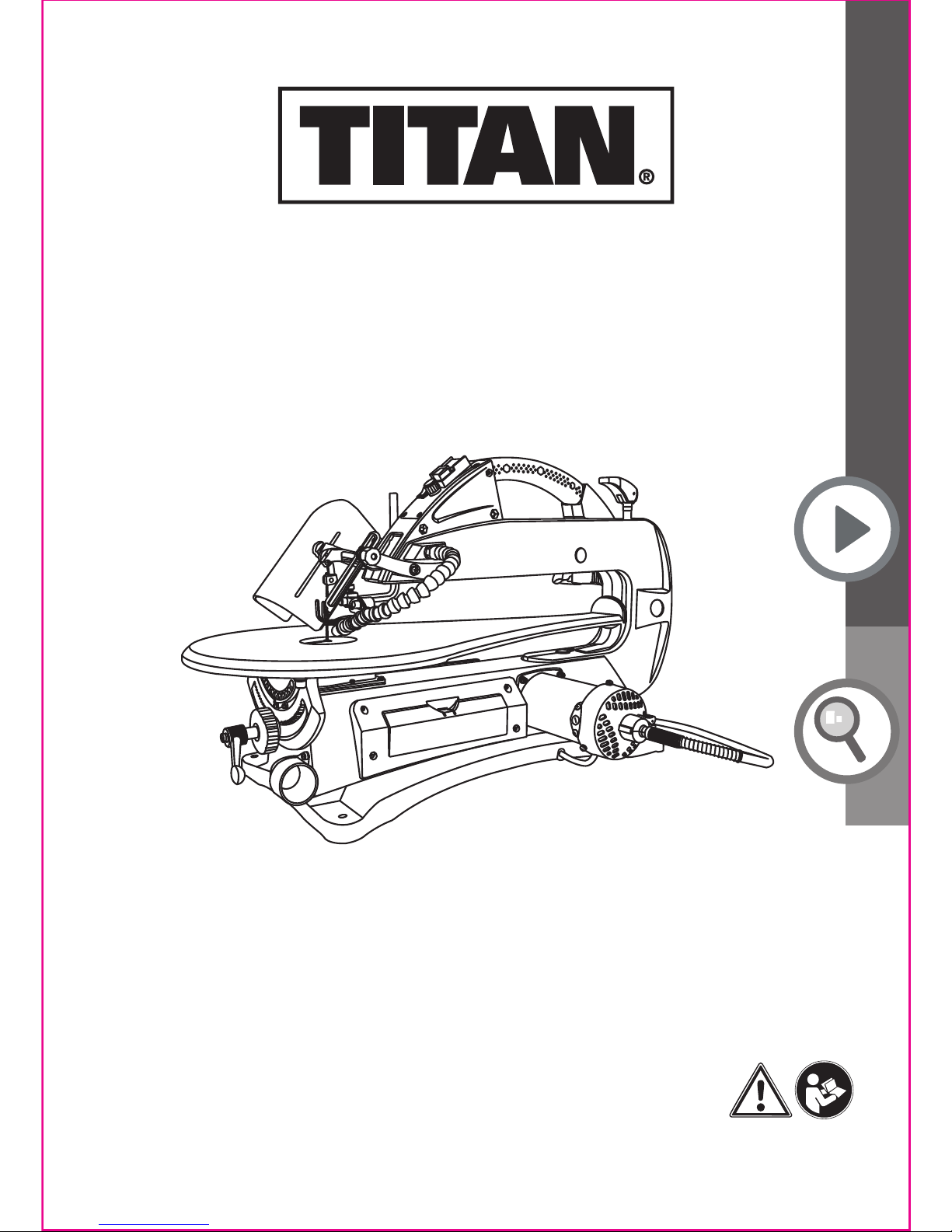

Titan TTB545SSW User manual

Original Instructions_MNL_TTB545SSW_GB_V01_130720
TTB545SSW
240W Scroll Saw
Barcode: 5052931253661
WARNING! Read the instructions before using the product!

240W SCROLL SAW TTB545SSW
Congratulations on your purchase of a TITAN power tool from
TITAN Power Tools (UK) Ltd. We want you to continue getting the
best performance from it so this handbook includes information
on safety, handling and care. Please retain this handbook in case
you need to refer to any of the information in the future.
Your TITAN power tool comes with a 2 year guarantee, so should
it develop a fault within this period contact your retailer.
This TITAN product carries a 2 year guarantee. If your product develops a fault within this
period, you should, in the first instance contact the retailer where the item was purchased.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
GUARANTEE

TTB545SSW by TITAN
GB
IE
03
21
27
31
33
34
In more detail...
Product functions
Care and maintenance
Trouble shooting
Recycling and disposal
EC declaration of conformity
20
03
04
05
12
Getting started...
Your product
Technical and legal information
Before you start
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
Let’s
get started…

TTB545SSW
240W SCROLL SAW
TitanPower Tools (UK) Ltd. BA22 8RT
230-240V~50Hz
Inputvoltage: 240W S6 60% 10min
Sawblade speed: 400-1600min-1
Grindhead speed: 1200-4500min-1
Bladesize: 127mm x 2.6mm
Workingtable size: 625mm x 330mm
Rotarytable size: 136 x 180mm
Tabletilting range: -45° ~45°
Drillingcapacity: < ø6.35mm
Max.cutting depth: 51mm
Max.cutting width: 457mm
Weight:21.5kg
SerialNo.
TTB545SSW by TITAN
Getting started...
GB
04
Your product
Your product
1. On/off switch
2. Switch for LED light
3. Protective guard
4. Knob for blade guard
5. Upper blade holder
6. Blade guard foot
7. Work table
8. Bevel lock handle
9. Sawdust port
10. Base
11. Storage compartment
12. Carry handle
13. Blade tension lock lever
14. Rubber bearing cover
15. Dust blower and light
16. Table insert
17. Motor
18. Rotary tool cable
19. Height adjustment knob
20. Rotary table
21. Rotary tool dust port
22. Lower blade holder
23. Speed control knob
24. Tilting adjustment screw
25. Saw blade
26. Bevel adjustment knob
27. Rotary tool
28. Mounting hole
29. Chuck key
IE
1
11
28
19
8
2
4
3
5
6
10
29
20
21
22
9
7
23
4
24
25
13
12
14
17
26
27
18
15
16

TTB545SSW by TITAN
05
Getting started...
Technical and legal
information
Technical specifications
General
> Input Voltage
> Power Input
> Saw Blade Speed
> Saw Blade Size
> Max. Cutting Depth
> Max. Cutting Width
> Grind Head Speed
> Drilling Capacity
> Rotary Tools Fastening System
> Working Table Size
> Rotary Table Size
> Table Tilting Range
> Net Weight
:
:
:
:
:
:
:
:
:
:
:
:
:
230-240V~50Hz
240W S6 60% 10min
400-1600min-1
127mm x 2.6mm
51mm
457mm
1200-4500min-1
≤ ø6.35mm
Chuck key
625 x 330mm
136 x 180mm
- 45° to + 45°
21.5kg
VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to help
reduce hand arm vibration syndrome injuries to power tool users. The directive
requires power tool manufacturers and suppliers to provide indicative vibration test
results to enable users to make informed decisions as to the period of time a power
tool can be used safely on a daily basis and the choice of tool.
Further Advice can be found at www.hse.gov.uk
The declared vibration emission value should be used as a minimum level and
should be used with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difficult and the HSE
website has further information.
Sound power level L WA : 85dB(A)
Sound level according to
EN 61029
Work mode description 1
(if required by the relevant Part 2)
Vibration total values (triax vector sum) determined according to EN 61029:
Sound pressure level L pA : 77.5dB(A)
Uncertainty K pA, K WA : 3dB(A)
Vibration emission value ah= 3.0m/s2
Uncertainty K = 1.5m/s2
GB
IE

TTB545SSW by TITAN
Getting started...
GB
06
IE
Technical and legal
information
The declared vibration emission been measured in accordance with a standardised
test stated above and may be used to compare one tool with another.
The declared vibration emission value may also be used in a preliminary
assessment of exposure.
Warning! The vibration emission value during actual use of the power
tool can differ from the declared value depending on the ways in which
the tool is used dependant on the following examples and other variations
on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good
condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not
adequately managed
Warning! identify safety measures to protect the operator that are based
on an estimation of exposure in the actual conditions of use (taking account
of all parts of the operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time).Note The use of other
tools will reduce the users’ total working period on this tool.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated
(where appropriate)
Avoid using tools in temperatures of 10ºC or less.
Plan your work schedule to spread any high vibration tool use across a number
of days.
Health Surveillance
All employees should be part of an employer’s health surveillance scheme to
help identity any vibration related diseases at an early stage, prevent disease
progression and help employees stay in work.
Important note
Remove the mains plug from socket before carrying out any adjustment
or servicing.
Ensure your mains supply voltage is the same as your tool rating plate voltage.

TTB545SSW by TITAN Technical and legal
information

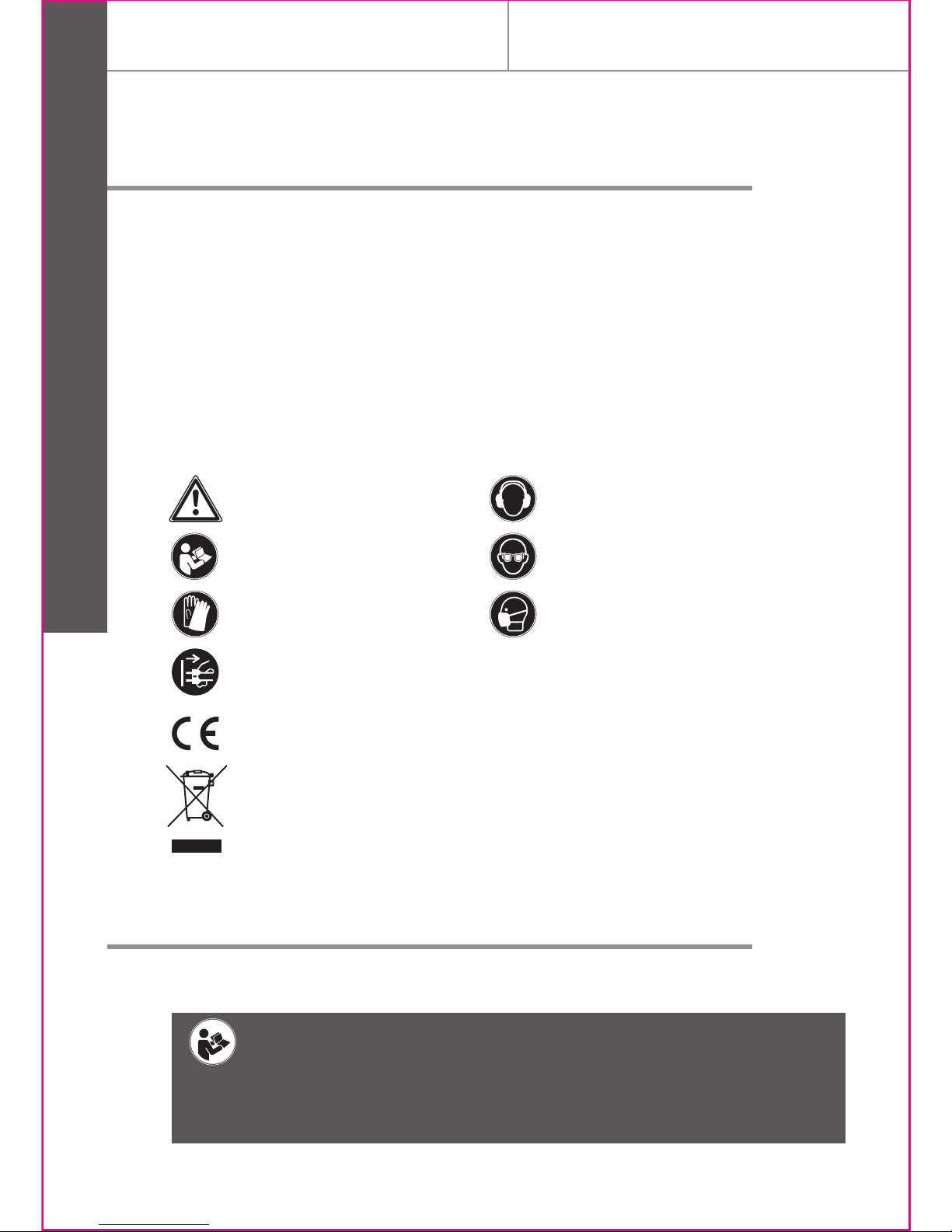

Symbols
07
Getting started...
GB
IE
On the product, the rating label and within these instructions you will find among
others the following symbols and abbreviations.
Familiarise yourself with them to reduce hazards like personal injuries and damage
to property.
V~
W
m/min
min-1
yyWxx
Volt
Input power
Metres per minute
Per minute
Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx);
Hz
kg
dB(A)
ø
Hertz
Kilogram
Decibel (A-rated)
Diameter
Safety warnings
GENERAL SAFETY INSTRUCTIONS
WARNING! To ensure safe operation when using your scroll
saw, make sure you follow basic safety principles to reduce risk
of personal injury, electric shock and fire. Please read the following
instructions prior to operating this product and keep for future
use.
Caution / Warning. Wear hearing protection.
Read the instruction
manual. Wear eye protection.
Wear respiratory protection.Wear gloves.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
Switch the product off and disconnect it from the power supply before
assembly, cleaning, adjustments, maintenance, storage and transportation.
WEEE symbol. Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.

TTB545SSW by TITAN
Getting started...
GB
08
IE
Technical and legal
information
SAVE THESE INSTRUCTIONS
1. Keep the work area clean.
> Cluttered and dark areas invite accidents.
2. Consider work area environment.
> Do not expose power tools to rain. Do not use power tools in damp or wet
locations. Keep the work area well lit. Do not use tools in the presence
of flammable liquids or gases.
3. Guard against electric shock.
> Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators,
ranges, refrigerators).
4. Keep children away.
> Do not let persons, especially children, not involved in the work touch the
tool or the extension cord and keep them away from the work area.
5. Store idle tools.
> When not in use, tools should be stored in a dry, high or locked up place,
out of reach of children.
6. Do not force the tool.
> It will do the job better and safer at the rate for which it was intended.
7. Use the right tool.
> Do not force small tools to do the job of a heavy-duty tool. Do not use tools
for purposes not intended, for example, do not use circular saws to cut tree
limbs or logs.
8. Dress properly.
> Do not wear loose clothing or jewellery, they can be caught in moving parts.
Non-skid footwear are recommended when working outdoors. Wear protective
hair covering to contain long hair.
9. Use protective equipment.
> Use safety glasses. Use face or dust mask if working operations create dust.
10. Connect dust extraction equipment.
> If the tool is provided for the connection of dust extraction and collecting
equipment, ensure these are connected and properly used.
11. Do not abuse the cord.
> Never yank the tool to disconnect it from the socket. Keep the cord away
from heat, oil and sharp edges.
12. Secure work.
> Where possible use clamps or a vice to hold the work. It is safer than using
your hand.
13. Do not overreach.
> Keep proper footing and balance at all times.
14. Maintain tool with care.

> Keep cutting tools sharp and clean for better and safer performance. Follow
instructions for lubrication and changing accessories. Inspect tool cord periodically
and if damaged have them replaced by an authorised service facility. Inspect
extension cords periodically and replace if damaged. Keep handles dry, clean
and free of oil or grease.
15. Disconnect tools.
> When not in use, before servicing and when changing accessories such
as blades, bits and cutters, disconnect tools from the power supply.
16. Remove adjusting keys and wrenches.
>
From the habit of checking to see that keys and adjusting wrenches are removed
from the tool before turning it on.
17. Avoid unintentional starting.
> Ensure switch is in the “off” when plugging in.
18. Use outdoor extension leads.
> When tool is used outdoors, use only extension cords intended for outdoor use
and so marked.
19. Stay alert.
> Watch what you are doing. Use common sense. Do not operate tool when you
are tired.
20. Check damaged parts.
> Before further use of the tool, it should be carefully checked to determine that
it will operate properly and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of parts, mounting and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorised service
centre unless otherwise indicated in this instruction manual. Have defective
switches replaced by an authorised service facility. Do not use the tool if the
switch dose not turn it on and off.
21. Warning.
> The using of any accessory or attachment other than those recommended in
this instruction manual may present a risk of personal injury.
22. Have your tools repaired by qualified person.
> This electrical tool complies with the relevant safety requirements. Repairs
should only be carried out by qualified persons using original spare parts,
otherwise this may result in considerable danger to the user.
HEALTH ADVICE
Warning! When drilling, sanding, sawing or grinding, dust particles will be
produced. In some instances, depending on the materials you are working
with, this dust can be particularly harmful to you (e.g. lead from old gloss paint).
09
TTB545SSW by TITAN Technical and legal
information
Getting started...
GB
IE

You are advised to consider the risks associated with the materials you
are working with and to reduce the risk of exposure. You should:
- Work in a well-ventilated area.
- Work with approved safety equipment, such as those dust masks that are
specially designed to filter microscopic particles.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR TOOLS
WARNING: Do not operate the scroll saw until it is assembled, and you
have read and understood the following instructions and the warning labels
on the scroll saw.
Before operating
> Check for proper assembly and proper alignment of moving parts. Understand
the function and proper use of the ON/OFF switch.
> Understand the function and proper use of the ON/OFF switch.
> Know the condition of the scroll saw. If any part is missing, bent, or does not
operate properly, replace the component before you use the scroll saw.
> Determine the type of work you are going to be doing. Properly protect your
body including your eyes, hands, face, and ears.
> To avoid injury caused by pieces thrown from accessories, use only
recommended accessories designed for this saw. Follow the instructions
supplied with the accessory. The use of improper accessories may cause
risk of injury.
> To avoid contact with rotating equipment:
• Do not position your fingers where they could contact the blade if the
workpiece should unexpectedly shift or your hand should slip.
• Do not cut a workpiece too small to be held safely.
• Do not reach under the scroll saw table when the motor is running.
• Do not wear loose clothing or jewelry. Roll long sleeves above the elbow.
Tie back long hair.
> To avoid injury from accidental starting of the scroll saw:
• Make sure the switch is OFF and unplug the power cord from the electric
outlet before changing the blade, performing maintenance or making
adjustments.
• Make sure the switch is OFF before plugging in the power cord to an electric
outlet.
> To avoid injury from a fire hazard, do not operate the scroll saw near flammable
liquids, vapors or gases.
> To avoid back injury:
• Obtain help when it is necessary to raise the scroll saw more than 10 inches.
TTB545SSW by TITAN
Getting started...
GB
10
IE
Technical and legal
information

Bend your knees when lifting the scroll saw.
> Carry the scroll saw by its base. Do not move the scroll saw by pulling on the
powercord. Pulling on the power cord could cause damage to the insulation
or the wire connections resulting in electric shock or fire.
When operating the scroll saw
WARNING: Use the rotary tool for sanding and grinding applications only.
This product is not recommended for drilling applications.
> To avoid injury from unexpected scroll saw movement:
• Use the scroll saw on a firm level surface with adequate space for handling
and supporting the workpiece.
• Be sure the scroll saw cannot move when operated. Secure the scroll saw to
a workbench or table with wood screws or bolts with washers and nuts.
> Before moving the scroll saw, unplug the power cord from the electrical outlet.
> To avoid injury from kickback:
• Hold the workpiece firmly against the tabletop.
• Do not feed the workpiece too fast while cutting. Only feed the workpiece at
the rate the saw will cut.
• Install the blade with the teeth pointing downward.
• Do not start the saw with the workpiece pressing against the blade. Slowly
feed the workpiece into the moving blade.
•
Use caution when cutting round or irregularly shaped work pieces. Round items
will roll and irregularly shaped work pieces can pinch the blade.
> To avoid injury when operating the scroll saw:
•
If you are not thoroughly familiar with the operation of scroll saws, obtain advice
from a qualified person.
• Before starting the saw, make sure the blade tension is correct. Recheck and
adjust tension as needed.
• Make sure the table is locked into position before starting the saw.
• Do not use dull or bent blades.
• When cutting a large workpiece, make sure the material is supported at the
table height.
•
Turn the saw OFF and unplug the power cord if the blade jams in the workpiece
while being backed out. This condition is usually caused by sawdust clogging
the line you are cutting. If this happens, turn OFF the scroll saw and unplug
the power cord. Wedge open the workpiece and back out the blade.
• Do not use if blade guard is damaged or missing.
• Do not clear away cut-off pieces until blade has stopped and the saw is turned
off.
11
TTB545SSW by TITAN Technical and legal
information
Getting started...
GB
IE

Before you start
Unpack
> Unpack all parts and lay them on a flat, stable surface.
> Remove all packing materials and shipping devices if applicable.
> Make sure the delivery contents are complete and free of any damage. If you
find that parts are missing or show damage do not use the product but contact
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
You will need
(items not supplied)
> Suitable personal
protective equipment
> Phillips screwdriver
> Combination square
> 12mm Spanner
> Small C-clamps (2pcs)
> Ruler or measuring tape
> 12" Straight scrap of wood
(thickness to match workpiece)
(items supplied)
> 5mm Hex key (1pc)
> Chuck key (1pc)
Mounting your machine
Your scroll saw is provided with 4 mounting holes (28), and It is recommended
that this tool is securely mounted onto a robust workbench.
TTB545SSW by TITAN
Getting started...
GB
12
IE
WARNING! Do not connect to power supply until assembly
is complete. Failure to comply could result in accidental starting
and possible serious injury.
CAUTION! Do not lift the saw by the arm that holds the blade. The
saw will be damaged.

Storage compartment
A storage location (35) for small accessories.
Align the bevel indicator
The bevel indicator has been factory adjusted, it should be rechecked prior to use
for best operation.
> Remove the blade guard foot (6) using a hex key to loosen the screw (24) with
5mm hex key.
> Loosen the table bevel lock handle (8) and turn the table adjustment knob (26) to
move the table until it is approximately at a right angle to the blade.
> Use a combination square (36) (not provided) to set the table exactly 90º to the
blade (25). If there is space between the square and the blade adjust the table
angle until the space is closed.
> Tighten the table bevel lock handle (8) to prevent movement.
> Insert the bolts
8 x 50mm (30), spring washers M8 (31), rubber feet (32), flat washers
(33) and nut (34) into the holes in turns as shown in Fig. 1.
> Then tighten the 4 bolts (30) with 12mm spanner (not supplied).
13
TTB545SSW by TITAN Before you start
Getting started...
GB
IE
Fig. 2
35
Fig. 1
28
33
32
30
34
31

WARNING: to reduce the risk of injury:
• When carrying the saw, hold it close to your body to avoid injury
to your back. Bend your knees when lifting the saw.
• Carry the saw by the base. Do not carry the saw by the power
cord.
• Secure the saw in a position where people cannot stand, sit or
walk behind it. Debris thrown from the saw could injure people
standing, sitting or walking behind it.
• Secure the saw on a firm, level surface where the saw cannot
rock and there is adequate room for handling and properly
supporting the workpiece.
Before you start
> Loosen the screw (37) holding the bevel scale pointer and position pointer to 0º.
Tighten the screw.
> Attach the blade guard foot (6) and tighten the screw (24) with 5mm hex key.
Blade guard foot adjustment
When cutting at angles, the blade guard foot should be adjusted so it is parallel
to the table and rests flat above the workpiece.
> To adjust, loosen the screw (24), tilt the foot (6) so it is parallel to the table, and
tighten the screw.
> Loosen the height adjustment knob (19) to raise or lower the foot until it just
rests on top of the workpiece. Tighten the knob.
> Loosen the horizontal adjustment screw (38) with hex key 5mm, then move
the foot forward or backward as needed.
TTB545SSW by TITAN
Getting started...
GB
14
IE
Fig. 3
6
24
Fig. 4
0°
10°
10°
20°
20°
30°
30°
40°
40°
8
37
26
Fig. 5
36
25

Sawdust collection port
This scroll saw allows a hose or vacuum accessory (not provided) to be connected
to the sawdust port (9) at the front of the saw and to the dust port (21) under the
rotary tool table (20), if installed.
If excessive sawdust buildup occurs inside the base, use a wet/dry vacuum cleaner
or manually remove sawdust. This will keep your saw cutting efficiently.
Adjusting the dust blower/light
For best results, the dust blower tube should be adjusted to direct air and light at
the blade and workpiece.
15
TTB545SSW by TITAN Before you start
Getting started...
GB
IE

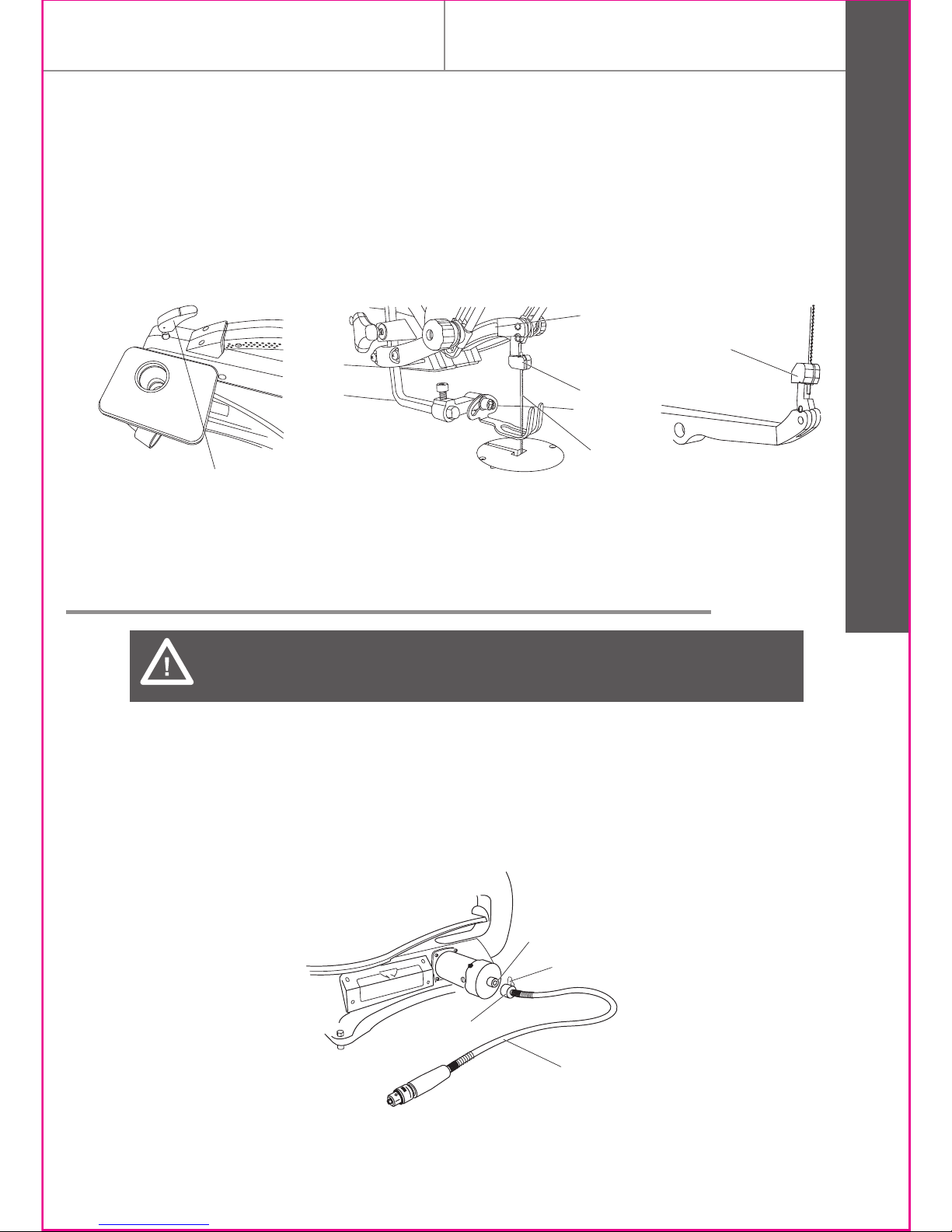

Fig. 6
Fig. 7 Fig. 8
6
24
38
19
21
20
9

NOTE: Thinner blades will have more possibilities for blade
deflection when cutting angles are not perpendicular to the table.
Fig. 9
Before you start
Blade selection
This scroll saw accepts 5" length pin-end blades, with a wide variety of blade
thicknesses and widths. The type of material and intricacies of cutting operations
will determine the number of teeth per inch. Always select the narrowest blades
for intricate (tight radius and curves) curve cutting and the widest blades
for straight and large curve cutting operations. The following table represents
suggestions for various materials. When purchasing blades, refer to the back of
the package for best use of blades on various materials. Use this table as an
example, but practice and your own personal preference will be the best selection
method.
When choosing a blade, use very fine, narrow blades to scroll cut in thin wood
1/4" thick or less. Use wider blades for thicker materials but this will reduce the
ability to cut tight curves.
TTB545SSW by TITAN
Getting started...
GB
16
IE
Teeth/inch
TPI
Blade width
Inch
Blade thickness
Inch Blade/SPM Material cut
10-15 0.110 0.018 500-1200 Medium turns on ¼” to 1-3/4”
wood, soft metal, hardwood
15-28 0.055-0.110 0.010-0.018 800-1700 Small turns on 1/8” to 1-1/2”
wood, soft metal, hardwood
30-48 0.024-0.041 0.012-0.019 Varies Non-ferrous metal/hardwoods
using very slow speeds
9.5-15 15-28 30-48

CAUTION: Any and all servicing should be performed by a
qualified service center.
CAUTION: Install the blade with the teeth pointed downward.
WARNING: To prevent personal injury, always turn saw OFF and
disconnect the plug from the power source before changing blades
or making adjustments.
NOTE: When installing pin-end blades, the slot on the blade holder
must be slightly wider than the thickness of the blade. After the
blade is installed, the blade tension mechanism will keep it
in place.
Blade removal and installation
Blade Care
> Loosen the blade tension by raising the blade tension lock lever (13).
> To remove a blade:
Lift the blade (25) out by pulling forward on blade (25), then lifting the blade (25)
from the upper blade holder (5) and lower blade holder (22). Slight downward
pressure against the upper arm (39) may be helpful when removing blade from
upper blade holder (5).
Pin-end blades are thicker for stability and for faster assembly. They provide faster
cutting on a variety of materials.
To maximize the life of your scroll saw blades:
> Do not bend blades when installing.
> Always set proper blade tension.
> Use the right blade (see instructions on replacement blade packaging for proper
use.)
> Feed the workpiece correctly into the blade.
> Use thin blades for intricate cutting.
17
TTB545SSW by TITAN Before you start
Getting started...
GB
IE

WARNING: Remove the saw blade before installing and/or using
the rotary tool.
Fig. 10
Fig. 13
Fig. 12
18
Before you start
Connect the rotary tool to the saw
The rotary tool can be used as a handheld or stationary device. The rotary tool
connects to the motor and is operated using the ON/OFF switch and variable
speed dial on the saw.
> Open the latch (40) on the rotary tool coupler (40) of the rotray tool (27).
> Insert the inner cable into the opening (42) at the end of the motor fitting.
> Place the coupler (41) over the motor fitting. Turn the coupler to ensure a good
fit, and close the latch (40).
> Install a blade:
• Hook a blade (25) in the recess of the lower blade holder (22).
• Press down on the upper arm (39) and insert the blade into the slot on the upper
holder (5).
• Lower the blade tension lock lever (13). Make sure the blade is properly located
in the blade holders.
TTB545SSW by TITAN
Getting started...
GB
IE
13
22
Fig. 11
25
5
39
42
40
41
27

WARNING: Use the rotary tool for sanding and grinding applications
only. This product is not recommended for drilling applications.

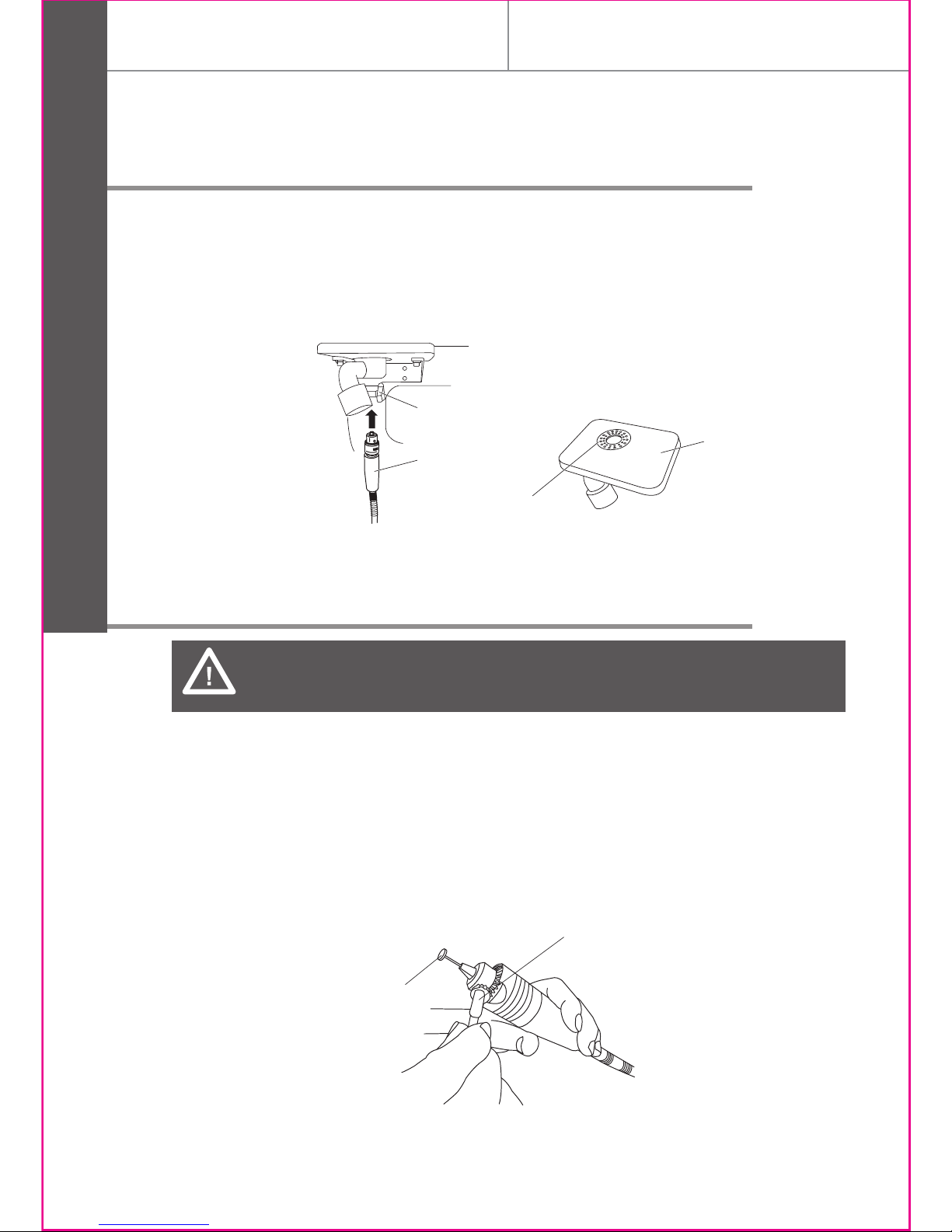

Attach the tool to the support bracket
Use this procedure to use the rotary tool as a stationary device.
> Loosen the knob (43) on the rotary clamp.
>
Insert the rotary tool (27) through the clamp and the opening in the rotary table (20).
> Tighten the knob (43) to secure the rotary tool in the clamp.
> Place the rotary table insert (44) in the opening on the rotary table.
Install rotary tools
> Place the chuck key (29) into the side keyhole of the chuck, meshing the key with
the gear teeth.
> Turn the chuck key counterclockwise to open the chuck jaws.
>
Insert a rotary tool (45) (not provided) into the chuck far enough to obtain maximum
gripping of the chuck jaws.
> Center the rotary tool in the chuck jaws.
> Tighten the chuck jaws using the chuck key to ensure that the tool will not slip
while drilling.
> Remove the chuck key (29).
TTB545SSW by TITAN Before you start
Getting started...
GB
IE
19
29
Fig. 15
Fig. 16
20
Fig. 14
27
44
43
45

TTB545SSW by TITAN
20
In more detail…
In more detail…
21
27
31
33
34
Product functions
Care and maintenance
Trouble shooting
Recycling and disposal
EC declaration of conformity
GB
IE
