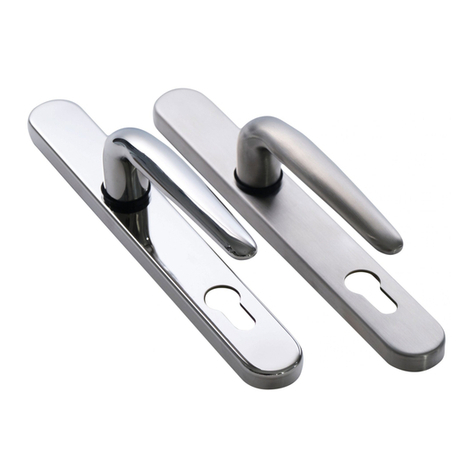

Titon Overture DH Operating instructions

Overture DH - Short Base Plate
Fixing and Operating Instructions
Failure to adhere to these instructions invalidates your Titon Product Guarantee.
Paint or corrosion not covered by Guarantee.
1. Rout / drill door.
2. Cut screws (M5) and spindles (8mm Square) to length if
necessary.
3. Place spindles in position
4. Place both handles into position and insert and tighten
xing screws, leaving loose.
5. Fit Euro cylinder and tighten handle xing screws, do not
over tighten.
Cleaning
Door handles should only be cleaned using warm soapy water
and a soft cloth.
Do not clean any part with solvents or abrasive substances.
21.5
92
122
R9.5
16
Ø
12
Ø
10.5
Ø
10.5
Routing / Drilling Detail
Supplied with:
1 shafts 108mm
1 shaft 95mm
2 screws M5 85mm long
2 screws M5 75mm long
TN8100 & TN8104
(Lever/Lever)
Supplied with:
1 shafts 108mm
2 screws M5 85mm long
2 screws M5 75mm long
TN8101 & TN 8105
(Lever/Pad)
Fixing InstructionsDiagram
BM484 Iss01 © 2014
Page 1 of 3

Overture DH - Short Base Plate
Fixing and Operating Instructions
29
120
10.5
44
21.5
122
211.5
92
33
10.5
56
39
65
96
6.8
6.8
Diagram
BM484 Iss01 © 2014
Lever/Pad
Page 2 of 3

Overture DH - Short Base Plate
Fixing and Operating Instructions
BM484 Iss01 © 2014
120
10.5
44
21.5
122
211.5
92
43.5
56
Diagram
Lever/Lever
Page 3 of 3
