Kallista P50014 User manual

Installation Guide
Cast Iron
Bath Whirlpool
Français, page “Français-1”
Español, página “Español-1”
P50014 P50035
1019455-2-D

Important Information
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. Connect only to circuits protected by Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install in a manner that permits access for servicing of all critical components.
A pressure wire connector marked “Earth/Ground” is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB). The GFCI or ELCB protects against line-to-ground shock hazard. Use a 208 - 240 V,
20 A, 50/60 Hz dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool
system, as this could adversely affect the performance and safe operation of the whirlpool. Kallista
shall not be liable under its warranty or otherwise for personal injury or damage caused by any
such unauthorized modification.
Features
″-H2″Series: Components include a pump, heater, control, Flexjet whirlpool jets, illuminated switch (user
keypad) and remote.
The whirlpool pump and piping are factory-assembled.
Connections and Service Access
Before installation, ensure proper access to the final connections.
1019455-2-D 2 Kallista

Product Information (cont.)
NOTICE: Provide generous, unrestricted service access to the pump. You must provide access for
servicing the pump and controls. The access must be located immediately next to the pump. Study the
roughing-in information for your whirlpool model.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Electrical Requirements .......................................................... 2
Product Notices ................................................................ 2
Features ..................................................................... 2
Connections and Service Access ................................................... 2
Tools and Materials ............................................................... 3
Before You Begin ................................................................. 3
Roughing-In Dimensions ........................................................... 5
Prepare the Site - Concrete Construction ............................................... 6
Prepare the Site - Wood Construction .................................................. 7
Prepare the Whirlpool ............................................................. 7
Install the Whirlpool ............................................................... 8
Cut the Pump Banding Straps ....................................................... 8
Install the Plumbing ............................................................... 8
Make Electrical Connections ......................................................... 9
Test Run the Whirlpool ............................................................ 10
Complete the Finished Wall/Deck .................................................... 11
Complete the Concrete Installation ................................................... 11
Clean-Up After Installation ......................................................... 11
Confirm Proper Operation .......................................................... 12
Operating Sequence ............................................................. 12
Remote Control Operation ......................................................... 13
Troubleshooting Procedures ........................................................ 13

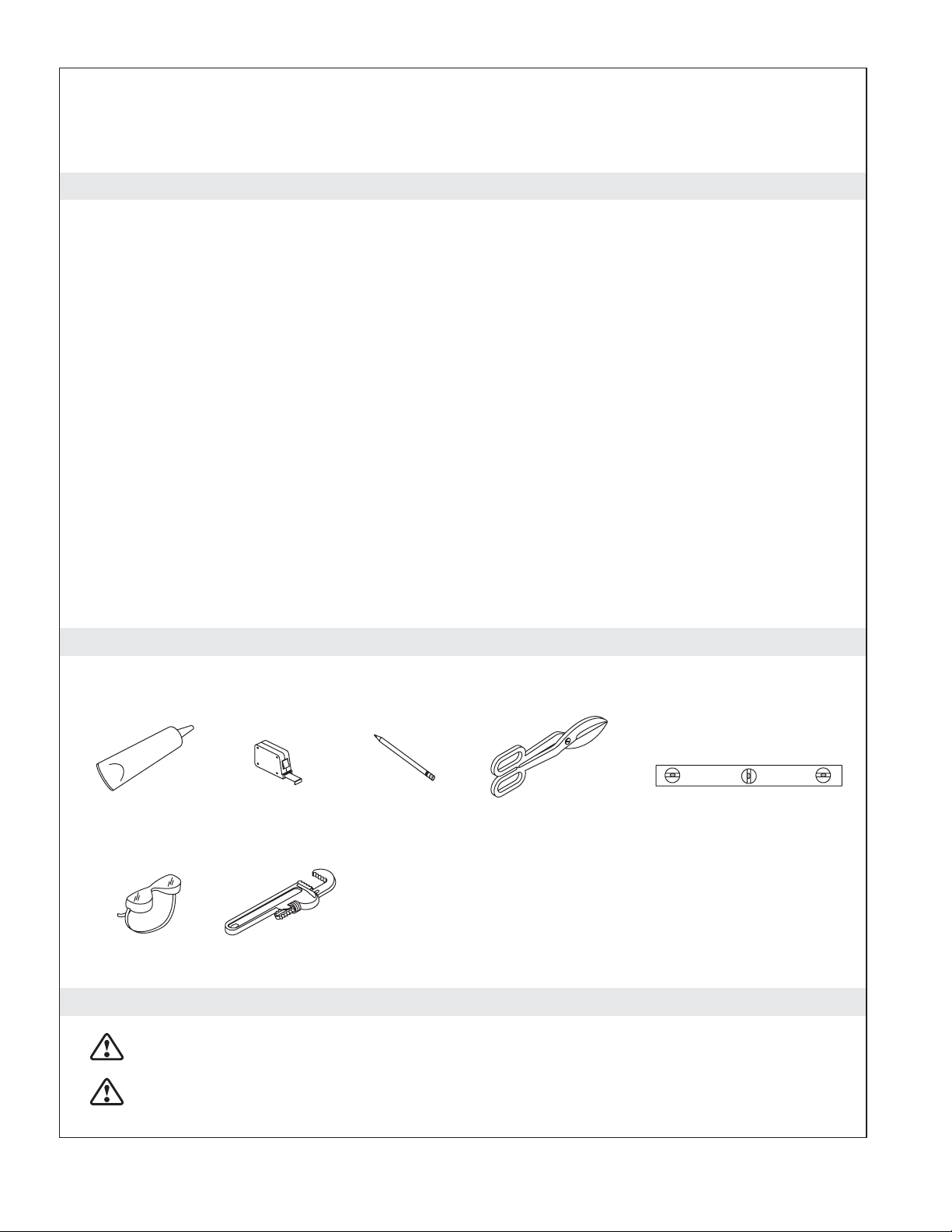

Tools and Materials
Before You Begin
WARNING: Risk of personal injury. Your cast iron whirlpool is extremely heavy. Obtain sufficient
help to carefully lift and move it.
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
Plus:
• Conventional woodworking or concrete
installation tools and materials
• Drop cloth
• Metal shims
• 2x4s
Silicone Sealant Measuring Tape Pencil Tin Snips Level
Safety Glasses Pipe Wrench
Kallista 3 1019455-2-D

Before You Begin (cont.)
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
This whirlpool is intended for drop-in or alcove installation, depending upon the model chosen.
Inspect the whirlpool for damage before you begin installation.
You must install this whirlpool to an adequately supported, level subfloor.
Kallista reserves the right to make revisions in the design of products without notice, as specified in
the Price Book.
1019455-2-D 4 Kallista

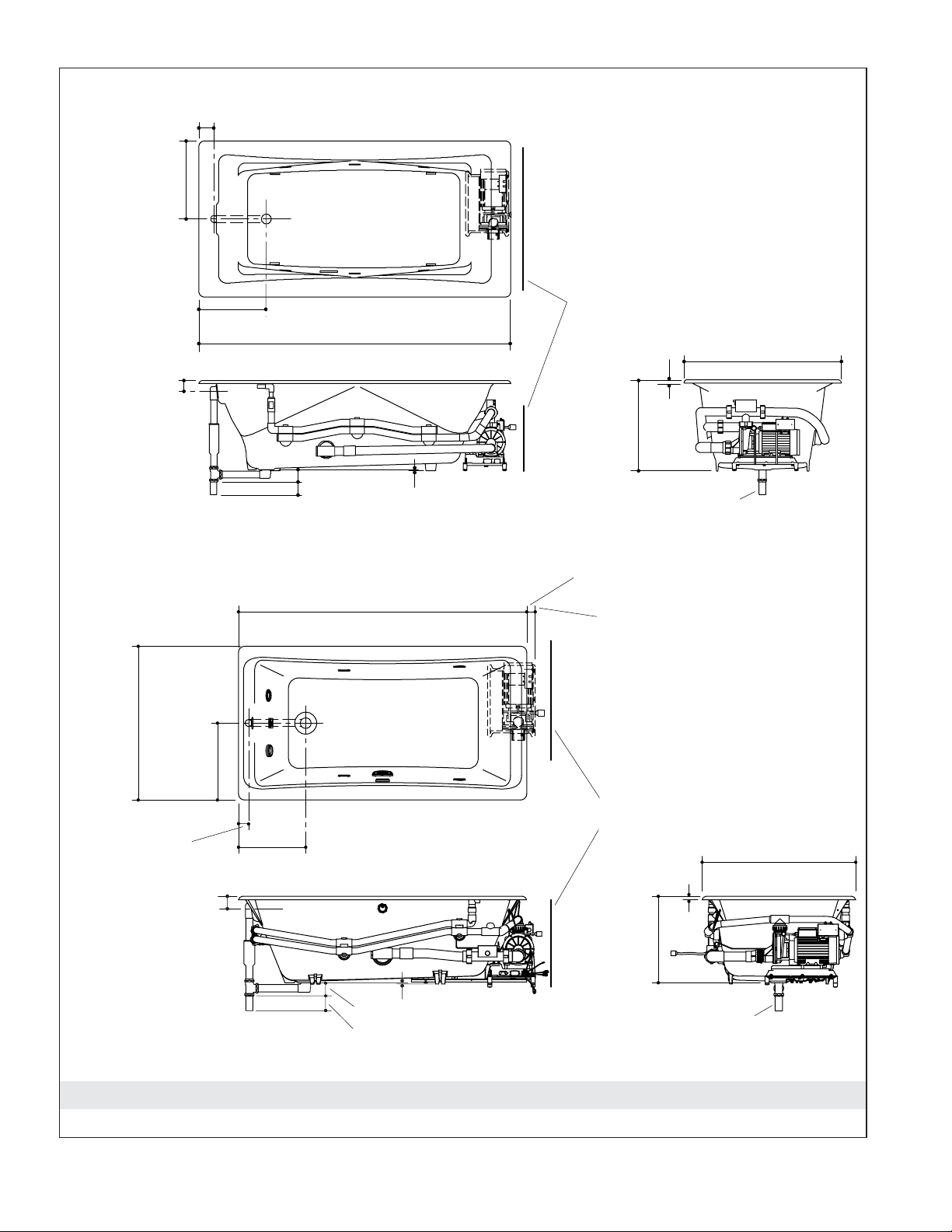

1. Roughing-In Dimensions
32" (81.3 cm)
14" (35.6 cm)
1-3/4" (4.4 cm)
60" (152.4 cm)
18-1/4"
(46.4 cm)
1-5/8"
(4.1 cm)
16"
(40.6 cm)
Note: Pump
Protrusion
Beyond Rim
1-1/2" (3.2 cm) OD
3/4" (2 cm)
1/4" (6 mm)
2-7/8" (7.3 cm)
3" (7.6 cm)
2-1/2"
(6.4 cm)
32"
(81.3 cm)
18"
(45.7 cm)
3-1/2"
(8.9 cm)
2-1/2"
(6.4 cm)
P50014-H2
P50035-H2
71-3/4" (182.2 cm)
15-5/8" (39.7 cm)
1/4" (6 mm)
2-7/8" (7.3 cm)
3" (7.6 cm)
36" (91.4 cm)
1-1/2" (3.2 cm) OD
20-7/8"
(53 cm)
3/4"
(2 cm)
Pump/Control Access,
24" (61 cm) W x 14" (35.6 cm) H
Pump/Control Access,
24" (61 cm) W x 14" (35.6 cm) H
Kallista 5 1019455-2-D

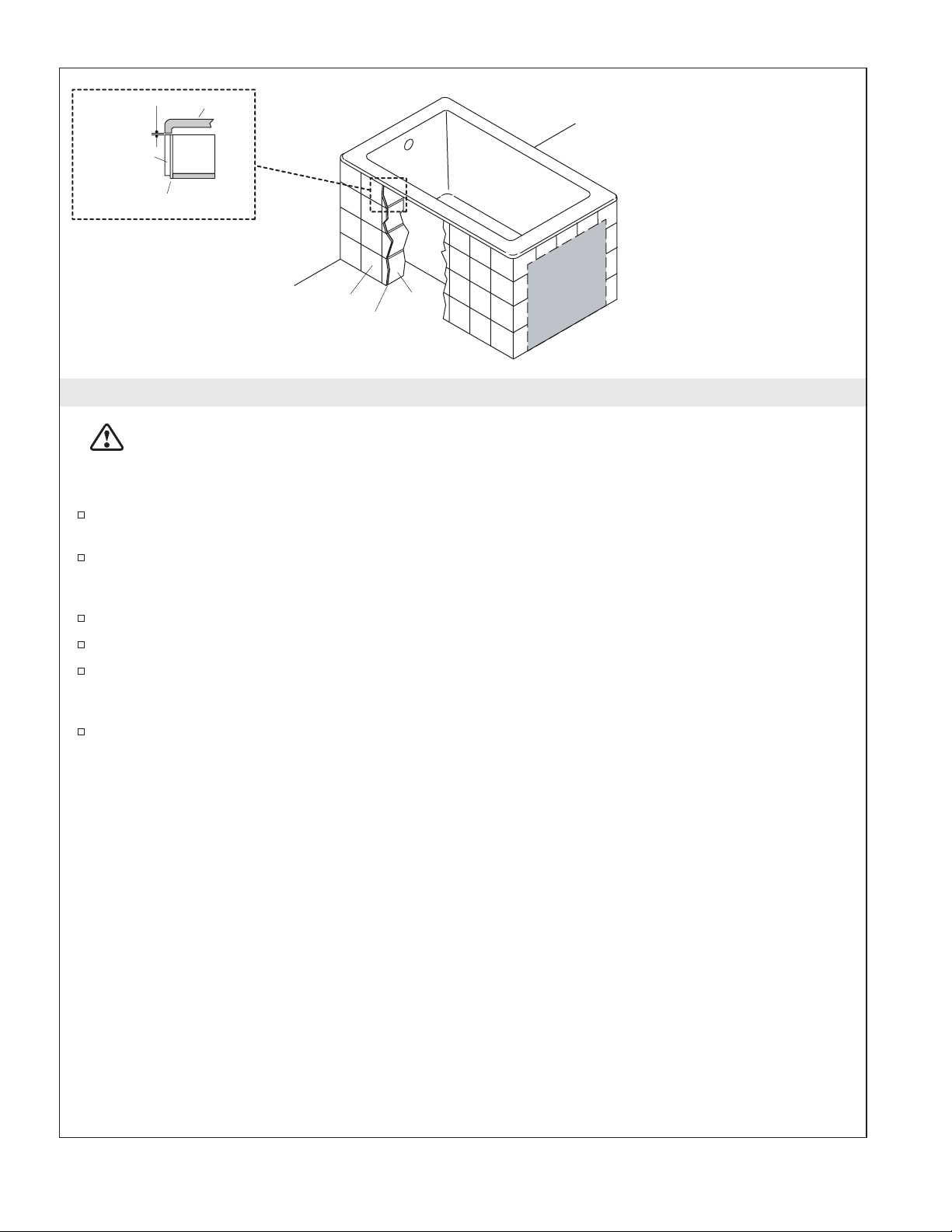

2. Prepare the Site - Concrete Construction
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
NOTICE: Adequate floor support must be provided. Floor supports under the whirlpool must provide for
a minimum of 1800 lbs (816 kg).
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
This whirlpool may be installed next to the wall or in an island installation. An island installation
requires a four side surround. In both instances, make sure the deck is supported by brick or
concrete.
Install an access panel to allow the pump to be serviced.
Construct brick or concrete supports.
Provide a 1/16” (2 mm) gap between the whirlpool rim and the concrete or brick framing. Frame
the floor, or construct a frame for a raised installation, in accordance with the roughing-in
information packed with the whirlpool.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.

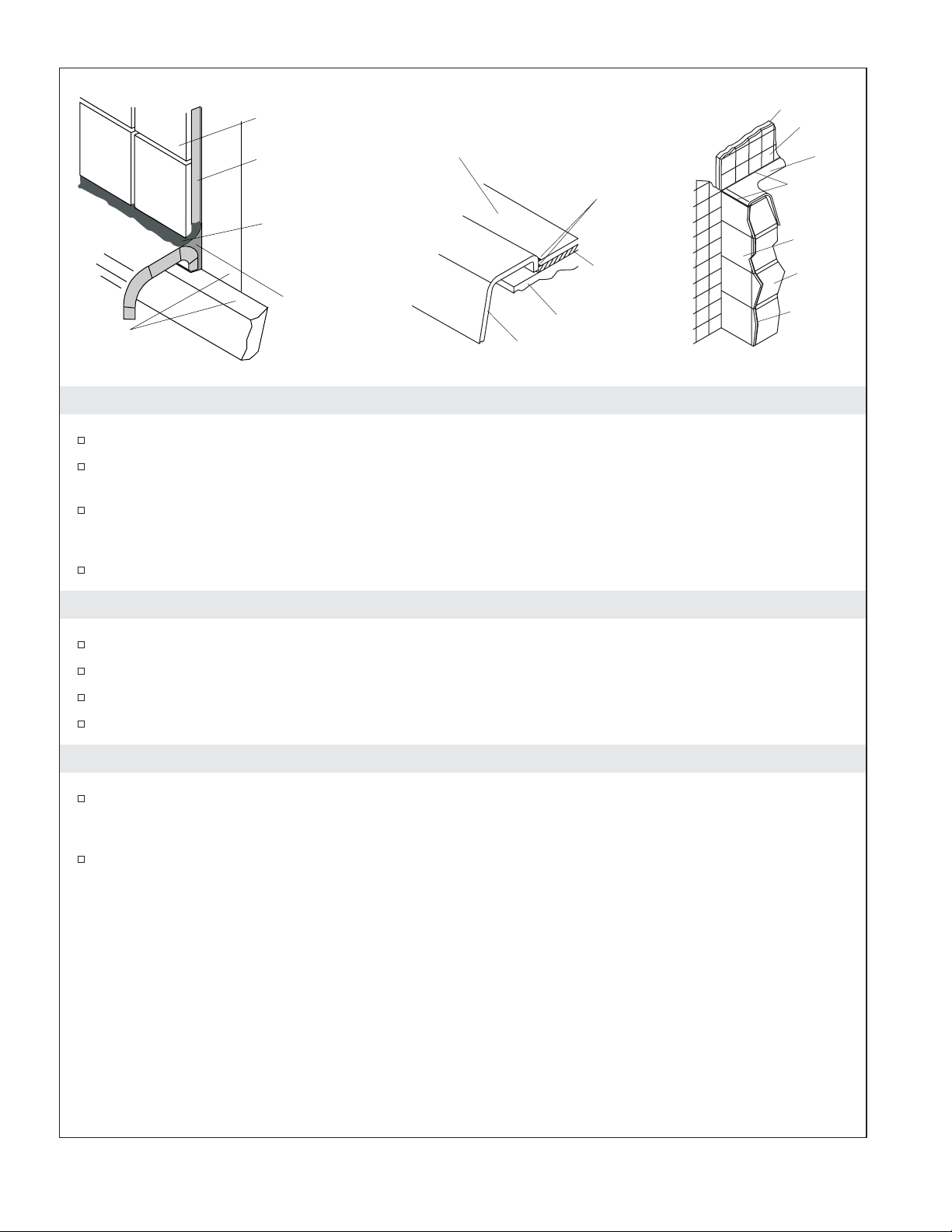

Brick
Bath
1/16"
(2 mm)
Tile
Approved
Tile Backing
Typical
access
panel
Tile
Approved
Tile Backing
Brick
Whirlpool may be installed
next to the wall or as an
island installation.
Install an access panel to allow
the pump to be serviced.
1019455-2-D 6 Kallista

3. Prepare the Site - Wood Construction
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
NOTICE: Adequate floor support must be provided. Consult the roughing-in information for your
whirlpool for specific floor loading requirements.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
The whirlpool may be used in a drop-in or alcove installation. Construct 2x4 stud framing designed
for your particular installation. Frame the floor, or construct a frame for a raised installation in
accordance with the roughing-in information packed with the whirlpool.
Use the roughing-in information to carefully lay out and cut the rough deck material.
Install an access panel to allow the pump to be serviced.
Position the plumbing according to the roughing-in information. Cap the supplies, and check for
leaks.
4. Prepare the Whirlpool
We recommend a tiling-in bead for straight-rimmed whirlpools, if one or more sides of the
whirlpool contact a wall. This bead prevents water from seeping between the whirlpool rim and the
wall. Follow the instructions packed with the tiling-in bead to install the bead now.
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
Construct 2x4
stud framing
according to
the roughing-in
information.
Position
the rough
plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level.
Typical access panel
Frame the floor according to
the roughing-in information.
Position the
rough plumbing.
Verify that the subfloor offers
adequate support, and is flat
and level.
Typical access panel
Kallista 7 1019455-2-D

5. Install the Whirlpool
WARNING: Risk of personal injury. This cast iron whirlpool is extremely heavy. Obtain sufficient
help to carefully lift and move it.
CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the
piping or pump for structural support of the whirlpool.
CAUTION: Risk of product damage. Do not support the whirlpool by the rim.
Carefully move the whirlpool into position. Insert the drain tailpiece into the trap.
Level the whirlpool by fitting metal shims under the whirlpool feet as needed. Check for level along
the top of the whirlpool, and across the drain side. If the feet are not accessible from the back or
side, move the whirlpool in and out of position to shim it properly. Make sure the whirlpool is
resting on all four feet.
6. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your whirlpool operate more quietly.
Use tin snips to cut the two pump banding straps from the whirlpool pump.
NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is
raised too high, it will not prime properly. Make sure the rubber isolation feet are in place.
To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the
whirlpool after the pump banding straps are cut. The pump control contains rubber isolation feet to
reduce pump noise.
7. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
Level by fitting metal shims
under the whirlpool feet.
Pump
Wiring
Harness
Rubber Isolation Feet
Control
Cut the pump banding straps.
1019455-2-D 8 Kallista

8. Make Electrical Connections
NOTE: The product model number is printed on a label on the pump side of the whirlpool bath. This
label also identifies the electrical rating of the product. All whirlpools come equipped with a wiring
junction box and are designed to operate between 208 VAC and 240 VAC at either 50 Hz or 60 Hz.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before
performing the following procedures. Refer to the “Important Information” section.
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker
(ELCB). This will provide additional protection against line-to-ground shock hazard. A 208-240 V, 20
A, 50/60 Hz dedicated circuit is required.
IMPORTANT! The load neutral is not used. There should be no connection to the load neutral terminal
on the Ground-Fault Circuit-Interrupter (GFCI) breaker. The green wire with the yellow stripe is the
equipment ground and needs to be connected to the neutral bus in the main circuit breaker box.
The whirlpool bath control and system have been pre-wired at the factory. A licensed electrician
should make a routine service connection to the junction box.
Connect service to the junction box. The junction box contains blue, brown, and green with a yellow
stripe colored wires.
Follow local electrical codes. Bond in accordance with national and local codes.
A wiring harness has been pre-wired at the factory, allowing communication between the keypad,
all features, and the control. No additional wiring is required, but ensure that all wires are securely
fastened.
NOTE: Your wiring harness included an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
Heater (models may vary) T-style (shown)
or In-line (not shown)
Heater Electrical Cord
Wiring Harness
Junction Box
Control
Pump Electrical Cord
From
Control
Brown (L2)
* Connections to be Made
at the Circuit Breaker
S/N
* Equipment Ground Wire Connectors
Neutral Bus
(In Breaker Box)
120/240 VAC
Source
Typical Two-Pole
Circuit Breaker
with GFCI
* Line Neutral
(White Curly
Wire)
Typical Wiring Connection for North America
Ground
(Green with
Yellow Stripes)
*L1
No Connection
(Load Neutral)
Field Wiring
(From Junction Box
to GFCI Breaker)
Electrician to provide suitable
strain relief cable.
Wire
Connector
Blue (L1)
*L2
240 V
120 V
240 V
120 V
Breaker Box
L1 L2N
Bond in accordance with national and local codes.
Open bonding lugs are located at the top of the
junction box.
Kallista 9 1019455-2-D

9. Test Run the Whirlpool
Check all electrical connections.
Make sure all union connections to the pumps and heater are securely hand tightened.
Verify that the pump banding straps have been cut, and that the pump controls are resting directly
on the subfloor. Ensure that the rubber isolation feet are in place.
Turn electrical power to the whirlpool on.
Fill the whirlpool to a level at least 2″(5 cm) above the top of the highest jet.
Operate the whirlpool for 5 minutes (refer to the ″Operating Sequence″section) and check all
whirlpool piping connections, on the back side, for leaks.
Turn on each of the whirlpool features and verify proper function. Check for any water leakage on
the whirlpool’s back side.
For additional information on whirlpool operation, see ″Confirm Proper Operation″section.
1019455-2-D 10 Kallista

10. Complete the Finished Wall/Deck
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Cover the framing with water-resistant wall/deck material. Seal the joints between the whirlpool
rim edge and the water-resistant wall/deck material with silicone sealant.
Tape and mud the water-resistant wall/deck material. Install the finished wall/deck to the
water-resistant wall/deck material. Seal the joints between the whirlpool rim and the finished
wall/deck material with silicone sealant.
Install the faucet trim according to the instructions packed with the trim.
11. Complete the Concrete Installation
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Apply mortar and tile to the wall, deck and surround material as needed.
Apply a bead of sealant where the tile meets the whirlpool surface.
Install the faucet trim according to the instructions packed with the trim.
12. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. If necessary, use warm water and a liquid detergent to clean the surface of the
whirlpool, user keypad and remote control.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.
Whirlpool
Finished Wall
Material
Water-Resistant
Wall Material
Tiling-in Bead
Framing
Apply silicone sealant to
the edges of the water-
resistant wall material
and the finished wall.
Finished Deck
Material
Whirlpool
Framing Material
Water-
Resistant
Deck Material
Wall Material
Tile
Whirlpool
Brick
Approved
Tile
Backing
Apply silicone
sealant to the
edges of the water-
resistant deck
material and the
finished deck. Apply
sealant
Alcove Installation Drop-In Installation Concrete Installation
Tile
Kallista 11 1019455-2-D

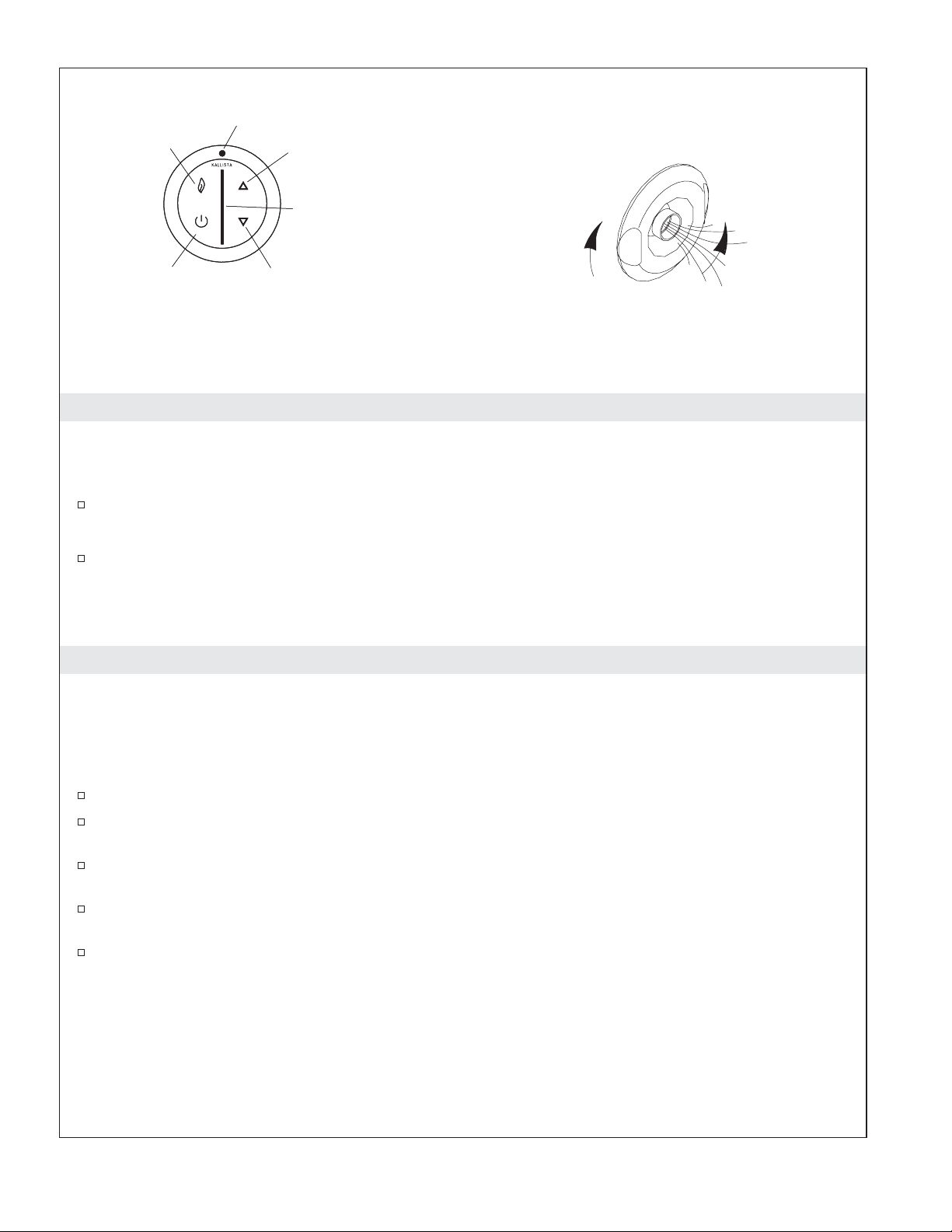

13. Confirm Proper Operation
Fill the Whirlpool
NOTE: Please read these steps carefully before you operate your whirlpool.
Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully
counterclockwise.
Fill the whirlpool to a water level at least 2” (5 cm) above the top of the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104°F (40°C). The heater will
automatically turn off as the water temperature approaches 104°F (40°C) and will remain off until the
water cools.
14. Operating Sequence
NOTE: A built-in heater automatically helps to maintain the water temperature when the whirlpool is
running. The heater will disengage at higher temperatures exceeding 104°F (40°C).
IMPORTANT! Please refer to your Homeowners Guide for detailed instructions on the user keypad and
remote control.
Press the power icon to turn on the whirlpool. The whirlpool will start at medium flow.
Increase or decrease the water flow by pressing either the up or down arrow icons on the keypad.
An indicator bar in the center of the keypad shows the water flow volume.
Adjust each jet for optimum air/water mixture. Turn the jet trim clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
Press the heater icon to turn the heater off and back on. When illuminated, the indicator light shows
that the water temperature will be maintained up to 104°F (40°C).
Press the power On/Off icon a second time to turn the whirlpool off.
NOTE: A built-in timer automatically stops the pump and motor after approximately 20 minutes of
operation.
Heater
On/Off
Power
On/Off Decreases
Flow
Indicator Bar -
Shows water
flow volume
Increases
Flow
Heater Indicator Light
Lighted User Keypad
Turn the jet trim
clockwise to
decrease the flow.
Turn the jet trim
counterclockwise to
increase the flow.
1019455-2-D 12 Kallista

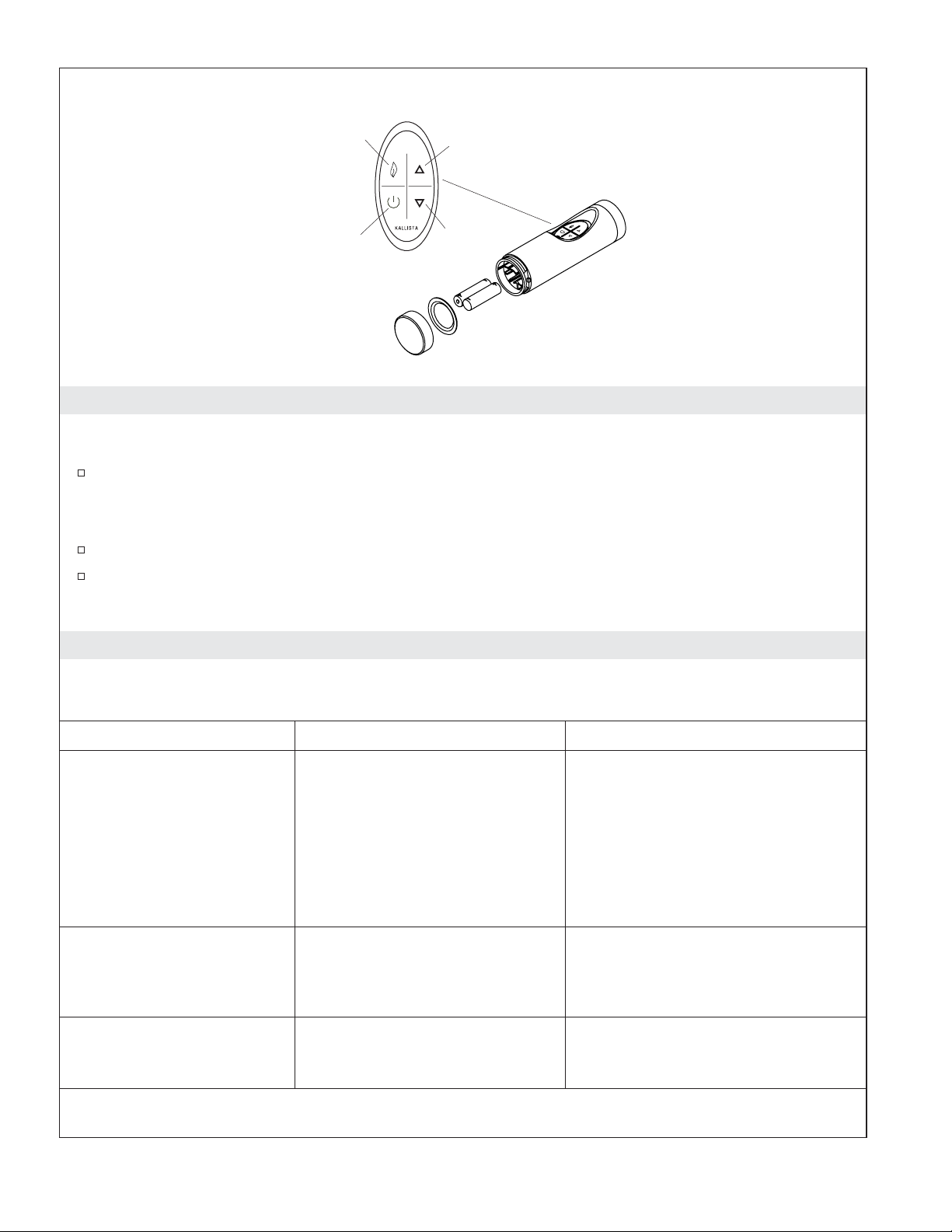

15. Remote Control Operation
NOTE: Refer to your Homeowners Guide for detailed instructions on your remote control.
The remote control places the whirlpool functions at your fingertips to further enhance your bathing
experience. The functions of the remote are identical to the user keypad. You may turn the
whirlpool on and off, turn the heater on and off, and increase or decrease the water flow by the
press of a button.
The waterproof remote control is designed to be used in the bath and will float in the water.
Two AAA batteries are used in the remote control. To replace, simply unscrew the end cap and
insert the batteries, as shown above. Tighten the end cap securely, making sure the end cap makes
contact with the seal.
16. Troubleshooting Procedures
This troubleshooting guide is for general aid only. An authorized service representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Symptoms Probable Causes Recommended Action
1. User keypad does not
illuminate when power
button is pressed or outer
ring is rotated.
A. No power to control. A. Check wiring and connect power.
B. GFCI or ELCB tripped. B. Reset GFCI or ELCB.
C. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
C. Check wiring for proper
connections. Replace wiring
harness if necessary.
D. User keypad does not work. D. Replace user keypad.
E. Control does not work. E. Replace control.
2. Motor starts, but all jets
are not functioning. A. Jet is closed. A. Rotate jet trim counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. User keypad is
illuminated, but does not
respond to buttons or
outer ring.
A. Control program is locked. A. Reset GFCI or ELCB.
Power
Heater
Increases Flow
Decreases
Flow
Kallista 13 1019455-2-D

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
4. User keypad indicator bar
keeps scanning at
power-up.
A. Control program is locked. A. Reset GFCI or ELCB.
B. Wiring harness from user
keypad to control is loose,
disconnected or damaged.
B. Check wiring for proper
connections. Replace wiring
harness if necessary.
C. User keypad does not work. C. Replace user keypad.
D. Control does not work. D. Replace control.
5. User keypad is
illuminated, but pump
won’t start.
A. Power cord from pump to
control is loose, disconnected or
damaged.
A. Check wiring for proper
connections.
B. Pump does not work. B. Replace pump.
C. Control does not work. C. Replace control.
6. Motor runs but pump
won’t prime (cavitates). A. Pump is shimmed too high. A. Lower pump/control to subfloor level.
B. Small air leak at pump inlet. B. Securely tighten nut(s) on intake
side of pump.
C. Motor/pump does not work. C. Replace motor/pump.
D. Control does not work. D. Replace control.
7. Pump stops before 18
minutes. A. GFCI or ELCB tripped. A. Identify source of fault, and correct. Reset GFCI or ELCB.
B. Suction is blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and
protection device activated. D. Check for blockage at suction and/or jets. Remove blockage and
allow motor to cool.
8. Pump does not
automatically stop after 22
minutes.
A. 20-minute timer inadvertently
disabled. A. See service manual.
9. Pump won’t turn off
when the power button
on user keypad is
pressed.
A. User keypad does not work. A. Replace user keypad.
B. Control does not work. B. Replace control.
10. Pump operates but
variable speed feature
does not work.
A. Motor/pump does not work. A. Replace motor/pump.
B. Control does not work. B. Replace control.
11. Bath water cools while
pump is operating. A. Water temperature above 104°F (40°C). A. Allow bath water to cool.
B. Heater is turned off on user
keypad. B. Turn heater on.
C. Wiring from heater to control is
loose, disconnected or damaged. C. Check wiring for proper connections.
D. Heater does not work. D. Replace heater.
E. Control does not work. E. Replace control.
12. Noisy operation. A. Pump banding straps have not
been cut. A. Cut pump banding straps with tin snips.
1019455-2-D 14 Kallista

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Dry or dislodged jet O-ring
(squeal). B. Remove jet, replace and lubricate O-ring, and reinstall jet.
13. Remote control does not
work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness.
C. Remote control not
programmed correctly. C. See homeowners guide or service manual.
D. Remote control does not work. D. Replace remote control.
E. Control does not work. E. Replace control.
Kallista 15 1019455-2-D

Guide d’installation
Baignoire à hydromassage en fonte
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base
devraient toujours être observées, incluant ce qui suit:
DANGER : Risque d’électrocution. Raccorder uniquement à des circuits protégés par un
Disjoncteur de Fuite de Terre (GFCI) ou à un Disjoncteur de Mise à la Terre (ELCB).
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques devraient être réalisés par
un électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous
plaît lire avec attention toutes les instructions avant de commencer l’installation, y compris les
conditions suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
Installer de façon à laisser un espace pour pouvoir réparer les parties importantes.
Un connecteur à pression marqué ″Terre/Masse″” est prévu dans le compartiment du câblage. Afin de
réduire les risques de choc électrique, raccorder le connecteur à une borne de terre du panneau de service
électrique avec un câble en cuivre ayant la même dimension que le fil conducteur qui alimente cet
équipement.
Un connecteur à pression par câble est prévu à l’extérieur de la boîte de jonction de la pompe ou de la
commande de cet appareil afin de permettre la connexion entre l’appareil et toutes autres surfaces de métal
avoisinantes, tel que requis par les normes locales.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
Information sur le produit
Branchements électriques requis
Cette installation électrique doit avoir deux Disjoncteurs-Interrupteur de Fuite de Terre (GFCI) ou deux
Disjoncteurs mis à la Terre (ELCB). Le GFCI ou le ELCB protège contre le risque d’électrocution par la mise à
la terre. Raccorder la baignoire à hydromassage à une alimentation indépendante de 208/240 V, 20 A, 50/60
Hz.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais fonctionnement de la baignoire à hydromassage. Ne pas déplacer la
pompe d’hydromassage ou effectuer d’autres modifications au système d’hydromassage car celà
pourrait affecter les performances et la sécurité de la baignoire à hydromassage. Kallista décline
toute responsabilité quant à toutes blessures ou endommagements causés par des modifications non
autorisées.
Kallista Français-1 1019455-2-D

Information sur le produit (cont.)
Caractéristiques
Séries ″-H2″:Les élément comportent une pompe, un chauffeau, un contrôle, des jets d’hydromassage Flexjet,
un voyant lumineux (clavier de l’utilisateur) et une télécommande.
La pompe et la tuyauterie de la baignoire à hydromassage ont été assemblées en usine.
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
Kallista Français-2 1019455-2-D

Information sur le produit (cont.)
AVIS : Fournir un large accès non restraint de service à la pompe. Il faut prévoir un accès pour
l’entretien de la pompe et des contrôles. L’accès doit être situé tout près de la pompe. Étudier le plan de
raccordement de votre modèle de baignoire à hydromassage.
Sommaire
Renseignements importants ......................................................... 1
Information sur le produit ........................................................... 1
Branchements électriques requis ................................................... 1
Notices du produit .............................................................. 1
Caractéristiques ................................................................ 2
Connexions et accès pour l’entretien ................................................ 2
Outils et matériels ................................................................ 3
Avant de commencer .............................................................. 3
Dimensions de raccordement ........................................................ 5
Préparer le site - Construction en béton ................................................ 6
Préparer le site - Construction en bois ................................................. 7
Préparer la baignoire à hydromassage ................................................. 7
Installer la baignoire à hydromassage .................................................. 8
Sectionner les sangles de retenue de la pompe .......................................... 8
Installer la plomberie .............................................................. 8
Faire les connexions électriques ..................................................... 10
Tester la baignoire à hydromassage .................................................. 11
Compléter le mur/comptoir fini ...................................................... 12
Compléter l’installation en béton ..................................................... 12
Nettoyage après installation ........................................................ 12
Confirmer le bon fonctionnement .................................................... 13
Séquence d’opération ............................................................ 13
Opération de la télécommande ...................................................... 14
Procédures de dépannage ......................................................... 14
Outils et matériels
Avant de commencer
AVERTISSEMENT : Risque de blessures corporelles. Cette baignoire en fonte est très lourde.
Obtenir suffisament d’aide pour la soulever et la déplacer.
Silicone
d'étanchéité Mètre ruban Crayon à papier Cisaille de ferblantier Niveau à bulle
Lunettes de
protection Clé à griffes
• Outils conventionnels de menuiserie ou outils et
matériaux pour installation
• Bâche de protection
• Cales en métal
• 2 x 4
Plus :
1019455-2-D Français-3 Kallista

Avant de commencer (cont.)
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à
hydromassage par la tuyauterie ou par la pompe ou utiliser la tuyauterie ou la pompe pour
supporter la baignoire à hydromassage.
ATTENTION : Risque d’endommagement du produit. Ne pas soulever la baignoire à
hydromassage par le rebord.
Cette baignoire à hydromassage est conçue pour une installation encastrée ou en alcôve, selon le
modèle choisi.
Avant l’installation, examiner la baignoire à hydromassage pour déceler tout dommage.
Cette baignoire à hydromassage doit être installée sur un sol nivelé adéquat.
Kallista se réserve le droit d’apporter des modifications sur le design des produits sans avis
préalables, comme spécifié dans le catalogue des prix.
Kallista Français-4 1019455-2-D

1. Dimensions de raccordement
32" (81,3 cm)
14" (35,6 cm)
1-3/4" (4,4 cm)
60" (152,4 cm)
18-1/4"
(46,4 cm)
1-5/8"
(4,1 cm)
16"
(40,6 cm)
Remarque : Pompe dépassant
au delà du rebord
Ø 1-1/2" (3,2 cm) Ext.
3/4" (2 cm)
1/4" (6 mm)
2-7/8" (7,3 cm)
3" (7,6 cm)
2-1/2"
(6,4 cm)
32"
(81,3 cm)
18"
(45,7 cm)
3-1/2"
(8,9 cm)
2-1/2"
(6,4 cm)
P50014-H2
P50035-H2
71-3/4" (182,2 cm)
15-5/8" (39,7 cm)
1/4" (6 mm)
2-7/8" (7,3 cm)
3" (7,6 cm)
36" (91,4 cm)
Ø 1-1/2" (3,2 cm) Ext.
20-7/8"
(53 cm)
3/4"
(2 cm)
Accès à la pompe/contrôle,
24" (61 cm) L x 14" (35,6 cm) H
Accès à la pompe/contrôle,
24" (61 cm) L x 14" (35,6 cm) H
1019455-2-D Français-5 Kallista
