TMG TMG-ALS61 User manual

6,000 lb PORTABLE SCISSOR CAR LIFT
MODEL: TMG-ALS61
WWW.TMGINDUSTRIAL.COM TOLL FREE:1-877-761-2819
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: [e-mail]
Do not return the product to dealer, they are not equipped to handle your requests
PRODUCT MANUAL

W W W . T M G I N D U S T R I A L . C O M P 0 2 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
IMPORTANT NOTICE
Do not attempt to install this lift if you have never been
trained on basic automotive lift installation procedures.
Never attempt to lift components without proper lifting
tools such as forklift or cranes. Stay clear of any moving
parts that can fall and cause injury. These instructions
must be followed to ensure proper installation and
operation of your lift. Failure to comply with these
instructions can result in serious bodily harm and void
product warranty. Manufacturer will assume no liability
for loss or damage of any kind, expressed or implied
resulting from improper installation or use of this product.
PLEASE READ ENTIRE MANUAL
PRIOR TO INSTALLATION.
DEFINITIONS OF
HAZARD LEVELS
Identify the hazard levels used in this manual with the
following definitions and signal words:
DANGER !
Watch for this symbol: It Means: Immediate
hazards which will result in severe personal injury or
death.
WARNING !
Watch for this symbol: It Means: Hazards or
unsafe practices which could result in severe
personal injury or death.
CAUTION !
Watch for this symbol: It Means: Hazards or unsafe
practices which may result in minor personal injury,
product or property damage.
OWNER’S RESPONSIBILITY
To maintain the lift and user safety, the responsibility of
the owner is to read and follow these instructions:
Follow all installation and operation instructions.
Make sure installation conforms to all applicable
Local, State, and Federal Codes, Rules, and
Regulations; such as State and Federal OSHA
Regulations and Electrical Codes.
Carefully check the lift for correct initial function.
Read and follow the safety instructions. Keep
them readily available for machine operators.
Make certain all operators are properly trained,
know how to safely and correctly operate the unit,
and are properly supervised.
Allow unit operation only with all parts in place
and operating safely.
Carefully inspect the unit on a regular basis
and perform all maintenance as required.
Service and maintain the unit only with authorized
or approved replacement parts.
Keep all instructions permanently with the unit
and all decals on the unit clean and visible.
BEFORE YOU BEGIN
Receiving:
The shipment should be thoroughly inspected as soon
as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in good
condition of shipment covered by your invoice. If any of
the goods called for on this bill of lading are shorted or
damaged, do not accept them until the carrier makes a
notation on the freight bill of the shorted or damaged
goods. Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any hidden loss or
damage is discovered after receipt and request the
carrier to make an inspection. If the carrier will not do
so, prepare a signed statement to the effect that you
have notified the carrier (on a specific date) and that the
carrier has failed to comply with your request.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE
AFTER YOU HAVE GIVEN THE CARRIER A CLEAR
RECEIPT. File your claim with the carrier promptly.
Support your claim with copies of the bill of lading,
freight bill, invoice, and photographs, if available. Our
willingness to assist in helping you process your claim
does not make responsible for collection of claims or
replacement of lost or damaged materials.

W W W . T M G I N D U S T R I A L . C O M P 0 3 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
TABLE OF CONTENTS
Contents Page No.
Definitions of Hazard Levels.................................................................................................................................................................. 2
Owner’s Responsibility........................................................................................................................................................................... 2
Before You Begin.....................................................................................................................................................................................2
Table Of Contents................................................................................................................................................................................... 3
Installer / Operator Instructions.............................................................................................................................................................4
Safety / Warning Instructions................................................................................................................................................................ 5
Tools Required.........................................................................................................................................................................................8
Step 1 / Selecting Site............................................................................................................................................................................ 8
Step 2 / Floor Requirements..................................................................................................................................................................8
Concrete Specifications......................................................................................................................................................................... 8
Assembly View / Description of Parts..................................................................................................................................................9
Specifications......................................................................................................................................................................................... 10

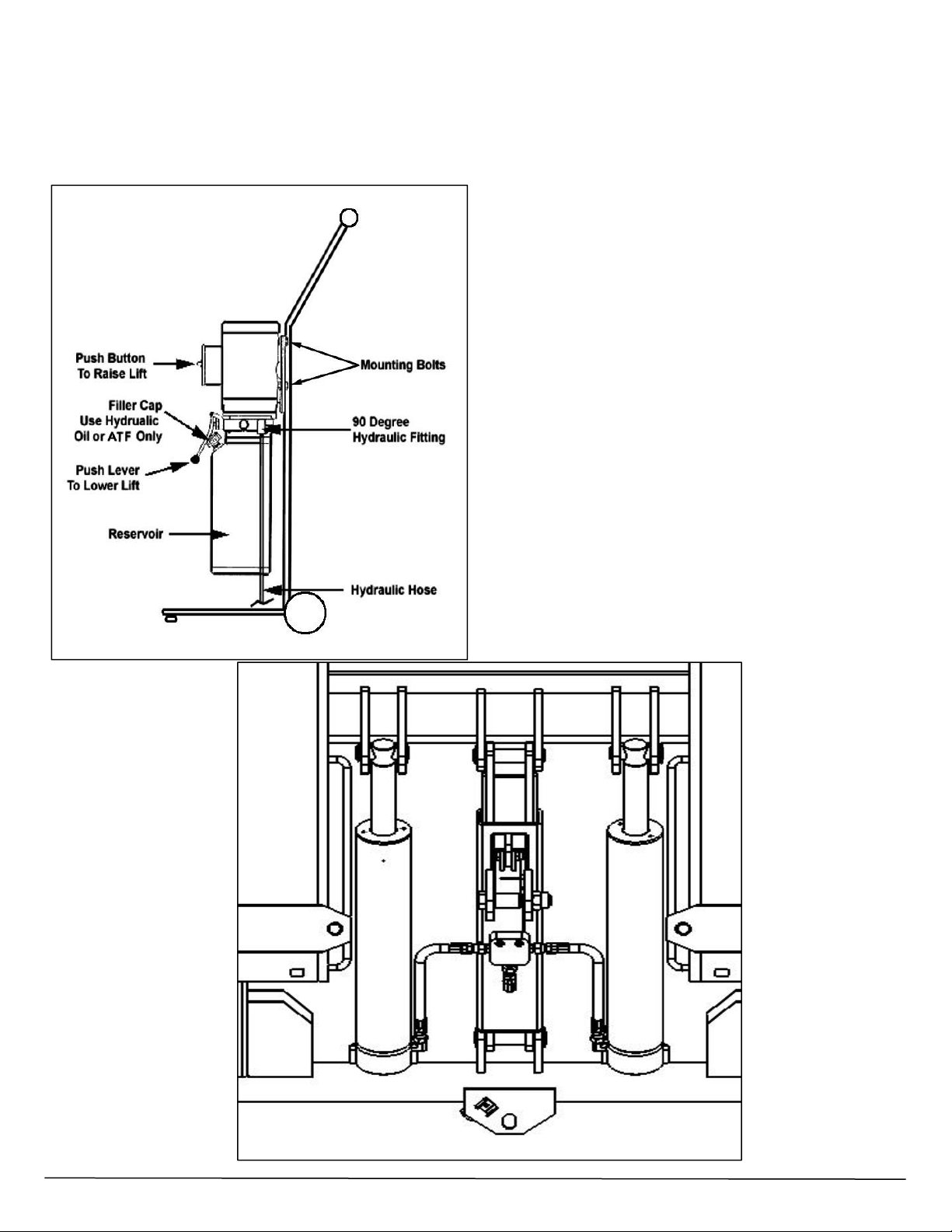

Step 3 / Power Unit Set Up.................................................................................................................................................................11
Step 4 / Connecting Hydraulic Hoses Fittings................................................................................................................................11

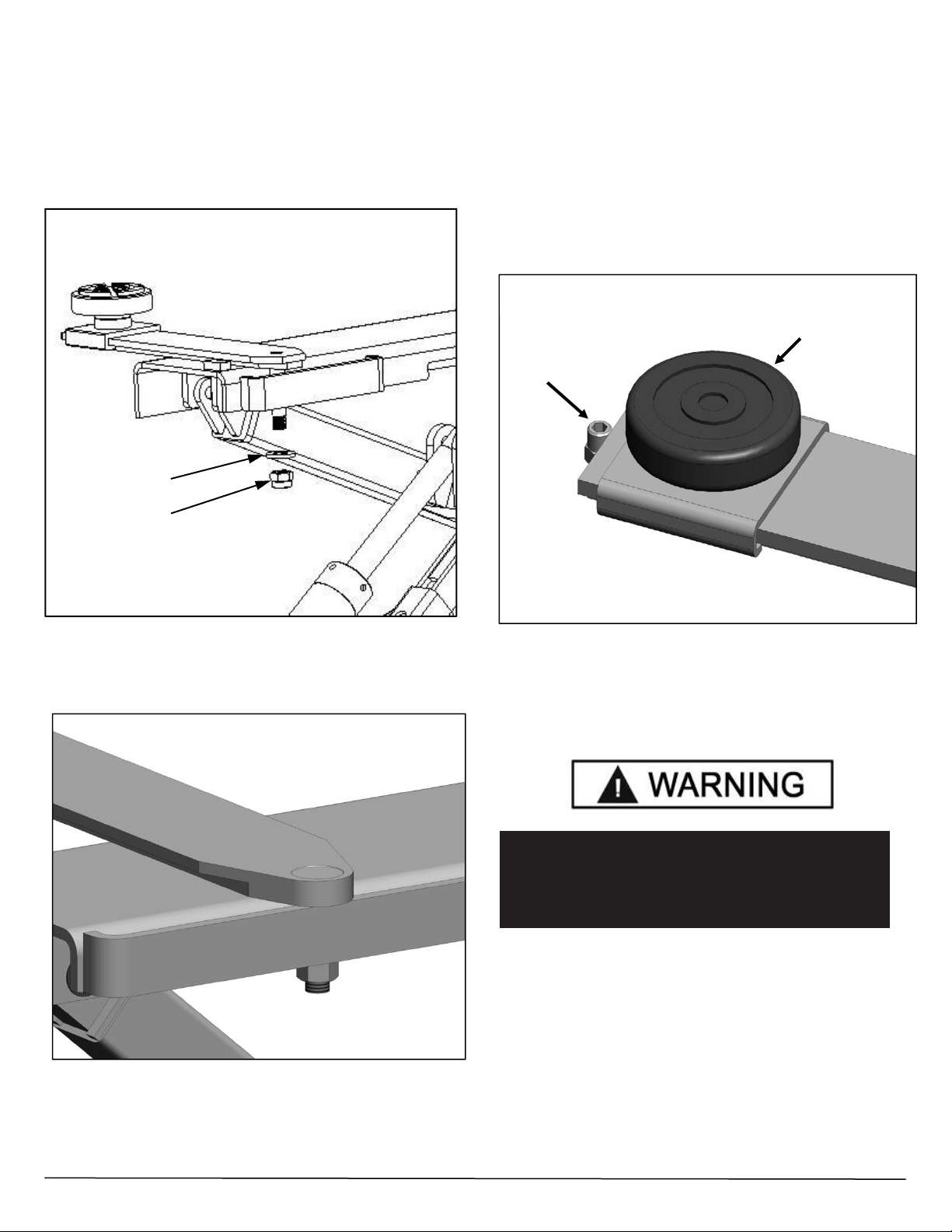

Step 5 / Lift Arm Installation................................................................................................................................................................12
Step 6 / Installing/ Changing Lift Pads..............................................................................................................................................12
Step 7 / Wiring Power Unit.................................................................................................................................................................. 13
Step 8 / Lift Start Up / Final Adjustments......................................................................................................................................... 14
Step 9 Bleeding..................................................................................................................................................................................... 15
Post Installation Check-Off..................................................................................................................................................................15
Step 10 / Operation/ Maintenance..................................................................................................................................................... 16
Troubleshooting Guide......................................................................................................................................................................... 23
Parts Breakdown................................................................................................................................................................................... 27

W W W . T M G I N D U S T R I A L . C O M P 0 4 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
INSTALLER / OPERATOR
PLEASE READ AND FULLY
UNDERSTAND.
BY PROCEEDING YOU AGREE TO
THE FOLLOWING.
I have visually inspected the site where the lift is to
be installed and verified the concrete to be in good
condition and free of cracks or other defects. I
understand that installing a lift on cracked or defective
concrete could cause lift failure resulting in personal
injury or death.
I understand that a level floor is required for proper
installation and level lifting.
I understand that I am responsible if my floor is of
questionable slope and that I will be responsible for all
charges related to pouring a new level concrete slab if
required and any charges.
I understand that the lifts are supplied with concrete
fasteners meeting the criteria of the American National
Standard “Automotive Lifts - Safety Requirements for
Construction, Testing, and Validation” ANSI/ALI ALCTV-
2006, and that I will be responsible for all charges
related to any special regional structural and/or seismic
anchoring requirements specified by any other agencies
and/or codes such as the Uniform Building Code (UBC)
and/or International Building Code (IBC).
I will assume full responsibility for the concrete floor
and condition thereof, now or later, where the above
equipment model(s) are to be installed. Failure to follow
danger, warning, and caution instructions may lead to
serious personal injury or death to operator or bystander
or damage to property.
I understand that the lifts are designed to be
installed in indoor locations only. Failure to follow
installation instructions may lead to serious personal
injury or death to operator or bystander or damage to
property or lift.
Failure to follow danger, warning, and caution
instructions may lead to serious personal injury or
death to operator or bystander or damage to property.
Please read entire manual prior to installation.
Do not operate this machine until you read and
understand all the dangers, warnings and
cautions in this manual.
INSTALLER / OPERATOR
PROTECTIVE
EQUIPMENT
Personal protective equipment helps makes installation
and operation safer, however, it does not take the
place of safe operating practices. Always wear durable
work clothing during any installation and/or service
activity. Shop aprons or shop coats may also be worn,
however loose fitting clothing should be avoided. Tight
fitting leather gloves are recommended to protect
technician hands when handling parts. Sturdy leather
work shoes with steel toes and oil resistant soles
should be used by all service personnel to help prevent
injury during typical installation and operation activities.
Eye protection is essential during installation and
operation activities. Safety glasses with side shields,
goggles, or face shields are acceptable.
Back belts provide support during lifting
activities and are also helpful in
providing worker protection.
Consideration should
also be given to the use of hearing protection if service
activity is performed in an enclosed area, or if noise
levels are high.
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED
COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OR YOURSELF AND OTHERS
AND CAN CAUSE PERSONAL INJURY OR DEATH. READ AND FOLLOW ALL INSTRUCTIONS IN THIS
MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

W W W . T M G I N D U S T R I A L . C O M P 0 5 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
SAFETY WARNING INTRODUCTION
1. Carefully remove the crating and packing
materials. CAUTION! Be careful when cutting steel
banding material as items may become loose and fall
causing personal harm or injury.
2. Check the voltage, phase and proper amperage
requirements for the motor shown on the motor plate.
Wiring should be performed by a certified electrician only.
IMPORTANT SAFETY INSTRUCTIONS !
Read these safety instructions entirely!
IMPORTANT NOTICE !
Do not attempt to install this lift if you have never been trained on basic automotive lift installation
procedures.
Never attempt to lift components without proper lifting tools such as forklift or cranes.
Stay clear of any moving parts that can fall and cause injury.
1. READ AND UNDERSTAND all safety warning
procedures before operating lift.
2. KEEP HANDS AND FEET CLEAR. Remove hands and
feet from any moving parts. Keep feet clear of lift when
lowering. Avoid pinch points.
3. KEEP WORK AREA CLEAN. Cluttered work areas invite
injuries.
4. Consider work area environment. Do not expose
equipment to rain. DO NOT use in damp or wet locations.
Keep area well lighted.
5. ONLY TRAINED OPERATORS should operate this lift.
All non-trained personnel should be kept away from work
area. Never let non-trained personnel come in contact with,
or operate lift.
6. USE LIFT CORRECTLY. Use lift in the proper manner.
Never use lifting adapters other than what is approved by
the manufacturer.
7. DO NOT override self-closing lift controls.
8. REMAIN CLEAR of lift when raising or lowering vehicle.
9. CLEAR AREA if vehicle is in danger of falling.
10. ALWAYS ENSURE that the safeties are engaged before
any attempt is made to work on or near vehicle.
11. DRESS PROPERLY. Non-skid steel-toe footwear is
recommended when operating lift.
12. GUARD AGAINST ELECTRIC SHOCK. This lift must
be grounded while in use to protect the
operator from electric shock. Neverconnect
the green power cord wire to a live terminal.
This is for ground only.
13. DANGER! The power unit used on this lift contains high
voltage. Disconnect power at the receptacle
before performing any electrical repairs.
Secure plug so that it cannot be
accidentally plugged in during service.
14. WARNING! RISK OF EXPLOSION. This equipment
has internal arcing or sparking parts which
should not be exposed to flammable vapors.
This machine should not be located in a
recessed area or below floor level.
15. MAINTAIN WITH CARE. Keep lift clean for better and
safer performance. Follow manual for proper lubrication
and maintenance instructions. Keep control handles and/or
buttons dry, clean and free from grease and oil.
16. STAY ALERT. Watch what you are doing. Usecommon
sense. Be aware.
17. CHECK FOR DAMAGED PARTS. Check for alignment
of moving parts, breakage of parts or any condition that may
affect its operation. Do not use lift if any component is broken
or damaged.
18. NEVER remove safety related components from the lift.
Do not use lift if safety related components are damaged
or missing.

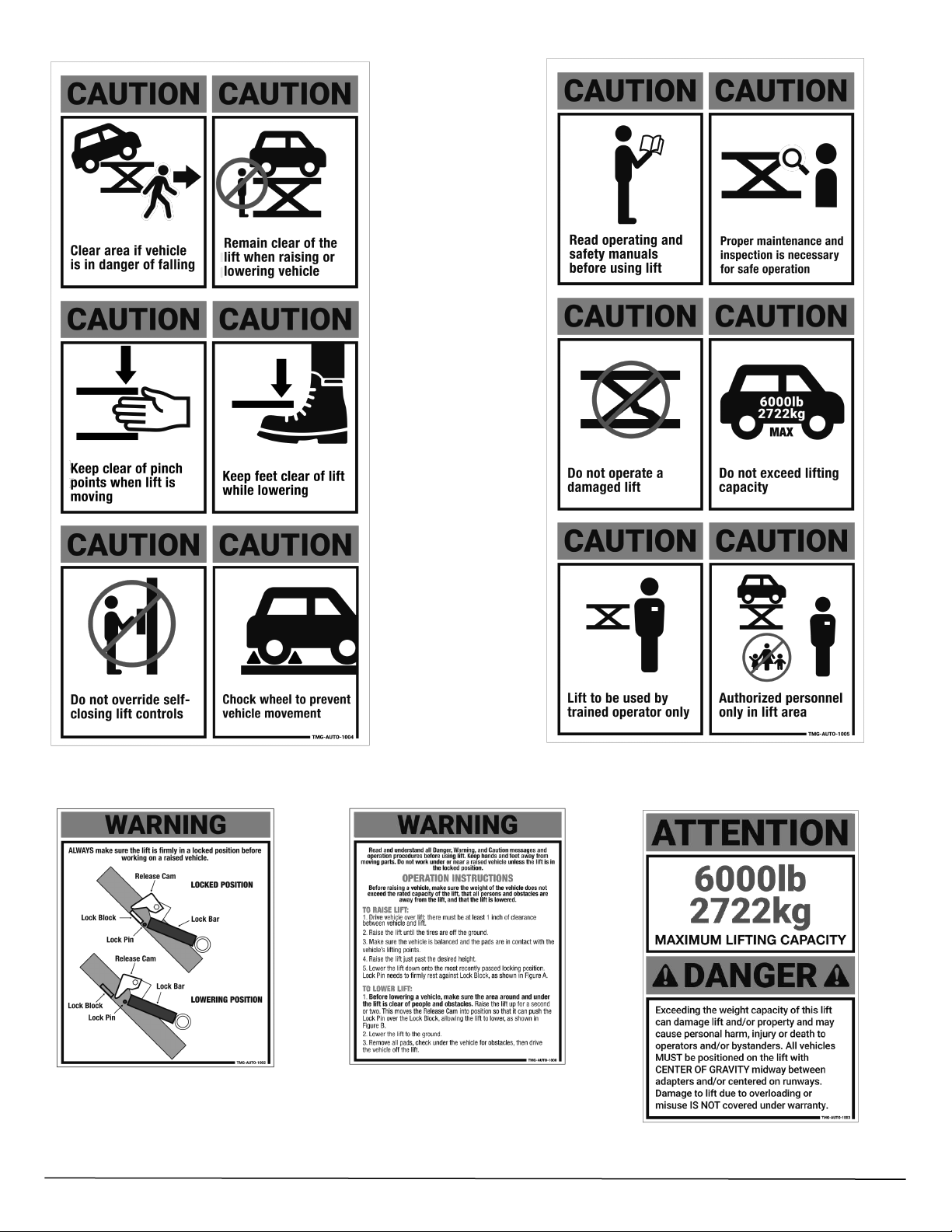

W W W . T M G I N D U S T R I A L . C O M P 0 6 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
A
B
C
D
E

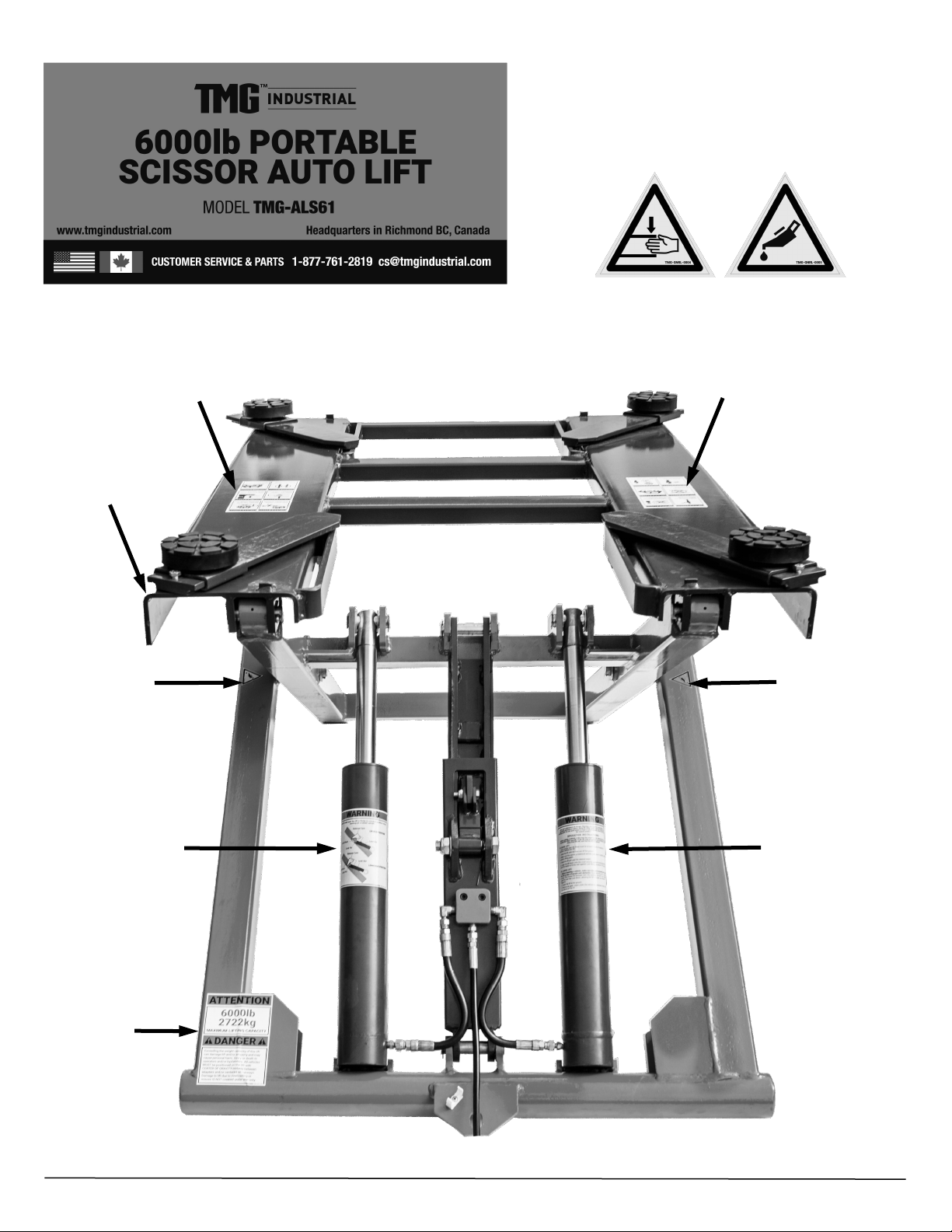

W W W . T M G I N D U S T R I A L . C O M P 0 7 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
B
A
C
D
E
F
G
G
G
F

W W W . T M G I N D U S T R I A L . C O M P 0 8 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
4 Foot Level
Small Adjustable Wrench
TOOLS REQUIRED
Large Adjustable Wrench
12mm Hex Key
IMPORTANT NOTICE !
These instructions must be followed to ensure proper installation and operation of your lift.
Failure to comply with these instructions can result in serious bodily harm and void product
warranty. Manufacturer will assume no liability for loss or damage of any kind, expressed or implied
resulting from improper installation or use of this product.
PLEASE READ ENTIRE MANUAL PRIOR TO INSTALLATION !
STEP 1
(Selecting Site)
Before installing your new lift, check the following.
1. LIFT LOCATION: Always use architects plans when
available. Check layout dimension against floorplan
requirements making sure that adequate space if avail-
able.
2. OVERHEAD OBSTRUCTIONS: The area where the
lift will be located should be free of overhead obstruc-
tions such as heaters, building supports, electrical lines
etc.
3. DEFECTIVE FLOOR: Visually inspect the site where
the lift is to be installed and check for cracked or defec-
tive concrete.
4. OPERATING TEMPERATURE. Operate lift only
between temperatures of 41° -104° F.
5. Lift is designed for INDOOR INSTALLATION ONLY.
STEP 2
(Floor Requirements)
This lift must be installed on a solid level concrete
floor with no more than 3-degrees of slope. Failure
to do so could cause personal injury or death.
A level floor is suggested for proper use and installa- tion
and level lifting. If a floor is of questionable slope,
consider a survey of the site and/or the possibility of
pour- ing a new level concrete slab.
DO NOT install or use this lift on any asphalt surface
or any surface other than concrete.
DO NOT install or use this lift on expansion seams
or on cracked or defective concrete.
DO NOT install or use this lift on a second / elevated
floor without first consulting building architect.
DO NOT install or use this lift outdoors.
CONCRETE SPECIFICATIONS
LIFT MODEL CONCRETE REQUIREMENTS
TMG-ALS61 3.5” Min. Thickness / 2,500 PSI
DANGER!
All models MUST be installed on 3,000 PSI concrete only
conforming to the minimum requirements shown above.
New concrete must be adequately cured by at least
28 days minimum.

W W W . T M G I N D U S T R I A L . C O M P 0 9 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Assembly View
DESCRIPTION
QTY
LIFT ARM ASSEMBLY
4
SHORT LIFT PAD ASSEMBLY
4
LIFT PAD WELDMENT BASE
4
LONG LIFT PAD WITH EXTENSION
4
HYDRAULIC HOSE ASSEMBLY Ø6.4 x 118”
1
HYDRAULIC HOSE ASSEMBLY Ø6.4 x 12”
2
POWER UNIT 110 Volt, 60HZ, 1 Phase
1
POWER UNIT STAND ASSEMBLY
1
Lift Arm Assembly
Short Lift Pad
Lift Pad Weldment
Base
Long Lift Pad
with Extension
Hydraulic Hose
Ø6.4 x 118”
Hydraulic Hose
Ø6.4 x 12”
Power Unit
Power Unit
Stand Assembly

W W W . T M G I N D U S T R I A L . C O M P 1 0 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Lifting Capacity
Lifting Time
Power Unit
6,000 Lbs. / 2721 Kgs.
45 Sec.
110VAC/60Hz
SPECIFICATIONS

W W W . T M G I N D U S T R I A L . C O M P 1 1 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
STEP 3
(Power Unit Set Up)
1. Set the Power Unit on the Stand/Tow Handle and
mount using the four M8 x 1.25 x 20mm Bolts, Nuts and
Washers. (See Fig 3.1)
2. Remove plug from power unit and install the
Straight Fitting into the power port on the Power Unit.
3. Connect the 144” Hydraulic Hose to the Straight
Fitting.
4. Fill the reservoir with 6 Quarts/ 1.5 gals of Dexron
III ATF or 10W Non-foaming hydraulic fluid.
STEP 4
(Connecting Hydraulic Fittings /
Hoses)
1. Remove the plastic plug from the hand Cylinder.
2. Install the Straight Hydraulic Fitting in the Cylinder.
3. Attach the 144” Hydraulic Hose to the
Straight Fitting in the port of the Hydraulic
Shunt.
4. Attach the 17” Hydraulic Hose to the Straight
Fitting in the Hydraulic Shunt and the Hydraulic
Cylinder.
(See Fig 4.1)
Fig3.1
Fig4.1

W W W . T M G I N D U S T R I A L . C O M P 1 2 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
STEP 5
(Lift Arm Installation)
1. Set the Adjustable Arm on the Ramp ensuring that the
Bolt on the arm is inserted through the arm holder channel
on the side of the ramp. (See Fig 5.1)
3. Tighten the M20-10 nut until the arm cannot pivot, then
back the nut off until the arm is just loose enough to pivot
freely. (See Fig.5.2)
STEP 6
(Installing / Changing Lift Pads)
1. Remove the Socket Head Screw from the end of the
lift arm.
2. Slide the desired height Lift Pad riser onto the lift arm.
Replace and tighten the Socket head Screw. Drop in the
Lift Pad if applicable. (See Fig 6.1)
3. Repeat the above procedure for the other three arms.
4. Use the 5” Lift Pad Extension as necessary to reach
proper lifting points on the vehicle.
WARNING!
ALWAYS set the adjustable arms and pads under the
proper lifting points as indicated in the Lifting Guide
or owners manual of the vehicle.
Fig 5.2
Fig 6.1
Lift Pad
Assembly
M10 x 1.5 x
20mm Screw
Fig 5.1
M20 Washer
M20x10 Nut

DANGER!
DO NOT PERFORM ANY MAINTENANCE OR
INSTALLATION OF ANY COMPONENTS WITH OUT
FIRST ENSURING THAT ELECTRICAL POWER HAS
BEEN DISCONNECTED AT THE SOURCE OR PANEL
AND CANNOT BE RE-ENERGIZED UNTIL ALL
MAINTENANCE AND/OR INSTALLATION
PROCEDURES ARE COMPLETED.
WARNING!
DO NOT run power unit with no oil. Damage to pump can occur.
The power unit must be kept dry. Damage to power unit caused by water or other liquids such as
detergents, acid etc., is not covered under warranty.
Operate lift only between temperatures of 41 °- 104° F.
Improper electrical hook-up can damage motor and will not be covered under warranty.
Motor can not run on 50HZ without a physical change in motor.
Use a separate breaker for each power unit.
Protect each circuit with time delay fuse or circuit breaker.
For 110-120 volt, single phase, use a 25 amp fuse.
W W W . T M G I N D U S T R I A L . C O M P 1 3 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
STEP 7
(Wiring Hydraulic Power Unit)
1. Have a certified electrician run the power supply to
motor. Refer to the data plate found on the motor for
proper power supply and wire size.
DANGER!
ALL WIRING MUST BE PERFORMED
BY A LICENSED ELECTRICIAN.
WARNING!
RISK OF EXPLOSION!
This equipment has internal arcing or parts that may
spark and should not be exposed to flammable vapors.
Motor should not be located in a recessed area or
below floor level. NEVER expose motor to rain or other
damp environments. DAMAGE TO MOTOR CAUSED
BY WATER IS NOT COVERED UNDER WARRANTY.

W W W . T M G I N D U S T R I A L . C O M P 1 4 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
STEP 8
(Lift Start Up / Final Adjustments)
1. Make sure the Power Unit reservoir is full with
6 quarts/ 1.5 gal of 10-WT hydraulic oil or Dexron-III
automatic transmission fluid.
2. Check the MAIN SAFETY LOCK to make sure it
moves freely and springs back to the lock position when
released. Lubricate all SAFETY PIVOT points with WD-40
or equal.
3. Test the Power Unit by pressing the push-button
switch. If the motor sounds like it is operating properly,
raise the lift and check all hose connections for leaks. If
the motor gets hot or sounds peculiar, stop and check
all electrical connections.
4. Raise lift until THE CYLINDER BOTTOMS OUT AND
THE LIFT STOPS.
Keep hands and feet clear. Remove hands and feet from
any moving parts. Keep feet clear of lift when
lowering. Avoid pinch points.
ALWAYS WEAR SAFETY GOGGLES.
5. Verify that the safety rests in the locked position
at each safety stop. Safety is locked when a Safety
Block is resting on Safety Pin. (See Fig. 8.1 & 8.2)
Fig. 8.1
DANGER!
VISUALLY CONFIRM THAT ALL PRIMARY
SAFETY LOCKS ARE ENGAGED BEFORE
ENTERING WORK AREA.
Suspension components us on this lift are
intended to raise and lower lift only and are
not meant to be load holding devices. Remain
clear of elevated lift unless visual
confirmation is made that all primary Safety
Locks are fully engaged and the lift is
LOWERED onto the Safety Locks. Refer to
installation /operation manual for proper
Safety Lock procedures and /or further
instruction.
Fig. 8.2
Safety Blocks
Safety Pin
Safety Locked

W W W . T M G I N D U S T R I A L . C O M P 1 5 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
6. Raise the lift off the safety locks by pressing the
push button on the power unit. Make sure you raise
the lift by at least two inches to allow adequate
clearance for the safety lock to clear. ( See Fig. 8.3 -
8.5)
STEP 9
(Bleeding)
1. Lift must be fully lowered before changing or adding
fluid.
2. Raise and lower lift six times. The cylinder is self
bleeding. After bleeding system, fluid level in power unit
reservoir may be down. Add more fluid if necessary to
raise lift to full height. It is only necessary to add fluid to
raise lift to full height.
3. To pressure test, run lift to full rise and run motor for
approximately 3-seconds after lift stops. This will place
pressure on the hydraulic system. Stop and check all
fittings and hose connections. Tighten or reseal if
required.
POST-INSTALLATION CHECK-OFF
8. Lower lift by depressing lowering valve on
power unit.
9. Run the lift up and down a few times to ensure that
the locks are engaging uniformly and that the safety
release mechanisms are functioning. Re-adjust if
necessary
Lift Assembly, Level And Stable
Arm Assemblies Properly Attached
Electric Power Supply Confirmed
Safety Locks Functioning Properly
Check For Hydraulic Leaks
Oil Level
Lubrication of Critical Components
Check For Overhead Obstructions
Runways Level
All Screws, Bolts, and Pins Secured
Surrounding Area Clean
Operation, Maintenance and Safety Manuals on Site
Fig. 8.3
Safety Unlocked
Fig. 8.5
Fig. 8.4
Safety Pin
Safety
Blocks
Safety Unlocked

DANGER!
VISUALLY CONFIRM THAT ALL PRIMARY
SAFETY LOCKS ARE ENGAGED BEFORE
ENTERING WORK AREA.
Suspension components us on this lift are
intended to raise and lower lift only and are
not meant to be load holding devices.
Remain clear of elevated lift unless visual
confirmation is made that all primary
safety locks are fully engaged and the lift is
LOWERED onto the safety locks, Refer to
installation /operation manual for proper
safety lock procedures and /or further
instruction.
W W W . T M G I N D U S T R I A L . C O M P 1 6 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
STEP 10
(Operation Instructions)
LIFT OPERATION SAFETY
•DAILY inspect your lift. Never operate if it malfunctions
or if it has broken or damaged parts. Use only qualified
lift service personnel and genuine parts to make repairs.
•THOROUGHLY train all employees in use and care of
lift, using manufacturer’s instructions and “Lifting It
Right” and “Safety Tips” supplied with the lift.
•NEVER allow unauthorized or untrained personsto
position vehicle or operate lift.
•PROHIBIT unauthorized persons from being in
shop area while lift is in use.
•DO NOT permit anyone on lift or inside vehicle whenit
is either being raised or lowered.
•ALWAYS keep area around lift free of tools, debris,
grease and oil.
•NEVER overload lift. Capacity of lift is shown on
nameplate affixed to the lift.
•DO NOT stand in front of the vehicle while it is
being positioned in lift bay.
•DO NOT hit or run over lift arms or adapters. This
could damage lift or vehicle. Before driving vehicle into
lift bay, position arms and adapters to provide
unobstructed entrance onto lift.
•ALWAYS load vehicle on lift carefully. Position the lift
adapters to contact at the vehicle manufacturer’s
recommended lift points. Raise lift until adapters
contact vehicle. Check adapters for secure contact
with vehicle. Raise lift to desired working height.
•DO NOT block open or override self-closing lift
controls; they are designed to return to the “Off” or
Neutral position when released.
•DO NOT remove or disable arm restraints.
•ALWAYS remain clear of lift when raising or lowering
vehicles.
•ALWAYS use safety stands when removing or installing
heavy components.
•DO NOT go under raised vehicle if safety locks are
not engaged.
•NEVER LEAVE LIFT IN ELEVATED CONDITION
unless all Safety Locks are engaged.
•AVOID excessive rocking of vehicle while on lift.
•ALWAYS CLEAR AREA if vehicle is in danger of falling.
When lowering the lift PAY CAREFUL ATTENTION
that all personnel and objects are kept clear.
ALWAYS keep a visual line of site on the lift AT ALL
TIMES. ALWAYS make sure that ALL LOCKS are
disengaged. If one of the locks inadvertently locks on
descent the lift and/or vehicle may disrupt causing
personal injury or death,
•ALWAYS REMOVE tool trays, stands, etc.
before lowering lift.
•ALWAYS RELEASE safety locks before attempting
to lower lift.
•ALWAYS POSITION the lift arms and adapters to
provide an unobstructed exit before removing
vehicle from lift area.

WARNING!
To avoid personal injury and/or property damage,
permit only trained personnel to operate lift. After
reviewing these instructions, get familiar with lift
controls by running the lift through a few cycles before
loading vehicle on lift. Always lift the vehicle using all
four adapters. NEVER raise just one end, one corner,
or one side of vehicle.
W W W . T M G I N D U S T R I A L . C O M P 1 7 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
TO RAISE THE LIFT
1. Before Loading: Lift must be fully lowered and
service bay cleared of all personnel before the vehicle is
brought on lift with the arms (if used) set to the full drive-
thru position.
2. Loading: Position arms under vehicle and position
adapters at vehicle manufacturer’s recommended lift
points. Use height extenders or optional frame-cradle
adapters (if applicable) when necessary to ensure good
contact. (See Fig 10.1)
Fig. 10.1
WARNING!
Many specialty or modified vehicles cannot be
raised on a two-post frame engaging lift. Contact
vehicle manufacturer for raising or jacking details.
TYPICAL LIFTING POINTS
3. Some vehicles may have the manufacturer's Service
Garage Lift Point locations identified by triangle shape
marks on the undercarriage (reference ANSI/SAE J2184-
1992). Also, there may be a label located on the right
front door jamb area showing specific vehicle lift points.
4. Position vehicle for proper weight distribution arms
un- der vehicle to allow adapters /pads to contact at the
manu- facturer’s recommended pick up points.

W W W . T M G I N D U S T R I A L . C O M P 1 8 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
5. If the specific vehicle lift points are not identified, or
if the vehicle has additional or uniquely positioned
payload, have a qualified person calculate the vehicle
center of gravity or have the vehicle center of gravity
determined at a vehicle scale. Load the vehicle with the
enter of gravity midway between adapters.
6. Set parking brake or use wheel chock to hold
vehicle in position.

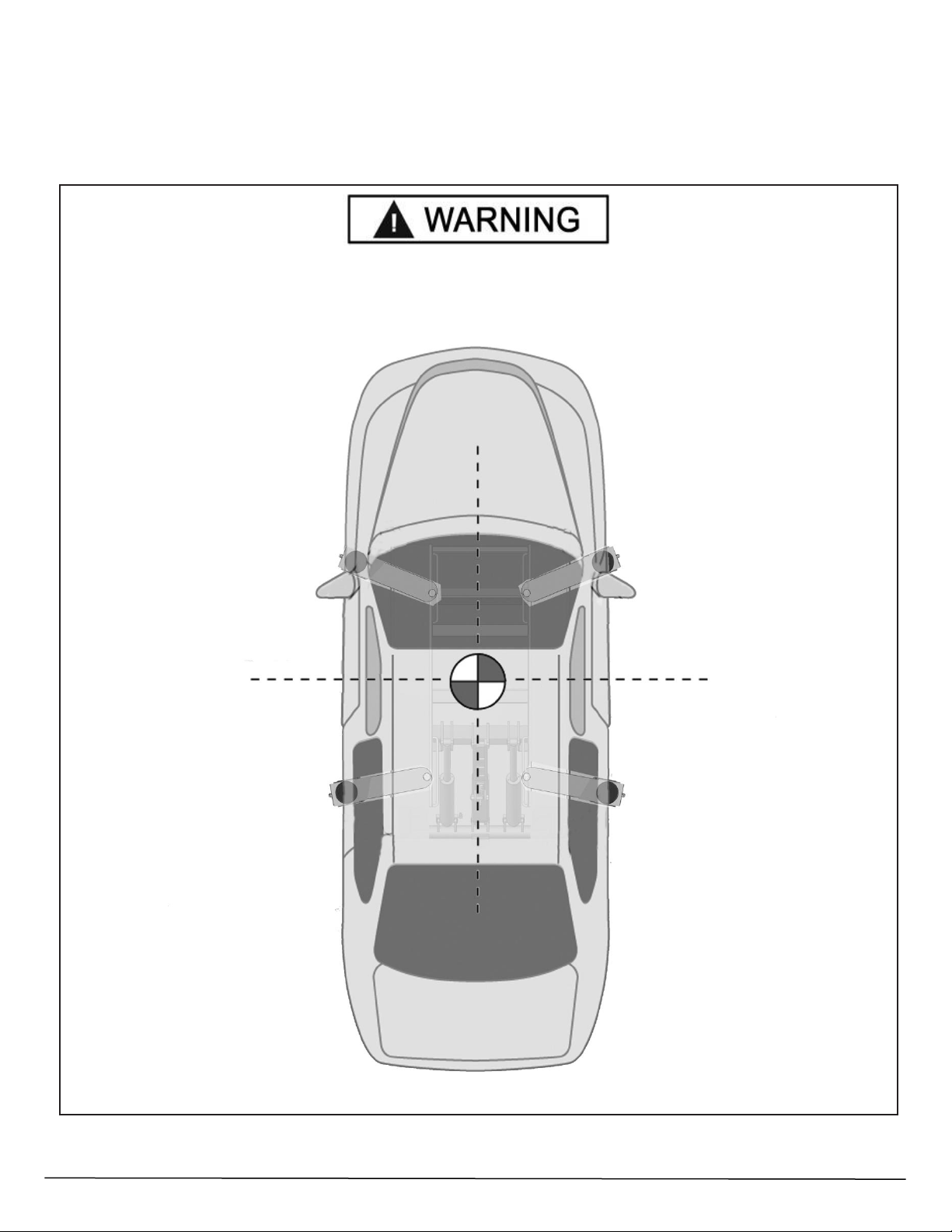

Make sure vehicle is neither front nor rear heavy and select the proper configuration for the vehicle to be
lifted as shown below. Center of balance should be midway between adapters and centered over the lift.

W W W . T M G I N D U S T R I A L . C O M P 1 9 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
7. Push the RAISE button or rotate the control switch
on the power unit.
Important Note:
Allow (2) seconds between motor starts.
Failure to comply may cause motor burnout.
8. Stop before making contact with vehicle. Check
con- tact points. If required, slightly move arms or
vehicle to allow restraint gear and pawl to mesh.
9. Raise vehicle until tires clear the floor.
10. Stop and check adapters for secure contact at
vehicle manufacturer’s recommended lift points.
11. Continue to raise to desired height only if vehicle
is secure on lift.
12. DO NOT go near or under a raised vehicle if all four
adapters are not in secure contact with vehicle at
vehicle manufacturer’s recommended lift points.
13. Repeat entire loading and raising procedures if
required.
14. Lower lift onto safety locks.
•DO NOT enter work area or go under vehicle if safety
locks are not engaged.
•CLEAR AREA if vehicle is in danger of falling.
•DO NOT position yourself between a wall and the lift.
If the vehicle falls in that direction, you may be severely
injured.
•Before attempting to lift pickup trucks or other truck
frame vehicles, be sure that:
Vehicle frame is strong enough to support
its weight and has not been weakened by
modification or corrosion.
Vehicle individual axle weight does not
exceed one-half lift capacity.
Adapters are in secure contact with frame at
vehicle manufacturers recommended lift points.
Vehicle is stable on lift and neither front nor “tail”
heavy.
WHILE USING LIFT
•Avoid excessive rocking of vehicle while on lift.
•Always use safety stands as needed or when
removing or installing heavy components.
DANGER!
VISUALLY CONFIRM THAT ALL PRIMARY
SAFETY LOCKS ARE ENGAGED BEFORE
ENTERING WORK AREA.
Suspension components us on this lift are
intended to raise and lower lift only and are
not meant to be load holding devices.
Remain clear of elevated lift unless visual
confirmation is made that all primary
safety locks are fully engaged and the lift is
LOWERED onto the safety locks, Refer to
installation /operation manual for proper
safety lock procedures and /or further
instruction.
Safety Pin
Safety Locked

CAUTION!
If you are not completely familiar with automotive lift
maintenance procedures; STOP: Contact factory for
instructions. To avoid personal injury, permit only
qualified personnel to perform maintenance on this
equipment.
W W W . T M G I N D U S T R I A L . C O M P 2 0 / 2 8 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
TO LOWER THE LIFT
WARNING!
When lowering the lift PAY CAREFUL ATTENTION that
all personnel and objects are kept clear.
ALWAYS keep a visual line of site on the lift AT ALL
TIMES. ALWAYS make sure that ALL LOCKS are
disengaged. If one of the locks inadvertently locks on
descent the lift and/or vehicle may disrupt causing
personal injury or death.
1. Remove all tools or other objects from the lift area.
2. Raise lift off safety locks. Make sure you raise the lift
by at least two inches to allow adequate clearance for
the locks to clear.
3. Confirm safety lock is in unlocked position.
4. Push LOWERING valve handle to lower. Do not
override self-closing lift controls.
5. Remain clear of lift when lowering vehicle.
Observe pinch point warning decals.
6. Remove adapters from under vehicle and arms to
full drive-thru position before moving vehicle.
7. If lift is not operating properly, DO NOT use until
adjustment or repairs are made by qualified lift
service personnel.
MAINTENANCE INSTRUCTIONS
•Always keep bolts tight. Check periodically.
•Always keep lift components clean.
•Always if oil leakage is observed, call local service
representative.
•Always if electrical problems develop, call local
service representative.
•Always replace ALL FAULTY PARTS before lift
is put back into operation.
•Daily: Make a visual inspection of ALL
MOVING PARTS and check for excessive
signs of wear.
•Daily: Check Safety Locks to ensure they are in
good operating condition.
•Daily: Check pivot points and hinges for
wear. Replace worn parts as required with
genuine parts.
•Daily: Inspect adapters for damage or
excessive wear. Replace as required with
genuine parts.
•Weekly: Lubricate any rollers with general
purpose oil or WD-40. Lubricate arm Hinge Pins
with grease.
•Weekly: Check bolts and pins to ensure
proper mounting.
•Monthly: Lubricate locking latch shafts. Push latch
handle several times for oil to penetrate pivot points.
•Semi-Annually: Check fluid level of lift power unit
and refill if required per lift installation instructions.
•Replace all caution, warning or safety related
decals on the lift if unable to read or missing.
•Refer to ANSI/ALI ALOIM booklet for periodic
inspection checklist and maintenance log sheet.
Safety Unlocked
Safety Blocks
Safety Pin
