TMG TMG-LPG11 User manual

► www.tmgindustrial.com P0 / 18 Toll Free:1-877-761-2819
Main specifications
Overall assembled size : W4.88 x L7.5x H3.05 (m) / 16 x 24 x 10
(ft)
Front door : W3.6 x H2.0 (m) / 11.8 x 6.56 (ft)
Side door: W0.9 x H2.0 (m) / 2.95 x 5.56 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is very
important to follow your local safety regulations and industry
standards during installation. Regulations may include but are not
limited to:
-Safety helmets, protective eyewear, and clothing
-Safety harnesses for all elevated workers
-Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with
a part number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind.
Do not make any alterations to the structure. Do not hang any weights on the
frame during installation, including parts. We are not responsible for any

► www.tmgindustrial.com P1 / 18 Toll Free:1-877-761-2819
Main Specifications:
Assembly size : W2.95 x L2.95 x H2.5 (m) / 10ft x 10ft x 8ft
Wind proof roller shutter : W2.73 x H2.325 (m)
fabric density : 5％
Prior to assembly
Please go through the whole instruction manual completely. It is very important to
follow your local safety regulations and industry standards during installation.
Regulations may include but are not limited to:
- Safety helmets, protective eyewear, and clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to ensure you have all parts.
Choose a day with low or no wind to install, it is hard to assemble with heavy wind. Do
not make any alterations to the structure. Do not hang any weight on the frame during
installation, including parts. We are not responsible for any damages or injuries caused
by inappropriate installation, unauthorized modifications or extreme weather.
Check the parts list below to make sure all parts are received prior to assembly.

► www.tmgindustrial.com P2 / 18 Toll Free:1-877-761-2819
TMG-LPG11 Part List
Parts
code
Graphical
Description
length
Qty
A1
Post
110X110mm
4
A2
Base cover
190X190mm
4
A3
Base footing plate
170X170mm
4
A4
Base footing screw
4X35mm
24
A5
Expansion bolt
M8X7mm
16
A6
Post cover
110X110mm
4
A7
Post cover screw
4X16mm
24
A8
Small cover
18X18X2
4
B1
Beam B1-Beam
80X140mm
1
B2
Beam B1-Beam
80X140mm
1
B3
Beam B1-Beam
80X140mm
1
B4
Beam B1-Beam
80X140mm
1
B5
Rubber plug
8mm
40
B6
Sliding pin
35*17mm
42
B7
Sliding pin screw
4*16mm
84
C1～C21
Blade
149.98*43.8mm
21

► www.tmgindustrial.com P3 / 18 Toll Free:1-877-761-2819

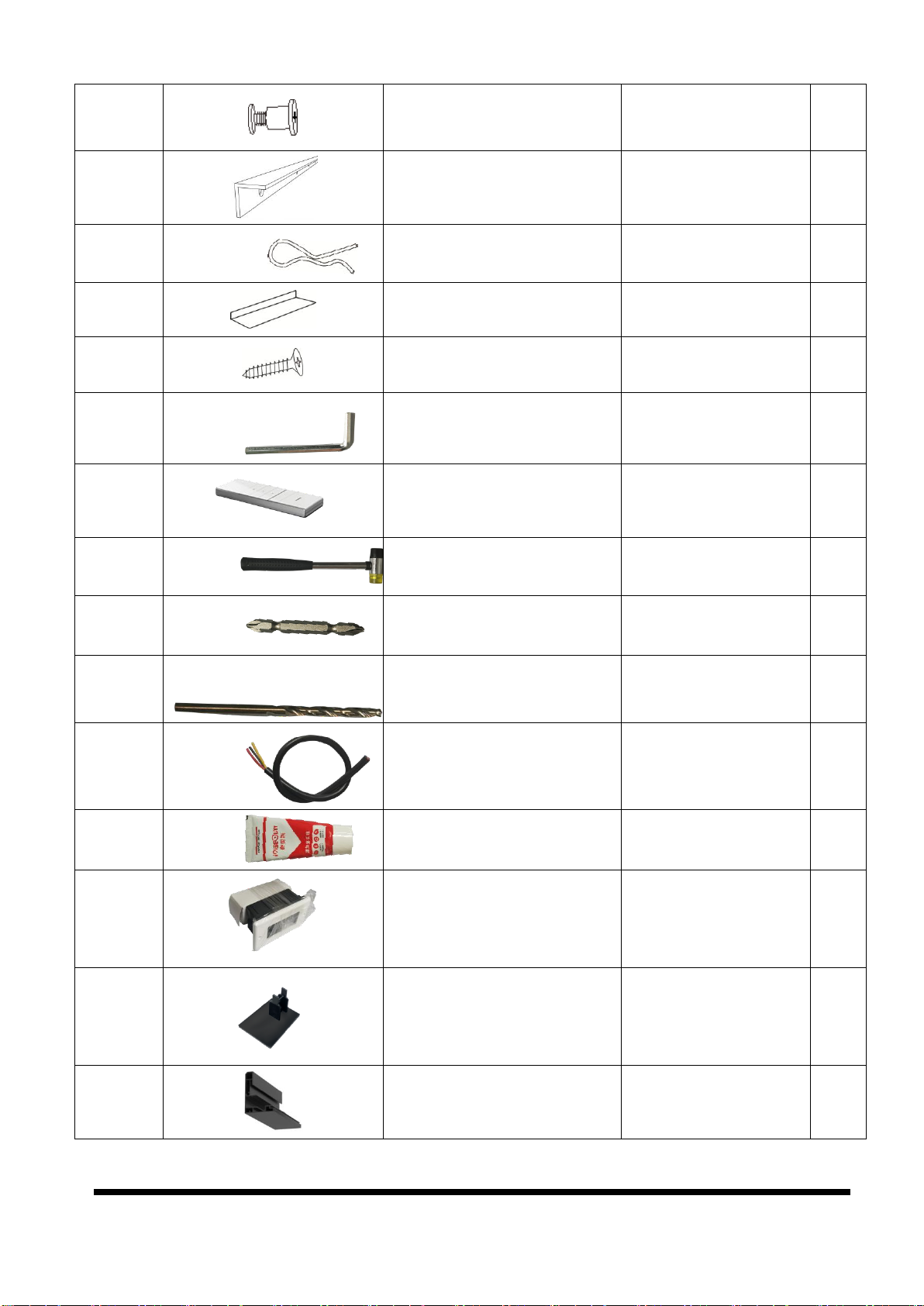

C44
Letters
6*8*8mm
1
D1
L shape aluminum plate
25*15mm
2
E
R-shape pin
1.8*35mm
42
F1
Front breakwater
65*15mm
1
F2
Front breakwater screw
4*16mm
3
H1
Hexagon spanner
3mm
2
I
Pergola remote control
1
J
Small rubber hammer
26*6*2mm
1
K
Cross head
65mm
2
L
Auger
3.4mm
1
M
5M Power line
5m
1
N
Silicon sealant
120ml
1
O
Residual circuit breaker
125w
1
P1
Orbital left seal
49*38mm
4
P1-1
Left side orbital
49*38mm*2219mm
4

► www.tmgindustrial.com P4 / 18 Toll Free:1-877-761-2819

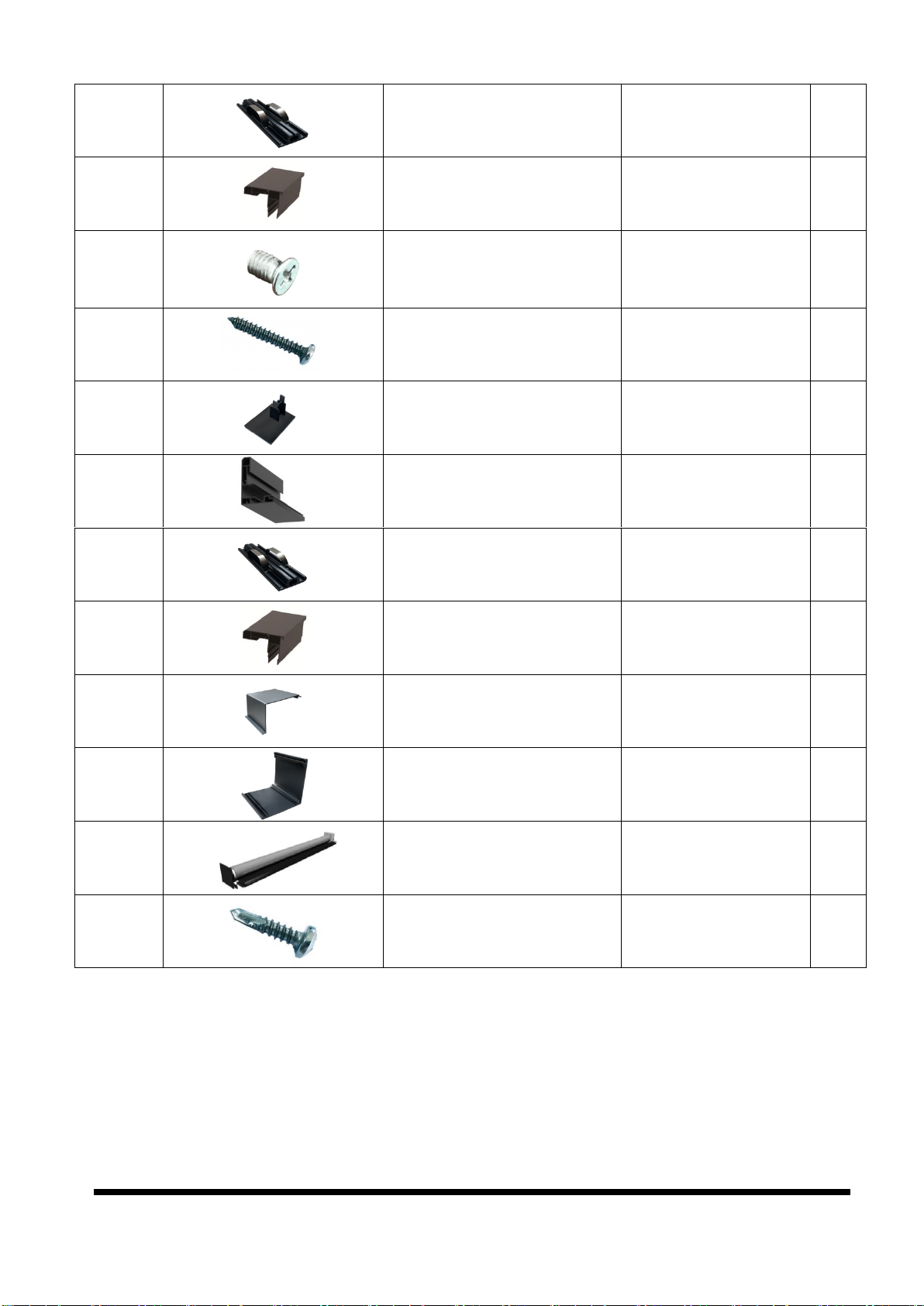

P1-2
Left side rubber tape
32*2219mm
4
P1-3
Left side orbital cover
49*38*2219mm
4
P3
Screw for side orbital
cover
5*8mm
8
P4
Screw for Side orbital
4.2*38mm
40
P2
Orbital right seal
49*38mm
4
P2-1
Right side orbital
49*38mm*2219mm
4
P2-2
Right side rubber tape
32*2219mm
4
P2-3
Right side orbital cover
49*38*2219mm
4
Q1
Front cover
100*100*2720mm
4
Q2
Rear cover
100*100*2720mm
4
Q3
Rolling fabric and motor
2666*2565mm
4
Q4
Cover screw
4.2*25mm
24

► www.tmgindustrial.com P5 / 18 Toll Free:1-877-761-2819
Step 1 : Install base footing plate and beam
Lay the post A1 flat, install base cover A2 and base footing plate A3 on all post A1, and
drilling base footing screw A4. The step applies to the two post on the right
Install the beam, insert the ends of beam B1 into two post A1, and tighten the screws
Parts
code
Graphical
Qty
B1
1
A1
4
B3
1
A2
4
A3
4
A4
16

► www.tmgindustrial.com P6 / 18 Toll Free:1-877-761-2819
Step 2 : Install Beam B4
Connect electric wire first，the main line passes through the bottom of post A1 and links
the power plug of B1 and B4.
Install beam B4 on post A1 as shown.
B4
1

► www.tmgindustrial.com P7 / 18 Toll Free:1-877-761-2819
Step 3 : Install Beam B2
Connect power plug of B1-B2 and B2-B3.
Fix beam B2 to post A1.
B2
1

► www.tmgindustrial.com P8 / 18 Toll Free:1-877-761-2819
Step 4 : Install Base footing plate A3.
Measuring base distance，make the parallel distances and the diagonal distances equal.
Secure the base footing plate A3 with expansion bolt A5.
Parts
code
Graphical
Qty
A5
16

► www.tmgindustrial.com P9 / 18 Toll Free:1-877-761-2819
Step 5 : Install the Blade C1-C21.
Install the blades C1--C21 in sequence, and drill the sliding pin screw B7 into sliding pin
B6 to fix it.
Connect all the blades with L shape aluminum D1 & D2, and plug R-shape pin E as
shown.
Connect LED light: the light line passed through the beam B4 and connect the power line
according to the same color.
All screw hole plugs with small rubber plug B5.
C1-C21
21
E
42
B5
40
B7
84
B6
42
D1
2

► www.tmgindustrial.com P10 / 18 Toll Free:1-877-761-2819

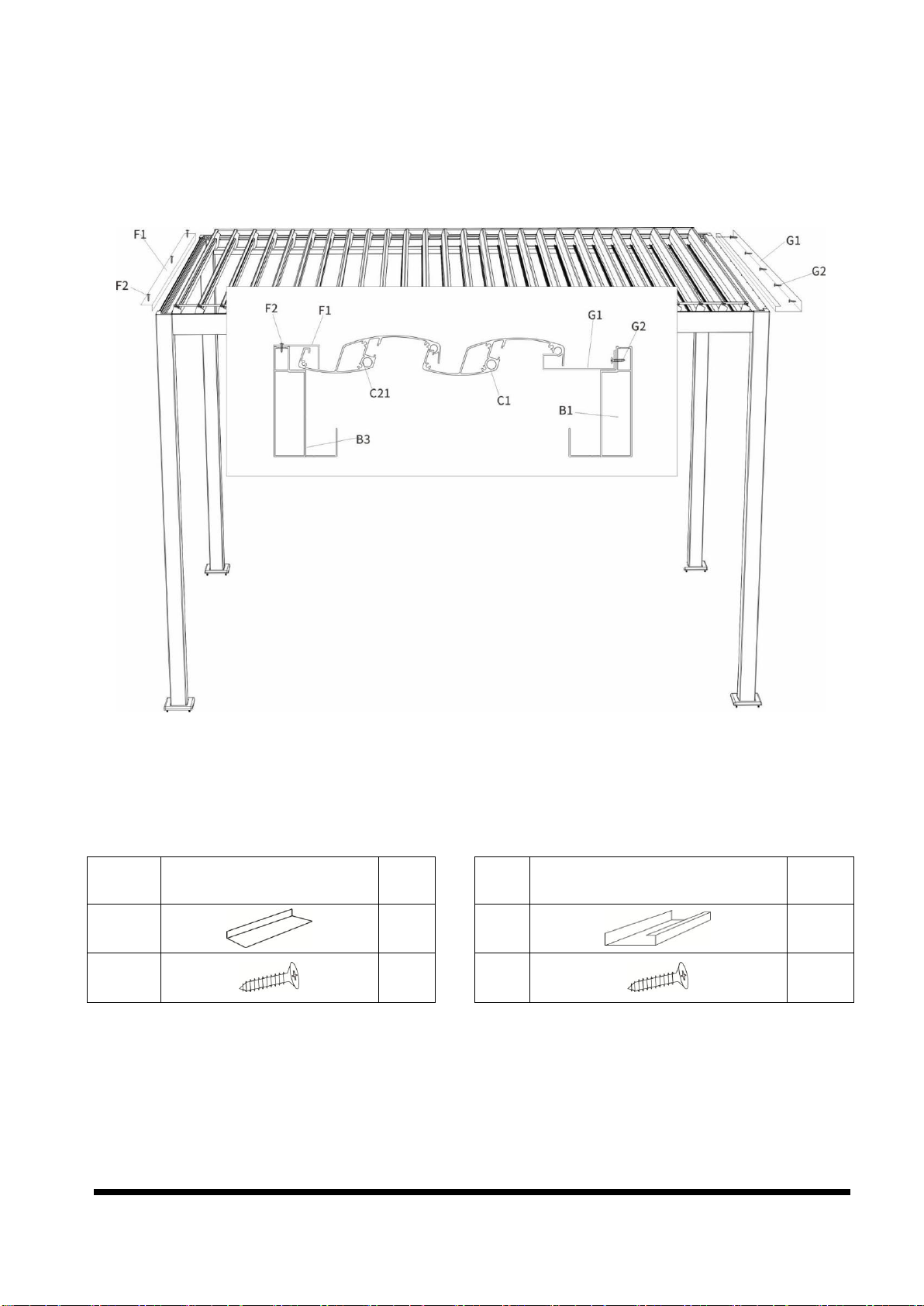

Step 6: Install Front breakwater F1 and Rear breakwater G1
Parts
code
Graphical
Qty
F1
1
G1
1
F2
3
G2
5

► www.tmgindustrial.com P11 / 18 Toll Free:1-877-761-2819
Step 7: Install post cover A6
Parts
code
Graphical
Qty
A8
4
A6
4
C44
1
A7
24

► www.tmgindustrial.com P12 / 18 Toll Free:1-877-761-2819
Step 8: Separate Front cover Q1
Remove the screws and open the Front cover Q1
2.Unscrew the two ends of Rolling fabric and motor Q3 and take Rolling fabric and
motor Q3 out.
Parts
code
Graphical
Qty
Q1
1
Q3
1
Q2
1

► www.tmgindustrial.com P13 / 18 Toll Free:1-877-761-2819
Step 9: Install Rear cover Q2
Install Rear cover Q2 and screw the screw on the Beam. (PS: please pay attention to
installation direction, please make sure the protruding side of the iron is on the outside）
Parts
code
Graphical
Qty
Q2
1
Q4
3

► www.tmgindustrial.com P14 / 18 Toll Free:1-877-761-2819

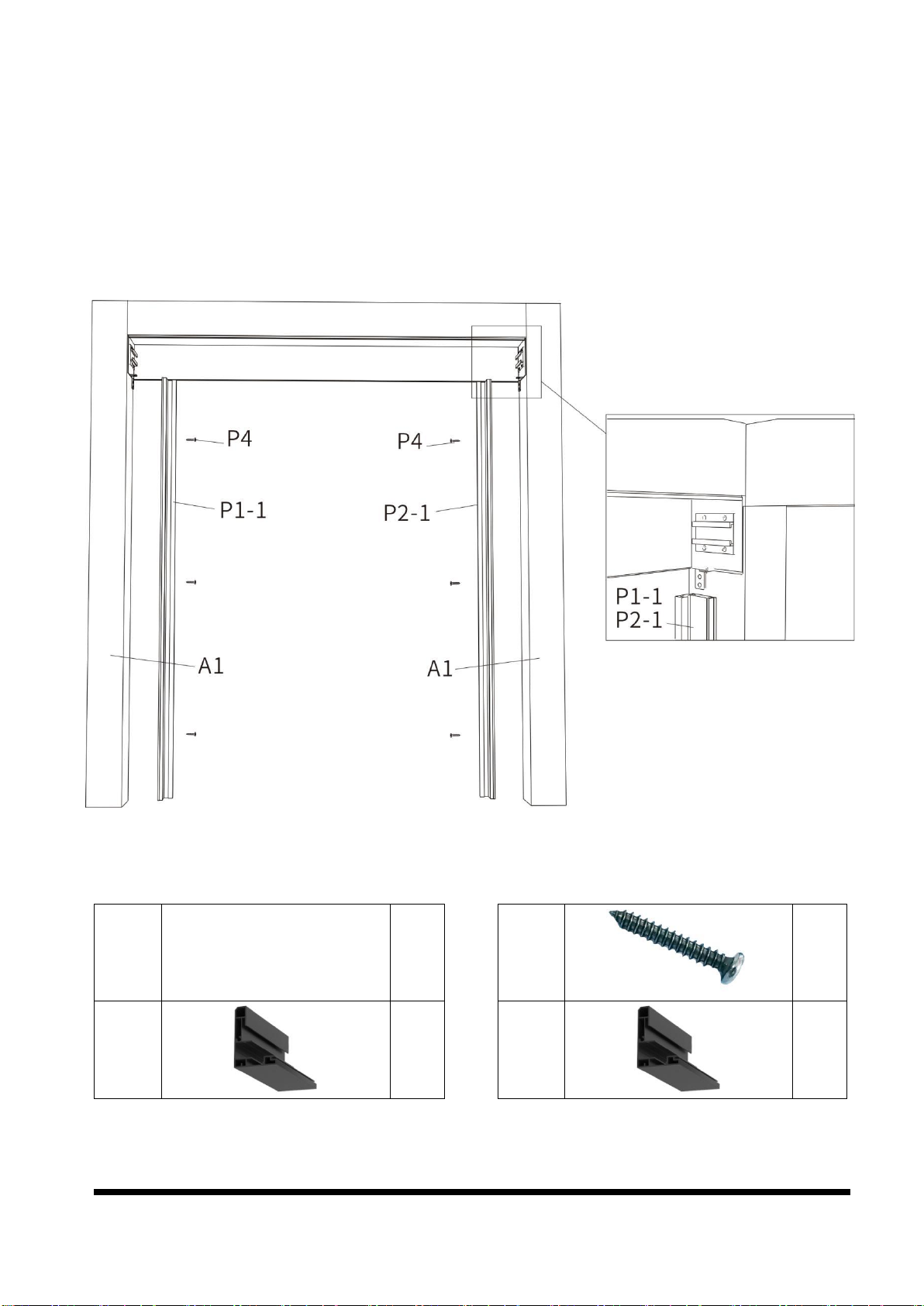

Step 10:Install Left & Right side orbital P1-1 & P2-1.
Left & Right side orbital P1-1 & P2-1 are mounted on protruding iron blocks on both
sides of the Rear cover Q2.
Left & Right side orbital P1-1 & P2-1 screw 3pcs Screw for side orbital P4 in Post A1.
Parts
code
Graphical
Qty
P4
6
P1-1
1
P2-1
1

► www.tmgindustrial.com P15 / 18 Toll Free:1-877-761-2819
Step 11: Install Orbital Left & Right seal P1 & P2 and Left & Right side rubber tape
P1-2 & P2-2.
Install Orbital Left & Right seal with Screw for side orbital P4.
Install Left & Right side rubber tape P1-2 & P2-2 on Left & Right side Orbital P1-1 &
P2-1. PS: The Left & Right side rubber tape P1-2 & P2-2 of the gap on the top.
Parts
code
Graphical
Qty
P2-2
1
P1
1
P2
1
P4
2
P1-2
1

► www.tmgindustrial.com P16 / 18 Toll Free:1-877-761-2819
Step 12: Install Rolling fabric and motor Q3.
Install Rolling fabric and motor Q3，The fabric faces inward; Clip the fabric into Left &
Right side rubber tape P1-2 & P2-2.
Screw left and right sides of Rolling fabric and motor Q3.
Parts
code
Graphical
Qty
Q3
1

► www.tmgindustrial.com P17 / 18 Toll Free:1-877-761-2819

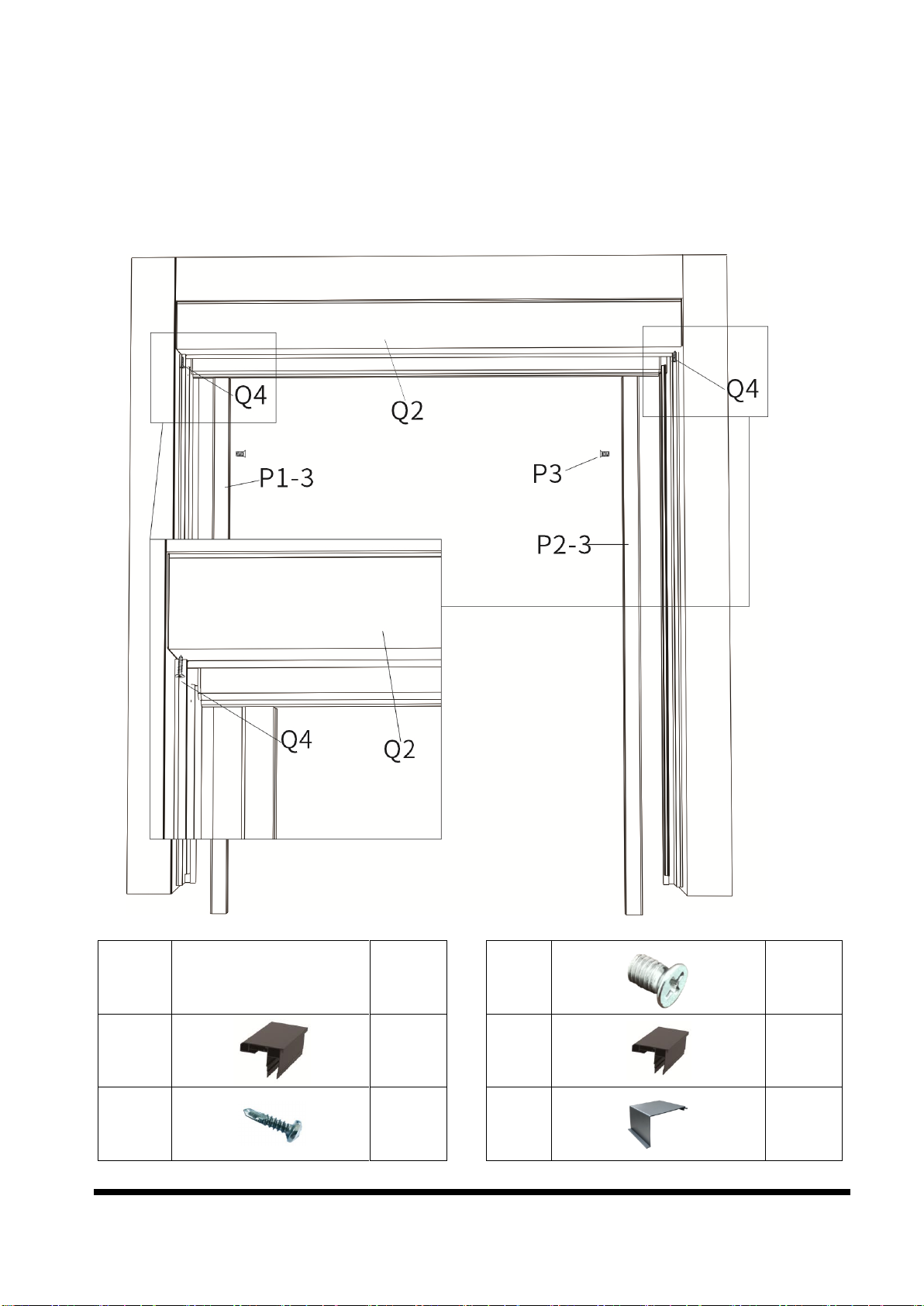

Step 13:Install Left & Right side orbital cover P1-3 & P2-3 and Front cover Q1.
Install the Left & Right side orbital cover P1-3 & P2-3 , tap it with a small plastic
hammer J; Secure with Screw for side orbital cover P3.
Install Front cover Q1 and secure it with Cover screw Q4.
Parts
code
Graphical
Qty
P3
2
P1-3
1
P2-3
1
Q4
2
Q1
1

► www.tmgindustrial.com P18 / 18 Toll Free:1-877-761-2819
Step 14:Connect electric wire.
