TMG TMG-GH2580 User manual

W W W . T M G I N D U S T R I A L . C O M P 0 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9

W W W . T M G I N D U S T R I A L . C O M P 1 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9
Main specifications
Overall assembled size : W7.62 x L24.7 x H3 (m) / W25 x L81 x H10 (ft)
Shoulder height : H1.2 (m) / 4ft
Door : W1.2 x H2 (m) / 4 x 6.6 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is important to follow your
local safety regulations and industry standards during installation. Regulations may
include but are not limited to :
Safety helmets, protective eyewear, and clothing
Safety harnesses for all elevated workers
Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not
make any alterations to the structure. Do not hang any weights on the frame during
installation, including parts. We are not responsible for any damages or injuries caused by
inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and
where it touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all
parts are included prior to setup.

W W W . T M G I N D U S T R I A L . C O M P 2 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9
TMG-GH2580 Part List
Parts
code
Graphical
Description
Qty
1
Peak arch tube
20
2
Upper rafter tube
40
3
Shoulder tube
36
3A
Shoulder tube
(front and rear truss)
4
4
Roof purlin
(horizontal tube)
133
5
Base plate
40
5B
Expansion bolt φ14x100mm
136
6
Door column base plate
8
7
Vertical tubes
4
8L
Door left vertical tubes
2
8R
Door right vertical tubes
2
9
Door horizontal tube
8
9L
Door frame column left tube
2
9R
Door frame column right tube
2
10
Door cross tubes
4
10A
Door cross tubes
4
10B
Door frame cross pull tube
2
11
Ceiling cross bar
20

W W W . T M G I N D U S T R I A L . C O M P 3 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9

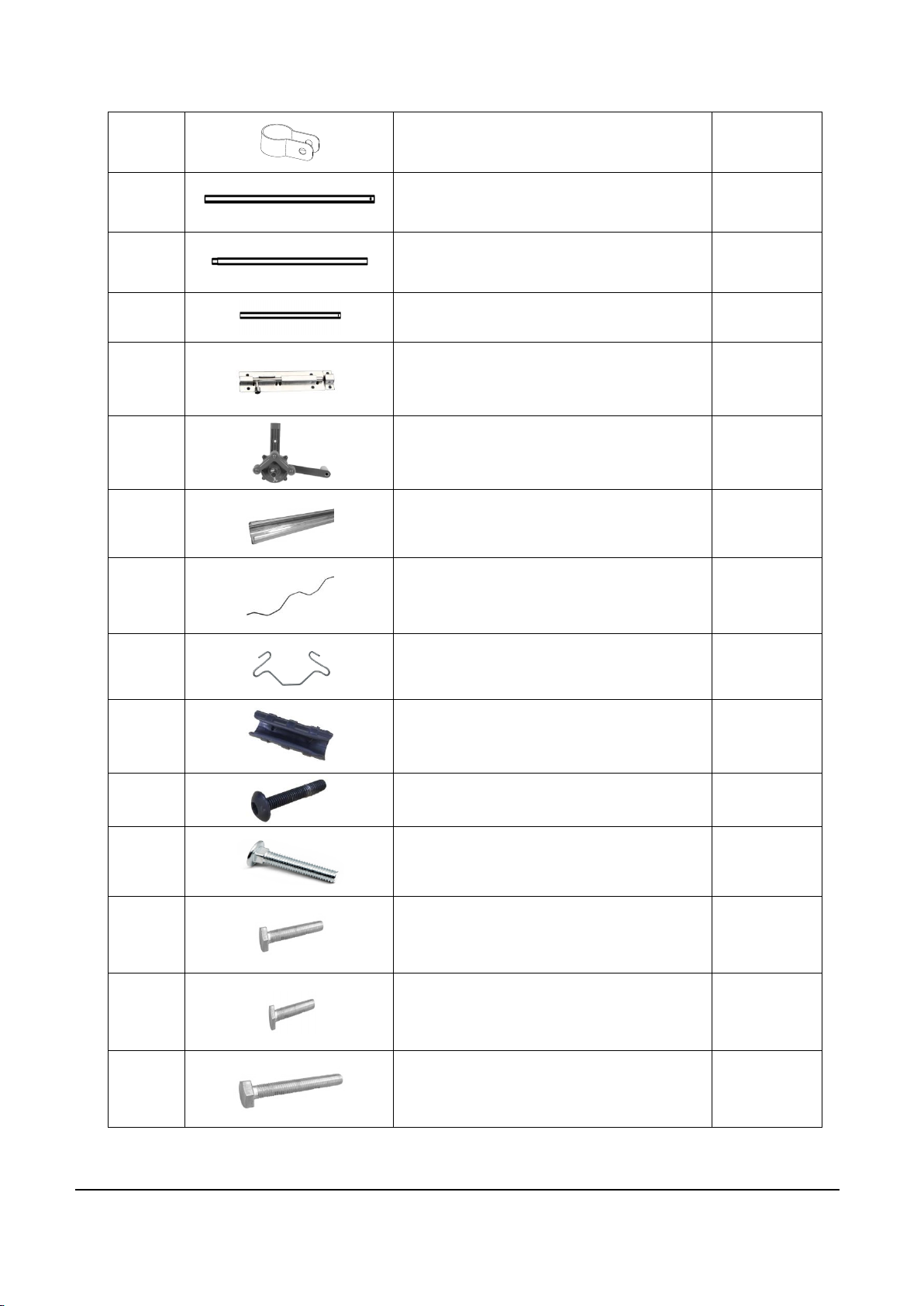

12
Tube clamp
12
13
Film rolling machine guide tube
2
14
Roll film tube
24
14A
Roll film tube
2
15
Door buckle
2
16
Film rolling machine
2
17
Reed groove
88
17A
Clip spring
88
18
Eight clip spring
78
19
Pressure film carrier
40
20
Half round head bolt M6x50
16
21
Self locking bolt
M10x70mm and nuts
140
22
Hex bolt
M10x70mm and nuts
272
23
Hex bolt
M10x30mm and nuts
52
24
Hex bolt
M10x100mm and nuts
2

W W W . T M G I N D U S T R I A L . C O M P 4 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9

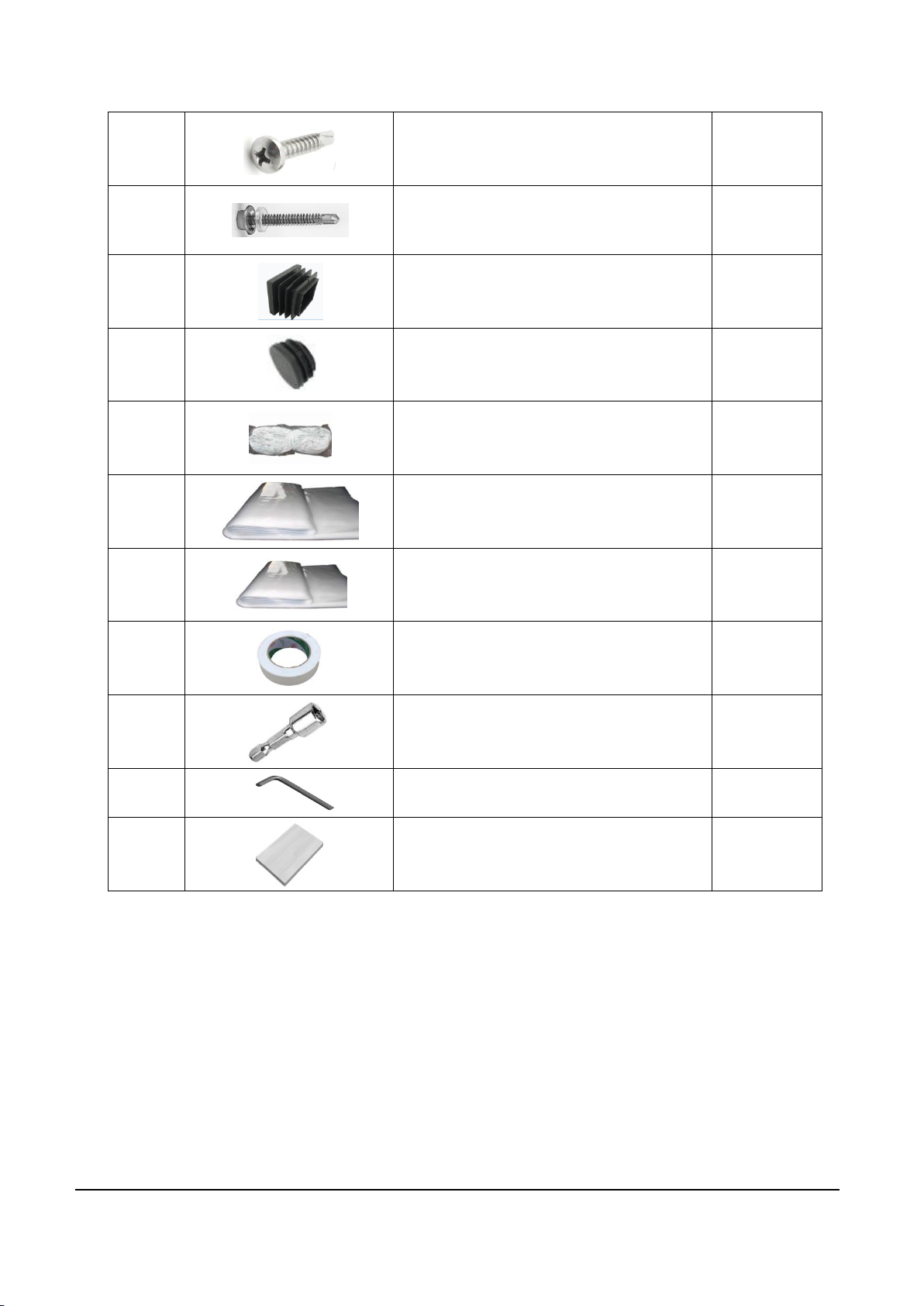

25
Self tapping screw #12x25
500
26
Self tapping screw #12x35
184
27
Square plug
8
28
Round plug(φ25)
6
29
Braided rope
1 bundle
(80m)
30
Top cover film
1
30A
Front and rear door film
2
31
Adhesive tape
9
32
Socket wrench
1
33
Hex wrench
1
34
Board 150x15x2000mm
(not included)
58

W W W . T M G I N D U S T R I A L . C O M P 5 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9
Installation steps
Step 1 : Review the whole structure and choose the proper installation site.
Mark the ground in the final building location with a line showing the positions of
base plates, front doors. All lines should be drawn from center to center of all base
plate tubes. Diagonal line X must be equal to Y.
Base plates : all base plates must be installed firmly with expansion bolts (#5B) on
this step.
Figure 1
No.
Part
Qty
5
40
6
8
5B
136

W W W . T M G I N D U S T R I A L . C O M P 6 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9

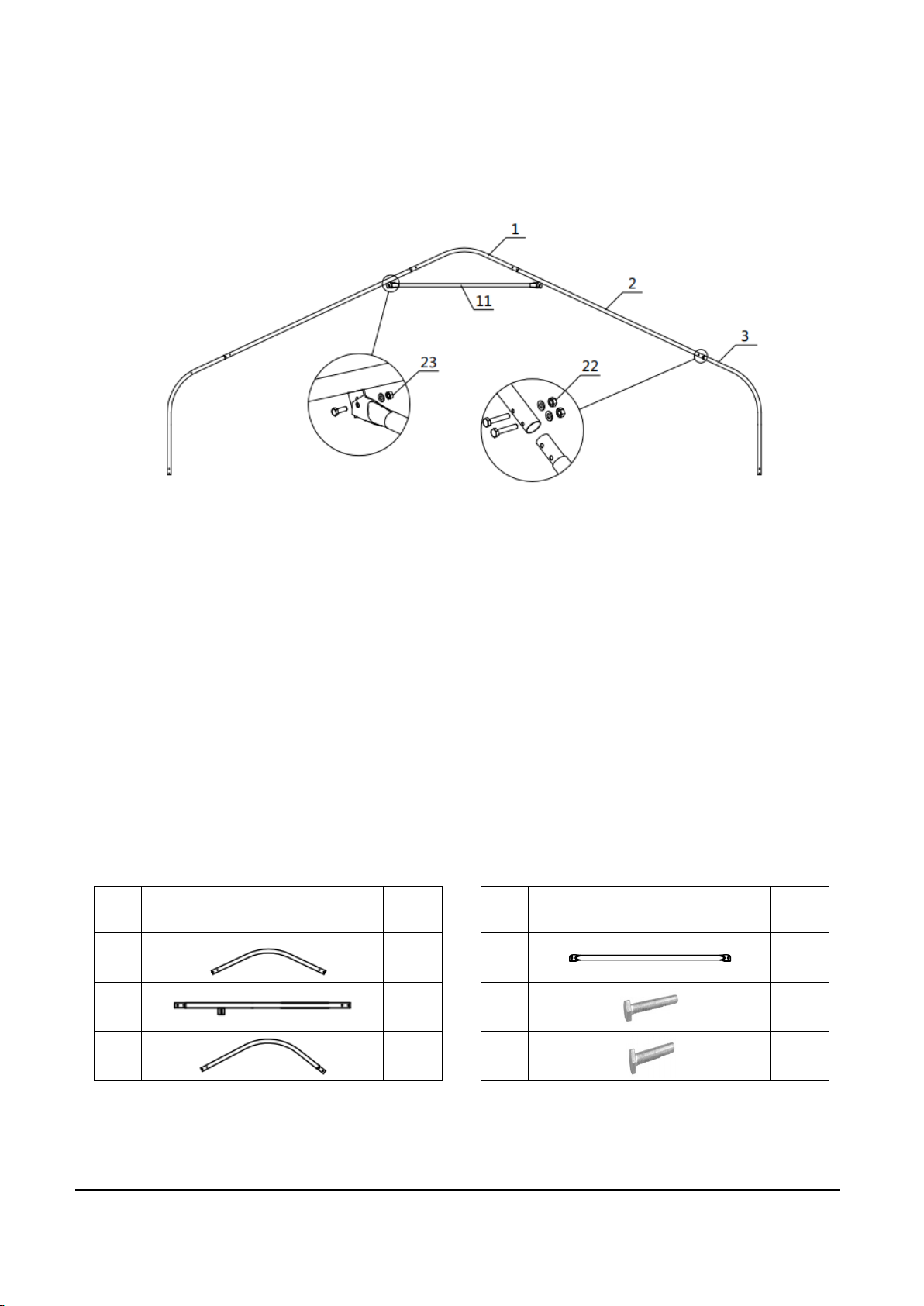

Step 2 : Assemble all trusses.
The building includes 20 trusses : (2) front and rear truss, and (18) middle trusses.
Install front and rear trusses.
Figure 2
No.
Part
Qty
No.
Part
Qty
1
1x2
11
1x2
2
2x2
22
8x2
3A
2x2
23
2x2

W W W . T M G I N D U S T R I A L . C O M P 7 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9
Install (18) middle trusses.
Figure3
No.
Part
Qty
No.
Part
Qty
1
1x18
11
1x18
2
2x18
22
8x18
3
2x18
23
2x18

W W W . T M G I N D U S T R I A L . C O M P 8 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9
Lay down all (20) trusses on the ground when the assembly is all completed
and before moving to next step, and then wrap (#31) around the sharp points
of the joint to avoid friction between the fabric and the interface, resulting in
fabric damage.
Figure 4
No.
Part
Qty
31
3

W W W . T M G I N D U S T R I A L . C O M P 9 / 1 5 T o l l F r e e : 1 - 8 7 7 - 761- 2 8 1 9
Step 3 : Put up all trusses.
Put up the front truss, use hex bolt (#22) to secure the truss to the base plates.
Figure 5
Connect all purlins, and then wrap (#31) around the sharp points.
Figure 6
No.
Part
Qty
No.
Part
Qty
4
133
22
80
21
140
31
6

W W W . T M G I N D U S T R I A L . C O M P 10/ 1 5 T o l l F r e e : 1 - 877-761- 2 8 1 9

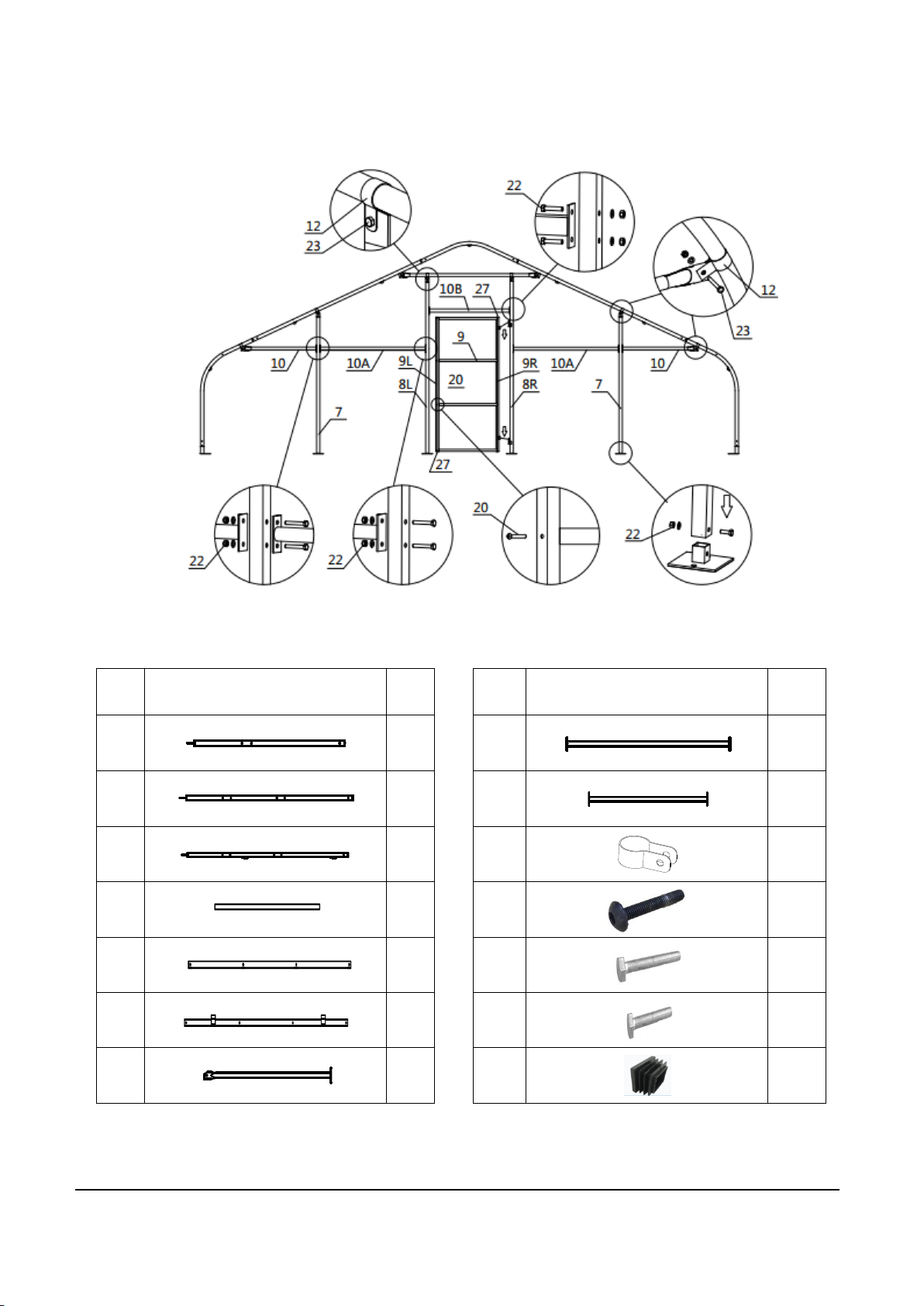

Step 4 : Installation of front and rear trusses.
Figure 7
No.
Part
Qty
No.
Part
Qty
7
2x2
10A
2x2
8L
1x2
10B
1x2
8R
1x2
12
6x2
9
4x2
20
8x2
9L
1x2
22
16x2
9R
1x2
23
6x2
10
2x2
27
4x2

W W W . T M G I N D U S T R I A L . C O M P 11/ 1 5 T o l l F r e e : 1 - 877-761- 2 8 1 9

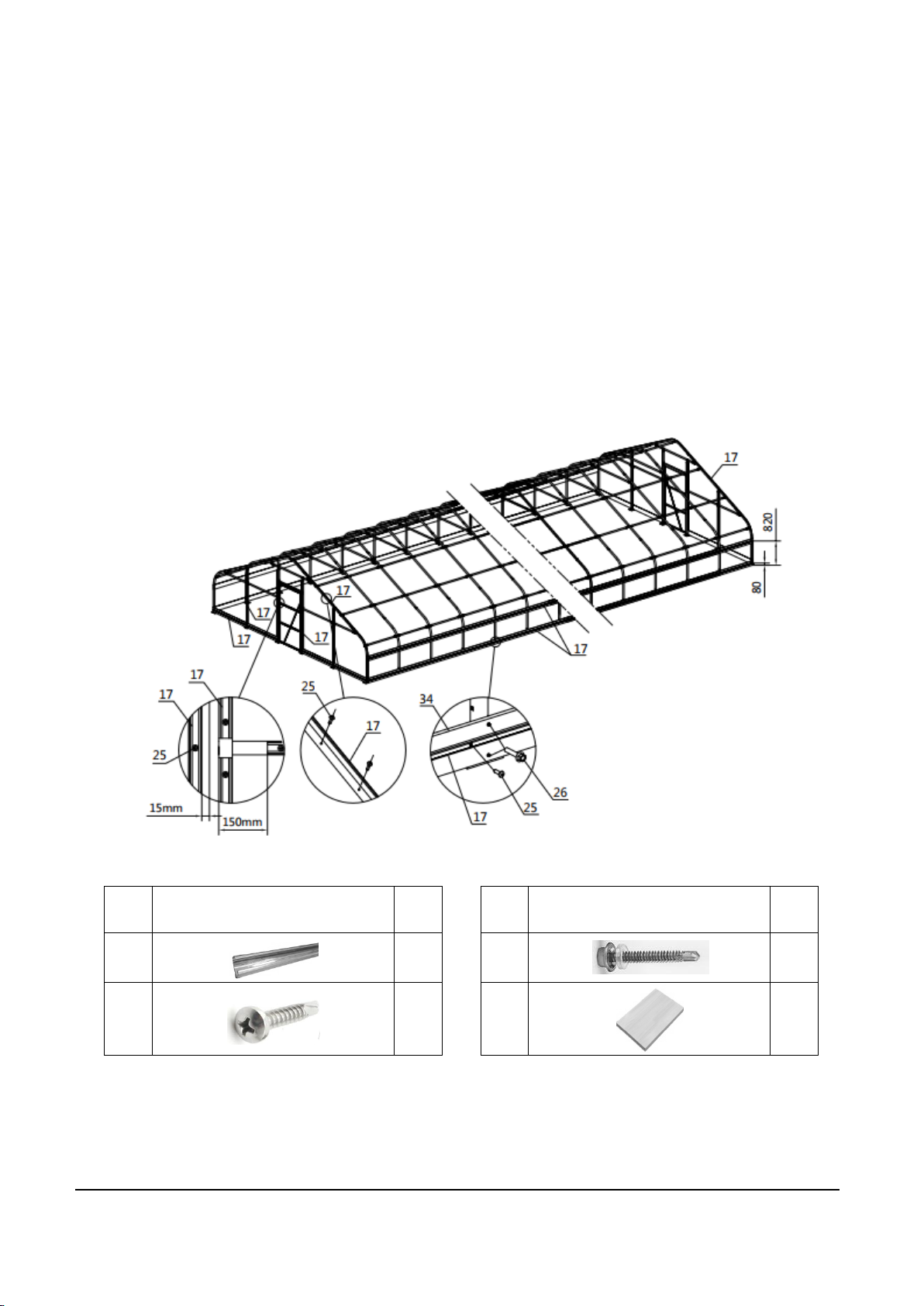

Step 5 : Install boards (#34) and reed groove (#17).
Fix the board (#34) with self tapping screw (#26).
Fix the reed groove (#17) with the self tapping screw (#25).
Parts used in this step :
-
(88) Reed groove (#17)
-
(440) Self tapping screw (#25)
-
(184) Self tapping screw (#26)
-
(58) Boards (#34)
Figure 8
No.
Part
Qty
No.
Part
Qty
17
88
26
184
25
440
34
58

W W W . T M G I N D U S T R I A L . C O M P 12/ 1 5 T o l l F r e e : 1 - 877-761- 2 8 1 9
Step 6 : Install front and rear film.
Lift the film (#30A) and fix the film with a clip spring (#17A) from top to
bottom.
Install door buckle (#15) with self tapping screw (#25).
Cut the door film as shown.
Figure 9
No.
Part
Qty
No.
Part
Qty
15
1x2
25
6x2
17A
19x2
30A
1x2

W W W . T M G I N D U S T R I A L . C O M P 13/ 1 5 T o l l F r e e : 1 - 877-761- 2 8 1 9

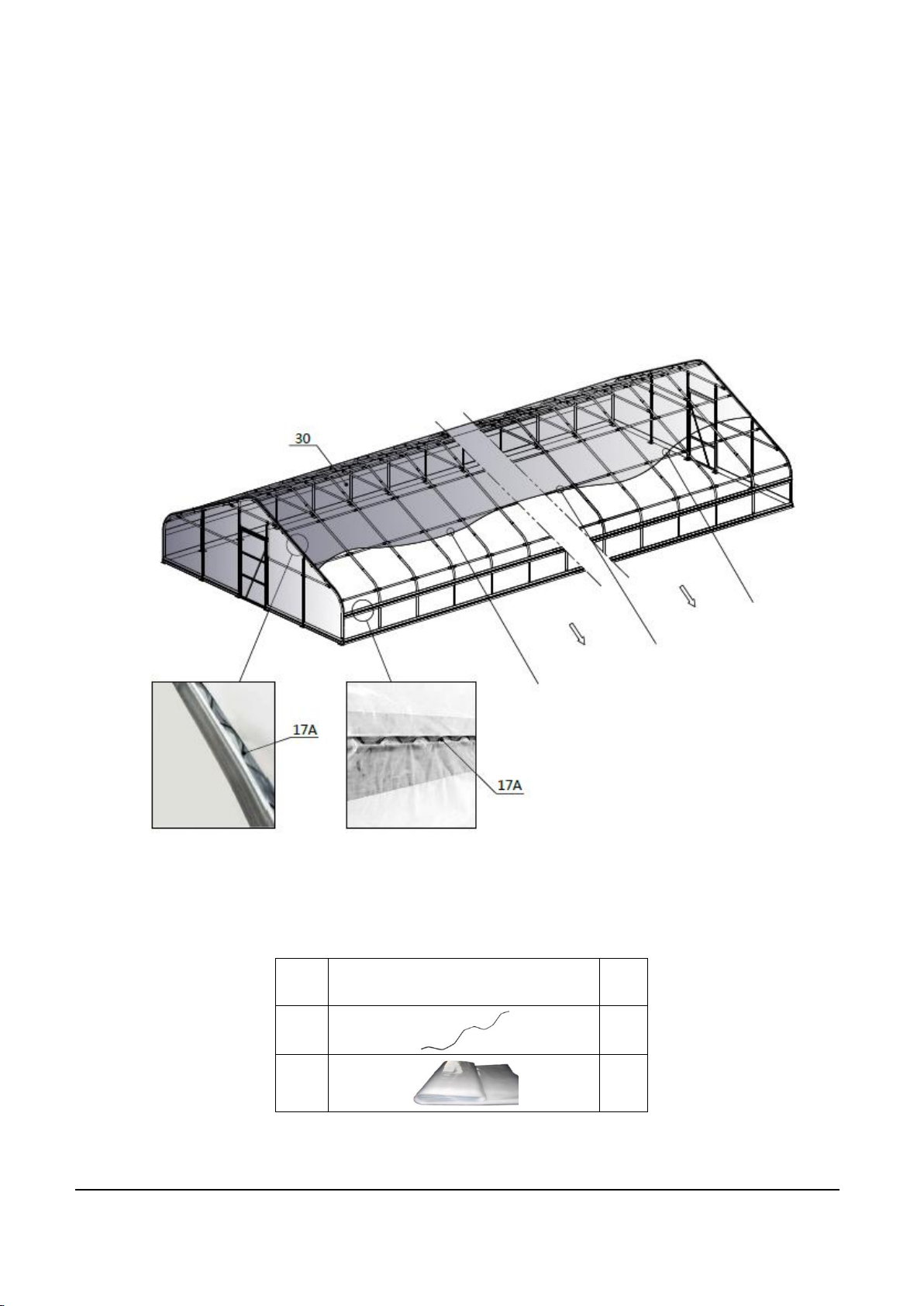

Step 7: Install top cover film.
when you are ready to install the roof cover, unpack the cover and position it
parallel to the building frame on one side. the cover must be pulled over the
top of the truss frame without being snagged or stressed on any frame
members. tighten the film evenly to eliminate wrinkles and make the film flat
and smooth. Do not over-tighten during the adjustment process, otherwise it
will cause unnecessary damage. At this time, you can install a clip spring
(#17A) to fix the film.
Figure 10
No.
Part
Qty
17A
50
30
1

W W W . T M G I N D U S T R I A L . C O M P 14/ 1 5 T o l l F r e e : 1 - 877-761- 2 8 1 9

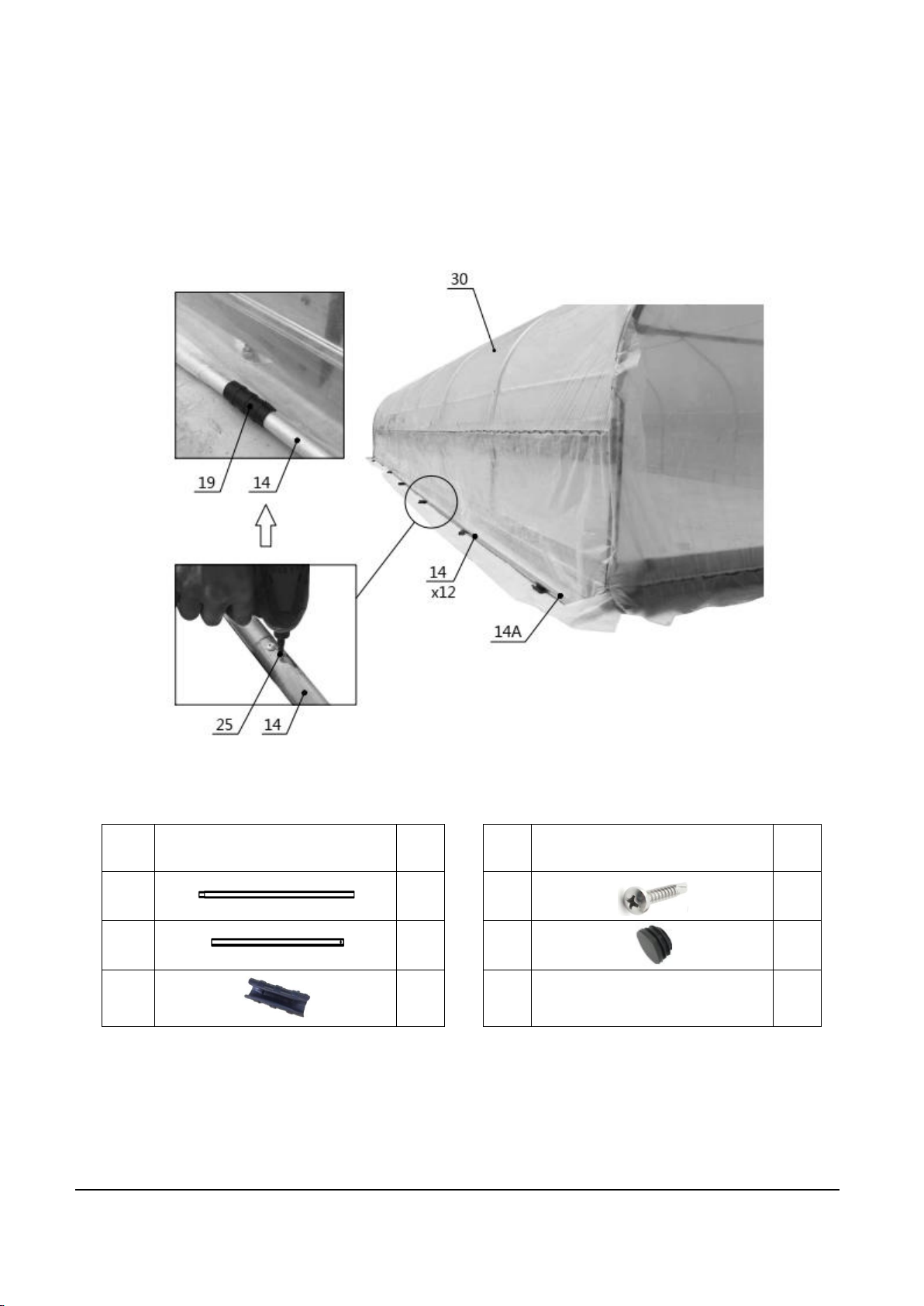

Step 8 : Install roll film system.
Install the roll film tube(#14), add a round plug(#28) at the end. the film (# 30)
is wound on a roll film tube , and clamped with a pressure film carrier (# 19).
Figure 11
No.
Part
Qty
No.
Part
Qty
14
24
25
48
14A
2
28
2
19
40
A round plug (# 28) is put on both ends of the film rolling machine guide tube
(# 13), and the guide tube is mounted on the frame with a hex bolt (# 24), and it is
required to swing freely. The film rolling machine (# 16) drives the roll film tube
(# 14) to be raised and lowered horizontally and flexibly without jamming.

W W W . T M G I N D U S T R I A L . C O M P 15/ 1 5 T o l l F r e e : 1 - 877-761- 2 8 1 9
Install the eight clip spring (# 18) and fasten the braided rope (# 29).
Figure 12
No.
Part
Qty
No.
Part
Qty
13
2
24
2
16
2
28
4
18
78
29
1
After the Installation
Walk around and inspect the shelter periodically to make sure all components are
still firmly secured and the whole shelter is well supported. Check all bolts and nuts
as well as all connection points to make sure they are all in good position.
We strongly recommend you remove any snow from the roof immediately. Do not
leave any snow load on the roof overnight. Keep 3 feet of clearance on all sides at
all times. Do not allow snow to accumulate and pile up on the sides of the building.
Otherwise the pressure from the sides will push inwards and could lead to a
collapse.
