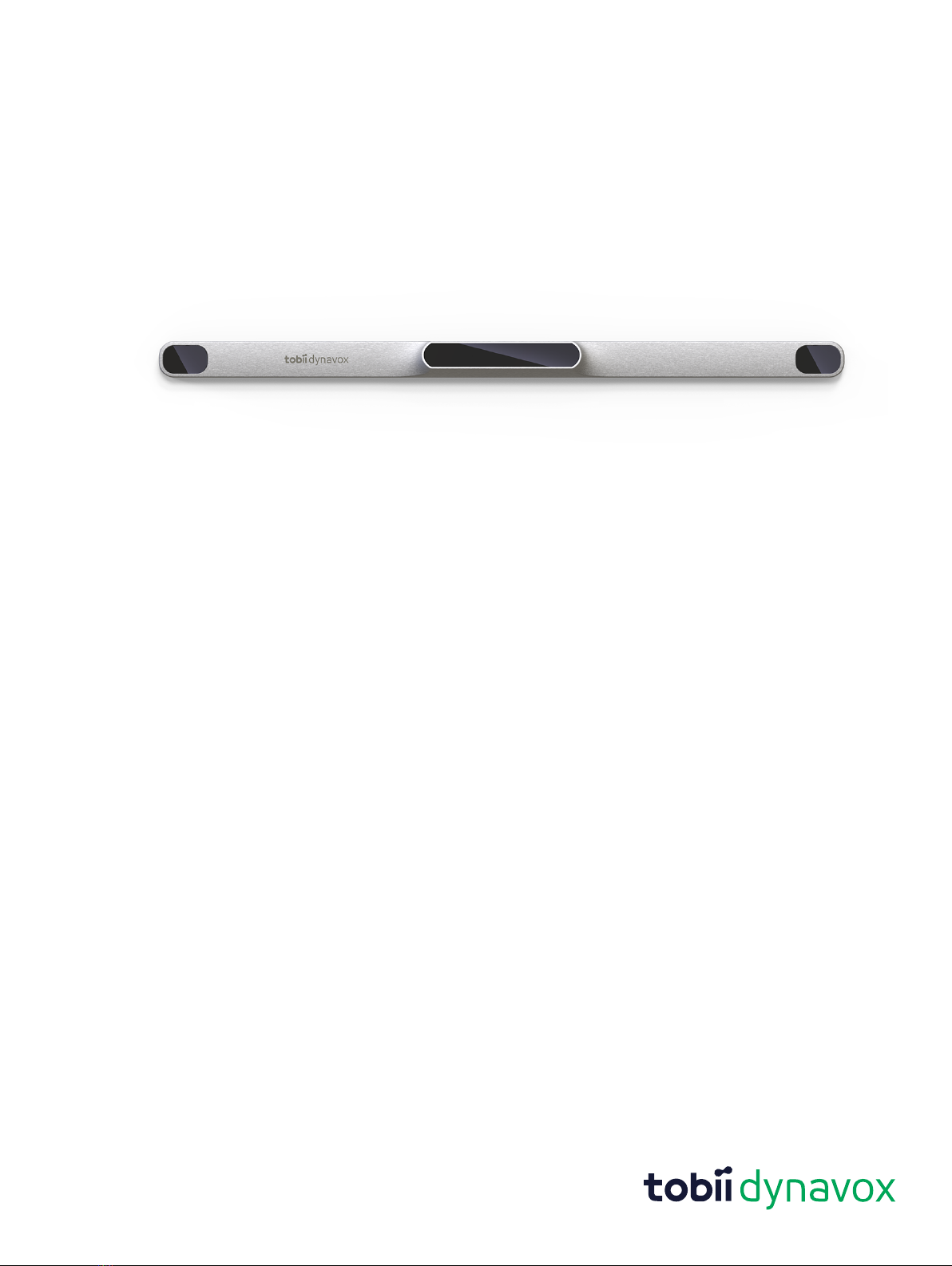

Tobii Dynavox PCEye 5 User manual

Tobii Dynavox PCEye 5
User’s Manual

User’s manual Tobii Dynavox PCEye 5
Version 1.0.1
09/2020
All rights reserved.
Copyright © Tobii AB (publ)
No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form, by any means
(electronic, photocopying, recording, or otherwise) without the prior written permission of the publisher.
Copyright protection claimed includes all forms and matters of copyrightable material and information allowed by statutory
or judicial law or hereafter granted, including without limitation, material generated from the software programs which are
displayed on the screen such as screen displays, menus, etc.
The information contained in this document is proprietary to Tobii Dynavox. Any reproduction in part or whole without prior
written authorization by Tobii Dynavox is prohibited.
Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective
owners. The publisher and the author make no claim to these trademarks.
While every precaution has been taken in the preparation of this document, the publisher and the author assume no
responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or
from the use of programs and source code that may accompany it. In no event shall the publisher and the author be liable
for any loss of profit or any other commercial damage caused or alleged to have been caused directly or indirectly by this
document.
Content subject to change without notice.
Please check Tobii Dynavox web site
www.TobiiDynavox.com for updated versions of this document.
Contact Information:
Tobii Dynavox AB
Karlsrovägen 2D
182 53 Danderyd
Sweden
[phone]
Tobii Dynavox LLC
2100 Wharton Street, Suite 400
Pittsburgh, PA 15203
USA
[phone]
The following products are protected by U.S. Patents 7,572,008, 6,659,611, 8,185,845 and 9,996,159:
● PCEye 5

Table of Contents
1 Introduction ................................................................................................................................... 4
1.1 Explanation of Admonitions....................................................................................................4
1.2 Symbols and Markings ..........................................................................................................4
1.3 Intended Use ........................................................................................................................4
1.4 Product Description...............................................................................................................5
1.5 Package Contents.................................................................................................................5
2 Safety............................................................................................................................................ 6
2.1 Mounting Warning .................................................................................................................6
2.2 Epilepsy Warning ..................................................................................................................6
2.3 Infrared Warning ...................................................................................................................6
2.4 Magnetic Field Warning .........................................................................................................6
2.5 Child Safety ..........................................................................................................................6
2.6 Do not open PCEye 5 ............................................................................................................6
2.7 Emergency ...........................................................................................................................7
2.8 Computer Control..................................................................................................................7
2.9 Third Party............................................................................................................................7
3 Getting Started with PCEye 5....................................................................................................... 8
3.1 System Requirements ...........................................................................................................8
4 Mounting PCEye 5........................................................................................................................ 9
4.1 Standard Mounting................................................................................................................9
4.2 Using the PCEye Bracket.......................................................................................................9
4.3 Permanent Fixation ...............................................................................................................9
5 Using PCEye 5 ........................................................................................................................... 10
5.1 Positioning the User ............................................................................................................10
5.2 Tips for Outdoor Usage........................................................................................................10
6 Settings........................................................................................................................................11
6.1 Setup Windows Hello .......................................................................................................... 11
7 Applicable Application Software ................................................................................................. 12
8 Product Care............................................................................................................................... 13
8.1 Temperature & Humidity ......................................................................................................13
8.1.1 General Use ........................................................................................................13
8.1.2 Transportation and Storage ..................................................................................13
8.2 Cleaning.............................................................................................................................13
8.3 Transporting the PCEye 5....................................................................................................13
8.4 Disposing of the PCEye 5 ....................................................................................................13
Appendix A Support and Warranty ................................................................................................. 14
A1 Customer Support...............................................................................................................14
A2 Warranty ............................................................................................................................14
Appendix B Compliance Information .............................................................................................. 15
B1 FCC Statement ...................................................................................................................15
B2 Industry Canada Statement .................................................................................................15
B3 CE Statement .....................................................................................................................15
B4 Standards...........................................................................................................................15
Appendix C Technical Specifications .............................................................................................. 16

1 Introduction
Thank you for purchasing a PCEye 5 device from Tobii Dynavox!
To ensure the optimal performance of this product, please take the time to read this manual carefully.
1.1 Explanation of Admonitions
In this manual we use three (3) levels of admonitions as follows:
The Note symbol is used for notifying the user of something important or of something that needs special
attention.
The Caution symbol is used to inform of something that could cause harm to, or malfunction of, the equipment.
The Warning symbol is used to inform of something in which there is a conceivable risk of harm to the user if the
Warning is ignored.
1.2 Symbols and Markings
This appendix provides information about the symbols that are used on the PCEye 5, its parts, accessories or packaging.
Symbol or Markings Description
Conforms to relevant Australian EMC requirements
Dispose of in accordance with your country's
requirements.
CE is the abbreviation of the European Communities and
this mark tells customs officials in the European Union that
the product complies with one or more of the EC
Directives
This mark is a certification mark employed on electronic
products manufactured or sold in the United States which
certifies that the electromagnetic interference from the
device is under limits approved by the Federal
Communications Commission.
IC
IC is the abbreviation of the Industry Canada and this
mark tells customs officials in Canada that the product
complies with one or more of the Canadian standards.
Manufacturer.
1.3 Intended Use
The PCEye 5 is intended to be used for Computer Control for Augmentative and Alternative Communication (AAC) and/or
for computer access purposes as an alternative input device to the keyboard and mouse for people that have challenges in
their ability to speak and/or access a computer due to injury, disability or illness.
41 Introduction #12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US

1.4 Product Description
The PCEye 5 is a clip-on eye tracker that lets you access and control your computer using only your eyes. Simply look at
the computer screen and select commands by dwelling, zooming and/or clicking a switch. Alternatively, fully control the
mouse cursor directly with your eye movements. The PCEye 5 fits snuggly on your laptop, docks under retail computer
screens and can also be attached to a Tobii Dynavox PCEye bracket and mounted to certain tablets.
The PCEye 5 is delivered with the SwitchIT adapter that is intended to be connected to one or two switches that can assist
a user with limited mobility in the control of the software on the device.
The eye tracker can be moved between different computers, as long as the monitor with the attached device is placed on a
table. Except for installation, the PCEye 5 is operated mainly by the user only by using their eyes, and it is calibrated
against each user’s eye movements. The intention with the PCEye 5 is to allow the user to control a computer, but it is not
intended for the control of any other medical devices.
The PCEye 5 gives you a fast, accurate and hands free way of accessing the many ways a computer can enrich your life
and bring greater personal independence. You can pursue your interests and education, re-enter the workplace, stay in
touch with friends and family, express yourself artistically and stay entertained.
For more information about screen sizes, see Appendix C Technical Specifications.

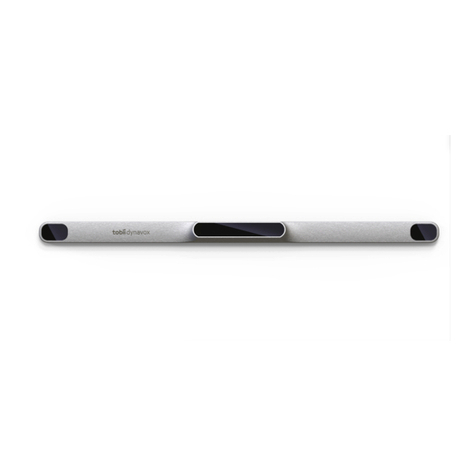

Figure 1.1 PCEye 5
Do not cover the front of the PCEye 5 in any way (with decorations, Post-Its, etc.) as Computer Control will be
compromised.
Using an antivirus program is strongly recommended.
1.5 Package Contents
● PCEye 5
● Magnetic Mounting Plate for PCEye 5
● USB-C to USB-A adapter
● SwitchIT adapter
● Carrying case
● Tobii Dynavox Computer Control software (installer link)
● Getting Started Guide
● Training Cards for Computer Control
● Mounting Plate prep kit (Cleaning Wipe)
Only use the items included in the PCEye 5 package, those described in the product documentation and other
approved Tobii Dynavox Accessories in conjunction with the PCEye 5.
#12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US 1 Introduction 5

2 Safety
2.1 Mounting Warning
The PCEye 5 should be mounted according to the instructions of the approved mounts used. Tobii Dynavox or its
agents are not liable for damage or injuries to a person or its property due to a PCEye 5 falling from a mounted
configuration. The mounting of a PCEye 5 is done entirely at the user’s own risk.
The double sided tape supplied with the adhesive Magnetic Mounting Plates (if applicable) is designed to
permanently attach the bracket to the monitor/laptop. Attempting to remove the bracket after attaching it using
the supplied tape can result in damage both to the monitor/laptop and the bracket.
Do not lick the adhesive tape or place any part of the tape or Magnetic Mounting Plate in one's mouth or on one’s
body.
Do not mount the PCEye 5 on monitors positioned above the head or face of a user unless using a dedicated
"fixed mounting" solution.
2.2 Epilepsy Warning
Some people with Photosensitive Epilepsy are susceptible to epileptic seizures or loss of consciousness when
exposed to certain flashing lights or light patterns in everyday life. This may happen even if the person has no
medical history of epilepsy or has never had any epileptic seizures.
A person with Photosensitive Epilepsy would also be likely to have problems with TV screens, some arcade
games, and flickering fluorescent bulbs. Such people may have a seizure while watching certain images or
patterns on a monitor, or even when exposed to the light sources of an eye tracker. It is estimated that about 3-
5% of people with epilepsy have this type of Photosensitive Epilepsy. Many people with Photosensitive Epilepsy
experience an "aura" or feel odd sensations before the seizure occurs. If you feel odd during use, move your
eyes away from the eye tracker.
2.3 Infrared Warning
When activated, the PCEye 5 emits pulsed infrared (IR) light. Certain medical devices are susceptible to
disturbance by IR light and/or radiation. Do not use the PCEye 5 when in the vicinity of such susceptible medical
devices as their accuracy or proper functionality could be inhibited.
2.4 Magnetic Field Warning
The PCEye 5 Magnetic Mounting contains magnets. Magnetic fields may interfere with the function of cardiac
pacemakers and implantable cardioverter-defibrillators. As a general rule, maintain a minimum distance of 6
inches (15 centimeters) between any item with magnets and your heart device.
2.5 Child Safety
The PCEye 5 is an advanced computer system and electronic device. As such it is composed of numerous
separate, assembled parts. In the hands of a child certain of these parts have the possibility of being separated
from the device, possibly constituting a choking hazard or another danger to the child.
Young children should not have access to, or use, the device without parental or guardian supervision.
2.6 Do not open PCEye 5
Non-compliance will result in loss of Warranty! There are no user serviceable components inside. Contact Tobii
Dynavox Support if your PCEye 5 is not working properly.
62 Safety #12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US

2.7 Emergency
Do not rely on the device for emergency calls or banking transactions. We recommend having multiple ways to
communicate in emergency situations. Banking transactions should only be carried out with a system
recommended by, and approved according to the standards of your bank.
2.8 Computer Control
Some people may experience a certain amount of fatigue (due to intentional eye focusing and hard
concentration) or even a dryness of the eyes (due to less frequent blinking) when first getting used to Computer
Control. If you are experiencing fatigue or dry eyes start off slowly and limit the length of your Computer Control
sessions to your comfort level. Remoisturizing eye drops can be helpful to combat dryness.
2.9 Third Party
Tobii Dynavox assumes no responsibility for any consequence resulting from use of the PCEye 5 in a manner
inconsistent with its intended use, including any use of the PCEye 5 with third-party software and/or hardware
that changes the intended use.
#12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US 2 Safety 7

3 Getting Started with PCEye 5
3.1 System Requirements
For PCEye 5 we recommend the following minimum system requirements:
Component Requirements
Computer and processor 2.0 gigahertz (GHz) or faster, 6th generation Intel Core (i3/
i5/i7–6xxx) and later, or equivalent AMD 64 bit processor.
(recommended minimum).
Memory (RAM) 8 gigabyte (GB) RAM (recommended minimum).
Hard Disk 450 megabyte (MB) available
USB USB-C (USB-A via adapter)
Operating System ● Windows 10 (64-bit) RS3 or newer
83 Getting Started with PCEye 5 #12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US

4 Mounting PCEye 5
4.1 Standard Mounting
For mounting the PCEye 5 on a device, follow these steps:
1. Download the Computer Control software bundle from : https://qrco.de/PCEyeCC.
Install the downloaded Computer Control software bundle.
2. Follow the onscreen instructions to mount the PCEye 5 to the device bezel.
3. Done!
4.2 Using the PCEye Bracket
For mounting the PCEye 5 to the PCEye Bracket, please follow the PCEye Bracket installation guide.
4.3 Permanent Fixation
To permanent fixate the PCEye 5 there are two (2) M3 screws on the back side of the PCEye 5. The C—C distance
(marked with an X) in Figure 4.1 C-C Distance Between the M3 Screws, page 9 is 155 mm/6.10 inches. The PCEye 5 is
compatible with the GA EyeGaze-Bracket from Rehadapt GmbH.
X
Figure 4.1 C-C Distance Between the M3 Screws
#12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US 4 Mounting PCEye 5 9

5 Using PCEye 5
5.1 Positioning the User
X cm / inches
Figure 5.1 Positioning
The mounted PCEye 5 attached to its Magnetic Mounting Plate and to your device is designed to work optimally when it is
parallel to the user’s eyes at a distance from about 50 — 95 cm (20 to 37 inches), see Figure 5.1 Positioning, page 10 or
Figure 5.2 Positioning for Users Leaning Sideways or Lying Down, page 10.
X cm / inches
Figure 5.2 Positioning for Users Leaning Sideways or Lying Down
This means that for those users leaning sideways or those lying down the PCEye 5 with monitor and computer device also
needs to be tilted in order to keep the users eyes parallel to the screen and at the optimal distance, see Figure 5.2
Positioning for Users Leaning Sideways or Lying Down, page 10.
Make sure the user is placed comfortably in relation to the optimal positioning of, and distance from, the unit. Be
aware also that the user’s comfort, as well as the Computer Control performance, will be enhanced if the sun is
not shining directly on the screen or into the user’s eyes.
The optimal distance that a user should be from the PCEye 5 mounted on a monitor/laptop differs depending on the size of
the screen. The user should be positioned at the optimal distance to allow for the best possible Computer Control.
Generally, the larger the size of the screen, the greater the distance the user should be from the Eye Tracker / Screen
combination for optimal Computer Control usage.
Monitors larger than up to the maximum screen size limitation should not be used for optimal Computer Control usage, for
more information see Appendix C Technical Specifications, page 16.
5.2 Tips for Outdoor Usage
Here are some tips for better performance of the eye tracker outside, especially in bright sunlight.
● It could be good to have one calibration stored for indoor usage and another calibration for outdoor usage,
especially in bright sunlight.
● Using a baseball cap or similar to throw shade on the eyes will significantly enhance the performance of the eye
tracker.
● Avoid getting direct sunlight on the eye tracker for best eye tracking performance..
10 5 Using PCEye 5 #12008591 Tobii Dynavox PCEye 5 User’s manual v.1.0.1 - en-US
