Tohnichi FTD Series User manual

TOHNICHI TORQUE DRIVERS
FTD SERIES
OPERETING INSTRUCTION
Bit (Option) Scale Plate Handle
Knob Main Pointer
To use this product properly and safety, please read this manual carefully before
use. If you have any question about the product and its operations, please contact
your nearest distributor or TOHNICHI MFG. CO., LTD.

１
■
TOHNICHI TORQUE DRIVERS FTD SERIES
Contents
1. Warnings
2. Precautions
3. Precautions for use
4. Operating Procedure
5. Specications
Warnings
１
●Make sure there is no oil, or grease on the grip.
A slip of the hand while tightening, may cause an accident or injury.
●Check for cracks, scratches and rust.
These will cause damage to the driver and may result in an injuly. If such
conditions exist, have a functional test performed and repair if necessary.
Precautions
２
●Don't use the torque driver beyond the maximum torque setting.
This will cause damage or injury.
●Don't use the torque driver if it is missing a pin or scale plate, etc.
Ask a repair shop or our company to inspect the torque driver and repair it
before using.
●Don't modify the torque driver.
Modifications will weaken the torque driver. This may cause errors in
accuracy, as well as, cause an accident or injury.
●Don't drop the torque driver or apply a strong shock of jolt.
This will cause damage or deformation as well as decrease the accuracy
and durability, which may cause an accident or injury.

２
●Use only parts designated by Tohnichi for repair of the torque driver.
Ask the place of purchase or our campany for assistance when you repair,
and use only Tohnichi parts.
Precautions for use
３
●Conrm that the driver is set according to the correct unit of mesure
before using. (kgf･cm, kgf･m, N･m, etc. )
●Don't use torque driver in fresh water or sea water.
The inside machanism will go bad and cause an accident or injury. If you
drop in water or sea water, ger it cheched out or repaired.
●Use the correct bit that ts the screw, you are using.
Select the bit from the table for bits.
●Perform regular inspections for function and accuracy.
Periodical inspections are essential to insure the torque driver is in optimal
condition thus preventing injury.
●Remove any dirt such as dust, mud, oil and water, ets. after each use
and before storing torque drivers.
●When storing the torque drivers for a long time, keep in a dry place.
If improperly stored, the accuracy and durability will decrease rapidly.
●Note the following point when you attach or detach a bit or a socket.
Hold the shaft as shown, when you attach or detach a bit or a socket.
SHAFT GRIP
※If you hold the grip when you attach or detach a bit or a socket, FTD
might be broken.
■
TOHNICHI TORQUE DRIVERS FTD SERIES

３

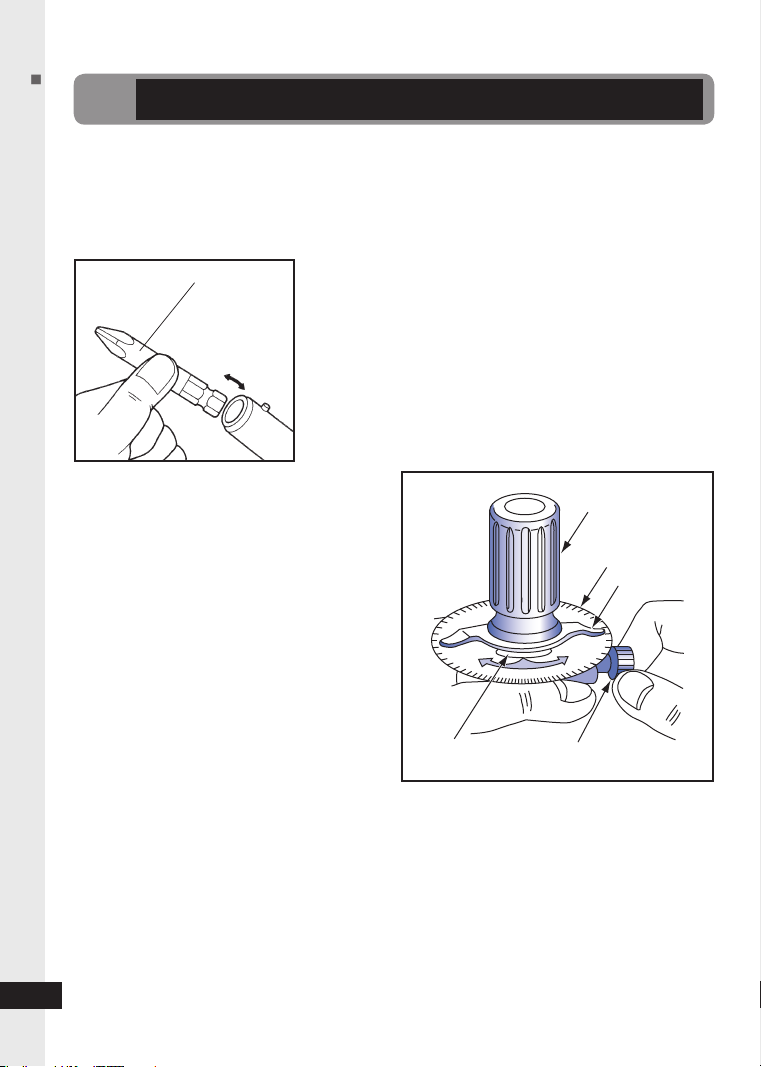

Operating Procedure
４
①Insert the bit into the bit holder.
②Make sure FTD needle points Zero of FTD scale plate.
※If the needle does not point Zero, it's required to adjust.
③Start measuring or tightening operation.
Bit ( Option )
●Method of preloading FTD
The preload function is a thet uses the
handle to apply a preloading torque
close to that of the measuring point
to minimize the twisting angle during
measurement. In FTD torque driver, a
preload function is provided to prevent
your wrist from becoming difficult
to read when operating close to the
maximum torque.
1.Hold FTD with your left hand, turn the preload handle in the counterclockwise
direction using the fingers of your right hand ( in case of clockwise
measuring ).
2.After some slipping turns, the needle will begin to move, and it will be easy
to set an optional torque value.
3.If you do not wish to use the preload function, turn the preload handle until
there is no tension and the central set indicator ( red mark ) points to the
FREE mark.
Grip
Scale plate
Needle
Handle
F
R
E
E
L
R
Set indicator
■
TOHNICHI TORQUE DRIVERS FTD SERIES

４

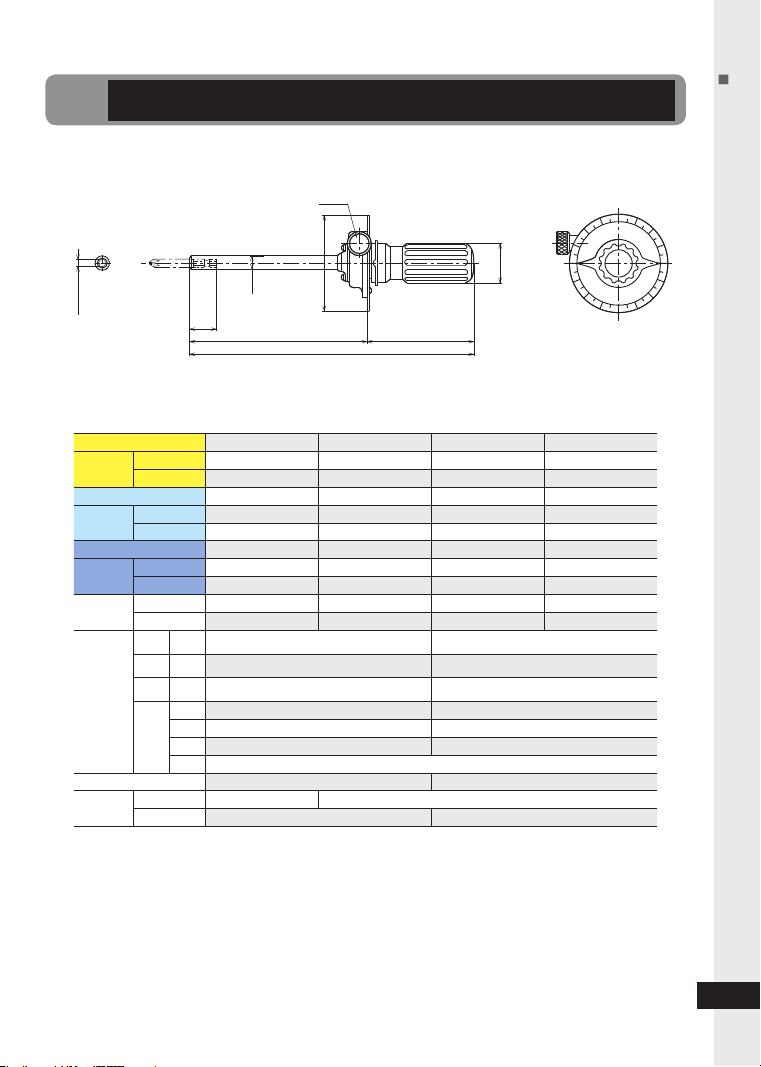

Specications
５
L3
L1 L2
L'
φD
φD2
6.35HEX
Knob
φD１
S.I. MODEL
TORQUE
RANGE
[cN･m]
MIN. ~ MAX.
GRAD.
METRIC MODEL
TORQUE
RANGE
[kgf･cm]
MIN. ~ MAX.
GRAD.
AMERICAN MODEL
TORQUE
RANGE
[lbf･in]
MIN. ~ MAX.
GRAD.
APPLICABLE
SCREW
SMALL SCREW
TAPPING SCREW
DIMENSION
[mm]
OVERALL
LENGTH
SCALE PLATE
OUTSIDE DIA.
TUBE DIA.
BODY
WEIGHT [kg]
ACCESSORY
BIT
+
- thickness x width
FTD50CN FTD100CN FTD200CN FTD400CN
10 ～ 50 20 ～ 100 40 ～ 200 80 ～ 400
1 2 5 10
Ｍ2.5 Ｍ3 ( M3.5 ) M4 M5
( M2.2 ) M2.5 , M3 ( M3.5 ) M4
215.5 263.5
75 78
11 13
30 33
130.5 158.5
85 105
24
0.3 0.5
#1 #2
0.7 × 7 0.9 × 7
L’
D
D1
D2
L1
L2
L3
5FTD 10FTD 20FTD 40FTD
1 ～ 5 2 ～ 10 4 ～ 20 8 ～ 40
0.1 0.2 0.5 1.0
5FTD-A 10FTD-A 20FTD-A 40FTD-A
1 ～ 5 1 ～ 10 3 ～ 20 5 ～ 40
0.1 0.2 0.5 1
Accuracy ±3%
■
TOHNICHI TORQUE DRIVERS FTD SERIES

５

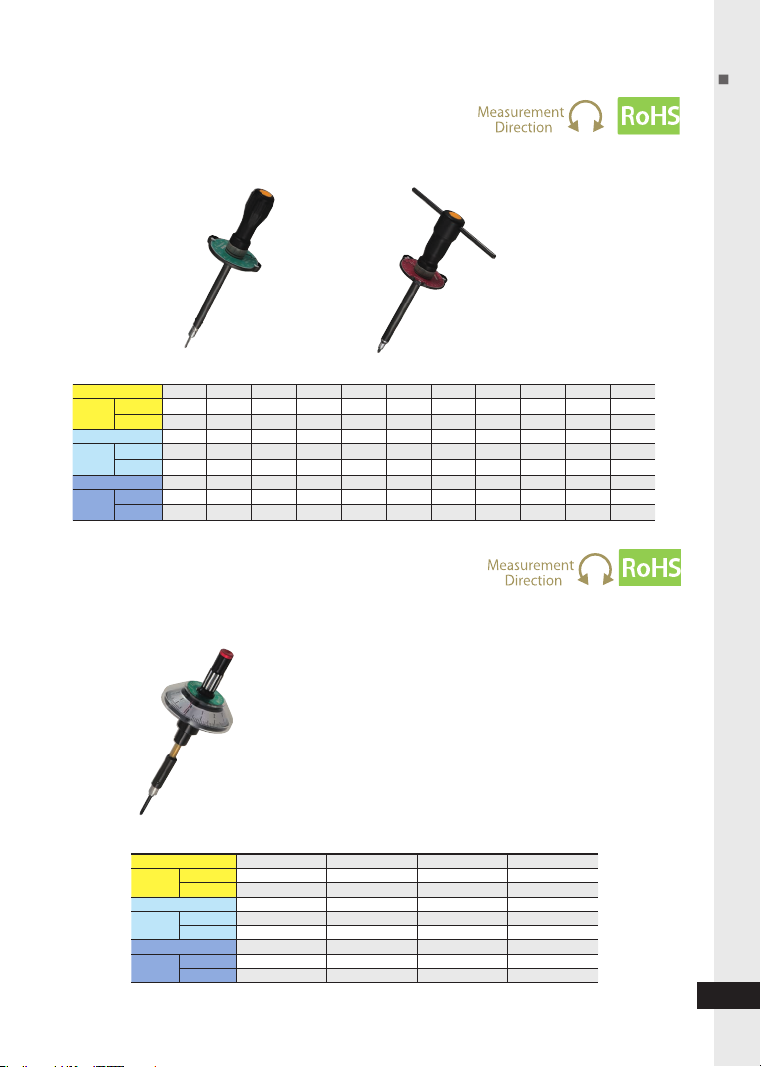

Introduction of related products
Digital Torque Screwdriver Tester
TDT3-G
Optional TDTLA is used when calibrating
small range torque wrenchs.
High-accuracy digital torque driver tester with loading device eliminates
measurment errors.
Accuracy ± 1%+1digit
MODEL
TORQUE RANGE
[cN･m]
TORQUE RANGE
[lbf･in]
TORQUE RANGE
[kgf･cm]
TORQUE RANGE
[ozf･in]
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
TDT60CN3-G TDT600CN3-G
2 ～ 60
0.005
0.2 ～ 6
0.0005
3 ～ 80
0.005
0.2 ～ 5
0.0005
20 ～ 600
0.05
2 ～ 60
0.005
30 ～ 800
0.05
2 ～ 50
0.005
Digital Torque Screwdriver
STC2-G
IEC 61340-5-1:2007
Operator can visibly and audibly check the torque status and judgment.
MODEL
TORQUE RANGE
[cN･m]
TORQUE RANGE
[kgf･cm]
TORQUE RANGE
[lbf･in]
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
STC50CN2-G STC200CN2-G STC400CN2-G
10 ～ 50 40 ～ 200 80 ～ 400
0.05 0.2 0.5
1 ～ 5 4 ～ 20 8 ～ 40
0.005 0.02 0.05
1 ～ 4.4 4 ～ 17 8 ～ 35
0.005 0.02 0.05
Accuracy ±1%
STC200CN2
Check torque drivers to conrm
torque setting.
■
TOHNICHI TORQUE DRIVERS FTD SERIES

６
Dial Indicating Torque Screwdriver with Memory Pointer
FTD-S
Direct-reading style torque screwdriver for inspection with memory pointer.
Accuracy ± 3%
S.I. MODEL
TORQUE
RANGE
[cN･m / N･m]
TORQUE
RANGE
[gf･cm / kgf･cm]
TORQUE
RANGE
[ozf･in / lbf･in]
METRIC MODEL
AMERICAN MODEL
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
FTD2CN-S FTD5CN-S FTD10CN-S FTD20CN-S FTD50CN2-S FTD100CN2-S FTD200CN2-S FTD400CN2-S FTD8N2-S FTD16N2-S
－
0.3 ～ 2
cN･m
0.5 ～ 5 1 ～ 10 3 ～ 20 5 ～ 50 －10 ～ 100 30 ～ 200 50 ～ 400 1 ～ 8
N･m 3 ～ 16
0.05
cN･m
0.1 0.2 0.5 1 －2 5 10 0.2
N･m 0.5
02FTD2-S 05FTD2-S 1FTD2-S 2FTD2-S 5FTD2-S －
－
－
10FTD2-S 20FTD2-S 40FTD2-S 80FTD2-S 160FTD2-S
30 ～ 200
gf･cm
50 ～ 500 kgf･cm
0.1 ～ 1 0.3 ～ 2 0.5 ～ 5 1 ～ 10 3 ～ 20 5 ～ 40 10 ～ 80 30 ～ 160
5
gf･cm 10 0.02 kgf･cm 0.05 0.1 0.2 0.5 1 2 5
FTD3Z2-S FTD7Z2-S
FTD15Z2-S FTD30Z2-S FTD70Z2-S
5FTD2-A-S
10FTD2-A-S 20FTD2-A-S 40FTD2-A-S 80FTD2-A-S
160FTD2-A-S
0.5 ～ 3
ozf･in 1 ～ 7 2 ～ 15 5 ～ 30 10 ～ 70 0.5 ～ 5 lbf･in 1 ～ 10 3 ～ 20 5 ～ 40 10 ～ 70 20 ～ 140
0.1
ozf･in lbf･in
0.2 0.5 1 2 0.1 0.2 0.5 1 2 5
FTD200CN2-S FTD8N2-S
Dial Indicating Torque Screwdriver for Small Screws
MTD
Direct-reading style torque screwdriver for very small torque inspection.
S.I. MODEL
TORQUE
RANGE
[mN･m]
METRIC MODEL
TORQUE
RANGE
[gf･cm]
AMERICAN MODEL
TORQUE
RANGE
[ozf･in]
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
MIN. ～ MAX.
1 DIGIT
MTD1MN MTD2MN MTD5MN MTD10MN
0.1 ～ 1 0.3 ～ 2 0.5 ～ 5 1 ～ 10
0.02 0.05 0.1 0.2
10MTD 20MTD 50MTD 100MTD
1 ～ 10 3 ～ 20 5 ～ 50 10 ～ 100
0.2 0.5 1 2
－ －
－ －
－ －
MTD07Z
0.1 ～ 0.7
0.02
MTD1.4Z
0.2 ～ 1.4
0.02
Accuracy ± 3%
■
TOHNICHI TORQUE DRIVERS FTD SERIES

■ TOHNICHI MFG.CO.,LTD.
TEL.[phone] FAX.[phone]
2-12, Omori-Kita, 2-Chome Ota-ku, Tokyo JAPAN
E-mail: [email protected]
Website: http://tohnichi.jp
■ N.V.TOHNICHI EUROPE S.A.
TEL.[phone] FAX.[phone]
Industrieweg 27 Boormeerbeek, B-3190 BELGIUM
E-mail: [email protected]
■ TOHNICHI AMERICA CORP.
TEL.[phone] FAX.[phone]
1303 Barclay Blvd. Bu󱐯alo Grove,IL 60089 USA
E-mail: [email protected]
Website: http://tohnichi.com
■ TOHNICHI SHANGHAI MFG. CO., LTD.
TEL.[phone] FAX.[phone]
RM.5 No.99 Nong1919, Du Hui Road, Minhang, Shanghai, P.R.China
15.12.D
