Tomtar 9404-A User manual

EN
IT
NL
FR

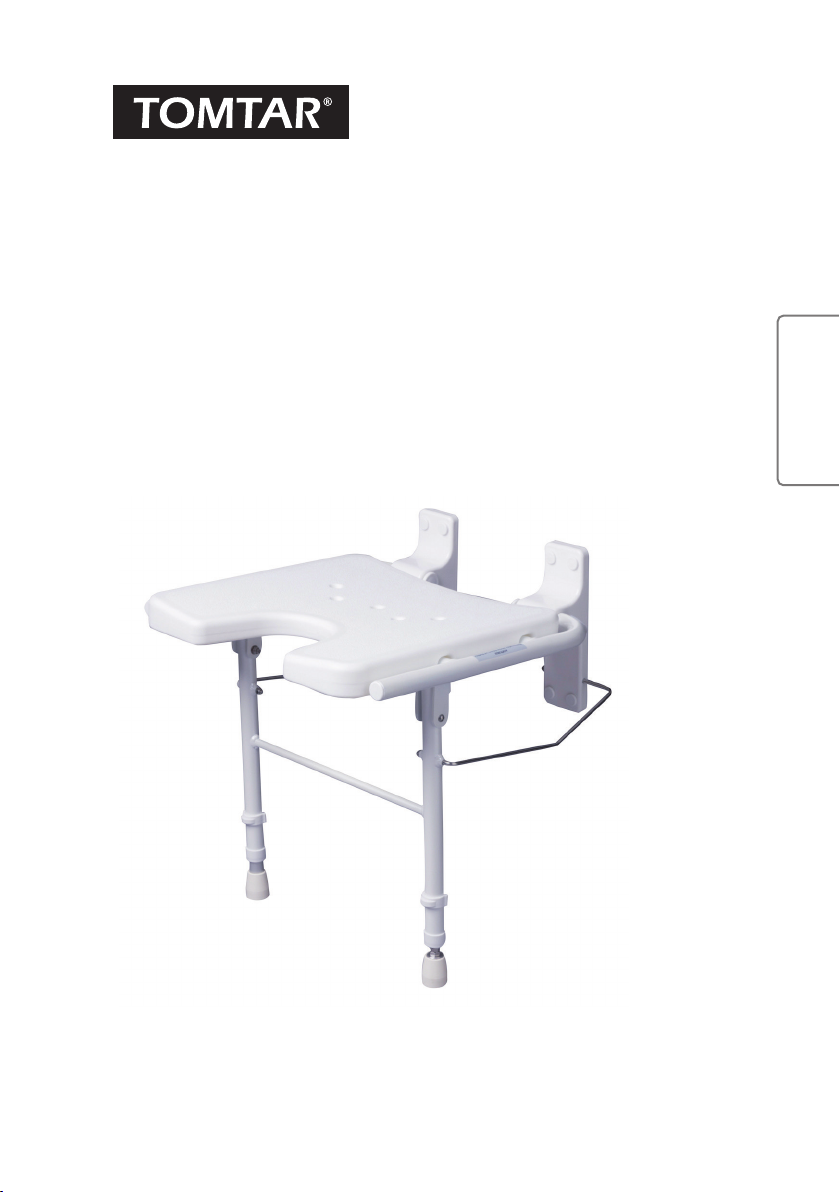

Folding shower seat
User manual version: 2.0.0 EN
9404-A

Record of product identication data
We recommend that you write down your product identication data (found on nameplate) below,
so that you have these on hand should you require any further information about your product.
(See "Product labelling" section)
Type / model
Item No. / REF:
Serial number (21):
Date of manufacture:
Other information/notes:

Many thanks for choosing a shower chair
made by DIETZ.
This product is a medical aid. In order to use it
properly and avoid possible risks due to unin-
tended use, you must become thoroughly famil-
iar with its operation.
Read this user manual carefully before you begin
using your product. It contains important in-
structions that will enable you to fully take ad-
vantage of the technical benets. In addition,
you will receive information that will aid with
maintaining operational safety and the preser-
vation of your investment in your product.
If you have any questions or require additional
information, please contact the specialist retail-
er which supplied the product to you.
You will always nd the latest information about
your product on our website. For information or
queries concerning product safety and on re-
calls, please contact DIETZ in writing or by tele-
phone. You will nd our contact information on
the back of this user manual.
NOTE
A large-print version of the
user manual is available for
visually impaired persons at
www.dietz-group.de in PDF
format.
3
EN
EN
FR
IT
NL
FOREWORD

4
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
CONTENTS
1 Important information
1.1 General information . . . . . . . . . . . . . . . . .5
1.2 Intended purpose . . . . . . . . . . . . . . . . . . .5
1.3 Indications . . . . . . . . . . . . . . . . . . . . . . . .5
1.4 Contraindications . . . . . . . . . . . . . . . . . . .5
1.5 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Product description
2.1 Scope of delivery . . . . . . . . . . . . . . . . . . .7
2.2 Exemplary representation . . . . . . . . . . . . .7
2.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . .7
3 Commissioning the product
3.1 Assembly instructions . . . . . . . . . . . . . . . .8
3.2 Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.3 Assembly 9404-A . . . . . . . . . . . . . . . . . . .8
4 Using the product
4.1 Adjusting seat height. . . . . . . . . . . . . . . . .9
4.2 Adjusting the seat surface . . . . . . . . . . . . .9
4.3 Unfold / fold up. . . . . . . . . . . . . . . . . . . .10
4.4 Getting in and out. . . . . . . . . . . . . . . . . .10
5 Technical data
5.1 DIETZ’s measurement system. . . . . . . . . .11
5.2 Dimensions and technical specications. .12
5.3 Product tests. . . . . . . . . . . . . . . . . . . . . .12
5.4 Further information . . . . . . . . . . . . . . . . .12
5.5 Materials . . . . . . . . . . . . . . . . . . . . . . . .13
5.6 Product labelling . . . . . . . . . . . . . . . . . . .13
6 Safety instructions
6.1 Safety instructions. . . . . . . . . . . . . . . . . .14
7 Care and maintenance
7.1 Servicing/maintenance. . . . . . . . . . . . . . .15
7.2 Maintenance schedule . . . . . . . . . . . . . .16
7.3 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .17
7.4 Disinfection. . . . . . . . . . . . . . . . . . . . . . .17
7.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . .17
7.6 Forwarding/Reusing. . . . . . . . . . . . . . . . . . 18
7.7 Storage. . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Manufacturer‘s declarations
8.1 Warranty . . . . . . . . . . . . . . . . . . . . . . . .19
8.2 Lifetime. . . . . . . . . . . . . . . . . . . . . . . . . .19
8.3 Liability. . . . . . . . . . . . . . . . . . . . . . . . . .19

5
EN
EN
FR
IT
NL
1 IMPORTANT INFORMATION
1.1 GENERAL INFORMATION
This user manual is included in the scope of de-
livery.The user should keep this manual on hand
at all times and it must remain with the product
if the product is passed on to a third party. We
reserve the right to make changes to the ver-
sions shown in this user manual as a result of
further technical development. Reprints,
translations and reproductions of this manual in
any form, in whole or in part, require the written
approval of DIETZ GmbH. The copyright is owned
by the manufacturer. You can obtain the latest
version of the user manual by contacting DIETZ
GmbH. Read the user manual before assembling
and using the product.
1.2 INTENDED PURPOSE
The product is used to make it easier for people
with reduced mobility to take a shower on rm,
level and slip-resistant surfaces. The product is
designed for a maximum user weight of 120 kg.
The product is not suitable for persons who are
smaller than 146 cm or weigh less than 40 kg
(BMI < 17) and must not be used by children.
The product is not suitable for use as permanent
seating. It is not to be used to transport persons
or loads.
1.3 INDICATIONS
This product is suitable for persons with physical
limitations who are unable to take a shower
while standing:
tStanding and inability to stand
tStanding and instability
tLoss of / defective / deformed limbs
1.4 CONTRAINDICATIONS
The product is unsuitable in the case of:
tPerception disorders
tSevere disequilibrium
tInability to sit
tA body weight exceeding 120 kg

6
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
1.5 SYMBOLS
These symbols indicate passages of text that are
helpful for using and operating the product in
everyday life.
WARNING
It is mandatory to observe and comply with
warnings. They draw your attention to the fact
that failure to comply with them may result in
injury and/or damage to the product or the envi-
ronment.
NOTE
Tips and advice which make using the various
functions easier.
1 IMPORTANT INFORMATION

7
EN
EN
FR
IT
NL
2.1 SCOPE OF DELIVERY
The product is wrapped in protective lm at the
factory and is supplied in a cardboard box.
Upon receipt of the goods, please immediately
check to make sure that the contents are com-
plete and undamaged. If the contents are no-
ticeably damaged, inform the freight company
immediately.
Scope of delivery 9400-A foldable:
t1 pre-assembled shower chair
tWall xing: 8 × screws,
8 × dowels, 8 × covering caps
t2 drilling templates
t1 user manual
WARNING
Risk of poisoning: When burnt, packaging
lms can release toxic gases.
Risk of suffocation: Keep the plastic bags out
of the reach of children.
2.2 EXEMPLARY REPRESENTATION
1. Wall xing
2. Seat
3. Folding mechanism
4. Telescopic leg
5. Pin clip
6. Adjusting screw
7. Rubber feet
Abb. 1
2.3 ACCESSORIES
No accessories are provided for the product.
2 PRODUCT DESCRIPTION
1
2
5
3
7
6
4

8
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
3.1 ASSEMBLY INSTRUCTIONS
The assembly and the functional check are to be
performed by the specialist dealer. The dealer's
technician adapts the product to the respective
user.
NOTE
Read the user manual before assembling and us-
ing the product.
3.2 TOOLS
tCross tip screwdriver
tDrill
tConcrete drill (Ø 8 mm)
3.3 Assembly 9404-A
The folding shower seat can be xed to walls
made of concrete, aerated concrete, solid brick,
hollow brick and gypsum concrete with chip-
board reinforcement.
1. Mark the drill holes on the wall using the
drill hole template.
2. Drill the holes (Ø 8 mm) in the wall and t
dowels.
3. Position the wall panel in accordance with
the drill holes (Fig. 2, 1). Only tighten the
screws so that the wall panels can still move.
Align the wall panels using the spirit level
and tighten the screws.
4. Unfold the shower seat (Fig. 2, 2).
5. Adjust the height of the seat surface with
the aid of the spirit level using the telescopic
legs and adjusting screws (Chapter 4.2). The
seat surface should be aligned horizontally.
6. Then insert the cover caps (8 pcs.) (Fig. 2, 3)
into the opening of the wall xing.
NOTE
Ensure that there is enough room to move when
positioning the shower seat. Both legs must
stand securely and there must be no obstacle to
occupying the chair.
Please contact the specialist retailer for advice if
the substrate places special requirements on the
xing material.
WARNING
Risk of trapping: Take care of your hands/n-
gers during the entire assembly.
1
2
3
Abb. 2
3 COMMISSIONING THE PRODUCT

9
EN
EN
FR
IT
NL
3 COMMISSIONING THE PRODUCT
4 USING THE PRODUCT
4.1 Adjusting seat height

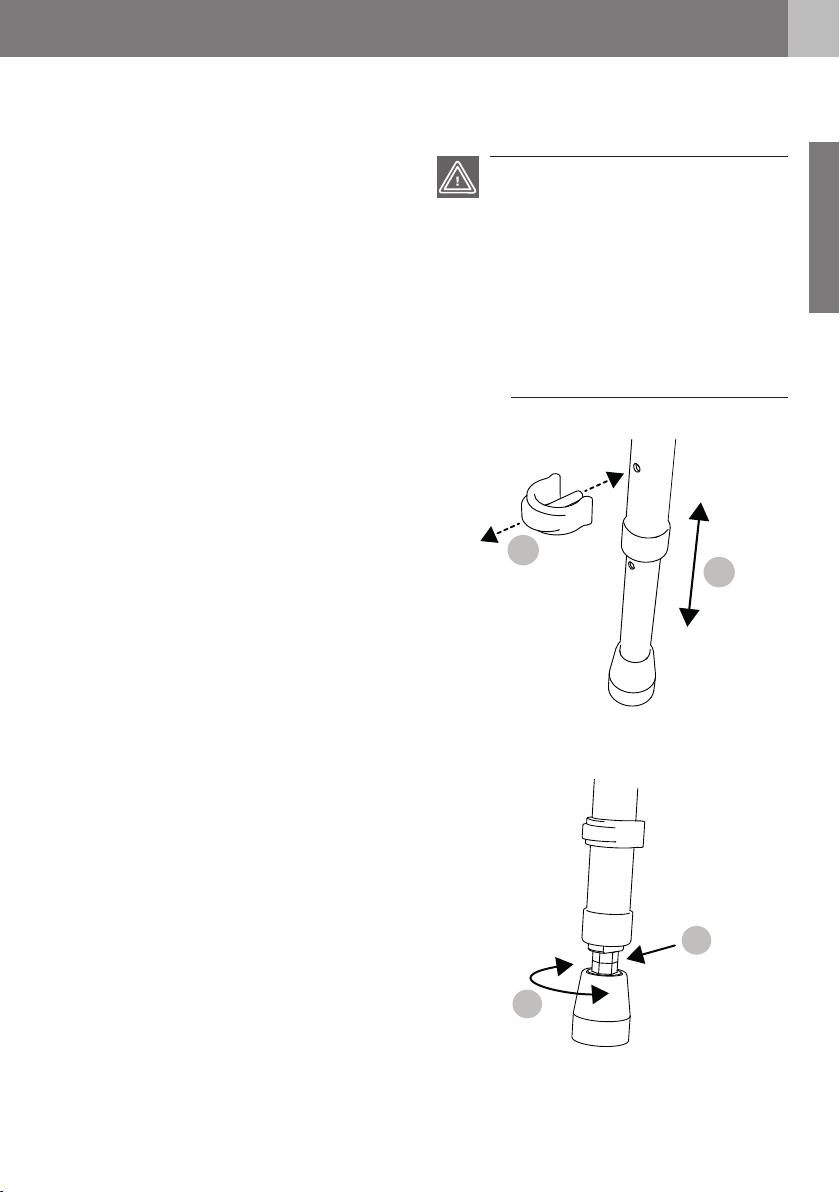

1. Pull out the pin clip on the telescopic leg
(Fig. 3, 1).
2. Adjust the telescopic leg to the desired
length (Fig. 3, 2). Ensure holes in the inner
and outer pipes are covered.
3. Re-insert the pin clip (Fig. 3, 1) until the clip
is fully engaged on the tube. The pin clip
must visibly and noticeably come out of the
hole again.
It is imperative that the pin clips snap into place
on the outside of the tube. Only then is it en-
sured that the pins are guided safely through
the holes and provide the shower chair with the
necessary stability.
WARNING
Risk of trapping: Be careful of your  ngers
when adjusting the telescopic legs.
Tipping danger: Adjust the 2 telescopic legs
to the same length.
Risk of accident: Ensure that the pin clips
are firmly engaged again after the height is
adjusted.
1
2
Abb. 3
4.2 Adjusting the seat surface
The seat can be adjusted horizontally or to a de-
sired inclination by turning the adjusting screw
on one of the two telescopic legs.
1. First release the lock nuts (Fig. 4, 1).
2. Then establish the desired position by un-
screwing or screwing in the adjusting screw
(Fig. 4, 2).
3. Retighten the lock nut (Fig. 4, 1).
1
2
Abb. 4

10
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
4 USING THE PRODUCT
4.3 Unfold / fold up
Unfolding
1. Push the shower seat forwards and down-
wards by the seat. The legs fold out on their
own and the folding shower seat unfolds in
the process (Fig.5, 1).
2. Check that both feet are secure and the
folding shower seat can be occupied with-
out obstruction.
Folding up
1. Pull up the seat for folding up (Fig. 6, 1).
The legs fold in on their own and the folding
shower seat is held against the wall to save
space.
WARNING
Risk of trapping: Be careful of hands/fin-
gers when unfolding/folding. Fold up the seat
carefully.
1
Abb. 5
1
Abb. 6
4.4 Getting in and out
1. Slowly bend your knees and sit in the middle
of the seat; have someone assist you when
sitting down, if necessary.
2. You can push yourself upwards over the seat
to stand up. If necessary, have someone help
support you.
WARNING
Risk of accident: Do not stand with your feet
on the seat.
Risk of trapping: If a seat plug is lost, please
have this replaced by your specialist dealer as
soon as possible.

11
EN
EN
FR
IT
NL
4 USING THE PRODUCT 5 TECHNICAL DATA
NOTE
All dimensions taken on textile parts (e.g. back
upholstery) are to be understood with a toler-
ance of +/– 10 cm.
Abb. 7
Abb. 8
5.1 DIETZ’S MEASUREMENT SYSTEM
The dimensions given here refer to the standard conguration of the product.
4.5 TRANSPORT
The product is not a device for frequent trans-
port. Should it be necessary to transport the
chair, we recommend disassembling it according
above assembly instructions in reverse. The
product should be packed such that it is in a
stable position and there is no danger of sudden
and dangerous movements in the means of
transport.

12
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
5 TECHNICAL DATA
5.2 SPECIFICATIONS
Technical specifications 9404-A
aSeat width mm 400
eSeat depth mm 400
cSeat surface height (front edge) mm 470 - 570
dTotal length mm 490
bTotal width mm 470
fTotal height mm 540 - 640
Seat surface (W × D × H) mm 400 × 400 × 40
Mass of the heaviest part1kg 2
Total weight kg 2.9
Maximum user weight2kg 120
5.3 PRODUCT TESTS
DIN EN 12182 Tested in accordance with the requirements of technical
aids for disabled people
ISO 17966 Tested according to the requirements and test methods for
personal hygiene aids
ISO 10993-5 Tested for toxicity in the material
Test dummy weight 120 kg
5.4 FURTHER INFORMATION
Technical specifications 9400-A
Colours White
Seat kg 0.9
Ambient operation temperature 10 C° to +40 C°
Ambient storage conditions 0°C to 45°C // 20% to 75% relative humidity
¹ Product weight excluding removable parts (here without seat)
² Maximum user weight including load/The weight of the load reduces the maximum user weight.

13
EN
EN
FR
IT
NL
5 TECHNICAL DATA
5 TECHNICAL DATA
5.5 MATERIALS
Wall  xing Plastic (ABS)
Seat Plastic (PE)
Seat plugs Plastic (TPR)
Folding mechanism Stainless steel
Pin clip Stainless steel / plastic (PP)
Frame and telescopic legs Aluminium (painted)
Adjusting screw / nut Stainless steel
Rubber feet Rubber
Plastic cuff telescopic leg Plastic (PE + EVA)
Screws, joints Stainless steel
Note:All metals used are corrosion-resistant

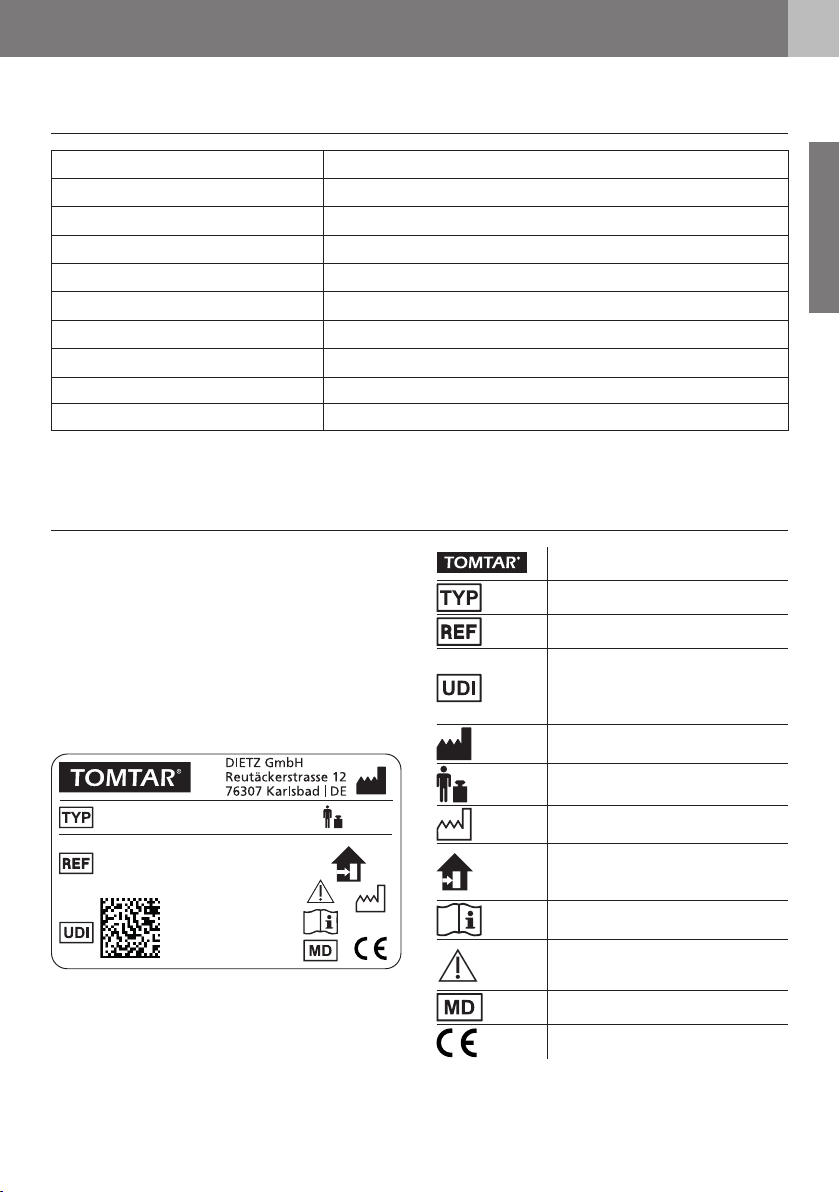

5.6 PRODUCT LABELLING
Type plates and warning signs on the product
must remain legible. Immediately replace illegi-
ble or missing stickers. The serial number sticker
is very important for identifying the product, it is
placed on the product label, which is placed be-
low the seat. It must not be removed.
JJJJ-MM
(01)04260241685527
(10)2000XXX
(21)671W0XXXX
*411220*
411220
9404-A 120 kg
Abb. 9
Trademark
TYPE/Model
REF = Item number
UDI = Unique Device Identi er
(01) UDI-DI / GTIN
(10) Order number
(21) Serial number
Manufacturer/manufacturer's
trademark/contact address
Maximum load capacity/load
incl. payload
Date of manufacture
The product is only approved for
indoor use
Follow the user manual
Caution: Note the safety
information in the user manual!
Medical Device
CE marking
MDR 2017/745, Anhang I-III

14
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
6 SAFETY INSTRUCTIONS
6.1 SAFETY INSTRUCTIONS
When using the product, always observe the fol-
lowing safety instructions to prevent falls, haz-
ardous situations and damage to the product:
tThe product is only to be used indoors and
on a rm, level surface.
tDo not use the product as a climbing aid or
stand on it.
tDo not load the product unevenly.
tThere is a risk of slipping off when sitting
down and standing up in wet bathtubs or
shower areas, particularly when shower
additives (e.g. soap or shower gel) are
used.
tCheck the product for damage before each
use. Do not use a damaged product.
tEach time after the shower chair is
disassembled and reassembled, check its
stability and ensure that all telescopic legs
are set to the same length.
tIf your mobility is severely limited, use the
product with the aid of an accompanying
person.
tThe surface of the product may become hot
due to hot water or exposure to sunlight.
Risk of burns!
tAny severe incidents associated with the
product must be reported to the manufac-
turer and responsible authority.

15
EN
EN
FR
IT
NL
6 SAFETY INSTRUCTIONS 7 CARE AND MAINTENANCE
7.1 SERVICING/MAINTENANCE
We recommend performing the inspections list-
ed in the maintenance schedule at regular inter-
vals to ensure that the product is always safe to
use.
Failure to ensure care and maintenance or insuf-
cient care and maintenance of the product
leads to a restriction of liability. The mainte-
nance schedule does not provide any informa-
tion on the amount of work that will actually
need to be performed on the product.
NOTE
As the user, you will be the rst to notice any
damage. If you notice a fault as described in the
maintenance schedule or further defects and
functional impairments, contact an authorised
specialist dealer immediately.
WARNING
Repairs on the product must only be performed
by specialist shops using DIETZ original spare
parts to maintain the operational safety of the
product. The relevant spare parts catalogue can
be found on our website in the information of
the product in question.
NOTE
The inspections and measures stipulated in the
maintenance schedule must be performed by the
user or assistant if not otherwise stated.
NOTE FOR SPECIALIST DEALERS:
If the user reports abnormalities on the product,
please check all the inspection points listed in
the maintenance schedule. The checks must also
be performed before putting the product back
into operation and after longer storage periods
(> 4 months). .

16
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
7 CARE AND MAINTENANCE
7.2 MAINTENANCE SCHEDULE
What Description
Wall xing
Check for rm seating
• Prior to use, check that the folding shower seat is rmly
mounted to the wall
The product must no longer be used if such
damage is found. Immediately contact your
specialist dealer for repairs.
x
Check frame
for damages
Check the frame for deformations or breaks.
The product must no longer be used if such
damage is found. Immediately contact your
specialist dealer for repairs.
x
Seat
Check for correct function and for
damage
• Check the correct t of the seat x
• Checking of the seat surface plugs (5 pcs.) in the seat surface.
Missing seat plugs must be immediately replaced
through your specialist dealer.
x
• Check for breaks and material damage
The product must no longer be used if such damage
is found. Immediately contact your specialist dealer
for repairs.
x
Folding mechanism
Check for correct function and wear
• Check the folding mechanism for ease of movement and
low-noise operation.
In the event of functional damage, the components
must be replaced by a specialist dealer.
x
Screw joints
Check for rm seating
• All screw joints must be rmly tightened.
Self-locking nuts and screws loose their efcacy
through being repeatedly released and tightened.
Therefore, they must be replaced by an authorised
specialist dealer.
x
Rubber feet
Check for damages
Defective rubber feet must be replaced
immediately. x
Visual inspection , check for
loose parts, breaks, corrosion or
other damage
If damage of this type is found, discontinue use of
the product, as safe use can no longer be
guaranteed. Please contact
your specialist dealer
x
Entire product
Check for dirt
• Product parts that are in direct contact with the skin must
be cleaned or disinfected after every use. x
• The entire product must be cleaned/disinfected
depending on the degree of soiling, but at least monthly
(see Chapter 7.3. and 7.4).
x
Before use
Monthly

17
EN
EN
FR
IT
NL
7 CARE AND MAINTENANCE 7 CARE AND MAINTENANCE
7.3 CLEANING
To clean the product, use lukewarm water mixed
with a mild detergent (without solvents and
with a pH value of 5-9). After cleaning, wipe
with clear water and then dry the product with a
cloth.
WARNING
Material damages: Do not use high-pressure
cleaners, strong, corrosive chemicals or scouring
agents for cleaning purposes.
Risk of corrosion: To avoid corrosion, ensure
that all materials dry completely after cleaning.
7.4 DISINFECTION
Wipe down or spray all components thoroughly
with commercially available surface disinfectant.
Take particular care to disinfect surfaces that
come into frequent contact with hands/skin,
such as the seat surface.
Please only use the following disinfectants; use
of other chemicals might damage the product.
tAldehyde-free disinfectants based on
alcohol (max. 70% propyalcohol)
WARNING
Material damages: During disinfection, ob-
serve the use and application instructions issued
by the cleaning agent / disinfectant manufacturer.
Risk of infection: The product must be disin-
fected before each user change.
7.5 DISPOSAL
If you no longer need the product, please con-
tact your specialist dealer. They will then pick up
the product and either dispose of it properly or
make further use of it. Otherwise, please take
the product to your local waste disposal facility.

18
DIETZ GmbH // User manual for folding shower seat / 9404-A // Version 2.0.0 EN
7 CARE AND MAINTENANCE
7.1 FORWARDING/REUSING
Your product is suitable for transfer to/reuse by
others. The number of times it can be reused de-
pends on the material wear conditions and the
functional capabilities of the respective product.
When handing over the product or re-using it,
please remember to hand over to the new user
or the specialist dealer all the technical docu-
ments necessary for safe handling.
Before being re-used, the product must be
cleaned and disinfected, and must be checked
for damage and approved by a specialist retailer.
To do this, all test points listed in the mainte-
nance plan must be checked on the product.
7.2 STORAGE
To store the product, ensure that it is stored in a
dry place protected against direct, strong sun-
light and at a temperature of 0°C to +45°C.
Fold up the product and remove it from the wall.
When in storage, secure it against unwanted
movement or toppling over.
After longer periods of storage (> 4 months),
please check all the inspection points on the
product listed in the maintenance schedule be-
fore reusing/redeploying the product.
WARNING
Material damages: Do not store the product
near a heat source and do not place any objects
on the product during storage.

19
EN
EN
FR
IT
NL
7 CARE AND MAINTENANCE 8 MANUFACTURER‘S DECLARATIONS
8.1 WARRANTY
Warranty services refer to all product defects
which are veriably attributable to material or
manufacturing aws. The warranty period is 24
months as of receipt of notication of readiness
for shipping, but following delivery at the latest.
Damage which has occurred due to natural
wear, intent, and negligent or improper opera-
tion or usage is excluded from the warranty ob-
ligation. This also applies to the use of unsuit-
able care products, lubricating oils or greases.
8.2 LIFETIME
The expected product service life is ve years
when used daily and if used as intended. This
assumes compliance with the maintenance and
safety specications stipulated in this manual.
The indicated life span does not constitute addi-
tional guarantee.
8.3 LIABILITY
DIETZ GmbH only bears liability if the products
are used under the specied conditions and for
the specied purposes. We recommend that the
products be handled appropriately and cared for
according to the instructions. DIETZ GmbH is not
liable for damage caused by components and
spare parts that have not been approved by DI-
ETZ GmbH. Repairs must only be carried out by
authorised specialist retailers or by the manu-
facturer itself.

Product group: Shower chair
Product: 9404-A
User manual version: 2.0.0 EN
Last update: 2021-02 (RPO)
DIETZ GmbH
Reutäckerstrasse 12
76307 Karlsbad
Germany
Tel.: [phone]
Fax: [phone]
[email protected]
www.dietz-group.de
TOMTAR is a registered trademark belonging to DIETZ GmbH.
TOMTAR products are sold by DIETZ GmbH.
Misprints, errors, price and product changes reserved.
© DIETZ GmbH, Karlsbad
Reproduction, either in part or in whole, only with written permission of
DIETZ GmbH, Karlsbad.
