Tomy Verbot User manual

TM
INSTR
:TION M
TABLE OF CONTENTS
IDENTIFICATION OF PARTS. . . . .. . . . . . . . . .. . . . . . . .. .. 2
BATTERY INSERTION
...................... :........ 4
BATTERY REPLACEMENT ........................... 6
OPERATION ........................................ 7
ARM ADJUSTMENT ................................. 12
HINTS, TIPS &REMINDERS .......................... 13
~HECKLIST FOR CORRECTING DISORDERS ......... 14
.~RE &MAINTENANCE ............................. 16
HOW VERBOT RECOGNIZES YOUR VOiCE ........ - ... 17
GAMES ............................................. 18
TOM~

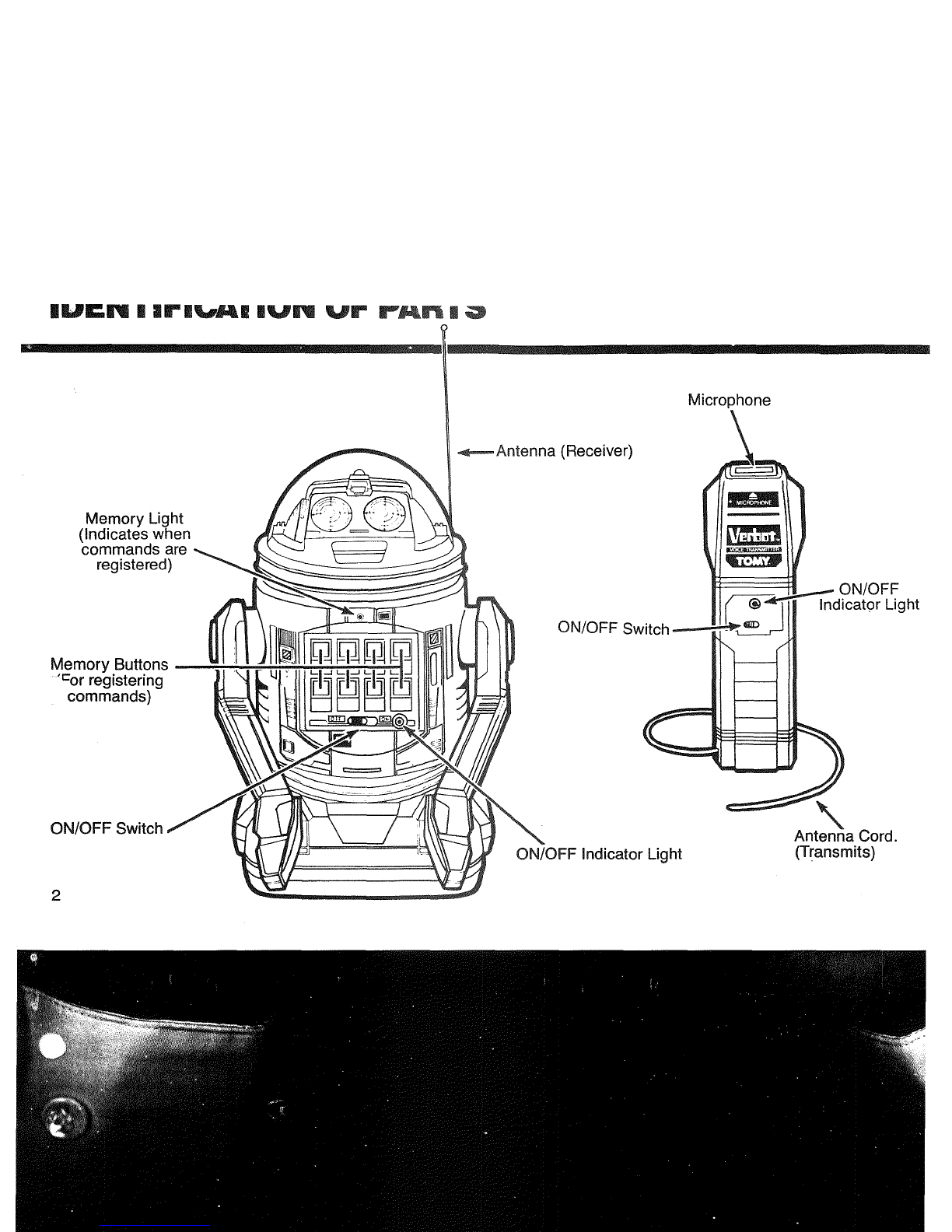

No. 5401 (2) Frequency:
49.860MHz

1111:1"1 IlIIrl~llun ur I
Memory Light
(Indicates when
commands are
registered)
~emory Buttons .. II I ..I11~~lIll!:ldj ~I~ IW
cor registering )1 .\,J r UI: III I' •
commands)
ON/OFF Switch
2
-+m-Antenna (Receiver)
ON/OFF Switch
ON/OFF Indicator Light
.,~
"
Antenna Cord.
(Transmits)

BATTERY INSERTION
You will need: 1 9-volt Alkaline Battery
2 "C" size Alkaline Batteries
4
"AP\' size Alkaline Batteries
Before loading the batteries, make sure that all switches
are turned
OFF.
VOICE TRANSMITTER
Turn the Voice Transmitter around
to the back. Slide Battery Cover
Door open and take it off.
4
Insert one 9-volt Alkaline Battery as
shown. Slide Battery Cover Door back
into place and snap shut.
8tt)

VERBOT
Turn Verbot upside down. Slide Battery Cover Door in the
direction indicated and open.
BATTERY INSERTION
INSERT BATTERIES:
1. Place the 4 "AI\' size Alkaline Batteries into their
indicated slots.
2. Fit the 2 "C" size Alkaline
Batteries into place.
Close Battery
Cover Door
and SNAP shut. 5

BATTERY REPLACEMENT
When to replace the Batteries:
BATTERY SYMPTOMS
VOICE One 9-volt Alkaline e The ON/OFF indicator light grows dim.
TRANSMITTER ® The Distance necessary to transmit commands
becomes shorter.
4 "AA" size Alkaline • The ON/OFF indicator light grows dim.
VERBOT • Verbol's memory light stays on and does not flash.
• Verbot continually functions improperly.
• Verbot moves of its own accord.
® Verbot does not respond to commands even after
repeated attempts.
I 2
"c" size Alkaline ® Verbot's movements become slower.
The
"C
n batteries control Verbot's movement. The "AJ!\' batteries control Verbot's voice recognition function.
The 9-volt battery controls transmission of voice commands.
6

-BEFORE PROGRAMMING VERBOT, READ ALL
OPERATING INSTRUCTIONS.
1. Verbot is programmed by pressing Memory Buttons
and entering commands. Under each Memory Button is
a small picture of Verbot's function. (See picture below,
FIG. 1)
You will need to program a separate Command
Word (or words) for each Memory Button.
D
IlIbSTOPdIt
~~
Verbot stops
the motion
D
~
Eyes flash withI Hands grab
talking sound & arms lift
o
Arms descend
& hands let go
D 0 01,-----,
¢:I~l,l. ,~c:> ()~\I
Verbot moves I Moves IVerbot rotates
forward backward to left Rotates
FIG.1
U~I:KAIIU~
Choose Command Words that are very short, 2 or 3
syllables at the most.
THE GOLDEN RULE: COMMANDS MUST BE
AT
LEAST .2 SECONDS LONG,
BUT NOT LONGER THAN 1.2
SECONDS. IF YOU PROGRAM
A COMMAND LONGER THAN
1.2 SECONDS, VERBOT WILL
AUTOMATICALLY ERASE
IT.
Also, Command Words should sound very different
from each other. For example, don't use "Turn Left" as
one command, if you're going to use "Turn Right" as
another. They sound too much alike to Verbot, and he
may confuse them. ("Rotate Left" and "Turn Right"
would be good chOices.)
(Continued)
i

UP'l:nAllUn ,,,un I villI

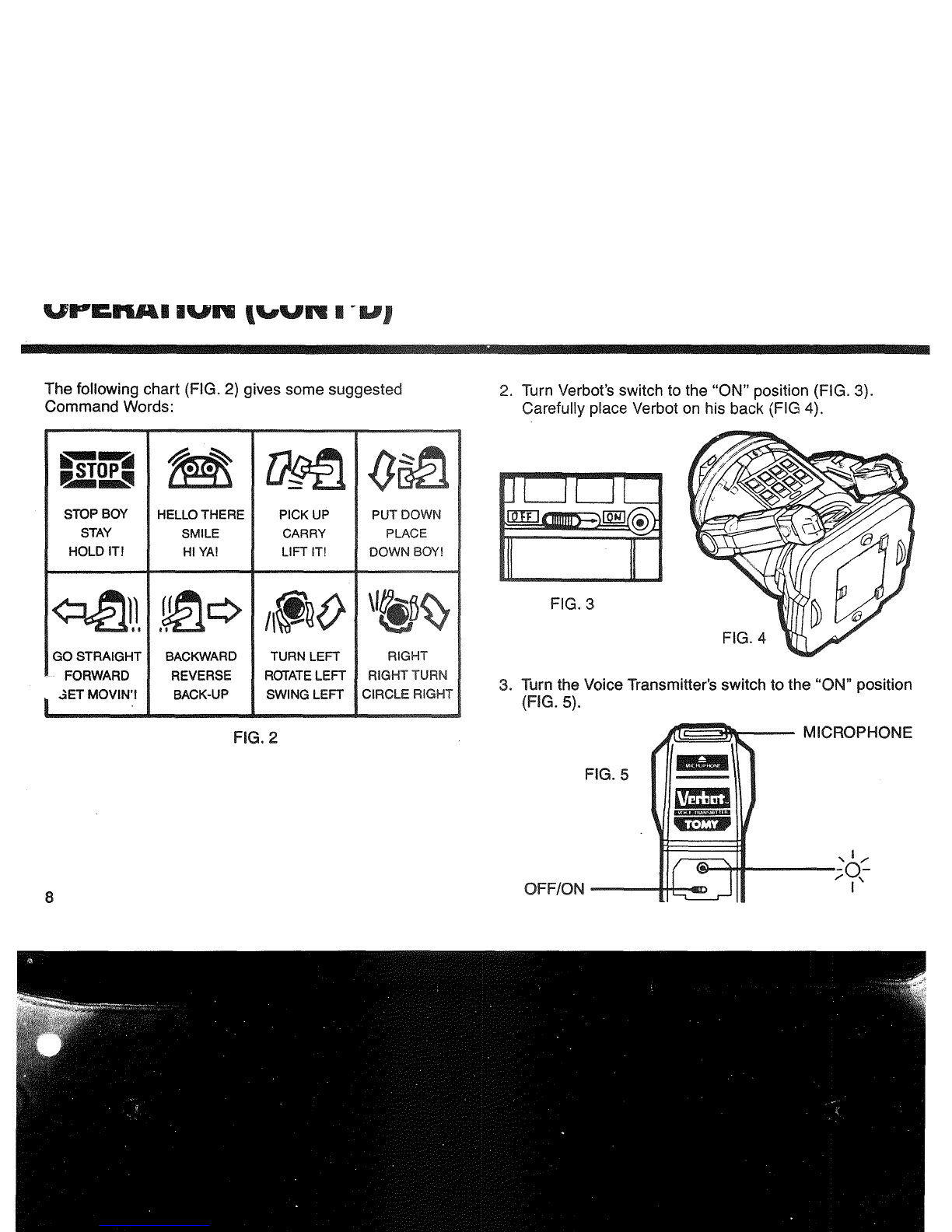

The following chart (FIG. 2) gives some suggested
Command Words:
IilSTOpil
II!..~
~
STOP BOY I HELLO THERE
STAY SMILE
HOLD IT!
HI YA!
~
PICK UP
CARRY
LIFT IT!
PUT DOWN
PLACE
DOWN BOY!
~1.1, I ,~c> I/I'~O
TURN LEFT I RIGHT
ROTATE LEFT RIGHT TURN
SWING LEFT CIRCLE RIGHT
GO STRAIGHT I
BACKWARD
FORWARD REVERSE
JET MOVIN', BACK-UP
FIG. 2
8
2. Turn Verbot's switch to the "ON" position (FIG. 3).
Carefully place Verbot on his back (FIG 4).
FIG.3
3. Turn the Voice Transmitter's switch to the "ON" position
(FIG. 5).
f.!C23J\: MICROPHONE
FIG. 5
@ ill ' 1/
OFF/ON III IIID ;9,-

4. Follow steps A, Band C to program Verbot:
A. Hold the first Memory Button (the "STOP" Button)
down (FIG. 6). The Memory Light will begin
flashing. While the Memory Ught flashes, speak
into the Voice Transmitter's microphone (FIG. 7).
Say the Command Word (s) that you want Verbot to
memorize (such
as "STOP BOY!" or "STAY"). Keep
your voice loud, speak clearly, and hold the Voice
Transmitter 3-6 inches from your mouth.
~
vr IiiiiBnM I I" I 'til "V''IIII#' 1'tII l1li ,." ,
B. Once Verbot memorizes the word, the Memory
Light will stop flashing and stay on. If the Light
ccntinues to flash, press the Memory Button down
again and repeat the Command. Once the Light
stays on, the word is programmed. Release the
Memory Button to let the Light go off.
C. Follow steps A and B with each of the remaining
Memory Buttons.
YOU WILL FIND BLANK PROGRAMMING
CHARTS
ON THE BACK COVER OF THE
MANUAL. FILL THEM
IN TO HELP YOU
REMEMBER YOUR COMMAND WORDS.
(Continued)
9

",rliiiii.IrUIolIUIl II"'II~ 'V'''II~ I 1iIII#'

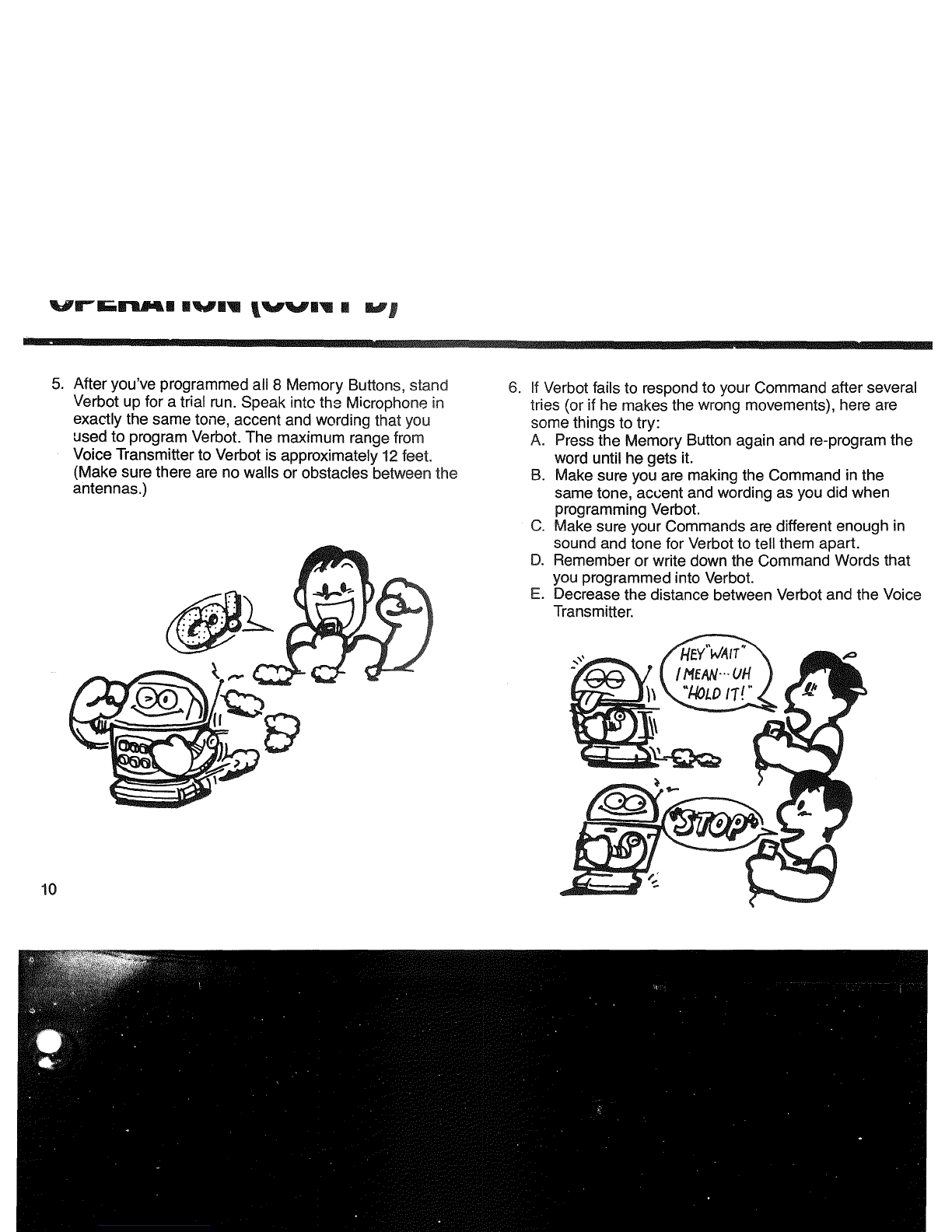

5. After you've programmed all 8 Memory Buttons, stand
Verbot up for a trial run. Speak into ths Microphone
in
exactly the same tone, accent and wording that you
used to program Verbot. The maximum range from
Voice Transmitter to Verbot is approximately 12 feet.
(Make sure there are no walls or obstacles between the
antennas.)
~
":'L
. :" ..
: ••• 0 •
. "
10
6. If Verbot fails to respond to your Command after several
tries (or if he makes the wrong movements), here are
some things to try:
A. Press the Memory Button again and re-program the
word until he gets it.
B. Make sure you are making the Command in the
same tone, accent and wording as you did when
programming Verbot.
C. Make sure your Commands are different enough in
sound and tone for Verbot to tell them apart.
D. Remember or write down the Command Words that
you programmed into Verbol.
E. Decrease the distance between Verbot and the Voice
Transmitter.

7. When you are finished playing with Verbot, remember
to turn BOTH Verbot AND the Voice Transmitter
"OFF."
(You can not turn Verbot off by giving the Command
Word for
STOP-You must turn both ON/OFF switches
to "OFF:')
REMEMBER: EVERY TIME YOU TURN VERBOT'S
SWITCH TO "OFF;' YOU ERASE THE
PROGRAMMING. Verbot is then ready to
be programmed all over again.
OPI: RAT I ON
11

Anlft MU"'U~ I Iftliiii.n I

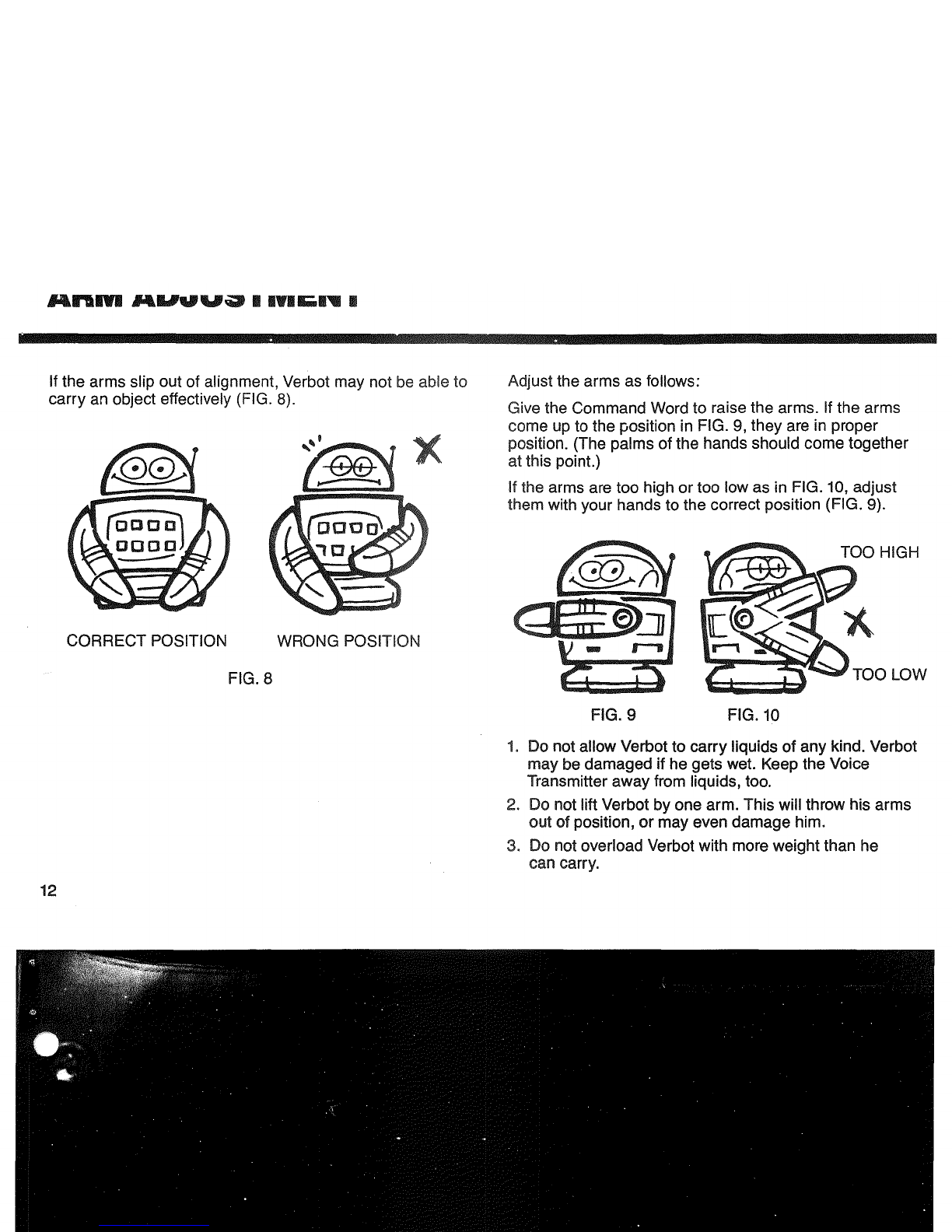

If the arms slip out of alignment, Verbot may not be able to
carry an object effectively (FIG. 8).
~
-
CORRECT POSITION WRONG POSITION
Adjust the arms as follows:
Give the Command Word to raise the arms. If the arms
come up to the position in FIG.
9, they are in proper
position. (The palms of the hands should come together
at this point.)
If the arms are too high or too low as in FIG. 10, adjust
them with your hands to the correct position (FIG. 9).
~ • D, ~._~
FIG. 8 ~ f"\A ~ ~ TOO LOW
12
FIG. 9 FIG. 10
1. Do not allow Verbot to carry liquids of any kind. Verbot
may be damaged
if he gets wet. Keep the Voice
Transmitter away from liquids, too.
2. Do not lift Verbot by one arm. This will throw his arms
out of position, or may even damage him.
3. Do not overload Verbot with more weight than he
can carry.

nil! II~, IIlr~ Anu nCMlnUCK:si
.. Turning Verbot's switch to "OFF" erases all programmed
words. Verbot must then be re-programmed.
• Verbot can only memorize short commands of .2 to 1.2
seconds in length.
longer commands erase his memory.
.. Saying "STOP" (or giving a stop Command Word) will
not turn Verbot off. You must turn Verbot's switch
and the Voice Transmitter's switch to "OFF" to turn off
the power.
.. Do not allow Verbot to carry liquids which can spill. If
Verbot or the Voice Transmitter gets wet, it will cause
damage.
• The best place for playing with Verbot is indoors, on
a flat surface (tiled floors, hardwood floors, vinyl
floors, etc.).
• Avoid high resistance surfaces such as hi-pile carpeting,
that may prevent Verbot from moving smoothly.
• Avoid inclines, hills or ramps.
• Do not play with Verbot on sandy or gravelly
Avoid playing where there is a lot of dust.
.. Verbot's performance may be affected by interference
from other sources such as cordless phones, and large
motorized appliances. If this happens, move to another
location.
.. Two or more Verbots can notoperate in the same location
at the same time. Their radio signals will interfere with
each other's performance.
.. When giving a Command, you must use the same tone,
accent and wording that you used to program Verbot's
memory. Verbot
mayor may not respond to the com-
mands of someone else.
.. Blowing into the microphone may cause Verbot to make
the wrong movements.
.. Take the microphone away from your mouth after you
finish giving your command. Talking nearthe microphone
may cause Verbot to make the wrong movements.
.. If Verbot walks into an obstacle, he will begin to emit a
clicking sound. This is a safety feature that protects
Verbot's inner mechanisms. This clicking sound also
alerts you that Verbot is 'stuck: Simply pick him up and
aim him in another direction; or give him another
command (like "Backward" or "Stop").
13

"nliiiii"ft"l~ I rvn "vnnliiiii" IIIIII,.U WI~Vn"IIiiiBIf"'B""
COMPLAINT CAUSE CHECK
Verbot does not
1. The Transmitter Switch is OFF. 1. Turn the switch ON.
accept programming.
(will not memorize
2. There is Radio Frequency interference.
2. Try it in a different place or at a
the word) different time.
3. The Command is too short ortoo long.
3. Limit the Command to a rlJaximum
of 1.2 seconds, and longerthan
.2 seconds.
4. The two antennas are touching
4. Separate the two antennas.
each other.
5. The batteries are running low.
5. Replace the batteries with new ones.
(Refer to section on Battery
Replacement).
Verbot does not make
1. It is the wrong 1. Check your programming chart or
proper movements. re-programthe Command intoVerbol.
2. There is Radio interference. 2. Try it in a different place or at a
different time.
3. The word is not recorded correctly.
3. Enter the wording once again.
4. There is too much noise in the area. 4. Move to a quieter area.
5. The batteries are low.
5. Replace the batteries with new ones.
(Refer to section on Battery
Replacement).
14

CHECKLIST CORRECTING DISORDERS
COMPLAINT
CAUSE
Verbot does not move.
1. The switch (es) is turned OFF.
2. No words have been programmed
into Verbot.
3. The transmitting distance is too far.
4. The batteries are running low.
Verbot can not carry 1. The arms have slipped out of place.
an object.
2. The arms are positioned too high.
3. The arms are positioned too
low.
4. The object is too
If after consulting "Checklist for Correcting Disorders" a
problem still exists, CALL US. Do not return the
unless asked to do so.
TOLL FREE #
800 421-5597
CALIFORNIA RESIDENTS CALL 800 421-8496
CHECK
1. Turn both switches ON.
2. Program Verbot with the Memory
Buttons.
3. Get
closer-transmitting should be
within
an unobstructed 12 foot radius.
4. Replace the batteries with new ones.
(Refer to section on Battery
Replacement).
1. Refer to the section on Arm
Adjustment.
15

CARE & MAINTENANCE
TAKING CARE OF VERBOT
Verbot has been made witll special components which
require extra special care. Always keep the following
precautions in mind:
1. Do not drop or shake Verbot or the Voice Transmitter.
2. Never take Verbot or the Voice Transmitter apart.
3. Keep them away from dust and moisture.
4. Do not leave them for lengthy periods in direct sunlight,
or expose them to extreme temperatures.
5. Do not hold, bend or twist the antennas.
6. When Verbot and/or the Voice Transmitter get dirty,
surface wash them with a damp cloth. DO NOT USE
LIQUIDS OF ANY KIND
TO CLEAN AS THIS MAY
CAUSE DAMAGE.
16
RADIO FREQUENCY INTERFERENCE
Interference from other sources (indoors or outdoors) may
have
an effect on the performance and distance it takes to
effectively transmit a command to Verbot. Interference
may be caused by a number of factors:
1. Change in temperature.
2. Obstructions (walls, structures, etc.).
3. Other waves in the vicinity (cordless telephones,
personal computers, large motorized appliances, etc.).
These factors do not indicate that Verbot is out of order. If
you suspect that any of these conditions is present, take
Verbot to a different location, and try again.

nuw YI:KIlUI nl:"u\anl'&'l:~ TUUn VU."1iB
When programming Verbat, your speech, in sound waves,
is electronically analyzed. The sound waves are then
converted into digital signals. These digital signals go into
Verbot's "Memory:'
Later, when a command is given, Verbot decides whether
or not it matches the sound waves of a command already
in its memory. When the sounds match, a signal is then
sent to the mechanism for the appropriate action.
Verbot will not operate correctly unless you pronounce the
commands exactly as they were entered into its "Memory:'
Practice mastering yourword pronunciation orother unique
vocal sounds so that Verbot will respond only to you.
Remember, you must re-program Verbot each time you
turn him on.
COMPARISON DECISION
STOP
SMILE
PICK UP
PUT DOWN
FORWARD
BACK
LEFT
RIGHT
17

GAMES
ROBOT RELAY
For 1 or more Players
You will need: Paper &Pencil
Small Toys or Objects
Timer, Clock or Watch
OBJECT: To move the objects in the fastest time.
Draw large circles on two pieces of paper. Place them far
apartfrom each other on the floor. Place small toys or
objects in one
of the circles. Have Verbot carry these
objects to the other circle. Time him. To make the game
more interesting, set up some obstacles for Verbot to go
around. Try to beat the clock, or another player.
~
18
LISTEN UP!
For 2 or more Players
You will need: Paper & Pencil
OBJECT: To successfully imitate Command Words, and
get the fewest pOints.
Have Player 1program 8 Command Words, or sounds,
into Verbot with lots of expression. Player 2 should listen
carefully.
Player 2 mustthen imitate Player 1 exactly, to make Verbot
respond. Every unsuccessful
try equals 1point.
Reverse roles. Let Player 2 be the Programmer and
Player 1, the Imitator. The person who gets the fewest
points wins.
CHALLENGE RULE: The Imitator may challenge the
Programmerto see ifhe (the Programmer) can successfully
repeat the Command Word. If he can't, the Programmer
must add a point to his score. If he can, the Imitator must
take the point.

VERBOT SCRAMBLE
For 2 or more Players
You will need: Pencil &Paper
Clock or Watch
Blocks, Boxes, or Paper Bags
OBJECT:
To move Verbot through obstacle course in the
shortest amount of time.
Together, the players think up a list of 8 Command Words.
Two players will program Verbot together in the following
way: Player 1will read each word into the microphone,
without looking at the Memory Buttons. Player 2 will push
the Memory Buttons. Player 2 must mix up the order of
each Button pushed, so that Player 1does not know what
Command Word goes with which Button.
UAMI:"
Prepare an obstacle course on the floor with toy blocks,
boxes and/or paper bags. Player 1 must try to maneuver
Verbot through the course. He must discover which
Command Words match the movements he needs.
Time him.
When Player 1 has finished guiding Verbot through the
obstacle course, write down his time. It is now Player 2's
turn to speak into the microphone. Player 1 pushes the
Memory Buttons. Player 2 must now discover the correct
Command Words to maneuver Verbot through the course.
The player to get through the course in the shortest
amount of time is the winner.
19

Here are some Programming Charts to fill in to nelp you
remember your Command Words:
m~1 ~ Ilf~
¢J~1).1 ,~c::> I ()>>1&~11
20 ©1984
riS¥8PdaII
I!..~
~
lf~
O@21
¢J~l).
,~c::>
()fi,11
\'~~
.""".
Corp., 901 E. 233rd St., P.O. Box 6252, Carson, CA 90749. Printed in Japan.
