Top shelf Orthopedics Crusader ACL User manual

The Crusader™ ACL, PCL, CI, MCL, &
OA Custom Functional Knee Brace
Instructions For Use
Please read these instructions completely and carefully
before applying this product. Correct application is
important for proper function of this brace.
1851 East Paradise Road, Suite A
Tracy, CA 95304
Phone: [phone] • Fax: [phone]
topshelforthopedics.com
P/N: 025277 Rev B

G
Notice:
While every effort has been made in state-of-the-art techniques to obtain the maximum compatibility of function,
strength, durability and comfort, this device is only one element in the overall treatment program administered
by a medical professional there is no guarantee that injury will be prevented through the use of this product.
Straps and pads may be trimmed to accommodate variations in leg size. Following activity in fresh or salt water,
rinse brace thoroughly in clean water and air dry. Routinely check the hinge screws for tightness and retighten
as needed. Lubricate hinges periodically with a dry lubricant or Teflon™ spray. Do not use petroleum based
lubricants. Hand wash liners and condyle pads in cold water with a mild detergent. Air Dry, do not heat dry liners
or pads.
Indications: ACL, PCL, CI, MCL, instabilities, reconstruction and hyperextension and/or medial/lateral compartment
knee Osteoarthritis.
Application Instructions:
Please read the following instructions completely and carefully before
applying this product. Correct application is important to the proper function of the brace.
This product is to be used under the supervision of a medical professional. This device is not intended for
unsupervised public use. If you experience any pain, swelling, sensation changes, or any unusual reactions
while using this product consult your medical professional immediately
Warning:
The Crusader™ ACL, PCL, CI, MCL, & OA Custom
Functional Knee Brace
Instructions for Use

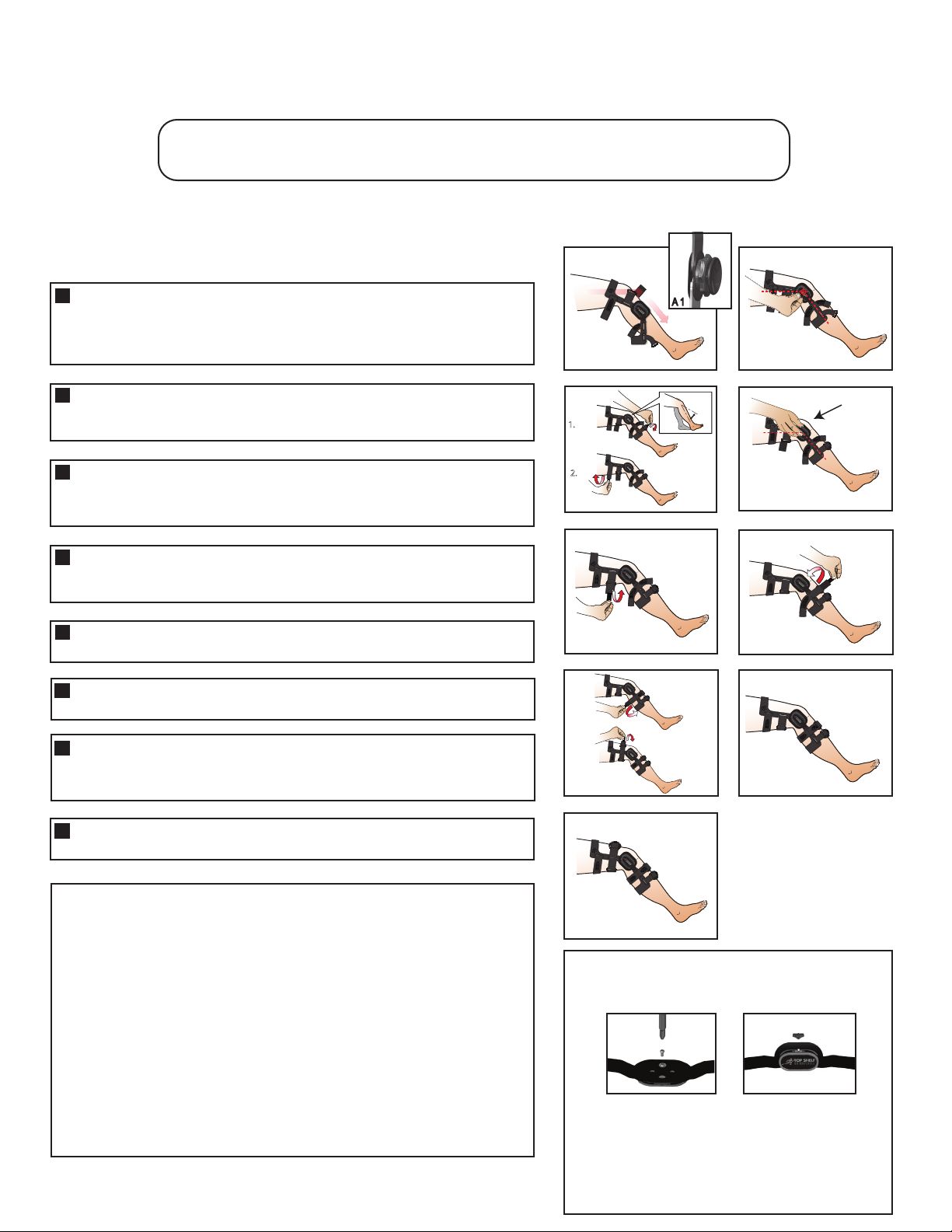

Unfasten all straps and fold hook/loop tabs back onto the straps. While
seated on the edge of the chair step through the brace as shown (Fig. A).
For OA version adjust tension knob clockwise so that it is at the lowest
setting before applying straps (Image A 1).
With the knee bent between 30°- 45° position the brace so that the hinge
is centered slightly above the knee cap (Fig. B).
While maintaining the knee between a 30°- 45° angle secure the bottom
anterior calf strap (Fig. C - 1).
Fasten the top thigh strap #2 (Fig. C - 2).
Holding both hinges, push the hinges backward until they are slightly
posterior/behind the midline/middle of the knee (Fig. D).
Secure the lower posterior thigh strap #3 (Fig. E).
Draw hinges forward and secure the upper anterior calf strap #4 (Fig. F).
Secure upper posterior calf strap #5 (Fig. G - 1).
Note: For CI version an additional strap #6 is secured on the lower
anterior thigh (Figure G - 2).
A properly applied Crusader brace (Fig. H-1 or H - 2).
Top Shelf Orthopedics guarantees this product to be free of defects in material and construction, for a period
of six months on the associated soft goods and straps, and lifetime on the brace frame and hinge from the
date of purchase.
Warranty:
Federal Law (U.S.A.) restricts this device to sale by or on the order of a licensed health care professional.
Caution:
Use and Care:
ª

1.
30-45º
2.
D

E
F
G
A
B
C
D
E
F
G
H
Hinge Adjustment Instructions
To change the stops, completely
remove the corresponding screw
from the hinge.
Insert the new stop, reapply the
hinge cover and reinsert and
completely tighten both screws.
Repeat the procedure on the
other hinge. Both hinges must
have identical stops installed.
Stops Included
Extension 0°, 10°, 20°, 30° & 40°
Flexion 45°, 60°, 75° & 90°
(no flexion stops are installed)
The brace is shipped with a 10° extension stop installed. If it is
requested by a licensed health care professional,
the stops may be changed.
A
A
A 1
B
D
C
E F
G H
1.
2.
ACL Version
ACL Version
CI Version
CI Version
H-1
