Topgreener TGWF15S User manual

WARNING
FEATURES
SPECIFICATIONS
REQUIREMENTS:
INSTALLATION INSTRUCTIONS

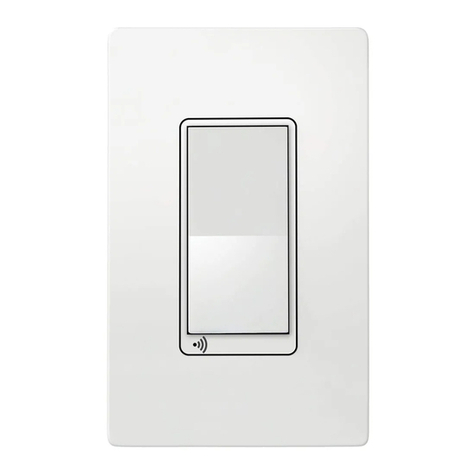

Model: TGWF15S
Wireless Home Automation
Wi-Fi ON/OFF SWITCH
WIRING DIRECTIONS:
Use copper wire only.
Turn the POWER OFF at the circuit breaker before
installing the Switch.
•Wi-Fi Internet connection of 2.4GHz.
•Smart Device such as a Smart Phone or Tablet with an
operating system of Android ver. 4.1 or higher or iOS 8 of higher.
•Installation of the TOPGREENER Smart App on the Smart Device.
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use wires with a minimum temperature rating of 75ºC (167ºF)
2 31
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1. This device may not cause interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 8in (20cm) between the radiator & your body.
RF Exposure
A distance of 8in (20cm) shall be maintained between the antenna and users, and
the transmitter module may not co-locate with any other transmitter or antenna.
• Control your lights with your smart devices without the need of
any hubs.
• Easy to configure easy to use Smart App.
• Save energy by automating the ON/OFF times or using the timer.
• Compatible with Amazon Alexa, Google Assistant, IFTTT.
Incandescent....................................................1000W, 120V~60Hz
Electronic Ballast .................................................................... 5A
Standard Ballast .............................................................. 1200VA
Resistive ................................................................. 1800VA (15A)
Motor ................................................................................... 1/2HP
Protocol ............................................................ IEEE 802.11b/g/n
Wireless Type .................................................................. 2.4GHz
Operating Temperature ................................... 32º - 104ºF (0º-40ºC)
First, determine if you will be controlling the lights from one location or multiple
locations. Next, identify all the wires and label them if necessary. Once you’ve
identified the wires, follow the diagram below for wiring.
SinglePoleInstallation
Load
Neutral
Hot
POWER
Ground
TGWF15S
Load
Neutral
Hot
Traveler
Neutral
Traveler
POWER
Ground
TGWF15S 91150 Switch
3-way wiring for Wi-Fi Switches
Ground

EZ Mode
EZ Mode
EZ Mode
EZ Mode
WARRANTY
2. Connect your Smart Device (phone or tablet) tothe same 2.4GHz Wi-Fi
network that your TGWF15S switch will be connecting to.
3. Use your mobile device and search “TOPGREENER” from the App Store
or Google Play, then download and install it.
4. Once installed, open the App and follow the on-screen instructions to
register and log in. Follow the instructions in the App to connect the
Smart Plug to your network. Over time, the App may be updated for
a better experience or added features, so be sure to follow the in-App
instructions closely:
INITIAL SET UP FOR Wi-Fi CONTROL LED INDICATOR ON DEVICE
1.
Connect the TGWF15S, then turn on the circuit breaker.
a.
In-Wall USB Outlet
In-Wall Controller
In-Wall Switch
This device is warranted to be free of material and workmanship defects for 1 year from the date of purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim. ALL claims
must be verified and approved by Top Greener, Inc. Warranties from other TOPGREENER products may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction, failure, or defect resulting
from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent permitted by the applicable state law, Top Greener, Inc. shall not be liable to the purchaser or end user customer of TOPGREENER
products for direct, indirect, incidental, or consequential damages even if Top Greener, Inc. has been advised of the possibility of such damages. Top Greener, Inc’s total liability under this or any other warranty, express or implied,
is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.
Works seamlessly with Tuya IoT apps and chipsets. Use any Tuya app with any Top Greener device and use
any Tuya device with Top Greener’s app.
©2018 Top Greener, Inc. • CA, USA • www.topgreener.com • 0206180119-06
• Solid Green: Device is plugged into a power source, but it has not
been paired or device has connection problems.
•Slow Blinking Green: Device is attempting to pair with the controller
while in APN mode. When LED turns off, the device has been paired
successfully.
•Fast Blinking Green: Device is attempting to pair with the controller
while in Easy mode. When LED turns off, the device has been paired
successfully.
•Solid Blue:Device is paired and the power is turned ON.
• No Light: The device is paired and the power is turned OFF.
b.a. c.
d.When prompted to “power on the device and confirm”, push and
hold the button on the TGWF15RM for 5 seconds and the LED
indicator on the device will start blinking rapidly. When LED starts
blinking, press “Confirm indicator rapidly blinks”.
e.Enter your Wi-Fi password when prompted and click on confirm.
f. After successfully adding the device, you can change the name of the
device if desired.
Optional: Configure Device in AP mode
AP mode is a secondary way to configure your device
to work on your network. Configuration in this mode
requires a connection from your smart device to the
smart switch. To do so, go to the "Add Device" screen
and click on "AP Mode" at the top of the screen and
follow the on-screen instructions.
NOTE:
By default, the app will only allow one user to
control the Switch. To add users, go to your
“profile” on the app and click on “Device Sharing”
and follow the on-screen instructions.
5 64
To replace the face cover, use a flat screwdriver and insert the tip at the gap
shown in the diagram above and pry cover off. To re-install, simply align the
cover and snap back on.
d. e. f.
a. Login tothe App
b. Navigate tothe Devices tab and click “Add Device” or the “+” button
c. Select the device type “In-Wall USB Receptacle”
CHANGING THE FACE COVER
