Toro 51480A User manual

FormNo.3388-781RevA
14inElectricTrimmer
ModelNo.51480A—SerialNo.315000001andUp
Operator'sManual
Ifyouhavequestionsorproblems,calltollfree1-888-367-6631
(US),1-888-430-1687(Canada),or1-800-450-9350(Mexico)before
returningthisproduct.
GeneralSafetyRules
WARNING:Whenusingelectricgardeningappliances,basic
safetyprecautionsshouldalwaysbefollowedtoreducetheriskof
re,electricshock,andpersonalinjury,includingthefollowing:
Readallinstructions.
Theterm“powertool”inallofthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated(cordless)
powertool.
1.Workareasafety
A.Keepworkareacleanandwelllit.Clutteredordark
areasinviteaccidents.
B.Donotoperatepowertoolsinexplosive
atmospheres,suchasinthepresenceofammable
liquids,gases,ordust.Powertoolscreatesparks,
whichmayignitethedustorfumes.
C.Keepchildrenandbystandersawaywhileoperating
apowertool.Distractionscancauseyoutolose
control.
2.Electricalsafety
A.Powertoolplugsmustmatchtheoutlet.Never
modifythepluginanyway.Donotuseany
adapterplugswithearthed(grounded)powertools.
Unmodiedplugsandmatchingoutletswillreducerisk
ofelectricshock.
B.Avoidbodycontactwithearthedorgrounded
surfaces.Thereisanincreasedriskofelectricshockif
yourbodyisearthedorgrounded.
C.Donotabusethecord.Neverusethecordfor
carrying,pulling,orunpluggingthepowertool.
Keepcordawayfromheat,oil,sharpedges,or
movingparts.Damagedorentangledcordsincrease
theriskofelectricshock.
D.Donotexposepowertoolstorainorwetconditions.
Waterenteringapowertoolwillincreasetheriskof
electricshock.
E.Ifoperatingapowertoolinadamplocationis
unavoidable,useasupplyprotectedbyaresidual
currentdevice(RCD)inAUSoragroundfault
interrupt(GFI)intheUSA.
UseofanRCDorGFIreducestheriskofelectricshock.
F.Whenoperatingapowertooloutdoors,usean
extensioncordsuitableforoutdooruse.Useofa
cordsuitableforoutdoorusereducestheriskofelectric
shock.
G.Disconnecttheplugfromthepowersourcewhen
theapplianceisnotinuse.
3.Personalsafety
A.Stayalert;watchwhatyouaredoing,anduse
commonsensewhenoperatingapowertool.Do
notuseapowertoolwhileyouaretiredorunder
theinuenceofdrugs,alcohol,ormedication.A
momentofinattentionwhileoperatingpowertoolsmay
resultinseriouspersonalinjury.
B.Usepersonalprotectiveequipment.Alwayswear
eyeprotection.Protectiveequipmentsuchasdust
mask,non-skidsafetyshoes,hardhat,orhearing
protectionusedforappropriateconditionswillreduce
personalinjuries.
C.Preventunintentionalstarting.Ensuretheswitch
isintheoff-positionbeforeconnectingtopower
sourceand/orbatterypack,pickinguporcarrying
thetool.Carryingpowertoolswithyourngeronthe
switchorenergizingpowertoolsthathavetheswitch
oninvitesaccidents.
D.Donotoverreach.Keepproperfootingandbalance
atalltimes.Thisenablesbettercontrolofthepower
toolinunexpectedsituations.
E.Dressproperly.Donotwearlooseclothingor
jewelry.Keepyourhair,clothingandglovesaway
frommovingparts.Looseclothes,jewelry,orlonghair
canbecaughtinmovingparts.
F.Keephandsandfeetawayfromthecuttingarea.
G.Thedeviceshouldnotbeusedbypersons
(includingchildren)withreducedphysical,sensory
ormentalabilities,orlackofexperienceor
knowledge,unlesssuchpersonsaresupervision
ortrainingtooperatetheappliancebyaperson
responsiblefortheirsafety.Childrenshouldbe
supervisedtonotusethedeviceasatoy.
4.Powertooluseandcare
A.Donotforcethepowertool.Usethecorrectpower
toolforyourapplication.Thecorrectpowertoolwill
dothejobbetterandsaferattherateforwhichitwas
designed.
B.Donotusethepowertooliftheswitchdoesnotturn
itonandoff.Anypowertoolthatcannotbecontrolled
withtheswitchisdangerousandmustberepaired.
C.Disconnecttheplugfromthepowersourceand/or
thebatterypackfromthepowertoolbeforemaking
anyadjustments,changingaccessories,orstoring
©2014—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedinChina
AllRightsReserved*3388-781*A

powertools.Suchpreventivesafetymeasuresreduce
theriskofstartingthepowertoolaccidentally.
D.Removethebatterypackfromthepowertoolbefore
makinganyadjustments,changingaccessories,or
storingpowertools.Suchpreventivesafetymeasures
reducetheriskofstartingthepowertoolaccidentally.
E.Storeidlepowertoolsoutofthereachofchildren,
anddonotallowpersonsunfamiliarwiththepower
toolortheseinstructionstooperatethepowertool.
Powertoolsaredangerousinthehandsofuntrained
users.
F.Storeidleappliancesindoors.Whennotinuse,
appliancesshouldbestoredindoorsinadryandhigh
orlocked-upplace,outofthereachofchildren.
G.Maintainpowertools.Checkformisalignmentor
bindingofmovingparts,breakageofparts,and
anyotherconditionthatmayaffecttheoperation
ofthepowertool.Ifdamaged,havethepowertool
repairedbeforeuse.Manyaccidentsarecausedby
poorlymaintainedpowertools.
H.Keepcuttingtoolssharpandclean.Properly
maintainedcuttingtoolswithsharpcuttingedgesare
lesslikelytobindandareeasiertocontrol.
I.Usethepowertoolinaccordancewiththese
instructionsandinthemannerintendedforthe
particulartypeofpowertool,takingintoaccountthe
workingconditionsandtheworktobeperformed.
Useofthepowertoolforoperationsdifferentfromthose
intendedcouldresultinahazardoussituation.
J.Keepguardsinplaceandinworkingorder.
5.Service
A.Haveyourpowertoolservicedbyaqualiedrepair
personusingonlyidenticalreplacementparts.
Thiswillensurethatthesafetyofthepowertoolis
maintained.
B.Ifthecordisdamaged,itmustbereplacedbythe
manufacturer,itsauthorizedserviceagentora
similarlyqualiedinordertoavoidhazard.
6.ExtensionCord
Ensurethatyourextensioncordisingoodcondition.When
usinganextensioncord,useoneheavyenoughtocarry
thecurrentyourproductwilldraw.Anundersizedextension
cordwillcauseadropinlinevoltage,resultinginlossof
powerandoverheating.Thefollowingtableliststhecorrect
cordsizedependingonthelengthofthecord.Ifyouarein
doubt,usethenextheaviergauge.Thesmallerthegauge
number,theheavierthegauge.
ExtensionCordLengthMinimumWireGauge
(A.W.G.)
32.8m(100ft)16
49.2m(150ft)14
Note:Donotuseanextensioncordover49.2m(150
ft)long.
Toreducetheriskofdisconnectionoftheextensioncord
duringuse,connecttheextensioncordtothetrimmeras
illustratedinOperation(page6).
Theapplianceisnottobeusedbypersons(includingchildren)
withreducedphysical,sensoryormetalcapabilities,orlack
ofexperienceandknowledge,unlesstheyhavebeengiven
supervisionorinstruction.Childrenshouldbesupervisedto
ensurethattheydonotplaywiththeappliance.
SAVETHESEINSTRUCTIONS
Electricalspecications:120V~60Hz5A

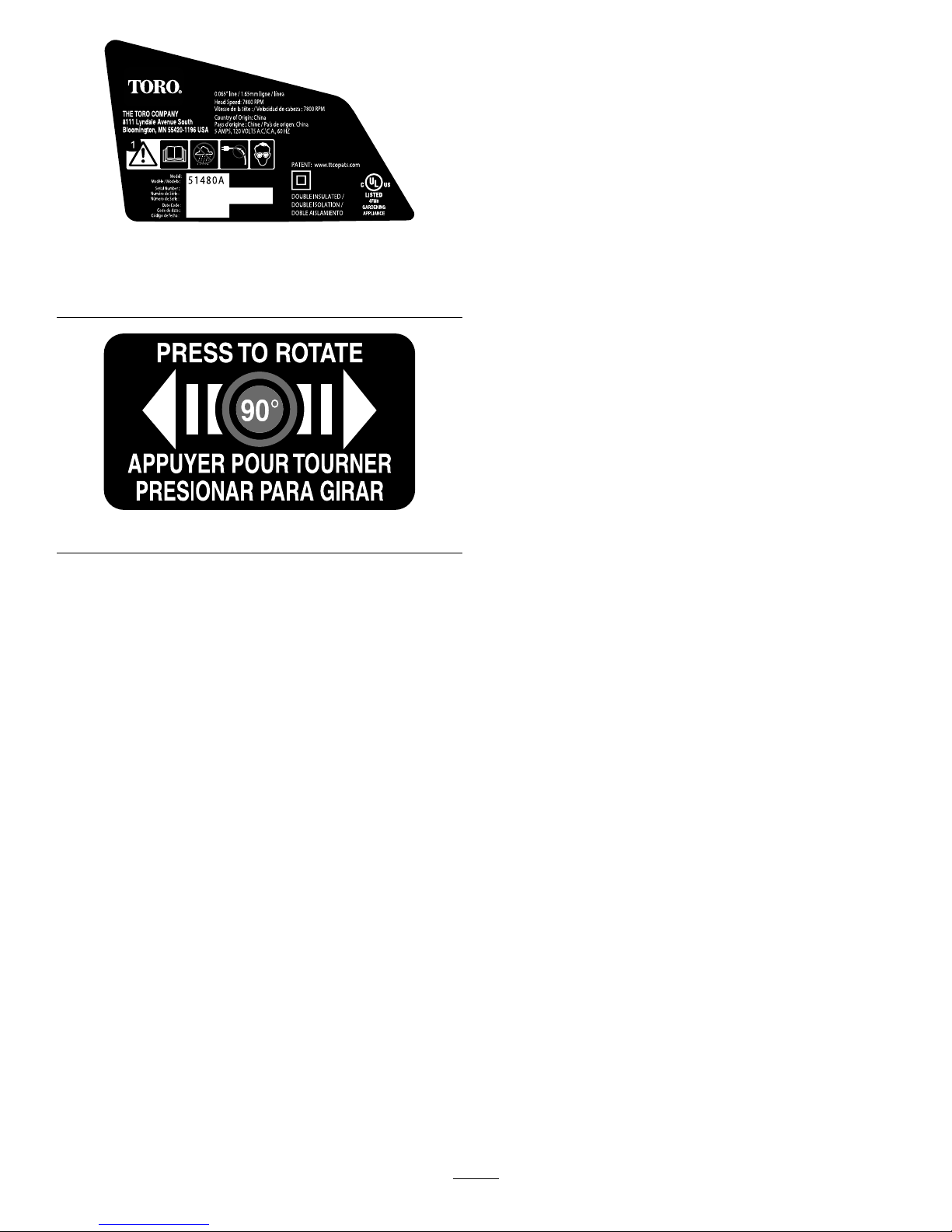

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaofpotentialdanger.
Replaceanydecalthatisdamagedorlost.
SymbolNameDesignation/Explanation
ACAlternatingcurrentTypeofcurrent
AAmperesCurrent
HzHertzFrequency(cycles
persecond)
rpmRevolutionsper
minute
Speedofstring
VVoltsVoltage
131–0374
125–8328
2

125–8324
1.Warning—readtheOperator’sManual;donotoperatein
wetconditions;donotuseifthecordisdamaged;wear
eyeprotection.
131–0361
3

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
Auxiliaryhandle1
Latch1
1Brace1
Installtheauxiliaryhandle.
Guard1
2Phillipsscrew1Installtheguard.
3Edgeguard1Installtheedgeguard.
4Nopartsrequired–Adjustthetrimmerheightandthebase
position.
1
InstallingtheAuxiliaryHandle
Partsneededforthisprocedure:
1Auxiliaryhandle
1Latch
1Brace
1.Positiontheauxiliaryhandleontheshaftofthetrimmerwith
thesmoothsurfacefacingtheoperator(Figure1).
G017277
1
2
3
Figure1
1.Auxiliaryhandle3.Brace
2.Latch
2.Slidethebraceintotheauxiliaryhandlesothatthebrace
restsinthegroovealongtheshaft(Figure1).
3.Slidethelatchfromtheleftthroughthehandleandbrace,
andtightenthelatchscrewwithaPhillipsscrewdriver
(Figure1).
2
InstallingtheGuard
Partsneededforthisprocedure:
1Guard
1Phillipsscrew
Procedure
1.SlidetheguardontothetrimmerbaseasshowninFigure2.
4

1
2
G015656
Figure2
1.Phillipsscrew2.Guard
2.SecuretheguardusingthePhillipsscrew.
3
InstallingtheEdgeGuard
Partsneededforthisprocedure:
1Edgeguard
Procedure
Inserttheendsoftheedgeguardintotheholesinthetrimmer
housingasshowninFigure3.
G017621
1
Figure3
1.Edgeguard
4
AdjustingtheTrimmerHeight
andBasePosition
NoPartsRequired
Procedure
•Toadjusttheauxiliaryhandleheight,releasetheauxiliary
handlelatch,slidetheauxiliaryhandleupordowntothe
desiredheight,thensecuretheauxiliaryhandleinplaceby
closingtheauxiliarylatch(Figure4).
5

G015655
Figure4
1.Auxiliaryhandle3.Height-adjustmentlatch
2.Auxiliary-handlelatch
•Toadjustthetrimmerheight,opentheheightadjustment
latch,thenslidetheshaftupordowntodesiredheight,
securingitinplacewiththelatch(Figure4).
•Toadjustthepositionofthebase,pressdownontherotator
buttonlocatedatthebaseoftheshaft,thenmovethebase
tofacethedesireddirection(Figure5).
1G015683
Figure5
1.Rotatorbutton
Operation
ConnectingtoaPowerSource
WARNING
Ifyoudonotfullyseattheextensioncordontheinlet
plug,thelooseplugcouldleadtooverheatingand
causeare,possiblyburningyouorothers.
Ensurethatyoufullyseatthecordonthepluganduse
thecordlockfeaturetosecurethecord.
NOTICE!Donotuseadamagedcord.
1
2
G015693
3
Figure6
1.Inletplug3.Cordlock
2.Extensioncord
StartingtheTrimmer
Tostartthetrimmer,slidethelockswitchbacktotheOnposition,
thensqueezethetrigger(Figure6).
1
2
G015658
Figure7
1.Lockswitch2.Trigger
StoppingtheTrimmer
Tostopthetrimmer,releasethetrigger.
AdvancingtheLine
Note:Thetrimmerisequippedwithanauto-feedhead.
1.Withthetrimmerrunning,releasetheswitchtrigger.
2.Wait2seconds,thenpresstheswitchtrigger.
Note:Thelinewillextendapproximately6mm(1/4
inch)witheachstopandstartoftheswitchtrimmeruntil
thelinereachesthelengthofthegrassdeectorblade.
3.Resumetrimming.
6

AdvancingtheLineManually
Disconnectthestringtrimmerfromthepowersupply,thenpush
theredbuttonatthebaseofthespoolretainerwhilepullingonthe
trimmerlinetomanuallyadvancetheline.

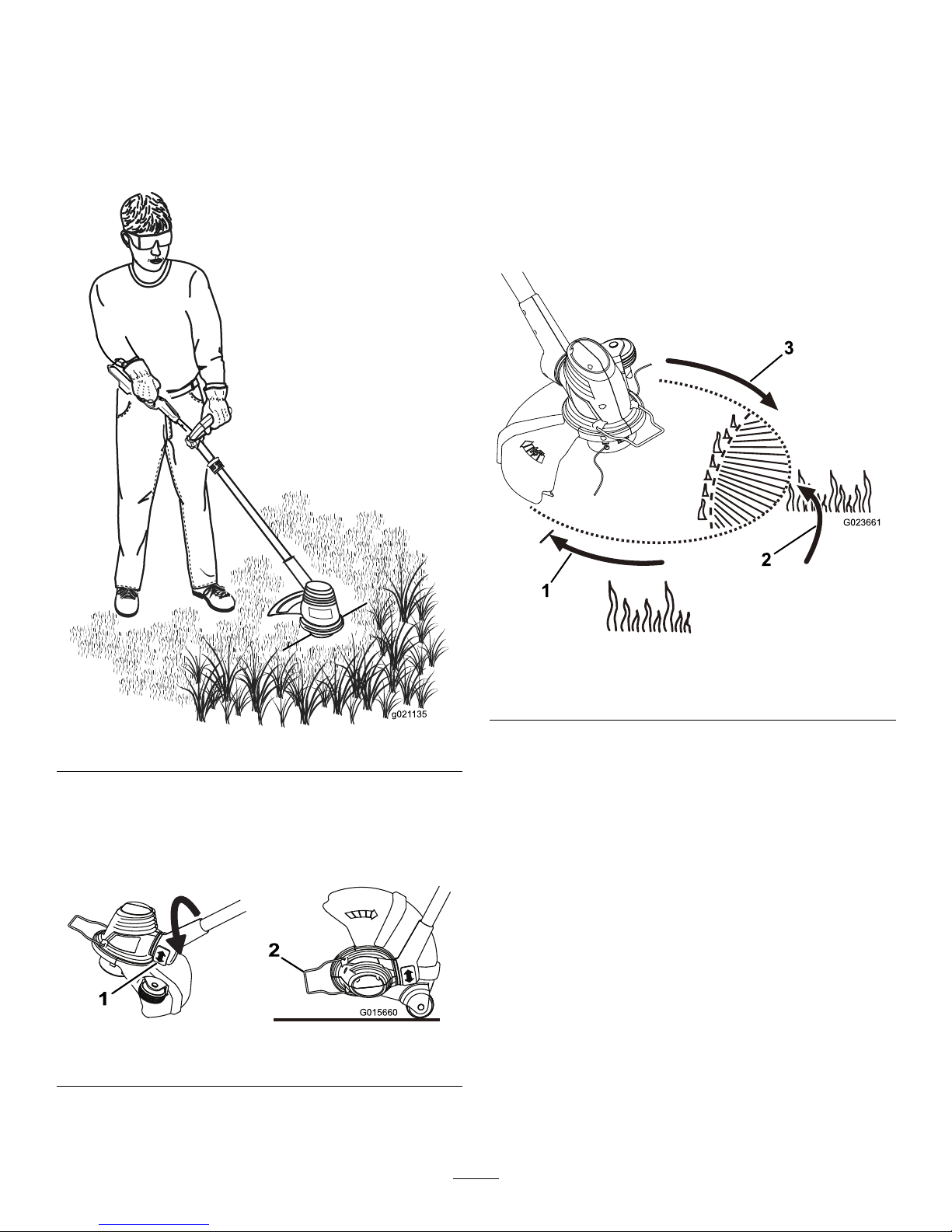

Trimming
Figure8
Edging
Toconvertthetrimmertoanedger,presstherotatorbuttonand
rotatetheheadasshowninFigure9.
1
2
G015660
Figure9
1.Rotatorbutton2.Edgerguide
OperatingTips
•Keepthetrimmertiltedtowardtheareabeingcut;thisisthe
bestcuttingarea.
•Thestringtrimmercutswhenpassingtheunitfromleftto
right.Thisavoidsthrowingdebrisattheoperator.
•Usethetipofthestringtodothecutting;donotforcethe
stringheadintouncutgrass.
•Usingthetrimmeralongwireandpicketfences,stoneand
brickwalls,curbs,andwoodcancausethelinetorapidly
wearandevenbreak.
•Avoidtreesandshrubs.Treebark,woodmoldings,siding,
andfencepostscaneasilybedamagedbythestrings.
G023661
Figure10
1.Directionofrotation3.Stringpath
2.Idealcuttingrange
Maintenance
Aftereachuseofthetrimmer,completethefollowing:
1.Wipethetrimmercleanwithadampcloth.Donothosethe
trimmerdownorsubmergeitinwater.
2.Wipeorscrapecleananydebrisfromthecutting-headarea.
3.Checkandtightenallfasteners.Ifanypartisdamagedor
lost,repairorreplaceit.
4.Brushdebrisawayfromtheairintakeventsonthemotor
housingtopreventthemotorfromoverheating.
ReplacingtheSpool
Note:Useonly1.65mm(065in)diametermonolament
string.Forbestperformance,useonlyTororeplacement
string(partnumber88512).
Important:Usingalargerdiameterstringmaycause
themotortooverheatandfail.
1.Pushinthetabsonthesideofthespoolretainer(Figure11).
7

G023662
1
2
3
4
2
Figure11
1.Spoolretainer3.Slots
2.Spool4.Tabs
2.Pullthespoolretaineruptoremoveit.
3.Removethespool.
4.Installthenewspool,makingsurethatthestringsare
capturedintheretainingslotsonthenewspool.
Note:Makesurethattheendsofthestringsextend
approximately152mm(6in).
5.Installthenewspoolsothatthestringendsalignwith
theeyeletsinthestringhead,andthreadthestringends
throughtheeyelets.
6.Pullthestringsextendingfromthestringheadsothatthe
stringsreleasefromtheslotsinthespool.
7.Installthespoolretainerbypressingthetabsintotheslots
andpushingdownonthespooluntilthespoolretainerclicks
intoplace.
ReplacingtheString
Important:Useonly.065inch(1.65mm)diameter
monolamentstring.Donotuseanyothergaugeortype
ofstring,asthiscoulddamagethetrimmer.
1.Removethespool;refertoReplacingtheSpool(page7).
2.Removeanystringremainingonthespool.
3.Insertthestringintotheanchorholeintheupperpartof
thespool(Figure12).
Figure12
1.Slotinupperspoolange3.Slotinlowerspoolange
2.Hole
Note:Windthestringontothespoolinthedirection
shownbythearrowsonthespool.
Note:Thespoolcanacceptupto4.6m(15ft)ofstring.
4.Placethestringendsintheslotsontheupperspoolange,
leavingabout152mm(6in)beyondtheslot.
Note:Donotoverllthespool.Afterwindingthe
string,thereshouldbeatleast6mm(1/4inch)between
eachofthewoundstringsandtheoutsideedgeofthe
spool.
5.Replacethespoolandthespoolretainer;refertoReplacing
theSpool(page7).
Service
Torohasdesignedthisproducttogiveyouyearsoftrouble-free
use.Shoulditneedservice,bringtheproducttoanAuthorized
ToroServiceDealerwhoisspeciallytrainedtorepairT oro
products.
Double-insulatedAppliance
Inadouble-insulatedappliance,2systemsofinsulationare
providedinsteadofgrounding.Nogroundingmeansisprovided
onadouble-insulatedappliance,norshouldameansfor
groundingbeaddedtotheappliance.Servicingadouble-insulated
appliancerequiresextremecareandknowledgeofthesystem,
andshouldbedoneonlybythequaliedservicepersonnelat
yourAuthorizedT oroServiceDealer.Replacementpartsfora
double-insulatedappliancemustbeidenticaltothepartsthatthey
replace.Adouble-insulatedapplianceismarkedwiththewords
“DoubleInsulation”or“DoubleInsulated.”Thesymbol(square
withinasquare)mayalsobemarkedontheappliance.
Storage
Storethetrimmerandtheextensioncordindoorsinacool,dry
locationandoutofthereachofchildrenandanimals.
NOTICE!Donotrestthetrimmerontheguard,oritmaywarp
andinterferewiththecuttingline.
8

Note:Devicesforretainingextensioncordsarecommercially
available.
9

Notes:
10

TheToroPromise-ElectricProducts
ATwo-YearFullWarrantyforResidentialUsefortheUnitedStatesandCanada
TheT oroCompanyanditsafliate,ToroWarrantyCompany,pursuanttoanagreementbetweenthem,jointlywarrantthisproductfortwoyearsagainst
defectsinmaterialorworkmanshipwhenusedfornormalresidentialpurposes.*
IfyouthinkyourT oroProductcontainsadefectinmaterialsorworkmanship,ifyouhavequestionsorproblems,andbeforereturningthisproductcall
tollfree:
Trimmers:Blowers:Snowthrowers:
1-800-237-2654(US)
1-800-248-3258(Canada)
1-888-367-6631(US)
1-888-430-1687(Canada)
1-800-808-2963(US)
1-800-808-3072(Canada)
Toreceiveareplacementorrepair,atouroption,returnthecompleteunittotheseller.UnitedStatesandCanadacustomersmayreturntheirproduct,
withproofofpurchase,toanyAuthorizedServiceDealer.UnitedStatescustomersmayalsoreturntheirproduct,withproofofpurchase,postage
prepaid,totheT oroServiceCenter,5500SEDelaware,Ankeny,IA50021.
Thiswarrantycoversproductdefectsonly.NeitherTheToroCompanynorToroWarrantyCompanyisliableforindirect,incidental,or
consequentialdamagesinconnectionwiththeuseoftheToroProductscoveredbythiswarranty,includinganycostorexpenseof
providingsubstituteequipmentorserviceduringreasonableperiodsofmalfunctionornon-usependingcompletionofrepairsunderthis
warranty.Somestatesdonotallowexclusionsofincidentalorconsequentialdamages,sotheaboveexclusionsmaynotapplytoyou.This
warrantygivesyouspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
CountriesOtherthantheUnitedStatesandCanada
ThiswarrantyisnotvalidinMexico.CustomersinMexico,seethefollowingpage.CustomerswhohavepurchasedToroproductsexportedfrom
theUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtainguaranteepoliciesforyourcountry,province,orstate.Iffor
anyreasonyouaredissatisedwithyourDistributor’sserviceorhavedifcultyobtainingguaranteeinformation,contacttheT oroimporter.Ifall
otherremediesfail,youmaycontactusatT oroWarrantyCompany.
AustralianConsumerLaw
AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oroDealer.
*Residentialusemeansuseoftheproductonthesamelotasyourhome.PartNumber374-0298Rev.A
374-0298RevA

Importer:SERVICIOSHOMEDEPOT ,S.DER.L.DEC.V.
RicardoMargain605,SantaEngracia,SanPedroGarzaGarcía,
NuevoLeon,MexicoC.P .66267Phone018000046633
SERVICIOSHOMEDEPOTS.DER.L.DEC.V.
WARRANTYPOLICY
Product:
Brand:
Model:
SERVICIOSHOMEDEPOTS.DER.L.DEC.V.guarantees,foraperiod
of_2years__,thatthisproduct,includingallitspartsandworkmanship,is
freefromdefectsinmaterialandoperation,startingonthedateofpurchase
orinstallationoftheproduct,underthefollowingconditions:
Conditions
1.Forthiswarrantytobeaffective,theconsumermustpresentthispolicy,dulystampedbythestorewheretheproductwaspurchased,alongwiththe
product,tothesaidstorewheretheproductwassold.
2.SERVICIOSHOMEDEPOTS.DER.L.DEC.V.agreestoreplacetheproductfreeofchargetotheconsumerandtocoveranycostsresultingfrom
theapplicationofthiswarranty.
Thewarrantyisnotvalidinthefollowingcases:
1.Whentheproducthasbeenusedunderconditionsotherthanthoseconsideredasnormal.
2.Whentheproducthasnotbeenoperatedaccordingtotheprovidedinstructionmanual.
3.WhentheproducthasbeenmodiedorrepairedbypersonnelnotauthorizedbyServiciosHomeDepot.
Forthiswarrantytobevalid,theconsumershallpresenttheproductandthecurrentlyvalidwarrantypolicydulysigned/stampedbytheestablishment
wheretheproductwassold.Incaseoflossofthiswarrantydocument,theconsumermayrequestthestorewheretheproductwaspurchasedtoissue
anotherwarrantypolicydocument,uponpresentationofthecorrespondingproofofpurchaseorinvoice.
Stampandsignatureofthestorewhereproductwassoldand
Purchaseorinstallationcode
Consumername:________________________________________
Streetandnumber:_______________________________________
Area/neighborhood:______________________________________
Countyormunicipality:____________________________________
City,postalcodeandstate:_________________________________
Theconsumerisherebypermittedtorequestthatthiswarrantybemadeeffectiveandcanobtainallparts,components,consumables,andaccessoriesat
theaddressmentionedinthisdocument.
Thiswarrantyisvalidforobtaininganequivalentreplacementoftheproductand,therefore,limitedsparepartsareavailable.
374-0300RevA
Other manuals for 51480A
3
Table of contents
Other Toro Trimmer manuals

Toro
Toro 51480A User manual

Toro
Toro 66210T User manual

Toro
Toro 51958-314000001 User manual

Toro
Toro 51490 User manual

Toro
Toro 51954 User manual

Toro
Toro PowerMax 51491 User manual

Toro
Toro Power Plex 14in 40V MAX 51482 User manual

Toro
Toro 51643 User manual

Toro
Toro Flex-Force Power System User manual

Toro
Toro 51956 User manual
