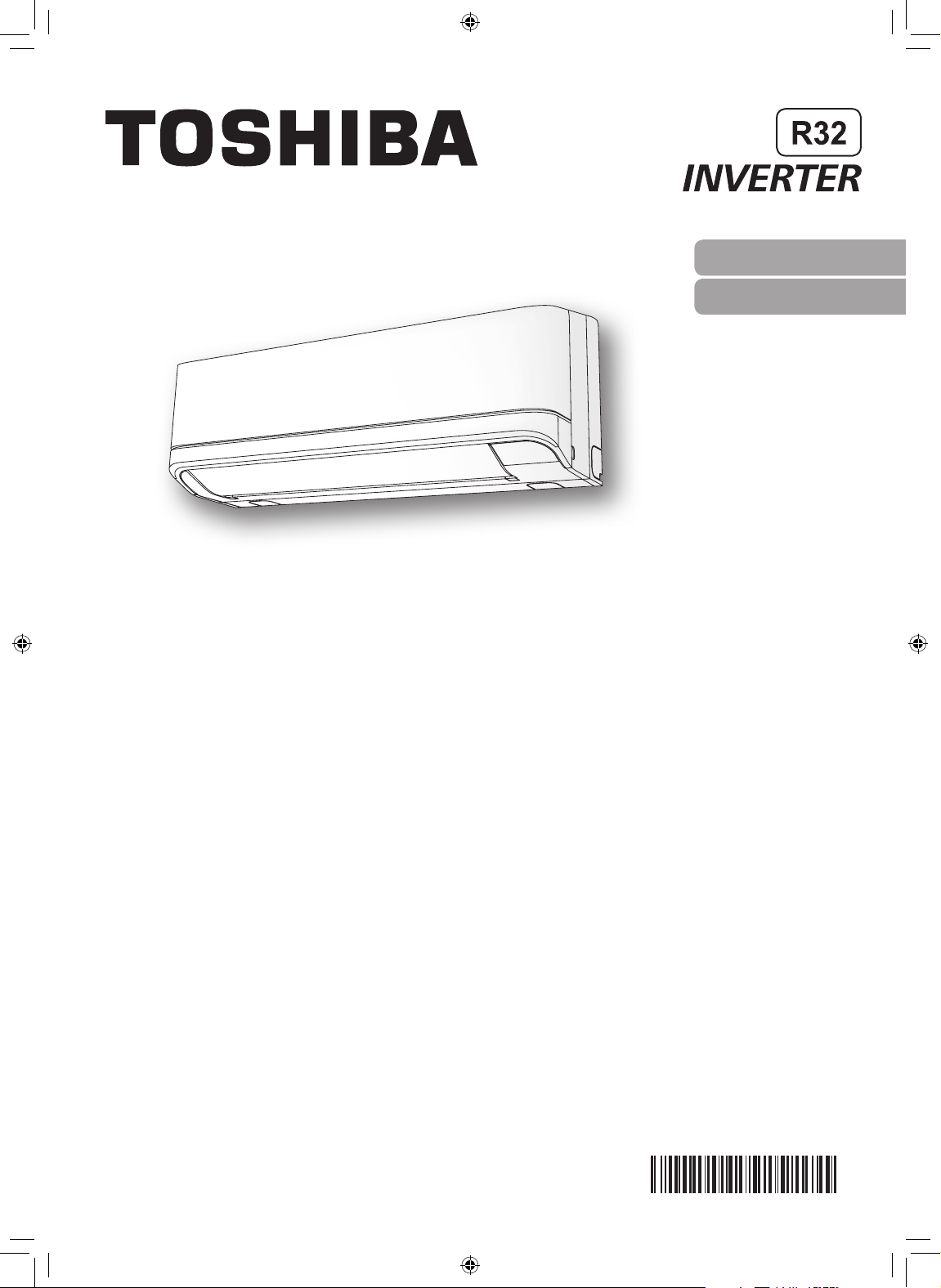

Toshiba 13J2KCVRG-T User manual

OWNER’S MANUAL
AIR CONDITIONER (SPLIT TYPE)
For general public use
Indoor unit
RAS-10, 13J2KCVRG-T
Outdoor unit
RAS-10, 13J2ACVRG-T
1122350201
ENGLISH

1122350201_00_S03_182x257_64p_S_p70_190208.indd 1 2/23/2019 11:05:04 AM

CONTENTS
PRECAUTIONS FOR SAFETY.......................................................................................................................................... 2
DISPLAY......................................................................................................................................................................................................4
REMOTE CONTROLLER PREPARATION ...........................................................................................................5
AUTOMATIC OPERATION .....................................................................................................................................................8
COOLING / FAN ONLY / DRY OPERATION ........................................................................................................9
AIR VOLUME .....................................................................................................................................................................................11

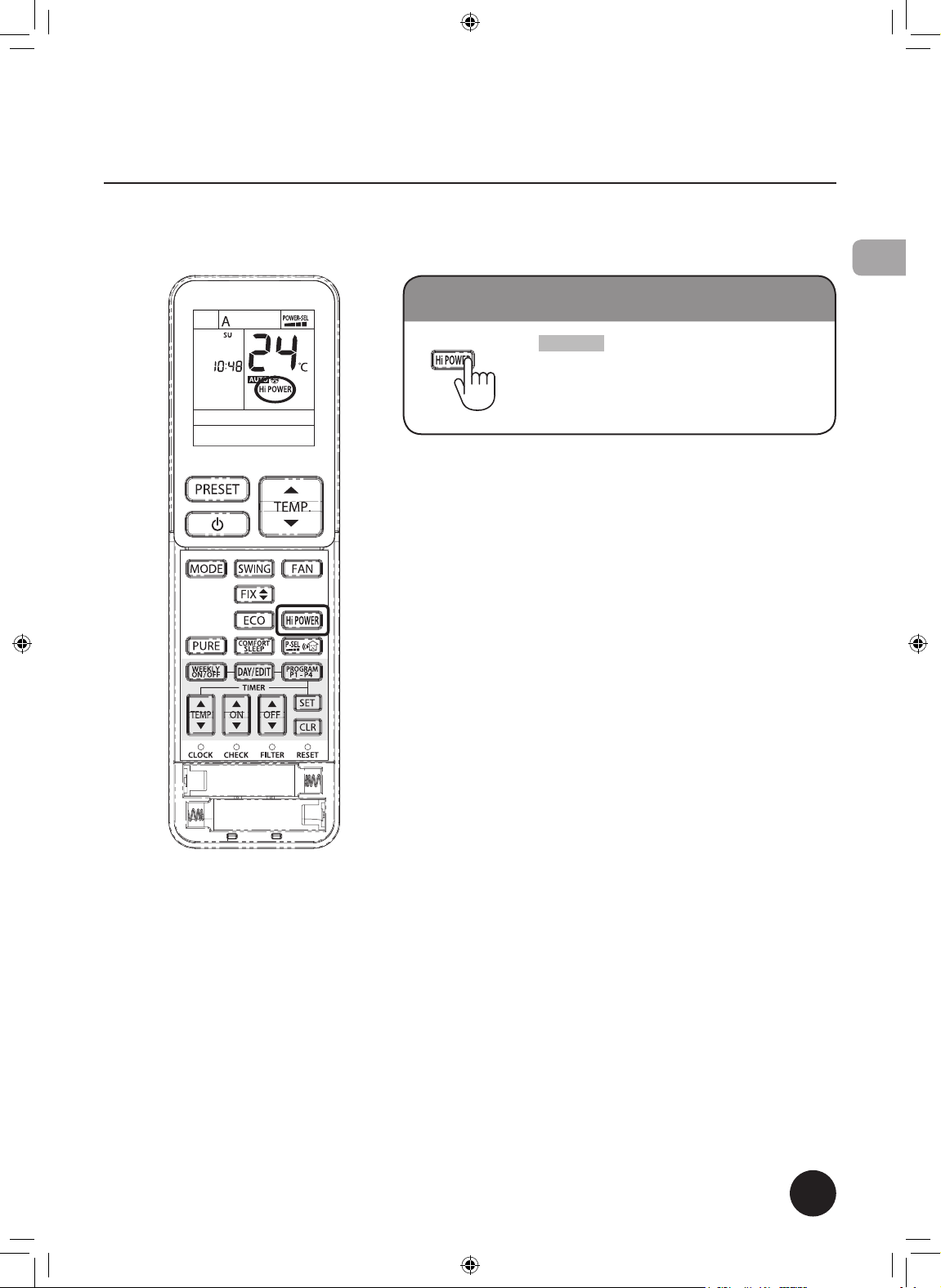

Hi-POWER OPERATION ......................................................................................................................................................12
ECO OPERATION ........................................................................................................................................................................13
PLASMA ION ......................................................................................................................................................................................14
COMFORT SLEEP........................................................................................................................................................................15

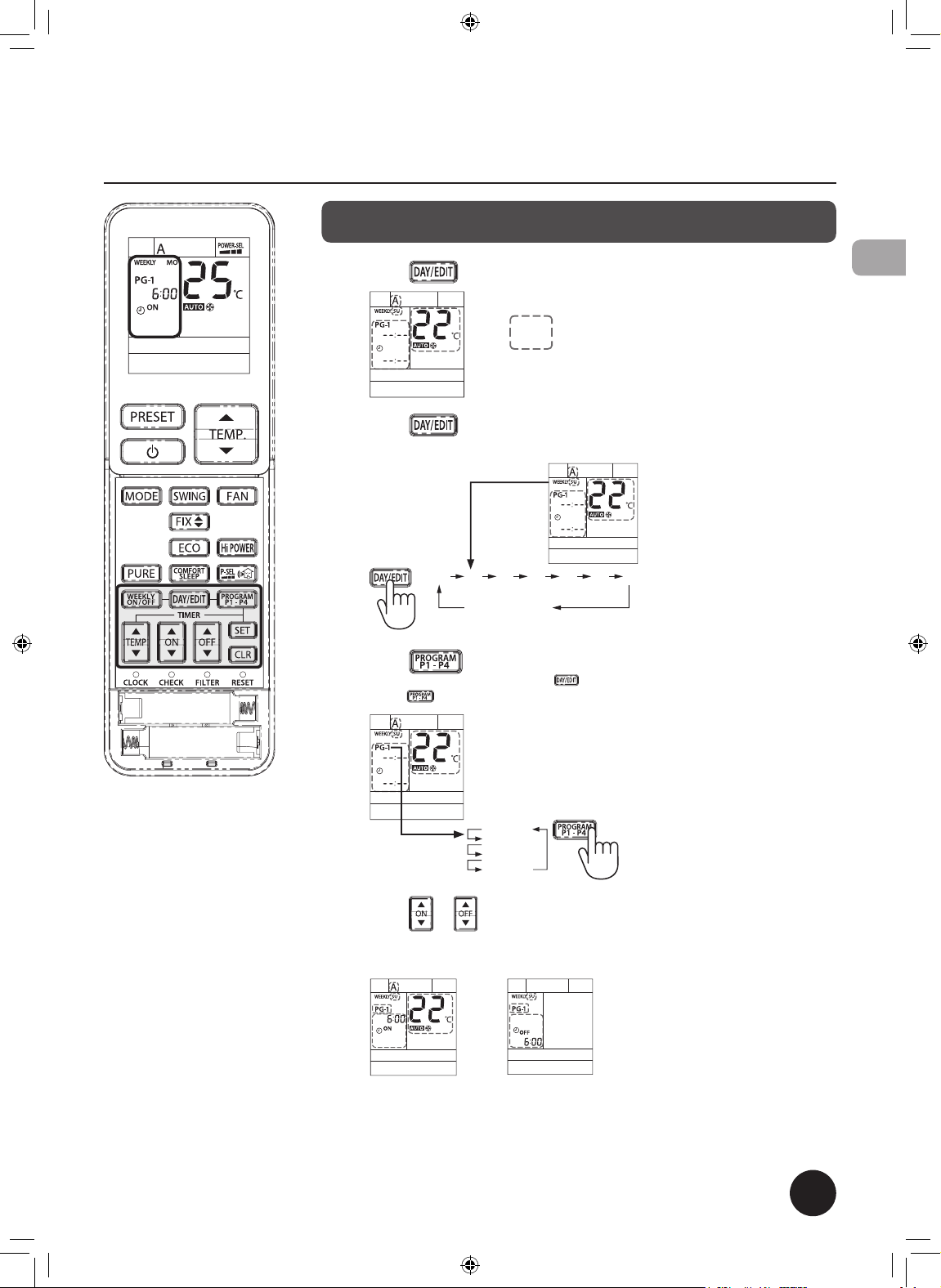

WEEKLY TIMER OPERATION .......................................................................................................................................17

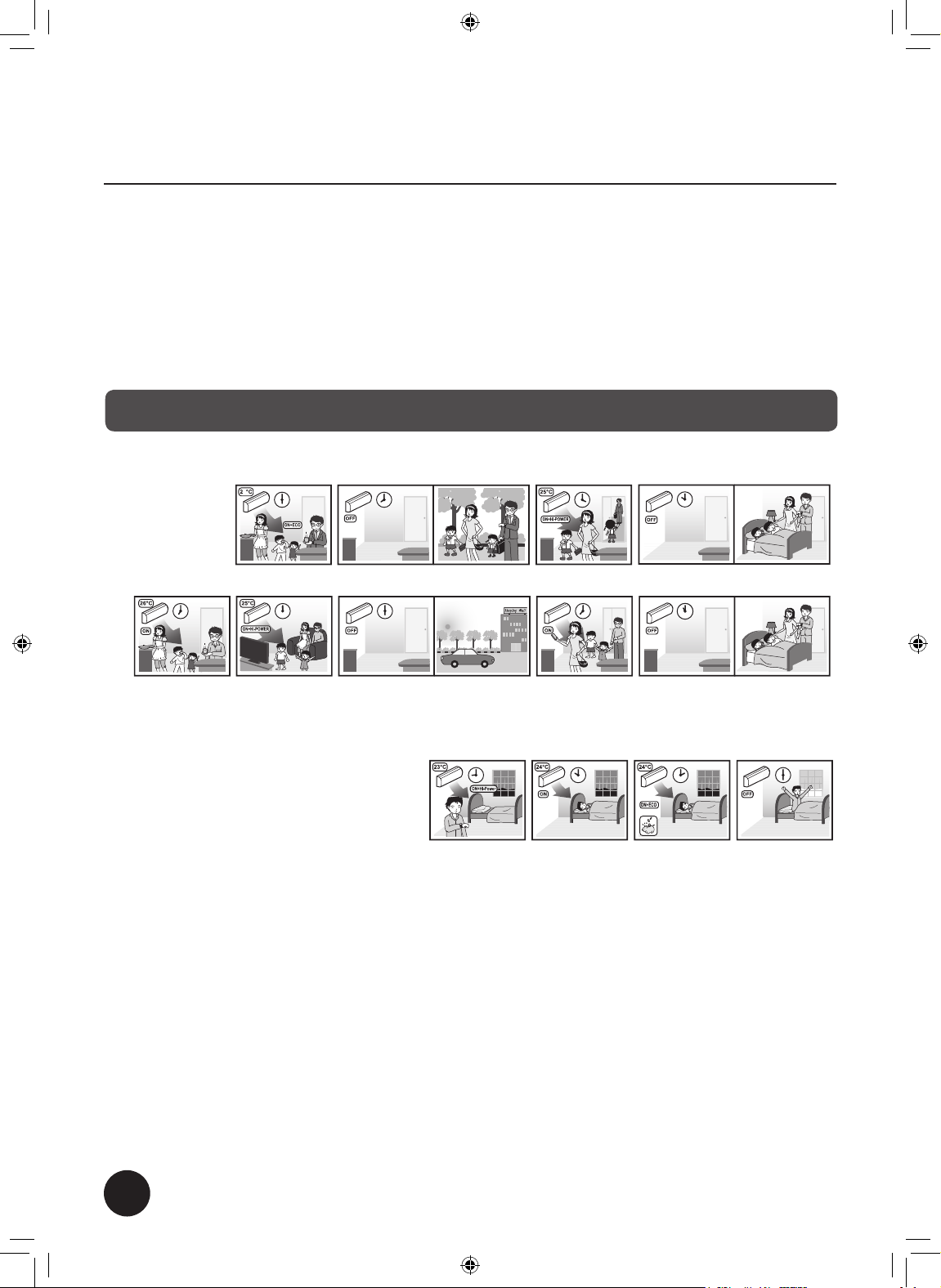

WEEKLY TIMER USAGE EXAMPLE .......................................................................................................................22
PRESET OPERATION .............................................................................................................................................................24
POWER-SELECTION AND SILENT OPERATION ...................................................................................25
DISPLAY LAMP BRIGHTNESS ADJUSTMENT .......................................................................................... 26
SELF CLEANING OPERATION ....................................................................................................................................27
WHEN INDOOR UNIT LAMP BLINKS ....................................................................................................................28
AUTO RESTART SETTING ...............................................................................................................................................29
MAINTENANCE ..............................................................................................................................................................................29
OPERATION AND PERFORMANCE ........................................................................................................................29
REMOTE CONTROL A-B SELECTION .................................................................................................................30
CONCERN ABOUT THE OPERATING NOISE .............................................................................................30
TROUBLESHOOTING..............................................................................................................................................................30
1
1122350201_00_S03_182x257_64p_S_p70_190208.indd 2 2/23/2019 11:05:04 AM

Read the precautions in this
manual carefully before operating
the unit.
●Keepthismanualwheretheoperatorcaneasilyndit.
●Read the precautions in this manual carefully before operating the unit.
●This appliance is intended to be used by expert or trained users in shops, in light
industry and on farms, or for commercial use by lay persons.
●TheprecautionsdescribedhereinareclassiedasDANGER,WARNINGand
CAUTION. They both contain important information regarding safety. Be sure to
observe all precautions without fail.
●Do not install, repair, open or remove the cover. It may expose you to
dangerous voltages. Ask the dealer or the specialist to do this.
●Turning off the power supply will not prevent potential electric shock.
●The appliance shall be installed in accordance with national wiring regulation.
●Means for disconnection from the supply having a contact separation of at least
 3mminallpolesmustbeincorporatedinthexedwiring.
●The appliance must be stored in a room without continuously operating ignition
 sources(forexample,openames,anoperatinggasapplianceoranoperating
electric heater).
●Inordertoavoidre,explosionorinjury,donotoperatetheunitwhenharmful
 gases(e.g.ammableorcorrosive)aredetectedneartheunit.
●Do not expose your body directly to cool or warm air for a long time.
●Donotinsertyourngeroranyarticleintotheairinlet/outlet.
●When an abnormality (burning smell, etc.) occurs, stop the air conditioner and
disconnect the power supply or turn off the breaker.
●This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
●This appliance is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
●The air conditioner must be installed, maintained, repaired and removed by a
 qualiedinstallerorqualiedserviceperson.Whenanyofthesejobsistobe
 done,askaqualiedinstallerorqualiedservicepersontodothemforyou.
Thisapplianceislled
with R32.
PRECAUTIONS FOR SAFETY
DANGER
WARNING
2
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 1 2/23/2019 11:05:04 AM

●Children should be supervised to ensure that they do not play with the
appliance.
●Donotuseanyrefrigerantdifferentfromtheonespecied(R32)forcomplement
or replacement. Otherwise, abnormally high pressure may be generated in the
refrigeration cycle, which may result in a failure or explosion of the product or an
 injurytoyourbody.
●Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
●The appliance shall be stored in a room without continuously operating ignition
 sources(forexample:openames,anoperatinggasapplianceoranoperating
electric heater).
●Be aware that refrigerants may not contain an odour.
●Do not pierce or burn as the appliance is pressurized. Do not expose the
 appliancetoheat,ames,sparks,orothersourcesorignition.Else,itmay
 explodeandcauseinjuryordeath.
●Appliance and pipe-work shall be installed, operated and stored in a room with a
 oorarealargerthanAmin m2.
How to get Amin m2: Amin = (M / (2.5 x 0.22759 x h0))2
M is the refrigerant charge amount in appliance in kg. h0is the installation height
 oftheapplianceinm:0.6mforoorstanding/1.8mforwallmounted/1.0m
for window mounted/2.2 m for ceiling mounted. (For these units recommend
installation height 2.5 m)
●Do not wash the unit with water. It may cause an electric shock.
●Do not use this air conditioner for other purposes such as preserving food,
breeding animal, etc.
●Donotsteporputanythingontheindoor/outdoorunit.Itmaycauseaninjuryor
damage the unit.
●Donottouchaluminiumnbecauseitmaycauseaninjury.
●Before cleaning the unit, turn off the main switch or the circuit breaker.
●When the unit won’t be used for a long time, turn off the main switch or the
circuit breaker.
●It is recommended that maintenance be performed by a specialist when the unit
has been operated for a long time.
●The manufacturer shall not assume any liability for the damage caused by not
observing the description of this manual.
PRECAUTIONS FOR SAFETY
(continued)
CAUTION
3
1122350201_00_S03_182x257_64p_S_p70_190208.indd 2 2/23/2019 11:05:04 AM

DISPLAY
Indoor unit display Temporary operation
In case of the misplaced or discharged remote
control
Pressing the RESET button, the unit can start
or stop without using the remote control.
Operation mode is set on AUTOMATIC
operation, preset temperature is 24°C and fan
operation is automatic speed.
1Wi-Fi access (White)
2ECO (White)
3PURE (White)
4Timer (White)
5Operation
- Cool and Dry (Blue)
- Fan only (LED off)
Notes
Do not drop and avoid contact with water.
 Donotplacewheretemperaturerisesorfalls(Forexampleexposedtodirectsunlight,nearastove,ontheTV,hotoorornearawindow).
When other electrical appliances are operated by a remote control, etc., isolate the appliances or consult the distributor.
 Ifauorescentlampisusedneartheindoorunit,theremotesignalmaynotreachtheinfraredsignalreceiverand,thus,affecttheairconditionerON/OFF
operation.
Do not insert a needle or bar into the opening.

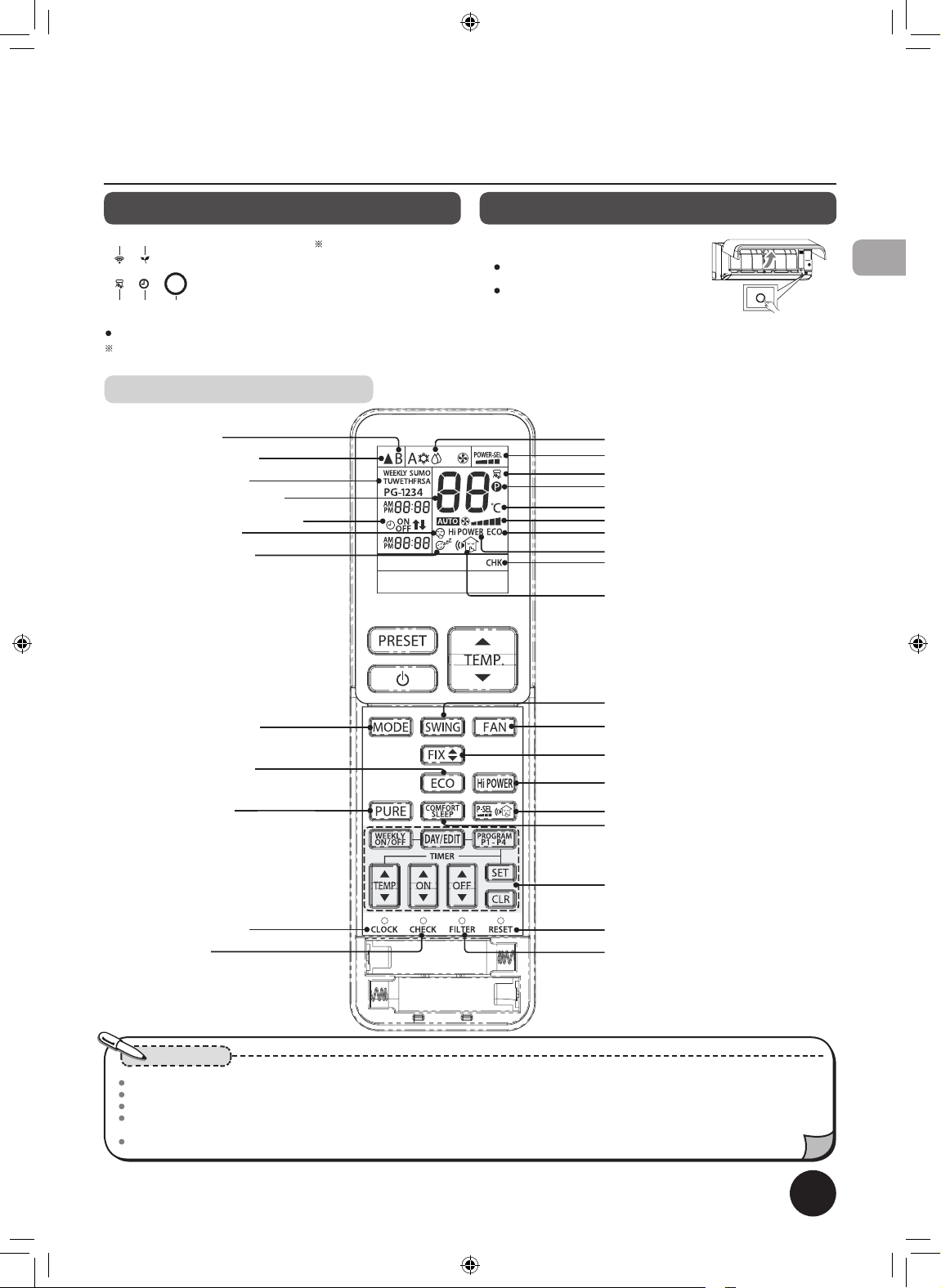

Remote controller on full display
All indicators are shown for explanation.
B mode display
Signal sending display
4
EN
12
345
OPERATION
OPERATION /
RESET Button
RESET
Displaybrightnesscanbeadjusted,followprocedureonpage26.
Require Wireless LAN connecting adapter which available as accessory.
Mode selection display
Power selection display
Preset operation display
Plasma Ion
Temperature unit select
Fan speed selection display
ECO operation display
Hi-POWER operation display
Check mode display
Silent operation (Outdoor unit) display
Louver swing button
Fan speed selection button
Louver direction selection button
Hi-POWER operation button
Power selection/Silent operation button
Weekly timer setting button
Reset button
Filter clear button
Comfort sleep button
Weekly timer display
Setting temperature display
Clock and timer setting display
Quiet speed display
Comfort sleep display
Mode selection button
ECO operation button
Plasma Ion button
Clock setting button
Check button
1122350201_00_S03_182x257_64p_S_p70_190208.indd 3 2/23/2019 11:05:04 AM

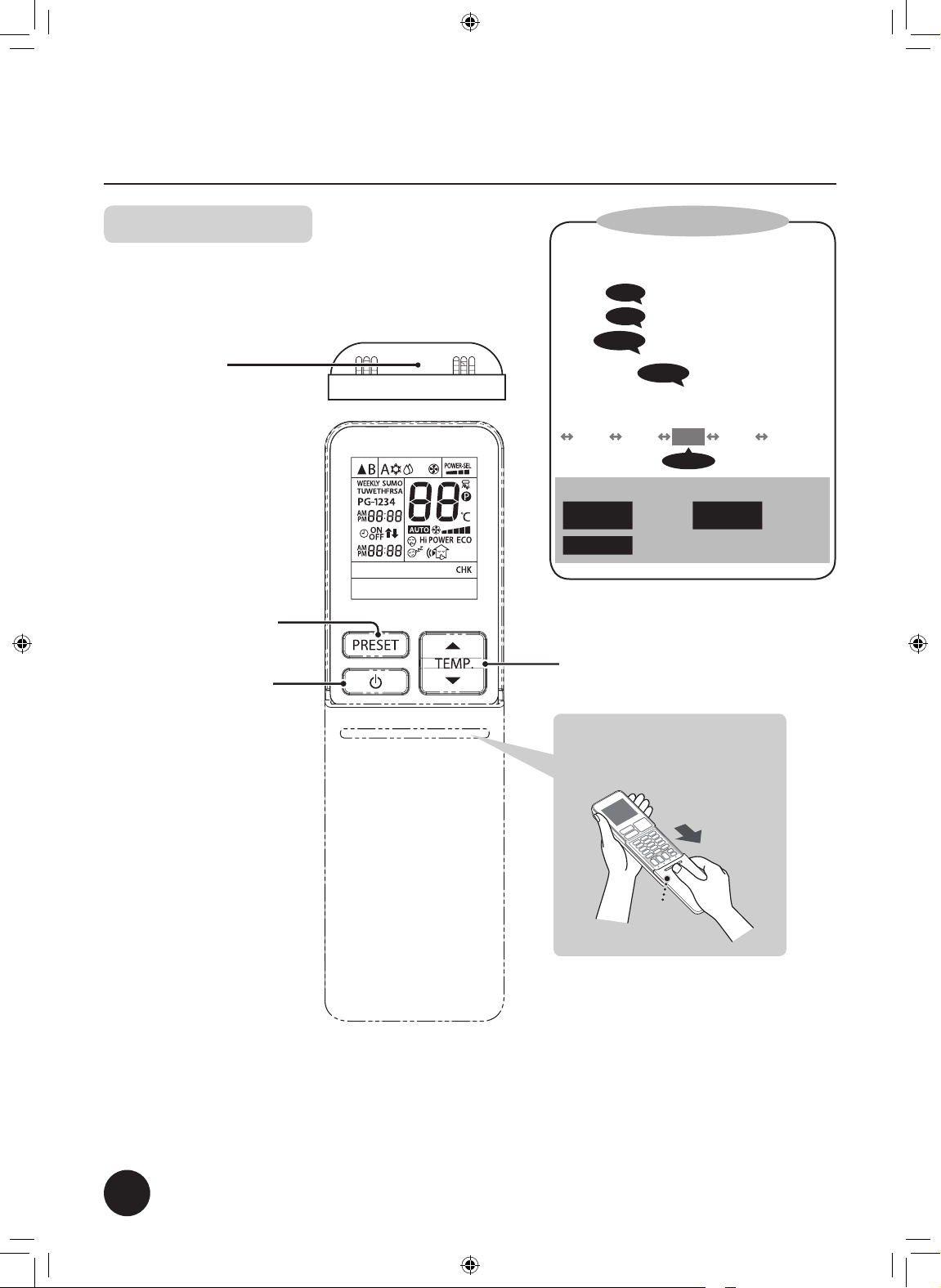

REMOTE CONTROLLER
PREPARATION
Remote control
Kind of receiving tone
When the indoor unit receives a signal from the remote
control, the receiving tone sounds.
operating setting returns to the datum point.
(Example) When temperature setting.
22°C 23°C 24°C 25°C 26°C
When the notice sounds, it means the
Datum points
Temperature
Air volume Automatic
Lower limit
Vertical wind
direction
24°C
..........Operation, change
..........Stop
..........Notice
Pi Pi
PiPi
PiPi
PiPi
Pi
Pi
Pi Pi
Transmitting part
Memory and recall user
setting operation
Start and Stop operation
Adjust temperature
How to open the remote control
cover
Pull it down while slightly depressing the upper
part of the cover.
Cover
5
1122350201_00_S03_182x257_64p_S_p70_190208.indd 4 2/23/2019 11:05:04 AM

Remote control
Insert the battery Setting the clock
Pull the cover to
your side firmly
Insert direction of
(+) and (-) correctly
Pull the cover to
yoursiderm
Press with tip of the pencil.
Press with tip of the pencil.
11
2
3
4
2
3
Remove the cover and insert
AAA alkaline dry batteries
Attach the cover
.................................................
.................................................
.................................................
.................................................
.................................................
Press the CLOCK button
●
Adjusttheclockbyusingthe“settingthe
clock” button
●
Theday“SU”willappearandchangetothenextday
after pressing the button once.
●
The time changes by 1 minute when pressed once.
The time changes by ten-minute intervals when
pressed continuously.
Press the CLOCK button
Adjust the “Day”
Adjust the “Time”
or
Conrm “Time”
●The life of dry batteries is approx. 1 year in normal use.
●Replace batteries if no sound is received from the indoor unit or there is a failure to select the desired function.
●Replace both batteries at the same time with AAA alkaline batteries.
●If not planning to use for one or more months, remove the batteries to avoid failure.
Notes
6
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 5 2/23/2019 11:05:05 AM

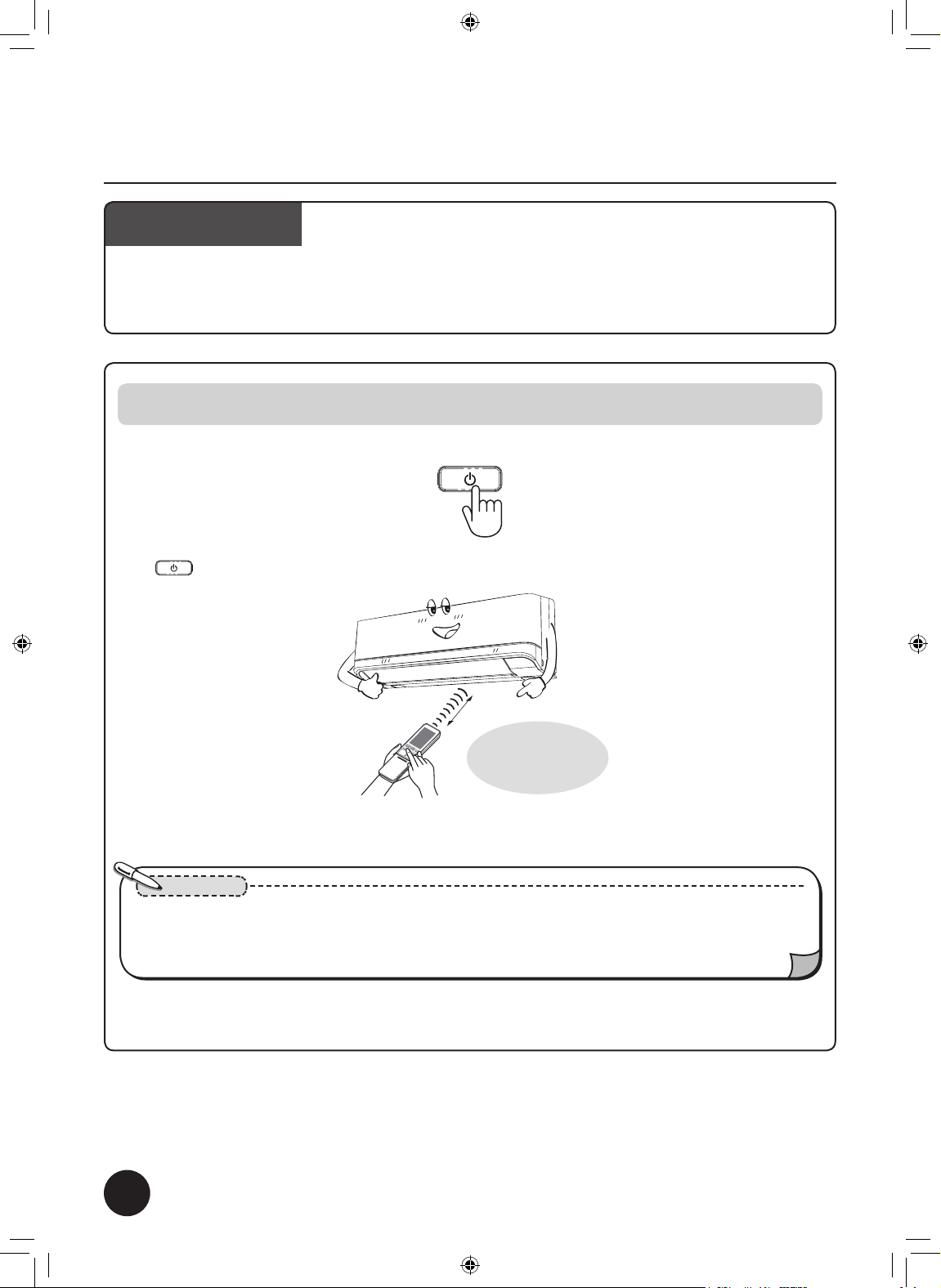

Indoor unit
Check transmitting and receiving
Turn on the main power supply
Point the remote control at the remote control receiving module on the indoor unit.
●A waiting period of 3 minutes is required after the power is turned on. During this period, the operation lamp will illuminate. However, the compressor will not
start.
●Thecorrectsignalisconrmedbythereceivingtoneandtheoperationlampwillilluminate.
●When button is pressed, the receiving tone will sound and the operation will stop.
●Checkthatthesignalistransmittedandreceivedattheinstalledpositioniftheremotecontrolisxedtotheremotecontrolholder.
The receiving and
transmitting distance.
Approx. 7m from straight
in front of the indoor unit.
●Use the remote control where the indoor unit can receive the signal. It does not work if the signal is obstructed by curtains or sliding doors.
●The distance for transmitting and receiving is shorter if a bright light, such as sunlight, affects of the main unit.
●The distance for transmission and receiving is shorter if the remote control is operated at an oblique angle to the main unit.
Notes
7
1122350201_00_S03_182x257_64p_S_p70_190208.indd 6 2/23/2019 11:05:05 AM

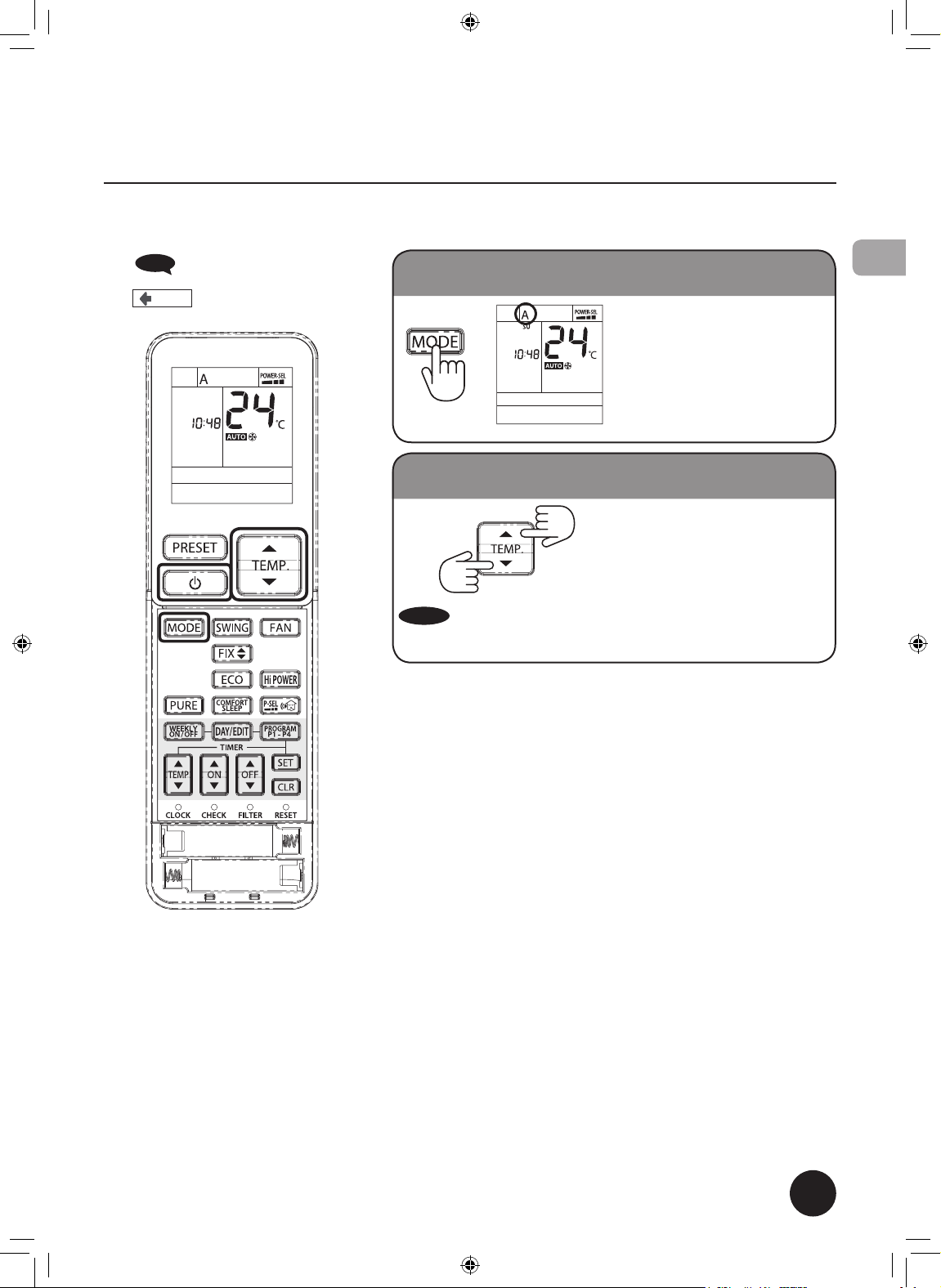

AUTOMATIC OPERATION
The air conditioner selects the cooling operation.
it notices that the operation setting returns to the datum
point. Page 5
When sounds,
Pi
When starting automatic operation, select A
When changing the temperature, Press TEMP.
PiPi
●The air volume can be set as you prefer.
●Changes by 1°C when pressed once.
It changes continuously if pressed
continuously.
●The temperature range available is
17°C - 30°C.
sounds when reaching 24°C.
Down
Up
8
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 7 2/23/2019 11:05:06 AM

COOLING / FAN ONLY /
DRY OPERATION
When sounds,
it notices the operation setting returns to the datum
point.
Pi
Page 5
Temperature and air volume for the cooling operation can be set as you prefer.
Cooling
operation
Fan only
operation
Dry operation
9
1122350201_00_S03_182x257_64p_S_p70_190208.indd 8 2/23/2019 11:05:07 AM

For dehumidication, a moderate cooling performance is controlled automatically.
Dry
operation
●Refrigerantowmaymakenoise.However,thisisnotdefect.
●When the outside temperature is low, the temperature in the room may become lower than the temperature selected.
●On dry mode the air volume is set to Auto only.
Notes
When changing the temperature, Press TEMP.
PiPi
●The temperature changes by 1°C when pressed.
It changes continuously when pressed continuously.
●The available setting range is 17°C – 30°C.
When at 24°C
Down
Up
10
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 9 2/23/2019 11:05:07 AM

AIR VOLUME
it indicates the operation setting returns to the original
setting.
1
2
3
Page 5
When sounds,
Pi
●Do not move the louver manually by others.
●The louver may automation positioning by some operation mode.
Press : Move the louver in the desired
vertical direction.
Forhorizontaldirection,adjustmanually.
Press : Swing the air automatically and
press again to stop.
●
Every time...
When pressed during Auto, Cooling and Fan only.
Changing the air volume, press FAN
AIR FLOW DIRECTION
Notes
.......................................................................................
.......................................................................................
11
1122350201_00_S03_182x257_64p_S_p70_190208.indd 10 2/23/2019 11:05:08 AM

Hi-POWER OPERATION
To automatically control room temperature and airow for faster cooling operation (except in
DRY and FAN ONLY mode)
Hi-POWER OPERATION
●
Hi-POWER appears on the remote control display.
12
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 11 2/23/2019 11:05:09 AM

ECO OPERATION
While Automatic, Cooling operation is activated, automatic control room temperature to save energy,
except in DRY and FAN ONLY mode.
ECO OPERATION
●ECO appears on the remote control display.
●Thesettemperaturewillbeautomaticallyadjustedappropriately.
However, the temperature is raised by no more than 2 degree
Celsius.
13
1122350201_00_S03_182x257_64p_S_p70_190208.indd 12 2/23/2019 11:05:09 AM

PLASMA ION
Capture e󰀩ciency of oating impurities in the air is accelerated by plasma ion contaminates such as
bacteria, odor, smoke, dust and virus are caught and deactivated by Plasma Ion.
To clean the air,
When stopping operation.
Plasma Ion
●After stopping, automatic cleaning starts
(TIMER lamp turns on).
When operating time is 10 minutes or less,
cleaning function does not operate.
When using together with the air conditioning
Air volume and direction setting of air conditioner have priority.
Operate Plasma Ion while air
conditioning.
Note
OperationStop
Operate air conditioning
during Plasma Ion.
Stop both Plasma Ion and air
conditioning.
Stop only Plasma Ion.
Plasma Ion operation does not remove harmful substances from cigarette
smoke (carbon monoxide etc.). Open a window occasionally for ventilation.
Press the button.
Press the button.
Press the button.
Press the button.
or
14
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 13 2/23/2019 11:05:09 AM

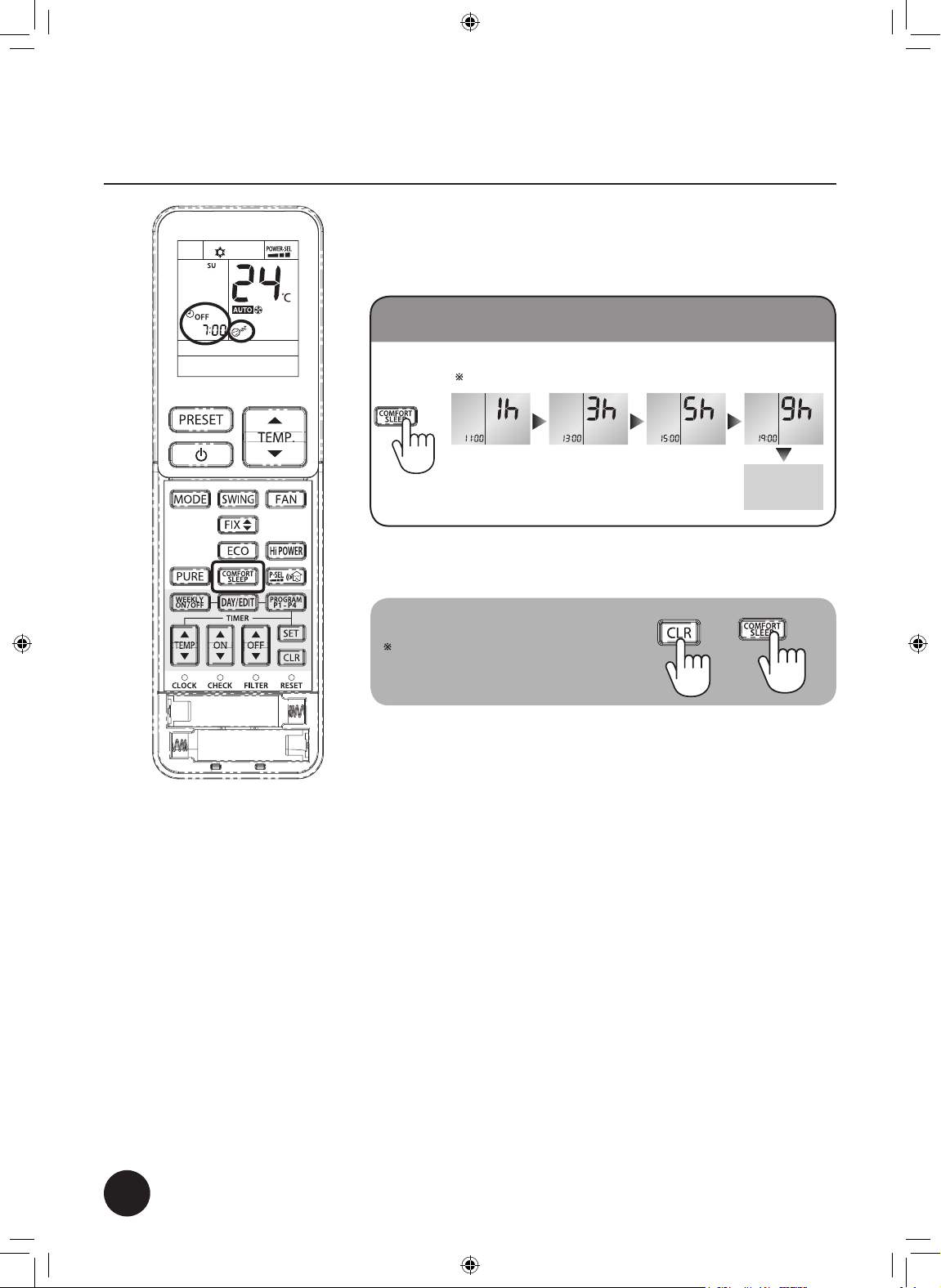

COMFORT SLEEP
The operation stops automatically at the Pre-set time.
When 1, 3, 5 and 9 hours are selected, the comfort sleep operation begins.
The set temperature will be automatically adjusted appropriately.
However, the temperature is raised or decreased to no more than
2 degrees Celsius.
Timer o󰀨 during comfort sleep
●
Every time when pressed (within 3 seconds)...
Display example is when 10:00 is selected.
Cancel
comfort sleep
or
To cancel
The timer setting is released but operation continues.
●The time for stopping the operation is displayed on the remote control.
●After the operation stops, drying of the inside is not performed.
15
1122350201_00_S03_182x257_64p_S_p70_190208.indd 14 2/23/2019 11:05:11 AM

Timer on, Timer o󰀨
Start and stop of operation is selected with the time. Operate after setting the current time on the remote control
To start at 6:00 AM and stop at 10:00 AM.
Selected time and current operating
mode blink alternately in the pictographic
character display portion.
Selected time and current operating
mode blink alternately in the pictographic
character display portion.
Select operation start for 6:00 AM.
Set the stop time to 10:00 AM.
For timer on
Select
For timer o󰀨
Backward
Backward
Forward
Forward
Page 6
1
1
2
2
3
●Changes by 10 minutes when pressed once and by 1 hour when pressed
continuously.
●The selected time is displayed
Go to 2if the same time as a previous setting can be used.
●During time off, drying inside is not performed.
●Timer off can be selected with the previous operation setting even while stopped.
The operation starts when selected.
●To change the selected time, press or to change the setting.
.....................................................................................
.........................................................
.........................................................
To cancel
The timer setting is released, but the operation will continue.
Example of setting
(Selection of timer On/O󰀨)
16
EN
1122350201_00_S03_182x257_64p_S_p70_190208.indd 15 2/23/2019 11:05:12 AM

WEEKLY TIMER OPERATION
4 programs for each day in the week can be set in WEEKLY TIMER.
The following items can be set in WEEKLY TIMER operation.
a. Operation time (ON timer for Start and OFF timer for Stop operation)
b. Operation mode (AUTO, COOL, DRY, FAN ONLY)
c. Temperature setting.
d. Fan speed setting.
e. Special operation (ECO, Hi-POWER, SILENT)
Examples of WEEKLY TIMER uses
Living room
MON-FRI
SUN and SAT
Sunday Sunday Monday Monday
Bedroom
6
1
2
...........................................................................................................
17
1122350201_00_S03_182x257_64p_S_p70_190208.indd 16 2/23/2019 11:05:17 AM

How to set WEEKLY TIMER
Press to enter WEEKLY TIMER setting.
Press to select desired day in sequence.
The sequence of day symbol appears on the LCD
Press to select the program number.
●The program 1 is ready for setting while is pressed PG-1 appears on the LCD.
●Press to change the program number in the sequence program 1 to program 4.
Press or to select the desired time.
Blink
WEEKLY SUMO
TUWETHFRSA
(All day)
1
2
3
4
●The time can be set between 0:00 and 23:50 in 10 minute intervals.
●Press and hold the button to change setting time for 1 hr.
●Only one of ON or OFF timer can be set on each program.
* OFF timer is used to stop the air conditioner only. The display does not show Operation mode,
Temperature, Fan speed and others.
ON timer display OFF timer display*
......................................................................................................
......................................................................................................
......................................................................................................
......................................................................................................
18
EN
SU MO TU WE TH FR SA
PG-1
PG- 2
PG- 3
PG- 4
1122350201_00_S03_182x257_64p_S_p70_190208.indd 17 2/23/2019 11:05:20 AM

Notes
5
6
7
8
9
0

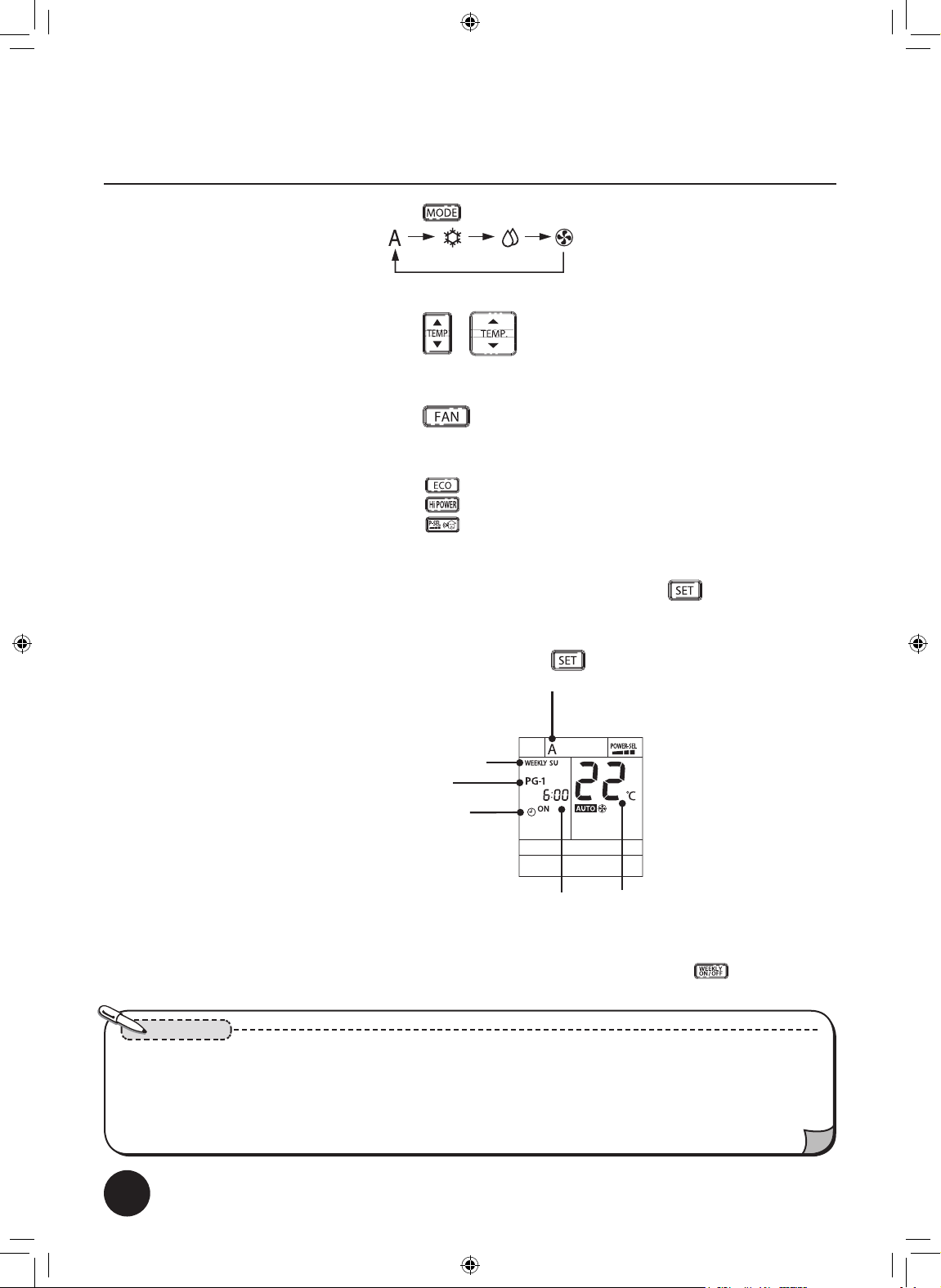

Press to select desired operation.
Press to select the desired fan speed.
After adding or editing, press to conrm the setting*.
Add operations, if required.
Adding or editing the program.
Press
or to select desired temperature.
..................................................................................................
..................................................................................................
..................................................................................................
..................................................................................................
..................................................................................................
..................................................................................................
●The temperature can be set between 17°C and 30°C.
Operating Mode
Weekly timer running
Next program
Timer ON or OFF
Next operation time
*Point remote control at air conditioner receiving module then, press SET button until you hear
the“PiPi”sound.Thismeansthesettingoperationhasbeencompleted.
Astheairconditionerisreceivingthesignal,youwillhearseparate“Pi”soundscorrespondingto
the number of days in the selected setting.
An incomplete setting is indicated if the TIMER lamp is blinking. Press twice.
1. Place the remote control where the indoor unit can receive the signal. This will increase the accuracy of the timing between the remote control and the air
conditioning unit.
2.TheON/OFFtimercanbesetduringtheWEEKLYTIMERoperation.Inthissituation,theairconditionerwillrstfollowthenormaltimeruntilitiscomplete;
then, it will return to the WEEKLY TIMER function.
3.DuringWEEKLYTIMERoperation,allofoperationsuchasMODE,TEMP,FAN,Hi-POWER,ECOandetc.,canbeadjustedbutwhentheclockreachesthe
program setting, the operation will return to the set items in the program.
4.Whentheremotecontrolissendingasignaltotheairconditioner,avoidinterferencefromobjectsthatcanblockthesignal.
Display after
pressing SET button
Operating Temperature
and Fan speed
The program can be set to perform on all the required days until ispressedtoconrmthe
setting 0.
If adding or editing a program is required, please repeat steps 2- 8beforesettingconrmation.
●Press to use ECO operation
●Press to use Hi-POWER operation.
●Press to use Silent operation.
Notes
19
1122350201_00_S03_182x257_64p_S_p70_190208.indd 18 2/23/2019 11:05:21 AM
