Toshiba RAC-PD0812CRRC User manual

Safety Precautions
Operating Instructions
Troubleshooting Tips
Care and Cleaning
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference.
change without prior notice for product
improvement. Consult with your dealer or
the manufacturer for details.

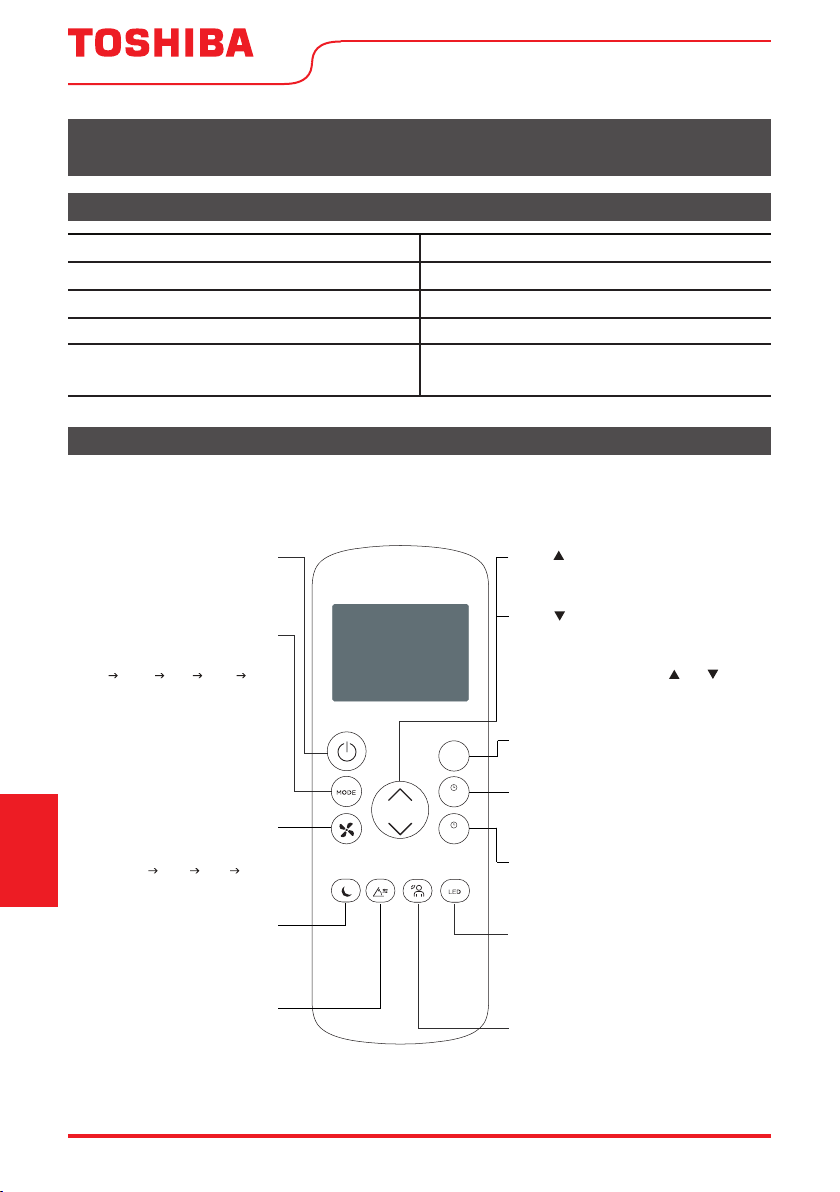

Remote control and App
instructions
Troublesho
o
Care
a
a
n
n
d
d
C
C
l
l
e
version A - 01 - 2020 (PREVIEW01)

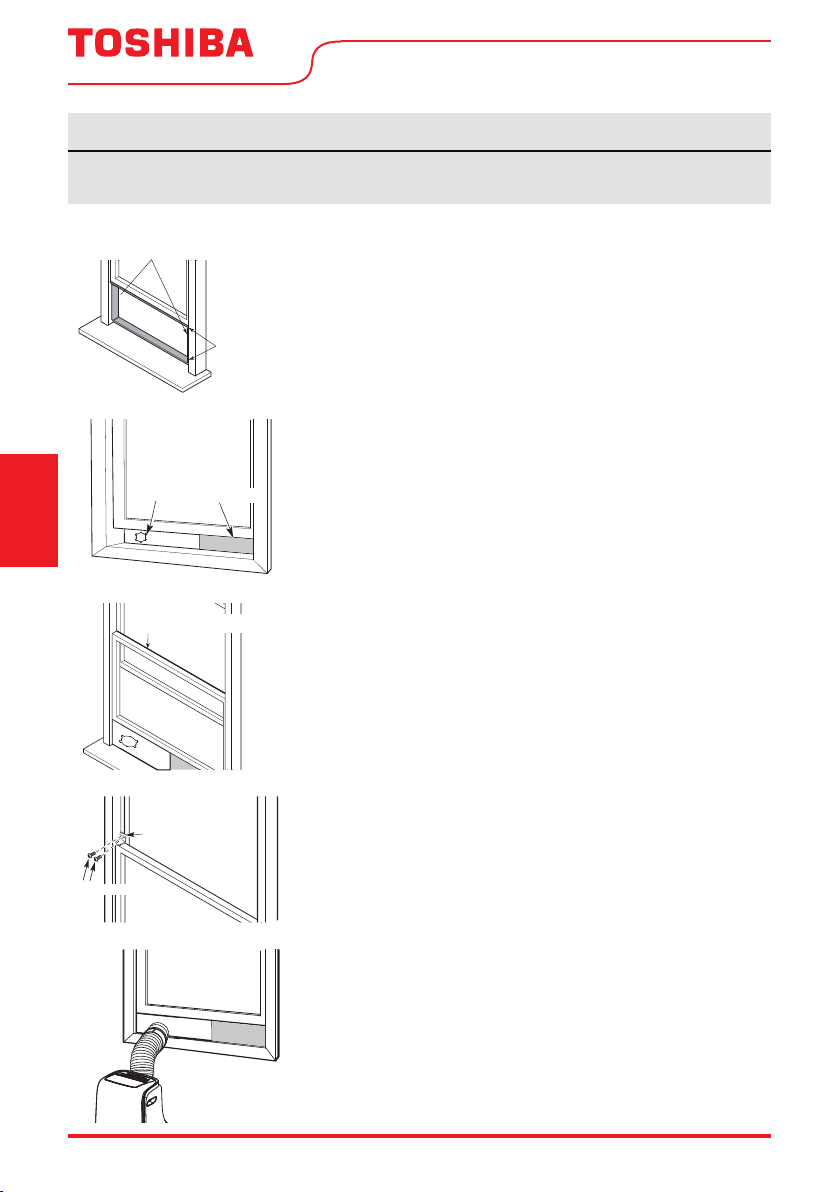

Installation Instructions
USER MANUAL
Portable Type
Room Air Conditioner
RAC-PD0812CRRC
RAC-PD1213CWRC

Page 2 User Manual
Read This Manual
Inside you’ll nd many helpful hintson how to use and maintain your air conditioner properly.
Just a little preventive care on yourpart can save you a great deal of time and money
over the life of your air conditioner. You’ll nd many answers to common problems in the
troubleshooting tips - you shouldbe able to x most of them quickly before calling service.
These instructions may not cover every possible condition of use, so common sense and
attention to safety is required when installing, operating and maintaining this product.
User Manual
Safety Precautions .................................................................................................................... 3
Operating Instructions ............................................................................................................ 8
Installation Instructions ........................................................................................................ 13
Care and Cleaning .................................................................................................................. 18
Troubleshooting Tips ............................................................................................................. 19
Remote Control and App Instructions ............................................................................ 20
• For support, please call the Service Center at 1-855-238-5607.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
givensupervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Childrenshouldbe supervised to ensure that they do not play with the air conditioner.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a humid room such as a bathroom or laundry room.
CAUTION

User Manual Page 3
Safety
Precautions
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the instructions shown here must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk
is shown by the following indications.
WARNING This symbol indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
This symbol indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
NOTICE
This symbol addresses practices not related to physical injury.
• Be sure the air conditioner has been securely and correctly installed according to the
installation instructions in this manual. Save this manual for possible future use in removing or
installing this unit.
• Plug in power cord plug properly.
Otherwise, it may cause electric shock or re due to excess heat generation.
• Do not modify power cord length or share the outlet with other appliances as it may cause
electric shock or re due to overheating.
• Always ensure eective grounding.
Incorrect grounding may cause electric shock.
• Unplug the unit if you notice unusual sounds or smells or smoke coming from it.
A damaged product may cause re and electric shock.
• Ventilate room before operating the air conditioner if there is a gas leakage from another
appliance.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.
• Do not operate with wet hands or in very humid environments.
It may cause electric shock.
• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.
• Do not use the socket if it is loose or damaged.
It may cause re and electric shock.
• Do not use or keep the power cord close to heating appliances.
It may cause re and electric shock.
• Do not use any devices or materials for installation that are not recommended in this manual.
• Do not disassemble or modify unit.
It may cause failure and electric shock.
WARNING

Page 4 User Manual
Safety
Precautions
• Do not damage or use an alternate power cord.
It may cause re and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an authorized service
center or a similarly qualied person in order to avoid a hazard.
• Do not direct airow straight into persons to avoid possible health hazard.
• Do not open the unit during operation.
It may cause electric shock.
• Do not use the power cord near ammable gas or combustibles, such as gasoline, benzene,
thinner, etc.
It may cause an explosion or re.
• Do not let children hang on the air conditioner or bracket.
A serious injury may occur.
• Avoid re hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not
remove any prongs from the power cord.
• Be sure the air conditioner is properly grounded. To minimize shock and re hazards, proper
grounding is important. The power cord is equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle
you intend to use is not adequately grounded or protected by a time delay fuse or circuit
breaker, have a qualied electrician install the proper receptacle. Ensure the receptacle is
accessible after the unit installation.
• Be sure the electrical service is adequate for the model you have chosen. This information can be
found on the serial plate, which is located on the side of the cabinet and behind the grille.
• When the air lter is to be removed, do not touch the metal parts of the unit.
It may cause injury.
• When the unit needs cleaning, switch o, and turn o the circuit breaker.
Do not clean unit when power is on as it may cause re, electric shock or injury.
• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.
• Clean with a soft cloth only. Do not use strong detergents that contain wax or thinners as it may
damage the product.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to electric shock.
• Do not put a pet or house plant where it will be exposed to direct air ow.
This could injure the pet or harm the plant.
WARNING
CAUTION

User Manual Page 5
• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.
• Ensure that the installation is properly secured to prevent the product from potentially falling.
• Do not place heavy objects on the power cord and ensure that the cord is not compressed.
Otherwise, there is danger of re or electric shock.
• If water is spilled on the unit, turn o the unit and switch o the circuit breaker. Isolate supply by
taking the power-plug out and contact a qualied service technician.
• Do not use near gas stove or other gas burning appliances, as air ow may aect gas
combustion.
• Do not use for any purpose other than room comfort.
Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects.
It may cause deterioration.
• Turn o the main power switch if the unit is not to be used for an extended time.
• Always insert the lters securely. Clean lter once every two weeks.
Operation without lters may cause failure.
• Do not drink water drained from the air conditioner.
CAUTION
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE: Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.
Safety
Precautions

Page 6 User Manual
Safety
Precautions
WARNING
ammable refrigerant.
If the refrigerant is leaked and exposed to an external ignition source,
re.
CAUTION This symbol shows that the operation manual should be read carefully.
CAUTION This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
CAUTION This symbol shows that information is available such as the operating
manual or installation manual.
EXPLANATION OF SYMBOLS DISPLAYED ON THE UNIT
• Do not try to accelerate the defrosting process or methods of cleaning that are not
recommended by the manufacturer.
• The appliance shall be stored in a room without a continuously operating ignition source (for
ames or an operating gas appliance) or an ignition source (for example, an
operating electric heater) close to the appliance. The appliance shall also be stored in a room
without ignition sources.
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.
• Unit isonly to be serviced by a Toshiba authorized servicer, please call Customer Service at
1-855-238-5607 for support.
• Flammable refrigerant R32 is used within air conditioner. Please follow the instructions carefully
to handle, install, clean, and service the air conditioner to avoid damage or hazard. Do not
ed agency for proper disposal.
re or devices that generate spark/arcing shall be around the air conditioner to avoid
ammable refrigerant used. Please follow the instructions carefully to
store or maintain the air conditioner to prevent mechanical damage from occurring.
WARNING (for using R32 refrigerant only)

User Manual Page 7
The power supply cord with this air conditioner
contains a current detection device designed
to reduce the risk of re.
In the event that the power supply cord is
damaged, it can not be repaired. It must be
replaced with a cord from the manufacturer.
Safety
Precautions
• Do not use this device to turn the unit on or o.
• Always make sure the RESET button is pushed in for correct operation.
• The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,
or it can not be reset. Please contact Customer Service.
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Power supply cord with 3-prong grounding
plug and current detection device.
The power supply cord contains a current
measuring device that detects damage to the
power cord. Test your power supply cord as
follows:
1. Plug in the air conditioner.
2. The power supply cord will have TWO
buttons on the plug head. Press the TEST
button. You will notice a click as the RESET
button pops out.
3. Press the RESET Button. You will notice a click
as the button engages.
4. The power supply cord is now supplying
electricity to the unit. (On some products this
is also indicated by a light on the plug head.)
RESET
TEST
Plug in & press RESET
Operation of Current Device
NOTICE
NOTICE

Preparation
control panel
handle
(both sides)
horizontal louver
blade
(automatic swing)
Caster
Panel
raeR
tnorF
power cord buckle
bottom tray

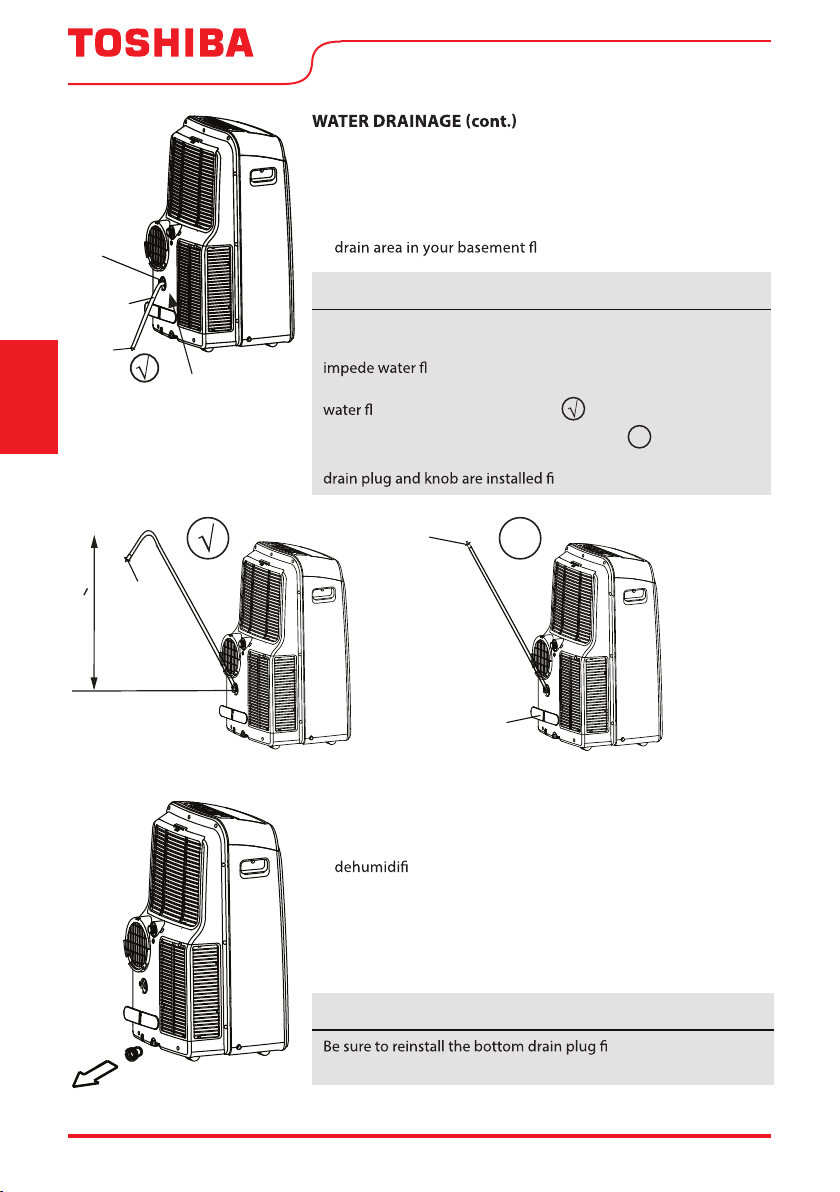

drain outlet
power cord outlet
drain outlet
(only for pump
heating mode)
upper air filter
( Integrated
design air filter )
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
Design and Compliance Notes
Design Notice:
cations of the unit and
remote control are subject to change without prior notice.
Energy Rating Information:
The Energy Rating for this unit is based on an installation using an unextended exhaust duct without
adaptors A or B (as shown in the Installation section of this manual).
Unit Temperature Range:
egnaRerutarepmeTedoM
)F°59~F°26(C°53~C°71looC
)F°59~F°55(C°53~C°31yrD
Heat (heat pump mode) 5°C ~ 30°C (41°F ~ 86°F)
Heat (electrical heat mode) ≤ 30°C (86°F)
Exhaust Hose Installation:
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.
For COOL, HEAT (heat pump type) or AUTO mode, exhaust hose must be installed.
For FAN, DEHUMIDIFY or HEAT (electrical heat type) exhaust hose must be removed.
OPERATING INSTRUCTIONS
Operating
Instructions
Page 8 User Manual

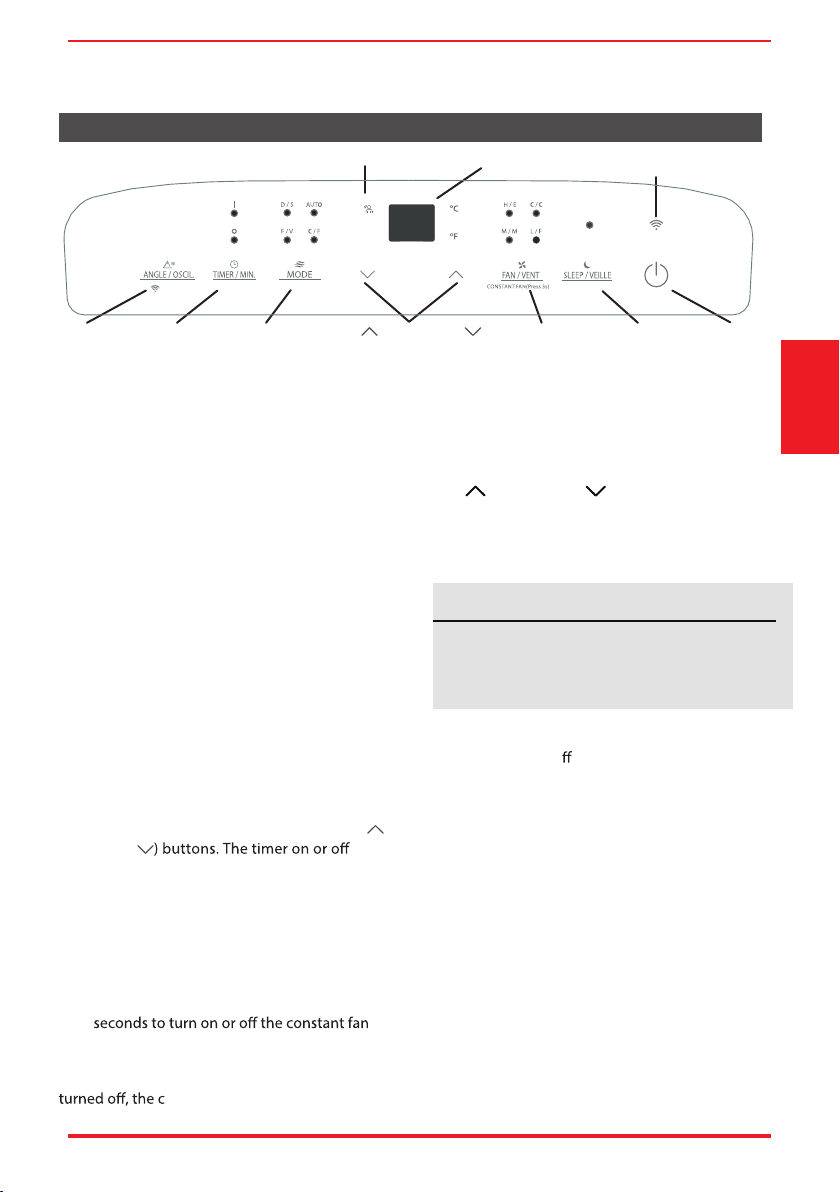

Control Panel Features
Operating
Instructions
Swing Button
Used to initiate the Auto Swing feature. When the
operation is ON, pressing the SWING button can
stop the louver at the desired angle.
Timer button
Used to initiate the AUTO ON start time and AUTO OFF
stop time program, in conjuction with the Up ( )
and Down ( light will
illuminate depending on the selected setting.
Fan button
Controls the fan speed. Press to control the fan speed
in four steps - LOW, MID, HIGH and AUTO. The selected
fan speed light (except AUTO) will illuminate. When
AUTO is selected, no lights will illuminate.
Power button
Power switch on/o .
Sleep button
Used to initiate the SLEEP operation.
LED display
Shows the set temperature in °C (Degrees
Celsius) or °F (Degrees Fahrenheit) and the
Auto-timer settings. While on DRY and FAN
modes, it shows the room temperature.
Shows Error codes and protection code:
E1 - Room temperature sensor error.
E2 - Evaporator temperature sensor error.
E3 - Condenser temperature sensor error
(select models).
E4 - Display panel communication error.
P1 - Bottom tray isfull - Connect the drain
hose and drain the collected water
away. If protection code repeats, call
for service.
Timer
Button
Swing
Button
Power
Button
Sleep
Button
Fan
Button
Up ( ) and Down ( )
Buttons
Mode
Button
LED Display Connect IndicatorLight
(Smart modelsonly)
Follow Me
NOTE: In ing or Dry mode, press the Fan button
function. When the function is turned on, the
for 3
constant fan light will illuminate, identifying the fan
continuous run for cooling. When the function is
onstant fan light will go out,
identifying the fan cycle run with compressor stop.
Cool
VENT CONSTANT(Presse 3s)
(Press 3s)
(Presse 3s)
Mode button
Selects the desired operating mode. Each time you
press the button, a mode is selected in a sequence
that goes from AUTO, COOL, DRY, FAN and HEAT
(cooling only models excluded). The mode light
illuminates and indicates the selected mode.
Up ( ) and Down ( ) buttons
Used to adjust (increasing/decreasing) temperature
settings in 1°C/1°F(or 2°F) increments in a range of
17°C/62°F to 30°C/86°F or the TIMER setting in a range
of 0 ~ 24hrs.
NOTICE
The control is capable of displaying temperature in
degrees Fahrenheit or degrees Celsius. To convert
from one to the other, press and hold the Up and
Down buttonsat the same time for 3 seconds.
Connect Button (Smart models only)
Also used to initiate the wireless connection mode.
To initiate the wireless connection mode, power on
the air conditioner thenpress the SWING button
for 3 seconds. The LED DISPLAY will show ‘AP’ to
indicate the unit isin wireless connection mode.
Refer to the app connection instructions to nish
the connection process.
If the connection is successful, the unit will exit
wireless connection mode and illuminate the
wireless LED. If the connection fails, the unit will
exit wireless connection mode automatically after 8
minutes and the wireless LED does not illuminate.
Note: The wireless connection process must be
completed within 8 minutes after powering the air
conditioner on.
User Manual Page 9

Operating
Instructions
Operating Instructions
COOL operation
• Press the“MODE” button until the“COOL”
indicator light comes on.
• Press the ADJUST buttons Up () or
Down ( )to select your desiredroom
temperature. The temperature can be set
withina range of 17°C~30°C/62°F~86°F.
• Press the“FAN SPEED”button to choose the fan
speed.
HEAT operation
(available on HEAT models only)
• Press the “MODE” button until the “ ”
indicator light comes on.
• Press the ADJUSTbuttons Up () or
Down ( ) to select your desired room
temperature. The temperature can be set
within a range of 17°C~30°C/62°F~86°F.
• Press the “FAN SPEED” button to choose the fan
speed. For some models, the fan speed cannot
be adjusted while in HEAT mode.
DRY operation
• Press the “MODE” button until the “DRY”
indicator light comes on.
• While in this mode, you cannot select a fan
speed or adjust the temperature. The fan
motor operates at LOW speed.
• Keep windows and doors closed for the best
ect.
• Do not connect the duct to a window.
AUTO operation
• When you set the air conditioner to AUTO mode,
it will automatically select cooling, heating
(cooling only models excluded), or fan only
operation depending on what temperature you
have selected and the current room temperature.
• The air conditioner will control room
temperature automatically according to the
temperature point set by you.
• Under AUTO mode, you cannot select the fan
speed.
• Press the“FAN SPEED”button to choose the fan
speed. The temperature cannot be adjusted.
• Do not connect the duct to a window.
TIMER operation
• When the unit is on, pressing the Timer button
stop program. The TIMER
OFF indicator light illuminates. Press the Up ()
or Down ()button to select the desired time.
Press the TIMERbutton again within 5 seconds.
The Auto-on start program is initiated and the
TIMER ON indicator light illuminates. Press the
Up () or Down () button to select the
desired Auto-on start time.
, press the Timer button to
initiate the Auto-on start program. Pressing it
ve seconds will initiate the Auto-
stop program.
• Press or hold the Up () or Down ( )
button to change the Auto time by 0.5 hour
increments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control will
count down the time remaining until start.
• The system will automatically revert back to
display the previous temperature setting if there
is no operation within 5 seconds.
• Turning the unit ON or OFF atany time or
adjusting the timer setting to 0.0 willcancel the
Auto Start/Stop timer program.
• Should a malfunction occur, the Auto Start/Stop
timed program will also be cancelled.
SLEEP operation
Pressing this button will increase (during cooling
operation) or decrease (during heating operation,
applicable models) 1°C/1°F after 30 minutes.
The temperature will again increase (cooling) or
decrease (heating) by another 1°C/1°F after an
additional 30 minutes. This new temperature will
be maintained for 7 hours before returning to the
originally selected temperature. This ends the
Sleep mode and the unit will continue to operate
as originally programmed.
NOTICE
This feature is unavailabe in FAN orDRY mode.
FAN operation
• Press the“MODE” button until the ”FAN“
indicator light comes on.
NOTICE
When one of the above malfunctions
the unit and check for
any obstructions. Restart the Unit. If the
the unit
and unplug the power cord. Contact the
manufacturer or its service agents or a
ed person for service.
Page 10 User Manual

Other Features
FOLLOW ME/TEMP SENSING feature
This feature can be activated from the remote control ONLY. The remote control serves as a remote
thermostat allowing for the precise temperature control at its location. To activate the Follow Me/Temp
Sensing feature, point the remote control towards the unit and press the Follow Me/Temp Sensing
button. The remote control will send this signal to the air conditioner until press the Follow Me/Temp
Sensing button again. If the unit does not receive the Follow Me/Temp Sensing signal during any 7
minutes interval, the unit will exit the Follow Me/Temp Sensing mode.
NOTE: This feature is unavailabe under FAN or DRY mode.
AUTO-RESTART
If the unit shuts o unexpectedly due to a power outage, it will restart with the previously set function
automatically when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it cannot be restarted until 3 minutes time has elapsed. This is to protect the
unit. Operation will automatically resume after 3 minutes.
AIRFLOW DIRECTION ADJUSTMENT
The louver can be adjusted automatically. Adjust the airow direction automatically.
• When the Power is ON, the louver opens fully.
• Press the SWING button on the panel or remote controller to initiate the Auto Swing feature. The
louver will swing up and down automatically.
• Please do not adjust the louver manually.
WATER DRAINAGE
• During dehumidifying modes, remove the upper drain plug
from the back of the unit and install the drain connector (5/8”
universal female mender) with 3/4” hose (locally purchased).
For models without drain connector, just attach the drain hose
to the hole. Place the open end of the hose directly over the
drain area in your basement oor.
Operating
Instructions
Remove
the upper
drain plug
¥
Continuous
drain hose
User Manual Page 11

•During heating mode, remove the lowerdrain plug from the
backof the unit and install the drain connector (5/8” universal
female mender) with 3/4” hose (locallypurchased). Formodels
without drain connector, just attach the drainhose tothe
hole. Place the open end of the hose adaptor directlyoverthe
oor.
Operating
Instructions
•When the water level of the bottom tray reaches a
predetermined level, the unit beeps8 times. The digital
display shows “P1.” At this time the air conditioning/
cation process will immediately stop. However, the
fan motor will continue to operate (this is normal). Carefully
move the unit to a drain location, remove the bottom drain
plug and let the water drain away. Reinstall the bottom drain
plug and restart the machine untilthe “P1” symboldisappears.
If the error repeats, call for service.
NOTICE
rmly to prevent
leakage before using the unit.
NOTICE
Make sure the hose is secure so there are no leaks. Direct the hose
toward the drain, making sure that there are no kinks that will
ow. Place the end of the hose into the drain and
make sure the end of the hose is directed downward to let the
ow smoothly. (See Figs with ).
Installation not recommended. (See Figs with X). When the
continuous drain hose is not used, ensure that the corresponding
rmly to prevent leakage.
Drain hose
adaptor
Continuous
drain hose
Remove the
lower drain
plug
Units with
Pump Only
X
Drain hose
adaptor
Press the power
cord buckle into
the rear cover.
Drain
hose
adaptor
Delivery lift <1.8m
Units with Pump Only
Page 12 User Manual

INSTALLATION INSTRUCTIONS
Installation
Instructions
Choosing the Right Location
Recommended Installation
50 cm
19.7 inch
50 cm
19.7 inch
Your installation location should meet the following
requirements:
• Make sure that you install your unit on an even
surface to minimize noise and vibration.
• The unit must be installed near a grounded plug, and
the Collection Tray Drain (found on the back of the
unit) must be accessible.
•
the nearest wall to ensure proper air conditioning.
• DO NOT cover the Intakes, Outlets or Remote Signal
Receptor of the unit, as this could cause damage to
the unit.
NOTICE About Fluorinated Gasses
c
information on the type of gas and the amount, please refer to the relevant label on the unit itself.
ed technician.
• Product recycling must be done according to local regulations.
erent.
50cm
19.7inch
The unit should be located at least 50 cm (19.7”)from
NOTICE
User Manual Page 13

noitpircseDtraP
Unit adaptor
Air exhaust passage
Window Sliders
Exhaust hose
Bolt
Foam seal A (adhesive)
Foam seal B (adhesive)
Foam seal C (Non-adhesive)
Security bracket and 2 screws
Drain hose
Drain hose adaptor
(For heat pump mode only)
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
1 set
1 set
Quantity
Remote controller and battery
(For remote control models only)
1 pc
Power Cord Buckle
Accessories
ts windows 19.4''-62.2''(49.3-158.1cm) .
Installation
Instructions
•
•
•
•
Tools Needed
Medium Phillips screwdriver
Tape measure or ruler
Knife or scissors
Saw (optional, to shorten window adaptor for narrow windows).
3 pc
2 pc
4 pc
Page 14 User Manual

Window Installation Kit
Step One: Preparing the exhaust hose
assembly
Press the exhaust hose into the Air exhaust
passanger and unit adaptor, clamp automatically
by elastic buckles of the adaptors.
Step Two: Install the exhaust hose
assembly to the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the
unit with the hook of the adaptor aligned with
the hole seat of the air outlet and slide down
the Exhaust hose assembly along the direction
indicated by the arrow for installation.
Step Three: Preparing the adjustable
window slider
1. Choose the window sliders according to
the size of your window. Sometimes, sliders
need to be cut short to meet the window
size, please take extra care to cut it properly.
2. Use bolts to fasten the window sliders once
they are adjusted to the proper length.
Hook Hole Seat
Lower
groove
Adaptor Make sure the adaptor
is inserted into the
lower groove of the
air outlet.
Hung Window Sliding Window
Windows Type
Window
slider A
Window
slider A
1+2：
Bolt
1+2+3：
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window
Sliders
After assembly
Before assembly
Exhaust hose
assembly
Exhaust hose
Unit adaptor Air exhaust
passage
Installation
Instructions
User Manual Page 15

Installation
Instructions
Type 1: Hung window installation
1. Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive foam seal C strip to match the width of
the window. Insert the seal between the glass and the window
frame to prevent air and insects from getting into the room.
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the window slider adaptor into the hole of the window
slider.
NOTICE
Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of
the following two installation methods.
Foam seal B
(Adhesive type-shorter)
Foam
seal A
(Adhesive
type)
Window
slider A
Window
slider B
(if required)
Foam seal C
(Non-adhesive type)
Security Bracket
2 Screws
User ManualPage 16

Type 2: Sliding window installation
1. Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive foam seal C strip to match the window
height. Insert the foam seal between the glass and the window
frame to prevent air and insects from getting into the room.
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the window slider adaptor into the hole of the window
slider.
Window slider A
Window slider B
(if required)
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
Foam seal C
(Non-adhesive type)
2 Screws
Security
Bracket
NOTICE
To ensure proper functioning, DO NOT overextend orbend the hose. Make sure that there is
no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order for the
exhaust system to work properly. All illustrations in this manual are for explanation purposes
only. Your air conditioner may be sl al shape shall prevail.
Installation
Instructions
User Manual Page 17

Air Filter Cleaning
Store the Unit When Not in Use
Safety Precautions
CARE AND CLEANING
Care and Cleaning
• Always unplug the unit before cleaning or servicing.
ammable liquids or chemicals to clean the unit.
• DO NOT wash the unit under running water. Doing so causes electrical danger.
• DO NOT operate the machine if the power supply was damaged during cleaning. A damaged
power cord must be replaced with a new cord from the manufacturer.
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.
• Drain the unit’s water collection tray according to the instructions in the following section.
• Run the unit on FAN mode for 12 hours in a warm room to dry it and prevent mold.
the unit and unplug it.
• Clean the a ter according to the instructions in the previous section. Reinstall the clean, dry
ter before storing.
• Remove the batteries from the remote control.
Unit Cleaning
NOTICE
Be sure to store the unit in a cool, dark place. Exposure to direct sunlight or extreme heat can
shorten the lifespan of the unit.
Maintenance Tips
• Be sure t ter every 2 weeks
for optimal performance.
• The water collection tray should be drained
immediately after P1 error occurs, and before
storage to prevent mold.
• In households with animals, you will have to
periodically wipe down the grill to prevent
ow due to animal hair.
CAUTION
lter because
dirt and lint will clog it and reduce performance.
Integrated
design air filter
(take out)
lower filter B
(take out)
(Press the grill
down slightly
and pull the
lower filter A out
at the same time)
lower filter A
Page 18 User Manual

TROUBLESHOOTING TIPS
Troubleshooting
Tips
Before calling service, review this list. It may save you time and expense. This list includes common
occurences that are not the result of defective workmanship or materials of this appliances.
NOTICE
Do not add extension to the exhaust hose(s)!
Problem Solution
Unit does not turn
on when pressing
ON/OFF button
the
unit, drain the water from the water collection tray, and restart the unit.
If room temperature is lower than the set temperature in COOL mode, reset
the temperature.
Unit does not cool
well
the unit and clean the
lter according to the instructions.
the unit, disconnect the
hose, check for blockage and reconnect the hose.
Temperature setting is too high; decrease the set temperature.
Make sure all windows and doors are closed.
The room area could be too large; doublecheck the cooling area.
Check the room for possible heat sources and remove them if possible.
The unit is noisy and/
or vibrates too much
at, level surface.
the unit and clean the
lter according to the instructions.
The unit makes a
gurgling sound
ow inside the unit and is normal.
Unit will not connect
to Wireless or App
does not work (some
modesl)
For additional support and troubleshooting tips, follow the link in the QR code:
User Manual Page 19

Remote Control Specifications
Function Buttons
REMOTE CONTROL INSTRUCTIONS
Before you begin using your new air conditioner, make sure to familiarize yourself with its remote
control. The following is a brief introduction to the remote control itself. For instructions on how to
operate your air conditioner, refer to the Operating Instructions section of this manual.
RG57H4(B)/BGEFledoM
Rated voltage 3.0V (Dry batteries R03/LR03x2)
Signal receiving range 8 m (approx. 26 ft.)
Environment -5°C ~ 60°C (23°F ~ 140°F)
FOLLOW ME
Temperature sensing and room
temperature display button.
SHORT CUT
Sets and activates your favorite pre-settings.
Turns the unit on or off.
TEMP
Increases temperature in 1°C (1°F) increments.
Max. temperature is 30°C (86°F).
TIMER ON
Sets timer to turn unit on (see How to Use
Basic Functions for instructions)
TIMER OFF
Sets timer to turn unit off (see How to Use
Basic Functions for instructions)
LED
Turns indoor unit's LED display on and off.
If you are sensitive to light while sleeping,
you can press the LED button to turn off
the LED display on the unit. Press the
button again to turn it back on.
SWING
Starts and stops
louver movement.
SLEEP
Saves energy during
sleeping hours.
TEMP
Decreases temperature in 1°C (1°F) increments.
Max. temperature is 17°C (62°F).
NOTE: Pressing and holding and buttons
together for 3 seconds will alternate the
temperature display between the °C & °F scale.
Selects fan speeds in the
following order:
AUTO LOW MED HIGH
MODE
Scrolls through operation modes
as follows:
AUTO COOL DRY HEAT FAN
NOTE:
Please do not select HEAT mode
if the machine you purchased is
cool-only type. Heat mode is not
supported by cool-only models.
ON/OFF
FAN SPEED
Remote control and
App instructions
PRESET
MARCHE/
ON
ARRÊTER/
OFF
To prevent damage,remove the batteries when not
being used for a long time.
ote
N
Page 20 User Manual
