INSTALLATION MANUAL
Digital Inverter Air Conditioner
“1 : 1 Model” Connection Interface
Use for Indoor Unit Only
MODEL : TCB-PCNT30TLE2
[For Installation Professionals]
• Before installation work, please read this manual thoroughly and install the products correctly.
Precaution for safety
WARNING
• Ask an authorized dealer or qualified installation professional to install/maintain the air conditioner.
Inappropriate installation may result in water leakage, electric shock or fire.
• Perform installation work surely based on this Installation Manual.
Incomplete installation causes an electric shock or a fire.
• Ask an authorized dealer or qualified installation professional to reinstall 1 : 1 Model Connection
Interface.
Incomplete installation causes an electric shock or a fire.
• For an electric work, this Installation Manual shall be referred and exclusive circuit shall be
necessarily used. The used voltage shall be also match with the rated voltage of the product.
If there is capacity shortage of electric circuit or installation work is poor, an electric shock or a fire may be
caused.
CAUTION
• Using the specified wires, surely connect wires so that external force of wire is not applied to connecting
part of the terminals; otherwise disconnection, heating or fire will generate.
• For wiring work, use wires with correct current capacity; otherwise leakage, heating or fire will generate.
• Do not apply an excessive force on the board body, otherwise bending, separation, or disconnection gener-
ates resulted in heating or fire.
• After installation work, execute a test run to confirm there is no trouble.
And also ask the customers to keep this Manual by themselves.


Components
* When you will purchase the 4-way cassette type (RAV-SM∗∗4UT∗) or you will also purchase the compact 4-
way cassette type (RAV-SM∗∗∗MUT∗), be sure to purchase “TCB-PX30MUE” sold separately, together with it.
For installation, 1:1 Model Connection Interface board box of “TCB-PX30MUE” is necessary.
Name Q’ty Application
P.C. board 1
11 : 1 model connection interface board
Installation Manual 1
5This manual
Spacer (B) 1
7For fixing “1 : 1 Model” Connection Interface board (Required according to shape of indoor unit)
Screws to fix terminal block 2
8For fixing relay terminal block (M4 × 14L)
Bandling band 3
9Used to process wires
Terminal nameplate 1
10
To be adhered near the relay terminal block
U3, U4 terminal block 1
22P terminal block for relay (U3, U4)
Relay wire (A) 1
3For connection of “1 : 1 Model” Connection Interface board with U3, U4 relay terminal block
(Blue connector)
Relay wire (B) 1
4For connection of “1 : 1 Model” Connection Interface board with indoor control board
(Red connector)
Spacer (A) 3
6For fixing “1 : 1 Model” Connection Interface board
(Used when installing P.C. board on sheet metal of the electric parts box of indoor unit)

2
Before Installation
This interface corresponds to the digital inverter air conditioner.
Do not use or connect this interface for other type of air conditioner than the above because the indoor P.C.
boards of other air conditioners differ from one of the digital inverter air conditioner.
Wiring Connection
1. Wiring connection
Remarks
Point 1) When controlling the digital inverter air conditioner collectively, “1 : 1 Model” Connection Interface
(This option) is required.
Point 2) In group control or twin, triple, double twin system, this interface must be connected to Header unit of
the indoor unit. (Connection to follower unit is unavailable.)
Point 3) Connect the central control devices to wires of the central control system.
Point 4) When controlling the digital inverter air conditioner collectively, turn on Bit 1 of SW01 in the line with
the least line address No. (OFF has been set up at shipment from the factory.)
For the digital inverter air conditioner, re-setup of the address from the wired remote con-
troller is required after automatic addressing.
1
U1
U3
U2
U4
Central control
device
U1
U3
U2
U4
Central control
device
2 3
123
A B
U3 U4
Remarks
point 3
Remarks
point 1
Remarks
point 2
Central control device: Max. 10 units
Refrigerant
line 1
Outdoor
unit
Indoor unit
“1 : 1 Model”
Connection Interface
(option)
Remote
controller
1 2 3
1 2 3
A B
U3 U4
Remarks
point 2
Refrigerant
line 2
Remote
controller
1 2 3
1 2 3
A B
Refrigerant
line 3
Remote controller wiring
123
123
A B
Refrigerant
line 4
1 2 3
A B
U3 U4
Remote
controller
Inter-unit wire between indoor
and outdoor units (220-240V~, serial,earth)
Wiring of central control system
Group control (Max. 8 units)
* Wiring for No. 1 and 2 only
Header Header Follower Follower
Twin system
Max. 64 indoor units of all the refrigerant lines can be connected.
[When mixed with VRF type (Link wiring), No. of indoor units of VRF type is also included.]
∗However, group, twin follower units of the digital inverter air conditioner are not included in No. of units.
VRF : Variable Refrigerant Flow

3

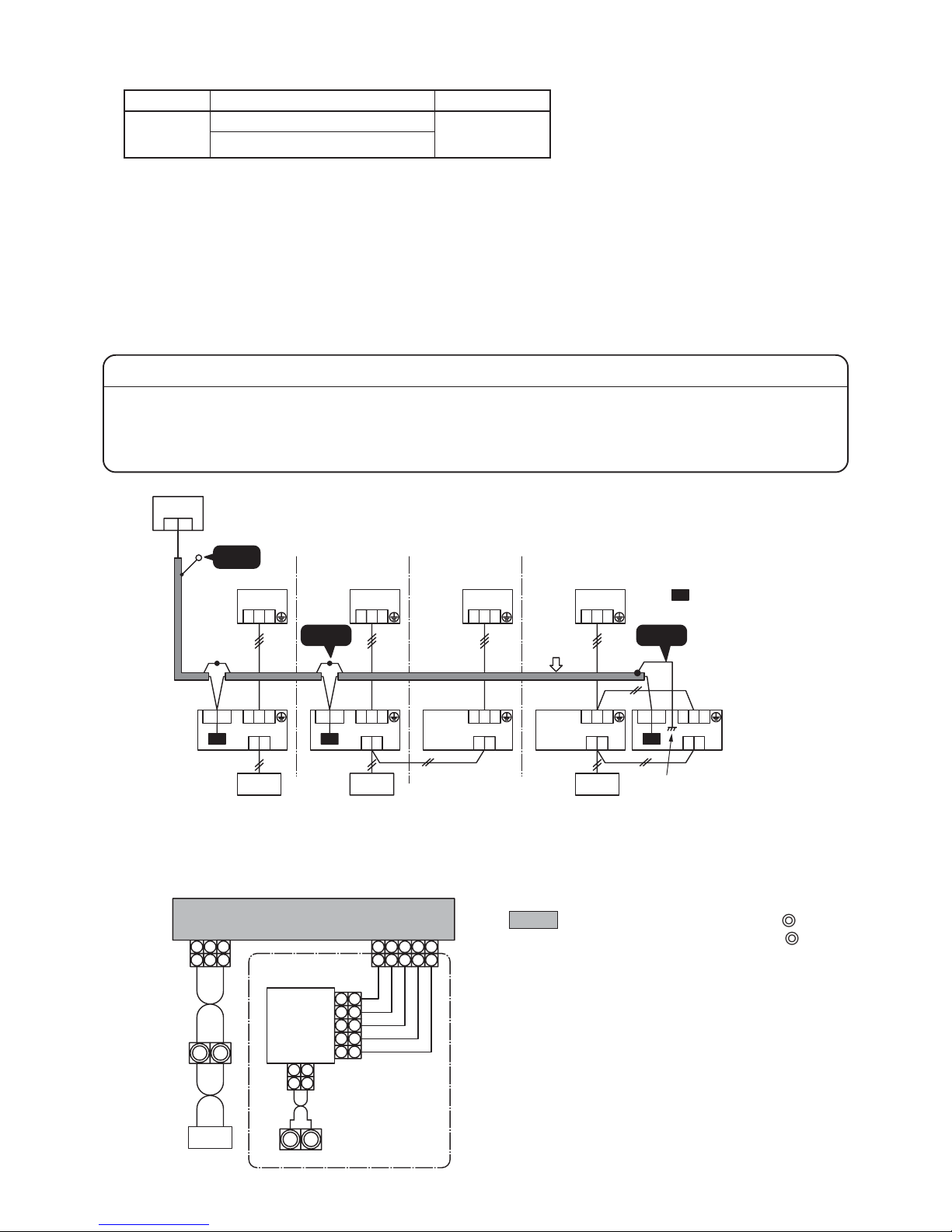

2. Wire Specifications
• Wire is 2-core and non-polarity.
• The length is same to wire length of the central control system.
In case of system mixed with VRF type, the length includes all length of control wiring between indoor unit and
outdoor units at VRFside.
• To prevent noise defect, use 2-core shield wire.
• Connect shield wires with closed-terminal connection and apply open process (insulation process) to the last
termination. For grounding (earth), perform grounding with one point at indoor unit side. (During central control
for digital inverter air conditioner only)
Remarks
Point 1) Closed terminal connection of shield wire (Connection of connecting parts of each indoor unit)
Point 2) Apply open process (insulation process) to the last termination.
Point 3) For grounding (earth), perform grounding with one point at indoor unit side.
No. of wires
2
Size
Up to 1000m, braided wire 1.25mm2
Up to 2000m, braided wire 2.0mm2
Specifications
2-core shield wire
U1 U2
Central control
device
1 2 3
1 2 3
A B
U3 U4
Remarks
point 2
Remarks
point 1
Remarks
point 3
Outdoor unit Outdoor unit Outdoor unit Outdoor unit
Indoor
unit
Remote
controller
Remote
controller
1 2 3
1 2 3
A B
U3 U4
Remote
controller
1 2 3
1 2 3
A B
1 2 3
1 2 3
A B
Remote
controller
Wiring of central
control system
1 2 3
A B
U3 U4
Header Header
: “1 : 1 Model”
Connection Interface
(Option)
Follower Follower
Earth
(Group control) (Twin system)
1 2
A B
U3 U4
3
123
1 2
1 1
2 2
3 3
4 4
5 5
3
1 2 3
4
4
5
5
Black Black
1 2
1 2
CN050 (White)CN041 (Blue)
CN40 (Blue)
CN51 (Red)
Terminal block to central control device
Terminal block
for connection
of remote
controller
“1 : 1 Model”
Connection
Interface
board
Indoor control P.C. board
3. Wiring Diagram with Indoor Control P.C. Board
For details, refer to installation procedure for each model.
• Parts encircled with chain line are accessories
attached to this product.
•???? indicates control P.C. board, and indi-
cates terminal block (Characters inside of mark
indicate terminal number.)
• There is no polarity for wire connection to terminal
blocks U3 and U4.
(NOTE)
Do not apply voltage to terminals U3 and U4.
If applying voltage to U3 or U4 terminal by mistake,
fusing occurs to protect terminals.
After checking wires, exchange connection of con-
necting connector on “1 : 1 Model” Connection Inter-
face board from CN40 (Blue) to the spare CN44
(Brown).

4
Setup of P.C. Board Switch
When the units controlled collectively are all digital inverter air conditioners, it is required to set up the terminator
resistor. (Collective control for units without VRF type air conditioner)
• Using SW01, set up the terminator resistor.
• Set up the terminator resistor to only interface connected to the indoor unit in the line with the least line
address No.
U1
U3
U2
U4
Central control
device
1
U1
U3
U2
U4
Central control
device
2 3
1 2 3
A B
U3 U4
Central control device: Max. 10 units
Refrigerant
line 1
Outdoor
unit
Indoor unit
“1 : 1 Model”
Connection Interface
(option)
Remote
controller
1 2 3
1 2 3
A B
U3 U4
Refrigerant
line 2
Remote
controller
1 2 3
1 2 3
A B
Refrigerant
line 3
Remote
controller
wiring
1 2 3
1 2 3
A B
Refrigerant
line 4
1 2 3
A B
U3 U4
Remote
controller
Wiring between indoor
and outdoor units
Wiring of central control system
Group control (Max. 8 units)
* Wiring for No. 1 and 2 only
Header Header Follower Follower
Twin system
Line address
SW01 bit 1
SW01 bit 2
Remarks Turn on
SW01 bit 1.
1
ON
OFF
As status at
shipment
from factory
2
OFF
OFF
Bit 1
OFF
ON
OFF
ON
Bit 2
OFF
OFF
ON
ON
None
100Ω
75Ω
43Ω
Terminator
resistor Remarks
SW01
Mixed with VRF at shipment from factory (Link wiring)
Central control by digital inverter air conditioners
Spare
Spare
As status at
shipment
from factory
4
OFF
OFF
(OFF when shipped from factory)
(OFF when shipped from factory)
(Reference) Contents of switch setup

5
6 Spacer (A)
1:1 Model
Connection Interface board box
(Attached to the TCBPX30MUE)
1 P.C. board
Bell mouth
Cut-off part
Bell mouth
Cut-off part
Fixing plate
for terminal block
Upside
Direction of
nameplate
10 Terminal
nameplate
8 Screw to fix
terminal block
2 Terminal block
(U3/U4)
Fixing plate
for terminal block
Upside
Direction of
nameplate
10 Terminal
nameplate
8 Screw to fix
terminal block
2 Terminal block
(U3/U4)
No.
1
2
3
Cut off a part of the bell mouth, which is enclosed with dotted
line shown in the right figure.
Mount terminal block (U3, U4)
2
at the fixing plate position
for terminal block as shown in the right figure of the electric
parts box, with terminal block fixing screws (M4 × 14 )
8
.
Stick the attached terminal nameplate
10
at near the terminal
block along direction shown in the right figure.
Details

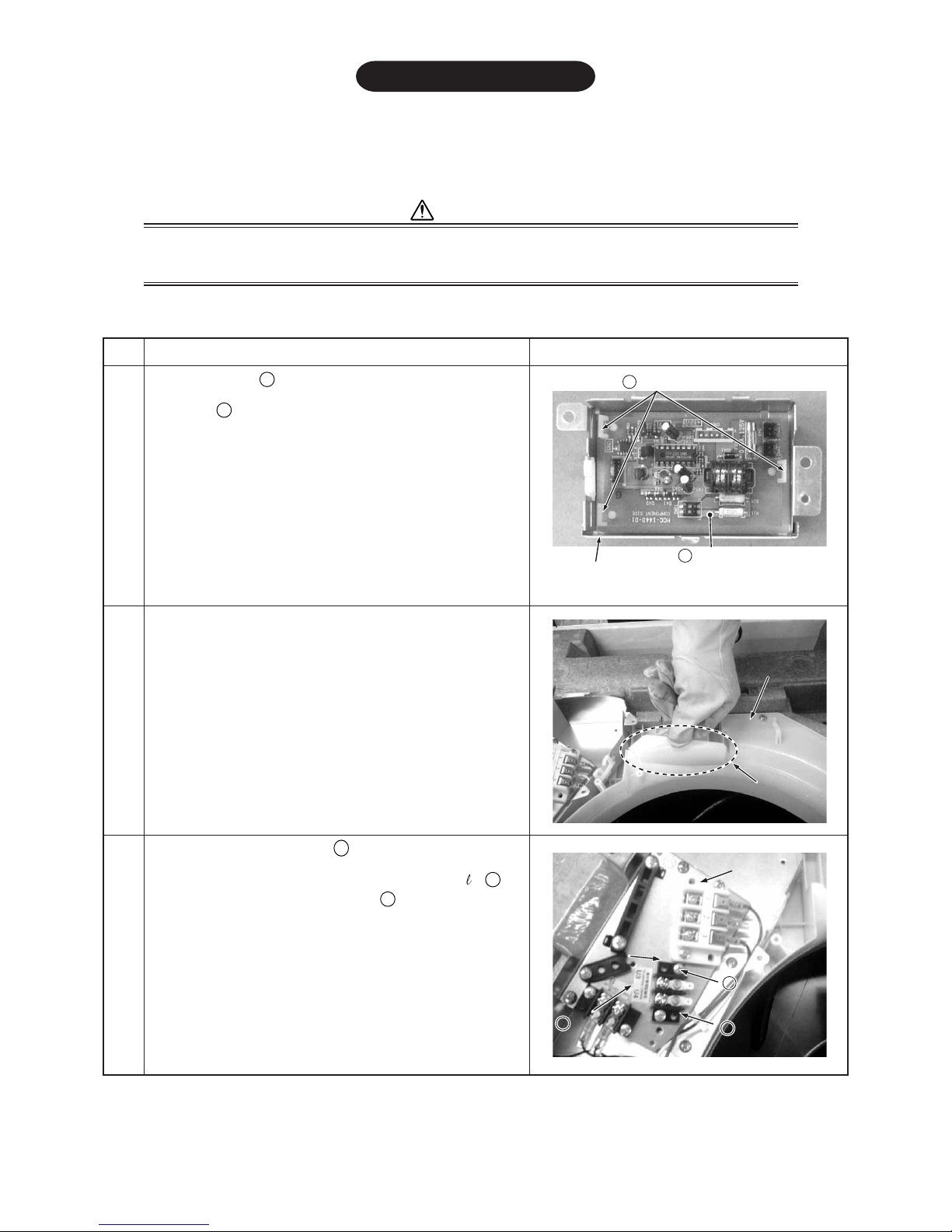

Installation Procedure
• For installation of “1 : 1 Model” Connection Interface board and removal of relay wire, be sure to wait for a while
(approx. 1 minute) after turning off the power supplies of the air conditioner and the collective control devices.
If not doing so, “1 : 1 Model” Connection Interface board may be damaged.


4-Way Cassette Type
CAUTION
In case to install 1:1 Model Connection Interface, be sure to purchase also “TCB-PX30MUE”
sold separately. For installation, 1:1 Model Connection Interface board box of “TCB-PX30MUE”
is necessary.
RAV-SM ∗∗∗∗
∗∗∗∗
∗∗ 4UT∗∗
∗∗
∗

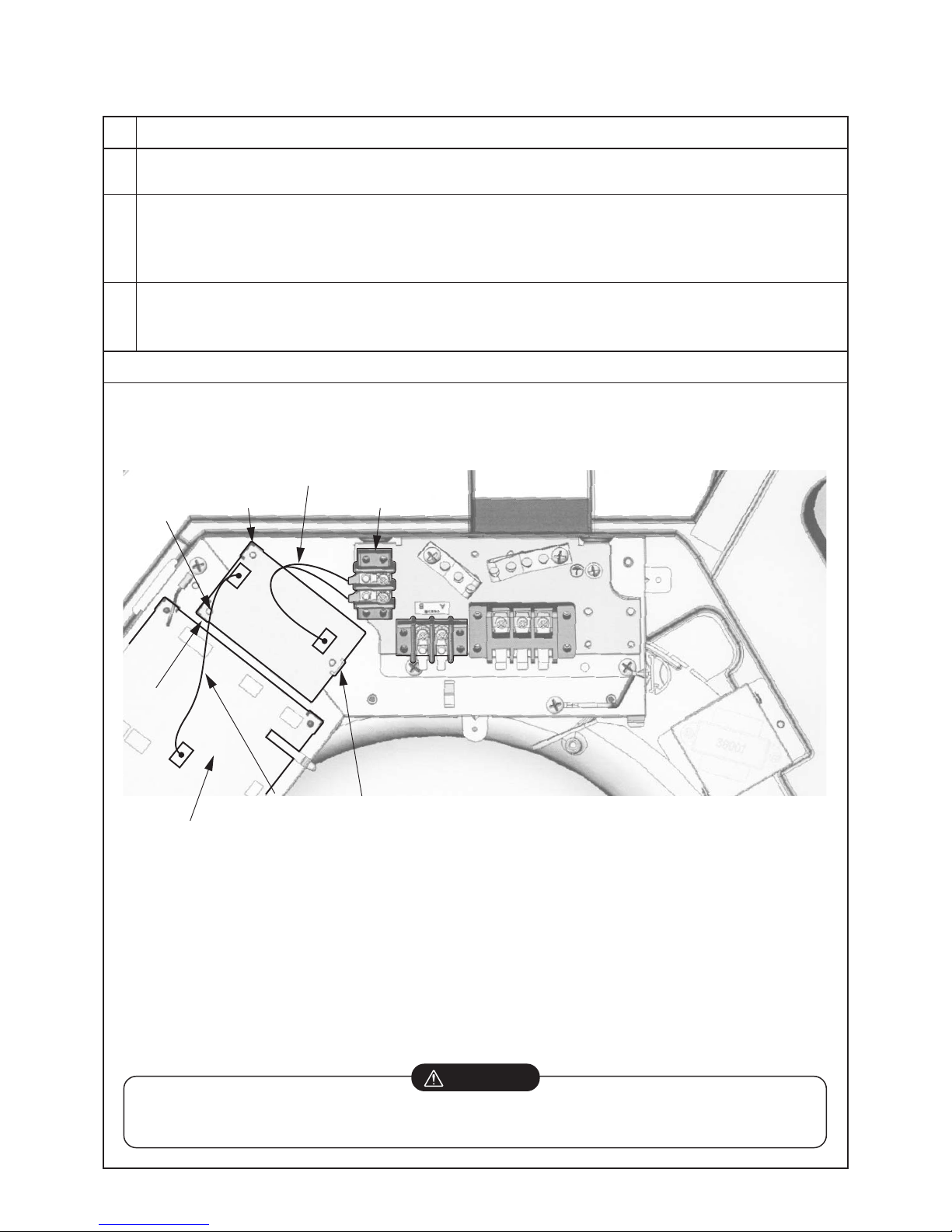

Procedure
Attach spacer (A)
6
to 1:1Model Connection Interface board
box of the “TCB-PX30MUE” sold separately, and then install
P.C. board
1
.

6
No
4
Procedure
Using a screw (M4 × 14) of “TCB-PX30MUE” sold
separately, install 1:1 Model Connection Interface
board box which was prepared in item No.1 at the
position where the bell-mouth was cut off.
Indoor control P.C. board
CN50 (White)
2 Terminal block
(U3, U4)
4 Relay wire (B)
3 Relay wire (A) CN51 (Red) CN40 (Blue)
1 P.C. board
Fixing screws (M4
Fixing screws (M4 ×
8 )
8 )
(Attached to the TCB-PX30MUE)
(Attached to the TCB-PX30MUE)
Connection Interface board cover
Connection Interface board cover
(Attached to the TCB-PX30MUE)
(Attached to the TCB-PX30MUE)
Fixing screws (M4 × 8 )
(Attached to the TCB-PX30MUE)
Connection Interface board cover
(Attached to the TCB-PX30MUE)
Screw (M4
Screw (M4 ×
14)
14)
(Attached to the TCB-PX30MUE)
(Attached to the TCB-PX30MUE)
Screw (M4 ×14)
(Attached to the TCB-PX30MUE)
Details
∗, After wiring connection of the relay wires (A)
and (B), fix wirings along the near wirings with banding
band so that there is no catching of wires, and etc.
Install the Connection Interface board cover of the
“TCB-PX30MUE” sold separately with the fixing
screws (M4 × 8).
6
5Mount the relay wire (A) to Faston terminal on the
relay terminal (U3, U4)
2
and then connect the
connector to CN40 (Blue) of the P.C. board
1
.
∗For wiring connection of the relay wire (A) ,
there is no plarity.
Connect connector of the relay wire (B) from
CN50 (White) on the indoor P.C. board to CN51
(Red) on the P.C. board
1
.

7


4-way Cassette type
(RAV-SM∗∗∗∗
∗∗∗∗
∗∗3UT-E, RAV-SM∗∗∗∗∗∗
∗∗∗∗∗∗
∗∗∗UT-K, RAV-SM∗∗∗∗∗∗
∗∗∗∗∗∗
∗∗∗UT-4C)
No.
1
2
3
Procedure
Using board installing spacer (A), install “1 : 1 Model” Connection Interface board to the position of electric parts box of
the indoor unit. (See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the relay terminal block.
Connect the relay wire (A) from U3, U4 terminal block to CN40 (Blue) of “1 : 1 Model” Connection Interface board.
Connect the relay wire (B) from CN50 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board.
Details
* Relay wire (A)
Connect U3, U4 terminal block with “1 : 1 Model” Connection Interface CN40 (Blue). There is no polarity for wire
connection.
• Relay wire (B)
Connect CN50 (White) on indoor control P.C. board with CN51 (Red) on “1 : 1 Model” Connection Interface board.
• When installing “1 : 1 Model” Connection Interface board to electric parts box, insert three board installing spacers (A)
into holes of P.C. board.
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in. In this
time, be sure not to bind the relay wires (A) and (B) together with the power supply lines such as power cable,
earth wire, etc.; otherwise a trouble may be caused.
Relay wire (B)
CN51
(Red)
CN40
(Blue)
CN50
(White)
Spacer (A)
Spacer (A)
Spacer (A)
Relay wire (A)
Indoor P.C. board
U3, U4 terminal block
1.1 model
connection
interface
P.C. board

8
No.
1
2
3
Details


Compact 4-way Cassette type
RAV-SM ∗∗∗∗∗∗
∗∗∗∗∗∗
∗∗∗ MUT∗∗
∗∗
∗
CAUTION
In case to install 1:1 Model Connection Interface, be sure to purchase also “TCB-PX30MUE”
sold separately. For installation, 1:1 Model Connection Interface board box of “TCB-PX30MUE”
is necessary.
Procedure
6 Spacer (A)
1:1 Model
Connection Interface board box
(Attached to the TCBPX30MUE)
1 P.C. board
Cutting off
portion
(Shaded
area)
Screw (M4 × 14)
(Attached to the TCB-PX30MUE)
After cutting off the slit of bell
mouth on the unit, clear up the
surface of the slit that there is
no burr on the cutting edge.
Cut off a part of the bell mouth, which is enclosed with dotted
line shown in the right figure.
Using a screw (M4 × 14) of “TCB-PX30MUE” sold separately,
install 1:1 Model Connection Interface board box which was
prepared in item No.1 at the position where the bell-mouth
was cut off.
Attach spacer (A)
6
to 1:1Model Connection Interface board
box of the “TCB-PX30MUE” sold separately, and then install
P.C. board
1
.

9
No.
4
5
Details
Procedure
Mount the relay wire (A) to Faston terminal on the 4P
terminal block (U3, U4) and then connect the connector to
CN40 (Blue) of the P.C. board
1
.
*For wiring connection of the relay wire (A) there is no
plarity.
Connect connector of the relay wire (B) from CN50 (White)
on the indoor P.C. board to CN51 (Red) on the P.C. board
1
.
Remove the 2P terminal block for the communication wire of
the electric parts box on the unit, and then replace with the 4P
terminal block of the “TCB-PX30MUE” sold separately for the
communication wire.
1) Disconnect the lead wires on the 2P terminal block of the
electric parts box .
2) Replace the 2P connector with 4P connector on the
terminal block.
3) Connect the communication wire that are disconnected as
shown above steps 1), to the 4P terminal block.
4) Stick the terminal nameplate of the “TCB-PX30MUE” (sold
separately) at near the 4P terminal block along direction
shown in the right figure.
Using the fixing screws (M4 x 8), attach the Connection
Interface board cover of the “TCB-PX30MUE” sold separately.
6
CN41
(BLUE)
(A), (B) terminals (Connecting
for the Remote Controller)
(Attached to the
TCB-PX30MUE)
Terminal
nameplate
U
3
U
4
A
B
CN40
(BLUE)
CN51
CN51
(Red)
(Red)
CN51
(Red)
CN50
(WHITE)
U3
U4
3 Relay wire (A)4 Relay wire (B)
Fixing screws (M4 × 8 )
(Attached to the
TCB-PX30MUE)
Connection Interface board cover
(Attached to the TCB-PX30MUE)

10


Concealed Duct Standard type
(RAV-SM∗∗∗∗
∗∗∗∗
∗∗4BT-E, RAV-SM∗∗∗∗
∗∗∗∗
∗∗1BT-4C)
No.
1
2
3
Procedure
Using board installing spacer (A), install “1 : 1 Model” Connection Interface board to the position of electric parts box of
the indoor unit. (See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the relay terminal block.
Connect the relay wire (A) from U3, U4 terminal block to CN40 (Blue) of “1 : 1 Model” Connection Interface board.
Connect the relay wire (B) from CN50 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board.
Details
* Relay wire (A)
Connect U3, U4 terminal block with “1 : 1 Model” Connection Interface CN40 (Blue). There is no polarity for wire
connection.
• Relay wire (B)
Connect CN50 (White) on indoor control P.C. board with CN51 (Red) on “1 : 1 Model” Connection Interface board.
• When installing “1 : 1 Model” Connection Interface board to electric parts box, insert three board installing spacers (A)
into holes of P.C. board.
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in. In this
time, be sure not to bind the relay wires (A) and (B) together with the power supply lines such as power cable,
earth wire, etc.; otherwise a trouble may be caused.
Relay wire (A) Relay wire (B)
Indoor P.C. board
Spacer (A)
Spacer (A)
U3, U4
terminal block
CN51 (Red)
CN40 (Blue)
CN50 (White)

11



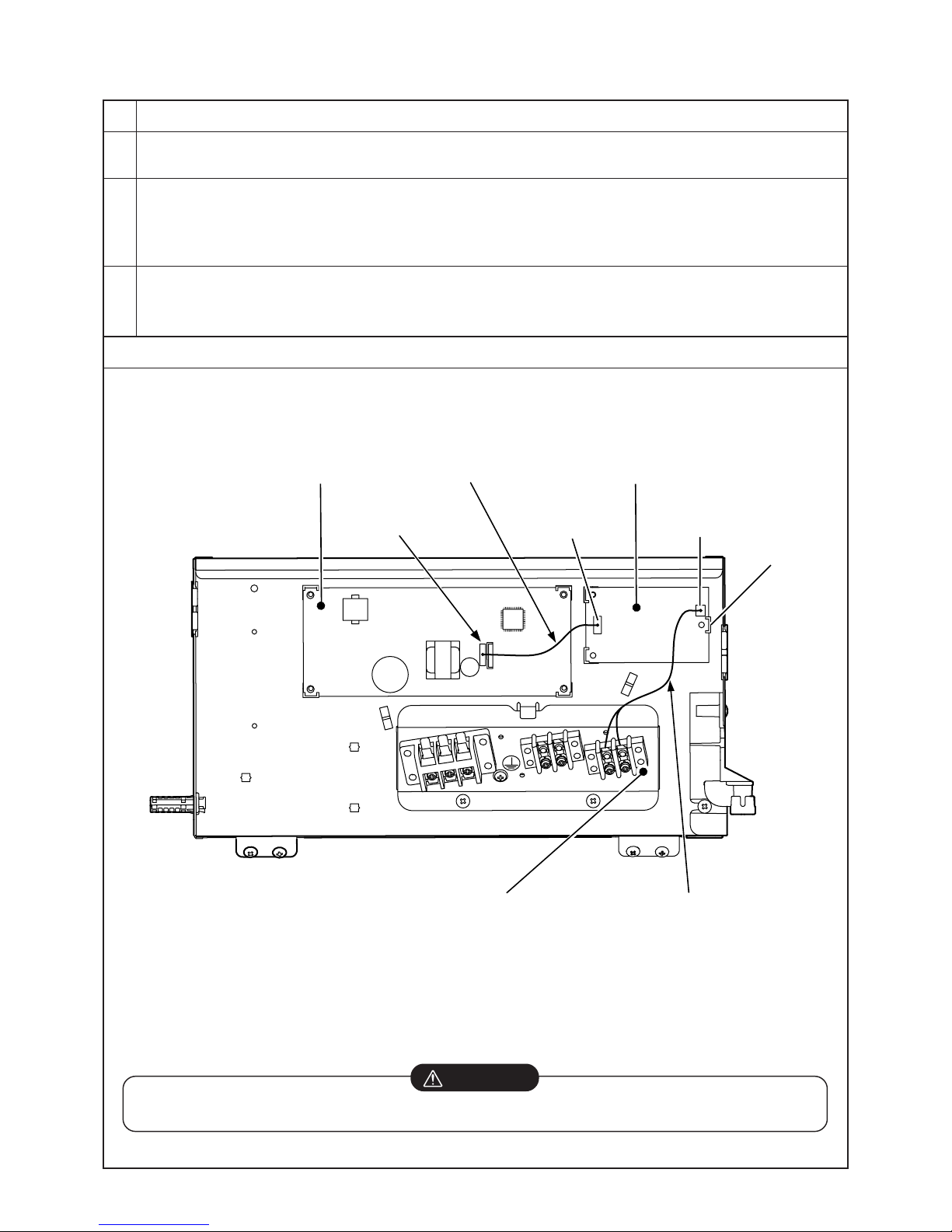

Concealed Duct type (RAV-SM∗∗∗∗
∗∗∗∗
∗∗6BT∗∗
∗∗
∗)
No.
1
2
3
4
5
Procedure
Take off screws cand dand then remove the terminal block assembly while sliding
Using board installing spacer (A) 3 pcs install “1 : 1 Model” Connection Interface board to the position of electric parts
box of the indoor unit.
(See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the relay terminal block.
Connect the relay wire (A) from U3, U4 relay terminal block to CN40 (Blue) of “1 : 1 Model” Connection Interface board.
Connect the relay wire (B) from CN050 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board.
Return terminal block assembly to the original position and then fix it with screws cand d.
Details
* Relay wire (A)
Connect U3, U4 terminal block with “1 : 1 Model” Connection Interface CN40 (Blue). There is no polarity for wire
connection.
• Relay wire (B)
Connect CN050 (White) on indoor control P.C. board with CN51 (Red) on “1 : 1 Model” Connection Interface board.
* When installing “1 : 1 Model” Connection Interface board to electric parts box of Concealed type air conditioner, insert
two board installing spacers (A) into holes of P.C. board (at upper side and lower right of P.C. board) and install one of
them to the electric parts box (at lower left of P.C. board) using the board installing spacer (B) of a type which pinches
the P.C. board.
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in. In this
time, be sure not to bind the relay wires (A) and (B) together with the power supply lines such as power cable,
earth wire, etc.; otherwise a trouble may be caused.
Terminal block
assembly
CN050
(White)
CN040
(Black)
Relay wire (B) Screw cSpacer (A) 3 pcs. Relay wire (A) U3, U4 terminal block
Indoor P.C. board Screw d

12


Slim Duct type (RAV-SM∗∗∗∗
∗∗∗∗
∗∗4SDT∗∗
∗∗
∗)
No.
1
2
3
Procedure
Using board installing spacer (A) 3 pcs install “1 : 1 Model” Connection Interface board to the position of electric parts
box of the indoor unit.
(See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the relay terminal block.
Connect the relay wire (A) from U3, U4 relay terminal block to CN40 (Blue) of “1 : 1 Model” Connection Interface board.
Connect the relay wire (B) from CN050 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board.
Details
* Relay wire (A)
Connect U3, U4 terminal block with “1 : 1 Model” Connection Interface CN40 (Blue). There is no polarity for wire
connection.
• Relay wire (B)
Connect CN050 (White) on indoor control P.C. board with CN51 (Red) on “1 : 1 Model” Connection Interface board.
* When installing “1 : 1 Model” Connection Interface board to electric parts box of Concealed type air conditioner, insert
two board installing spacers (A) into holes of P.C. board (at upper side and lower right of P.C. board) and install one of
them to the electric parts box (at lower left of P.C. board) using the board installing spacer (B) of a type which pinches
the P.C. board.
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in. In this
time, be sure not to bind the relay wires (A) and (B) together with the power supply lines such as power cable,
earth wire, etc.; otherwise a trouble may be caused.
Relay wire (A)
Relay wire (B)
Indoor P.C. board
U3, U4
terminal block
CN51 (Red)
CN40 (Blue)
CN050
(White)

13


Ceiling type (RAV-SM∗∗∗∗
∗∗∗∗
∗∗4CT∗∗
∗∗
∗, RAV-SM∗∗∗∗
∗∗∗∗
∗∗1CT-4C)
No.
1
2
3
Procedure
Using board installing spacer (A), install “1 : 1 Model” Connection Interface board to the position of electric parts box of
the indoor unit. (See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the relay terminal block.
Connect the relay wire (A) from U3, U4 terminal block to CN40 (Blue) of “1 : 1 Model” Connection Interface board.
Connect the relay wire (B) from CN50 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board.
Details
Indoor control P.C. board Relay wire (A)
Relay wire (B)
CN050 (White)
CN51
(Red)
CN40
(Blue)
U3, U4 terminal
block for connection
1:1 model connection interface board
Spacer (A)
• Relay wire (A)
Connect U3, U4 terminal block with “1 : 1 Model” Connection Interface CN40 (Blue). There is no polarity for wire
connection.
• Relay wire (B)
Connect CN50 (White) on indoor control P.C. board with CN51 (Red) on “1 : 1 Model” Connection Interface board.
• When installing “1 : 1 Model” Connection Interface board to electric parts box, insert three board installing spacers (A)
into holes of P.C. board.
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in. In this
time, be sure not to bind the relay wires (A) and (B) together with the power supply lines such as power cable,
earth wire, etc.; otherwise a trouble may be caused.

14


Concealed Duct Higth Static Pressure Type (RAV-SM∗∗∗∗∗∗
∗∗∗∗∗∗
∗∗∗4DTP∗∗
∗∗
∗)
No.
1
2
3
4
5
Procedure
Take off the screws A and B then remove the terminal block assembly.
Using board installing spacer (A), install “1 : 1 Model” Connection Interface board to the position of electric parts box
of the indoor unit. (See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the U3, U4 terminal block.
Connect the relay wire (A) from U3, U4 terminal block to CN40 (Blue) of “1 : 1 Model”
Connection Interface board. There is no polarity for wire connection.
Connect the relay wire (B) from CN50 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board. (See the figure below.)
Return terminal block assembly to the original position without pinching wires.
Confirm to hook the claw of terminal block assembly on the right side.
Then screw A and B.
Details
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in. In this
CN50(White)
Terminal block assembly
Relay wire (B)
Screw B
CN40(Blue)
Screw A
1:1 model connection interface board
Fixing claw for terminal
block assembly
CN51(Red)
Relay wire (A)
Spacer (A) (3pcs)
U3, U4 terminal block
time, be sure not to bind the relay wires (A) and (B) together with the power supply lines such as power cable,
earth wire, etc.; otherwise a trouble may be caused.

15


Ceiling type (RAV-SM∗∗∗∗
∗∗∗∗
∗∗7CT∗∗
∗∗
∗)
No.
1
2
3
Procedure
Using board installing spacer (A), install “1 : 1 Model” Connection Interface board to the position of electric parts box of
the indoor unit. (See the figure below.)
Using terminal block fixing screws, install U3, U4 terminal block to the position of electric parts box of the indoor unit.
(See the figure below.)
• When tightening the screws, be sure not to damage wires.
• Adhere the attached nameplate near the relay terminal block.
Connect the relay wire (A) from U3, U4 terminal block to CN40 (Blue) of “1 : 1 Model” Connection Interface board.
Connect the relay wire (B) from CN50 (White) on the indoor P.C. board to CN51 (Red) on “1 : 1 Model” Connection
Interface board.
Details
CAUTION
After connection of the relay wires (A) and (B), bind them with banding band so that wires are not caught in.
Indoor control P.C. board (4) Relay wire (B) 1:1 model connection interface board
U3,U4 terminal block for connection (3) Relay wire (A)
CN50 (White) CN51 (Red) CN40 (Blue)
Spacer (A)

16
Usage
• Refer to Owner’s Manual for the central control devices (TCB-SC642TLE2, TCB-CC163TLE2 etc.)
Other Cautions
• In a group operation, be sure to turn on power supplies of all the indoor units in group control. (Within 3 min-
utes)
When power supply of the Header unit is not turned on, there is a possibility that the Header unit exchanges
with Follower unit. (If Header unit is exchanged, the central control is unavailable.)
Address No. Setup


Outline
To connect the digital inverter air conditioner to TCC-LINK central control system using this interface, it is
required to set up address of each connected indoor unit for central control in the following procedure.
Is a group control executed?
(Including twin system)
Are all the indoor units
attached with this interface Header units
(Group address = 1)?
Re-setup of indoor unit with this interface to
Header unit, and re-setup of indoor units
without this interface to Follower units
YES
YES
NO
NO
Completion of wiring work
End
System power ON
Setup of central control address
Automatic address setup
Manual setup and change of line address
After power ON, the system itself sets up automatically.
Change of line address
If automatic address setup is not correctly done, set up address manually.
* Refer the next page to item
“Manual setup/change of line address in indoor unit”.
* Refer to item “Check and change of group address of indoor unit”.
(Page 18)
* Refer to item “Setup of central control address”.

17


Manual Setup/Change of Line Address in Indoor Unit
[In case of 29 refrigerant lines or less (Includes No. of refrigerant lines at Multi side if mixed)]
After the system power supply has been turned on, all the line addresses are allocated to “1” by automatic
address setup except group control. Therefore change setup of the line address using the wired remote con-
troller for each refrigerant line.
Line
address
Indoor unit
address
Group
address
1
1
0
1 →2
1
0
1 →3
1
1
1 →3
2
2
1 →4
1
1
2 →5
1
2
Refrigerant
line 1
Refrigerant
line 2
Refrigerant
line 3
Refrigerant
line 4
Refrigerant
line 5
Outdoor
unit
Indoor
unit
Remote
controller
Outdoor
unit
Indoor
unit
Remote
controller
Outdoor
unit
Indoor
unit
Remote
controller
Indoor
unit
Outdoor
unit
Indoor
unit
Remote
controller
Outdoor
unit
Indoor
unit
Central
control
device
Change line address for each refrigerant line.
1
1
0
2
1
0
3
1
1
3
2
2
4
1
1
5
1
2
Line
address (1)
Indoor unit
address
Group
address
2 →6
1
1
2 →6
3 →2
2
Refrigerant
line 6
Refrigerant
line 7
Outdoor
unit
Indoor
unit
Remote
controller
Indoor
unit
2 →7
1
2
2 →7
2
2
Outdoor
unit
Indoor
unit Indoor unit
6
1
1
6
2
2
7
1
2
7
2
2
[ →“1 : 1 Model” connection interface]
In case of group control including twin, triple, double twin system, the automatic address does not normally work.
Set the automatic address again from the wireless remote controller manually.
∗For change/setup method by wired remote controller, refer to “Address Setup/Change Method”. (Page 21)
∗Allocating different numeral value for each refrigerant line, set up the line address so that it does not overlap
with other address No. (When controlling collectively VRF type units mixed with digital inverter air conditioner
unit, set up numeral value which also differs from line address at VRF type air conditioner side.)

18


Manual Setup/Change of Line Address in Indoor Unit
[In case of 30 refrigerant lines or more (Includes No. of refrigerant lines at Multi side if mixed)]
After the system power supply has been turned on, all the line addresses are allocated to “1” by automatic
address setup except group control. Therefore change setup of the line address using the wired remote con-
troller for each refrigerant line.
∗For change/setup method by wired remote controller, refer to “Address Setup/Change Method”. (Page 21)
∗Allocating different numeral value for each refrigerant line, set up the line address so that it does not overlap
with other address No. (When controlling collectively VRF type units mixed with digital inverter air conditioner
unit, set up numeral value which also differs from line address at VRF type air conditioner side.)
Point (1) Set “30” to all the line addresses of indoor units attached
with these interface
Point (2) Change the indoor address so that the indoor unit numbers
do not overlap.
Point (3) When the indoor unit attached with this interface is controlled with twin
or system, change also line address of the follower unit to “30”.
30
1
0
30
2
0
30
3
1
30
4
2
30
5
1
2
1
2
Line
address (1)
Indoor unit
address
Group
address
30
6
1
30
7
2
2
1
2
2
2
2
[ →“1 : 1 Model” connection interface]
Line
address
Indoor unit
address
Group
address
1 →30
1
0
1 →30
1 →2
0
1 →30
1 →3
1
1 →30
2 →4
2
1 →30
1 →5
1
2
1
2
Refrigerant
line 30
Refrigerant
line 31
Refrigerant
line 32
Refrigerant
line 33
Refrigerant
line 34
Outdoor
unit
Indoor
unit
Remote
controller
Outdoor
unit
Indoor
unit
Remote
controller
Outdoor
unit
Indoor
unit
Remote
controller
Indoor
unit
Outdoor
unit
Indoor
unit
Remote
controller
Outdoor
unit
Indoor
unit
Central
control
device
1 →30
1 →6
1
2 →30
1 →7
2
Refrigerant
line 35
Refrigerant
line 36
Outdoor
unit
Indoor
unit
Remote
controller
Indoor
unit
2
1
2
2
2
2
Outdoor
unit
Indoor
unit Indoor unit
In case of group control including
twin, triple, double twin system,
the automatic address does not normally work.
Set the automatic address again from the
wireless remote controller manually.

19


Check and Change of Group Address of Indoor Unit
In group control or twin, triple, double twin operation, the group address is allocated to indoor unit by automatic
address setup after the system power supply has been turned on. From these addresses, “Header unit”: “1”
and “Follower unit”: “2” can be recognized. As the central control device (remote controller) communicates with
“Header unit” only, set up the group address from wired remote controller so that the indoor unit attached with
the interface becomes “Header unit”.

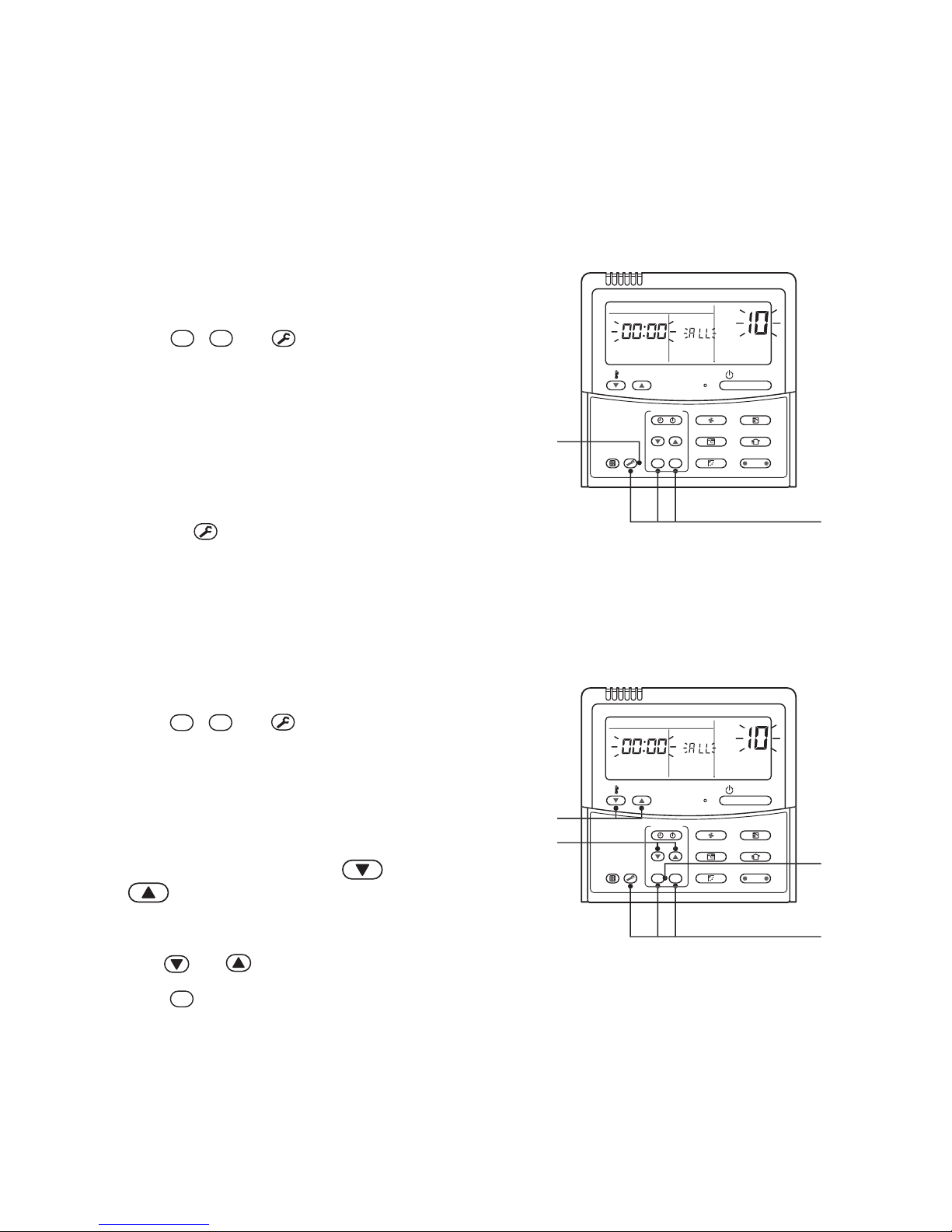

• Check method for Header unit
Beforehand check the indoor unit attached with this interface.
During stop of the Set.
<Procedure>
1Push
SET
,
CL
and
TEST
buttons simultaneously
for 4 seconds or more.
(The firstly displayed unit No. is the header indoor unit
No. in the group control.)
2The indoor unit of which fan was turned on is
the header indoor unit.
If the header unit is not one with this interface,
change it according to “How to set up Header unit”.
3Pushing
TEST
button returns the mode to normal
mode.
• How to set up Header unit
(In case when the indoor unit of which fan was turned on is not one attached with interface)
Change address in the following procedure.
<Procedure>
1Push
SET
,
CL
and
TEST
buttons simultaneously
for 4 seconds or more.
(The firstly displayed unit No. is the header indoor unit
No. in the group control.)
2The indoor unit of which fan was turned on is
the header indoor unit.
3Using the setup temperature and
buttons, select CODE No. “14”.
4Check that the setup data is 0001, and then
change the setup data to 0002 using the timer
time and buttons.
5Push
SET
button. In this time, the setup ends
if display changes from flashing to lighting.
Ø
(To be continued)
3
1
TEMP.
O
N
/
O
F
F
S
E
T
TIME
TE
ST
FIL
TER
RE
S
E
T
CL
S
AV
E
S
WIN
G/
FI
X
VENT
U
NIT L
OU
VE
R
CODE No.
R.C.
No.
TIMER
S
E
T
M
O
D
E
FAN
1
5
4
3
TEMP.
O
N
/
O
F
F
S
E
T
TIME
TE
ST
FIL
TER
RE
S
E
T
CL
S
AV
E
S
WIN
G/
FI
X
VENT
U
NIT L
OU
VE
R
CODE No.
R.C.
No.
TIMER
S
E
T
M
O
D
E
FAN

20
Ø

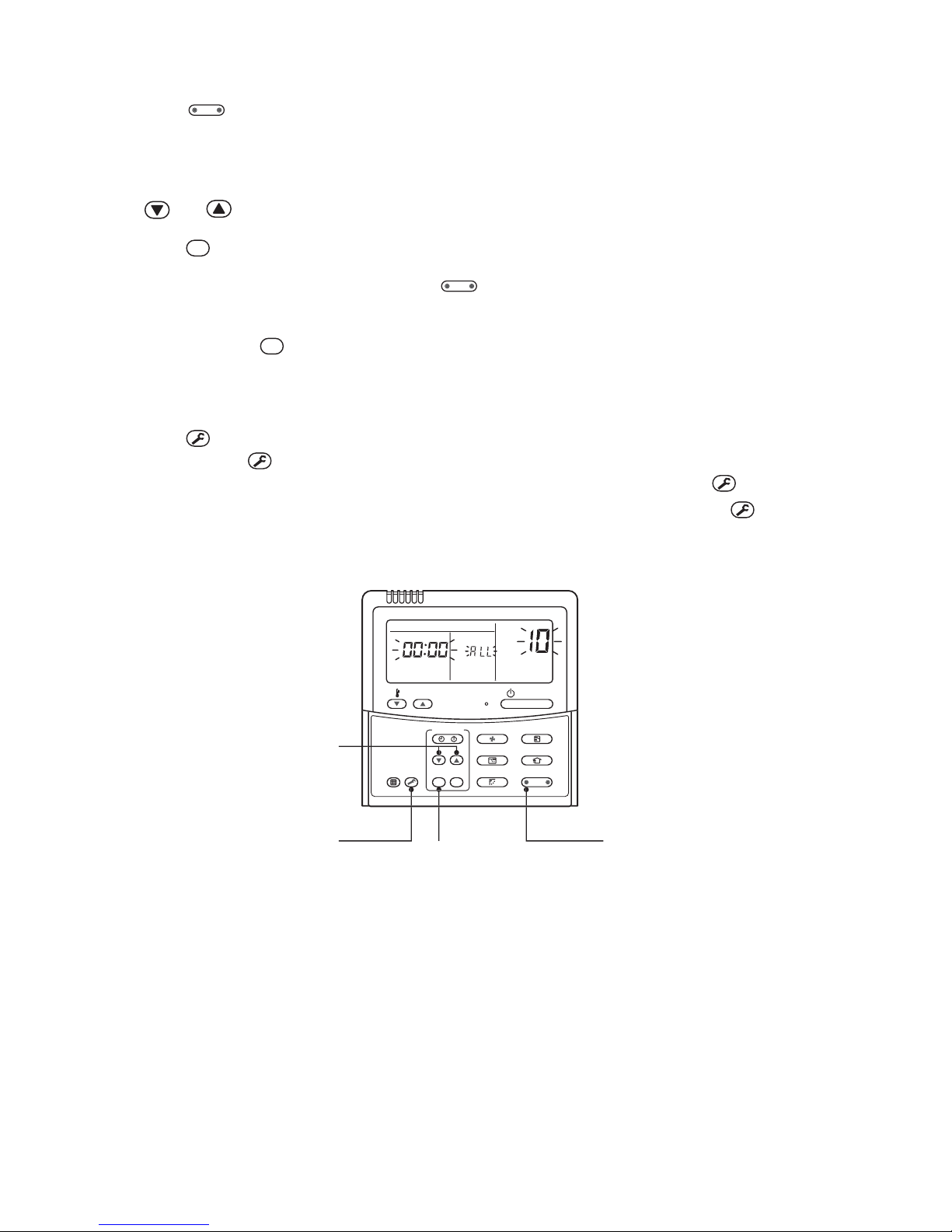

6 Push
U
NIT L
OU
VE
R
button (left side of the button), and then turn on fan of the indoor unit which is
attached with interface.
7 Leave the CODE No. as it is. (Select CODE No. 14.)
8 Check that the setup data is 0002, and then change the setup data to 0001 using the timer time
and buttons.
9 Push
SET
button. In this time, the setup ends if display changes from flashing to lighting.
10 When the above setup completed, push
U
NIT L
OU
VE
R
button (left side of the button) to select indoor
unit of which setup was
changed and then check the changed contents. (CODE No. 14 as it is)
* When pushing
CL
button, the setup contents can be cleared.
(In this case, repeat procedure from 1 .)
Note) Cancellation is unavailable if the CODE No. is changed.
11 Push
TEST
button. (Setup is determined.)
When pushing
TEST
button, the display disappears and the status becomes the normal stop status.
(The remote controller operation is not accepted for approx. 1 minute after pushing
TEST
button.)
* If the remote controller operation is not accepted for 1 minute or more after pushing
TEST
button, it is
considered that the address setup is incorrect and the automatic address setup is being performed
again. Change setup again after approx. 5 minutes.
11 96, 10
8
TEMP.
O
N
/
O
FF
S
E
T
TIME
TE
ST
FIL
TER
RE
S
E
T
CL
S
AV
E
S
WIN
G/
FI
X
VENT
U
NIT L
OU
VE
R
CODE No.
R.C.
No.
TIMER
S
E
T
M
O
D
E
FAN


Setup of Central Control Address
* For details, refer to Installation Manual for central remote controller.
1. Address setup method is classified into the following three methods.
1) Manual setup from wired remote controller
2) Manual setup from central remote controller
3) Automatic setup from central remote controller
2. In group control, set up the central control address to the Header unit of the group.
