SERVICE MANUAL
FILE NO. DAS-SM-00-001
AIR-CONDITIONER
SUPPLEMENT
SPLIT WALL TYPE
PRINTED IN JAPAN, Nov.,1999 ToMo
RAS-07YKX / RAS-07YAX
RAS-10YKX / RAS-10YAX
RAS-11YKX / RAS-11YAX
RAS-07YK-E / RAS-07YA-E
RAS-10YK-E / RAS-10YA-E
RAS-07YK-ES/RAS-07YA-ES
RAS-10YK-ES / RAS-10YA-ES
RAS-10YK-HX / RAS-10YA-HX
RAS-07YKX-T / RAS-07YAX-T
RAS-10YKX-T / RAS-10YAX-T

– 2 –
CONTENTS
1.SPECIFICATIONS..................................................................................... 3
2.CONSTRUCTION VIEWS ........................................................................ 8
3.WIRING DIAGRAM ................................................................................. 10
4.SPECIFICATIONS OF ELECTRICAL PARTS......................................11
5.REFRIGERANT CYCLE DIAGRAM ......................................................13
6.CONTROL BLOCK DIAGRAM ..............................................................14
7.OPERATION DESCRIPTIONS.................................................................15
8.INSTALLATION PROCEDURE ............................................................... 20
9.TROUBLESHOOTING CHART............................................................... 33
10. PART REPLACEMENT........................................................................... 46
11. EXPLODED VIEWS AND PARTS LIST ...............................................50

– 3 –
1. SPECIFICATIONS
RAS-07YKX/07YAX, RAS-07YK-E/07YA-E, RAS-07YKX-T/07YAX-T
↑
↓
RAS-07YK-E/YA-E RAS-07YKX/YAX RAS-07YKX-T/YAX-T
MODEL
ITEM Cooling
220V–240V 220V
Capacity kW *12,10–2,20 2,10
Phase Single
V220–240 220Power source
Hz 50
Power consumption kW 0,60–0,65 0,60
Power factor % 96–94 96
V220V–240V 220V
Running current Indoor/Outdoor A 0,15/2,70–0,15/2,72 0,15/2,70
Starting current A 12
Moisture removal lit/h 0,8
Indoor (H/M/L) dB (A) 39 / 33 / 29
Noise
(SPL at 1 meter) Outdoor (220–240V) dB (A) 44–45 44
Name of refrigerant R-22
Refrigerant Rated volume kg 0,59
Refrigerant control Capillary tube
Gas side size mm 9,52
Connection type Flare connection
Liquid side size mm 6,35
Connection type Flare connection
Maximum length (of one way) m *210
Interconnection pipe
Maximum height difference
Indoor unit
Outdoor unit m5
Condensate drain pipe Outer diameter mm 16
INDOOR UNIT RAS-07YK-E RAS-07YKX RAS-07YKX-T
Height mm 265
Width mm 790Dimensions
Depth mm 189
Net weight kg 8
Evaporator type Finned tube
Indoor fan type Cross flow fan
High fan m³/h 550
Medium fan m³/h 490Air flow rate
Low fan m³/h 430
Fan motor output W 20
Air filter Polypropylene net filter (Washable)
OUTDOOR UNIT RAS-07YA-E RAS-07YAX RAS-07YAX-T
Height mm 530
Width mm 770Dimensions
Depth mm 200
Net weight kg 26
Condenser type Finned tube
Outdoor fan type Propeller
Air flow rate (220–240V) m³/h 1500–1700 1500
Fan motor output W 18 (UE6-21SJ5P) 18 (UE6-21A5P), 20 (HF-240-20A)
Model PH80T1-4C
Compressor Output W 605
Safety device Fuse, Overload relay
Auto louver Ye s
Usable outdoor temperature range °C21–43
Specifications are subject to change without notice.

–4 –
RAS-10YKX/10YAX, RAS-11YKX/11YAX
RAS-10YK-E/10YA-E, RAS-10YK-HX/10YA-HX
Specifications are subject to change without notice.
RAS-10YKX/10YAX RAS-10YK-E/10YA-E
RAS-10YK-HX/10YA-HX RAS-11YKX/11YAX
MODEL
ITEM Cooling
220V–240V
Capacity kW *12,70–2,70
Phase Single
V220–240Power source
Hz 50
Power consumption kW 0,80–0,85
Power factor % 96–94
V220V–240V
Running current Indoor/Outdoor A 0,15/3,65–0,15/3,60
Starting current A 16
Moisture removal lit/h 1,2
Indoor (H/M/L) dB (A) 44 / 36 / 29
Noise
(SPL at 1 meter) Outdoor (220–240V) dB (A) 44–45
Name of refrigerant R-22
Refrigerant Rated volume kg 0,70
Refrigerant control Capillary tube
Gas side size mm 9,52
Connection type Flare connection
Liquid side size mm 6,35
Connection type Flare connection
Maximum length (of one way) m *210
Interconnection pipe
Maximum height difference
Indoor unit
Outdoor unit m5
Condensate drain pipe Outer diameter mm 16
INDOOR UNIT RAS-10YKX RAS-10YK-E
RAS-10YK-HX RAS-11YKX
Height mm 265
Width mm 790Dimensions
Depth mm 189
Net weight kg 8
Evaporator type Finned tube
Indoor fan type Cross flow fan
High fan m³/h 650
Medium fan m³/h 510Air flow rate
Low fan m³/h 430
Fan motor output W 20
Air filter Polypropylene net filter (Washable)
OUTDOOR UNIT RAS-10YAX RAS-10YA-E
RAS-10YA-HX RAS-11YAX
Height mm 530
Width mm 770Dimensions
Depth mm 200
Net weight kg 29
Condenser type Finned tube
Outdoor fan type Propeller
Air flow rate (220–240V) m³/h 1500–1700
Fan motor output W 18 (UE6-21SJ5P) 18 (UE6-21A5P), or 20 (HF-240-20A)
Model PH102T1-4C 2PS146D5AB02
Compressor Output W 750
Safety device Fuse, Overload relay
Air flow rate Ye s
Usable outdoor temperature range °C21–43
↑
↓

–5 –
RAS-10YK-ES / RAS-10YA-ES
RAS-10YKX-T / RAS-10YAX-T
Specifications are subject to change without notice.
↑
↓
RAS-10YK-ES/10YA-ES RAS-10YKX-T/10YAX-T
MODEL
ITEM Cooling
220V–240V 220V
Capacity kW *12,65–2,70 2,70
Phase Single
V220–240 220
Power source
Hz 50
Power consumption kW 0,80–0,85 0,80
Power factor % 96–94 96
V220V–240V 220V
Running current Indoor/Outdoor A 0,15/3,65
Starting current A 16 11
Moisture removal lit/h 1,2
Indoor (H/M/L) dB (A) 44 / 36 / 29
Noise
(SPL at 1 meter) Outdoor dB (A) (220–240V) 44 (220V) 46
Name of refrigerant R-410A R-22
Refrigerant Rated volume kg 0,69 0,75
Refrigerant control Capillary tube
Gas side size mm 9,52
Connection type Flare connection
Liquid side size mm 6,35
Connection type Flare connection
Maximum length (of one way) m *210
Interconnection pipe
Maximum height difference
Indoor unit
Outdoor unit m5
Condensate drain pipe Outer diameter mm 16
INDOOR UNIT RAS-10YK-ES RAS-10YKX-T
Height mm 265
Width mm 790Dimensions
Depth mm 189
Net weight kg 8
Evaporator type Finned tube
Indoor fan type Cross flow fan
High fan m³/h 650
Medium fan m³/h 510Air flow rate
Low fan m³/h 430
Fan motor output W 20
Air filter Polypropylene net filter (Washable)
OUTDOOR UNIT RAS-10YA-ES RAS-10YAX-T
Height mm 530
Width mm 770
Dimensions
Depth mm 200
Net weight kg 29 31
Condenser type Finned tube
Outdoor fan type Propeller
Air flow rate m³/h (220–240V) 1500 (220V)1700
Fan motor output W 18 (UE6-21SJ5P) 27 (UE6-31C5P) or 30 (HF-240-30A)
Model PA98X1T-4FZ RM5510GNE92
Compressor Output W 750
Safety device Fuse, Overload relay
Auto louver Yes
Usable outdoor temperature range °C21–43

–7–
Note : *1
•Capacity is based on the following temperature conditions.
CONDITION COOLING
TEMPERATURE
Indoor unit inlet air temperature
(DB) 27 °C
(WB) 19 °C
Outdoor unit inlet air temperature
(DB) 35 °C
(WB) 24 °C
Notes : *2 CHARGELESS
•No additional refrigerant required.
•This air conditioner accepts a connection piping length of up to 10m and a head of up to 5m.
•There is no need to add the refrigerant as long as the total length of the connection piping is up to 10m.

Air filter
790
Heat exchanger
Air inlet
265
Air outlet 47
10 50
189
47
10 50
Knock out system
790
232 326 232
Hanger
321
Drain hose (0,54m)
Connecting pipe (0,39m)
(Flare Ø6,35)
(Flare Ø9,52)
Hanger
65965,5
326
450
65,5
For stud bolt
(Ø8~Ø10)
For stud bolt
(Ø6)
Hanger
Minimum
distance
to wall
Minimum
distance
to ceiling
265
178,5
Knock out system
Front panel
Back body
20 2037
40,5
60,5
790
12626931976
Center line Installation
plate outline
HangerHanger
40,5
3,5
Hanger
Minimum
distance
to wall
17 20
46
120 or more 120 or more
66 or more
2,5
Connecting pipe (0,49m)
1800
07YK-E, 07YK-ES, 10YK-E
10YK-ES:
Without power cord
07YKX, 10YKX, 11YKX
07YKX-T, 10YKX-T :
With power cord
10YK-HX :
With power cord & plug
- 8 -

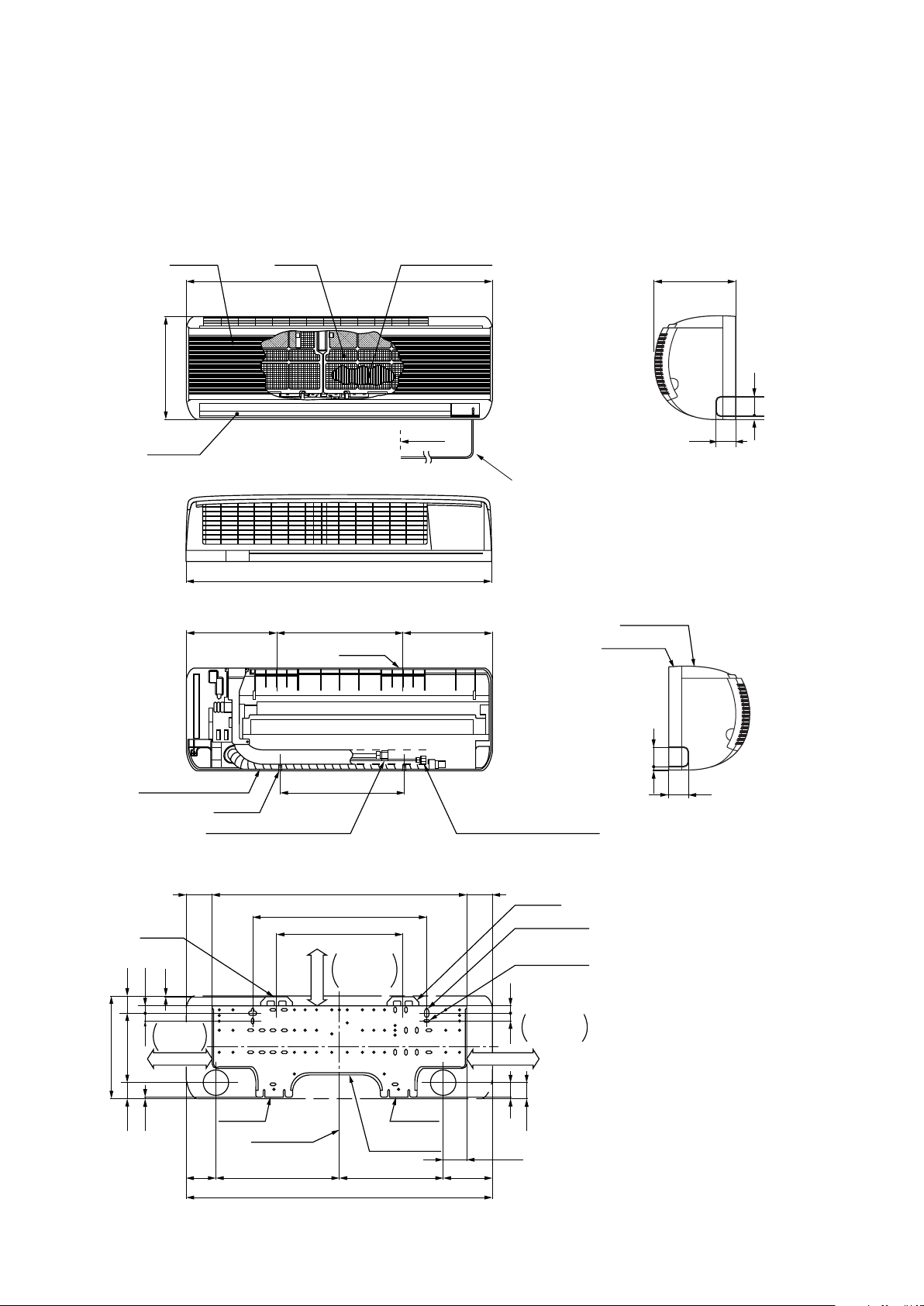

2.CONSTRUCTION VIEWS
2-1.Indoor Unit

600 85
36 111 Ø25 Drain hole
50
30
216 230
8-Ø6 Holes
(For fixing the outdoor unit)
4-Ø11x14 Long holes
(For anchor bolt Ø8-Ø10)
Gas side (flare Ø9,52)
Liquid side (flare Ø6,35)
111
A
600
R10
50
36
25
216 230
Ø11x14 Hole Ø6 Hole
Handle
11
525 530
5
268
Fan guard
ø420 TOSHIBA
770 59
89
200
11
12
Electric
parts cover
Z
54 62
Access for
charging
250
ZView
600
45 or more
Inlet port
600 or more
(Minimum distance
of the wall)
4-Ø11x14 Long holes
(For anchor bolt Ø8-Ø10)
400 or more
Outlet
port
Center
port
230
100 or more
Inlet port
Visible outline
of the product
ADetail Drawing
Mounting dimension of anchor bolt
268
770
59
89
2-2.Outdoor Unit
- 9 -

–10 –

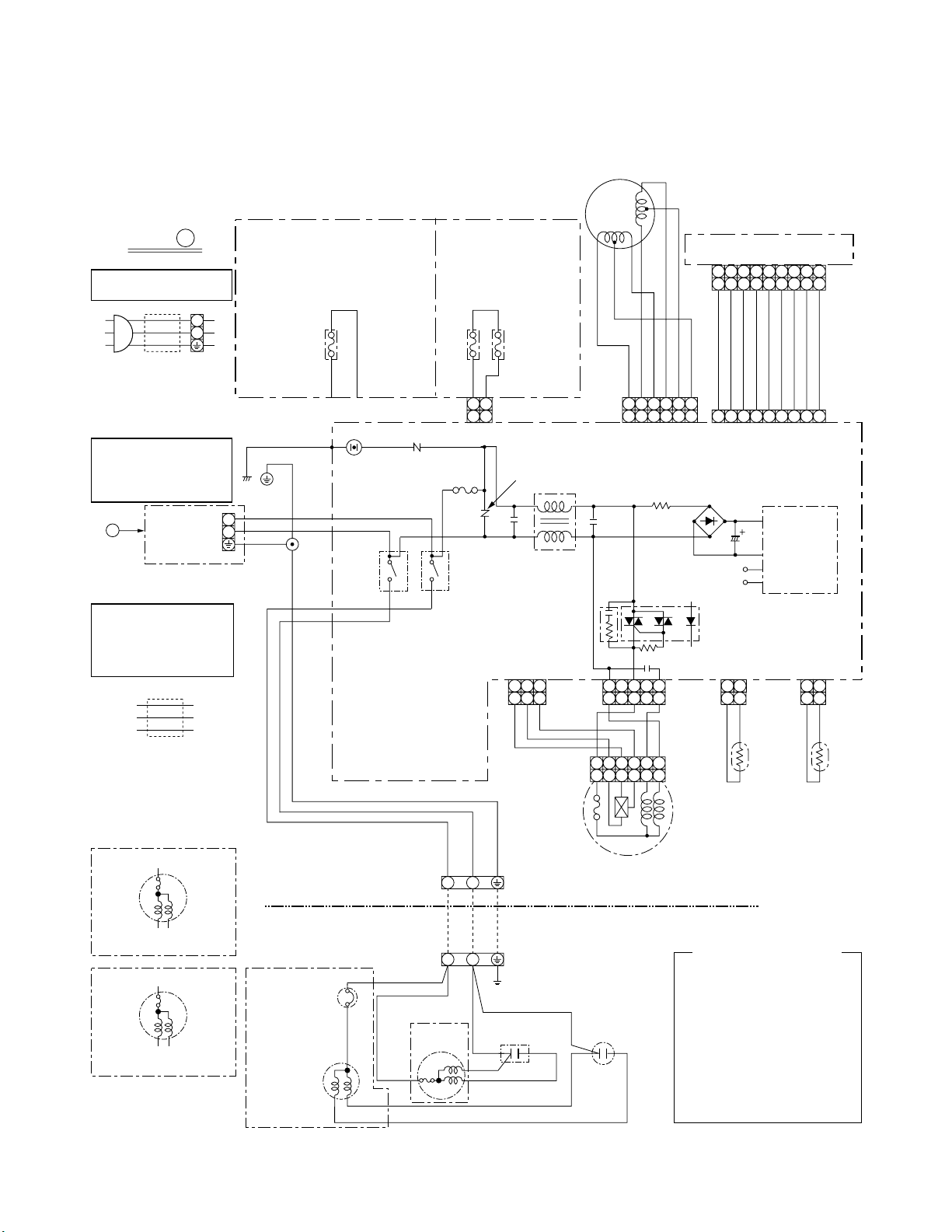

3.WIRING DIAGRAM
123456
123456
53 1 12
1212
12
L
N
FAN
MOTOR
WHI
WHI
PNK
BLK
BLK
BLK
RED
RED RED
CAPACITOR CAPACITOR
OVER LOAD
RELAY
GRN & YEL
CHASSIS
INDOOR
OUTDOOR
BLK
WHI GRN&YEL
GRN&YEL
P04
BLK
BRW
BLU
ORN ORN
ORN ORN
CN04 CN13
CN25
CN03CN10
C58
CN11 CN01
BLK BLK BLK BLK
POWER
SUPPLY
CIRCUIT
C02
DC 12V
DB01
R01
C01
L01
C15
R22
F01
6,3A
250V
R21
RY01
RY02
WHI
BLK
3
4
3
4
POWER
TERMINAL
BLOCK
Datail A
INDOOR
TERMINAL
BLOCK
THERMO
SENSOR
(TA)
AC FAN MOTOR
HEAT
EXCHANGER
SENSOR
(TC)
:
:
:
:
:
:
:
:
:
:
BROWN
RED
WHITE
YELLOW
BLUE
BLACK
GRAY
PINK
ORANGE
GREEN &
YELLOW
BRW
RED
WHI
YEL
BLU
BLK
GRY
PNK
ORN
GRN&YEL
COLOR IDENTIFICATION
VARISTOR
1
9
8
7
6
54321
9
8
7
6
5
9
8
7
6
5
4
4
3
3
2
2
1
1
2
2
1
SG01
DSA
123 53 1
123
YEL BLK
BLK
BRW
PNK WHI
12
12
COMPRESSOR
BLU PNK
BLK
WHI
BLU
BLU BLU BLU BLU
OUTDOOR
TERMINAL
BLOCK
RAS-10YK-HX
RAS-07YK-E
RAS-10YK-E
RAS-07YK-ES
RAS-10YK-ES
RAS-07YK-E/10YK-E
RAS-07YK-ES/10YK-ES
RAS-07YKX
RAS-10YKX
RAS-11YKX
RAS-07YKX-T
RAS-10YKX-T
RAS-07YKX/10YKX/11YKX
RAS-07YKX-T/10YKX-T/10YK-HX
L
NTHERMAL
FUSE
77°C x 1
THERMAL
FUSE
77°C x 2
Power cord with plug
LOUVER MOTOR
1
2
3
4
65
PNK YEL
ORN
RED BRW
BLU
CN07
1
2
3
4
65
DC 5V
CR03 IC 03
INFRARED RAYS RECEIVE
AND INDICATION PARTS
FAN MOTOR
RAS-10YAX-T
COMPRESSOR
RAS-10YA-ES
only
only
A
MCC-798
VARISTOR

–11–
4. SPECIFICATIONS OF ELECTRICAL PARTS
4-1. Indoor Unit
No. PARTS NAME TYPE SPECIFICATIONS
Output (Rated) 20W, 6poles, 1phase, 220–240V, 50Hz
Red-Black White-Black1Fan motor (for indoor) MMF-240-20-4A Winding resistance (W)
(at 20°C) 220,8 324,3
2 Thermo. sensor (TA-sensor) (Microprocessor) 10kWat 25°C
3 Switching transformer SWT-47
4 Microcomputer TMP87CK40AN
5 Power relay, Common relay DI1U Coil : DC 12V 75mA, Rated AC 250V 20A
6 Heat exchanger sensor (TC-sensor) (Microprocessor) 10kWat 25°C
7 Line filter SS11V-06180 18mH, AC 0,6A
8 Diode D3SBA60 4A, 600V
9 Capacitor ECEC2GA470BL 47mF, 400V
10 Fuse TSCR T6, 3A, 250V
11 Varistor 15G561K 560V
12 Resistor 5,6W, 2W
13 Louver motor MP35EA12 Output (Rated) 2W, 10poles, 1phase, DC 12V
4-2. Outdoor Unit
RAS-07YAX, RAS-07YA-E, RAS-07YAX-T
No. PARTS NAME TYPE SPECIFICATIONS
Output (Rated) 605W, 2poles, 1phase, 220–240V, 50Hz
C-R C-S1 Compressor PH80T1-4C Winding resistance (W)
(at 20°C) 4,80 8,37
Output (Rated) 18W, 6poles, 1phase, 220–240V, 50/60Hz
Red-Black White-Black
RAS-07YA-E UE6-21SJ5P Winding resistance (W)
(at 20°C) 370 370
Output (Rated) 18W, 6poles, 1phase, 220–240V, 50/60Hz
Red-Black White-BlackUE6-21A5P Winding resistance (W)
(at 20°C) 370 370
Output (Rated) 20W, 6poles, 1phase, 220–240V, 50/60Hz
Red-Black White-Black
2Fan motor
(for outdoor)
RAS-07YAX
RAS-07YAX-T
HF-240-20A Winding resistance (W)
(at 20°C) 387 466
RAS-07YA-E SK-50FMP1,5U1 AC 500V, 1,5mF
3Runnin
g
capacitor
(for fan motor) RAS-07YAX
RAS-07YAX-T DS501155BPQA AC 500V, 1,5mF
4 Running capacitor (for compressor) SK-40CMP15U1 AC 400V, 15mF
5 Overload relay JMRA99208-9201 U/T 4,2A (25°C), OPEN 130 ± 5°C, CLOSE 69 ± 11°C

–14–

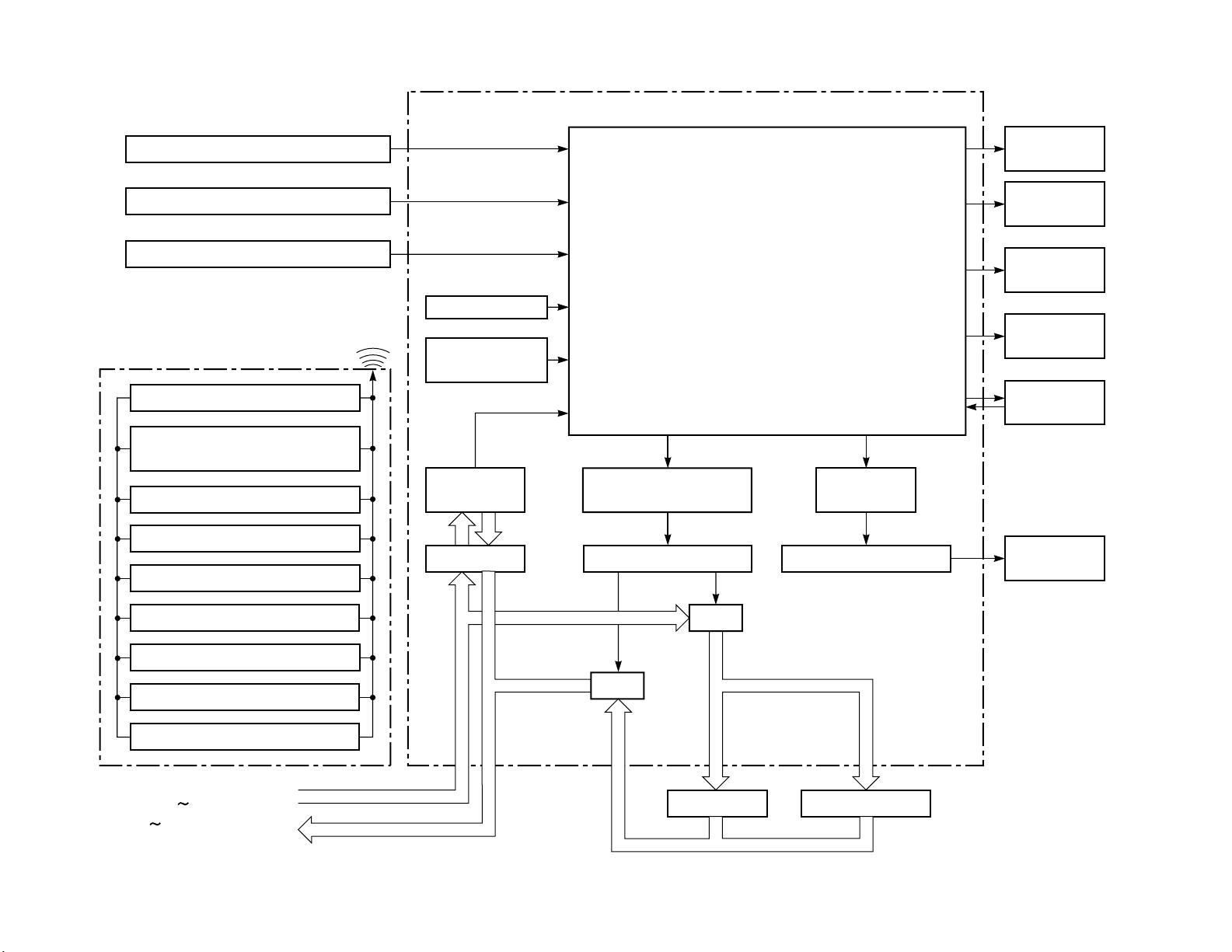

6. CONTROL BLOCK DIAGRAM
Infrared Rays Signal Receiver
Functions
ECONO.
Louver Direction Setting
Louver AUTO Swing
OFF TIMER Setting
ON TIMER Setting
Fan Speed Selection
Thermo. Setting
Operation Mode Selection
AUTO, COOL, DRY, FAN ONLY
Operation (START/STOP)
Louver DriverRelay Driver
Clock Frequency
Oscillator Circuit
Heat Exchanger Sensor
Infrared
Rays
Initializing Circuit
C. P. U
Indoor Unit Control Panel
AC 220-240V 50Hz
AC 220V 50Hz
(RAS-07YKX-T, 10YKX-T only)
Remote Control
Operation
Display
Timer
Display
ECONO.
Sign Display
FAN-ONLY
Sign Display
Indoor
Fan Motor
Louver
ON/OFF Signal
Compressor, Outdoor Fan
ON/OFF Signal
Louver
Motor
Compressor
RY02
RY01
Noise Filter
Power Supply
Circuit
Outdoor Fan Motor
Relay
Thermo. Sensor •Louver Control
•3-minute Delay at Restart for Compressor
•Motor Revolution Control
•Processing
(Temperature Processing)
•Timer
Relay

–15–
7. OPERATION DESCRIPTIONS
7-1. FAN ONLY Operation
(The Remote Control MODE Button
is Set to the FAN ONLY Operation)
Once the setting is made, the operation mode is
memorized in the microcomputer so that the same
operation can be effected thereafter simply by
pushing [START/STOP] button.
(MODE of the remote control : FAN ONLY)
(1) During this mode, the relay RY01 is always
turned off so that only the indoor fan is operated.
RY02 is always turnd on. FAN-ONLY display is lit.
1) When the FAN is set to AUTO, the indoor fan
motor operates as shown in Fig 7-1-1.
2) When the FAN is set to LOW, MED. or HIGH,
the indoor fan motor operates with a constant
in volume as listed in Table 7-1-1.

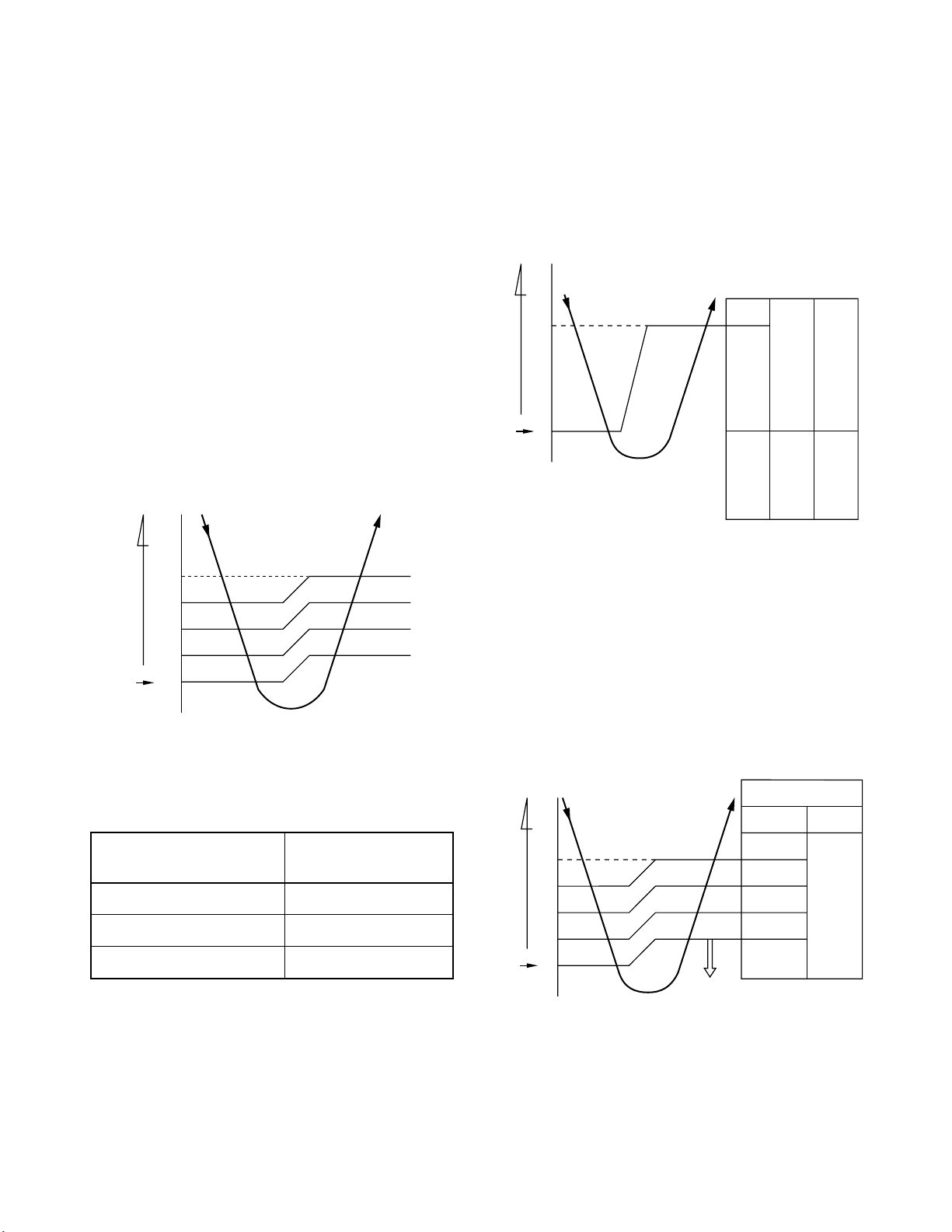

7-2. COOL Operation
(MODE of the remote control : COOL)
(1) Compressor, outdoor fan and operation display
are controlled as shown in Fig. 7-2-1.
Fig. 7-2-2
(3) Once the setting is made, the operation mode is
memorized in the microcomputer so that the
same operation can be effected thereafter simply
by pushing the START/STOP button.
HIGH
MED
LOW(+)
LOW
LOW
28
27
26
25
24
(Room temp. –Set temp.)
Set
temp.
Fig. 7-1-1 Auto setting of air volume
Table 7-1-1 Manual setting of FAN SPEED
*For model :
RAS-07YKX, RAS-07YK-E, RAS-07YK-ES, RAS-07YKX-T
Indication of
FAN SPEED
LOW
MED
HIGH
HIGH Air volume
(m3/hr)
430 (*430)
510 (*490)
650 (*550)
(Room temp. –Set temp.)
+1
0
Set
temp.
ON
OFF
OPERATION
display
ON ON
Compressor
Outdoor fan
(RY01)
Common relay
(RY02)
Fig. 7-2-1
(2) Relays RY01 and RY02 are turned on to
energize the outdoor unit, and a cool operation is
carried out.
1) When the FAN is set to AUTO, the indoor fan
motor operates as shown in Fig 7-2-2.
2) When the FAN is set to LOW, MED, or HIGH,
the indoor fan motor operates with a constant
in volume as listed in Table 7-1-1.
(Room temp. –Set temp.)
MED
LOW(+)
LOW
LOW
(continuous)
+4
+3
+2
+1
0
RY01
OFF
Set
temp.
Manual
FAN
According
to the set
position
HIGH
AUTO

–16–
7-2-1. Louver Control
(1) Vertical air flow louvers
Positions of vertical air flow louvers are automatically
controlled according to the operation status (COOL,
AUTO, DRY, FAN ONLY). Besides, positions of
vertical air flow louvers can be arbitrarily set by
pushing the [SET] button. The louver position which
has been set by the [SET] button is stored in
microcomputer, and the louver is automatically set at
the stored position in the next operation.
(2) Swing
If the [AUTO] button is pushed during running opera-
tion, vertical air flow louvers start swinging. When
the [AUTO] button is pushed again, swinging stops.
7-3. DRY Operation
(MODE of the remote control : DRY)
(1) Compressor, outdoor fan and operation display
are controlled as shown in Fig. 7-3-1.
(Room temp. –Set temp.)
Set
temp.
ON
+3
+2
+1
0
OFF
OPERATION
display
Compressor
Outdoor fan
(RY01)
Common relay
(RY02)
ON:6min. OFF:4min.
ON:5min. OFF:5min.
ON
Fig. 7-3-1
•The microprocessor turns the compressor on
and off at regular intervals (4 to 6 minutes on
and/or off).
During the compressor off, the indoor fan will
operate in the super low position.
•The indoor fan will operate in the AUTO
position.
(2) The pattern of operation depending on the
relation between room temperature and set
temperature is shown below:
Room temp.
Set temp.+1
Set temp.
Compressor
Outdoor fan
Indoor fan L. *S.L. S.L.L. L. S.L. L.
ON ON ON ON
OFF OFF OFF
*Super Low
Fig. 7-3-2

–17–
7-4. AUTO Operation
(MODE of the remote control : AUTO)
(1) One of the 2 modes, Cooling or Dry is selected
according to room temperature at which opera-
tion is to start, as shown in Fig. 7-4-1. The Fan
mode will continue until room temperature
reaches a level at which another mode is
selected.
7-4-1. Temporary Auto
When the TEMPORARY button is pushed (1 sec),
the set temperature is fixed at 24°C and controlled in
accordance with the chart shown in Fig. 7-4-1.
Fig. 7-5-1
+2
+1
Set temp.
1H 2H TIME0H
(˚C)
ECONO. button
is pushed
Set temp.
is changed
Set temp.
is changed

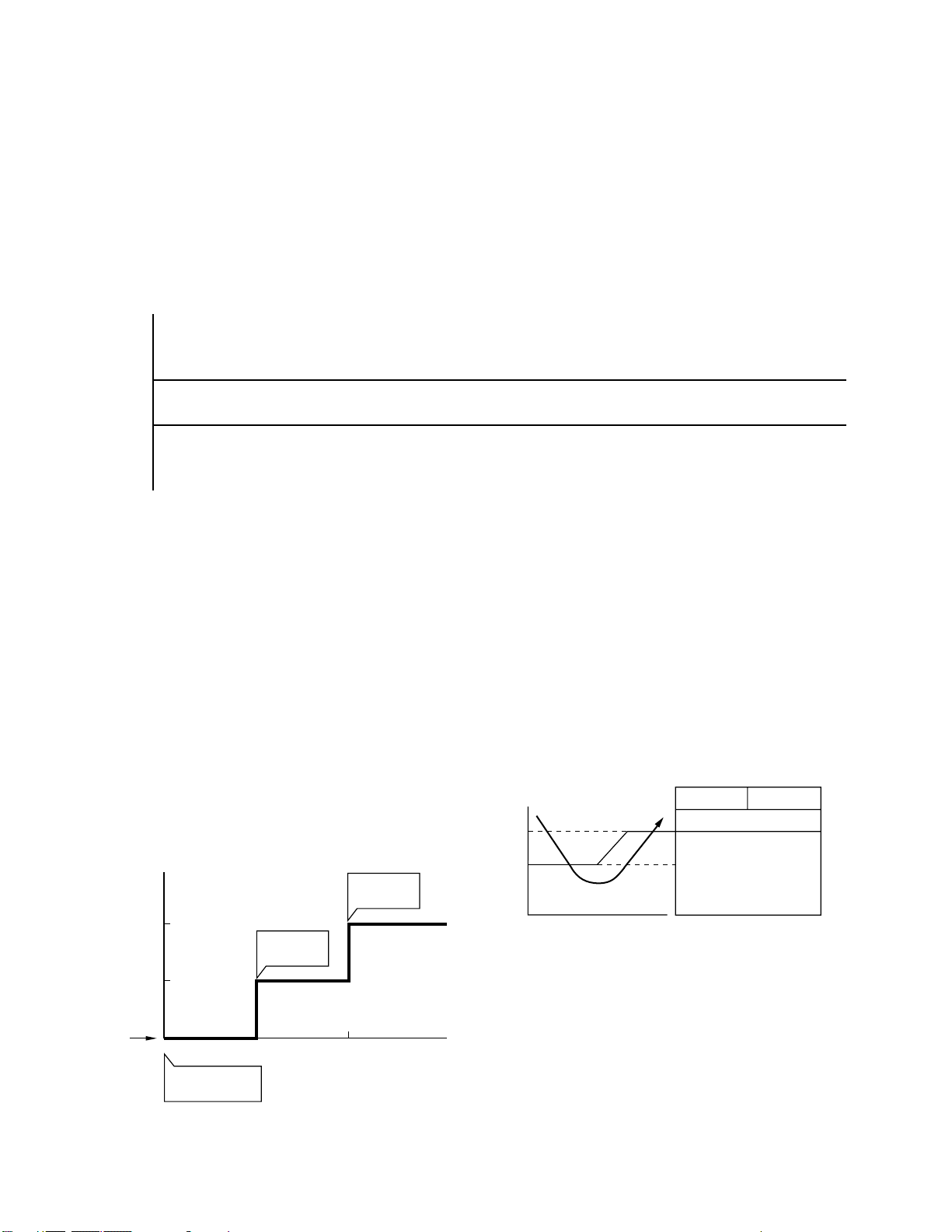

7-5. ECONO. Mode
When the ECONO. button is pushed, during COOL
and AUTO operation, the OPERATION display is
turned off and the ECONO. display is lit and the
indoor unit operates quietly and mildly with
controlling airflow.
7-5-1. Cooling
(1) In the ECONO. mode, the set temp. by the
remote control is changed automatically as
shown in Fig. 7-5-1.
(2) Fan speed →LOW
7-6. Low-Temperature Limit Control
(Cooling Operation)
The microprocessor detects the indoor heat ex-
changer temperature so as to prevent freezing up the
indoor heat exchanger.
Control is performed as shown in Fig. 7-6-1.
Compressor
Less than 5˚C continues
for 5 minutes
OFF
ON
Outdoor fan
7
Heat exchanger
temperature
5
(˚C)
Fig. 7-6-1
Fig. 7-4-1
Powerful
Cooling mode
Cooling mode
Dry mode
+4
+1
(The same cooling mode as the room temperature control is set at set temp. –1˚C)
The Louver moved downward. (DIRECT AUTO COOL)
(The same cooling mode as the room temperature control is set at set temp. –1˚C)
(The same dry operation as the room temperature control is set at set temp. –1˚C)
(Room temp. –Set temp.)

–18–
7-7. Auto Restart Function
This unit is equipped with an Automatic restarting
function which allows the unit to restart and resume
the set operating conditions in the event of a supply
power shutdown without the use of the hand control.
The operation will resume without warning three
minutes after the power is restored.
INFORMATION
The AUTO RESTART FUNCTION is set not to work
on shipment from the factory, and so it is necessary
to set it to function as required.
7-7-1. How to Set the Auto Restart
To set the Auto Restart function, proceed as follows:
Access the TEMPORARY button located in the lower
right hand corner beneath the hinged front panel of
the indoor unit (please refer to section on PARTS
NAME). The power supply to the unit must be on -
the function will not be set if the power is off.
To enable the Auto Restart function, push the TEM-
PORARY button continuously for three seconds.
The unit will acknowledge the setting and beep three
times. The system will now restart automatically.
The above Auto Restart settings can be carried out:
During subsequent operation, the orange light goes on.
•The Auto Restart function will not accept an instruction if timer operation with the remote control is selected.
•During louver swing (AUTO) operation, after restarting by the Auto Restart function, the louver swing stops.
OPERATION
Push the TEMPORARY button
continuously more than three
seconds.
MOTION
Operating The green light is lit.
↓
The system stops to operate. The green light is turned off.
↓about three seconds after
The unit beeps three times.
↓
The system stops.
If the system is not required to stop at this time, use the remote control
and to restart.
TEMPORARY
0
3S
•When the system is operating
OPERATION
Push the TEMPORARY button
continuously more than three
seconds.
MOTION
Stand-by
↓
The system starts to operate. The green light will be lit.
↓about three seconds after
The unit beeps three times. The orange light will be lit.
↓
The system is operating. The orange light is lighting.
If the system is not required to run at this time, push the TEMPORARY
button once more or use the remote control and the unit will stop.
TEMPORARY
0
3S
•When the system is stand-by (not running)

–19–
7-7-2. How to Cancel the Auto Restart
To cancel the Auto Restart function, proceed as follows:
Repeat the setting procedure: the unit will acknowledge the instruction and beep three times.
The system will now be required to manually restart with the remote control after the main supply is turned off.
Cancellation is carried out:
•When the system is stand-by (not running)
OPERATION
Push the TEMPORARY button
continuously more than three
seconds.
MOTION
Stand-by
↓
The system starts to operate. The orange light will be lit.
↓about three seconds after
The unit beeps three times. The green light will be lit.
↓
The system is operating.
If the system is not required to run at this time, push the TEMPORARY
button once more or use the remote control and Stop the unit.
TEMPORARY
0
3S
OPERATION
Push the TEMPORARY button
continuously more than three
seconds.
MOTION
Operating The orange light is lit.
↓
The system stops to operate. The orange light is turned off.
↓about three seconds after
The unit beeps three times.
↓
The system stops.
If the system is not required to stop at this time, use the remote control
and to restart.
TEMPORARY
0
3S
•When the system is operating
During subsequent operation, the green light goes on.
7-7-3. In Case of Power Failure during the Timer Operation
(1) If ON-TIMER operation is reserved with setting of Auto Restart operation, it is cancelled with power failure.
(The OPERATION lamp on the main unit goes on and off to inform of power failure.) In that case, try to
reserve ON-TIMER operation once again.
(2) If OFF-TIMER operation is reserved without setting of Auto Restart operation, the reservation is cancelled
with power failure. (The OPERATION lamp on the main unit goes on and off to inform of power failure.) In that
case, try to reserve OFF-TIMER operation. When Auto Restart operation is set, OFF-TIMER reservation is
also cancelled with power failure.

–20 –
8. INSTALLATION PROCEDURE
8-1. Safety Cautions
For general public use
Power supply cord of parts of appliance for Outdoor use shall be more than polychloroprene sheathed flexible cord
(design H05 RN-F), or cord designation 245 IEC 57.
CAUTION
TO DISCONNECT THE APPLIANCE FROM THE MAINS SUPPLY.
This appliance must be connected to the mains by means of a circuit breaker or a switch with a contact separation
of at least 3 mm.
If this is not possible, a power supply plug with earth must be used. This plug must be easily accessible after
installation. The plug must be disconnected from the power supply socket in order to disconnect the appliance
completely from the mains.
DANGER ENGAGE DEALER OR SPECIALIST FOR INSTALLATION.
` FOR ELECTRICAL WORKS THE WIRING AND CABLES MUST BE PERFORMED IN COMPLIANCE WITH
NATIONAL WIRING STANDARD OR REGULATION.
IF INCORRECT AND INCOMPLETE WIRING IS CARRIED OUT, IT WILL CAUSE AN ELECTRICAL FIRE OR
ELECTRICAL SHOCK.
` USE THE SPECIFIED CABLE (1,5 to 2,0mm²) AND CONNECT TIGHTLY FOR INDOOR/OUTDOOR
CONNECTION. CONNECT TIGHTLY AND CLAMP THE CABLE SO THAT EXTERNAL FORCE WILL BE
ACTED ON THE TERMINAL.
` WIRE ROUTING MUST BE PROPERLY ARRANGED SO THAT CONTROL BOARD COVER IS FIXED
PROPERLY.
` DO NOT DAMAGE OR SCRATCH THE CONDUCTIVE CORE AND INNER INSULATOR OF THE CABLES.
` DO NOT DEFORM OR SMASH ON THE SURFACE OF THE CABLES. DO NOT PRESS OR FIX THE CORD
AND CABLES FIRMLY WITH STAPLES, etc.
` DO NOT USE THE EXTENSION CABLE FOR POWER SUPPLY CORD OR INTER-CONNECTING CABLE.
NEVER EXECUTE THE CONNECTION OF WIRING WITH OTHER METHOD THAN THE APPROVED ONE.
OTHERWISE, OVERHEAT, SMOKE OR FIRE MAY BE GENERATED BY CONTACT ERROR.
` TURN OFF MAIN POWER SUPPLY AND BREAKER BEFORE ATTEMPTING ANY ELECTRICAL WORK.
MAKE SURE ALL POWER SWITCHES AND BREAKER TURN OFF. FAILURE TO DO SO MAY CAUSE
ELECTRIC SHOCK.
` CONNECT THE CONNECTING CABLE CORRECTLY. IF THE CONNECTING CABLE IS CONNECTED BY
WRONG WAY, ELECTRIC PARTS MAY BE DAMAGED.
` GROUNDING WIRE WORKS MUST BE CONSTRUCTED IN COMPLIANCE WITH INSTALLATION MANUAL.
` DO NOT INSTALL NEAR CONCENTRATIONS OF COMBUSTIBLE GAS VAPORS.
FAILURE TO FOLLOW THIS INSTRUCTION CAN RESULT IN FIRE OR EXPLOSION.
` TO PREVENT OVERHEATING THE INDOOR UNIT AND CAUSING A FIRE HAZARD. PLACE THE UNIT WELL
AWAY (MORE THAN 2M.) FROM HEAT SOURCE SUCH AS RADIATORS, HEAT REGISTORS. FURNACE,
STOVES, etc.
` IF A REFRIGERATION GAS LEAKS DURING INSTALLATION, BE SURE TO PERFORM VENTLATION.
IF THE REFRIGERANT GAS COMES INTO CONTACT WITH FIRE, A POISONOUS GAS MAY OCCUR.
WHEN INSTALLING AN AIR CONDITIONER, DO NOT ALLOW AIR OR MOISTURE TO REMAIN IN THE
REFRIGERATION CYCLE. OTHERWISE, PRESSURE IN THE REFRIGERATION CYCLE MAY BECOME
ABNORMALLY HIGH SO THAT A RUPTURE OR PERSONAL INJURY MAY BE CAUSED.
` BE SURE TO USE THE CORD-CLAMPS AND THE ELECTRIC PARTS COVER TO THE SPECIFIED
POSITION WITH ATTACHED TO THE PRODUCT. MOUNT THE ELECTRIC PARTS COVER FOR CABLES OF
CONNECTING SECTION FIRMLY WITH THE SCREWS.
