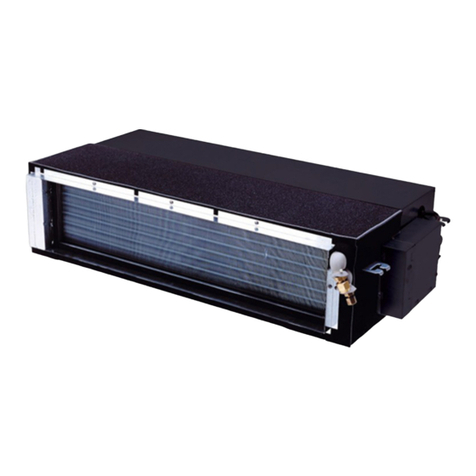

Toshiba RAV-SM564UT-E User manual

R410A
PRINTED IN JAPAN, Jun., 2008 ToMo
FILE NO. A07-003
Revised: Mar., 2008
Revised 2: Jun., 2008
SERVICE MANUAL
AIR-CONDITIONER
SPLIT TYPE
INDOOR UNIT
<DIGITAL INVERTER>
RAV-SM564UT-E RAV-SM404SDT-E
RAV-SM804UT-E RAV-SM454SDT-E
RAV-SM1104UT-E RAV-SM564SDT-E
RAV-SM1404UT-E
RAV-SM1604UT-E
OUTDOOR UNIT
<SUPER DIGITAL INVERTER>
RAV-SP404AT-E RAV-SP454AT-E
RAV-SP404ATZ-E RAV-SP454ATZ-E
RAV-SP404ATZG-E RAV-SP454ATZG-E
RAV-SP1104AT-E RAV-SP1404AT-E
RAV-SP1104ATZ-E RAV-SP1404ATZ-E
RAV-SP1104ATZG-E RAV-SP1404ATZG-E
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

– 2 –
Adoption of New Refrigerant
This Air Conditioner is a new type which adopts a new refrigerant HFC (R410A) instead of the conventional
refrigerant R22 in order to prevent destruction of the ozone layer.
WARNING
Cleaning of the air filter and other parts of the air filter involves dangerous work in high places, so be sure to
have a service person do it. Do not attempt it yourself.
The cleaning diagram for the air filter is there for the service person, and not for the customer.
CONTENTS
SAFETY CAUTION ............................................................................................ 4
1. SPECIFICATIONS ...................................................................................... 9
1-1. Indoor Unit........................................................................................................... 9
1-2. Outdoor Unit...................................................................................................... 25
1-3. Operation Characteristic Curve....................................................................... 27
2. CONSTRUCTIONVIEWS (EXTERNALVIEWS)....................................... 29
2-1. Indoor Unit......................................................................................................... 29
2-2. Outdoor Unit...................................................................................................... 33
3. SYSTEMATIC REFRIGERATING CYCLE DIAGRAM .............................. 36
3-1. Indoor Unit......................................................................................................... 36
3-2. Outdoor Unit...................................................................................................... 37
4. FAN CHARACTERISTICS ........................................................................ 39
4-1. Slim Duct (Filter Attached)............................................................................... 39
5. WIRING DIAGRAM................................................................................... 40
5-1. Indoor Unit......................................................................................................... 40
5-2. Outdoor Unit...................................................................................................... 42
6. SPECIFICATIONS OF ELECTRICAL PARTS .......................................... 44
6-1. Indoor Unit......................................................................................................... 44
6-2. Outdoor Unit (Parts Ratings) ........................................................................... 45
6-3. Accessory Separate Sold Parts....................................................................... 45
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–3 –
7. REFRIGERANT R410A ............................................................................ 46
7-1. Safety During Installation / Servicing ............................................................. 46
7-2. Refrigerant Piping Installation....................................................................... 46
7-3. Tools .................................................................................................................. 50
7-4. Recharging of Refrigerant................................................................................ 50
7-5. Brazing of Pipes................................................................................................ 51
7-6. Instructions for Re-use Piping of R22 or R407C ............................................ 53
8. INDOOR CONTROL CIRCUIT.................................................................. 58
8-1. Indoor Controller Block Diagram..................................................................... 58
8-2. Control Specifications...................................................................................... 61
8-3. Optional Connector Specifications of Indoor P.C. Board .............................. 74
8-4. Indoor Print Circuit Board................................................................................ 75
9. CIRCUIT CONFIGURATION AND CONTROL SPECIFICATIONS ........... 76
9-1. Outdoor Controls.............................................................................................. 76
9-2. Outline of Main Controls .................................................................................. 78
10. TROUBLESHOOTING .............................................................................. 87
10-1. Summary ofTroubleshooting........................................................................... 87
10-2. Troubleshooting................................................................................................ 89
11. REPLACEMENT OF SERVICE P.C. BOARD.......................................... 141
11-1. Indoort Unit ..................................................................................................... 141
11-2. Outdoor Unit.................................................................................................... 146
12. SETUP AT LOCAL SITE AND OTHERS ................................................ 147
12-1. Indoor Unit....................................................................................................... 147
12-2. Setup at Local Site / Others ........................................................................... 158
12-3. How to Set up Central Control Address Number ......................................... 160
12-4. Outdoor Unit.................................................................................................... 166
13. ADDRESS SETUP.................................................................................. 173
13-1. Address Setup Procedure.............................................................................. 173
13-2. Address Setup & Group Control.................................................................... 174
13-3. Remote ControllerWiring............................................................................... 177
13-4. Address Setup (Manual setting from remote controller)............................. 178
13-5. Confirmation of Indoor Unit No. Position ..................................................... 179
14. DETACHMENTS ..................................................................................... 181
14-1. Indoor Unit...................................................................................................... 181
14-2. Outdoor Unit.................................................................................................... 196
15. EXPLODEDVIEWS AND PARTS LIST .................................................. 211
15-1. Indoor Unit....................................................................................................... 211
15-2. Outdoor Unit.................................................................................................... 219
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

– 4 –
SAFETY CAUTION
The important contents concerned to the safety are described on the product itself and on this Service Manual.
Please read this Service Manual after understanding the described items thoroughly in the following contents
(Indications/Illustrated marks), and keep them.
[Explanation of indications]
∗Property damage : Enlarged damage concerned to property, furniture, and domestic animal/pet
[Explanation of illustrated marks]
[Confirmation of warning label on the main unit]
Confirm that labels are indicated on the specified positions
(Refer to the Parts disassembly diagram (Outdoor unit).)
If removing the label during parts replace, stick it as the original.
Indication
DANGER
WARNING
CAUTION
Explanation
Indicates contents assumed that an imminent danger causing a death or serious injury of
the repair engineers and the third parties when an incorrect work has been executed.
Indicates possibilities assumed that a danger causing a death or serious injury of the
repair engineers, the third parties, and the users due to troubles of the product after work
when an incorrect work has been executed.
Indicates contents assumed that an injury or property damage (∗) may be caused on the
repair engineers, the third parties, and the users due to troubles of the product after work
when an incorrect work has been executed.
Mark Explanation
Indicates prohibited items (Forbidden items to do)
The sentences near an illustrated mark describe the concrete prohibited contents.
Indicates mandatory items (Compulsory items to do)
The sentences near an illustrated mark describe the concrete mandatory contents.
Indicates cautions (Including danger/warning)
The sentences or illustration near or in an illustrated mark describe the concrete cautious contents.
Turn off breaker.
Execute discharge
between terminals.
Prohibition
Turn “OFF”the breaker before removing the front panel and cabinet, otherwise an electric
shock is caused by high voltage resulted in a death or injury.
During operation, a high voltage with 400V or higher of circuit (∗) at secondary circuit of the
high-voltage transformer is applied.
If touching a high voltage with the naked hands or body, an electric shock is caused even if using an
electric insulator.
∗: For details, refer to the electric wiring diagram.
When removing the front panel or cabinet, execute short-circuit and discharge between
high-voltage capacitor terminals.
If discharge is not executed, an electric shock is caused by high voltage resulted in a death or injury.
After turning off the breaker, high voltage also keeps to apply to the high-voltage capacitor.
Do not turn on the breaker under condition that the front panel and cabinet are removed.
An electric shock is caused by high voltage resulted in a death or injury.
DANGER
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–5 –
Check earth wires.
Prohibition of modification.
Use specified parts.
Do not bring a child
close to the equipment.
Insulating measures
No fire
Refrigerant
Assembly/Cabling
Before troubleshooting or repair work, check the earth wire is connected to the earth
terminals of the main unit, otherwise an electric shock is caused when a leak occurs.
If the earth wire is not correctly connected, contact an electric engineer for rework.
Do not modify the products.
Do not also disassemble or modify the parts. It may cause a fire, electric shock or injury.
For spare parts, use those specified (∗∗
∗∗
∗).
If unspecified parts are used, a fire or electric shock may be caused.
∗: For details, refer to the parts list.
Before troubleshooting or repair work, do not bring a third party (a child, etc.) except
the repair engineers close to the equipment.
It causes an injury with tools or disassembled parts.
Please inform the users so that the third party (a child, etc.) does not approach the equipment.
Connect the cut-off lead wires with crimp contact, etc, put the closed end side
upward and then apply a water-cut method, otherwise a leak or production of fire is
caused at the users’side.
When repairing the refrigerating cycle, take the following measures.
1) Be attentive to fire around the cycle.When using a gas stove, etc, be sure to put out fire
before work; otherwise the oil mixed with refrigerant gas may catch fire.
2) Do not use a welder in the closed room.
When using it without ventilation, carbon monoxide poisoning may be caused.
3) Do not bring inflammables close to the refrigerant cycle, otherwise fire of the welder may
catch the inflammables.
Check the used refrigerant name and use tools and materials of the parts which
match with it.
For the products which use R410A refrigerant, the refrigerant name is indicated at a
position on the outdoor unit where is easy to see.To prevent miss-charging, the route of the
service port is changed from one of the former R22.
For an air conditioner which uses R410A, never use other refrigerant than R410A.
For an air conditioner which uses other refrigerant (R22, etc.), never use R410A.
If different types of refrigerant are mixed, abnormal high pressure generates in the
refrigerating cycle and an injury due to breakage may be caused.
Do not charge refrigerant additionally.
If charging refrigerant additionally when refrigerant gas leaks, the refrigerant composition in
the refrigerating cycle changes resulted in change of air conditioner characteristics or
refrigerant over the specified standard amount is charged and an abnormal high pressure is
applied to the inside of the refrigerating cycle resulted in cause of breakage or injury.
Therefore if the refrigerant gas leaks, recover the refrigerant in the air conditioner, execute
vacuuming, and then newly recharge the specified amount of liquid refrigerant.
In this time, never charge the refrigerant over the specified amount.
When recharging the refrigerant in the refrigerating cycle, do not mix the refrigerant
or air other than R410A into the specified refrigerant.
If air or others is mixed with the refrigerant, abnormal high pressure generates in the
refrigerating cycle resulted in cause of injury due to breakage.
After installation work, check the refrigerant gas does not leak.
If the refrigerant gas leaks in the room, poisonous gas generates when gas touches to fire
such as fan heater, stove or cocking stove though the refrigerant gas itself is innocuous.
Never recover the refrigerant into the outdoor unit.
When the equipment is moved or repaired, be sure to recover the refrigerant with
recovering device.The refrigerant cannot be recovered in the outdoor unit; otherwise a
serious accident such as breakage or injury is caused.
After repair work, surely assemble the disassembled parts, and connect and lead the
removed wires as before. Perform the work so that the cabinet or panel does not
catch the inner wires.
If incorrect assembly or incorrect wire connection was done, a disaster such as a leak or
fire is caused at user’s side.
WARNING
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–6 –
After the work has finished, be sure to use an insulation tester set (500V Megger) to
check the resistance is 2MΩor more between the charge section and the non-charge
metal section (Earth position).
If the resistance value is low, a disaster such as a leak or electric shock is caused at user’s
side.
When the refrigerant gas leaks during work, execute ventilation.
If the refrigerant gas touches to a fire, poisonous gas generates.
A case of leakage of the refrigerant and the closed room full with gas is dangerous because
a shortage of oxygen occurs.Be sure to execute ventilation.
When checking the circuit inevitably under condition of the power-ON, use rubber
gloves and others not to touch to the charging section.
If touching to the charging section, an electric shock may be caused.
When the refrigerant gas leaks, find up the leaked position and repair it surely.
If the leaked position cannot be found up and the repair work is interrupted, pump-down
and tighten the service valve, otherwise the refrigerant gas may leak into the room.
The poisonous gas generates when gas touches to fire such as fan heater, stove or cocking
stove though the refrigerant gas itself is innocuous.
When installing equipment which includes a large amount of charged refrigerant
such as a multi air conditioner in a sub-room, it is necessary that the density does
not the limit even if the refrigerant leaks.
If the refrigerant leaks and exceeds the limit density, an accident of shortage of oxygen is
caused.
For the installation/moving/reinstallation work, follow to the Installation Manual.
If an incorrect installation is done, a trouble of the refrigerating cycle, water leak, electric
shock or fire is caused.
After repair work has finished, check there is no trouble.
If check is not executed, a fire, electric shock or injury may be caused.
For a check, turn off the power breaker.
After repair work (installation of front panel and cabinet) has finished, execute a test
run to check there is no generation of smoke or abnormal sound.
If check is not executed, a fire or an electric shock is caused.
Before test run, install the front panel and cabinet.
Check the following items after reinstallation.
1) The earth wire is correctly connected.
2) The power cord is not caught in the product.
3) There is no inclination or unsteadiness and the installation is stable.
If check is not executed, a fire, an electric shock or an injury is caused.
Insulator check
Ventilation
Be attentive to
electric shock
Compulsion
Check after repair
Check after reinstallation
WARNING
Put on gloves
Cooling check
Be sure to put on the gloves (∗) and a long sleeved shirt:
otherwise an injury may be caused with the parts, etc.
(∗) Heavy gloves such as work gloves
When the power was turned on, start to work after the equipment has been
sufficiently cooled.
As temperature of the compressor pipes and others became high due to cooling/heating
operation, a burn may be caused.
CAUTION
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–7 –
•New Refrigerant (R410A)
This air conditioner adopts a new HFC type refrigerant (R410A) which does not deplete the ozone layer.
1. Safety Caution Concerned to New Refrigerant
The pressure of R410A is high 1.6 times of that of the former refrigerant (R22).
Accompanied with change of refrigerant, the refrigerating oil has been also changed.
Therefore, be sure that water, dust, the former refrigerant or the former refrigerating oil is not mixed into the
refrigerating cycle of the air conditioner with new refrigerant during installation work or service work.
If an incorrect work or incorrect service is performed, there is a possibility to cause a serious accident.
Use the tools and materials exclusive to R410A to purpose a safe work.
2. Cautions on Installation/Service
1) Do not mix the other refrigerant or refrigerating oil.
For the tools exclusive to R410A, shapes of all the joints including the service port differ from those of
the former refrigerant in order to prevent mixture of them.
2) As the use pressure of the new refrigerant is high, use material thickness of the pipe and tools which are
specified for R410A.
3) In the installation time, use clean pipe materials and work with great attention so that water and others do
not mix in because pipes are affected by impurities such as water, oxide scales, oil, etc.
Use the clean pipes.
Be sure to brazing with flowing nitrogen gas.(Never use gas other than nitrogen gas.)
4) For the earth protection, use a vacuum pump for air purge.
5) R410A refrigerant is azeotropic mixture type refrigerant.
Therefore use liquid type to charge the refrigerant. (If using gas for charging, composition of the
refrigerant changes and then characteristics of the air conditioner change.)
3. Pipe Materials
For the refrigerant pipes, copper pipe and joints are mainly used.
It is necessary to select the most appropriate pipes to conform to the standard.
Use clean material in which impurities adhere inside of pipe or joint to a minimum.
1) Copper pipe
<Piping>
The pipe thickness, flare finishing size, flare nut and others differ according to a refrigerant type.
When using a long copper pipe for R410A, it is recommended to select “Copper or copper-base pipe
without seam”and one with bonded oil amount 40mg/10m or less.
Also do not use crushed, deformed, discolored (especially inside) pipes.
(Impurities cause clogging of expansion valves and capillary tubes.)
<Flare nut>
Use the flare nuts which are attached to the air conditioner unit.
2) Joint
The flare joint and socket joint are used for joints of the copper pipe.
The joints are rarely used for installation of the air conditioner. However clear impurities when using them.
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–8 –
4. Tools
1. Required Tools for R410A
Mixing of different types of oil may cause a trouble such as generation of sludge, clogging of capillary,
etc. Accordingly, the tools to be used are classified into the following three types.
1) Tools exclusive for R410A (Those which cannot be used for conventional refrigerant (R22))
2) Tools exclusive for R410A, but can be also used for conventional refrigerant (R22)
3) Tools commonly used for R410A and for conventional refrigerant (R22)
The table below shows the tools exclusive for R410A and their interchangeability.
Tools exclusive for R410A (The following tools for R410A are required.)
Tools whose specifications are changed for R410A and their interchangeability
(Note) When flaring is carried out for R410A using the conventional flare tools, adjustment of projection
margin is necessary. For this adjustment, a copper pipe gauge, etc. are necessary.
General tools (Conventional tools can be used.)
In addition to the above exclusive tools, the following equipments which serve also for R22 are necessary
as the general tools.
1) Vacuum pump. Use vacuum pump by
attaching vacuum pump adapter. 7) Screwdriver (+, –)
2) Torque wrench 8) Spanner or Monkey wrench
3) Pipe cutter 9) Hole core drill
4) Reamer 10) Hexagon wrench (Opposite side 4mm)
5) Pipe bender 11) Tape measure
6) Level vial 12) Metal saw
Also prepare the following equipments for other installation method and run check.
1) Clamp meter 3) Insulation resistance tester (Megger)
2) Thermometer 4) Electroscope
No.
Q
R
S
T
U
V
W
X
Y
Used tool
Flare tool
Copper pipe gauge for
adjusting projection margin
Torque wrench
Gauge manifold
Charge hose
Vacuum pump adapter
Electronic balance for
refrigerant charging
Refrigerant cylinder
Leakage detector
Usage
Pipe flaring
Flaring by conventional
flare tool
Tightening of flare nut
Evacuating, refrigerant
charge, run check, etc.
Vacuum evacuating
Refrigerant charge
Refrigerant charge
Gas leakage check
R410A
air conditioner installation
Existence of Whether conven-
new equipment tional equipment
for R410A can be used
Yes *(Note)
Yes *(Note)
Yes No
Yes No
Yes No
Yes Yes
Yes No
Yes No
Conventional air
conditioner installation
Whether conventional
equipment can be used
Yes
*(Note)
No
No
Yes
Yes
No
Yes
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

– 9 –
1. SPECIFICATIONS
1-1. Indoor Unit
1-1-1. 4-Way Air Discharge CassetteType
<Single type>
∗: IEC standard, ∗∗ : AS standard
Revised 2: Jun., 2008
Model Indoor unit RAV-SM
Outdoor unit RAV-SP
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
Running current (A)
characteristics Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Maximum current (A)
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
564UT-E 804UT-E 1104UT-E 1404UT-E
562AT(Z)(ZG)-E 802AT(Z)(ZG)-E 1104AT(Z)(ZG)-E 1404AT(Z)(ZG)-E
5.3 7.1 10.0 12.5
5.6 8.0 11.2 14.0
1 phase 230V (220 – 240V) 50Hz
7.17 – 6.57 8.95 – 8.21 10.36 – 9.49 14.66 – 13.44
1.53 1.93 2.21 3.16
97 98 97 98
3.46 3.68 4.52 3.96
AAAA
————
5.62 – 5.15 9.42 – 8.63 10.96 – 10.05 14.89 – 13.65
1.20 2.03 2.34 3.21
97 98 97 98
4.67 3.94 4.79 4.36
AAAA
————
15.33 15.33 20.50 20.50
Zinc hot dipping steel plate
RBC-U31PG (W, WS)-E, RBC-U31PGS (W, WS)-E
W:Moon-white (2.5GY 9.0/0.5),WS:Stripe-white (2.5GY 9.0/0.5, (Gray:8B 3/0.3))
256 256 319 319
840 840 840 840
840 840 840 840
30 30 30 30
950 950 950 950
950 950 950 950
20 20 24 24
4.2 4.2 4.2 4.2
Finned tube
Turbo fan
17.5/14.5/13.0 20.5/16.0/13.5 33.5/24.0/19.5 35.0/24.0/20.5
14 20 68 72
Standard filter attached (Long life filter)
RBC-AMT32E, AMS41E, AS21E2, AX31U (W)-E
32 / 29 / 28 35 / 31 / 28 43 / 38 / 33 44 / 38 / 34
47 / 44 / 43 50 / 46 / 43 58 / 53 / 48 59 / 53 / 49
12.7 15.9 15.9 15.9
6.4 9.5 9.5 9.5
VP25
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–10 –
∗: IEC standard, ∗∗ : AS standard
<Single type>
Revised 2: Jun., 2008
Model Indoor unit RAV-
Outdoor unit RAV-
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
Running current (A)
characteristics Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Maximum current (A)
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
SM564UT-E SM804UT-E SM1104UT-E SM1404UT-E SM1604UT-E
SM563AT-E SM803AT-E SM1103AT-E SM1403AT-E SM1603AT-E
5.3 6.7 10.0 12.0 14.0
5.6 8.0 11.2 14.0 16.0
1 phase 230V (220 –240V) 50Hz
7.89 –7.24 9.97 –9.12 14.61 –13.40 17.62 –16.14 21.48 –19.69
1.65 2.09 3.11 3.74 4.49
95 95 97 96 95
3.21 3.21 3.22 3.21 3.12
AAAAB
—————
6.89 –6.32 10.83 –9.90 13.38 –12.38 17.88 –15.87 21.20 –19.43
1.44 2.21 2.93 3.80 4.43
95 93 99 98 95
3.89 3.62 3.82 3.68 3.61
AAAAA
—————
15.33 15.33 20.50 20.50 32.0
Zinc hot dipping steel plate
RBC-U31PG (W, WS)-E, RBC-U31PGS (W, WS)-E
W: Moon-white (2.5GY 9.0/0.5),
WS:Stripe-white (2.5GY 9.0/0.5, (Gray:8B 3/0.3))
256 256 319 319 319
840 840 840 840 840
840 840 840 840 840
30 30 30 30 30
950 950 950 950 950
950 950 950 950 950
20 20 24 24 24
4.2 4.2 4.2 4.2 4.2
Finned tube
Turbo fan
17.5/14.5/13.0 20.5/16.0/13.5 33.5/24.0/19.5 35.0/24.0/20.5 35.5/25.0/21.0
14 20 68 72 72
Standard filter attached (Long life filter)
RBC-AMT32E, AMS41E, AS21E2, AX31U (W)-E
32 / 29 / 28 35 / 31 / 28 43 / 38 / 33 44 / 38 / 34 45 / 40 / 36
47 / 44 / 43 50 / 46 / 43 58 / 53 / 48 59 / 53 / 49 60 / 55 / 51
12.7 15.9 15.9 15.9 15.9
6.4 9.5 9.5 9.5 9.5
VP25
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–11 –
<Twin type>
∗: IEC standard
Revised 2: Jun., 2008
Indoor unit 1 RAV- SM564UT-E SM804UT-E
Model Indoor unit 2 RAV- SM564UT-E SM804UT-E
Outdoor unit RAV- SP1104AT(Z)(ZG)-E SP1404AT(Z)(ZG)-E
Cooling capacity (kW) 10.0 12.5
Heating capacity (kW) 11.2 14.0
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 10.36 –9.49 14.66 –13.44
Power consumption (kW) 2.21 3.16
Cooling Power factor (%) 97 98
EER 4.52 3.96
Electrical Energy efficiency class ∗AA
characteristics Running current (A) 10.96 –10.05 14.89 –13.65
Power consumption (kW) 2.34 3.21
Heating Power factor (%) 97 98
COP 4.79 4.36
Energy efficiency class ∗AA
Fan Turbo fan
Fan unit Standard air flow H/M/L (m³/min.) 17.5 / 14.5 / 13.0 20.5 / 16.0 / 13.5
Motor (W) 14 20
Sound pressure level H/M/L (dB•A) 32 / 29 / 28 35 / 31 / 28
Sound power level H/M/L (dB•A) 47 / 44 / 43 50 / 46 / 43
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5 7.5
Min. length (m) 3 3
Refrigerant Max. total length (m) 50 50
pipe Refrigerant charging amount 40g/m (31m to 50m)
(Charge-less up to 30m)
Height Outdoor lower (m) 30 30
difference Outdoor higher (m) 30 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 101 103
Motor (W) 100 + 100 100 + 100
Gas side Main (mm) 15.9 15.9
Connecting Sub (mm) 12.7 15.9
pipe Liquid side Main (mm) 9.5 9.5
Sub (mm) 6.4 9.5
Sound pressure level Cooling/Heating (dB•A) 49 / 50 51 / 52
Sound power level Cooling/Heating (dB•A) 66 / 67 68 / 69
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–12 –
∗: IEC standard
<Twin type>
Revised 2: Jun., 2008
Indoor unit 1 RAV- SM564UT-E SM804UT-E SM804UT-E
Model Indoor unit 2 RAV- SM564UT-E SM804UT-E SM804UT-E
Outdoor unit RAV- SM1103AT-E SM1403AT-E SM1603AT-E
Cooling capacity (kW) 10.0 12.5 14.0
Heating capacity (kW) 11.2 14.0 16.0
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 14.59 –13.38 19.17 –17.57 21.48 –19.69
Power consumption (kW) 3.11 4.09 4.49
Cooling Power factor (%) 98 97 95
EER 3.22 3.06 3.12
Electrical Energy efficiency class ∗A (B) (B)
characteristics Running current (A) 13.36 –12.36 18.74 –17.18 21.20 –19.43
Power consumption (kW) 2.93 4.00 4.43
Heating Power factor (%) 99 97 95
COP 3.82 3.50 3.61
Energy efficiency class ∗A (B) (A)
Fan Turbo fan
Fan unit Standard air flow H/M/L (m³/min.) 17.5 / 14.5 / 13.0 20.5 / 16.0 / 13.5 20.5 / 16.0 / 13.5
Motor (W) 14 20 20
Sound pressure level H/M/L (dB•A) 32 / 29 / 28 35 / 31 / 28 35 / 31 / 28
Sound power level H/M/L (dB•A) 47 / 44 / 43 50 / 46 / 43 50 / 46 / 43
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5 7.5 7.5
Min. length (m) 5 5 5
Refrigerant Max. total length (m) 50 50 50
Refrigerant charging amount
40g/m (31m to 50m)
pipe
(Charge-less up to 30m)
Height Outdoor lower (m) 30 30 30
difference Outdoor higher (m) 30 30 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 75 75 103
Motor (W) 63 100 100 + 100
Gas side Main (mm) 15.9 15.9 15.9
Connecting Sub (mm) 12.7 15.9 15.9
pipe Liquid side Main (mm) 9.5 9.5 9.5
Sub (mm) 6.4 9.5 9.5
Sound pressure level Cooling/Heating (dB•A) 53 / 54 54 / 54 51 / 53
Sound power level Cooling/Heating (dB•A) 70 / 71 71 / 71 68 / 70
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–13 –
1-1-2. Concealed DuctType
<Single type>
∗: IEC standard, ∗∗ : AS standard
Revised 2: Jun., 2008
Model Indoor unit RAV-SM
Outdoor unit RAV-SP
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
Running current (A)
characteristics Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Maximum current (A)
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Standard air flow H/M/L (m³/min.)
Fan unit Motor (W)
Standard (Pa)
External (at shipment)
static pressure Set up (Pa)
for tap exchange
Air filter (Sold separately) TCB-
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
562BT-E 802BT-E 1102BT-E 1402BT-E
562AT(Z)(ZG)-E 802AT(Z)(ZG)-E 1104AT(Z)(ZG)-E 1404AT(Z)(ZG)-E
5.0 7.1 10.0 12.5
5.6 8.0 11.2 14.0
1 phase 230V (220 –240V) 50Hz
6.51 –5.97 9.74 –8.93 13.78 –12.63 17.76 –16.28
1.39 2.10 2.94 3.83
97 98 97 98
3.60 3.38 3.40 3.26
AAAA
————
7.26 –6.66 9.74 –8.93 12.98 –11.90 15.82 –14.50
1.55 2.41 2.77 3.41
97 94 97 98
3.61 3.32 4.04 4.11
AAAA
————
15.86 16.30 21.73 22.13
Zinc hot dipping steel plate
—
—
320 320 320 320
700 1000 1350 1350
800 800 800 800
————
————
————
30 39 54 54
————
Finned tube
Centrifugal
13.0/11.9/9.8 19.0/16.2/13.3 27.0/23.0/18.9 33.0/28.0/23.1
120 120 120 120
40
20/40/70/100 20/40/65/90
UFM11BFCE UFM21BFCE
UFM21BE UFM31BE UFM41BE
UFM61BE UFM51BFCE UFM61BFCE
UFM71BE UFM81BE
RBC-AMT31E, AMS41E, AS21E2, AX21U(W)-E2
40 / 37 / 33 40 / 37 / 34 42 / 39 / 36 44 / 41 / 38
55 / 52 / 48 55 / 52 / 49 57 / 54 / 51 59 / 56 / 53
12.7 15.9 15.9 15.9
6.4 9.5 9.5 9.5
VP25
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–14 –
<Twin type>
∗: IEC standard
Indoor unit 1 RAV- SM562BT-E SM802BT-E
Model Indoor unit 2 RAV- SM562BT-E SM802BT-E
Outdoor unit RAV- SP1104AT(Z)(ZG)-E SP1404AT(Z)(ZG)-E
Cooling capacity (kW) 10.0 12.5
Heating capacity (kW) 11.2 14.0
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 13.78 –12.63 17.76 –16.28
Power consumption (kW) 2.94 3.83
Cooling Power factor (%) 97 98
EER 3.4 3.26
Electrical Energy efficiency class ∗AA
characteristics Running current (A) 12.98 –11.90 15.82 –14.50
Power consumption (kW) 2.77 3.41
Heating Power factor (%) 97 98
COP 4.04 4.11
Energy efficiency class ∗AA
Fan Centrifugal
Fan unit Standard air flow H/M/L (m³/min.) 13.0 / 11.9 / 9.8 19.0 / 16.2 / 13.3
Motor (W) 120 120
Sound pressure level H/M/L (dB•A) 40 / 37 / 33 40 / 37 / 34
Sound power level H/M/L (dB•A) 55 / 52 / 48 55 / 52 / 49
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5 7.5
Min. length (m) 3 3
Refrigerant Max. total length (m) 50 50
Refrigerant charging amount 40g/m (31m to 50m)
pipe (Charge-less up to 30m)
Height Outdoor lower (m) 30 30
difference Outdoor higher (m) 30 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 101 103
Motor (W) 100 + 100 100 + 100
Gas side Main (mm) 15.9 15.9
Connecting Sub (mm) 12.7 15.9
pipe Liquid side Main (mm) 9.5 9.5
Sub (mm) 6.4 9.5
Sound pressure level Cooling/Heating (dB•A) 49 / 50 51 / 52
Sound power level Cooling/Heating (dB•A) 66 / 67 68 / 69
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–15 –
1-1-3. Under CeilingType
<Single type>
∗: IEC standard, ∗∗ : AS standard
Revised 2: Jun., 2008
Model Indoor unit RAV-SM
Outdoor unit RAV-SP
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
Running current (A)
characteristics Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Maximum current (A)
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
562CT-E 802CT-E 1102CT-E 1402CT-E
562AT(Z)(ZG)-E 802AT(Z)(ZG)-E 1104AT(Z)(ZG)-E 1404AT(Z)(ZG)-E
5.0 7.1 10.0 12.5
5.6 8.0 11.2 14.0
1 phase 230V (220 –240V) 50Hz
6.61 –6.06 9.47 –8.93 12.51 –11.47 17.30 –15.86
1.41 2.1 2.67 3.73
97 98 97 98
3.55 3.38 3.75 3.35
AAAA
————
7.03 –6.44 10.20 –9.35 12.28 –11.25 16.93 –15.52
1.50 2.20 2.62 3.65
97 98 97 98
3.73 3.64 4.27 3.84
AAAA
————
15.48 15.90 21.35 21.35
Shine white
—
—
210 210 210 210
910 1180 1595 1595
680 680 680 680
————
————
————
21 25 33 33
————
Finned tube
Centrifugal
13.0/11.2/10.0 18.5/16.7/14.6 27.5/24.0/21.2 30.0/26.0/23.1
60 60 120 120
Attached main unit
RBC-AMT31E, AMS41E, AS21E2, TCB-SC642TLE2, AX21UCE2
36 / 33 / 30 38 / 36 / 33 41 / 38 / 36 43 / 40 / 37
51 / 48 / 45 53 / 51 / 48 56 / 53 / 50 58 / 55 / 52
12.7 15.9 15.9 15.9
6.4 9.5 9.5 9.5
VP25
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–16 –
<Twin type>
∗: IEC standard
Indoor unit 1 RAV- SM562CT-E SM802CT-E
Model Indoor unit 2 RAV- SM562CT-E SM802CT-E
Outdoor unit RAV- SP1104AT(Z)(ZG)-E SP1404A(Z)(ZG)-E
Cooling capacity (kW) 10.0 12.5
Heating capacity (kW) 11.2 14.0
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 12.51 –11.47 17.30 –15.86
Power consumption (kW) 2.67 3.73
Cooling Power factor (%) 97 98
EER 3.75 3.35
Electrical Energy efficiency class ∗AA
characteristics Running current (A) 12.28 –11.25 16.93 –15.52
Power consumption (kW) 2.62 3.65
Heating Power factor (%) 97 98
COP 4.27 3.84
Energy efficiency class ∗AA
Fan Centrifugal
Fan unit Standard air flow H/M/L (m³/min.) 13.0 / 11.2 / 10.0 18.5 / 16.7 / 14.6
Motor (W) 60 60
Sound pressure level H/M/L (dB•A) 36 / 33 / 30 38 / 36 / 33
Sound power level H/M/L (dB•A) 51 / 48 / 45 53 / 51 / 48
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5 7.5
Min. length (m) 3 3
Refrigerant Max. total length (m) 50 50
pipe Refrigerant charging amount 40g/m
(Charge-less up to 30m) (31m to 50m)
Height Outdoor lower (m) 30 30
difference Outdoor higher (m) 30 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 101 103
Motor (W) 100 + 100 100 + 100
Gas side Main (mm) 15.9 15.9
Connecting Sub (mm) 12.7 15.9
pipe Liquid side Main (mm) 9.5 9.5
Sub (mm) 6.4 9.5
Sound pressure level Cooling/Heating (dB•A) 49 / 50 51 / 52
Sound power level Cooling/Heating (dB•A) 66 / 67 68 / 69
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–17 –
1-1-4. HighWallType
<Single type>
∗: IEC standard, ∗∗ : AS standard
Model Indoor unit RAV-
Outdoor unit RAV-
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class ∗
Electrical Energy rating ∗∗
Running current (A)
characteristics Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class ∗
Energy rating ∗∗
Maximum current (A)
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer Depth (mm)
dimension
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
SM562KRT-E SM802KRT-E
SP562AT(Z)(ZG)-E SP802AT(Z)(ZG)-E
5.0 6.9
5.6 8.0
1 phase 230V (220 –240V) 50Hz
8.33 –7.63 13.15 –12.05
1.39 2.4
95 94
3.60 2.88
AC
——
8.14 –7.46 12.91 –11.84
1.55 2.4
95 94
3.61 3.33
AC
——
15.34 15.47
Pure white
—
—
298 298
998 998
221 221
——
——
——
12 12
——
Finned tube
Cross flow fan Cross flow fan
14.0 / 12.5 / 10.7 18.5 / 14.6 / 12.2
30 30
Attached main unit
RBC-AMT31E, AMS41E, AS21E2,TCB-SC642TLE2, AX21UCE2
(FCU comes withWH-H2UE)
39 / 36 / 33 45 / 41 / 36
54 / 51 / 48 60 / 56 / 51
12.7 15.9
6.4 9.5
VP16
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–18 –
<Twin type>
∗: IEC standard
Indoor unit 1 RAV- SM562KRT-E SM802KRT-E
Model Indoor unit 2 RAV- SM562KRT-E SM802KRT-E
Outdoor unit RAV- SP1104AT(Z)(ZG)-E SP1404AT(Z)(ZG)-E
Cooling capacity (kW) 10.0 12.3
Heating capacity (kW) 11.2 14.0
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 12.98 –11.90 18.00 –16.50
Power consumption (kW) 2.77 3.88
Cooling Power factor (%) 97 98
EER 3.61 3.17
Electrical Energy efficiency class ∗AB
characteristics Running current (A) 13.12 –12.03 17.76 –16.28
Power consumption (kW) 2.80 3.83
Heating Power factor (%) 97 98
COP 4.00 3.66
Energy efficiency class ∗AA
Fan Cross flow fan
Fan unit Standard air flow H/M/L (m³/min.) 14.0 / 12.5 / 10.7 18.5 / 14.6 / 12.2
Motor (W) 30 30
Sound pressure level H/M/L (dB•A) 39 / 36 / 33 45 / 41 / 36
Sound power level H/M/L (dB•A) 54 / 51 / 48 60 / 56 / 51
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5 7.5
Min. length (m) 3 3
Refrigerant Max. total length (m) 50 50
Refrigerant charging amount 40g/m
pipe (Charge-less up to 30m) (31m to 50m)
Height Outdoor lower (m) 30 30
difference Outdoor higher (m) 30 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 101 103
Motor (W) 100 + 100 100 + 100
Gas side Main (mm) 15.9 15.9
Connecting Sub (mm) 12.7 15.9
pipe Liquid side Main (mm) 9.5 9.5
Sub (mm) 6.4 9.5
Sound pressure level Cooling/Heating (dB•A) 49 / 50 51 / 52
Sound power level Cooling/Heating (dB•A) 66 / 67 68 / 69
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–19 –
1-1-5. Compact 4-Way Cassette (600 × 600)Type
<Single type>
Model Indoor unit
Outdoor unit
Cooling capacity (kW)
Heating capacity (kW)
Power supply
Running current (A)
Power consumption (kW)
Cooling Power factor (%)
EER
Energy efficiency class
Energy rating
Electrical characteristics Running current (A)
Power consumption (kW)
Heating Power factor (%)
COP
Energy efficiency class
Energy rating
Maximum current (A)
Main unit
Appearance Ceiling panel Model
(Sold separately) Panel color
Height (mm)
Main unit Width (mm)
Outer dimension Depth (mm)
Ceiling panel Height (mm)
Width (mm)
(Sold separately) Depth (mm)
Total weight Main unit (kg)
Ceiling panel (Sold separately) (kg)
Heat exchanger
Fan
Fan unit Standard air flow H/M/L (m³/min.)
Motor (W)
Air filter
Controller (Sold separately)
Sound pressure level H/M/L (dB•A)
Sound power level H/M/L (dB•A)
Gas side (mm)
Connecting pipe Liquid side (mm)
Drain port (mm)
RAV-SM562MUT-E
RAV-SP562AT(Z)(ZG)-E
5.0
5.6
1 phase 230V (220 –240V) 50Hz
6.6 –7.15
1.53
97
3.27
A
4.5
6.62 –7.21
1.54
97
3.64
A
4.5
15.53
Zinc hot dipping steel plate
RBC-UM11PG(W)-E
Moon-white (Muncel 2.5GY 9.0 / 0.5)
268
575
575
27
700
700
17
3
Finned tube
Turbo fan
13.3 / 11.2 / 9.1
60
—
As per enclosure
43 / 39 / 34
58 / 54 / 49
12.7
6.4
VP25
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com

–20 –
<Twin type>
∗: IEC standard
Indoor unit 1 RAV- SM562MUT-E
Model Indoor unit 2 RAV- SM562MUT-E
Outdoor unit RAV- SP1104AT(Z)(ZG)-E
Cooling capacity (kW) 10.0
Heating capacity (kW) 11.2
Indoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Running current (A) 12.51 –11.47
Power consumption (kW) 2.67
Cooling Power factor (%) 97
EER 3.75
Electrical Energy efficiency class ∗A
characteristics Running current (A) 12.51 –11.47
Power consumption (kW) 2.67
Heating Power factor (%) 97
COP 4.19
Energy efficiency class ∗A
Fan Turbo fan
Fan unit Standard air flow H/M/L (m³/min.) 13.3 / 11.2 / 9.1
Motor (W) 60
Sound pressure level H/M/L (dB•A) 43 / 39 / 34
Sound power level H/M/L (dB•A) 58 / 54 / 49
Outdoor unit
Power supply 1 phase 230V (220 –240V) 50Hz
Standard length (m) 7.5
Min. length (m) 3
Refrigerant pipe Max. total length (m) 50
Refrigerant charging amount (Charge-less up to 30m) 40g/m (31m to 50m)
Height difference Outdoor lower (m) 30
Outdoor higher (m) 30
Fan Propeller fan
Fan unit Standard air flow volume (m³/min.) 101
Motor (W) 100 + 100
Gas side Main (mm) 15.9
Connecting pipe Sub (mm) 12.7
Liquid side Main (mm) 9.5
Sub (mm) 6.4
Sound pressure level Cooling/Heating (dB•A) 49 / 50
Sound power level Cooling/Heating (dB•A) 66 / 67
Revised 2: Jun., 2008
Toshiba SDI / DI tuotteiden jälleenmyyjä pääkaupunkiseudulla on Jäähdytinpalvelu RefGroup Oy.
www.ilmalämpöpumput.com
