OWNER’S MANUAL
AIR CONDITIONER (SPLIT TYPE)
For general public use
Indoor unit
RAS-25, 35S4KVDG-ND
Outdoor unit
RAS-25, 35S4AVPG-ND
ENGLISHENGLISH
ENGLISHSVENSKA
ENGLISHSUOMI
ENGLISHNORSK
01_OM_1134050202_EN.indd 101_OM_1134050202_EN.indd 1 14/7/2566 BE 08:5914/7/2566 BE 08:59

1
PRECAUTIONS FOR SAFETY
Read the precautions in
this manual carefully before
operating the unit.
This appliance is filled with R32.
Warning indications on the air conditioner unit
Warning indication Description
BURST HAZARD
Open the service valves
before the operation,
otherwise there might be
the burst.
CAUTION CAUTION
BURST HAZARD
Open the service valves before the operation,
otherwise there might be the burst.
●Keep this manual where the operator can easily find it.
●Read the precautions in this manual carefully before operating the unit.
●This appliance is intended to be used by expert or trained users in shops, in light
industry and on farms, or for commercial use by lay persons.
●The precautions described herein are classified as DANGER, WARNING and
CAUTION. They both contain important information regarding safety. Be sure to
observe all precautions without fail.
DANGER
●Do not install, repair, open or remove the cover. It may expose you to
dangerous voltages. Ask the dealer or the specialist to do this.
●Turning off the power supply will not prevent potential electric shock.
●The appliance shall be installed in accordance with national wiring regulation.
●Means for disconnection from the supply having a contact separation of at least
3 mm in all poles must be incorporated in the fixed wiring.
●The appliance must be stored in a room without continuously operating ignition
sources (for example, open flames, an operating gas appliance or an operating
electric heater).
●In order to avoid fire, explosion or injury, do not operate the unit when harmful
gases (e.g. flammable or corrosive) are detected near the unit.
WARNING
●Do not expose your body directly to cool or warm air for a long time.
●Do not insert your finger or any article into the air inlet/outlet.
●When an abnormality (burning smell, etc.) occurs, stop the air conditioner and
disconnect the power supply or turn off the breaker.
●This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
01_OM_1134050202_EN.indd 101_OM_1134050202_EN.indd 1 14/7/2566 BE 08:5914/7/2566 BE 08:59

2
PRECAUTIONS FOR SAFETY
●This appliance is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
●The air conditioner must be installed, maintained, repaired and removed by a
qualified installer or qualified service person. When any of these jobs is to be
done, ask a qualified installer or qualified service person to do them for you.
●Children should be supervised to ensure that they do not play with the
appliance.
●Do not use any refrigerant different from the one specified (R32) for complement
or replacement. Otherwise, abnormally high pressure may be generated in the
refrigeration cycle, which may result in a failure or explosion of the product or an
injury to your body.
●Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
●The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater).
●Be aware that refrigerants may not contain an odour.
●Do not pierce or burn as the appliance is pressurized. Do not expose the
appliance to heat, flames, sparks, or other sources or ignition. Else, it may
explode and cause injury or death.
●Do not add any other devices without factory advice.
CAUTION
●Do not wash the unit with water. It may cause an electric shock.
●Do not use this air conditioner for other purposes such as preserving food,
breeding animal, etc.
●Do not step or put anything on the indoor/outdoor unit. It may cause an injury or
damage the unit.
●Do not touch aluminium fin because it may cause an injury.
●Before cleaning the unit, turn off the main switch or the circuit breaker.
●When the unit won’t be used for a long time, turn off the main switch or the
circuit breaker.
●It is recommended that maintenance be performed by a specialist when the unit
has been operated for a long time.
●The manufacturer shall not assume any liability for the damage caused by not
observing the description of this manual.
●Remote controller and Holder are contained with magnet please keep far from
product that effect with magnet. (such as electronics appliance magnetic strip
card and etc.)
●High temperature, high magnet field and direct force collisions may effect to
magnet force down.
EN
01_OM_1134050202_EN.indd 201_OM_1134050202_EN.indd 2 14/7/2566 BE 08:5914/7/2566 BE 08:59

3
INDOOR UNIT DISPLAY
1
1ECO (White)
2Wi-Fi access (White)
3Strong defrost (White)
4Timer (White)
5Operation Mode
- Cool (Blue)
- Heat (Orange)
●Display brightness can be adjusted, follow procedure on ".
PREPARATION BEFORE USE
2
Preparing Filters
1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the
Installation Manual).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Remote Controller Reset
1. Remove the batteries.
2. Press .
3. Insert the batteries.
AIR FLOW DIRECTION
3
1
Press : Move the
louver in the desired vertical
direction.
2
Press : Move the
louver in the desired horizontal
direction.
3
Press : For select
louver setting operation.
V
V
H
H
H.DA
Swing off Vertical
(Up-Down)
Swing
Vertical and
Horizontal
Swing
Horizontal
(Left-Right)
Swing
HADA Care
Flow
●Vertical (Up-Down) Swing
●Horizontal (Left-Right) Swing
●HADA Care Flow
Air flow upward to the ceiling,
provide indirect air flow to body
and homogenize room
temperature.
Note:
●During HADA Care Flow mode, FIX button cannot active.
●Do not move the louver manually by hands or others.
●The louver may automation positioning by some operation mode.
REMOTE CONTROLLER
4
1Infrared signal emitter
2Start/Stop button
3Mode select button
4Temperature button
5Fan speed button
6Menu select button
7Swing louver button
8Exit button
9Set louver Up-Down button
!Set louver Left-Right button
"Check button*
*Check button under battery cover 2
1
4
6
8
3
5
7
MODE
FAN MENU
EXIT
SWING
FIXFIX
COOLING / FAN ONLY OPERATION
5
1. Press : Select Cool , or Fan only .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Fan Only: No temperature indication.
3. Press : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet .
AUTOMATIC OPERATION
6
To automatically select cooling, heating, or fan only operation.
1. Press : Select Auto A.
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
3. Press : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet .
HEATING AND 8°C OPERATION
7
1. Press : Select Heat .
2. Press : Set the desired temperature. Min. 5°C, Max. 30°C.
* Temperature range 5-16°C is Heat mode with 8°C operation with less
of energy usage.
3. Press : Select AUTO, LOW , LOW+ , MED ,
MED+ , HIGH or Quiet .
Note: During 8°C mode active (temperature range 5-16°C), some operation
such as QUIET, Hi POWER, TIMER OFF cannot use.
DRY OPERATION
8
For dehumidification, a moderate cooling performance is controlled
automatically.
1. Press : Select Dry .
2. Press : Set the desired temperature. Min. 17°C, Max. 30°C.
Note: DRY mode fan speed is set to Auto only.
01_OM_1134050202_EN.indd 301_OM_1134050202_EN.indd 3 14/7/2566 BE 08:5914/7/2566 BE 08:59

4
9.1 DIRECT AND INDIRECT OPERATION
Thermal sensors detect the human inside the room to finding the position of
human and determine the louver operation to the airflow direction that user
require.
(except in DRY and FAN ONLY mode)
Direct
When the thermal sensor detects the human position
The air conditioner adjusts the louver to direct the air flow towards the human.
Indirect
When the thermal sensor detects the human position
The air conditioner adjusts the louver to indirect the airflow of the human.
Direct/Indirect operation setting
1. Press MENU button for enter menu selection.
Blink both triangle and
feature mark Feature
not yet set.
2. Enter Direct/Indirect set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
Blink only feature
3. Select Direct/Indirect operation by press TEMP. button.
Direct Indirect None
4. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by press EXIT button.
Note:
●Do not move the thermal sensor manually by hands or others. This may
cause malfunction of the thermal sensor.
Constrains at the following condition cannot be detected
●Person be along the wall.
●Person be directly under the air conditioner.
●Where any obstacle such as furniture, other heat source.
●Place that room temperature is too high.
●A person wears heavy clothes and his/her skin is not exposed.
●A heating element of which temperature changes significantly is present.
●Some heat sources, such as a small child or pet may not be detected.
●A heat source is too far from air conditioner.
●A heat source does not move for a long time.
●Detection may mistakes from other heat sources, sunlight, fireplace,
radiator, moving curtains, etc.
MENU SETUP
9
For select more setting of Air conditioner such as Direct/Indirect, Hi POWER,
OFF Timer and other use MENU button .
EN
01_OM_1134050202_EN.indd 401_OM_1134050202_EN.indd 4 14/7/2566 BE 08:5914/7/2566 BE 08:59

5
9.2 OCCUPANCY OPERATION
To automatically control room temperature to save energy when have no
occupancy inside the room.
(except in DRY and FAN ONLY mode)
1. Press MENU button for enter menu setting and press TEMP. button to
select Occupancy feature.
Blink both triangle and
feature mark Feature
not yet set.
2. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
3. Leave from menu setting display by press EXIT button.
Note:
●The human detection may be an error occur if there is a lot of sunlight
inside the room.
9.3 STRONG DEFROST OPERATION
Upgrade defrost ability when normal defrost ability is not enough by increase
defrosting finished operation.
1. Press MENU button for enter menu setting and press TEMP. button to
select Strong defrost feature.
Blink both triangle and
feature mark Feature
not yet set.
2. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
3. Leave from menu setting display by press EXIT button.
Note:
●Strong defrost will operate only in Auto and Heat mode.
9.4 SILENT OPERATION (Outdoor Unit)
Keep outdoor unit operating silently to ensure either yourself or neighborhood
will have a tight sleep in nighttime. By this feature, the cooling or heating
capacity will be optimized to deliver such silent experience. The silent
operation can be selected from one of two purposes (Silent 1 and Silent 2).
There are three setting parameters: Standard level > Silent 1 > Silent 2
Silent 1:
●Though operating silently, the cooling or heating capacity is still prioritized
to ensure having sufficient comfort inside the room.
●This setting is a perfect balance between the cooling or heating capacity
and the Sound level of outdoor unit.
Silent 2:
●Compromising the cooling or heating capacity to the Sound level in any
circumstance where the outdoor unit’s sound level is highly prioritized.
●This setting has a purpose to reduce the maximum sound level of
outdoor unit by 4 dB(A).
Note:
●While activating of Silent operation, inadequate cooling or heating capacity
may occur.
Silent Operation Setting
1. Press MENU button for enter menu setting and press TEMP. button to
select Silent.
Blink both triangle and
feature mark Feature
not yet set.
2. Enter SILENT set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
Blink only feature
3. Select SILENT operation by press TEMP. button.
SILENT#1 SILENT#2 None
4. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by press EXIT button.
01_OM_1134050202_EN.indd 501_OM_1134050202_EN.indd 5 14/7/2566 BE 08:5914/7/2566 BE 08:59

6
9.5 Hi POWER OPERATION
To automatically control room temperature and airflow for faster cooling or
heating operation (except in DRY and FAN ONLY mode).
1. Press MENU button for enter menu setting and press TEMP. button to
select Hi POWER.
Blink both triangle and
feature mark Feature
not yet set.
2. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
3. Leave from menu setting display by press EXIT button.
9.6 ECO OPERATION
To automatically control room temperature to save energy
(except in DRY and FAN ONLY mode).
1. Press MENU button for enter menu setting and press TEMP. button to
select ECO.
Blink both triangle and
feature mark Feature
not yet set.
2. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
3. Leave from menu setting display by press EXIT button.
Note:
●Cooling operation; the set temperature will increase automatically
1 degree/hour for 2 hours (maximum 2 degrees increase).
For heating operation the set temperature will decrease.
9.7 FIREPLACE OPERATION
Keep indoor unit’s fan blowing continuously during thermo off, to circulate heat
from other sources over the room. There are three setting parameters:
Default setting > Fireplace 1 > Fireplace 2
Fireplace 1:
●During thermo off period, the indoor unit’s fan will continue to run by the
same speed, previously selected by end-user.
Fireplace 2:
●During thermo off period, the indoor unit’s fan will continue to run at
super-low speed, programmed from factory.
Fireplace Operation Setting
1. Press MENU button for enter menu setting and press TEMP. button to
select FIREPLACE.
Blink both triangle and
feature mark Feature
not yet set.
2. Enter FIREPLACE set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
Blink only feature
3. Select FIREPLACE operation by press TEMP. button.
FIREPLACE1 FIREPLACE2 None
4. Confirm selected feature by press MENU button again.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by press EXIT button.
Note:
●While Fireplace operation on heating mode, indoor unit fan always runs
and cold air breezing might be occurred.
●Fireplace will operate in Heating mode only.
EN
01_OM_1134050202_EN.indd 601_OM_1134050202_EN.indd 6 14/7/2566 BE 08:5914/7/2566 BE 08:59

7
9.8 TIMER OFF OPERATION
To set the timer OFF when the air conditioner is operating.
1. Press MENU button for enter menu setting and press TEMP. button to
select TIMER OFF.
Blink both triangle and
feature mark Feature
not yet set.
2. Enter TIMER set by press MENU button.
triangle mark will stop blink and setting feature will be blink instead.
Blink only hrs
3. Select TIMER OFF by press TEMP. button.
Can select TIMER OFF from 0.5 - 12 hrs.
4. Confirm TIMER OFF by press MENU button.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by press EXIT button.
Note:
●The setting will be saved for the next same operation.
Cancel TIMER OFF
6. During TIMER OFF already set (no.5) press MENU button and press
TEMP. button to select TIMER OFF.
Blink only triangle
Feature already set.
7. Press MENU button again will cancel TIMER OFF.
Blink both triangle and
feature mark Feature
not yet set.
8. Leave from menu setting display by press EXIT button.
9.9 PURE (IONIZER) OPERATION
Capture efficiency of floating impurities in the air is accelerated by Ionizer
contaminates such as bacteria, odor, smoke, dust and virus are caught and
deactivated by Ionizer.
1. Press MENU button for enter menu setting and press TEMP. button to
select PURE.
°C
Blink both triangle and
feature mark Feature
not yet set.
2. Confirm selected feature by press MENU button again.
°C
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
3. Leave from menu setting display by press EXIT button.
°C
Note:
●Ionizer operation does not remove harmful substances from cigarette
smoke (carbon monoxide etc.). Open a window occasionally for ventilation.
●Build up of dirt, smoke, or an extremely humid environment might cause
the Ionizer operation to be malfunction. In that case, cleaning the air-con
and let it dry prior operation are recommended.
01_OM_1134050202_EN.indd 701_OM_1134050202_EN.indd 7 14/7/2566 BE 08:5914/7/2566 BE 08:59

8

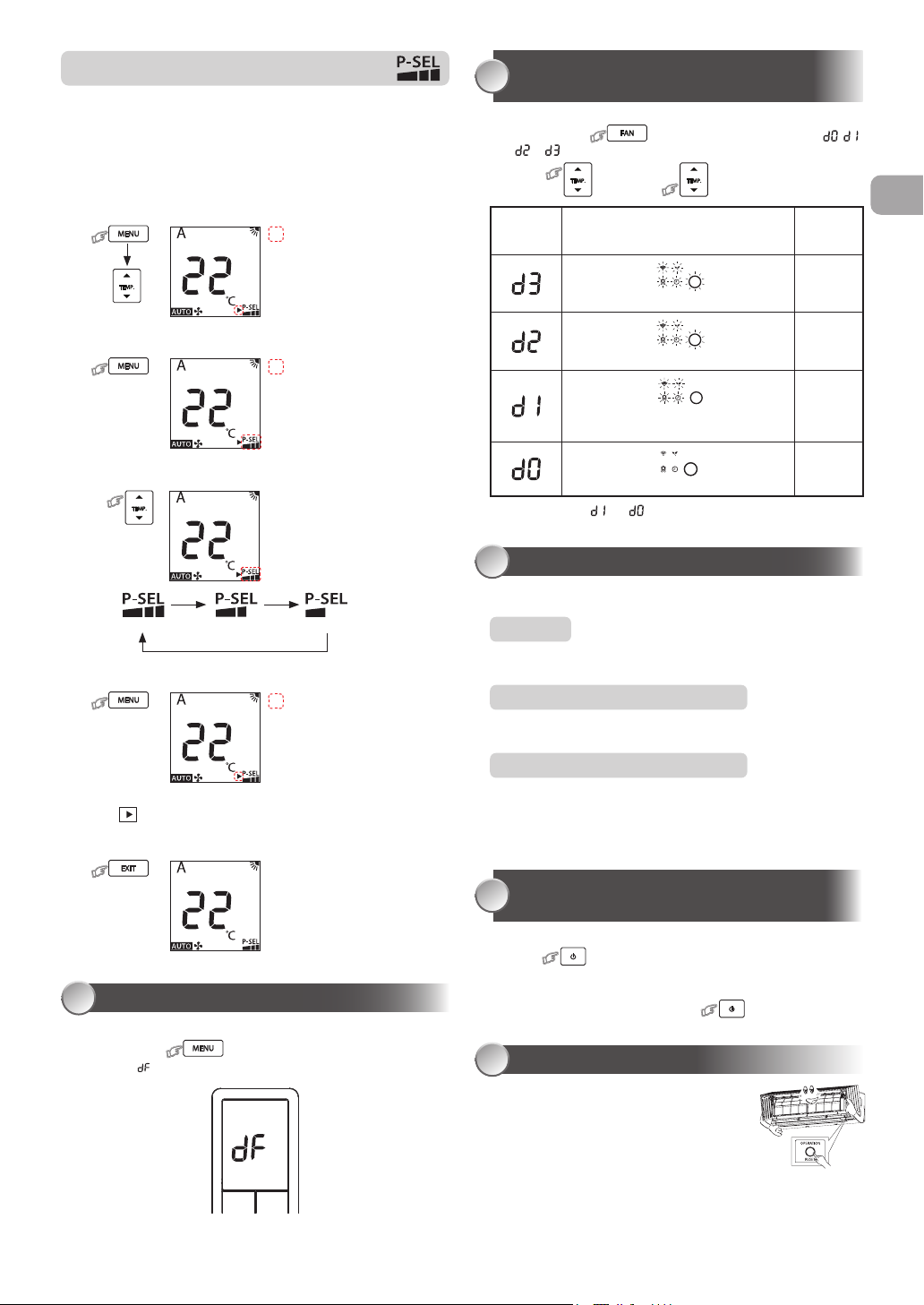

9.10 POWER-SELECTION OPERATION PESEL
This function is used when the circuit breaker is shared with other electrical
appliances. It limits the maximum currenl and power consumption to 100%,
75%, of 50% and can be implemented by POWER-SELECTION. The lower
percentage, the higher saving and also longer compressor lifetime.
Note:
●Due to the reason that POWER-SELECTION function limits the maximum
current, inadequate cooling or heating capacity may occur.
1. Press MENU button for enter menu setting and press TEMP. button to
select POWER-SEL.
Blink only triangle
2. Enter POWER-SEL setting by press MENU button again.
Blink only feature
3. Select POWER-SEL level by press TEMP. button.
100% 75% 50%
4. Confirm POWER-SEL level by press MENU button.
Blink only triangle
Feature already set.
When feature had selected will return to menu selection display triangle mark
will blink .
5. Leave from menu setting display by press EXIT button.
MANUAL DEFROST OPERATION
10
To defrosting the heat exchanger of the outdoor unit during Heating operation.
Press and hold : for 5 seconds, then remote controller display
will show as picture 1for 2 seconds.
1
DISPLAY LAMP BRIGHTNESS
ADJUSTMENT
11
To decrease the display lamp brightness or turn it off.
1. Press and hold for 3 seconds until brightness level ( , ,
or ) is shown on remote controller LCD then release the button.
2. Press
Rise
or
Decrease
to adjust brightness in 4 levels.
Remote
controller
LCD
Operation display Brightness
Lamp illuminates full brightness.
100%
Lamp illuminates 50% brightness.
50%
Lamp illuminates 50% brightness and the
operation lamp is turned off.
50%
All lamps are turned off.
All turned off
●In the examples of and , the lamp illuminates for 5 seconds before
going off.
AUTO RESTART FUNCTION SETTING
12
This product is designed so that, after a power failure, it can restart
automatically in the same operating mode as before the power failure.
Information
The product is shipped with Auto Restart function in the ON position.
Turn it OFF if this function is not required.
How to turn OFF the Auto Restart Function
●Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds but OPERATION lamp does not blink).
How to turn ON the Auto Restart Function
●Press and hold the [OPERATION] button on the indoor unit for 3 seconds
(3 beep sounds and OPERATION lamp blink 5 time/sec for 5 seconds).
Note:
●In case of ON timer or OFF timer are set, AUTO RESTART OPERATION
does not activate.
SELF CLEANING OPERATION
(COOL AND DRY OPERATION ONLY)
13
To protect bad smell caused by the humidity in the indoor unit.
1. If the button is pressed once during “Cool” or “Dry” mode,
the fan will continue to run for other 30 minutes, then it will turn off
automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within
30 seconds.
TEMPORARY OPERATION
14
In case of the misplaced or discharged remote controller.
●Pressing the RESET button, the unit can start or
stop without using the remote controller.
●Operation mode is set on AUTOMATIC operation,
preset temperature is 24°C and fan operation is
automatic speed.
OPERATION
RESET
OPERATION / RESET Button
EN
01_OM_1134050202_EN.indd 801_OM_1134050202_EN.indd 8 14/7/2566 BE 08:5914/7/2566 BE 08:59

9
REMOTE CONTROL A-B SELECTION
15
To separate using of remote control for each indoor unit in case of
2 air conditioners are installed nearly.
Remote Control B Setup.
1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.
3. Push and hold button on the back side of Remote Control “00” will be
shown on the display. (Picture 1)
4. Press during pushing . “B” will show on the display and
“00” will disappear and the air conditioner will turn OFF. The Remote
Control B is memorized. (Picture 2)
Note: 1. Repeat above step to reset Remote Control to be A.
2. Remote Control A has not “A” display.
3. Default setting of Remote Control from factory is A.
12
OPERATION AND PERFORMANCE
16
1. Three-minute protection feature: To prevent the unit from being activated
for 3 minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before the heating
operation starts.
3.
Warm air control: When the room temperature reaches the set temperature,
the fan speed is automatically reduced and the outdoor unit will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoors and released into
the room. When the outdoor temperature is too low, use another
recommended heating apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit
where it will not be subjected to snow drifts, accumulation of leaves or
other seasonal debris.
7.
Some minor cracking sound may occur when unit operating. This is normal
because the cracking sound may be caused by expansion/contraction of
plastic.
Note: Item 2 to 6 for Heating model.
Air conditioner operating conditions
Temp.
Operation Outdoor Temperature Room Temperature
Heating –30°C ~ 24°C Less than 28°C
Cooling –15°C ~ 46°C 21°C ~ 32°C
Dry –15°C ~ 46°C 17°C ~ 32°C
MAINTENANCE
17
Firstly, turn off the circuit breaker.
Indoor Unit and Remote Controller
●Clean the indoor unit and the remote controller with a wet cloth when
needed.
●No benzine, thinner, polishing powder or chemically-treated duster.
Air filters
Clean every 2 weeks.
1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.
TROUBLESHOOTING (CHECK POINT)
18
The unit does not operate. Cooling or Heating is abnormally low.
●The power main switch is
turned off.
●The circuit breaker is activated
to cut off the power supply.
●Stoppage of electric current.
●ON timer is set.
●The filters are blocked with dust.
●The temperature has been set
improperly.
●The windows or doors are opened.
●The air inlet or outlet of the outdoor unit
is blocked.
●The fan speed is too low.
●The operation mode is FAN or DRY.
●POWER SELECTION function is set
75% or 50% (This function is depend
on remote controller).
01_OM_1134050202_EN.indd 901_OM_1134050202_EN.indd 9 14/7/2566 BE 08:5914/7/2566 BE 08:59

10
WIRELESS LAN CONNECTION
19
Toshiba Home AC Control
Please visit the application store on your device to download and install
Toshiba Home AC Control application.
Application
Keyword : Toshiba Home AC Control
Toshiba Home AC Control application support
iOS : 9.0 or later.
Android : Version 5.0 or later.
About Toshiba Home AC Control
1. Toshiba Home AC Control can control AC operation by Smartphone or
tablet (mobile device) via internet connection.
2. Everywhere control, control software run on Cloud system and mobile
device can set and monitor AC operation via internet connection.
3. Everyone can control, 1 Wireless adapter maximum 5 User
(use 1 email register).
4. Multi AC system control, 1 user can control 10 AC.
5. Group control.
5.1 Can create and control 3 groups of AC.
5.2 Can control max 10 AC per group.
Note:
1. Adapter can register only 1 email address, if register with new email, current email will be invalid.
2. 1 email address can use for register 5 devices for control same AC.
Register process
Open an application and follow register for User registration.
United Kingdom
Italy
1Tab Register. 2Enter email address. 3Select country. 4Enter user name.
5Enter password by
6-10 characters, combination
of alphabet and number.
6Check for term and condition. 7Confirm information. 8Information will be submitted
to email, click link to confirm.
EN
01_OM_1134050202_EN.indd 1001_OM_1134050202_EN.indd 10 14/7/2566 BE 08:5914/7/2566 BE 08:59

11
Log in to Toshiba Home AC Control application
1Connect Wireless adapter to A/C and turn on power supply.
Built-in type, Wireless adapter already install with unit.
2Open application and select
Log in.
3Enter user name and
password.
4Login successful.
Add Wireless adapter for control by Toshiba Home AC Control application
Wireless adapter Built-in
Active Wireless adapter by
remote controller and Auto log in
1Select “Add AC (Adapter)” from both display above. 2Select AC (adapter) connection method.
*Note
1. In case of Wi-Fi router change or Email for register change need to re-process for add Wireless adapter again
(Built in type : Press MODE button at Remote controller 5 seconds for active AP mode).
2. In case of change Wireless adapter to use with other A/C need to factory reset and re-process for add Wireless adapter again
(Built in type : Press MODE button at Remote controller 5 seconds and select “rb”).
01_OM_1134050202_EN.indd 1101_OM_1134050202_EN.indd 11 14/7/2566 BE 08:5914/7/2566 BE 08:59

12
Add Wireless adapter for control by Toshiba Home AC Control application
3AC (adapter) connect. 4Active Wireless adapter by Remote controller.
5Connect with Home Wi-Fi Router.
6A/C add finished.
7Connect successfully.
Wireless LED lamp stop blink.
Press and hold
MODE button 5 seconds
Wireless LED mark will blink
when AP mode active
WPS mode
Manual input
Wi-Fi Router Name
Wi-Fi Router Password
EN
01_OM_1134050202_EN.indd 1201_OM_1134050202_EN.indd 12 14/7/2566 BE 08:5914/7/2566 BE 08:59

13
Toshiba Home AC Control application
Home screen
Add AC
Sub menu all AC
· Add Group
· Delete Group
· Operation Setting
Sub menu group
· Select AC
· Change Name
· Operation Setting
Sub menu AC
· Operation Setting
· Change Name
· Delete AC
Setting temperature /
Actual room temp
Current operation mode
of each AC
Menu
All AC On/Off
Group AC On/Off
Each AC On/Off
Group name
AC device is offline
Notification ERROR code
description (pop up)
Weekly schedule Setting
01_OM_1134050202_EN.indd 1301_OM_1134050202_EN.indd 13 14/7/2566 BE 08:5914/7/2566 BE 08:59

14
Mode and Condition setting
Enter operation mode of All AC
Enter operation mode of Group AC
Enter operation mode of each AC
Mode select for Toshiba Home AC Control application
Provide for 5 operation modes
Auto
Heat*
* This “Heat mode” is only available
for Heat Pump product.
Cool
Fan only
Dry
Off
EN
01_OM_1134050202_EN.indd 1401_OM_1134050202_EN.indd 14 14/7/2566 BE 08:5914/7/2566 BE 08:59

15
Setting in operation mode
Tab for select AC
Weekly schedule
OFF-ON Timer set 0.5 - 12 Hrs.
Temperature set
Indoor temperature
Outdoor temperature
Select Direct/Indirect
or Motion Tracking
On Smart sensing
Smart Sensing set
Louver set
Special feature
Note : The Motion Tracking operation is
the same as the Occupancy operation in
the remote controller.
Off mode
On timer set from
Off mode only
Fan speed
Mode select
01_OM_1134050202_EN.indd 1501_OM_1134050202_EN.indd 15 14/7/2566 BE 08:5914/7/2566 BE 08:59

16
Group operation
Maximum 3 groups
1 Group maximum = 10 units.
Add group
Add AC in group
Delete AC in group
Please make sure Factory Reset is
performed before deleting AC from mobile
application.
(See owner manual “Press and hold MODE
button on remote control for 5 second and
active dL function”)
EN
01_OM_1134050202_EN.indd 1601_OM_1134050202_EN.indd 16 14/7/2566 BE 08:5914/7/2566 BE 08:59

17
Weekly schedule set
Time select Weekly schedule set for each unit
Select program for active by tick at select box
Mode select
Weekly schedule of all AC unit Weekly schedule of all AC unit
Day select Monday - Sunday
Weekly schedule cancel
Weekly schedule
set and active
Weekly schedule
set but not active
Weekly schedule
not set
01_OM_1134050202_EN.indd 1701_OM_1134050202_EN.indd 17 14/7/2566 BE 08:5914/7/2566 BE 08:59

18
Energy monitoring
Select Room for Energy monitoring
1Select Energy monitoring.
Set cost calculate and currency
Select Energy monitoring display
Export data and send by Email
●The power consumption displayed is just an estimate as it is calculated simply.
It may sometimes differ from the result measured by the power meter.
2Energy monitoring display.
EN
01_OM_1134050202_EN.indd 1801_OM_1134050202_EN.indd 18 14/7/2566 BE 08:5914/7/2566 BE 08:59

19
In case of have some problem can check from Help menu
Note:
●The Wireless Adapter must be installed, maintained, repaired and removed by a qualified installer or qualified service person.
●Contact dealer and/or service center when equipment is malfunction.
DECORATIVE WOOD
20
Maintenance & Shelf-life
●Ensure proper maintenance and prolong the shelf-life of wood by promptly cleaning when dust accumulates on decorative surfaces.
●Take special care when cleaning the decorative wood.
●Remove dust from decorative wood using a feather duster, a vacuum cleaner with a soft brush nozzle designed for furniture cleaning,
or a damp cloth.
Note:
●Due to the natural characteristics of wood, each wooden lattice has a unique grain texture and color tone.
●The color of wood may change slightly over time, and it is normal for natural wood to darken a bit with use.
CAUTION
●Please don’t use wet cloth for cleaning decorative wood.
01_OM_1134050202_EN.indd 1901_OM_1134050202_EN.indd 19 14/7/2566 BE 08:5914/7/2566 BE 08:59
